Radio Controlled

ProjectionClock

MODEL:RM813P/RM813PU(UKVersion)

Instruction Manual

INTRODUCTION

Congratulations on your purchase of the RF Projection Clock

(RM813P/RM813PU).

The RM813P/RM813PU is a multifunctional radio-controlled

clock. It can automatically synchronize its current time and date

when brought within an approximate 1500 km radius of the radio

signal DCF77 generated from Frankfurt, Germany (the UK version

from MSF Rugby, England).

To facilitate night time reading, the unit comes with a projector that

can cast large, clear clock-time figures onto flat surfaces in dark. It

also has a guiding light at the back of the unit.

MAIN FEATURES

A Two-line display

Displays the current time and calendar or alarm time

B[ ] Radio reception signal

Indicates the condition of radio reception

C[ ]Alarmicon

Appears when weekday alarm is activated

D[ ]Alarmicon

Appears when single alarm is activated

SNOOZE ] button

Enablesthesnoozefunctionwhen analarmgoesoffor activates

the projector for five seconds

F Up [ ]andDown[ ] buttons

Increases or decreases the value of a setting

G[ ] button

Sets the time for the two alarms

MODE ] button

Toggles the display modes and confirms entry in clock setting

mode

I Projector

For projecting the current time on the wall or ceiling

J[ PROJECTION ON ] switch

Used with the power adapter to enable extended use of the

projector

LIGHT ON ] switch

Used with power adapter to enable extended use of the guiding

light

TEST ] button

To turn on the guiding light as long as it is pressed and held

RESET ] button

Resets the unit by returning all settings to factory default

values

N Batterycompartment

Accommodates two (2) UM-3 or “AA” size batteries

O Guiding light

P ACadapterjack

BATTERY INSTALLATION

The unit uses two (2) UM-3 or “AA” size 1.5V batteries.

To insert batteries:

1. Slide the battery door in the direction of the arrow.

2. Insert the batteries strictly according to the polarities shown

therein.

3. Replace the battery compartment door.

4. Press the [RESET] button.

When the low battery indicator [ ] is shown on the display,

replace with fresh batteries.

Note: Under normal circumstances, the batteries are good for 1

year. However, the battery life can be reduced vastly by frequent

use of the projector or snooze function.

If not disposed of properly batteries can be harmful.

Protect the environment by taking exhausted batteries

to authorized disposal stations.

HOW TO USE THE PROJECTOR

Press [ SNOOZE ] and the projection will be activated for

approximately 5 seconds.

Note: Make sure the [ PROJECTION ON ] switch is switched to the

front.

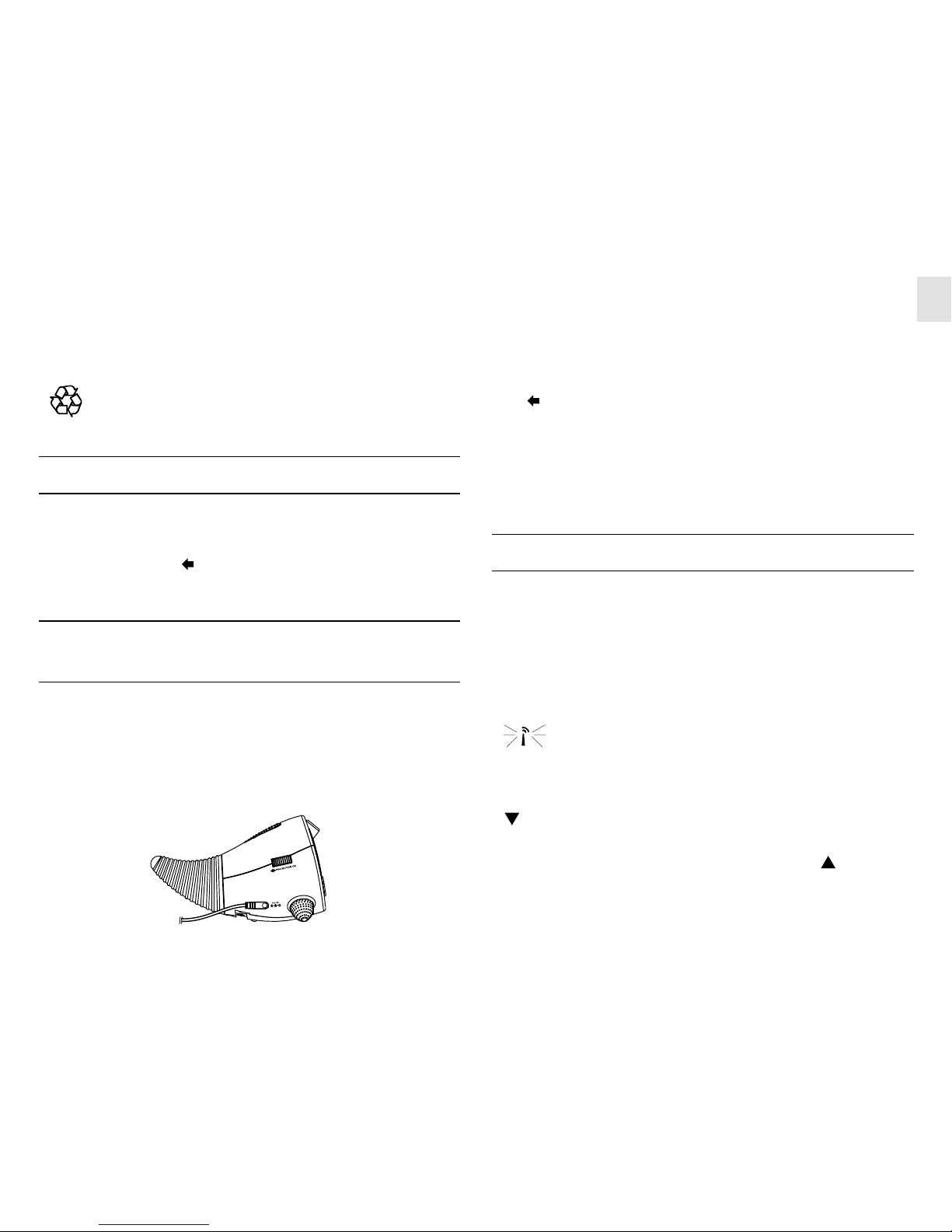

HOW TO USE THE PROJECTOR

WITH POWER ADAPTER

RM813P/RM813PU comes with an AC power adapter. Use of the

AC power adapter is required for continuous time projection.

To install the adapter:

1. Insert adapter into jack at the bottom of the unit.

2. Plug the adapter into an electrical wall outlet.

Note: Make sure the voltage is correct.

Once the power adapter is in place, you can select to turn on the

projector for longer time (such as throughout the night) by sliding

the [ PROJECTION ON ] switch on the side of the unit to the back.

To turn off the projector, slide the switch back.

Note that this switch can only be used with the power

adapter installed. For momentary projection, use the

[ SNOOZE ].

ABOUT RADIO RECEPTION

RM813P/RM813PU is designed to synchronize its calendar clock

automatically once it is brought within range of the Frankfurt

DCF77 radio signal (MSF60 for UK version).

When RM813P/RM813PU is within range, the radio-controlled

mechanism will override all manual setting unless radio reception

is being deactivated.

When the unit is receiving signal, the Radio Reception symbol

[] will start to blink. Generally, complete reception takes

around 2 to 10 minutes depending on the strength of the radio

signal.

To disable the reception of RF signal manually, press and hold the

[ ] button for 2 seconds until the Radio Reception symbol

disappear.

To enable the reception again, press and hold the [ ] button for

2 seconds. The Radio Reception symbol will blink and the unit

will search for RF signal automatically.

STRONG

WEAK

NORECEPTION

RECEIVING

Interference

Receptioncanbeaffectedbyanumberoffactors.Forbestreception,

place the device away from metal objects and electrical appliances.

Note: Interference from sources such as TV sets can affect the

signal. If, after batteries have been inserted for ten minutes, the

signal is not received, then set the time manually (see section: How

To Set The Clock & Calendar Manually).

HOW TO SET THE CLOCK AND

CALENDAR MANUALLY

To set the clock and calendar:

1. Press and hold [MODE] for 2 seconds and the time-zone offset

hour digits will blink.

2. Enter the value by [ ] / [ ] buttons.

3. Confirm the entry by pressing [MODE] and the 12- or 24-hour

display format will blink.

4. Repeat (2) and confirm the entry by pressing [MODE].

5. Repeat the above procedures to set the hour, minute, year,

month, day and language for day-of-week. You can select

among English (E), German (D), French (F), I (Italian) or

Spanish (S).

Day-of-the-week

Language Monday Tuesday Wed. Thursday Friday Saturday Sunday

English

German

French

Italian

Spanish

Please note that in order to use the clock in different time-zone, 2nd

time-zoneoffsethour hastobe set.Whenan offsethourhasbeenset

(e.g. +1), the time displayed will be the RF clock time plus 1 hour.

HOW TO SET AND

ACTIVATE THE ALARM

This unit is equipped with 2 alarms: Single Alarm [ ] and

WeekdayAlarm[ ].FortheSingleAlarm,itwill gooff onlyonce

at the preset time. For the Weekday Alarm, it will be enabled from

Monday to Friday and disabled automatically during weekend

(i.e., Saturday and Sunday).

To set and activate the alarm:

1. Select the alarm you want to set by pressing [] .

2. Press and hold []for 2 seconds when the selected Alarm is

displayed. The hours will blink.

3. Enter the values by [ ] / [ ] buttons.

4. Confirm the entry by pressing [] .

5. The minutes will blink.

6. Repeat (3) and (4) to finish the setting. The alarm will be

activated automatically.

Follow the same procedures to set and activate the Single and/or

WeekdayAlarm.

HOW TO DEACTIVATE THE ALARM

To deactivate the alarm:

1. Select the alarm you want to deactivate by pressing [] .

2. Press [ ] / [ ] buttons to deactivate the selected Alarm.

“ -:-- ” will be displayed when the alarm is being deactivated.

3. Toactivatethealarmagain, press[ ]/[ ]buttonswhensuch

alarm is in display.

CRESCENDO ALARM AND

SNOOZE FUNCTION

When the alarm goes off at the preset time, the projector will be

turned on for 8 seconds. The respective ALARM ON icon [ ] or

[ ] will be flashing and the alarm sound will be turned on.

The crescendo alarm function allows the alarm sound to start off

gently with step-up intensity. Without interruption, the alarm will

go off for 2 minutes.

To stop the alarm, press [] or [SNOOZE]. If [SNOOZE]

button is pressed, the alarm sound will be turned off temporarily

and the snooze function will be activated. The alarm will go off

again after approx. 8 minutes until other key is pressed to turn off

the alarm.

RESETTING THE UNIT

In case of malfunction or abnormal display, press the [RESET]

button at the bottom of the unit wth a blunt stylus. All settings will

be cleared and reset to their default values.

HOW TO USE THE GUIDING LIGHT

RM813P/ RM813PU is equipped with a guiding light. To test the

functionality of the guiding light or to turn it on temporarily, press

the [TEST] button with a blunt stylus at the bottom of the unit. The

light will be on as long as the button is pressed and held.

For continuous use of the guiding light, AC Power adapter is

required to be connected. For instructions on how to install the

adapter, please see Section “How to Use the Projector with Power

Adapter”.

Oncethepower adapterisin place,slidethe [LIGHTON]switchat

the side of the unit to the back to turn on the guiding light for a

longer time. To turn the light off, simply slide the switch to the

opposite direction.

Note that this switch can only be used when the power adapter is

installed. For test or momentary light-on, use the [TEST] instead.

HOW TO CHANGE

THE GUIDING LIGHT BULB

RM813P/ RM813PU is pre-installed with a 3V lightbulb. In case

you want to change the lightbulb follow the instructions below:

1. Un-install the power adapter from the unit to prevent electric

shock. Remove the batteries from the battery compartment as

well.

2. Remove the tail of the unit as shown.

3. Then, remove the lightbulb by rotating it in a anti-clockwise

direction.

4. Replace with new lightbulb with correct specifications. Make

sure the lightbulb is securely fixated.

5. Replace the tail of the unit as shown.

6. To test if the guiding light is working properly, install batteries

into the battery compartment and press the [TEST] button. The

light should be turned on as long as the button is held.

7. If the light does not turn on, check if the lightbulb is broken or

if the lightbulb is well-connected to the unit.

MAINTENANCE

When handled properly, this unit is engineered to give you years

of satisfactory service. Here are a few product care instructions:

1. Do not immerse the unit in water. If the unit comes in contact

with water, dry it immediately with a soft lint-free cloth.

2. Do not clean the unit with abrasive or corrosive materials.

Abrasive cleaning agents may scratch the plastic parts and

corrode the electronic circuit.

3. Do not subject the unit to excessive: force, shock, dust,

temperature, or humidity. Such treatment may result in

malfunction, a shorter electronic life span, damaged batteries,

or distorted parts.

4. Do not tamper with the unit’s internal components. Doing so

will terminate the unit’s warranty and may cause damage. The

unit contains no user-serviceable parts.

5. Only use new batteries as specified in this instruction manual.

6. Read this instruction manual thoroughly before operating the

unit.

PRODUCT SPECIFICATIONS

Operating Temperature : -5°C to 50°C

Radio Controlled : Auto synchronizes current time and

date by Radio signal generated from

Germany DCF77 (the UK version

from MSF Rugby, England)

Calendar : Day of week in English / German /

French / Italian / Spanish,

Current date / month format

Clock Time : 12/24-hour format

Accuracy : +/- 0.5 second/day

(when RF is disabled)

Hour offset : +/- 9 hours

Battery Type : Two(2)UM-3or“AA”size1.5Vbatteries

Unit Dimension : 90 x 111 x 148 mm ( H x W x D )

Unit Weight : 200 g (without battery)

Lightbulb Rating : 3V, 300mA

Lightbulb Dimension : T10 x 28 mm

NOTE ON COMPLIANCE

Warning: Changes or modifications to this unit not expressly

approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

R&TTEComplianceNote

This device complies with the essential requirements of Article 3 of

the R&TTE 1999/5/EC Directive, if used for its intended use and

that the following standard(s) has been applied:

Electromagnetic compatibility (Article 3.1.b of the R&TTE

Directive)

Applied standards ETS 300 683 : 1997

Efficient use of the radio frequency spectrum (Article 3.2 of the

R&TTEDirective)

Applied standards EN300 220 –1 : 1997

INTENDEDUSEOFTHE DEVICE

CAUTION

— The content of this manual is subject to change without

further notice.

— Due to printing limitation, the displays shown in this

manual may differ from the actual display.

— The contents of this manual may not be reproduced

without the permission of the manufacturer.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Oregon Scientific Orologio

Oregon Scientific

Oregon Scientific RM868PA Manuale utente

Oregon Scientific

Oregon Scientific RMR329P Manuale utente

Oregon Scientific

Oregon Scientific RM303P Manuale utente

Oregon Scientific

Oregon Scientific NR868A-01 Manuale utente

Oregon Scientific

Oregon Scientific RM901 Manuale utente

Oregon Scientific

Oregon Scientific RM313P Manuale utente

Oregon Scientific

Oregon Scientific JMR818WF Manuale utente

Oregon Scientific

Oregon Scientific rm318p Manuale utente

Oregon Scientific

Oregon Scientific PRYSMA G RRM222PA Manuale utente

Oregon Scientific

Oregon Scientific Slim Projection Clock RA368P Manuale utente

Oregon Scientific

Oregon Scientific TW369 Manuale utente

Oregon Scientific

Oregon Scientific DP200 Manuale utente

Oregon Scientific

Oregon Scientific PRYSMA B Manuale utente

Oregon Scientific

Oregon Scientific RM968A Manuale utente

Oregon Scientific

Oregon Scientific BAR332ES Manuale utente

Oregon Scientific

Oregon Scientific PROJI BAR369P Manuale utente

Oregon Scientific

Oregon Scientific RRA323P Manuale utente

Oregon Scientific

Oregon Scientific RM968 Manuale utente

Oregon Scientific

Oregon Scientific RMR391PU Manuale utente

Oregon Scientific

Oregon Scientific BAR339PA Manuale utente

Oregon Scientific

Oregon Scientific BAR339P Manuale utente

Oregon Scientific

Oregon Scientific JM828CD Manuale utente

Oregon Scientific

Oregon Scientific RMR682 Manuale utente

Oregon Scientific

Oregon Scientific SENSES Aroma Clock with Brainwave Music... Manuale utente

Manuali Orologio popolari di altre marche

Silicon Laboratories

Silicon Laboratories SI5324 Manuale utente

Heathkit

Heathkit GC-1005 Manuale utente

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuale utente

ALGE-Timing

ALGE-Timing ASC3 Manuale utente

Bodet

Bodet Profil 960 Manuale utente

Nixie Clock

Nixie Clock Divergence Meter Manuale utente

La Crosse Technology

La Crosse Technology WS-8256-AL Manuale utente

Mini Gadgets

Mini Gadgets MCPro Manuale utente

Casio

Casio TMR-200 Manuale utente

Progetti

Progetti ILTEMPOSTRINGE Manuale

BVItech

BVItech BV-101 Manuale utente

Progetti

Progetti KALIMERO Manuale

La Crosse Technology

La Crosse Technology WT-3141b Manuale

La Crosse Technology

La Crosse Technology W86531 Manuale utente

Sharp

Sharp SPC900 Manuale utente

La Crosse Technology

La Crosse Technology 404-50447 Manuale utente

Datexx

Datexx DF0063 Manuale utente

LG LEC-005 Manuale utente
