Oregon Scientific RMR331ES Manuale utente

+ECO Solar Clock

Model: RMR331ES / RMR331ESU /

RMR331ESA

USER MANUAL

CONTENTS

Earth Friendly................................................................... 2

Overview ........................................................................... 2

Front View ...................................................................... 2

Top View ........................................................................ 3

Bottom View ................................................................... 3

Solar Panel..................................................................... 4

Remote Sensor .............................................................. 4

Getting Started ................................................................. 4

Solar Panel..................................................................... 4

Backup Power ................................................................ 6

Remote Sensor................................................................. 6

Clock and Calendar ......................................................... 7

Clock Reception ............................................................. 7

Manually Set Clock......................................................... 7

Alarm................................................................................. 8

Temperature ..................................................................... 8

Backlight........................................................................... 8

Reset ................................................................................. 8

Specications................................................................... 9

Precautions ...................................................................... 9

About Oregon Scientific................................................ 10

EU-Declaration of Conformity....................................... 10

FCC Statement ............................................................... 10

EARTH FRIENDLY

The +ECO line embodies our commitment to environmental

concerns. Aware of threats facing the world we live in,

Oregon Scientic™ has combined technological know-how,

practicality and style to create this line of environmentally

friendly products. These products provide practical solutions

while enabling you and us to fulll our environmental

responsibility.

Simply detach the solar panel and face it directly towards

the sun for a few hours to receive the amount of energy

necessary to power the device.

Together we can improve the world we live in.

OVERVIEW

FRONT VIEW

1. : Remote sensor reception indicator

2. Outdoor temperature

3. Indoor temperature

4. : Main unit back-up batteries low / no battery

5. : AC adaptor connected

6. : Rechargeable battery is low / solar panel detached

7. : Rechargeable battery level indicator

8. AM / PM

9. Rechargeable battery status LED indicator

10. : Outdoor remote sensor battery low

11. : Daily alarm is On

12. : Alarm time is displayed

13. : Time zone offset

14. Calendar / Clock with weekday / seconds

15. : Clock signal reception indicator

TOP VIEW

1 2 3 4 5

1. SNOOZE: Activate snooze alarm / backlight

2. / : Increase / decrease value of the setting;

activate / deactivate clock reception signal

3. : Change display; set clock

4. : View alarm status; set alarm

5. : Activate / deactivate alarm function

BOTTOM VIEW

1 2 3

1. SEARCH: Initiate sensor search

2. RESET: Reset unit to default settings

3. °C / °F: Select temperature unit

SOLAR PANEL

1 2 3

1. CHARGING: charging in process

2. FULL: batteries fully charged (when TEST is pressed)

3. Solar panel

4. TEST establish if battery is full

5. Battery compartment

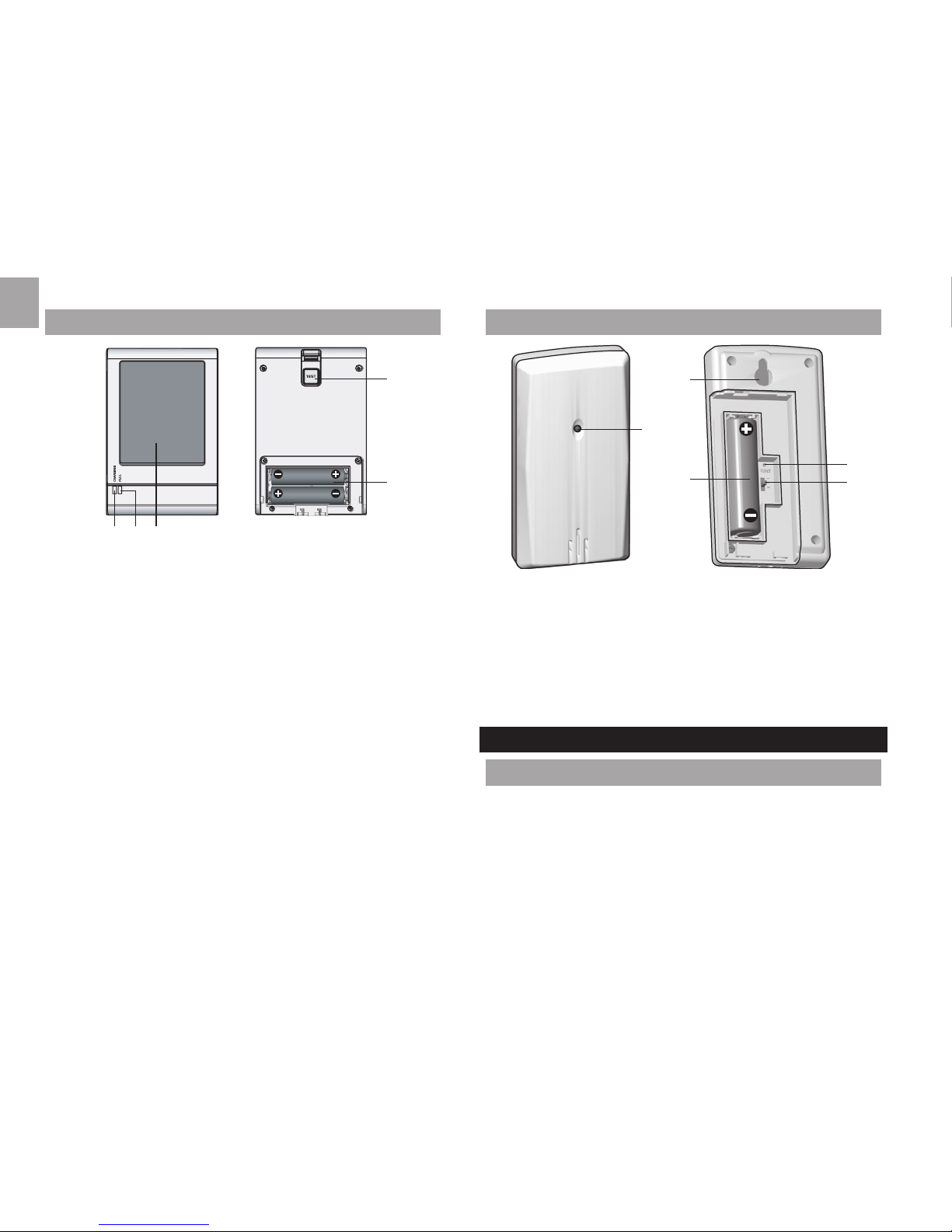

REMOTE SENSOR

1. LED status indicator

2. Wall mount hole

3. Battery compartment

4. RESET: Reset unit to default settings

5. CHANNEL switch

GETTING STARTED

SOLAR PANEL

This product uses two AAA rechargeable batteries which

should be charged via the solar panel. For the batteries’

rst charge, it is strongly advised to charge it for at least

12 hours.

To charge the battery:

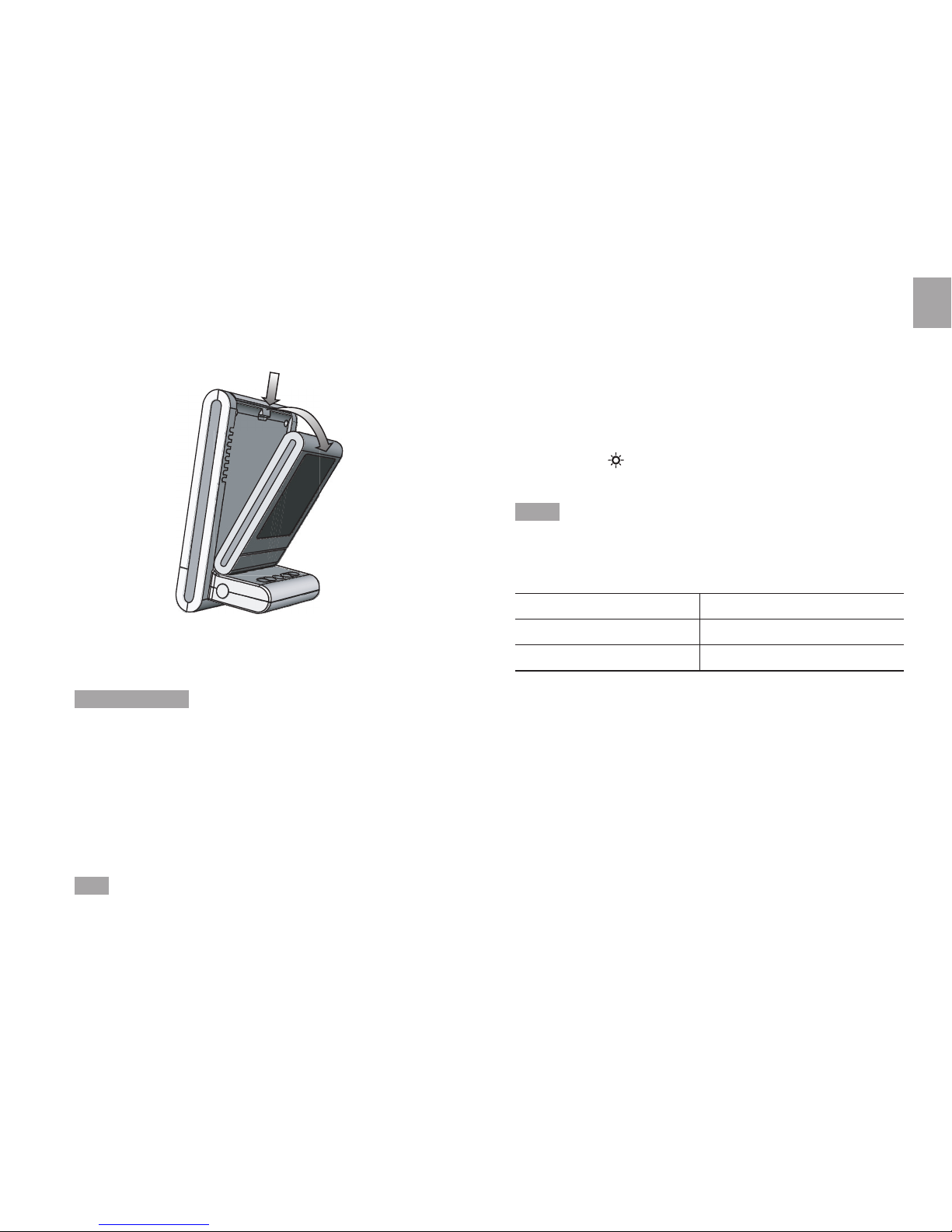

1. Detach solar panel by exerting downward pressure and

pulling at a 45° angle (approx.) away from main unit.

2. Insert 2 AAA rechargeable batteries in battery

compartment located at the back of the solar panel.

IMPORTANT Place ONLY NiMH type rechargeable

batteries in the solar panel battery compartment. Do not

charge non-rechargeable batteries.

3. Expose the solar panel directly to sunlight for

approximately 5-6 hours to charge the battery. The

(red) CHARGING LED on solar panel will light up

indicating there is sunlight and unit is charging.

TIP Press and hold TEST located at the back of the solar

panel. (Green) FULL LED indicates batteries have been fully

charged.

4. Align holes with protruding plastic. Push solar panel

towards main unit and snap into place.

5-6 hours of battery charging will normally provide power to

operate unit for 2 months.

When the rechargeable battery is nearly at or when solar

panel has been detached, the (green) LED indicator on the

main unit and will ash.

TIPS

• For best results when charging the battery, place the

solar panel directly with view to sunlight.

• Direct solar panel as follows:

Solar panel facing: if you reside in the:

North Southern Hemisphere

South Northern Hemisphere

• Do not scratch the solar panel’s surface or wipe it with

strong detergent.

• Do not expose the solar panel to rain, snow or

moisture.

• The duration of the rechargeable battery’s charging or

operating time is determined by either the intensity of

sunlight or the position of the solar panel towards the

sun.

• Do not overcharge the batteries.

BACKUP POWER

1 piece AAA battery

In the case when the rechargeable battery is at or nearly

at or when the solar panel has been detached, the AAA

battery can act as backup power supply for the main unit.

1. Remove the battery compartment located at the base

of the unit.

2. Insert the battery, matching the polarity.

3. Press RESET after each battery change.

Power adaptor (not included)

The adaptor powers the unit and can also be used for

charging the rechargeable battery. When connected to the

main unit, will be displayed.

NOTE The main unit and adaptor should not be exposed to

wet conditions. No objects lled with liquid, such as vases,

should be placed on the main unit and adaptor.

REMOTE SENSOR

To set up the remote sensor:

1. Slide open the battery compartment.

2. Slide channel switch to select a channel (1, 2, 3).

3. Insert the battery, matching the polarities.

4. Press RESET after each battery change.

5. Close the battery compartment.

6. Press and hold SEARCH for 2 seconds to initiate a

sensor search.

NOTE Use alkaline batteries for longer usage and

consumer grade lithium batteries in temperatures below

freezing.

The remote sensor reception icon will show the following

status:

ICONS MEANING

Main unit is searching

for sensor(s)

A sensor channel has

been found

No sensor found

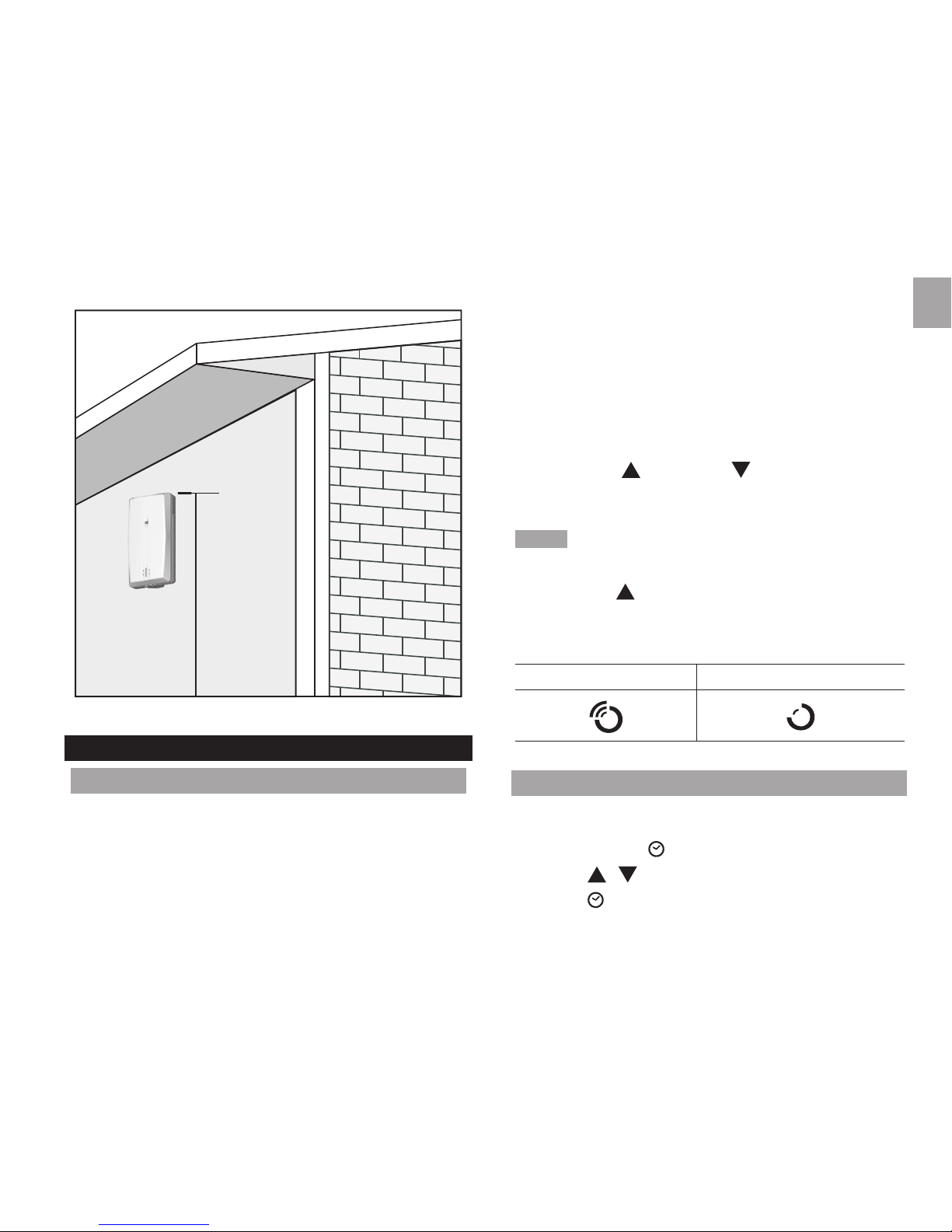

TIP Ideal placements for the sensor would be in any

location on the exterior of the home at a height of not more

than 1.5 m (5 ft) and which can shield it from direct sunlight

or wet conditions for an accurate reading.

1.5 m (5 ft)

CLOCK AND CALENDAR

CLOCK RECEPTION

This product is designed to synchronize its clock

automatically with a clock signal.

RMR331ES: EU: DCF-77 signal: within 1500 km (932

miles) of Frankfurt, Germany.

RMR331ESU: UK: MSF-60 signal: within 1500 km (932

miles) of Anthorn, England.

RMR331ESA: WWVB-60 signal: within 3200km (2000

miles) of Fort Collins Colorado.

To enable / disable clock signal reception:

Press and hold to enable or to disable clock signal

reception.

NOTE Reception takes 2-10 minutes. If the signal is weak,

it can take up to 24 hours to get a valid signal. If signal

reception is unsuccessful, place your unit next to a window,

press and hold to force another signal search.

Clock signal reception indicator:

STRONG SIGNAL WEAK / NO SIGNAL

MANUALLY SET CLOCK

To set the clock manually, disable the clock signal reception

rst.

1. Press and hold .

2. Press / to change the settings.

3. Press to conrm.

The settings order is: time zone, 12/24 hr format, hour,

minute, year, calendar mode (month – day / day – month),

month, day and language.

RMR331ES / RMR331ESU: Time zone offset sets the clock

+/- 23 hours from the received clock signal time. If you have

deactivated the clock signal reception, do not set a value

for time zone.

NOTE If you enter +1 in the time offset setting, this will

give you your local time plus one hour. If you are in the US

(RMR331ESA) set the clock to:

PA for Pacic time MO for Mountain time

CE for Central time EA for Eastern time

NOTE The language options are English (E), German (D),

French (F), Italian (I), Spanish (S) and Russian (R).

To select clock display:

Press to toggle between clock with seconds, clock with

weekday and calendar.

ALARM

To set the alarm:

1. Press and hold to enter alarm setting.

2. Press / to set hour / minute.

3. Press to conrm.

indicates alarm is ON.

To activate / deactivate alarm:

Press .

To silence the alarm:

• Press SNOOZE to silence it for 8 minutes

• Press any key to turn the alarm off and activate it again

after 24 hours.

To display alarm:

Press .

TEMPERATURE

To toggle temperature unit:

Press °C / °F.

BACKLIGHT

Press SNOOZE to activate backlight for 3 seconds.

RESET

Press RESET to return to the default settings.

SPECIFICATIONS

MAIN UNIT

TYPE DESCRIPTION

L x W x H 126 x 80 x 57 mm

(5 x 3.15 x 2.24 in)

Weight 240 g (8.47 oz) without battery

Signal frequency 433 MHz

Power

2 x UM-4 (AAA) rechargeable

batteries;

6V AC adaptor (not included)

1 x UM-4 (AAA) battery (for backup)

REMOTE SENSOR (THN132N)

L x W x H 96 x 50 x 22mm

(3.78 x 1.97 x 0.87 in)

Weight 62 g (2.22 ounces) without battery

Transmission range 30 m (98ft) unobstructed

Temperature range -20°C to 60°C (-4°F to 140°F)

Power 1 x UM-3 (AA) 1.5 V battery

PRECAUTIONS

• Do not subject the unit to excessive force, shock, dust,

temperature or humidity

• Do not cover the ventilation holes with any items such

as newspapers, curtains etc.

• Do not immerse the unit in water. If you spill liquid over

it, dry it immediately with a soft, lint-free cloth.

• Do not clean the unit with abrasive or corrosive

materials.

• Do not tamper with the unit’s internal components. This

invalidates the warranty.

• Only use fresh batteries. Do not mix new and old

batteries.

• Images shown in this manual may differ from the actual

display.

• When disposing of this product, ensure it is collected

separately for special treatment.

• Placement of this product on certain types of wood

may result in damage to its nish for which Oregon

Scientic will not be responsible. Consult the furniture

manufacturer's care instructions for information.

• The contents of this manual may not be reproduced

without the permission of the manufacturer.

• Do not dispose old batteries as unsorted municipal

waste. Collection of such waste separately for special

treatment is necessary.

• Please note that some units are equipped with a

battery safety strip. Remove the strip from the battery

compartment before rst use.

NOTE The technical specications for this product and the

contents of the user manual are subject to change without

notice.

NOTE Features and accessories will not be available in all

countries. For more information, please contact your local

retailer.

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientic.com) to learn more

about Oregon Scientic products. If you’re in the US and

would like to contact our Customer Care department directly,

please visit:

www2.oregonscientic.com/service/support.asp

For international inquiries, please visit:

www2.oregonscientic.com/about/international.asp

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientic, declares that this +ECO Solar

Clock (model: RMR331ES / RMR331ESU / RMR331ESA)

is in compliance with the essential requirements and other

relevant provisions of Directive 1999/5/EC. A copy of the

signed and dated Declaration of Conformity is available on

request via our Oregon Scientic Customer Service.

COUNTRIES RTTE APPROVED COMPLIED

All EU countries, Switzerland CH

and Norway N

FCC STATEMENT

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) This

device must accept any interference received, including

interference that may cause undesired operation.

WARNING Changes or modications not expressly

approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

NOTE This equipment has been tested and found to

comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference

in a residential installation.

This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee

that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

Altri manuali per RMR331ES

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Oregon Scientific Orologio

Oregon Scientific

Oregon Scientific RM998PS Manuale utente

Oregon Scientific

Oregon Scientific MSR939A-01 Manuale utente

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manuale utente

Oregon Scientific

Oregon Scientific RMR939P Manuale utente

Oregon Scientific

Oregon Scientific JM889N Manuale utente

Oregon Scientific

Oregon Scientific PROJI Manuale utente

Oregon Scientific

Oregon Scientific CIR100 Manuale utente

Oregon Scientific

Oregon Scientific RM622PA Manuale utente

Oregon Scientific

Oregon Scientific PRYSMA G Manuale utente

Oregon Scientific

Oregon Scientific RRM902 Manuale utente

Oregon Scientific

Oregon Scientific RM826 Manuale utente

Oregon Scientific

Oregon Scientific RM328P Manuale utente

Oregon Scientific

Oregon Scientific BAR338PA Manuale utente

Oregon Scientific

Oregon Scientific JMR818WF Manuale utente

Oregon Scientific

Oregon Scientific NAW888T Manuale utente

Oregon Scientific

Oregon Scientific RMR939P Manuale utente

Oregon Scientific

Oregon Scientific RA313P Manuale utente

Oregon Scientific

Oregon Scientific PROJI RM338PX Manuale utente

Oregon Scientific

Oregon Scientific Jumbo JMR828A Manuale utente

Oregon Scientific

Oregon Scientific JM889 Manuale utente

Oregon Scientific

Oregon Scientific RM818PA Manuale utente

Oregon Scientific

Oregon Scientific RRM902 Manuale utente

Oregon Scientific

Oregon Scientific PRYSMA B Manuale utente

Oregon Scientific

Oregon Scientific RMB899P Manuale utente

Manuali Orologio popolari di altre marche

Silicon Laboratories

Silicon Laboratories SI5324 Manuale utente

Heathkit

Heathkit GC-1005 Manuale utente

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuale utente

ALGE-Timing

ALGE-Timing ASC3 Manuale utente

Bodet

Bodet Profil 960 Manuale utente

Nixie Clock

Nixie Clock Divergence Meter Manuale utente

La Crosse Technology

La Crosse Technology WS-8256-AL Manuale utente

Mini Gadgets

Mini Gadgets MCPro Manuale utente

Casio

Casio TMR-200 Manuale utente

Progetti

Progetti ILTEMPOSTRINGE Manuale

BVItech

BVItech BV-101 Manuale utente

Progetti

Progetti KALIMERO Manuale

La Crosse Technology

La Crosse Technology WT-3141b Manuale

La Crosse Technology

La Crosse Technology W86531 Manuale utente

Sharp

Sharp SPC900 Manuale utente

La Crosse Technology

La Crosse Technology 404-50447 Manuale utente

Datexx

Datexx DF0063 Manuale utente

LG LEC-005 Manuale utente
