Oregon Scientific Silverstone FAP-101 Manuale utente
1
EN
TABLE OF CONTENTS
About this guide ................................................. 2
Product overview ................................................ 3
Getting started ................................................... 7
Batteries ......................................................... 7
AC power adapter .......................................... 7
Change settings............................................. 7
Clock ................................................................... 8
Alarm................................................................. 10
Temperature ..................................................... 11
Backlight ........................................................... 11
Projector ........................................................... 11
Reset system .................................................... 12
Safety and care................................................ 13
Warnings........................................................... 13
Additional resources ........................................ 14
Troubleshooting................................................ 15
Specifications ................................................... 16
2
EN
ABOUTTHIS GUIDE
Congratulations on your selection of the Oregon
Scientific Silverstone Radio-Controlled Projection
Clock with Indoor Temperature (FAP-101). This
powerful device bundles time keeping, alarm,
projection, and indoor temperature measurement
features.
Keep this manual handy as you use your new
product. It contains practical step-by-step
instructions, as well as technical specifications and
warnings you should know.
In this box, you will find:
• Main unit
• Batteries
• AC/DC power adapter
3
EN
PRODUCT OVERVIEW
TOP VIEW
DESCRIPTIONS
1. Snooze / Light button (à10, 11, 12)
2. Projection lens (à12)
4
EN

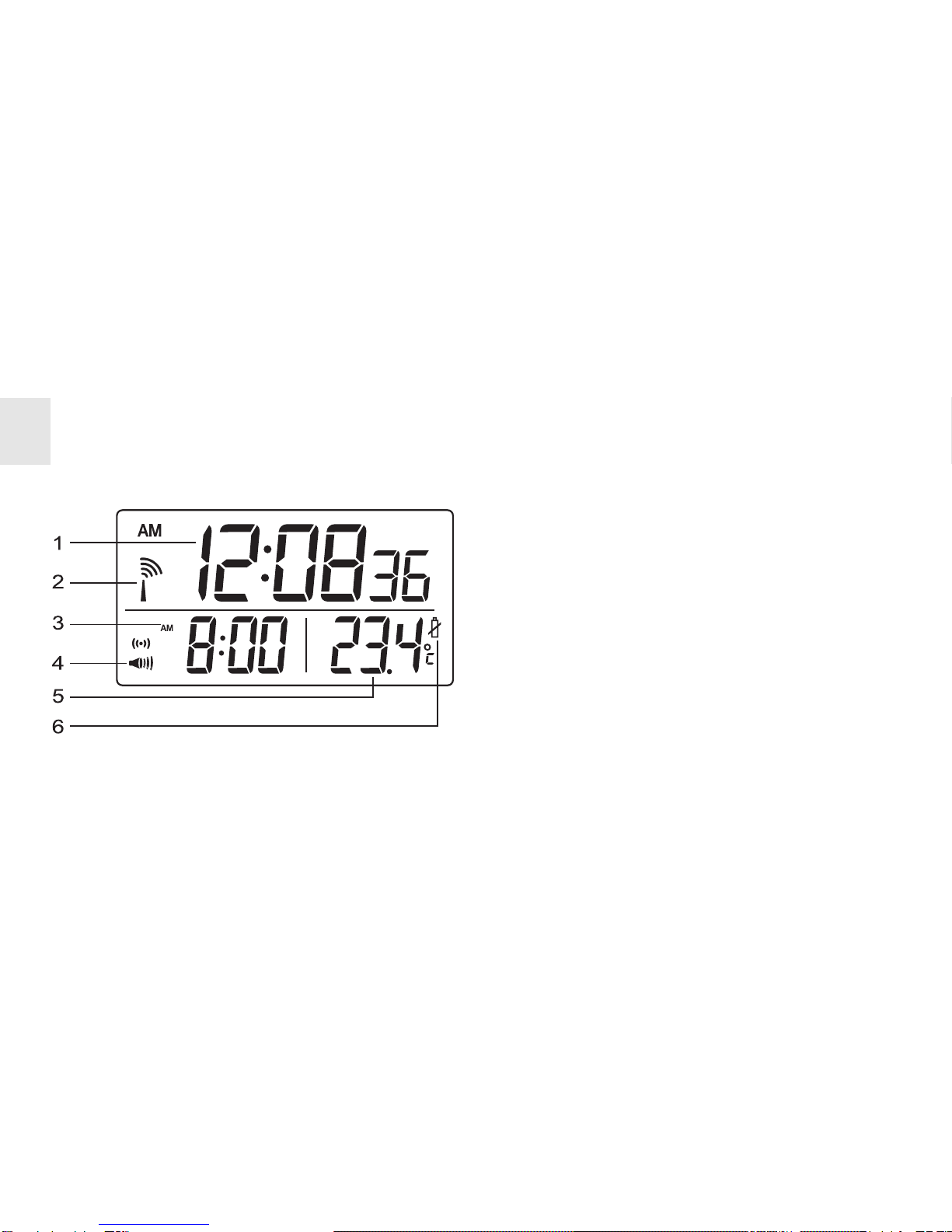

LCD DISPLAY DESCRIPTIONS
1. Clock (à8)
2. RF Reception Signal (à8)
3. Date / Alarm (à9, 10)
4. Alarm Type (à10)
5. Temperature (à11)
6. Low battery icon (à7)
5
EN

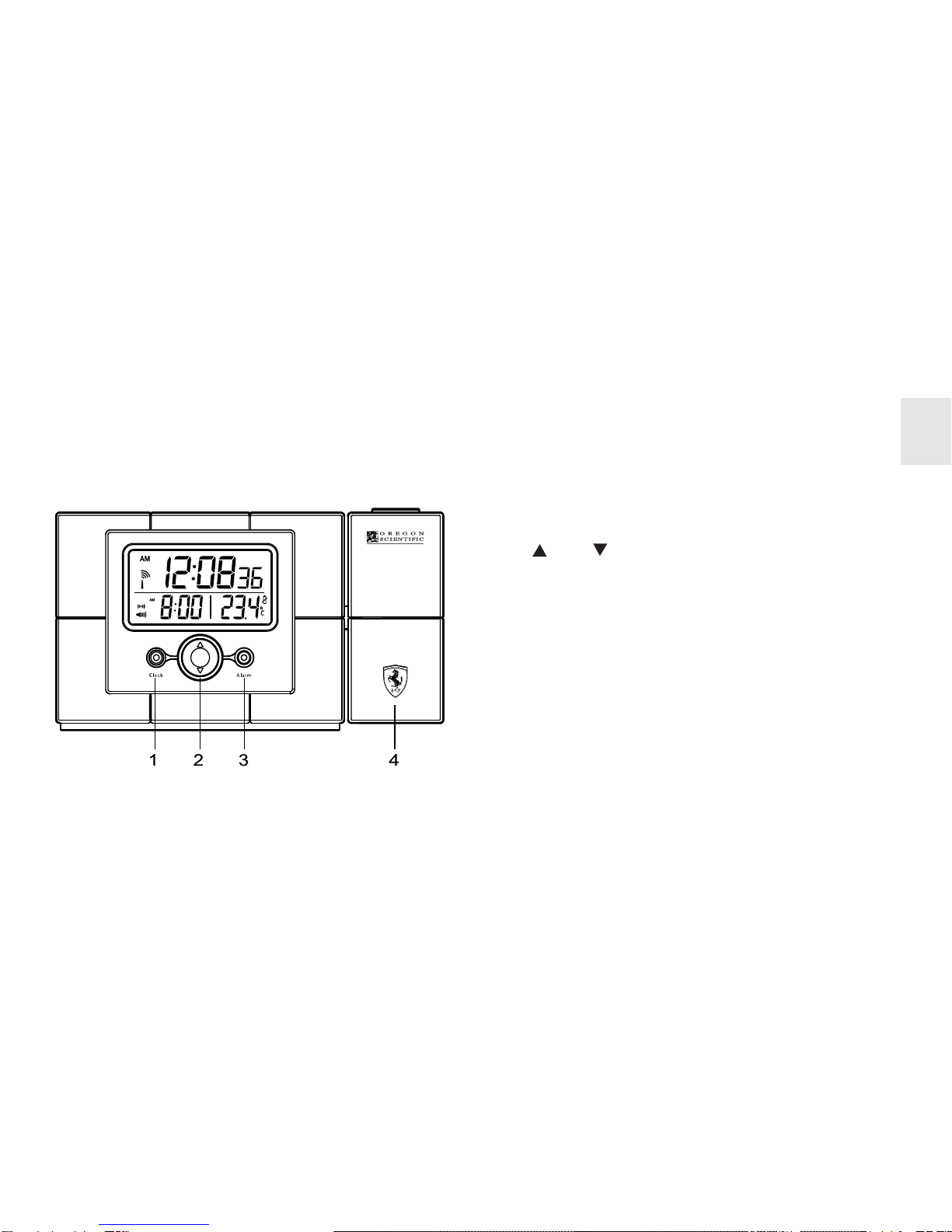

FRONT VIEW BUTTON DESCRIPTIONS
1. Clock – set time / date or view seconds / day of
week (à7, 9, 10)
2. Up / Down – increase / decrease setting
or activate / deactivate auto-synchronization
(à7, 9)
3. Alarm – set / activate / deactivate alarm
(à10)
4. Projector (à11)
6
EN
BACK VIEW DESCRIPTIONS
1. Projector focus knob (à12)
2. 180° rotation (flip image) button (à12)
3. Image rotation button (à12)
4. Radio signal format switch (à8)
5. Reset button (à12)
6. Projector switch (à12)
7. °C/ °F switch (à11)
AC power adapter and battery
compartment not shown.
7
EN
AC POWER ADAPTER
An AC power adapter is supplied for use with this
product. You must connect the power adapter if
you wish to use the continuous projection feature.
The jack is located on the bottom of the unit.
If the AC power becomes unavailable, the
unit will automatically switch to battery power.
CHANGE SETTINGS
Press and hold CLOCK or ALARM for 2 seconds
to enter setting mode. Then, press UP or
GETTING STARTED
BATTERIES
Batteries are supplied with this product. Replace them
whenever the low battery signal ( ) displays. The
battery cover is located on the bottom of the unit. Slide
to open. Be sure to match the correct polarity, as
shown in the battery compartment. After you change
the batteries, press the RESET button with the point of
a blunt object (such as a ball point pen).
Do not use rechargeable batteries.
8
EN
DOWN to change each setting. Press and hold to
enter fast-setting mode. Press CLOCK or ALARM
to switch between settings.
CLOCK
This product can automatically synchronize the date
and time with official time-keeping organizations in
Frankfurt (Germany) and Rugby (England). When
the unit is within 1500 km (932 miles) of a RF
signal, the reception icon will blink during reception.
SET RADIO SIGNAL FORMAT
The RADIO SIGNAL FORMAT switch is located on
the back of the product. Select EU (DCF) or UK
(MSF). Then, press RESET to reset the unit.
Reception takes 2 – 10 minutes to complete. Once
complete, the icon will stop blinking.
Strong signal Weak signal No signal
9
EN
For best results, place the unit away from
metal or electrical objects, and near a window with
a clear view to the sky.
TO DISABLE OR ENABLE AUTO-
SYNCHRONIZATION
Press DOWN for 2 seconds to disable the auto-
synchronization. The unit will not respond to radio
signals until you reactivate the synchronization.
To enable auto-reception, press UP for 2
seconds.
SET OR CHANGETHE CLOCK
Clock auto-synchronization must be deactivated
before you manually set the clock.
1. Press and hold CLOCK for 2 seconds to enter
setting mode.
2. Select the 12/24-hour format, hour, minute,
year, date/month format, month, date, and
display language. Press UP or DOWN to
change the setting. Press CLOCK to confirm.
10
EN
The language options are (E) English,
(F) French, (D) German, (I) Italian, and (S)
Spanish.
VIEW DAY OF WEEK OR SECONDS
Press CLOCK.
ALARM
When activated, the Beep Alarm starts quietly, then
gradually becomes louder until it crescendos at 1
minute. It shuts off at two minutes. The LCD display
lights up for the first 5 seconds.
SET ALARM
1. Press and hold ALARM for 2 seconds to enter
setting mode.
2. Select the hour, minute, and alarm type (
forBeep Alarm or for Ferrari Engine). Press
UP or DOWN to change the setting.
3. Press ALARM to confirm.
SNOOZE
Press SNOOZE/LIGHT to temporarily disable the
alarm for 8 minutes. The alarm icon will blink while
Snooze is activated.
