INTRODUCTION

Congratulations for purchase of the Weather Forecast RF Wall

Clock with Remote Thermometer (JMR838WFA).

The JMR838WFA is designed to receive RF signals generated by

the US Atomic Clock, one of the world's most accurate timekeepers.

Each time the JMR838WFA receives this signal, the current time

and date is synchronized with the US Atomic Clock.

the JMR838WFA also displays outdoor and indoor temperature

and uses barometric information to indicate weather forecasts

and atmospheric pressure trends.

Included in this package is a remote thermo-sensor. Place the

thermo-sensor in a sheltered outdoor location within a 30 meters

(100 feet) radius of the main unit and it will transmit outdoor

temperature readings to the JMR838WFA.

Other features include a daily crescendo alarm with an eight-

minute snooze function and an extra-large LCD display.

DESCRIPTION OF PARTS

AMAIN UNIT

A1 Extra-large liquid crystal display (LCD)

• Displays the time, date and weekday

• Alarm status, and alarm-set time

• Weather forecast and pressure trend

• In/outdoor temperatures in ºF

A2 [ ] Radio-reception signal

Indicates the strength of RF signal reception

A3 [ ] Alarm-on icon

Appears when the alarm is activated

A4 [ ] Alarm icon

Appears when the alarm time is displayed

A5 [ ] Battery-low indicator

Apprears when the battery power is low

A6 [ ] Battery-low indicator (remote sensor)

Apprears when the remote-sensor battery power is low

A7 Trend indicator

Indicates the trend of barometric pressure changes

A8 Weather-forecast icons

Displays Weather forecasts as sunny, partly cloudy,

cloudy, rainy or snow

WEATHER FORECAST RF WALL CLOCK

WITH ROMOTETHERMOMETER

JMR838WFA

Instruction Manual

A9 [ (( SNOOZE )) ] button

Activates the snooze function

A10 [ CLOCK ] button

Toggles between “seconds” and “weekday” displays or

activates the calendar-clock setting mode

A11 [ ] UP button

Increases the value of a setting

A12 [ ALARM ] button

Displays the alarm-time or sets the alarm time and status

A13 [ ZONE ] button

Sequences through the 4 US time-zone choices of Pacific,

Mountain, Central and Eastern

A14 [ THERMO ] button

Alternates between indoor and outdoor temperature

displays and activates auto-search for thermo signal

A15 [ RESET ] Button

Resets the unit by returning all settings to their default

values

A16 Battery Compartment

Accommodates four UM4 or AAA-size batteries (included)

A17 Table Stand

For placing the unit on a flat surface

A18 Wall-Mount Hole

For mounting the unit on a wall

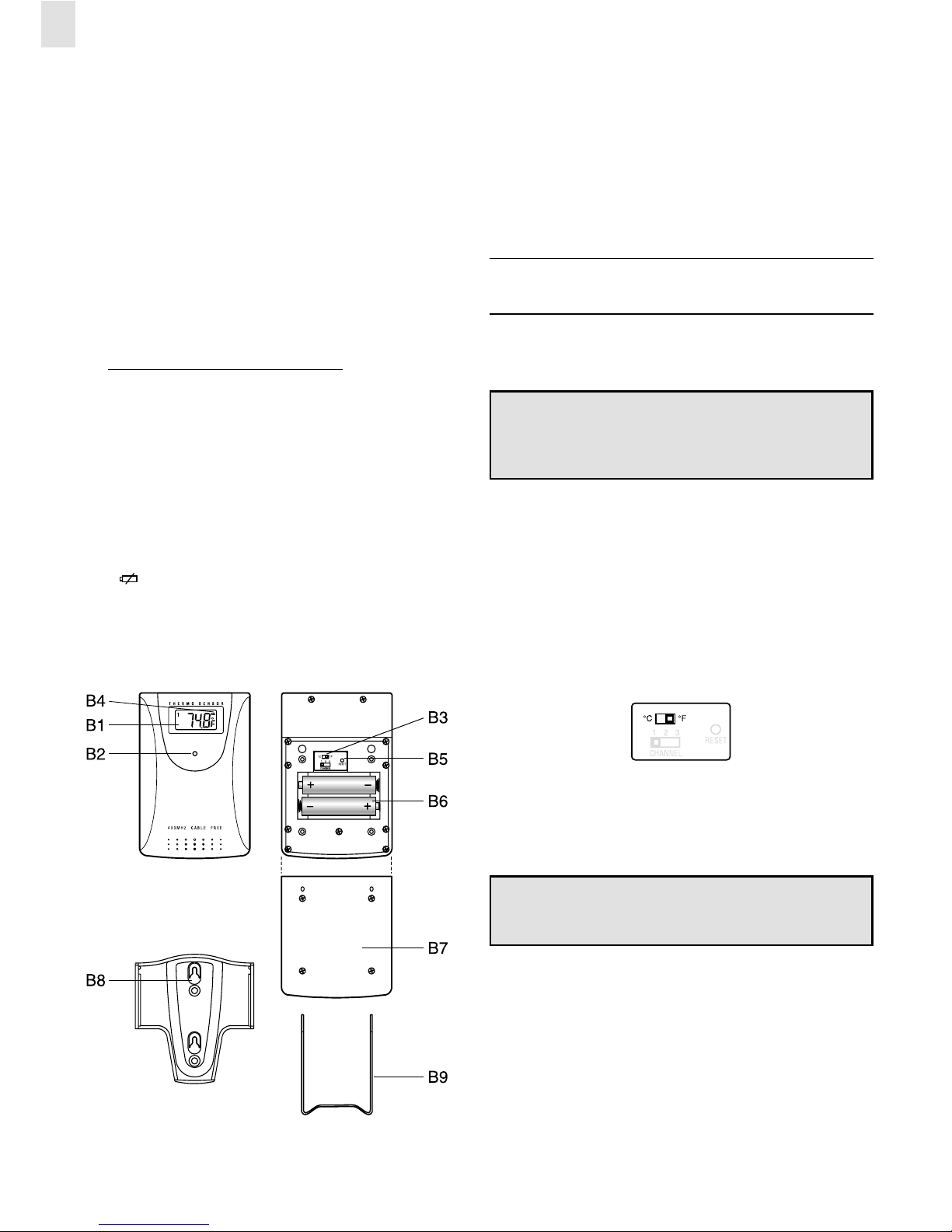

BREMOTE THERMO SENSOR

B1 LCD

Displays the current temperature monitored by the remote

unit

B2 LED indicator

Flashes when the remote unit transmits data to the main

display unit

B3 °C/°F slide switch

Selects between Centigrade (°C) and Fahrenheit (°F)

B4 [ ] Battery-low indicator

Appears when the battery power is low

B5 Reset button

Returns all settings to default values

B6 Battery compartment

Accommodates two UM-3 or AA size alkaline batteries

(included)

B7 Battery door

B8 Wall-mount holder

Use to mount remote sensor on a wall

B9 Removable table-stand

For standing the remote unit on a flat surface

BATTERY INSTALLATION AND REMOTE

THERMO-SENSOR SETUP

Follow this step-by-step procedure for installing batteries and

setting up the remote-sensor unit. Successful setup should ensure

that temperature signals are properly received.

Note: The effective range may be limited by building

materials and the position of either the main unit or the

remote thermo-sensor unit. Try various set-up

arrangements for best result.

Setting up the thermo-sensor unit:

1. Position the remote sensor within the signal transmission

range of the main display unit. The maximum transmission

range is 100 feet (30 metres).

2. Remove the screws of the battery door on the remote thermo-

sensor unit.

3. Select display of temperature in either °C or °F using the

°C/°F slide switch.

4. Install into the thermo-sensor unit, two UM-3 or “AA” size

1.5V alkaline batteries strictly according to the polarities

shown.

5. Replace the battery compartment door and secure its screws.

Note: Though the sensor is splash proof and is meant for

use outside, it should be placed away from direct sunlight,

rain, or snow.

Once the batteries have been inserted into the remote thermo-

sensor unit, batteries can now be inserted into the main unit.

The JMR838WFA (main unit) requires four UM4 or “AAA” size

batteries for operation.

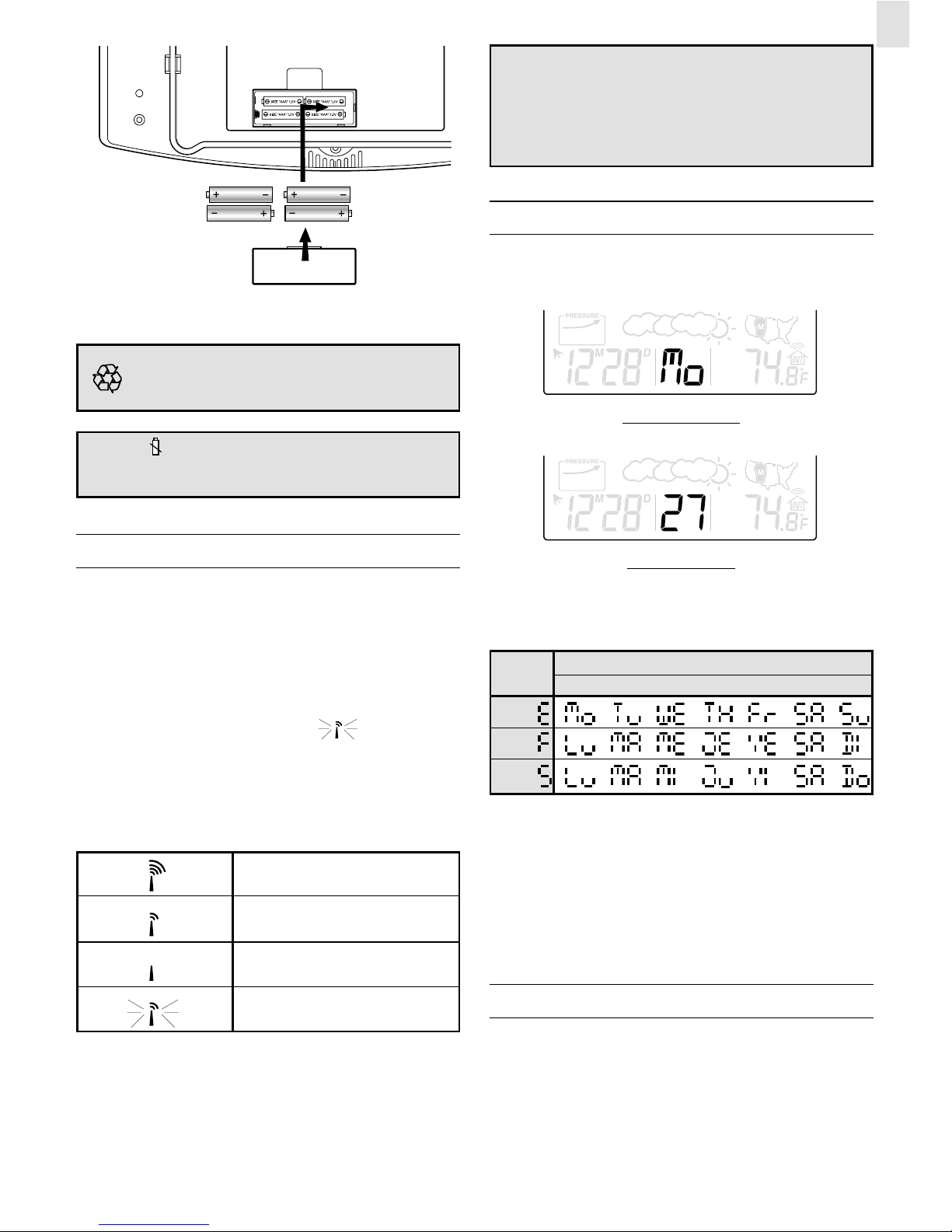

How to insert batteries into the main unit:

1. Press the door tab and click-open the door.

2. Insert the batteries strictly according to the polarities shown

therein.

3. Replace the door so that it clicks into place.

Note: If not disposed of properly, batteries can be

harmful. Protect the environment by taking

exhausted batteries to authorized disposal stations.

Note: [

] Battery-low indicator

Replace the batteries when the battery-low indicator lights

up.

ABOUT RADIO RECEPTION

The JMR838WFA is a radio frequency (RF) controlled clock. It

will automatically synchronize current time and date with the US

Atomic Clock. The benefit of a RF controlled clock is that highly-

accurate time is maintained and manual adjustments to the time

and date are not required.

When the batteries are first installed, the JMR838WFA will

automatically search for a radio signal.

When in search mode, the antenna icon [ ] will blink. This

process takes between two to ten minutes. After initial search,

short periodic reception-signal scans will commence several

times a day.

The antenna icon indicates the strength of reception.

STRONG

WEAK

NORECEPTION

RECEIVING

Interference

Reception can be affected by a number of factors. For best reception,

place the device away from metal objects and electrical appliances.

Note: When the JMR838WFA is new and just out of the box,

initial signal reception can take up to 72 hours. It is

recommended that the JMR838WFA be placed on a window

sill away from a TV, PC, radio, microwave or other

equipment that generates RF signals. Interference to signal

reception is lowest between midnight and 4AM.

“SECONDS” AND “WEEKDAY” DISPLAY

The “second” and the “weekday” share the same section of the

display.

“weekday” display

“second” display

The weekday is displayed as an abbreviation in 3 languages.

Day-of-the-week

Language Monday Tuesday Wed. Thursday Friday Saturday Sunday

English

French

Spanish

To change the “seconds” display to the “weekday” display:

1. When the “seconds” are displayed, press CLOCK once.

To change the “weekday” display to the “seconds” display:

1. When the “weekday” is displayed, press CLOCK once.

CALENDAR AND ALARM TIME DISPLAY

The calendar and the alarm-time share the same section of the

display.

The calendar is displayed in a month-day format.

calendar mode

alarm mode

To change the calendar display to the alarm-time display:

2. When the calendar is displayed, press ALARM once.

To change the alarm-time display to the calendar display:

2. When the alarm time is displayed, press CLOCK once.

HOW TO SET THE CALENDAR CLOCK

MANUALLY

Under certain circumstances, the user may wish to set the

JMR838WFA manually. To set the JMR838WFA manually, follow

the procedures below:

Note: The RF controlled mechanism overrides manual

settings. If manual settings are made, the clock will

periodically adjust the time to what is indicated by the

radio signal.

To manually set the clock:

1. Press CLOCK and hold for two seconds. The hour digits will

start to flash.

2. Enter the correct month using the [ ] button. Hold to

rapidly increase the value.

3. Press CLOCK to confirm and proceed to set the minutes.

Again, use the [ ] button to select the correct minutes.

4. Press CLOCK to confirm and proceed to enter the year, current

month and day.

5. Next, select a language for the weekday. To choose a language

press [ ] button.

6. When finished, press CLOCK. The time and date are now set.

TO SET AND ACTIVATE THE ALARM

The calendar display and the alarm display share the same section

of the display.

To set the alarm-time:

1. Press and hold ALARM for two seconds, the alarm time will

flash.

2. Press [ ] to enter a value for the hour digits. To confirm,

press ALARM and proceed to the minute digits.

3. Again, press [ ] to enter a value for the minute digits. Press

ALARM to confirm. The alarm is now automatically

activated.

To deactivate the alarm, press ALARM once.

ALARM AND SNOOZE FUNCTION

When the alarm function is active, the unit will sound at the set

time.

With the crescendo function, the alarm initially starts gently and

increases in intensity in three stages. Without interruption, the

alarm will activate for two minutes.

To stop the alarm, press any key. However, if the [ (( SNOOZE )) ]

is pressed, the snooze function will be triggered. The alarm will

stop for eight minutes before it activates again.

TEMPERATURE DISPLAY

The JMR838WFA displays temperature in Fahrenheit (°F). A

user-select option lets the user choose between indoor and outdoor

display.

indoor temperature display

outdoor temperature display

Press THERMO to alternate between the temperature displays.

The outdoor temperature display has a kinetic-way display.

The kinetic-wave display shows the signal-receiving status by

the main unit. The are three different signal status icons.

The unit is in searching mode.

Temperature readings are

securely registered.

No signals.

SENSOR TRANSMITION STATUS

If blanks "----" appear on the outdoor temperature display of the

main, the unit is not receiving a signal from the remote thermo

sensor. The user may be able to receive a signal by forcing a

signal search.

To force a remote sensor signal:

Press and hold THERMO for two seconds. The unit will search

for a remote thermo-sensor signal.

Search mode will last for about sixty seconds. If the unit still

cannot receive a signal, check the batteries to ensure they are

properly installed and have ample power. Try repositioning the

units as they may be having temperature transmission block as a

result of interference.

Note:

Reasons for not receiving a signal from the remote thermo

sensor may include:

1. The batteries of the remote sensor, the main unit, or

both may be low. Battery-low icons should indicate that

battery power is low and the batteries require changing.

• When the temperature falls below freezing point, the

batteries will freeze. Frozen batteries will have a

lower voltage and result in a lower transmission

radius.

2. The transmission range is too far.

• Shorten the distance.

3. The transmission path is cluttered with obstacles and

interference.

• Shorten the distance or reposition the remote sensor

or the main unit.

HOW TO READ THE PRESSURE TREND

The JMR838WFA gives a barometric pressure trend for the last

hour. As illustrated below, a rising trend (arrow) indicates

improving weather. Deteriorating weather conditions are indicated

with a falling trend (arrow).

WEATHER FORECAST FUNCTION

The JMR838WFA detects barometric pressure changes and

displays the illustrated weather symbols that indicate weather

forecasts for 12 to 24 hours in the future. The radius of the

forecast is approximately 30 - 50 km (18 - 31 miles).

Important:

1. The accuracy of a weather forecast, when only using

pressure trends, is approximately 70 to 75 percent.

2. The weather forecast symbols may not reflect current

weather condition. The symbols are forecasting the

future.

3. A ‘SUNNY’ forecast covering the nighttime reflects fine

clear weather.

HOW TO RESET THE UNIT

Press RESET to return all settings to the factory values.

NOTE: Pressing RESET will clear all user selected or

programmed settings.

HOW TO WALL MOUNT OR

USE TABLE STAND

MAIN UNIT

Flip the table stand open to place the unit on a steady, flat surface.

Or use the recessed hole on the back to mount it on a wall.

Wall-mount Table Stand

Arrow

Indicator

Pressure

Trend Rising Steady Falling

Sunny Cloudy Rainy Snow

Slightly

Cloudy

REMOTE THERMO SENSOR

This sensor comes with a wall-mount holder and a removable

stand. Use either to hold the unit in place.

Wall-mount Table Stand

MAINTENANCE

The JMR838WFA will give you many years of service if treated

properly. Please follow these care instructions:

1. Do not immerse the unit in water. If the unit comes in contact

with water, dry it immediately with a soft lint-free cloth.

2. Do not clean the unit with abrasive or corrosive materials.

Abrasive cleaning agents may scratch the plastic parts and

corrode the electronic circuit.

3. Do not subject the unit to excessive: force, shock, dust,

temperature, or humidity. Such treatment may result in

malfunction, a shorter electronic life span, damaged batteries,

or distorted parts.

4. Do not tamper with the unit’s internal components. Doing so

will terminate the unit’s warranty and may cause damage. The

unit contains no user-serviceable parts.

5. Only use new batteries as specified in this instruction manual.

Do not mix new and old batteries as the old batteries may leak.

Batteries contain dangerous chemicals and may explode or

leak and cause injuries if old and new batteries are used

together, are inserted improperly or are improperly disposed

of. Always use caution when using or disposing of batteries.

6. Read this instruction manual thoroughly before operating

the unit.

SPECIFICATIONS

MAIN UNIT

Clock Functions

Radio Control : Auto synchronization of

current time and date with the

US Atomic Clock

Calendar : Weekday in English / Spanish /

French

Current month / day format

Clock Time : 12-hour format

Alarm Duration : 2-minute crescendo

Snooze : 8 minutes

Accuracy : +/- 0.5 second/day

( In manual set quartz clock mode)

General specification

Battery Type : Four pieces of UM4 or “AAA” size

1.5V alkaline battery

LCD Dimension : Viewing area - 155 x 107 mm

6.2" x 4.28"

Unit Dimension : 267 x 204 x 36 mm

10.68" x 8.16" x 1.44"

(H x W x D)

Unit Weight : Approx. 660 g (23.1 ounces)

(not including batteries)

Temperature Measurement

Operating Temperature : -5°C to 50°C (23.0°F to 122°F)

Temperature Resolution : 0.1°C to (0.2°F)

REMOTE THERMO SENSOR

Proposed operating range : -20.0°C to +60.0°C

(-4.0°F to 140.0°F)

Temperature resolution : 0.1°C (0.2°F)

RF Transmission : 433 MHz

Frequency

RF Transmission Range : Maximum 30 meters (100 feet)

Temperature sensing : Approximately 30 seconds

cycle

Power : Two pieces of UM-3 or “AA” size

1.5V alkaline battery

Weight : 100gm (3.5 ounces)

(without batteries)

Dimension : 105 x 70 x 22 mm

4.2" x 2.8" x 0.88"

(H x W x D)

NOTE ON COMPLIANCE

Warning: Changes or modifications to this unit not expressly

approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

FCC:

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

!Reorient or relocate the receiving antenna.

!Increase the separation between the equipment and receiver.

!Connect the equipment into an outlet on a circuit different

from that of the receiver which the receiver is needed.

!Consult the dealer of an experienced radio/TV technician for

help.

CAUTION

— The content of this manual is subject to change without

further notice.

— Due to printing limitation, the displays shown in this

manual may differ from the actual display.

— The contents of this manual may not be reproduced

without the permission of the manufacturer.

CUSTOMER ASSISTANCE

Should you require assistance regarding this product and its

operation, please contact our customer care department at 800-

853-8883 or by email at [email protected]. Our customer

care department is available 24-7-365.

WARRANTY

This product is warranted to be free of manufacturing defects for

a period of 90-days from date of retail purchase. Defective

product should be directed to the place of retail purchase for

replacment. If this is not possible, contact our customer care

department for assistance and a return material authorization. No

returns may be made without a return material authorization.

Please retain your retail receipt as you may be asked to provide a

copy of the receipt for proof of date purchased.

Indice

Altri manuali Oregon Scientific Orologio

Oregon Scientific

Oregon Scientific BAR623PA Manuale utente

Oregon Scientific

Oregon Scientific JMR818WF Manuale utente

Oregon Scientific

Oregon Scientific POLERMO RMR939PA Manuale utente

Oregon Scientific

Oregon Scientific BAR368P Manuale utente

Oregon Scientific

Oregon Scientific DP100 Manuale utente

Oregon Scientific

Oregon Scientific RM901A Manuale utente

Oregon Scientific

Oregon Scientific BAR332ES Manuale utente

Oregon Scientific

Oregon Scientific PROJI RM338PX Manuale utente

Oregon Scientific

Oregon Scientific BAR223P Manuale utente

Oregon Scientific

Oregon Scientific EMR801 Manuale utente

Oregon Scientific

Oregon Scientific JM889NR Manuale utente

Oregon Scientific

Oregon Scientific CIR100 Manuale utente

Oregon Scientific

Oregon Scientific RM328P Manuale utente

Oregon Scientific

Oregon Scientific RAR601 Manuale utente

Oregon Scientific

Oregon Scientific RM968 Manuale utente

Oregon Scientific

Oregon Scientific PRYSMA G Manuale utente

Oregon Scientific

Oregon Scientific CP100 Manuale utente

Oregon Scientific

Oregon Scientific 983U Manuale utente

Oregon Scientific

Oregon Scientific RM383PA - MANUAL 2 Manuale utente

Oregon Scientific

Oregon Scientific RM822 Manuale utente

Oregon Scientific

Oregon Scientific BAR339P Manuale utente

Oregon Scientific

Oregon Scientific RM826A Manuale utente

Oregon Scientific

Oregon Scientific RM602 Manuale utente

Oregon Scientific

Oregon Scientific SENSES Aroma Clock with Brainwave Music... Manuale utente

Manuali Orologio popolari di altre marche

Silicon Laboratories

Silicon Laboratories SI5324 Manuale utente

Heathkit

Heathkit GC-1005 Manuale utente

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuale utente

ALGE-Timing

ALGE-Timing ASC3 Manuale utente

Bodet

Bodet Profil 960 Manuale utente

Nixie Clock

Nixie Clock Divergence Meter Manuale utente

La Crosse Technology

La Crosse Technology WS-8256-AL Manuale utente

Mini Gadgets

Mini Gadgets MCPro Manuale utente

Casio

Casio TMR-200 Manuale utente

Progetti

Progetti ILTEMPOSTRINGE Manuale

BVItech

BVItech BV-101 Manuale utente

Progetti

Progetti KALIMERO Manuale

La Crosse Technology

La Crosse Technology WT-3141b Manuale

La Crosse Technology

La Crosse Technology W86531 Manuale utente

Sharp

Sharp SPC900 Manuale utente

La Crosse Technology

La Crosse Technology 404-50447 Manuale utente

Datexx

Datexx DF0063 Manuale utente

LG LEC-005 Manuale utente
