RADIO CONTROLLED CLOCK

WITHINDOORTHERMOMETER

MODEL:RM962/RM962U

Instruction Manual

INTRODUCTION

Congratulations on your purchase of the Clock with Temperature

Display RM962/RM962U .

The RM962 is a multifunction radio controlled clock. It can

automatically synchronize its current time and date when brought

within an approximate 1500 km radius of the radio signal DCF77

generated from Frankfurt, Germany (RM962U - the UK version

from MSF-60 Rugby, England).

Features of this unit include: indoor temperature display, current

date display, daily crescendo alarm with eight-minute snooze

function and EL backlight.

DESCRIPTION OF PARTS

A 3-lineLCD

Displays the time, date, alarm status and temperature

B [ ] Battery-Low icon

Lights up when batteries are running dry

C[ ] Radio-Reception Signal

Indicates the condition of radio reception

D[ ] Alarm-on icon

Appears when the alarm is activated

E[ ] Alarm icon

Appears when the alarm time is displayed

F MODE button

Toggles the calendar clock display modes or activates the

calendar clock setting mode

G UP[ ]andDOWN[ ]buttons

Increases or decreases the value of a setting

H ALARM button

Displays the alarm time or sets the alarm status

I[ ]button

Activates the snooze function when an alarm activates or

turn on the back light for five seconds

J Batterycompartment

Accommodates two UM-4 or “AAA” size 1.5V batteries

K RESET button

Resets the unit by returning all settings to their default

values

L Rotatable stand

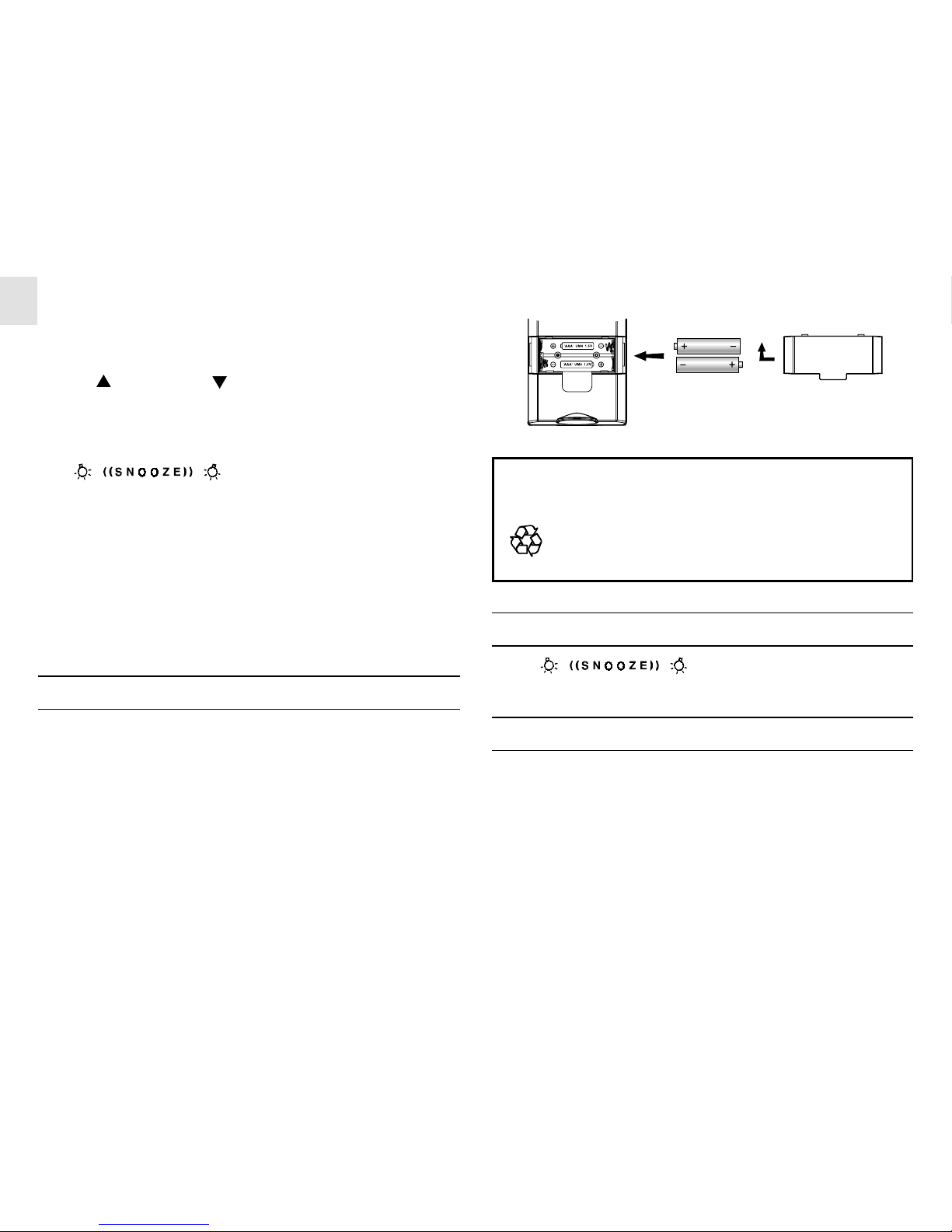

BATTERY INSTALLATION

The unit uses two (2) UM-4 or “AAA” size 1.5V batteries.

To insert batteries:

1. Click open the battery door as shown.

2. Insert the batteries strictly according to the polarities shown

therein.

3. Replace the battery compartment door.

Note: The battery life can be reduced vastly by frequent use

of the back light or snooze function.

If not disposed of properly batteries can be harmful.

Protect the environment by taking exhausted batteries

to authorized disposal stations.

HOW TO USE THE BACKLIGHT

Press [ ] once. The back light will activate

for five seconds.

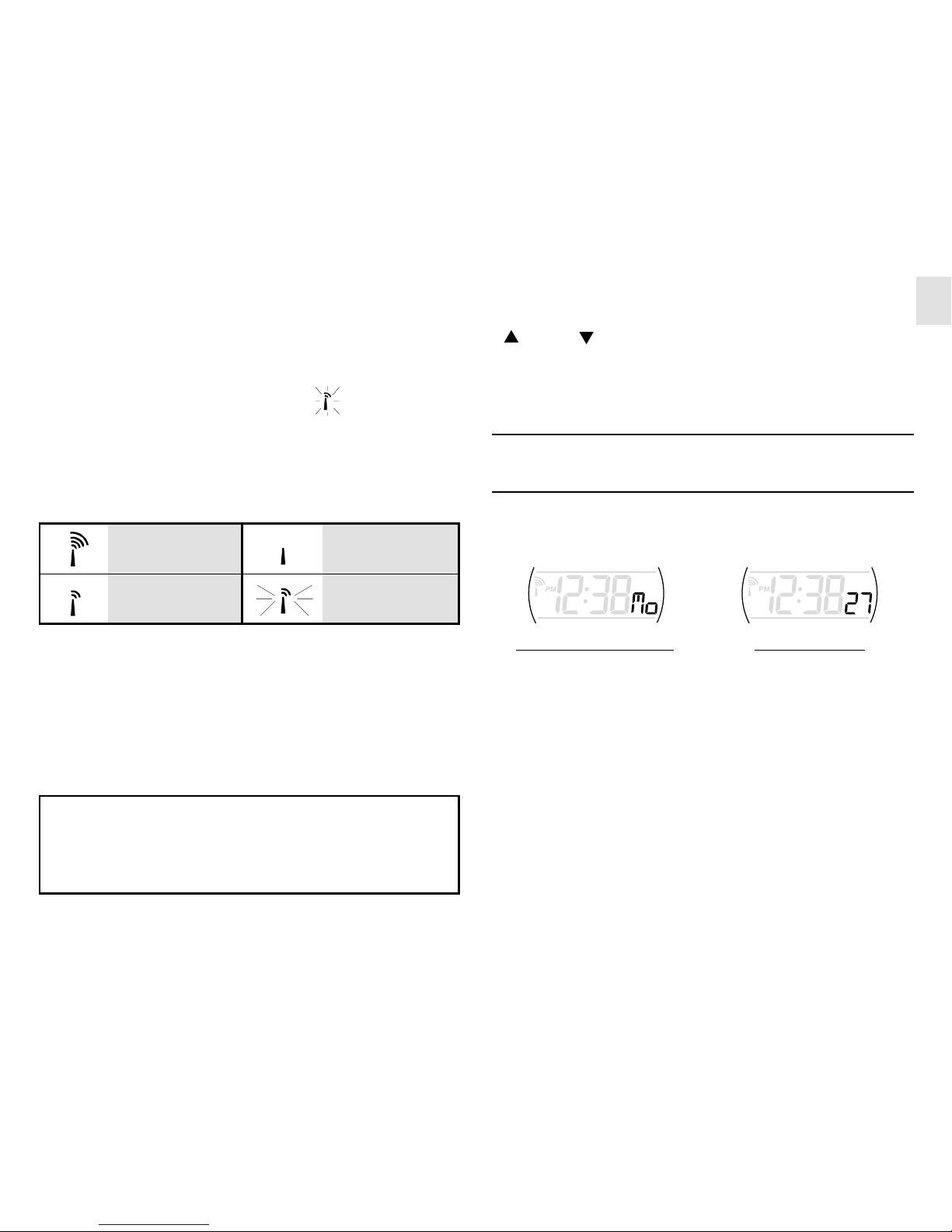

ABOUT RADIO RECEPTION

This unit is a radio frequency (RF) controlled clock. When located

within a 1500km radius of radio signal (DCF77) at Frankfurt,

Germany,theclocktimewillautomaticallysynchronizewithDCF77

time-signal transmission. The benefit of a RF controlled clock is

that highly-accurate time is maintained and manual adjustments to

the time and date are not be required.

(RM962U - UK version within a 1500km radius of radio signal

(MSF-60) from Rugby, England)

When the batteries are first installed, the unit will automatically

search for a radio signal.

When in search mode, the antenna icon [ ] will blink. This

process takes between two (2) and ten (10) minutes. After initial

search,shortperiodicreception-signalscanswillcommenceseveral

times a day.

The antenna icon indicates the quality of reception.

When the reception is complete, the radio-reception signal will

stop blinking.

Interference

Receptioncanbeaffectedbyanumberoffactors.Forbestreception,

place the device away from metal objects and electrical appliances.

Note: Interference from sources such as TV sets can affect

the signal. If, after batteries have been inserted for ten

minutes, the signal is not received, then set the time manually

(see section: How To Set The Calendar Clock Manually).

To deactivate the auto-reception of RF signal, press and hold both

[ ] and [ ] buttons for 2 seconds. The antenna icon will

disappear to show this deactivation.

To activate the auto-reception again, press and hold both buttons

for 2 seconds again and the antenna icon will re-appear.

“SECONDS” AND DAY-OF-THE-WEEK

DISPLAY

The “seconds” and the day-of-the-week share the same section of

the display.

day-of-the-week display “second” display

The day-of-the-week is displayed as an abbreviation in five

languages.

Tochangethe“seconds”displaytotheday-of-the-weekdisplay:

• When the “seconds” are displayed, press MODE once.

Tochangetheday-of-the-weekdisplaytothe“seconds”display:

• When the day-of-the-week is displayed, press MODE once.

STRONG

WEAK

NO RECEPTION

RECEIVING

CALENDAR AND ALARM TIME DISPLAY

The calendar and the alarm-time share the same section of the

display.

The calendar is displayed in a day-month format.

calendar mode alarm mode

To change the calendar display to the alarm-time display:

• When the calendar is displayed, press ALARM once.

To change the alarm-time display to the calendar display:

• When the alarm time is displayed, press MODE once.

HOW TO SET THE CALENDAR

CLOCK MANUALLY

If the unit is taken outside of the range of radio signal it will need

to be manually set.

To manually set the clock:

1. When the calendar is displayed, press and hold MODE for two

seconds. The month value will start to blink.

2. Enter the month using the [ ] and [ ] buttons. Hold down

either button to rapidly increase or decrease the value.

3. Press MODE to confirm and proceed to set the day, display

language, day-of-the-week, hour and minute.

4. For the display language, you can choose between (E) for

English (D) for German (F) for French, (I) for Italian and (S) for

Spanish.

Day-of-the-week

Language Monday Tuesday Wed. Thursday Friday Saturday Sunday

English

German

French

Italian

Spanish

5. When finished, press MODE to return to normal display. If

changes are made on the minutes, the seconds will reset and

start from zero.

HOW TO SET AND ACTIVATE

THE ALARM

Toset thealarm time:

1. Press and hold ALARMfor two seconds when the alarm time is

displayed.

2. Enterthevalueforthehourdigits.PressALARMtoconfirmand

go to the minute digits. Enter the value and press ALARM to

confirm.

3. The alarm is automatically activated. To deactivate it, press

ALARMonce.

ALARM AND SNOOZE FUNCTION

When the alarm is set, it will activate at the set time. The back light

will go on for five seconds with the alarm-on icon [ ] flashing.

The crescendo function allows the alarm to start gently and step up

its intensity in three steps. Without interruption, the alarm will

activate for a minute.

To stop the alarm, press any key. If the [ ]

button is pressed, the snooze function will be triggered. The alarm

will stop for eight minutes before activating again.

INDOOR TEMPERATURE

The temperature is shown in Centigrade (°C). The unit is capable of

measuring temperatures within the -5°C and 50°C range. If the

temperaturegoes above orbelowthat, thedisplaywillshow “HHH”

or“LLL”.

HOW TO RESET THE UNIT

The RESET button allows you to return all settings to its factory

values.

The button is required only when the unit is not operating in a

favorable way, such as in the rare case of a malfunction.

PRECAUTIONS

This unit is engineered to give you years of satisfactory service if

you handle it carefully. Here are a few precautions.

1. Do not immerse the unit in water. If you spill liquid over it, dry

it immediately with a soft, lint-free cloth.

2. Do not clean the unit with any alcohol containing detergent,

abrasive or corrosive materials. They may scratch the plastic

parts and corrode the electronic circuit.

3. Do not subject the unit to excessive force, shock, dust,

temperature or humidity, which may result in malfunction,

shorter electronic life span, damaged battery and distorted

parts.

4. Do not tamper with the unit’s internal components. Doing so

will invalidate the warranty on the unit and may cause

unnecessary damage. The unit contains no user-serviceable

parts.

5. Only use fresh batteries as specified in the user’s instructions.

Do not mix new and old batteries as the old ones may leak.

6. Always read the user’s instructions thoroughly before operating

the unit.

SPECIFICATIONS

Operating Temperature : 5° C to 50° C

Clock Functions

Radio Control : Auto synchronize current time and

date by Radio signal generated from

Frankfurt,Germany DCF77

(the UK version from MSF-60 Rugby,

England)

Calendar : Day of week in English / German /

French / Italian / Spanish

Current day / month format

Clock Time : 24-hour format

(12-hour format for UK version)

Alarm Duration : 1 minute crescendo

Snooze : 8 minutes

Accuracy : +/-0.5 second/day

(when RF is disabled)

Temperature Measurement

Indoor Measurement : -5°C to 50°C

Temperature Resolution : 0.1°C

TemperatureAccuracy : -5°C to 0°C +/- 2.0°C

0°C to 40°C +/- 1.0°C

40°C to 50°C +/- 2.0°C

General Specification

Battery Type : Two(2)UM-4or“AAA”size

1.5V battery

Unit Dimension : 104 x 64 x 21 mm (H x W x D)

Unit Weight : 80 g (without battery)

With carrying pouch

CAUTION

— The content of this manual is subject to change without

further notice.

— The specification of this product can be changed without

any notice.

— Due to printing limitation, the displays shown in this

manual may differ from the actual display.

— The contents of this manual may not be reproduced

without the permission of the manufacturer.

RTTE Compliant Countries :

All EC countries, Switzerland CH

And Norway N

EC-DECLARATION OF CONFORMITY

This product complies with the essential requirements of Article 3 of the

R&TTE 1999/5/EC Directives, if used for its intended use and that the

following standard(s) has/have been applied:

Efficient use of radio frequency spectrum

(Article 3.2 of the R&TTE Directive)

applied standard(s) N / A

Electromagnetic compatibility

(Article 3.1.b of the R&TTE Directive)

applied standard(s) ETS 300 683:1997

Safety of information technology equipment

(Article 3.1.a of the R&TTE directive)

applied standard(s) EN 60950:1997

Additional information:

The product is therefore conform with the Low Voltage Directive 73/23/

EC, the EMC Directive 89/336/EC and R&TTE Directive 1999/5/EC

(appendix II) and carries the respective CE marking.

VS-Villingen / Germany August 2001

Gerhard Preis

R&TTE Representative of manufacturer

Trouble

Reception icon “Antenna” is not

shown

Displayed Temperature data is

different from other measuring

instruments

- Clock time is not correctly

set; and/or

- Reception icon “Antenna”

displays as “No reception”

TROUBLESHOOTING GUIDE — RM962

Warning:

- For other cases not listed in the above, feel free to contact our help line

- Do not dissemble the unit. This will void the warranty

Possible Cause

Auto-reception of clock radio signal has

been disabled

(1) The measurement method is different

(2) The area under evaluation is different or

being influenced by climate

Theclock radio signal is not received because:

- Electromagnetic interference exist, or the

Main Unit is located within reinforced

concrete wall or shadowed area location

- Orientation of placement is not at

optimum position for reception of clock

radio signal

Remedy

Enable this function by following the

instructions in the User’s Manual

(1) Use the same instruments with

consideration of the tolerance of

readings

(1) Place the 2 instruments very closely for

a time period (no less then 30 minutes),

avoiding direct light and air movements

- Locate the Main Unit far from PC,

mobile phone etc and re-locate it near

the window sill. Wait at least 24 hours

(note: during night-time signal is less

attenuate particularly after raining)

- The clock radio signal is searched at

1:00, 2:00, 3:00, 9:00, 15:00, 21:00

every day automatically

- To force the signal reception please refer

to instructions in the User’s manual

Altri manuali per RM962U

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Oregon Scientific Orologio

Oregon Scientific

Oregon Scientific Jumbo JMR828A Manuale utente

Oregon Scientific

Oregon Scientific RM932 Manuale utente

Oregon Scientific

Oregon Scientific DP200 Manuale utente

Oregon Scientific

Oregon Scientific Slim Projection Clock RA368P Manuale utente

Oregon Scientific

Oregon Scientific RMR802 Manuale utente

Oregon Scientific

Oregon Scientific RM912B Manuale utente

Oregon Scientific

Oregon Scientific RM336PES Manuale utente

Oregon Scientific

Oregon Scientific WS902 Manuale utente

Oregon Scientific

Oregon Scientific RM988P Manuale utente

Oregon Scientific

Oregon Scientific BAR332ES Manuale utente

Oregon Scientific

Oregon Scientific RM308PX Manuale utente

Oregon Scientific

Oregon Scientific TR119 Manuale utente

Oregon Scientific

Oregon Scientific RM602 Manuale utente

Oregon Scientific

Oregon Scientific BAR623PA Manuale utente

Oregon Scientific

Oregon Scientific BAR223P Manuale utente

Oregon Scientific

Oregon Scientific JM889NR Manuale utente

Oregon Scientific

Oregon Scientific DP100 Manuale utente

Oregon Scientific

Oregon Scientific RMR682 Manuale utente

Oregon Scientific

Oregon Scientific PRYSMA G Manuale utente

Oregon Scientific

Oregon Scientific BAR332ES Manuale utente

Oregon Scientific

Oregon Scientific PROJI Manuale utente

Oregon Scientific

Oregon Scientific RM331P Manuale utente

Oregon Scientific

Oregon Scientific RM939P Manuale utente

Oregon Scientific

Oregon Scientific RM368P Manuale utente

Manuali Orologio popolari di altre marche

Silicon Laboratories

Silicon Laboratories SI5324 Manuale utente

Heathkit

Heathkit GC-1005 Manuale utente

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuale utente

ALGE-Timing

ALGE-Timing ASC3 Manuale utente

Bodet

Bodet Profil 960 Manuale utente

Nixie Clock

Nixie Clock Divergence Meter Manuale utente

La Crosse Technology

La Crosse Technology WS-8256-AL Manuale utente

Mini Gadgets

Mini Gadgets MCPro Manuale utente

Casio

Casio TMR-200 Manuale utente

Progetti

Progetti ILTEMPOSTRINGE Manuale

BVItech

BVItech BV-101 Manuale utente

Progetti

Progetti KALIMERO Manuale

La Crosse Technology

La Crosse Technology WT-3141b Manuale

La Crosse Technology

La Crosse Technology W86531 Manuale utente

Sharp

Sharp SPC900 Manuale utente

La Crosse Technology

La Crosse Technology 404-50447 Manuale utente

Datexx

Datexx DF0063 Manuale utente

LG LEC-005 Manuale utente
