Oregon Scientific RRA320PNX Manuale utente

RRA320PNX

User Manual

FM Radio Projection Alarm Clock

with Outdoor Temperature Display

CONTENTS

EN....................................................................................................................................................................................................................... 2

IT ........................................................................................................................................................................................................................ 10

FR....................................................................................................................................................................................................................... 18

DE....................................................................................................................................................................................................................... 25

ES....................................................................................................................................................................................................................... 33

POR.................................................................................................................................................................................................................... 40

NL....................................................................................................................................................................................................................... 48

SWE ................................................................................................................................................................................................................... 56

OVERVIEW

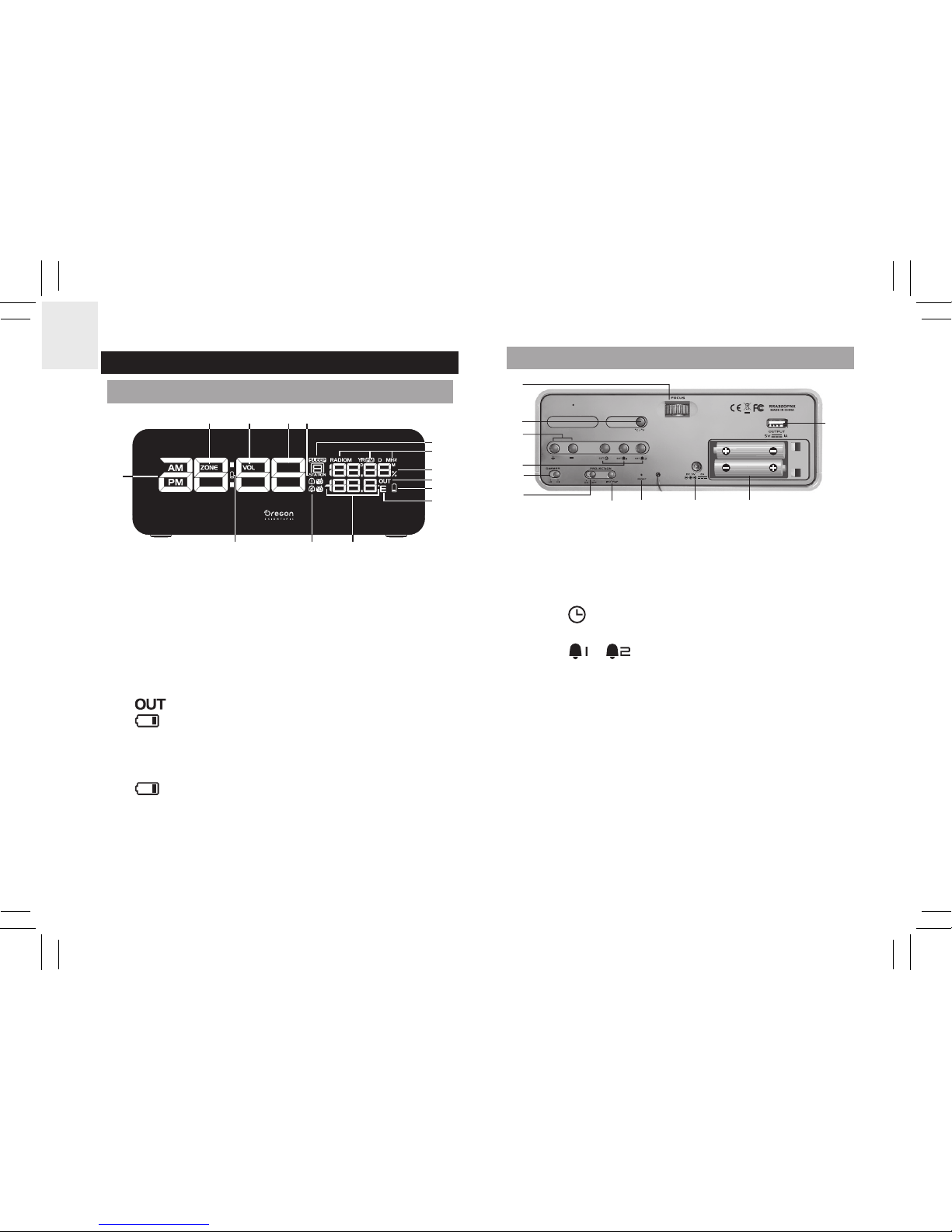

FRONT VIEW (FIG. 1)

234

1. AM / PM: Indicates AM / PM (12 hour mode)

2. Time zone offset

3. Indicates radio volume

4. Clock / Volume

5. Radio station (logged)

6. Sleep mode is ON

7. Indicates Radio mode is ON and frequency is displayed

8. Calendar / Radio frequency / Humidity

9. Sensor reception indicator

10. Sensor batteries low

11. User selectable temperature units

12. Temperature

13. Beep / Radio Alarm 1/ 2

14. Main unit batteries low / no battery

BACK VIEW (FIG. 2)

78 910

1. FOCUS Wheel : Adjust projection focus

2. OC/OF : Select the temperature unit

3. + / - :Increase / decrease values of the selected

setting

4. SET : Set the clock time; Toggle between date/

humidity display

SET / :Set the alarm; View respective

alarm status

5. DIMMER : Select display brightness LO / HI

6. PROJECTION ON/OFF : Enable / disable

continuous projection

7. 180° FLIP : Flip projected image 180o

8. RESET : Reset unit to default settings

9. AC / DC socket

10. Battery compartment

11. USB output port

BOTTOM VIEW (FIG. 4)

1. SNOOZE / SLEEP buttons

REMOTE SENSOR (FIG. 5)

FRONT VIEW BACK VIEW

1. LED status indicator: blinks when transmitting a reading

2. Wall mount hole

3. Battery compartment

4. RESET: Reset unit to default settings

5. Channel Switch

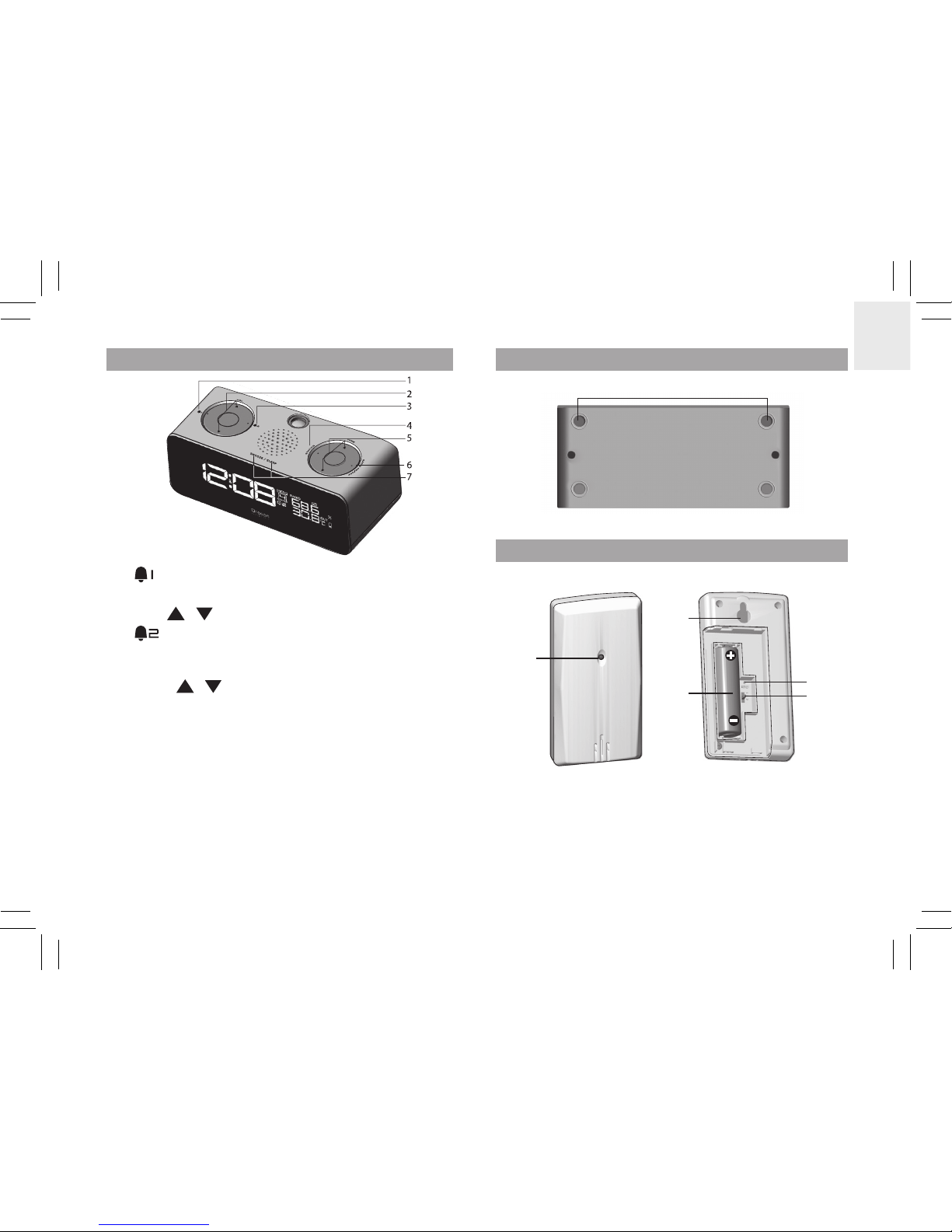

TOP VIEW (FIG. 3)

1. ALARM 1 ON / OFF : Activate / deactivate

Alarm 1 function

2. VOL / : Adjust radio volume

3. ALARM 2 ON / OFF : Activate / deactivate

Alarm 2 function

4. STATION: Change radio station

5. TUNE / :Auto search / adjust radio frequency

6. RADIO ON / OFF: Turn Radio On / Off

7. SNOOZE / SLEEP: Alarm snooze or enable radio

sleep; Press and hold to turn off the backlight;

Activate the projection and backlight for 5 seconds.

GETTING STARTED

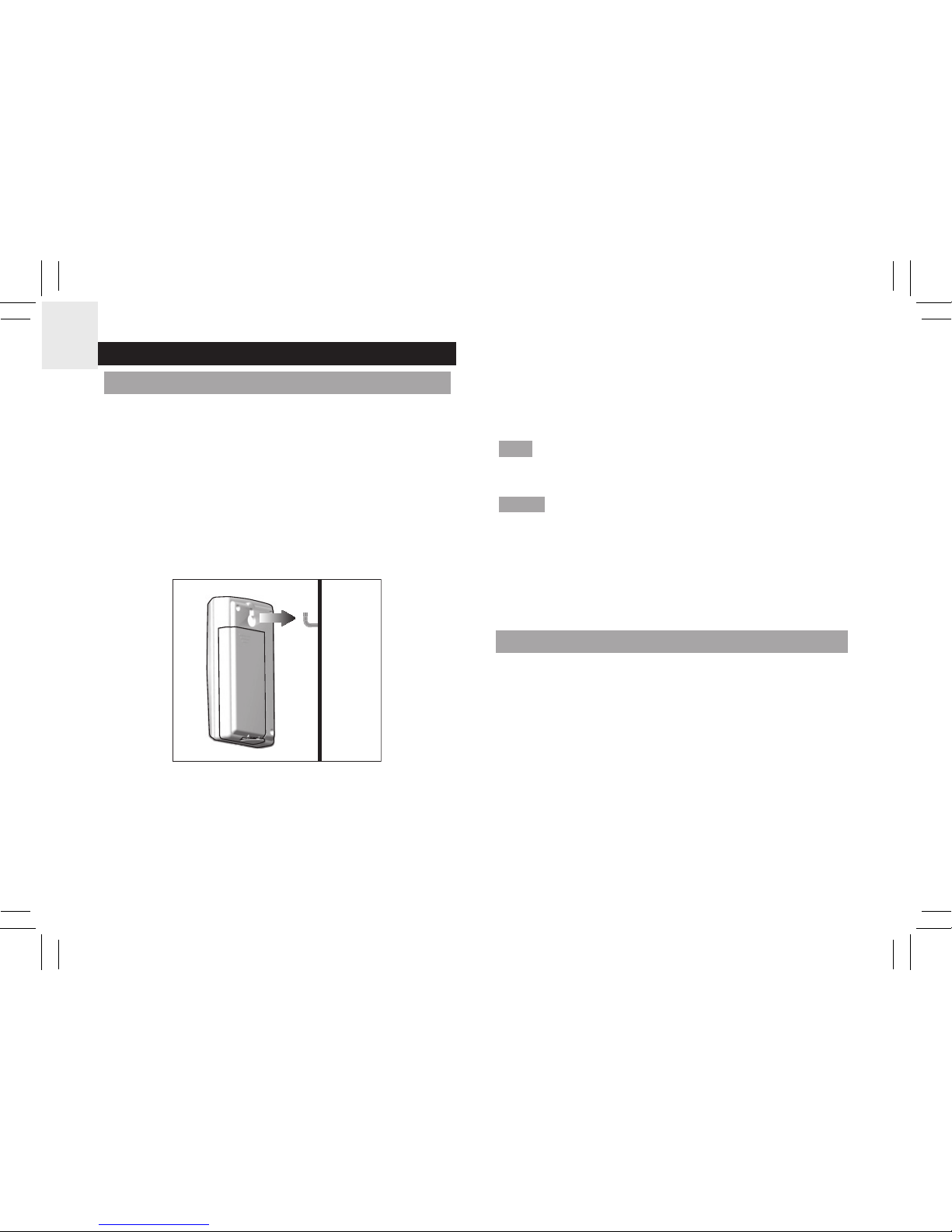

REMOTE SENSOR INSTALLATION

1. Slide open the battery door.

2. Slide channel switch to select a channel (1, 2, 3).

Ensure you use a different channel for each sensor.

3. Insert the battery, matching the polarities (+ / -) See

FIG.5.

4. Press RESET after each battery change.

5 . Close the battery door.

6. Secure the sensor in the desired location using the

wall mount hole or table stand.

For best results:

• Place the sensor within 30 m (100 ft) of the main unit.

• Place the sensor out of direct sunlight and moisture.

• Position the sensor so that it faces the main unit,

minimizing obstructions such as doors, walls and

furniture.

• Place the sensor in a location with a clear view to the

sky, away from metallic / electronic objects.

• Position the sensor close to the main unit during cold

winter months as below-freezing temperatures may

affect battery performance and signal transmission.

TIP The transmission range may vary depending on

many factors. You may need to experiment with various

locations to get the best results.

NOTE

• Use alkaline batteries for longer usage and

consumer grade lithium batteries in temperatures

below freezing.

• Install battery in the remote sensor before connecting

power to the main unit.

MAIN UNIT INSTALLATION

Memory backup:

1. Remove the battery compartment cover.

2. Insert the batteries, matching the polarities (FIG. 2).

3. Press RESET after each battery change.

AC power:

Plug AC/DC adaptor into power socket. Make sure the

adapter is not obstructed and is easily accessible to the

unit.

NOTE

• When the main unit is connected to power, it will

search and start receiving temperature / humidity

data from the sensor automatically.

• To completely disconnect from power, the adapter

should be disconnected from the main unit.

• The main unit and adapter should not be exposed to

wet conditions. No objects lled with liquid, such as

vases, should be placed on the main unit and adapter.

• Batteries serve as a back-up power supply. To fully

utilize all features, install adapter.

SET CLOCK

1. Press and hold .

2. Press +or -to change the settings.

3. Press to conrm and move to the next

setting. The setting options are as follows: time-

zone offset, 12/24 hr format, hour, minute, year,

month-day / day-month, day and month.

NOTE You need manually adjust to Daylight Saving

Time (DST) or back to standard time.

ALARM

To set the alarm:

1. Press SET or SET to display desired set

alarm time.

2. Press and hold SET or SET to enter

respective setting.

3. Press + / - to change the settings

4. Press or to conrm and move to the next

setting. The setting options are as follows: hour,

minute, beep alarm / radio alarm .

To adjust station and volume:

• If radio alarm is selected, press + / - to select the

radio station and + / - to adjust the volume.

To silence the alarm:

• Press SNOOZE / SLEEP to silence it for 8 minutes

• Press SET / SET , / ,to turn the

alarm off and activate it again after 24 hours.

RADIO

To activate / deactivate radio:

• Press RADIO ON / OFF to turn radio ON / OFF.

To set radio station:

1. For rst time using, press RADIO ON/OFF to turn on

the radio, the main unit will search the frequency and

save to the preset station (1-8) automatically.

2. To manually set the station, select a preset station,

then press and hold TUNE / TUNE to auto

search or press TUNE / TUNE to manually

select frequency. The desired frequency will save to

the corresponding station.

To adjust volume:

• Press VOL / VOL when in Radio Mode.

To adjust sleep timer setting:

• Press SNOOZE / SLEEP to activate.

• Press SNOOZE / SLEEP again to change the sleep

time setting (120, 90, 60, 30, 15, OFF).

PROJECTION

This unit projects time and outdoor temperature

information for your convenience.

For continuous projection:

• Slide PROJECTION switch to ON when adaptor is

connected, to enable / disable.

To ip projected image by 180°:

• Press 180° FLIP.

To focus image :

• Turn FOCUS wheel.

NOTE If projection is illuminated, do not look directly

into the projector.

BACKLIGHT

• Slide the DIMMER switch to HI or LO to adjust

backlight level.

• Press and hold SNOOZE/SLEEP for 5 seconds to

turn off the backlight.

• Press SNOOZE/SLEEP to activate the backlight

and projection functions for 5 seconds, when the

backlight is off or set to LO.

RESET

Press RESET to return to the default settings.

SPECIFICATIONS

TYPE DESCRIPTION

MAIN UNIT

L x W x H 183 x 67 x 81 mm

(72 x 26.4 x 31.9 in)

Weight 386 g (13.6 oz) without battery

FM 87.5 to 108 MHz

Power

5 V 2 A AC adaptor

2 x UM-4 (AAA)

1.5 V batteries (for backup)

REMOTE THERMO SENSOR (THGN132N)

L x W x H 50 x 22 x 96 mm

(1.97 x 0.87 x 3.78 in)

Weight 62 g (2.22 oz) without battery

Temperature range -20 °C to 60°C(-4 °F to 140 °F)

Resolution 0.1°C (0.2 °F)

Humidity range 25% - 95%

Humidity resolution 1%

Signal frequency 433 MHz

Transmission range 30 m (98 ft) unobstructed

No. of channels 3

Power 1 x UM-3 (AA) 1.5 V battery

PRECAUTIONS

• Use only fresh batteries of the required size and

type. Do not mix old and new batteries, different

types of batteries.

• Do not dispose old batteries as unsorted municipal

waste. Collection of such waste separately for

special treatment is necessary.

• If you do not plan to use the product for a long time,

remove the batteries. Batteries can leak chemicals

that can damage electronic parts.

• Do not subject the device to excessive force, shock,

dust, temperature or humidity.

• Do not cover the ventilation holes with any items

such as newspapers, curtains etc.

• Do not immerse the device in water. If you spill liquid

over it, dry it immediately with a soft, lint-free cloth.

• Do not clean the device with abrasive or corrosive

materials.

• Do not tamper with the device’s internal components.

Doing so invalidates the warranty.

• Images shown in this manual may differ from the

actual display.

• When disposing of this product, ensure it is collected

separately for special treatment.

• The contents of this manual may not be reproduced

without the permission of the manufacturer.

NOTE The technical specications for this product and

the contents of the user manual are subject to change

without notice.

NOTE Features and accessories will not be available

in all countries. For more information, please contact

your local retailer. To download an electronic version of

the user manual, please visit

http://global.oregonscientic.com/customerSupport.php.

ABOUT OREGON SCIENTIFIC

Visit our website www.oregonscientic.com to learn

more about Oregon Scientic products.

For any inquiry, please contact our Customer Services

at info@oregonscientic.com.

Oregon Scientic Global Distribution Limited reserves

the right to interpret and construe any contents, terms

and provisions in this user manual and to amend it, at

its sole discretion, at any time without prior notice. To

the extent that there is any inconsistency between the

English version and any other language versions, the

English version shall prevail.

EU-DECLARTION OF CONFORMITY

Hereby the manufacturer, Oregon Scientic Global Distribution

Limited, declares that the radio equipment type FM Radio

Projection Alarm Clock with Outdoor Temperature Display

(Model: RRA320PNX) is in compliance with 2014/53/EU

Directive. The full text of the EU Declaration of Conformity is

available at the following internet address:

http://global.oregonscientic.com/customerSupport.php.

All EU countries, Switzerland CH

and Norway N

Countries RED Approval Complied

FCC STATEMENT

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and

(2) This device must accept any interference received,

including interference that may cause undesired

operation.

WARNING: Changes or modications to this unit

not expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

NOTE: This equipment has been tested and found

to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV

technician for help.

Indice

Lingue:

Altri manuali Oregon Scientific Orologio

Oregon Scientific

Oregon Scientific RM912B Manuale utente

Oregon Scientific

Oregon Scientific RRM320P Manuale utente

Oregon Scientific

Oregon Scientific RM308P Manuale utente

Oregon Scientific

Oregon Scientific RMB899P Manuale utente

Oregon Scientific

Oregon Scientific RESONANCE CIR600 Manuale utente

Oregon Scientific

Oregon Scientific BAR332ES Manuale utente

Oregon Scientific

Oregon Scientific 983U Manuale utente

Oregon Scientific

Oregon Scientific SKT338N Manuale utente

Oregon Scientific

Oregon Scientific rm318p Manuale utente

Oregon Scientific

Oregon Scientific TimeSphere RM382P Manuale utente

Oregon Scientific

Oregon Scientific RM303P Manuale utente

Oregon Scientific

Oregon Scientific RM338P Manuale utente

Oregon Scientific

Oregon Scientific PRYSMA G RRM222P Istruzioni per l'installazione

Oregon Scientific

Oregon Scientific RM968 Manuale utente

Oregon Scientific

Oregon Scientific RM818P Manuale utente

Oregon Scientific

Oregon Scientific RM982A Manuale utente

Oregon Scientific

Oregon Scientific RM962A Manuale utente

Oregon Scientific

Oregon Scientific BARM839 Manuale utente

Oregon Scientific

Oregon Scientific PROJI Manuale utente

Oregon Scientific

Oregon Scientific PRYSMA G Manuale utente

Oregon Scientific

Oregon Scientific Imola FST-301 Manuale utente

Oregon Scientific

Oregon Scientific RM912E Manuale utente

Oregon Scientific

Oregon Scientific RM338SP Manuale utente

Oregon Scientific

Oregon Scientific RM622P Manuale utente

Manuali Orologio popolari di altre marche

Silicon Laboratories

Silicon Laboratories SI5324 Manuale utente

Heathkit

Heathkit GC-1005 Manuale utente

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuale utente

ALGE-Timing

ALGE-Timing ASC3 Manuale utente

Bodet

Bodet Profil 960 Manuale utente

Nixie Clock

Nixie Clock Divergence Meter Manuale utente

La Crosse Technology

La Crosse Technology WS-8256-AL Manuale utente

Mini Gadgets

Mini Gadgets MCPro Manuale utente

Casio

Casio TMR-200 Manuale utente

Progetti

Progetti ILTEMPOSTRINGE Manuale

BVItech

BVItech BV-101 Manuale utente

Progetti

Progetti KALIMERO Manuale

La Crosse Technology

La Crosse Technology WT-3141b Manuale

La Crosse Technology

La Crosse Technology W86531 Manuale utente

Sharp

Sharp SPC900 Manuale utente

La Crosse Technology

La Crosse Technology 404-50447 Manuale utente

Datexx

Datexx DF0063 Manuale utente

LG LEC-005 Manuale utente
