Remote Thermometer Sensor
Model: THN122N
USER MANUAL
INTRODUCTION
Thank you for selecting the Oregon Scientific™ Remote
Thermometer Sensor (THN122N). This product is
compatible with various wireless weather station
products, such as the RAR621 and BAR623P.
Keep this manual handy as you use your new product.
It contains practical step-by-step instructions, as well as
technical specifications and warnings you should know.
CONTENTS
Introduction .............................................................. 1
Product Overview .................................................... 2
Remote Sensor (THN122N)...................................2
Getting Started ......................................................... 3
Batteries .................................................................3
Remote Sensor (THN122N) ..................................... 3
Setup Sensor .........................................................3
Safety and Care ........................................................ 4
Warnings ................................................................... 4
Troubleshooting ....................................................... 5
Specifications ........................................................... 5
Remote Sensor Dimensions ..................................5
Remote Sensor (THN122N)...................................5
Power .....................................................................5
About Oregon Scientific .......................................... 6
EC-Declaration of Conformity ................................. 6
THN122N_EN_R3 12/4/04, 3:14 PM1
P/N: 086-003693-016 EN REV1
1/8
2
EN
PRODUCT OVERVIEW
REMOTE SENSOR (THN122N)
1. LED status indicator
1. Wall mount hole
2. RESET hole
3. CHANNEL number (1-3)
4. Battery compartment
(Battery compartment cover not shown)
THN122N_EN_R3 12/4/04, 3:14 PM2
P/N: 086-003693-016 EN REV1
2/8
3
EN
GETTING STARTED
BATTERIES
Remote unit 2 x UM-4 (AAA) 1.5V batteries
Insert batteries before first use, matching the polarity
(+ and -) as shown in the battery compartment. For best
results, install batteries in the remote sensor before the
main unit. Press RESET after each battery change.
NOTE Do not use rechargeable batteries.
NOTE It is recommended that you use alkaline batteries
with this product for longer performance.
REMOTE SENSOR (THN122N)
SETUP SENSOR
1. Open the remote sensor battery compartment with
a small Phillips screwdriver.
2. Insert the batteries, matching the polarity (+ and -)
as shown in the battery compartment.
3. Set the channel switch to any channel. The switch is
located in the battery compartment.
4. Place the sensor near the main unit. Press RESET on
the sensor. Then, press the appropriate main unit button
(as specified in the main unit manual) to initiate signal
sending between the sensor and the main unit. The
receptionicon on themainunitwillblink forapproximately
3 minutes while it is searching for the sensor.
5. Close the remote sensor battery compartment.
6. Secure the sensor in the desired location using the
wall mount or table stand.
Installing the batteries:
THN122N_EN_R3 12/4/04, 3:14 PM3
P/N: 086-003693-016 EN REV1
3/8
4
EN
For best results:
• Insert the batteries and select the channel before
you mount the sensor.
• Place the sensor out of direct sunlight and
moisture.
• Do not place the sensor more than 30 metres
(98 feet) from the main (indoor) unit.
• Position the sensor so that it faces the main
(indoor) unit, minimizing obstructions such as
doors, walls, and furniture.
• Place the sensor in a location with a clear view
to the sky, away from metallic or electronic
objects.
SAFETY AND CARE
Clean the product with a slightly damp cloth and alcohol-
free, mild detergent. Avoid dropping the product or
placing it in a high-traffic location.
WARNINGS
This product is designed to give you years of service if
handled properly. Oregon Scientific will not be
responsible for any deviations in the usage of the device
from those specified in the user instructions or any
unapprovedalterations orrepairs ofthe product. Observe
the following guidelines:
• Never immerse the product in water. This can
cause electrical shock and damage the product.
• Do not subject the product to extreme force,
shock, or fluctuations in temperature or humidity.

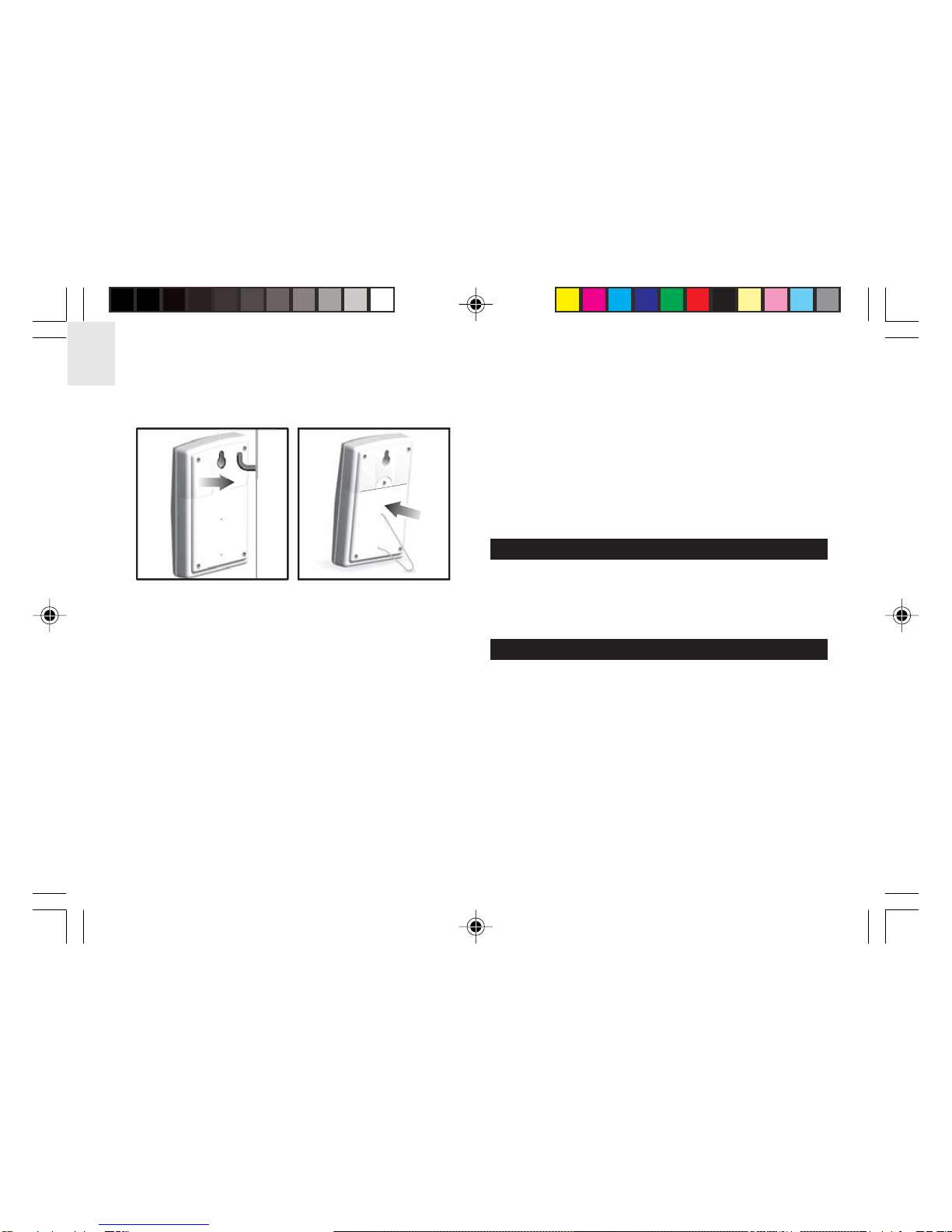

Using the stand or wall mount: • Position the sensor close to the main unit during
cold winter months as below-freezing
temperaturesmay affectbattery performance and
signal transmission.
You may need to experiment with various locations to
get the best results.
DATA TRANSMISSION
THN122N_EN_R3 12/4/04, 3:14 PM4
P/N: 086-003693-016 EN REV1
4/8
5
EN
REMEDY
Check batteries
Check location
Initiate a manual
sensor search
PROBLEM
Remote sensor SYMPTOM
Cannot locate
remote sensor
Data does not
match main unit
TROUBLESHOOTING
SPECIFICATIONS
REMOTE SENSOR DIMENSIONS
L x W x H 92 x 60 x 20 mm
(3.6 x 2.4 x 0.79 inches)
Weight 63 grams (2.22 ounces)
without battery
REMOTE SENSOR (THN122N)
RF frequency 433 MHz
Range 30 metres (98 feet)
with no obstructions
Transmission Every 40 seconds
Channel No. 1-3
POWER
Sensor batteries 2 x UM-4 (AAA) 1.5V
NOTE It is recommended that you use alkaline batteries
with this product for longer performance.
• Do not tamper with the internal components.
• Do not mix new and old batteries or batteries of
different types.
• Do not use rechargeable batteries with this
product.
• Remove the batteries if storing this product for a
long period of time.
• Do not scratch the LCD display.
NOTE The technical specification of this product and
contents of this user guide are subject to change without
notice. Images not drawn to scale.
THN122N_EN_R3 12/4/04, 3:14 PM5
P/N: 086-003693-016 EN REV1
5/8
6
EN
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn
more about Oregon Scientific products such as digital
cameras; MP3 players; children's electronic learning
productsand games;projection clocks;health and fitness
gear; weather stations; and digital and conference
phones. The website also includes contact information
for our customer care department in case you need to
reach us, as well as frequently asked questions and
customer downloads.
We hope you will find all the information you need on
our website, however if you'd like to contact the Oregon
Scientific Customer Care department directly, please
visit:
www2.oregonscientific.com/service/support
OR
Call 949-608-2848 in the US.
For international enquiries, please visit:
www2.oregonscientific.com/about/international/default.asp
EC-DECLARATION OF CONFORMITY
EC-DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that this Remote
Thermometer Sensor is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.
A copy of the signed and dated Declaration of Conformity
is available on request via our Oregon Scientific
Customer Service.
COUNTRIES RTTE APPROVAL COMPLIED
All EC counties, Switzerland
and Norway CH
N
THN122N_EN_R3 12/4/04, 3:14 PM6
P/N: 086-003693-016 EN REV1
6/8
7
EN
Remote Thermometer Sensor
Model: THN122N
USER MANUAL
THN122N_EN_R3 12/4/04, 3:14 PM7
P/N: 086-003693-016 EN REV1
7/8
8
EN
©2005 Oregon Scientific. All rights reserved.
086-003693-016
THN122N_EN_R3 12/4/04, 3:14 PM8
P/N: 086-003693-016 EN REV1
8/8
