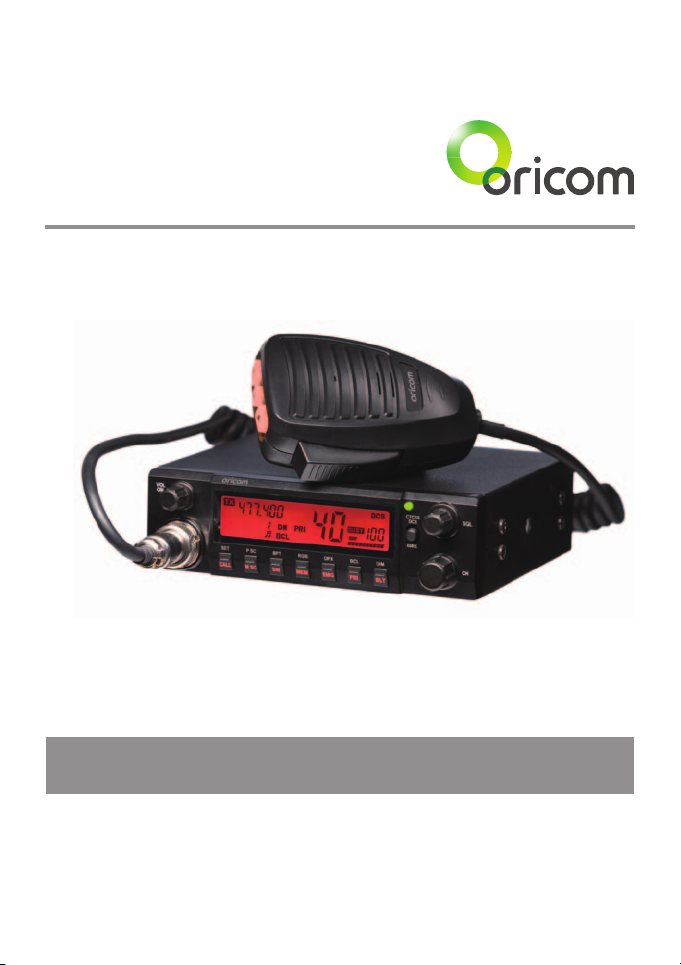

Oricom UHF050 Manuale utente

User Guide

Oricom UHF050 40 Channel UHF CB Radio

Downloaded from www.cbradio.nl

Table of contents

Important Information 4

Please read before installing or operating your Oricom Radio 4

Safety Warning 5

Controls and Connectors 6

Installation of your Oricom UHF 050 8

Box Contents 8

Antenna Installation 8

DC Power 9

DIN Kit 9

Optional External Speaker 9

Operation 10

Dual Function buttons 10

Power ON / OFF 10

Squelch 10

To Select a Channel 10

To Select A CTCSS / DCS or 60Rx Receive channels 10

Transmitting 11

Busy Channel Lock (BCL) 11

To Transmit 11

Call Tone 12

CTCSS (Continuous Tone Coded Squelch System) 12

DCS (Digitally Coded Squelch) 12

Receive & Transmit Indicator 13

Time Out Timer (ToT) 13

Duplex Operation 13

Roger Beep (RGB) 15

Emergency Channel (EMG) 15

Priority Channel (PRI) 15

BEEP Tone (BPT) 16

Memory Scan 16

Priority Scan 17

LCD Display Controls 17

60 Rx channels 17

Factory Reset 18

Specications 19

Frequency Table (Channel 1-20) 20

Frequency Table (Channel 21-40) 21

Warranty 22

Customer Support 23

Important information

Please read before installing or operating

your Oricom Radio

The operation of this radio in Australia and New Zealand is subject

to conditions in the following licenses. In Australia the ACMA Radio

communications (Citizen Band Radio Stations) and in New Zealand by MED

General User Radio License for Citizen Band Radio and operation is subject

to conditions contained in those licences.

Channels 5 and 35 (paired for Duplex repeaters) are reserved as emergency

channels and should be used only in an emergency. CTCSS and DCS will

not operate on these channels.

Channel 11 is a calling channel generally used to call others and channel

40 is the customary road vehicle channel.

Once contact is established on the calling channel, both stations should

move to another unused “SIMPLEX” channel to allow others to use the

calling channel.

Channels 22 and 23 are for Telemetry and Telecommand use, voice

communications are not allowed on these channels by law.

Channels marked Duplex are reserved for repeater use in some areas.

These are paired with higher channels as output/input (1/31, 2/32, etc.)

Check for local repeater activity before using these channels in Simplex

mode to avoid interference. Channels 9 and above are the best choices for

general use in Simplex mode. You can nd more information about channels

and frequencies by visiting the Web site:

http://www.acma.gov.au

Note:

Refer to the “Channel Table” section of this Owner’s Manual for detailed

frequency listing.

Important information

Safety Warning

NOTE:

Areas with potentially explosive atmospheres are often, but

not always clearly marked. They include fueling areas such

as below deck on boats; fuel or chemical transfer or storage

facilities; areas where the air contains chemicals or particles,

such as grain, dust, or metal powders; and any other area

where you would normally be advised to turn off your vehicle

engine.

Potentially Explosive Atmospheres

Turn your radio OFF when in any area with a potentially

explosive atmosphere. Sparks in such areas could cause an

explosion or re resulting in injury or even death.

Blasting Caps and Areas

To avoid possible interference with blasting operations, turn

your radio OFF near electrical blasting caps or in a “blasting

area” or in areas posted: “Turn off the two way radio.” Obey all

signs and instructions.

Electromagnetic Interference/Compatibility

Nearly every electronic device is susceptible to electromagnetic

interference (EMI). To avoid the possibility of electromagnetic

interference and/or compatibility conicts, turn off your radio

in any location where posted notices instruct you to do so such

as health care facilities.

WARNING

Operation

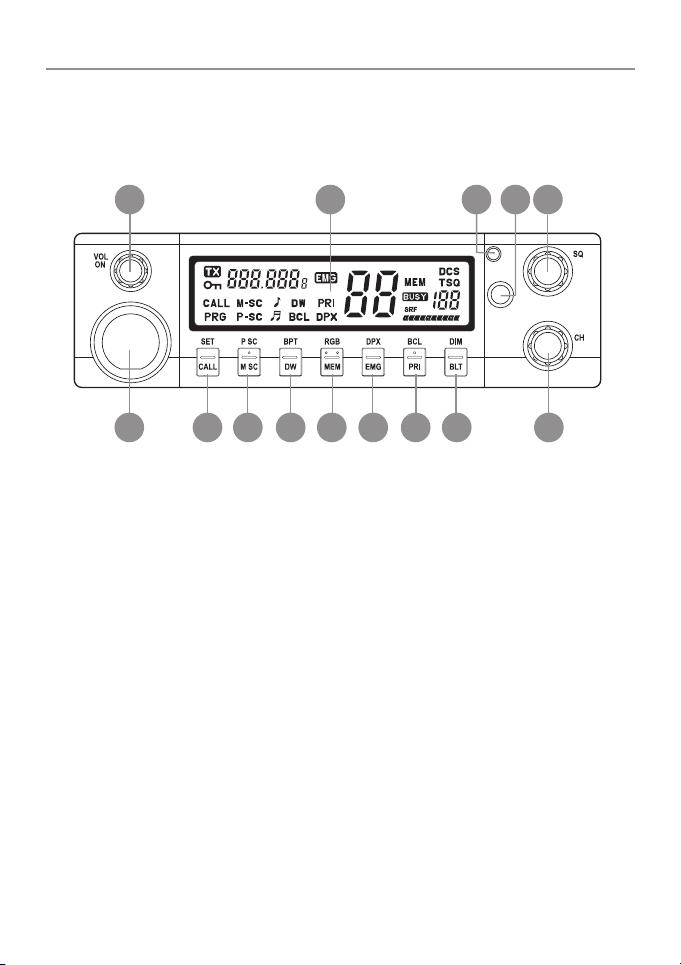

Controls and Connectors

Front View

60RX

CTCSS

DCS

1 2 4

14131211109876

1. Rotary On / Off Switch and Volume Control

2. LCD Display

3. Rx / Tx Indicator

4. CTCSS / DCS, 60 Channel Rx Selector switch

5. Rotary squelch control

6. Microphone connector

7. Call- Call Button, Set- Set Button

8. M SC – Memory Scan, P SC – Priority Scan

9. DW – Dual Watch, BPT – Beep Tone

10. MEM – Memory Skip, RGB – Roger Beep

11. EMG – Emergency Channel, DPX – Duplex

12. PRI – Primary, BCL – Busy Channel Lock

13. BLT – Back light, DIM – DIM

14. Rotary Channel Button

Operation

Rear View

1 2 3

1. Antenna Connection

2. 3.5mm external jack for optional 8 ohm speaker

3. Power Supply Connection

Microphone

1. Push to talk switch (PTT)

2. Select Up

3. Select Down

4. Instant Channel

2 4 3

Installation of your Oricom UHF050

Box Contents

1 X UHF050 CB Radio

1 X Microphone

1 X DC Power cord with inline fuse

1 X Mounting bracket with mounting screws

1 X Microphone hanger

1 X DIN mounting kit

1 X User Guide

When installing your radio in your vehicle, check that during

installation you do not damage any wiring or vehicle components

that may be hidden around the mounting position.

If you are unsure about how to install your radio, we suggest

for optimum performance you have your radio professionally

installed by a UHF specialist or Auto electrician. When installing

the radio, avoid mounting it close to heaters or air conditioners.

Do not press the PTT or CALL button before installing the

antenna.

Antenna Installation

To obtain the best performance from your UHF050 it is important to obtain

a good quality antenna. You should purchase an antenna designed for the

477MHz frequency band.

1. Connect the antenna to the rear antenna socket using a PL259 coaxial

connector.

Installation of your Oricom UHF050

DC Power

The UHF050 is designed for 13.8V DC negative earth installations only.

1. Connect the negative (Black) DC power lead to the vehicle chassis or

directly to the vehicle battery negative terminal if preferred.

2. Connect the positive (Red) DC power lead via the in line fuse to a

suitable point in the vehicle fuse box or directly to the positive battery

terminal. When selecting a suitable point take into consideration if you

want your UHF 050 to be operational when the car ignition is off.

DIN Kit

The UHF050 can be installed using a optional DIN Kit - Part number; DIN050

for mounting in a vehicle dash board.

Optional External Speaker

Depending on the installation it may be necessary to use an external

speaker (not supplied) to give improved volume and clarity. This can be

plugged into the EXT –SPK socket on the rear of the unit.

Operation

Dual Function buttons

The dual function button (buttons 7 to 13) have two functions.

To use the primary function (printed on the button) just press the button. To

use the secondary function (printed above the button)

press and hold the button for 2 seconds.

Power ON / OFF

Rotate the power switch in a clockwise direction to turn the unit ON,

adjust the volume to a comfortable level. Rotate the Power Switch counter

clockwise until it click to turn off the power.

Squelch

To adjust the level of squelch use the rotary SQL control. Turning the control

clockwise reduces the amount of squelch, turning counter clockwise

increase the amount of squelch. To reduce the signals that you can hear,

increase the squelch, to hear more signals which may include weak signals

decrease the squelch.

To Select a Channel

To select a channel rotate the CH control clockwise or counter clockwise to

the desired channel.

To Select A CTCSS / DCS or 60Rx Receive channels

Press the CTCSS / DCS button once to obtain CTCSS channel select. Press

twice to obtain DCS channel select.

Press and hold the button for 2 seconds to obtain the 60Rx channels.
