Oriental motor DR Series Manuale utente

Thank you for purchasing an Oriental Motor product.

This Manual describes product handling procedures and safety precautions.

•Please read it thoroughly to ensure safe operation.

•Always keep the manual where it is readily available.

HL-14102-2

Compact Motorized Cylinder

DR Series Wide table type

OPERATING MANUAL Actuator

1 Introduction ...................................2

2 Safety precautions ........................3

3 Precautions for use........................6

4 Preparation.....................................9

5 Installation................................... 12

6 Connection .................................. 18

7 Inspection and maintenance ... 19

8 Troubleshooting ......................... 23

9 Specications .............................. 24

10 Regulations and standards....... 26

11 Dimension.................................... 27

Introduction

1 Introduction

1-1 Before use

Only qualied personnel of electrical and mechanical engineering should work with the

product.

Use the product correctly after thoroughly reading the section "2 Safety precautions" on

p.3. In addition, be sure to observe the contents described in warning, caution, and note in

this manual.

The product described in this manual has been designed and manufactured to be

incorporated in general industrial equipment. Do not use for any other purpose. Oriental

Motor Co., Ltd. is not responsible for any damage caused through failure to observe this

warning.

1-2 Overview of the product

The compact motorized cylinder DR Series (hereinafter described as cylinder) is an actuator of

a linear motion mechanism that a stepping motor is integrated with a ball screw. The

AZ Series is adopted for the motor.

1-3 Related operating manuals

For operating manuals, download from Oriental Motor Website Download Page or contact

your nearest Oriental Motor sales oce.

•DR Series OPERATING MANUAL Actuator (this document)

•AZ Series/Motorized actuator equipped with AZ Series

OPERATING MANUAL Function Edition

•Motorized actuator Compact Motorized Cylinder

Function Setting Edition *

* Be sure to read the operating manual “Function Setting Edition” which is exclusively for

compact motorized cylinders.

Refer to the operating manual of the driver for contents not described in these manuals.

Safety precautions

2 Safety precautions

The precautions described below are intended to prevent danger or injury to the user and

other personnel through safe, correct use of the product. Use the product only after carefully

reading and fully understanding these instructions.

You must not operate the cylinder (operate the equipment for the specied purpose) if the

machine in which the cylinder is installed does not satisfy the related safety standards. The

factory safety manager or safety personnel in charge of the applicable machine must ensure

that the machine is operated only by qualied personnel who are familiar with the operation

of electronic equipment, and thereby prevent injury or damage to the equipment.

The term “qualied personnel” refers to persons who have received the necessary training

or education and have pertinent experience; who are familiar with the relevant standards,

regulations, accident-prevention rules and inspection conditions; who are authorized by the

factory safety manager to engage in the necessary activities; and who have the ability to

discern and prevent potential dangers.

Description of signs

Handling the product without observing the instructions that

accompany a“WARNING” symbol may result in serious injury or

death.

Handling the product without observing the instructions that

accompany a“CAUTION” symbol may result in injury or property

damage.

The items under this heading contain important handling

instructions that the user should observe to ensure the safe use of

the product.

Description of graphic symbols

Indicates "prohibited" actions that must not be performed.

Indicates "compulsory" actions that must be performed.

Safety precautions

•Do not use the cylinder in explosive or corrosive environments, in the

presence of ammable gases, locations subjected to splashing water, or near

combustibles. Doing so may result in re or injury.

•Do not transport, install, connect or inspect the cylinder while the power is

supplied. Doing so may result in electric shock.

•Do not forcibly bend, pull or pinch the cable. Doing so may result in re.

•Do not disassemble or modify the cylinder. Doing so may result in injury or

damage to equipment.

•Never use the cylinder in a medical device used in connection with the

maintenance or management of human life or health, or in a transportation

system whose purpose is to move or carry people.

•Be sure to provide a safety cage conforming to EN ISO 13857 to prevent

persons from entering the moving range of the cylinder while power

is supplied to the cylinder. Turn o the main power to the driver before

performing adjustment or inspection in which the moving part is moved

manually. Failure to do so may result in injury.

•Do not hit the ball screw with the mechanical stopper in operations other

than push-motion operation. Doing so may result in injury or damage to

equipment.

•Assign qualied personnel to the task of installing, wiring, operating/

controlling, inspecting and troubleshooting the cylinder. Failure to do so

may result in re, injury or damage to equipment.

•When setting the data, do so outside the safety cage. Failure to do so may

result in injury.

•Take measures to keep the moving part in position if the cylinder is used in

vertical operations such as elevating equipment. Failure to do so may result

in injury or damage to equipment.

•When an alarm is generated in the driver (any of the driver’s protective

functions is triggered), take measures to hold the moving part in a specic

position since the cylinder stops and loses its holding torque. Failure to do so

may result in injury or damage to equipment.

•Install the cylinder inside an enclosure. Failure to do so may result in injury.

•Provide an emergency stop device or emergency stop circuit external to the

equipment so that the entire equipment will operate safely in the event of a

system failure or malfunction. Failure to do so may result in injury.

•After replacing the driver, set the resolution, traveling direction or other

parameters before operating the cylinder. If the cylinder is operated without

setting parameters, the ball screw may move to unexpected directions or run

at unexpected speeds, causing injury or damage to equipment.

Safety precautions

•Do not use the cylinder beyond its specications. Doing so may result in

injury or damage to equipment.

•Keep your ngers and objects out of the openings in the cylinder. Failure to

do so may result in re or injury.

•Do not touch the cylinder during operation or immediately after stopping.

Doing so may result in a skin burn(s).

•Do not carry the cylinder by holding the moving part or cable. Doing so may

cause injury.

•Keep the area around the cylinder free of combustible materials. Failure to

do so may result in re or a skin burn(s).

•Do not leave anything around the cylinder that would obstruct ventilation.

Doing so may result in damage to equipment.

•Do not touch the moving part during operation. Doing so may result in

injury.

•Do not touch the terminals while conducting the insulation resistance

measurement or dielectric strength test. Doing so may result in electric

shock.

•While the cylinder is operated, do not make the cable contact with the

moving part. Doing so may result in disconnection in the cable, leading to

damage.

•Use the cylinder and driver only in the specied combination. Failure to do

so may result in re.

•Wear a helmet, safety shoes, gloves or other protective gear when

transporting or installing the cylinder. Failure to do so may result in injury.

•The motor surface temperature may exceed 70 °C (158 °F)

even under normal operating conditions. If the operator is

allowed to approach the cylinder in operation, ax a warning

label shown in the gure on a conspicuous position. Failure to

do so may result in a skin burn(s).

Warning

label

Precautions for use

3 Precautions for use

This chapter covers restrictions and requirements the user should consider when using the

product.

General

zBe sure to use our cable to connect the cylinder and driver.

Check on the Oriental Motor Website for the model name of cables.

zDo not detach the table or loosen the screws.

If the table is detached or the screws secured the table is loosened, the installation accuracy

of the ball screw is deteriorated, resulting in malfunction or shorter service life of the cylinder.

Also, the home position set in the encoder (ABZO sensor) at the time of shipment may be

deviated, and this may cause unexpected movements, leading to damage to equipment.

zDo not install a guide for load transportation additionally on the customer side.

Misalignment of guides may cause damage to equipment.

zWhen conducting the insulation resistance measurement or the dielectric

strength test, be sure to separate the connection between the cylinder and the

driver.

Conducting the insulation resistance measurement or dielectric strength test with the cylinder

and driver connected may result in damage to the product.

zDo not make an impact on the cylinder.

Do not drop the cylinder. Also, do not hit or strike the cylinder. Making an impact on the

cylinder may cause the positioning accuracy to decrease, the motor to damage, or the lifetime

to reduce.

zMake sure not to hit or apply a strong impact on the encoder (ABZO sensor).

•Making a strong impact on an encoder (ABZO sensor) may cause the motor malfunction or

damage to the encoder (ABZO sensor).

•When transporting the cylinder or installing a load, handle the cylinder carefully not to

make a strong impact on the moving part.

•The warning label shown in the gure is indicated on

the motor.

Warning label

zMeshing noise of mechanical sensor

A gear type mechanical sensor is built into the encoder (ABZO sensor). Although the meshing

noise of gears may generate, it is not malfunction.

Precautions for use

zDo not move the encoder (ABZO sensor) toward a strong magnetic eld.

A magnetic sensor is built into the encoder (ABZO sensor). If the cylinder is installed close to

equipment which generates a strong magnetic eld, the encoder (ABZO sensor) may break

or malfunction. Make sure the environment at transportation and storage as well as the

installation location in use. Keep the magnetic ux density on the surface of the encoder (ABZO

sensor) so as not to exceed the values in the table.

Model Magnetic ux density

When transporting and storing When operating

DR28 5 mT 2 mT *

* When the magnetic ux density is exceeding 1 mT and 2 mT or less, use in an environment

where the operating ambient temperature is exceeding 20 °C (68 °F) and 40 °C (104 °F) or

less.

Temperature

zUse the cylinder in a condition where the motor surface temperature does not

exceed 80 °C (176 °F).

The motor surface temperature may exceed 80 °C (176 °F) under certain conditions (ambient

temperature, operating speed, duty cycle, etc.). In order to protect the encoder (ABZO sensor),

use the motor in a condition where the motor surface temperature does not exceed 80 °C

(176 °F).

If the encoder (ABZO sensor) temperature reaches the upper limit, the motor overheat

protection alarm will generate.

zOperate the cylinder in the range of the operating ambient temperature.

If the cylinder is used outside of the operating ambient temperature, it may not operate

properly.

Operation

zKeep 20 m (65.6 ft.) or less for the wiring distance between the cylinder and

driver.

To extend more than 20 m (65.6 ft.) may cause the thrust to reduce.

zHolding torque at standstill

The holding force at standstill for the cylinder is a value when the current cutback function

(stop current 50%) is enabled. Note the holding force is reduced in the current cutback state.

In addition, turning o the power supply causes the holding force of the cylinder to lose.

Make sure a load does not fall.

zDo not perform push-motion operation at the speed exceeding the maximum

push speed or the maximum push-motion return-to-home speed.

The mechanical impact may cause damage to the cylinder. If the ball screw was pressed at

high speed, take measures by referring to "8 Troubleshooting" on p.23.

Precautions for use

zDo not perform push-motion operation with the cylinder of ball screw lead

1 mm.

The TLC output may be turned ON before push-motion operation is complete. (Push-motion

return-to-home operation can be performed.)

Inspection

zGrease

Grease on the ball screw or linear guide may darken during the initial operation (one to three

weeks). Refer to p.20, and wipe o the dirty grease to apply new grease.

Notes when the connection cable is used

Note the following points when our cable is used.

zWhen inserting the connector

Hold the connector main body, and insert it in straight securely. Inserting the connector in an

inclined state may result in damage to terminals or a connection failure.

zWhen unplugging the connector

Pull out the connector in straight while releasing the lock part of the connector. Pulling out

the connector with holding the lead wire may result in damage to the connector.

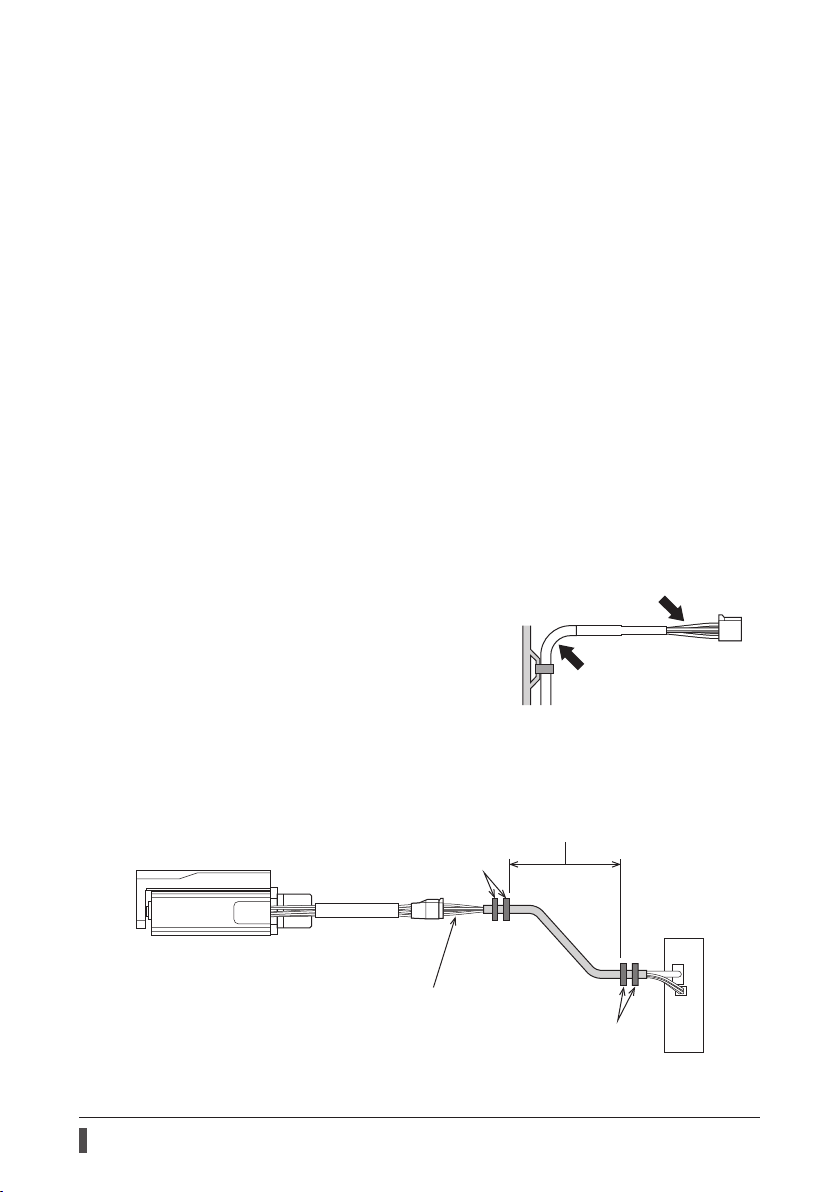

zBending radius of cable

Use the cable in a state where the bending radius of

the cable is more than six times of the cable diameter.

Do not bend the lead wires part or x it with a clamp.

Doing so may cause damage to the connector.

More than 6 times

of cable diameter

Do not bend the

lead wires part

zHow to x the cable

Fix the cable near the connectors at two places as shown in the gure or x it with a wide

clamp to take measures to prevent stress from being applied to the connectors.

In the case of a exible cable,

this area is a movable range.

Fixing at two places

Do not bend the lead wires

part or x with a clamp

Driver

Fixing at two places

linder

Preparation

4 Preparation

4-1 Checking the product

Verify that the items listed below are included. Report any missing or damaged items to the

Oriental Motor sales oce from which you purchased the product.

•Compact motorized cylinder ..................................1 unit

•Instructions and Precautions for Safe Use..........1 copy

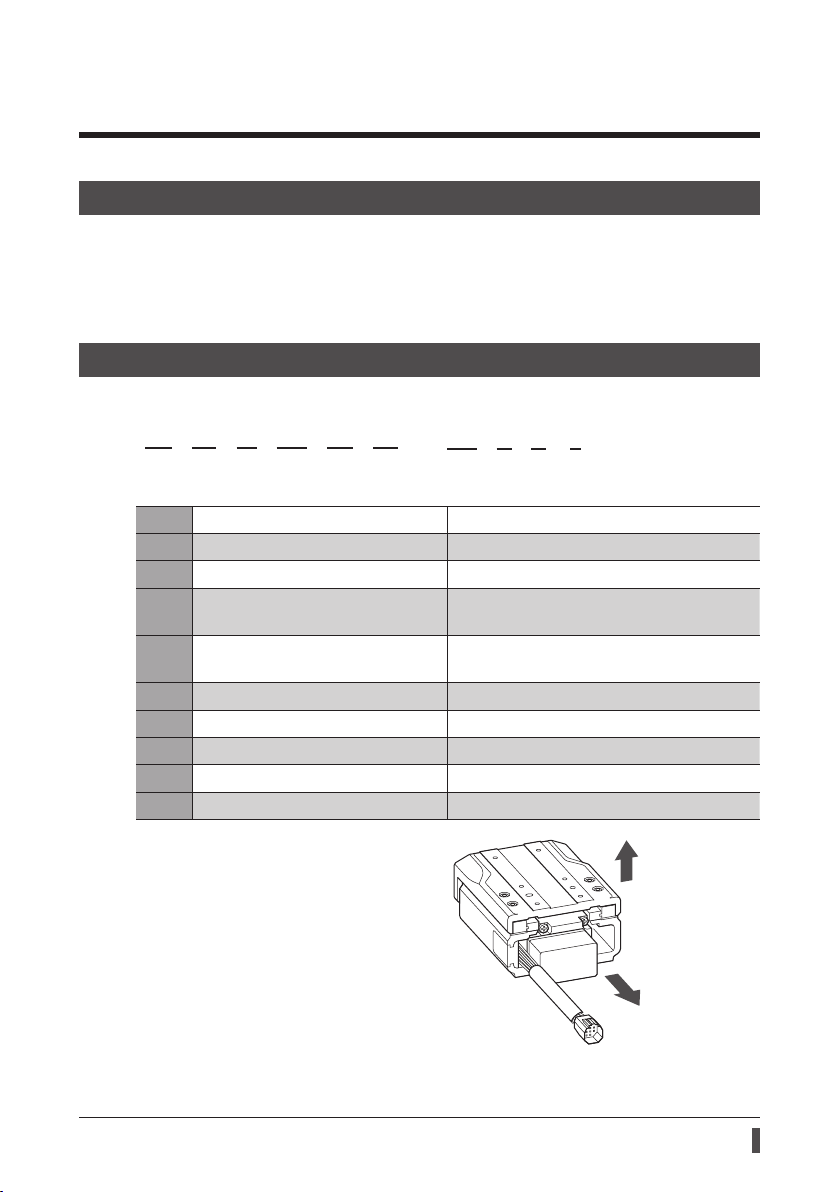

4-2 How to identify the product model

Verify the model number of the purchased against the number shown on the nameplate.

DR 28 W 2.5 BC 03 - AZ A K L

1 2 3 4 5 6 7 8 9 10

1 Series DR: DR Series

2 Frame size of the equipped motor 28: 28 mm

3 Type W: Wide table type

4 Ball screw lead 1: 1 mm

2.5: 2.5 mm

5 Ball screw type B: Precision ball screw

BC: Precision ball screw with cover

6 Stroke 03: 30 mm

7 Equipped motor AZ: AZ Series

8 Additional function A: None

9 Motor power supply type K: DC power supply input

10 Cable outlet direction * L: Left (Outlet position: Left side of motor)

* The cable outlet direction represents the

direction when the table is faced upward

and the motor is placed on the near side. Face the table

upward

ce the motor

to the near side

L: Left

Preparation

4-3 Information about nameplate

The gure shows an example.

linder model

Specication

Serial number

Manufacturing date

4-4 Names of parts

The area indicated in gray color represents a moving part.

Load positioning pin holes

(2 places)

oad positioning pin holes

(2 places)

Linear guide

Cable

Connecto

Table

Do not loosen

Do not remove

Load mounting holes in the

ball screw side (4 places)

Load mounting holes in the

linear guide side (6 places)

Motor

Mounting holes

(4 places)

Ball screw

Stopper

Positioning pin holes

(2 places)

Encoder

(ABZO sensor)

* This prevents the ball screw from retracting completely into the motor.

Altri manuali per DR Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Oriental motor Controllori

Oriental motor

Oriental motor US2 Series Manuale utente

Oriental motor

Oriental motor AZ Series Manuale utente

Oriental motor

Oriental motor Astep AZ Series Manuale utente

Oriental motor

Oriental motor DSC Series Manuale utente

Oriental motor

Oriental motor OPX-2A Manuale utente

Oriental motor

Oriental motor CRD514-KD Manuale del proprietario

Oriental motor

Oriental motor CRK Series Manuale del proprietario

Oriental motor

Oriental motor DGII Series Manuale utente

Oriental motor

Oriental motor SCX11 Manuale di installazione e funzionamento

Oriental motor

Oriental motor DRLII Series Manuale utente

Oriental motor

Oriental motor DRS Series Manuale utente

Oriental motor

Oriental motor aSTEP AZ Series Manuale utente

Oriental motor

Oriental motor DRS Series Manuale utente

Oriental motor

Oriental motor FLEX RK II Series Manuale utente

Oriental motor

Oriental motor EMP400 Series Manuale utente

Oriental motor

Oriental motor Astep AZ Series Manuale utente

Oriental motor

Oriental motor NX Series Manuale utente

Oriental motor

Oriental motor DG Series Manuale utente

Oriental motor

Oriental motor DRL Series Manuale operativo e di manutenzione

Oriental motor

Oriental motor EZ limo EZHS Series Manuale utente

Oriental motor

Oriental motor DR Series Manuale utente

Oriental motor

Oriental motor MSC-1 Manuale utente

Oriental motor

Oriental motor DRL Series Manuale utente

Oriental motor

Oriental motor aSTEP AZ Series Manuale utente

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
