Orion VALUE SERIES Manuale utente

Installation and User’s Guide

http://www.orionimages.com

All contents of this document may change without prior notice, and actual product appearance may differ

from that depicted herein

Installation and User’s Guide

17” & 19” TFT-LCD MONITOR

(SECURITY)

VALUE SERIES LCD MONITOR

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg2

* Follow this safety instruction to use the monitor properly and prevent the damages.

* Keep this user’s guide book for later use.

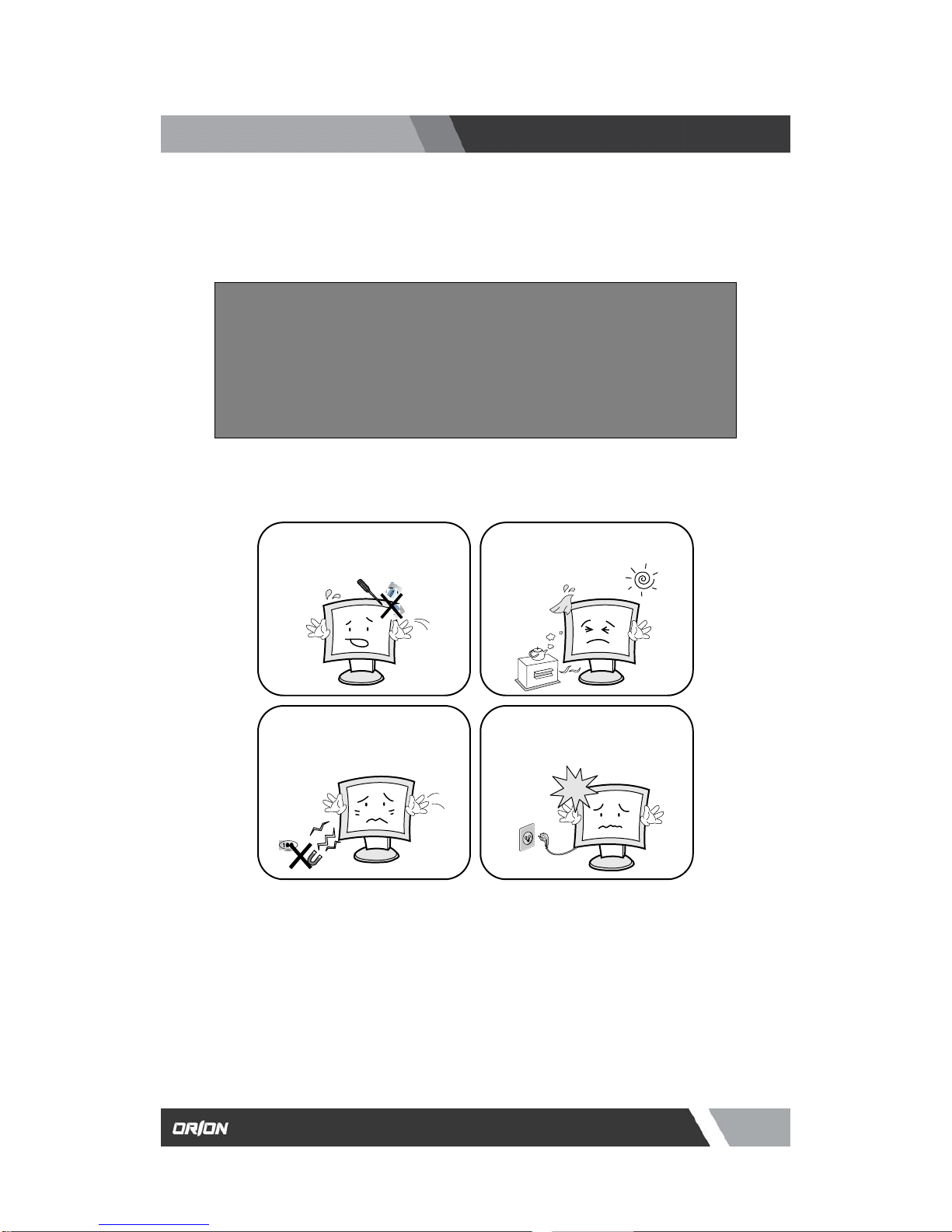

Warning Statements

* This safety instruction has “ Warning” and “ Caution” as below.

WARNING: If the user does not follow this instruction,

it may cause the serious damage to the user.

CAUTION: If the user does not follow this instruction, it may cause the slight

damage to the user or cause some damages to the monitor.

Never remove the back over and touch

the inside of the monitor. If you need a

service, please contact the service center.

Keep away the monitor from the

direct sunlight and a heating appliance.

Never push objects of any kind into this

product as they may result in a risk of fire

or electric shock.

Connect the power code to the wall

outlet tightly. If the power code or plug are

defective and the wall outlet is not tight,

lease do not use them.

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg3

Warning Statements

Do not install this monitor on the outside

and near water. If may cause damage to

the product, electric shock and fire.

For cleaning do not use liquid cleaners.

Never touch the power plug with wet-

hands.

When lightning and thundering, unplug

the monitor from the wall outlet and never

touch it.

Unplug this product from the wall outlet,

when It does not operate for a long time.

When smoking and noising from the

monitor, unplug the product from the wall

outlet and contact a service center.

How to fix

1. Do not open this product as it contains high voltage inside.

2. It may create an electric shock.

3. It the user disassembles and remove the back cover, it does not make sure

4. To make up for the damages and do a service and exchange the monitor..

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg4

Cautions

Install this monitor some distance

From the wall and do not install unless

Proper ventilation is provided.

Place this product on a stable place.

If not, it may fall, causing serious

Damages to the monitor and people.

The openings must not be blocked by

curtain, rug or other similar surface. When carrying this monitor, be careful

not to damage the panel and drop it

It may cause some trouble.

Before carrying the monitor, tum it off

and Unplug the signal cables and the

power code From the wall outlet.

Take the power plug out from the wall

outlet. Do not pull the cable. It may

snap the inner wires and cause

overheating and fire.

Install this monitor about 50cm far from

the eyes and an angle of 0~15 degrees

below eyes. Too close installation may

cause having weak sight.

Do not press the LCD panel with hands

or the sharpened material hardly.

For cleaning, unplug the monitor from

the Wall outlet. Do net use the liquid

cloth. Use the soft cloth.

Do not use the chemical liquid for

cleaning. It may cause fading and

breakage.

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg5

TABLE OF CONTENTS

1. INSTALLATION .................................................................................................................

1.1 Parts ……....................................................................................................................

2. FEATURES …..................................................................................................................

2.1 Specifications …….……..............................................................................................

3. OSD SETTING .........................................................................................................

7. TROUBLESHOOTING

....

................................

.......................

.................

....................

8. LIMITED LIFETIME WARRANTY

....

.......................................................

.................

...

4. CONTROL BUTTON

....

.......................................................

................

...................

......

1.2 How to Install …….........................................................................................................

6. INFORMATION TO THE USER

....

.......................................................

................

.........

5. APPENDIX

....

.......................................................

................

.........................

1.3 Remote Controller ....................................................................................................

10-13

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg6

INSTALLATION

1.1 P

Remove the package cover and place the product on a flat and secure surface or in the

installation location. Check whether all the following device and accessories are included with

the main system.

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg7

INSTALLATION

1. DC 12V IN

2. RGB IN

3. S-VIDEO (Y/C) IN

4. S-VIDEO (Y/C) OUT

5. VIDEO2 (AV2) IN

6. VIDEO2 (AV2) OUT

7. VIDEO1 (AV1) IN

8. VIDEO1 (AV1) OUT

9. AUDIO2 IN

10. AUDIO1 IN

11. PC STEREO IN

RGB signal input

Y/C separated signal input

Y/C separated signal looping output

Composite signal input for VIDEO2

Video looping output for VIDEO2

Composite signal input for VIDEO1

Video looping output for VIDEO1

Stereo audio signal input. This output is for AV2

Stereo audio signal input. This input is for AV1, S-VIDEO

1.2 Connection

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg8

INSTALLATION

1.3 Remote Controller

1. POWER

2. MUTE

3. VIDEO1

4. VIDEO2

5. S-VIDEO

6. RGB

7. AUTO

8. COLOR TEMP

9. VOL-/VOL+ (◀▶)

10. UP/DOWN(▲▼)

11. MENU / EXIT

12. KEY LOCK

Turns the power ON or OFF. There will be a few

seconds delay before the display appears.

Mute the sound.

Select Video1 source.

Select Video2 source.

Select S-Video source.

Select RGB source.

Auto geometry adjustment in RGB source.

Select color temperature.

Increases or decreases the level of audio volume.

Move to OSD menu.

Activates and exits the On Screen Display.

Prevents unauthorized operation of the equipment by locking the

buttons. Key Lock feature by pressing and holding the ▲ and ◀

buttons for five seconds.

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg9

FEATURES

VIDEO

Screen Size 17” 19”

Viewing Area 338.0 x 278.0mm 376.0 x 301.0mm

Pixel Type Active Matrix TFT

Max. Resolution 1280 x 1024 @ 60Hz (SXGA)

Pixel Pitch 0.264 x 0.264mm 0.294 x 0.294mm

Brightness 250 cd/㎡

Contrast Ratio 800 : 1

Aspect Ratio :4:3

Viewing Angle (H/V) 160 / 160

Display Color 16.7Million

Response Time < 5ms

Video System NTSC / PAL / SECAM

Frequency (H) 31 ~ 48KHz

Frequency (V) 55 ~ 75Hz

Panel Lamp Life 50,000hours

MECHANICAL

Packing Dimension

W x H x D 20.0” x 16.1” x 6.5” 20.0” x 16.1” x 6.5”

Weight 17.6lbs 19.4lbs

Power Consumption 40W 45W

DC12V adapter (Auto Switching) / 3.4A (17 inch)

Power Source DC12V adapter (Auto Switching) / 3.8A (19 inch)

2.1 Specification (17 & 19 INCH)

Installation and User’s Guide

htt

://www.orionima

es.com

7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg10

OSD (On Screen Display) SETTING

A. Input Select

B. Picture Menu

1. Press the SOURCE button and then ▲/▼ button to move

the source.

2. Press the ▶ button to select the source.

3. Press the MENU/EXIT button to exit the INPUT menu.

3.1 OSD MENU Description

MENU SELECTION

1. Press the MENU key to access the Main menu.

2. Use the and arrow key to highlight a selection

3. Press the OK or button to select an item.

4. Use the and arrow key to highlight a selection.

5. Use the and arrow key to adjust the setting on a selected item.

Inputs can be set to VIDEO1, VIDEO2, S-VIDEO and RGB mode.
