REMOTE CONTROL KIT, RC100 / RC150
PART NUMBER
S1820513-03 / S1820513-07
ABBREVIATED COMPONENT MAINTENANCE MANUAL
Description and Operation
TASK 25-63-20-870-801-A01
1. Description and Operation
A. General
(1) Purpose
(a) The RC100 is the smallest and most basic version of the remote control panels that are
compatible with the KANNAD Emergency Locator Transmitter (ELT). It is specially intended
for general aviation and its small dimensions also make it suitable for airline cabin
installations or cockpit retrofit.
(b) The RC150 is a variant of the RC100. This version has a more rugged toggle switch.
(c) The RC100 and RC150 permit remote control of the primary functions of the KANNAD ELTs
(Manual activation, Reset, Test, Monitoring).

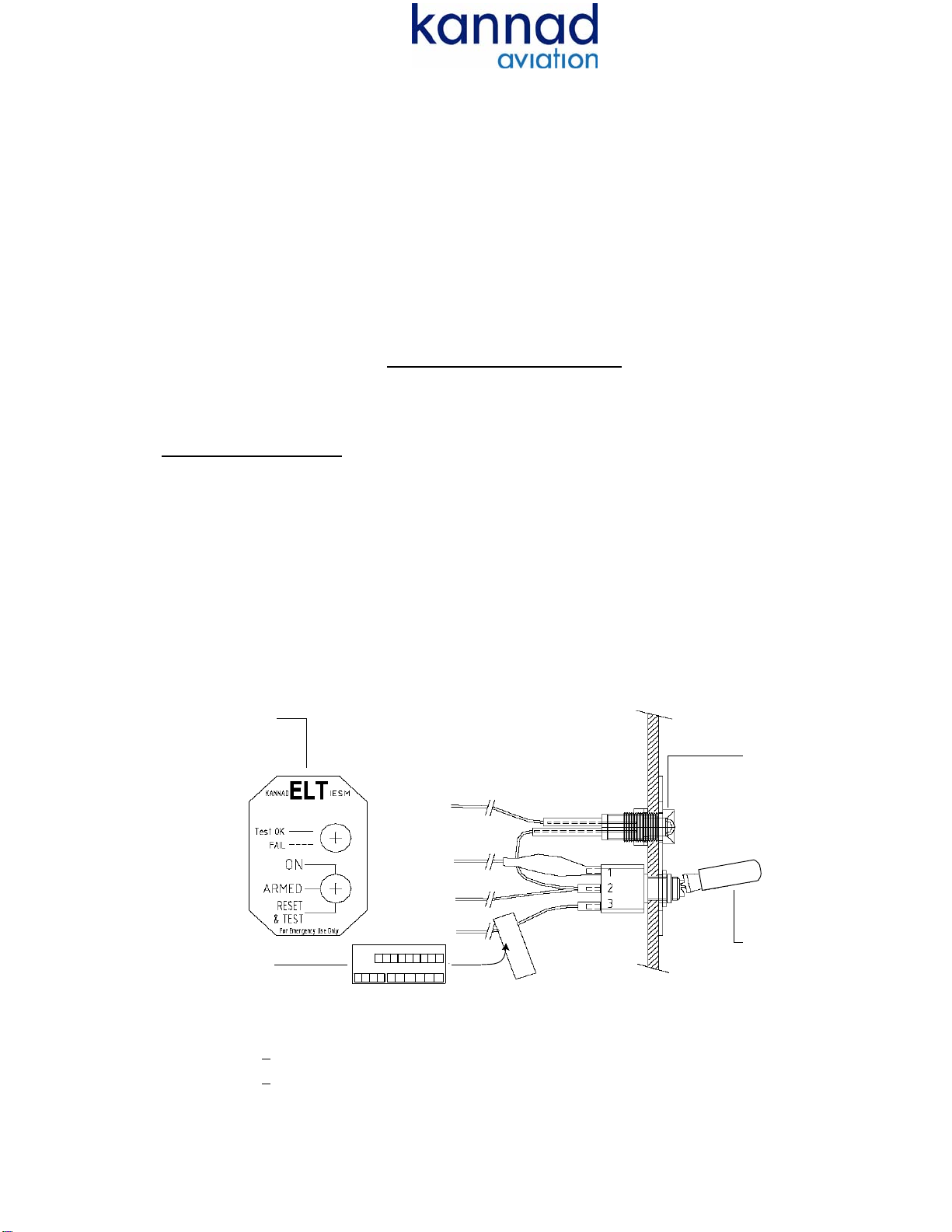

Figure 1 / 25-63-20-991-01-1
Remote Control Panel, Description
(2) Description (Refer to Figure 1 / 25-63-20-991-01-1 Remote Control Panel, Description )
(a) The RC100 and RC150 are made of:
1A self adhesive front plate (black with white inscriptions).
2A three-position toggle switch with two locking positions and its red protective cap
(RC150 only).
1
42
3
V D C1 C2 C3CF
1342
P/N : Sxxxxxxx-xx
AMDT ACDEFGHJ
B
S/N : Lxxxx-xxxx
The document reference is online, please check the correspondence between the online documentation and the printed version.
25-63-20
© Orolia S.A.S.
Abbreviated Component Maintenance Manual
S1820513-03 / S1820513-07
Page 2
FEB 03/2014
3A red LED.
4An adhesive label (production marking) bonded on the cable bundle near the switch. It
gives this information:
- Part Number, P/N.
- Amendment, AMDT.
- Serial Number, S/N.
- Number of evolution since the production release (1, 2, 3, 4).
- Control status (V, D, C, CF).
(b) The RC100 / RC150 name plate is bonded on the rear of the switch. It gives this information:
1Manufacturer code
2P/N
3Pin assignment (1, 2, 3).
B. Technical Data
(1) Overall Dimensions: Refer to Figure 2 / 25-63-20-991-02-1 Overall Dimensions

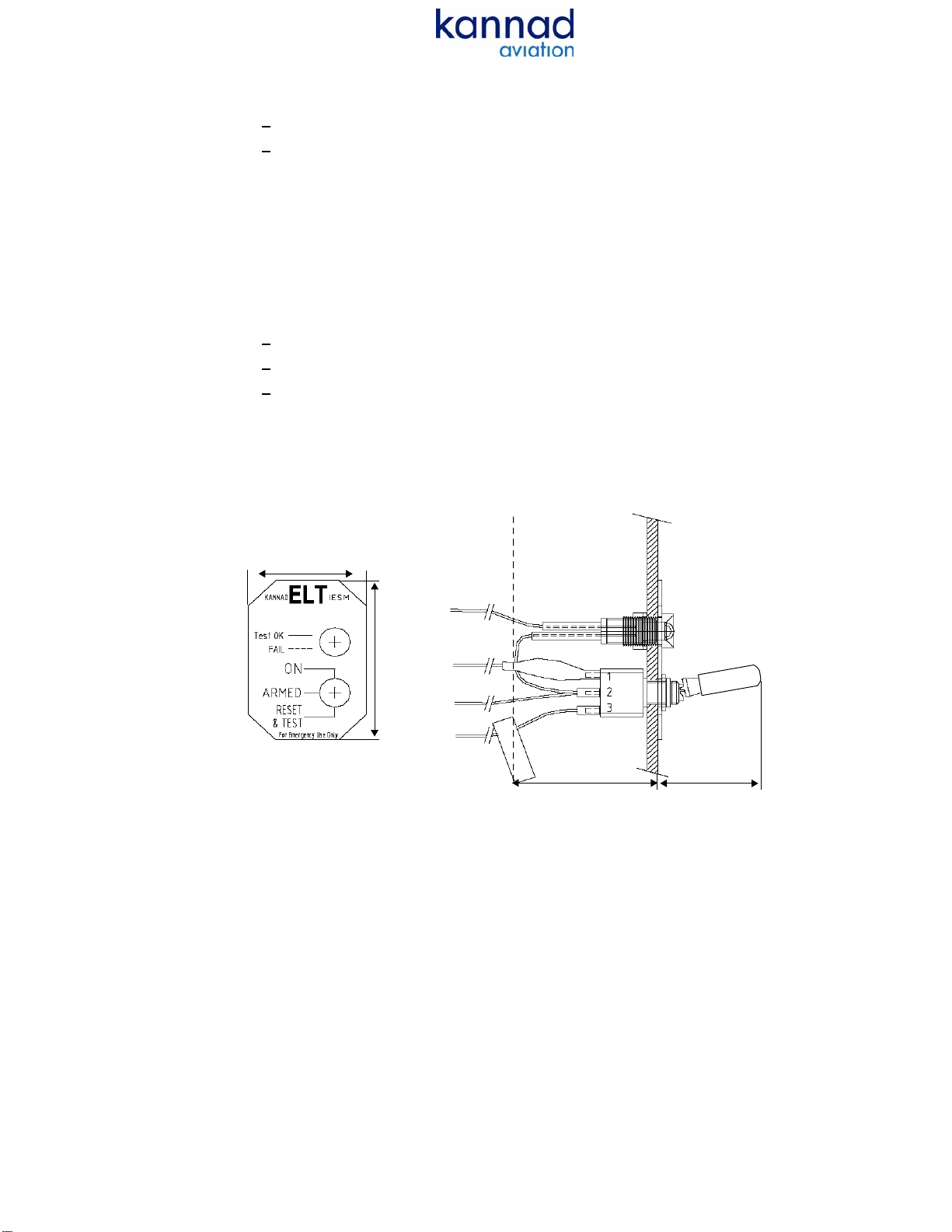

Figure 2 / 25-63-20-991-02-1
Overall Dimensions
(2) Weight: 13 g. (0.0286 lbs).
(3) Environmental Characteristics
- Operating temperature: -20 Degrees Celsius to +55 Degrees Celsius.
- Storage temperature: -55 Degrees Celsius to +85 Degrees Celsius.
- Magnetic effects: DO 160C / ED14C Category Z.
- Induced signal susceptibility: DO 160C / ED14C Category Z.
- Radio frequency signal susceptibility: in compliance with ED 62 § 4.4.10.
N
o
t
e: a
ll
di
mens
i
ons are
i
n m
illi
me
t
ers
(inches in brackets).
30 (1.18)
35 (1.378) 26 (1.028)
44 (1.732)
The document reference is online, please check the correspondence between the online documentation and the printed version.
25-63-20
© Orolia S.A.S.
Abbreviated Component Maintenance Manual
S1820513-03 / S1820513-07
Page 3
FEB 03/2014
C. Operation
Refer to Figure 3 / 25-63-20-991-03-1 Three-Position Toggle Switch
(1) The RC100 and RC150 permit remote control and remote monitoring of the KANNAD ELTs if the
ELT switch is in the "ARM" position.
(a) Remote control functions are done through a three-position switch:
- "ON" permits manual activation of the the ELT.
- "ARMED" is an idle position. Unlesss there is an emergency, the switch must stay in
this position (on the ground and during flight).
- "RESET / TEST" is used either to stop the ELT transmission if activated before or to
do a self-test.
(b) Monitoring is done through a red LED:
- 2 Hz pulsed signal during ELT transmission on 121.5 and 243 MHz.
- One long flash during ELT transmission on 406 MHz (at 50-second intervals).
- One short flash at the stary of the self-test sequence.
- 3 + N short flashes at the end of the self-test sequence if the ELT is defective (N is in
relation to the type of failure).
- One long flash at the end of the self-test sequence if the ELT is correct.
NOTE: The toggle swich is locked in the "ARMED" and "ON" positions. Self-test is a
momentary position. Pull the lever to unlock.

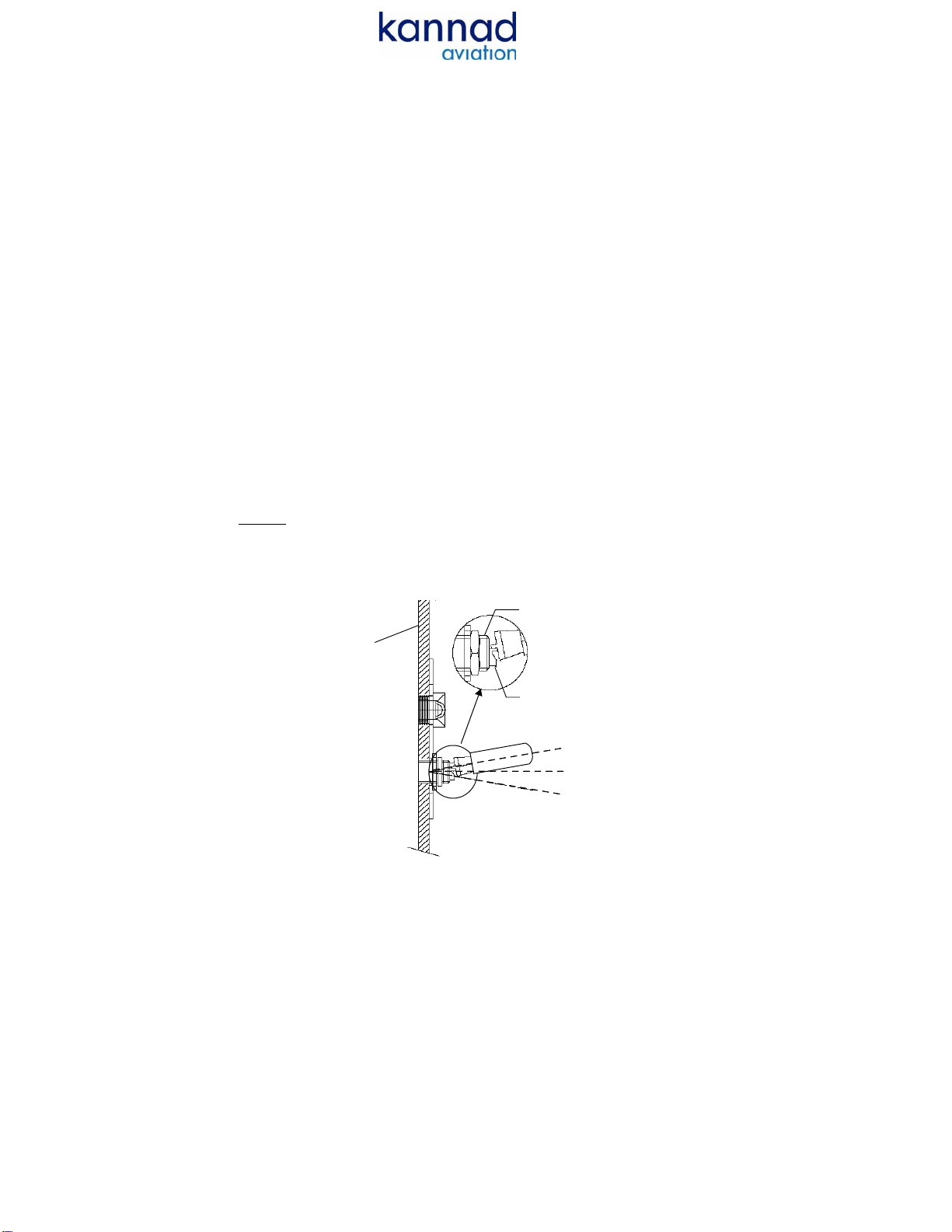

Figure 3 / 25-63-20-991-03-1
Three-Position Toggle Switch
Up
Down
Aircraft
instrument
panel
a
b
c
The document reference is online, please check the correspondence between the online documentation and the printed version.
25-63-20
© Orolia S.A.S.
Abbreviated Component Maintenance Manual
S1820513-03 / S1820513-07
Page 4
FEB 03/2014
Testing and Fault Isolation
TASK 25-63-20-700-801-A01
1. Testing and Fault Isolation
A. General
Refer to Figure 3 / 25-63-20-991-03-1 Three-Position Toggle Switch, Refer to Table 9001 / 25-63-20-
992-01 : List of Standard Tools
(1) Set the switch to "ARMED" (position b):
- Make sure that the resistance between pins G and A is more than 20 MOhms.
- Make sure that the resistance between pins G and K is more than 20 MOhms.
(2) Set the switch to "ON" (position a):
- Make sure that the resistance between pins G and K is less than 10 Ohms.
(3) Set the switch to "RESET/TEST" (position c):
- Make sure that the resistance between pins G and A is between 7125 Ohms and 7875
Ohms.
(4) Energize the LED with the 9V battery through a 470 Ohms resistor (+ to pin J, - to pin G):
- Make sure that the LED comes on.
(5) Change the polarity (+ to pin G, - to pin J):
- Make sure that the LED comes on.
Schematics and Wiring Diagram
TASK 25-63-20-995-801-A01
1. Schematic and Wiring Diagram
A. General
(a) Refer to Figure 2001 / 25-63-20-991-04-1 RC100/ RC150 Wiring which shows the wiring.

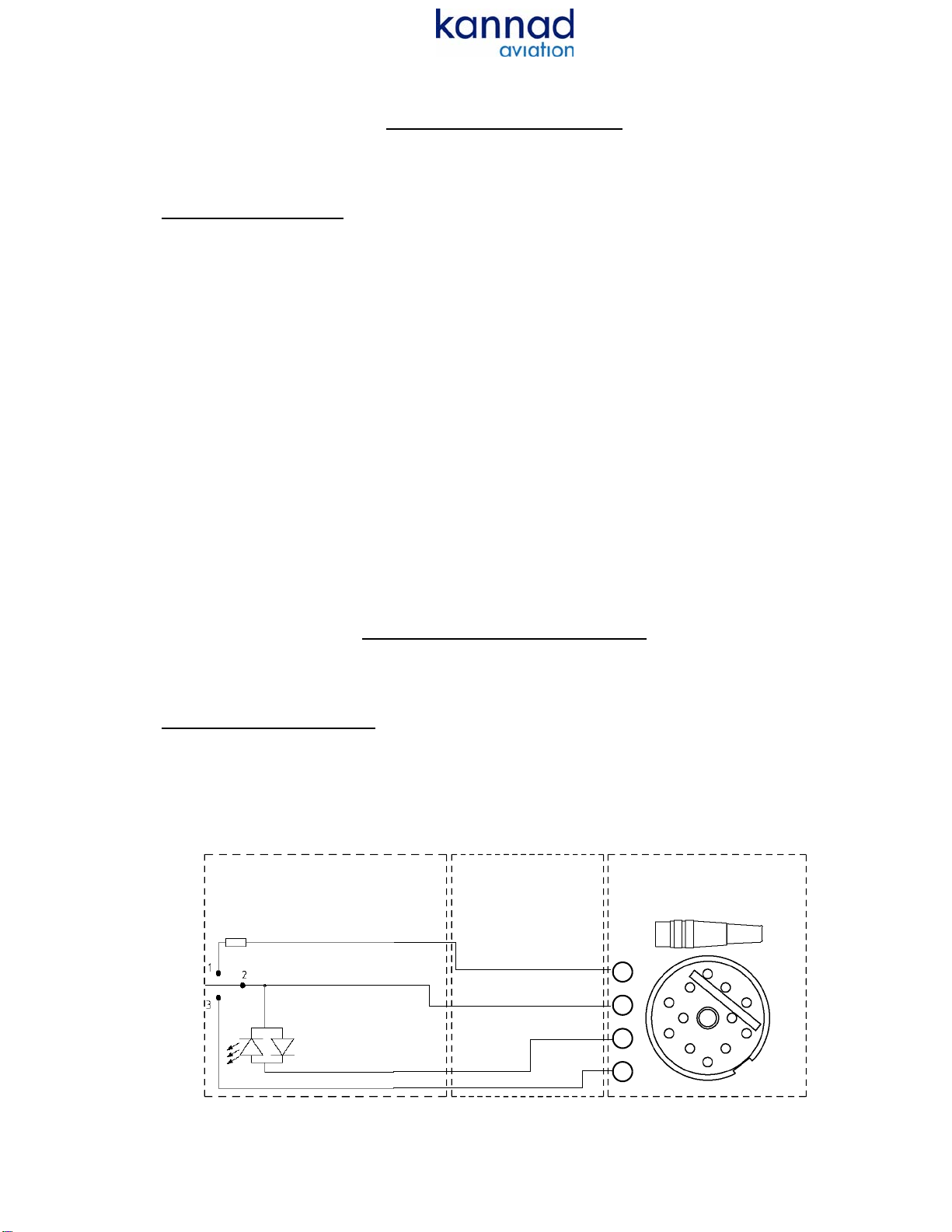

Figure 2001 / 25-63-20-991-04-1
RC100/ RC150 Wiring
EDC
F
LB
A
K
J
HM
G
A
G
J
K
RCP RESET (green)
RCP COMMON (blue)
RCP LED (yellow)
RCP ON (red)
DIN 12 connector
or Programming dongle
Instrument panel Aircraft body Close to ELT
The document reference is online, please check the correspondence between the online documentation and the printed version.
25-63-20
© Orolia S.A.S.
Abbreviated Component Maintenance Manual
S1820513-03 / S1820513-07
Page 5
FEB 03/2014
Cleaning
TASK 25-63-20-100-801-A01
1. Cleaning
A. General
(1) Remove dust with a rag (C01).
Special Tools, Fixtures, Equipment and Consumables
TASK 25-63-20-940-801-A01
1. Special Tools, Fixtures, Equipment and Consumables
A. Special tools, Fixtures and Equipment
Table 9001 / 25-63-20-992-01 : List of Standard Tools
NOTE: The meaning of the numbers in the USE column are as follows:
2: TESTING AND FAULT ISOLATION 3: DISASSEMBLY 4: CLEANING 5: CHECK 6:
REPAIR 7: ASSEMBLY
B. Consumables
NOTE: You can use alternative consumable from other suppliers if the consumable has equivalent
properties.
Table 9002 / 25-63-20-992-02 : List of Consumables
NOTE: The meaning of the numbers in the USE column are as follows:
NOTE: 2: TESTING AND FAULT ISOLATION 3: DISASSEMBLY 4: CLEANING 5: CHECK 6: REPAIR 7:
ASSEMBLY
DESIGNATION CHARACTERISTICS USE
234567
Ohmmeter X
Battery or Power Supply 9VDC, 1A X
Resistor 470 Ohms, 5%, 1/4 W X
ALPHANUM.
CODE DESIGNATION SUPPLIER TRADE NAME,
ADDRESS AND FCSM USE
234567
C01 SOFT BRUSH Commercially available X
The document reference is online, please check the correspondence between the online documentation and the printed version.
25-63-20
© Orolia S.A.S.
Abbreviated Component Maintenance Manual
S1820513-03 / S1820513-07
Page 6
FEB 03/2014
Illustrated Parts List
TASK 25-63-20-950-801-A01
1. Illustrated Parts List
A. Introduction
(1) The IPL contains a list of the components used in the equipment.
KIT, REMOTE CONTROL PANEL, RC100
(25-63-20-950-010-A01)

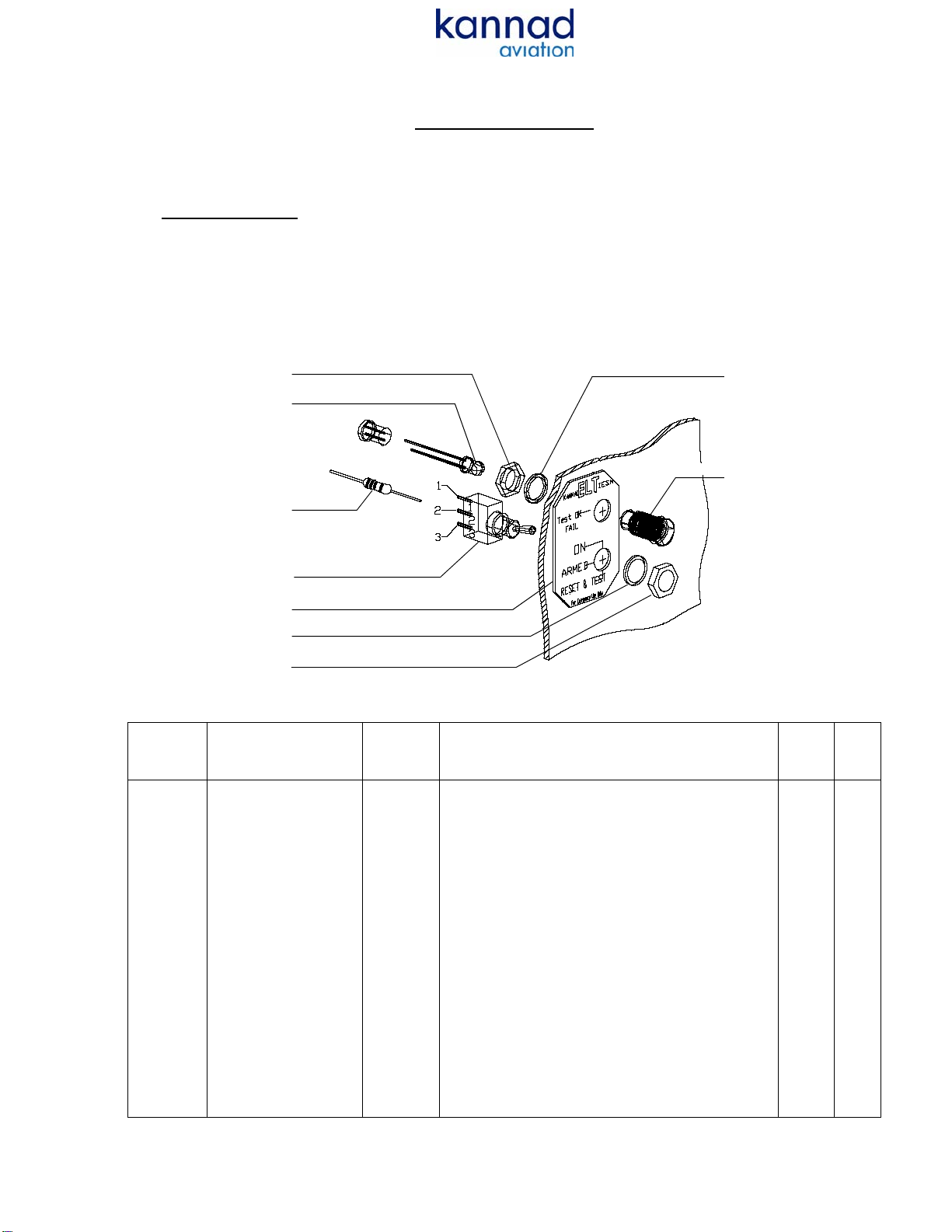

Figure 10001 / 25-63-20-991-010-01
KIT, REMOTE CONTROL PANEL, RC100
FIGURE
ITEM PART NUMBER AIRLINE
STOCK
NO.
NOMENCLATURE
1234567
EFF.
CODE UN.
PER
ASS
1- 1A S1820513-03 KIT, REMOTE CONTROL PANEL
RC 100 RF
- 1B S1820513-07 KIT, REMOTE CONTROL PANEL
RC 150 RF
10A 0134162 . SUPPORT ..................................................NP 1
20A 0134146 . LED,RED ....................................................NP
NP
1
30A 0125759 . SWITCH,TOGGLE .....................................NP
NP
1A 1
30B 0125812 . SWITCH,TOGGLE .....................................NP
NP
1B 1
- 40A 0126324 . CAP,PROTECTIVE 1B 1
50A 0132021 . PLATE,FRONT 1A 1
50B 0132180 . PLATE,FRONT 1B 1
60A 0135165 . RESISTOR,FIXED .....................................NP
7.5KOHM PM5PCT 1/4W
NP
1
70A DIN798 . WASHER,FLAT SST ..........................VFAH2D
DIA 8
NP
1
- 80A 0123036 . LABEL,IDENTIFICATION ...........................NP
NP
1A 1
- 90A 0123170 . LABEL,IDENTIFICATION ...........................NP
NP
1B 1
10
7
010
20
60
30
30
30
50
The document reference is online, please check the correspondence between the online documentation and the printed version.
25-63-20
© Orolia S.A.S.
Abbreviated Component Maintenance Manual
S1820513-03 / S1820513-07
Page 7
FEB 03/2014
Storage and Transportation
TASK 25-63-20-500-801-A01
1. Storage and Transportation
A. General
(1) Storage temperature: -55 Degrees Celsius to +85 Degrees Celsius.
The document reference is online, please check the correspondence between the online documentation and the printed version.
25-63-20
© Orolia S.A.S.
Abbreviated Component Maintenance Manual
S1820513-03 / S1820513-07
Page 8
FEB 03/2014
PAGE INTENTIONALLY LEFT BLANK
