Outback Omega 250 Manuale utente

Photographs are not to scale.

Specifications subject to change

without prior notice.

WARNING

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

Omega 150 Omega 250

Assembly and Operating Instructions for

Outback® Omega 150, and Omega 250 Gas Barbecues

0359

• For outdoor use only.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced. Check

the hose connections are tight and leak test each time you reconnect the gas

bottle.

A. Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding Hardware Reference Diagram for your barbecue

model.

OUTBACK® OMEGA RANGE

Body

Assembly

CODE PART QTY OMEGA 150 OMEGA 250

A1 Lava Rock / Basket 1  

A2 Burner 1  

A3 Hood Handle 1  

A4 Hood 1  

A5 Body 1  

A6 Grease Cup Holder 1  

A7 Grease Cup 1  

A8 Cooking Grill 1  

A9 Upper Hinge Bracket 2  

A10 Lower Hinge Bracket 2  

A11 Main Electrode (with Gas Collector Box) 1  

Upper

Trolley

B1 Control Panel 1  

B2 Igniter Button 1  

B3 Knob 2  

B4 Arch Support 2  

B5 Hose/Regulator Assembly 1  

B6 Plastic Side Shelf 1  

B7 Side Burner Knob 1 

B8 Side Burner Grid 1 

B9 Side Burner Shelf 1 

B10 Side Burner 1 

B11 Side Burner Electrode 1 

Lower

Trolley

C1 Left Front Leg 1  

C2 Left Rear Leg 1  

C3 Short Axle 2  

C4 Wheel 2  

C5 Hubcap 2

 

C6 Screen 1  

C7 Long Support Rod 2 

C8 Leg Endcap 2  

C9 Right Front Leg 1  

C10 Right Rear Leg 1  

C11 Short Support Rod 2 

C12 Bottom Shelf 1 

Hardware

D1 M5x10 Bolt 2  

D2 M6x25 Bolt 4 

D3 M6x30 Bolt 4  

D4 M6x40 Bolt 4 8

D5 M6x50 Bolt 4 

D6 Axle Clip 2  

D7 M6 Nut 8 20

D8 Shelf Spacer 4 8

D9 Shelf Washer 4 8

Pre-Assembled Component

Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

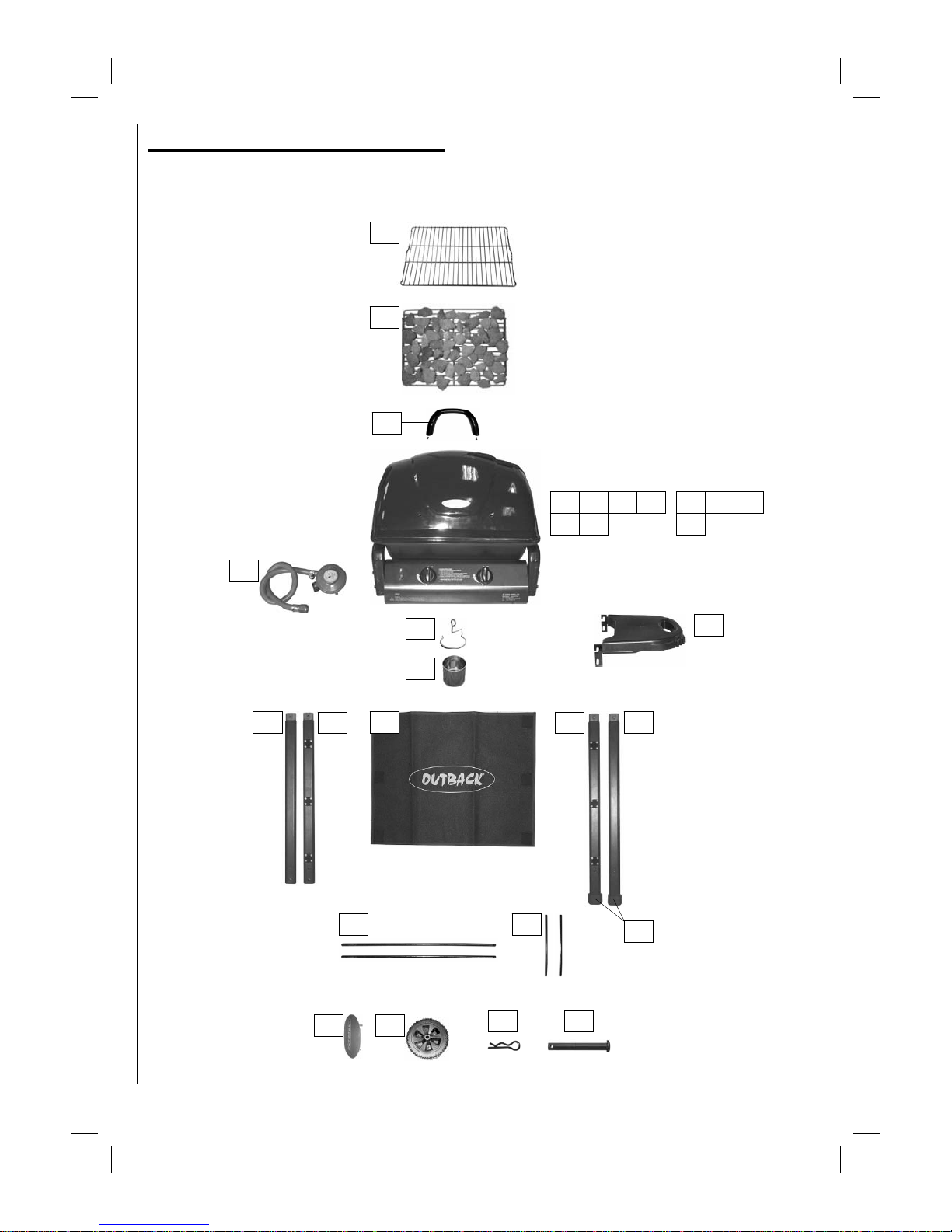

B1. Parts Diagram: Omega 150

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see ‘Hardware Reference Diagram: Omega 150.’

Pre-assembled body unit includes

the following individual parts:

A2 A4 A5 A9 B1 B2

A10 A11

C7 C11

C5 C4

C2 C10

C3D6

C1 C9

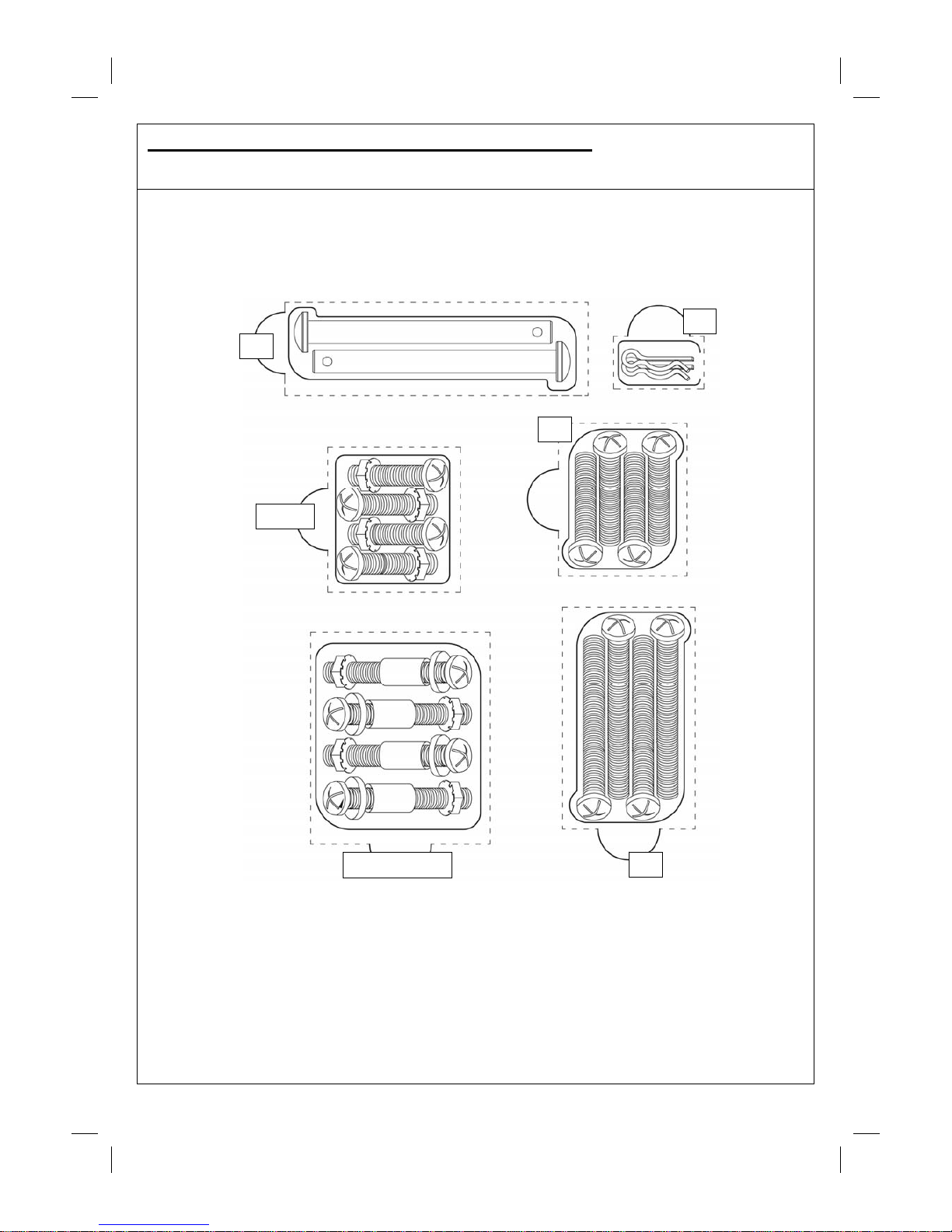

B2. Hardware Reference Diagram: Omega 150

Specifications subject to change without prior notice.

D2, D7

D4, D7, D8, D9 D5

Short Axle (2pcs) Axle Clip (2pcs)

M6x25 Bolt (4pcs), M6 Nut (4pcs)

M6x30 Bolt (4pcs)

M6x50 Bolt (4pcs)

M6x40 Bolt (4pcs), M6 Nut (4pcs),

Spacer (4pcs), Washer (4pcs)

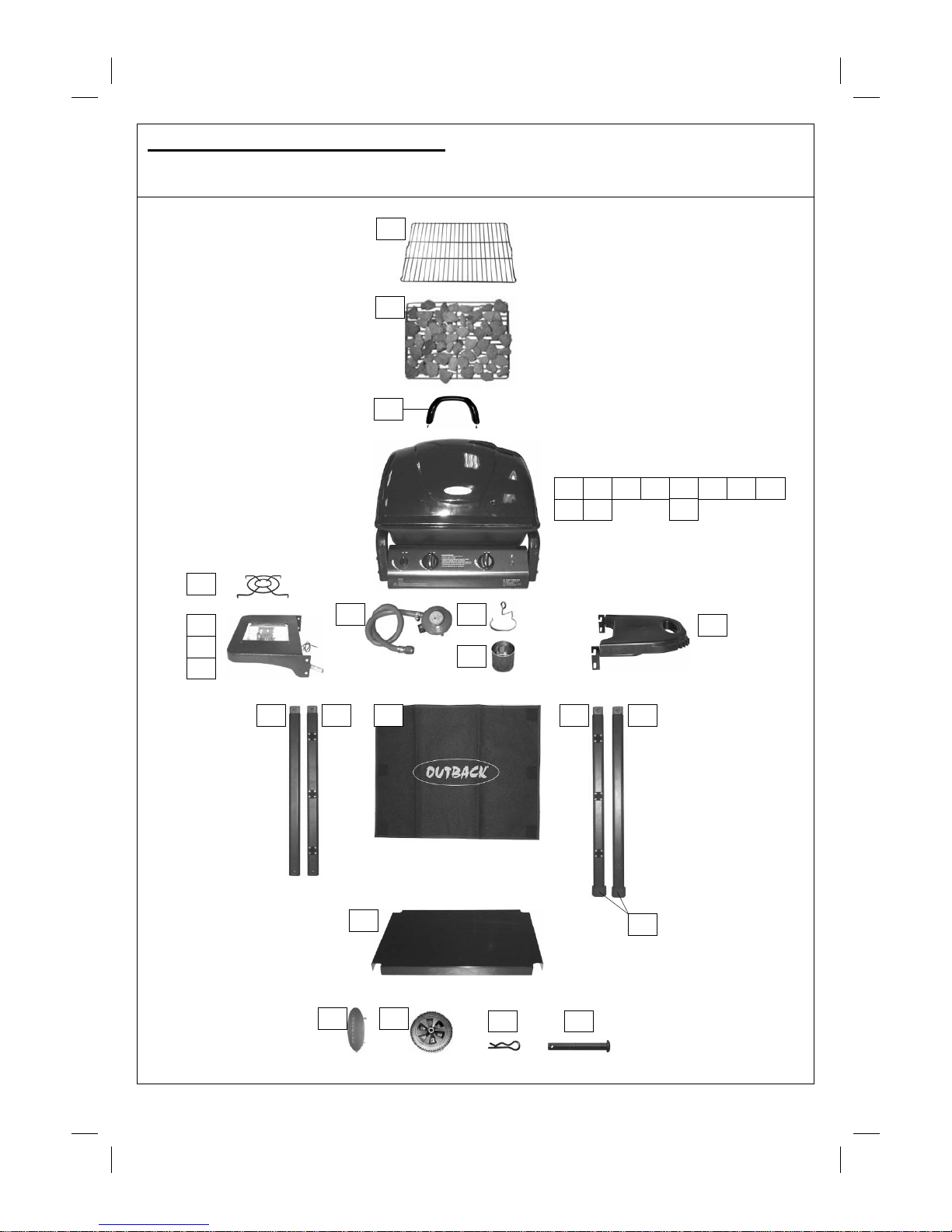

C1. Parts Diagram: Omega 250

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see ‘Hardware Reference Diagram: Omega 250.’

C12

C5 C4

Pre-assembled body unit includes

the following individual parts:

A2 A4 A5 A9 B1 B2

A10 A11

B10

B11

C6C2 C10

C3D6

C1 C9

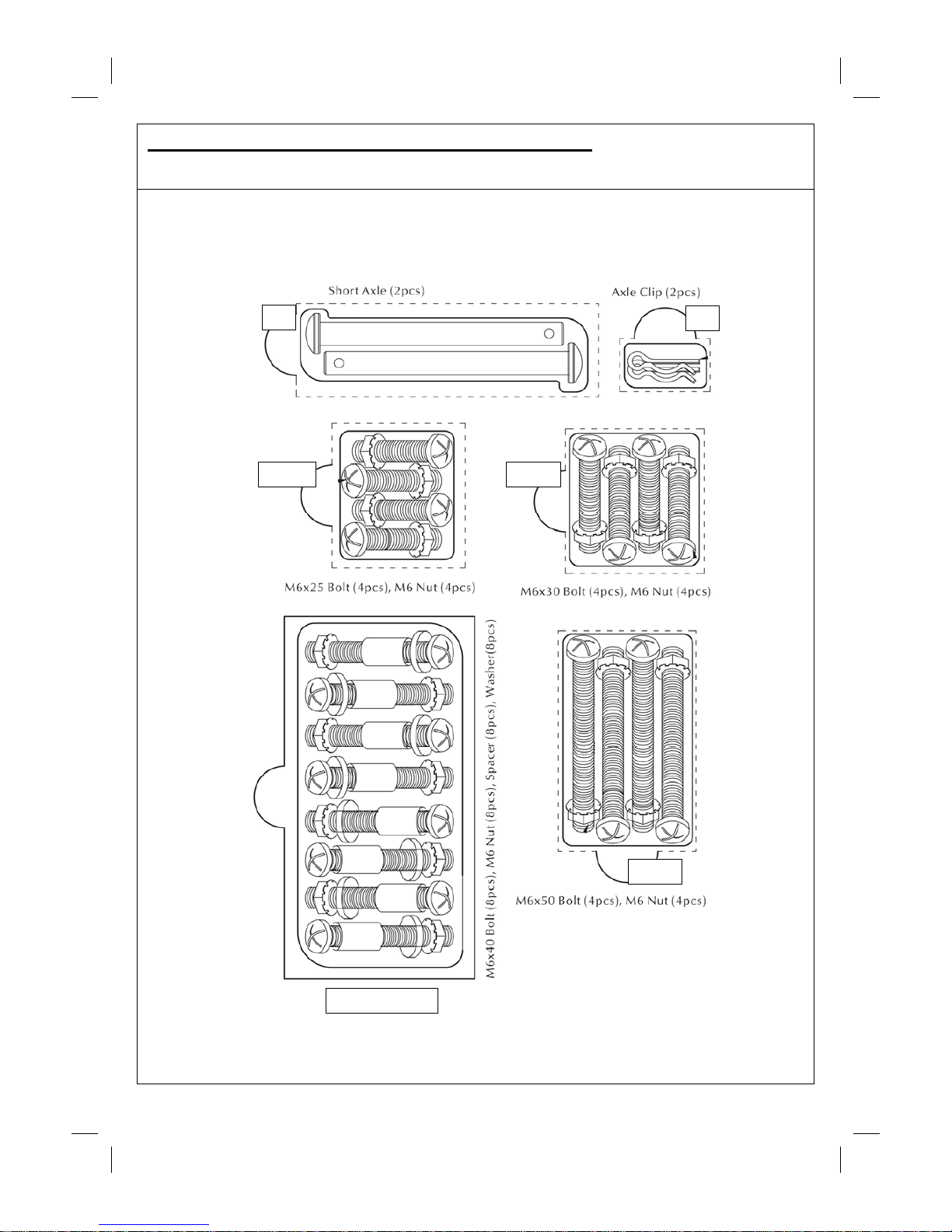

C2. Hardware Reference Diagram: Omega 250

Specifications subject to change without prior notice.

C3 D6

D3, D7D2, D7

D4, D7, D8, D9

D5, D7

D. Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

• Remove any internal components or packaging from the barbecue body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

 Omega 150  Omega 250

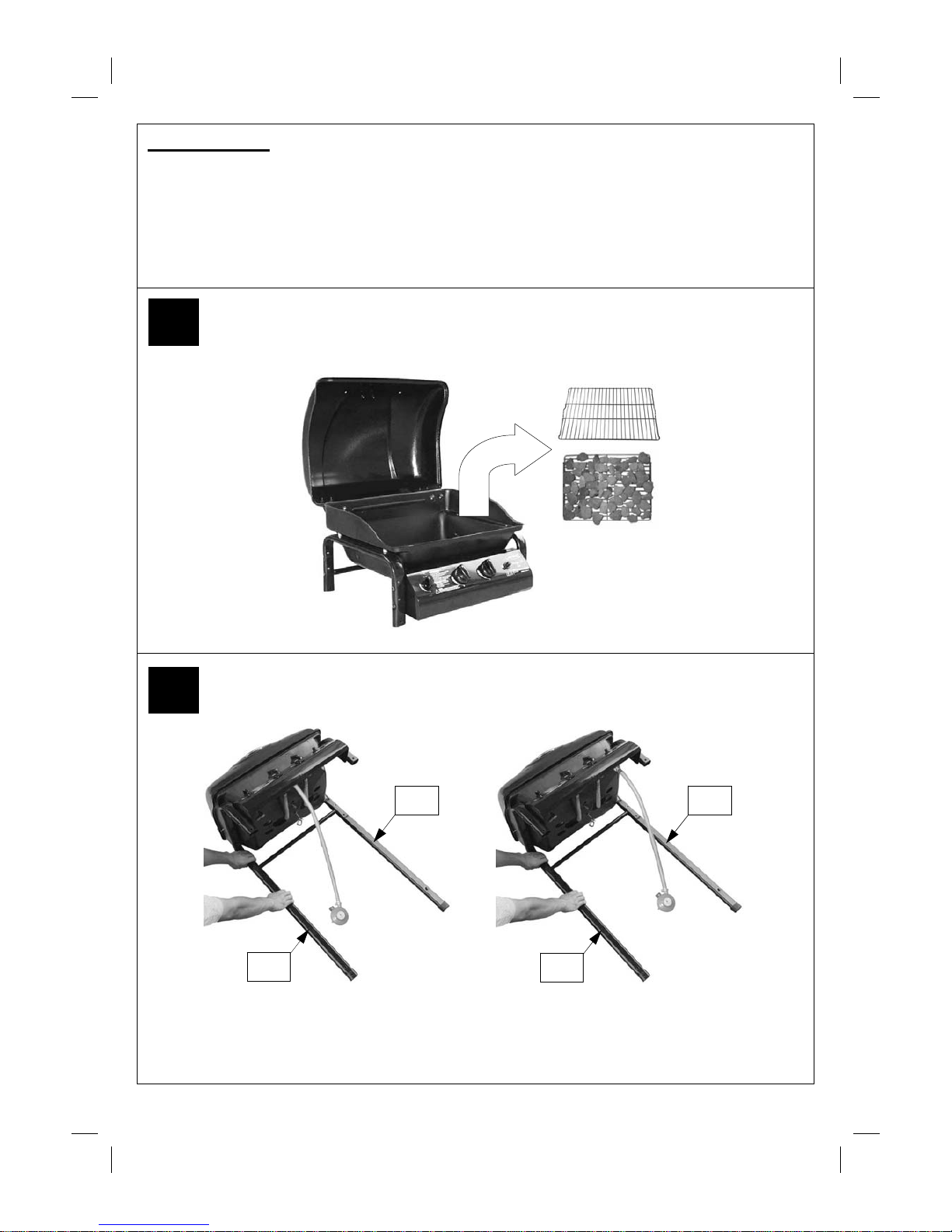

Warning: Care must be taken to ensure hood does not fall open unexpectedly.

Omega 150 Omega 250

C10 C10

C2 C2

 Omega 150  Omega 250

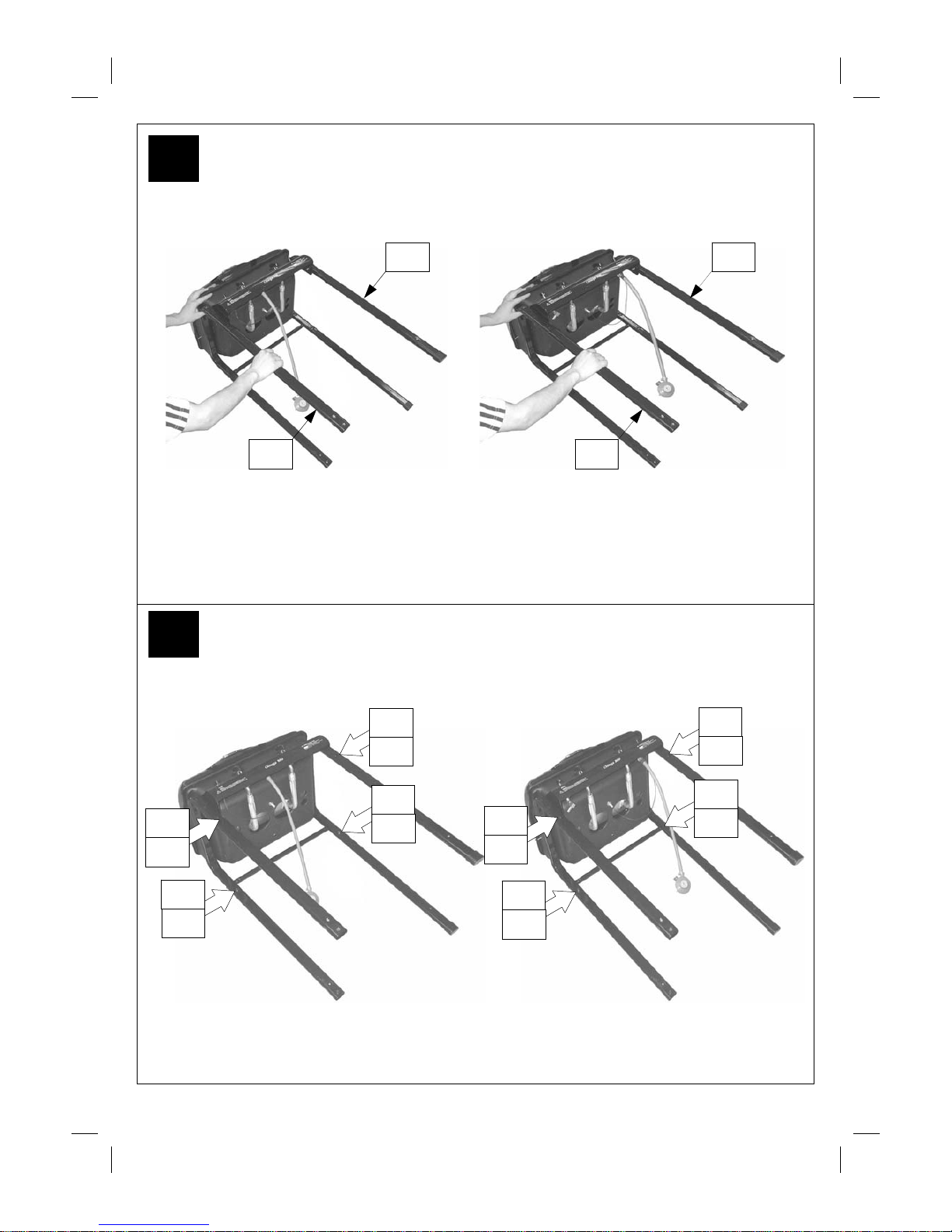

NOTE: Ensure that the legs with the Velcro attached to them are at the front of the

barbecue, with the Velcro facing inwards.

Omega 150 Omega 250

C1C1

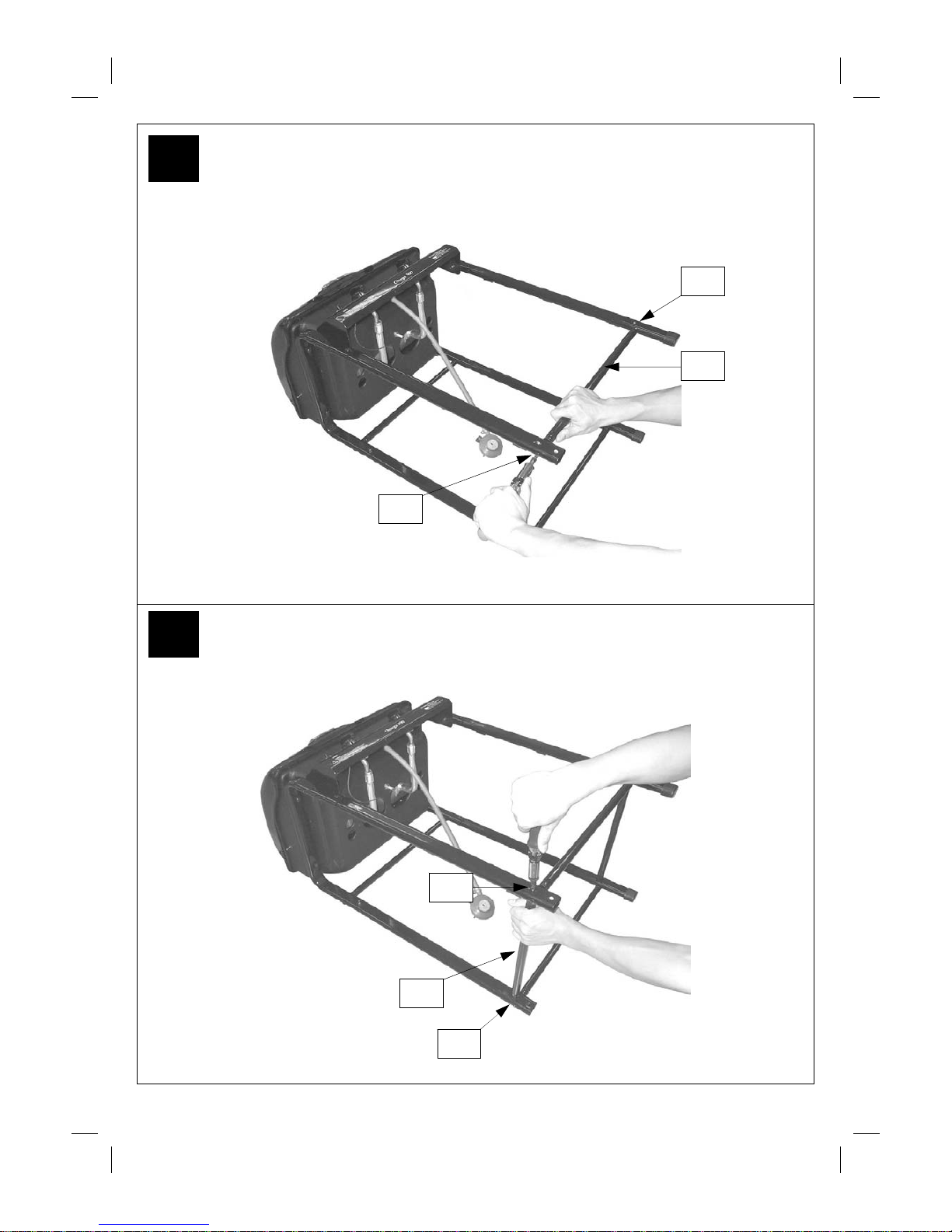

 Omega 150  Omega 250

C11

nOmega 250 users skip this step and proceed directly to Step 7.

 Omega 150  Omega 250

 Omega 150  Omega 250

nOmega 150 users skip this step and proceed directly to Step 8.

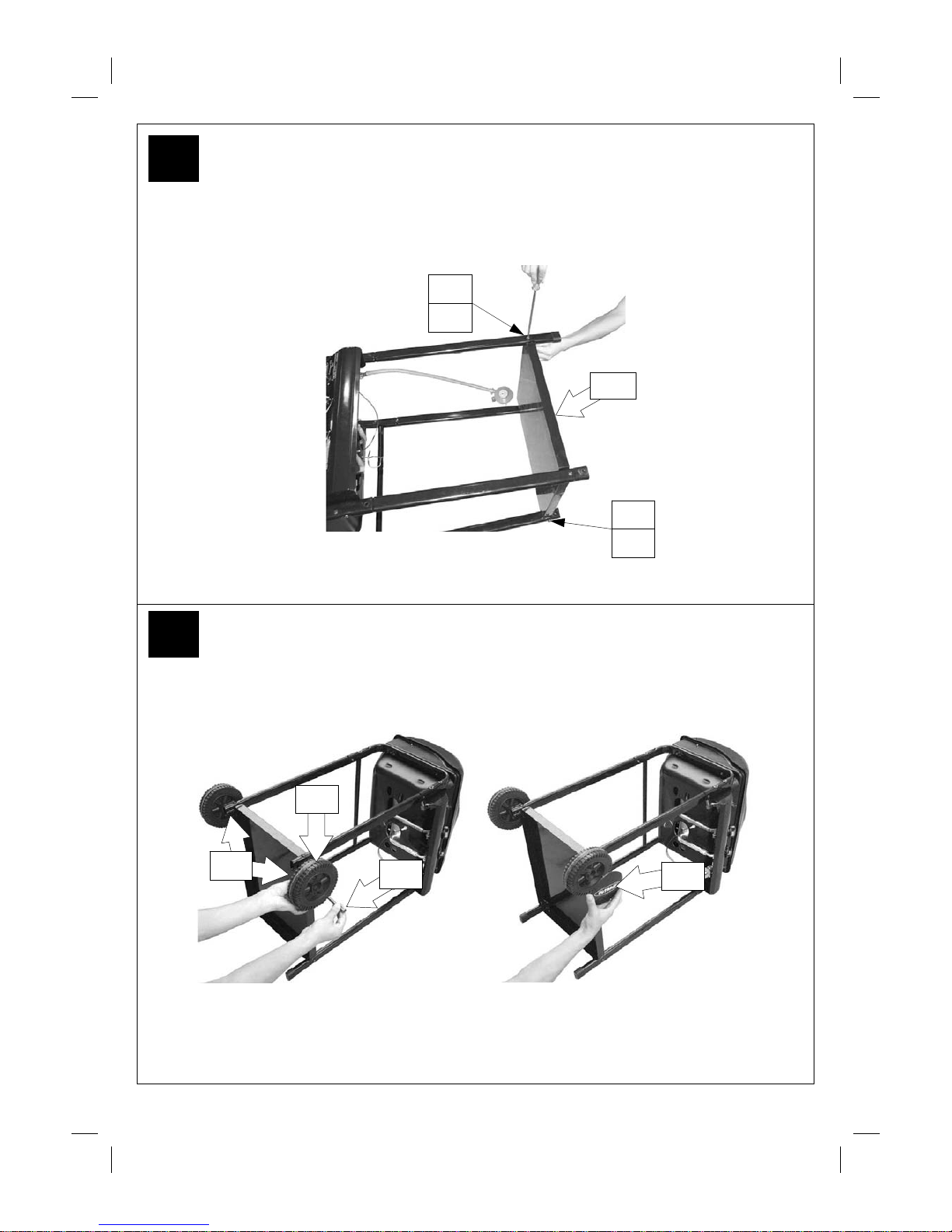

C3 C5

C12
