Outback Spectrum 2 Burner Manuale utente

Assembly and Operating Instructions for Outback®

Spectrum 2 Burner, Spectrum 3 Burner Hooded Gas Barbecues

Photographs are not to scale.

Specifications subject to change

without prior notice.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or

any other appliance.

2. A gas bottle not connected for use shall not

be stored in the vicinity of this or any other

appliance.

WARNING

!" For outdoor use only.

!" Read instructions before using the appliance. Failure to follow instructions

could result in death, serious bodily injury, and/or property loss.

!" Warning: accessible parts may be very hot. Keep young children away.

!" Do not move the appliance during use.

!" Turn off the gas supply at the gas bottle after use.

!" Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

!" Retain these instructions for future reference.

!" Leak test annually, and whenever the gas bottle is removed or replaced.

0359

A. Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see ‘Hardware Reference Diagram’.

CODE PART QTY Outback® Spectrum

2 Burner Hooded

Outback® Spectrum

3 Burner Hooded

HOOD

A1 Hood Handle 1 !"#$ !"#$

A2 L/H Hood Handle Bracket 1 !"$ !"$

A3 R/H Hood Handle Bracket 1 !"$ !"$

A4 Hood (Pre-Assembled to Body) 1 !"#$ !"#$

A5 Hood Panel 1 !"$ !"$

A6 Heat Indicator and Nuts 1 !"$ !"$

BODY

B1 Body (see Part A1: Hood) 1 !"# !"#

B2 Burner %2"3"

B3 Control Panel 1 !"# !"#

B4 Knob %2"3"

B5 Flame Tamer 2 ! !

B6 Large Cooking Grill 1 ! !

B7 Small Cooking Grill 1 ! !

B8 Small Cooking Griddle 1 !

B9 Drip Tray 1 !# !#

B10 Drip Tray Left Bracket 1 !!

B11 Drip Tray Right Bracket 1 ! !

B12 Drip Tray Handle 1 !!

B13 Hose and Regulator 1 ! !

B14 Warming Rack 1 !# !#

TROLLEY

C1 Side Shelf 2 !$ !

C2 Front Left Leg 1 !$ !

C3 Rear Left Leg 1 !$ !

C4 Front Right Leg 1 !$ !

C5 Rear Right Leg 1 !$ !

C6 Screen 1 !#!#

C7 Leg Endcap 2 !"$ !"$

C8 Wheel 2 !$ !$

C9 Hubcap 2 !$ !$

C10 Axle 1 !$ !$

C11 Trolley Base 1 $!#!#

HARDWARE

D1 M5x10 Bolt 2 !"$ !"$

D2 M5x15 Bolt 4 !$ !$

D3 Ø5 Washer 4 !$ !$

D4 M5 Nut 4 !$ !$

D5 M6x25 Bolt 24 !$ !$

D6 M6x145 Bolt 8 !$ !$

D7 Ø6 Spacer 8 !$ !$

D8 Axle Washer 2 !$ !$

D9 Locknut 2 !$ !$

"Pre-Assembled Component

%Quantity varies according to model purchased

#$$Appearance, size, and construction may differ according to model purchased$

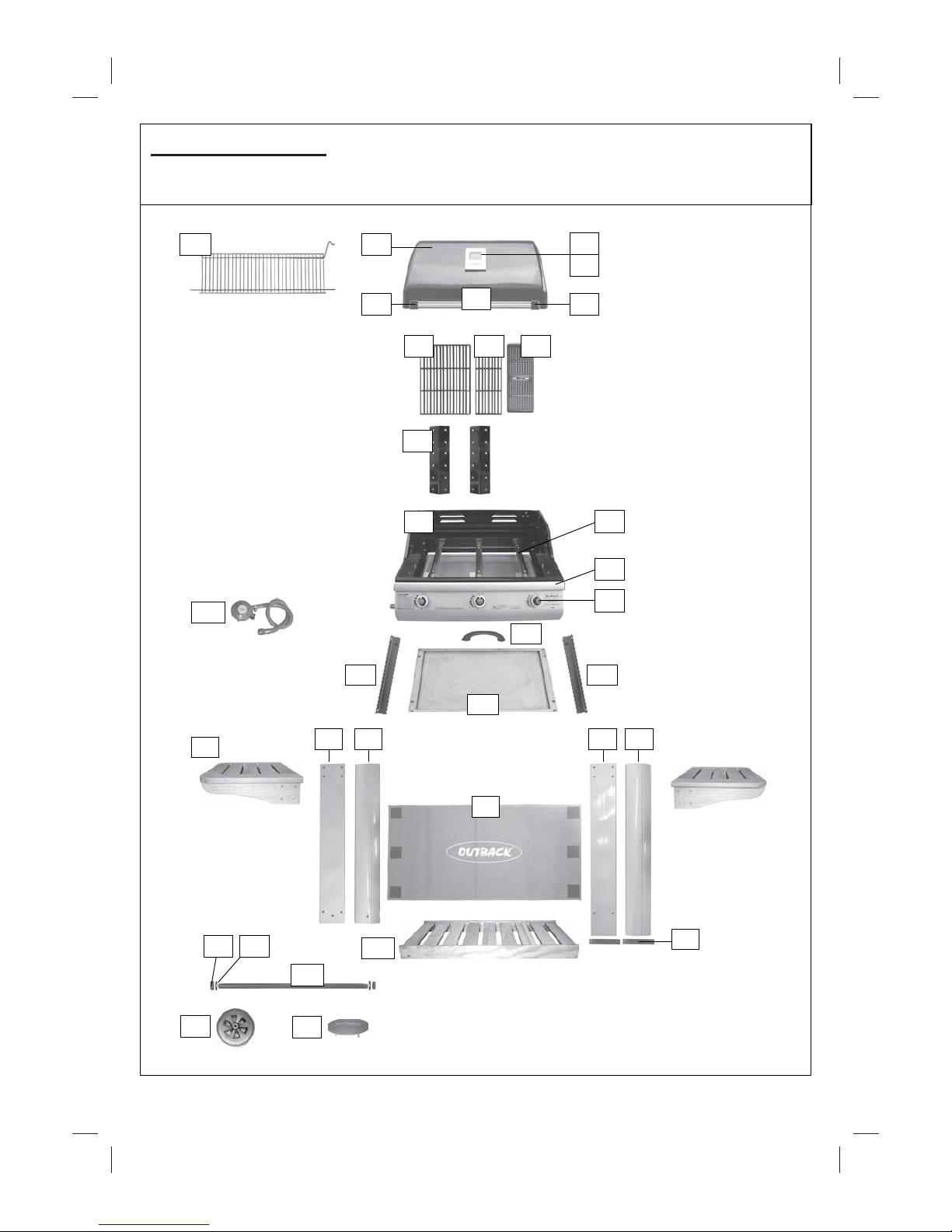

B. Parts Diagrams

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see hardware pack page.

B7B6 B8

B14

B13

C11 C7

C10

C8 C9

D8D9

C3 C2 C5 C4

B12

B10 B11

C. Hardware Reference Diagram

Specifications subject to change without prior notice.

D2,D3,D4

D6,D7

D. Assembly

TOOLS NEEDED FOR ASSEMBLY:

Medium size flat blade or Phillips/crosspoint screwdriver, adjustable spanner or metric spanner set.

The assembly of this barbecue requires 2 people.

Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case

sharp edges are present.

Attach the legs (C2,C3,C4,C5) to the trolley base (C11) using the M6x25 bolts (D5).

Take care to fix the legs with Velcro attached as shown in the illustration.

(Photo depicts trolley

from the reverse side)

C11

D8 C10

Slide the axle (C10) through the corresponding holes in the short legs. Place a washer

(D8) on each end of the axle. Slide the wheels (C8) over each end of the axle. Secure

the wheels into place with the locknuts (D9). Snap the hubcaps (C9) into the wheels.

Attach the side shelves (C1) to the front/rear left legs (C2,C3) and front/rear right legs

(C4,C5) using the M6x25 bolts (D5).

B7B6 B8

Remove all cast iron cooking components, flame tamer, drip tray, and any internal

packaging from the barbecue body.

B1 B1

Lay the assembled trolley on its side. Lay the body (B1) on its back and slide into position

between the trolley legs. Warning: Care must be taken to ensure hood does not fall open

unexpectedly. When positioning the body of the barbecue, ensure the control panel is on the

same side as the legs with Velcro fastenings.

With the barbecue laid on the ground, insert a M6x145 bolt (D6) through the short leg, through a

spacer (D7), and secure the bolt into the sidewall of the body. Repeat the process for all the legs

until the body is completely fixed to the trolley.

NOTE: When positioning the body of the barbecue, ensure the control panel is on the same side

as the legs with Velcro fastenings.

Carefully stand the barbecue upright. Remove the plastic wrap from the flame tamers (B5) and

lay them carefully into the body ensuring they lie level within the body. Lay the cooking grills

(B6, B7) and griddle (B8) into place.

2 burner model configuration: Left — Large Cooking Grill, Flame Tamer, Right — Small

Cooking Grill, Flame Tamer;

3 burner model configuration: Left — Large Cooking Grill, Flame Tamer, Middle — Small

Cooking Grill, Flame Tamer, Right — Small Griddle Plate.

NOTE: Ensure that the flame tamer lies directly underneath the grills.

Attach drip tray right bracket (B11) to barbecue body using M5x15 bolts (D2), washers

(D3) and M5 nuts (D4) as shown. Repeat above process for drip tray left bracket (B10).

NOTE: Ensure that the tabs of the brakets which stop the drip tray are located at

the back of the barbecue.

B7B6 B8

(Rear view of the barbecue trolley.)

Attach the screen (C6) to the front left/right

legs as shown.

Attach the warming rack (B14) to the

hood as shown.

Remove M5x10 bolts (D1) from drip tray handle (B12). Attach the drip tray handle

onto drip tray (B9) using the bolts. Slide the drip tray underneath barbecue body

from rear.

B12

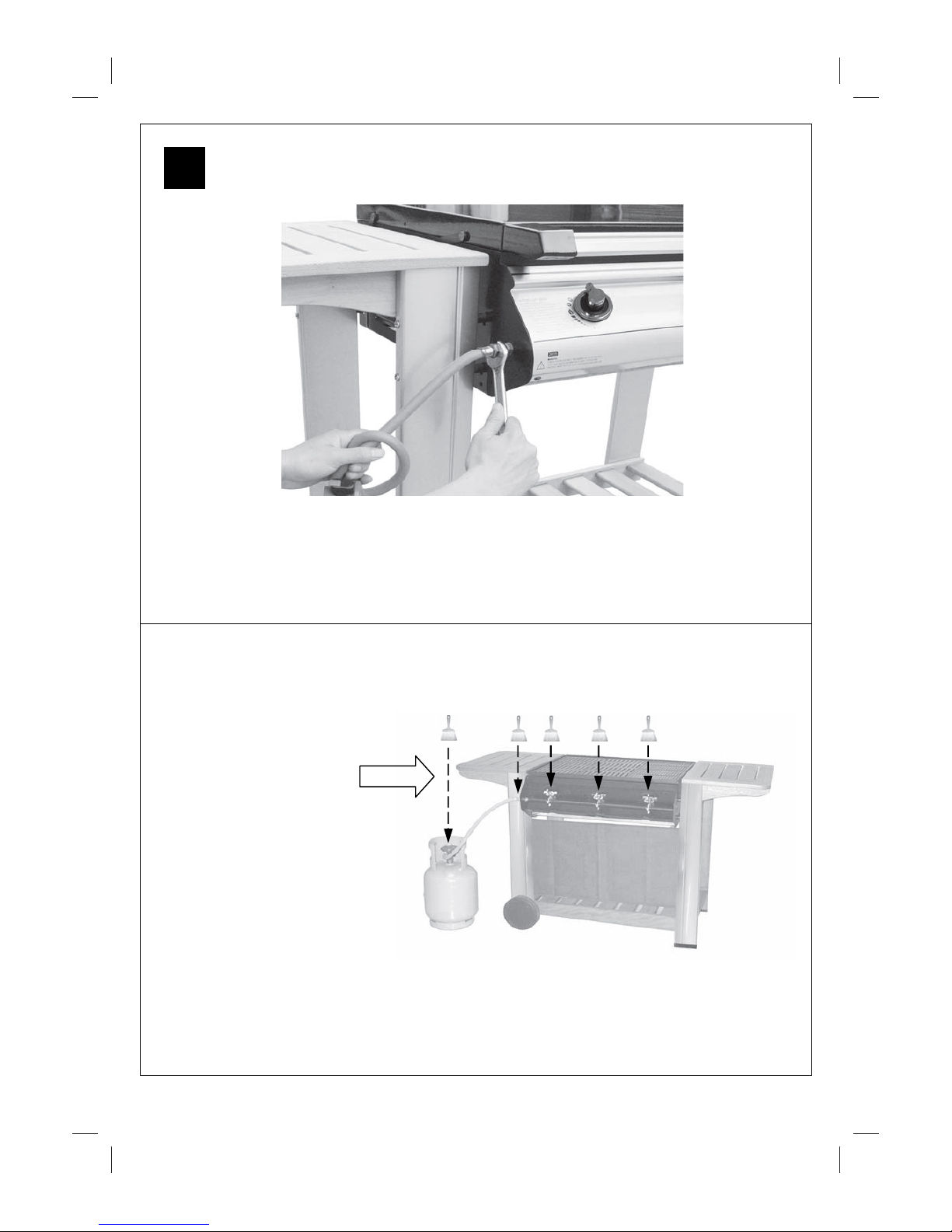

Leak Test Diagram

ASSEMBLY IS NOW COMPLETE.

PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE.

ALL JOINTS AND CONNECTIONS

MUST NOW BE LEAK TESTED

BEFORE USING THE BBQ. FOR

DETAILS OF LEAK TESTING,

PLEASE REFER TO INSTRUCTIONS

ON PAGE 12.

Connect the hose and regulator (B13) to the barbecue body. Ensure the mating

faces of the connection are clean and not damaged. Do not use any sealing

tape, paste or liquid on the joint. The nut must be tightened with a spanner. Do

not use force which may damage the assembly.
