Overland Storage NEO 8000 Manuale utente

The NEO 8000 contains blower assemblies located above

the Primary and Secondary card cages. This document

describes how to remove and replace either the Primary or

Secondary blower assembly in a NEO 8000 Library from

Overland Storage.

Unpacking the Spare

Carefully unpack the spare part and verify that you have

all the parts:

•Blower assembly

•Three M3x10mm Phillips panhead screws

•These Remove & Replace Instructions

Electrostatic Discharge Information

A discharge of static electricity can damage micro-circuitry

or static-sensitive devices. To help prevent electrostatic

damage, observe the following precautions:

•Transport and store items in static-safe containers.

•Keep electrostatic-sensitive parts in their containers

until they arrive at static-free stations.

•Use a wrist strap and properly-grounded tools.

•Make sure you are always properly grounded when

touching a static-sensitive component or assembly.

•Keep the work area free of non-conductive materials.

•Avoid touching pins, leads, or circuitry.

WARNING: The library’s GUI touch screen does not

completely shut off NEO 8000 system power. To

reduce the risk of electric shock or damage to

equipment, unplug both power cords.

1. Power down the library at the front panel.

2. Set the library circuit breakers to the OFF (“O”)

position.

3. Remove and retain the power cords.

4. Locate the blower assembly being replaced

(Figure 1).

The process is the same for both the Primary and

Secondary blower assemblies.

Figure 1. NEO 8000 Blower Assembly Locations

NEO 8000 Library

Remove & Replace

Instructions

Blower Assembly Spare

Overview & Notes

NEO-8132

Preparing the Library for Replacement

NEO-8105

Primary

Secondary

Card Cage

Blower

Assembly

1. Remove the three M3x10mm screws on the blower

assembly (Figure 2).

2. Pull the blower out just enough to access the

connector located on the rear wiring.

3. Unplug the connector and position the cable harness

so that it doesn’t fall behind the card cage.

4. Position the new blower at the top of the card cage.

5. Reconnect the cable harness to the new blower

wiring.

6. Carefully slide the new blower assembly back into the

opening keeping the cable harness from snagging.

7. Refasten the assembly with the three new M3x10mm

screws.

CAUTION: Be sure to use the 10mm screws for the blower

assembly. Using shorter 8mm card cage screws may strip

the threads and prevent proper assembly.

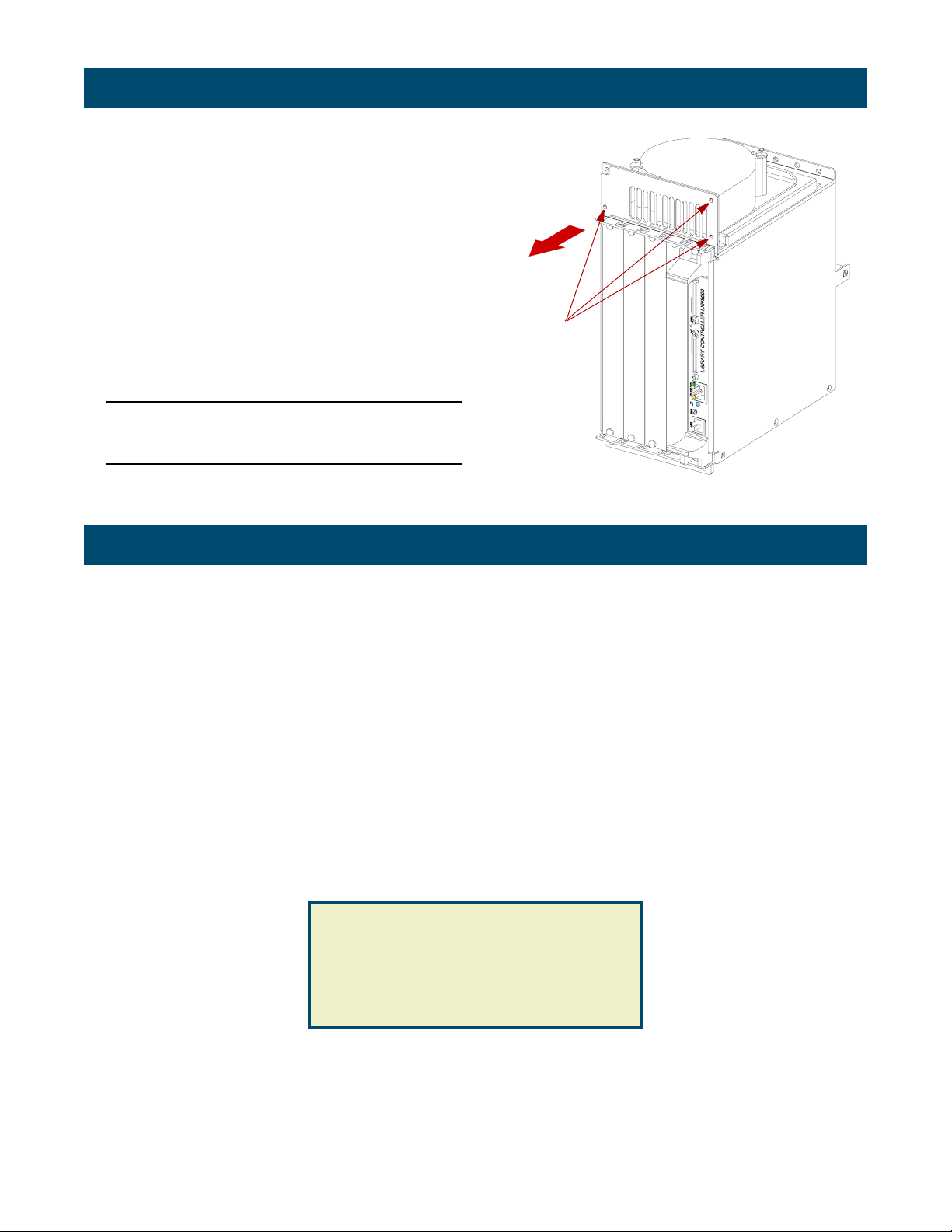

Figure 2. Blower Assembly Attachment Points

1. Reattach both power cords.

2. Set the library circuit breakers to the ON (“|”) position.

3. Verify that air is blowing from the new blower fan.

All information contained in or disclosed by this document is considered proprietary by Overland Storage. By accepting this material, the recipient agrees that this material and the information contained therein are

held in confidence and in trust and will not be used, reproduced in whole or in part, nor its contents revealed to others, except to meet the purpose for which it was delivered. It is understood that no right is conveyed

to reproduce or have reproduced any item herein disclosed without express permission from Overland Storage. Overland Storage provides this document as is, without warranty of any kind, either expressed or

implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Overland Storage may make improvements or changes in the product(s) or program(s) described

in this document at any time. These changes will be incorporated in new editions of this publication.

Overland Storage assumes no responsibility for the accuracy, completeness, sufficiency, or usefulness of this document, nor for any problem that might arise from the use of the information in this document.

Replacing the Card Cage

NEO-8033

Blower

Assembly

Screws

Reactivating the Library

Getting Help

You can get technical support on the Internet at

support.overlandstorage.com,

or call 1-877-654-3429 (toll-free U.S. & Canada)

or 858-571-5555x5 (International).
