Owon ZigBee SLC602 Manuale utente
SLC602 ZigBee Wireless Switch
Quick Start Guide
2
1. Introduction
The SLC602 ZigBee Wireless Switch controls your devices such as
power relay, smart plug, etc.
2. Get to know your device

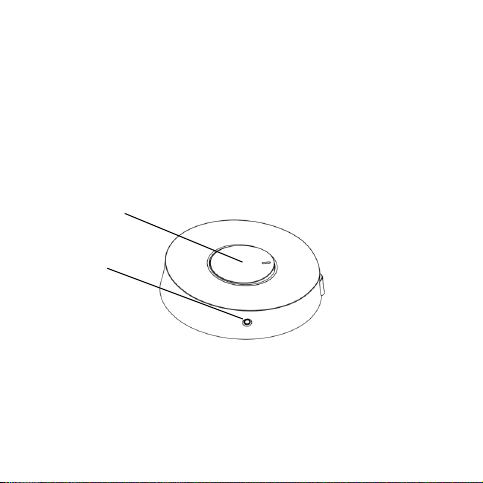

2.1. SLC602 at a glance
ON/OFF button
Reset button &
LED indicator
3
2.2. Buttons Introduction
ON/OFF button
Push to switch your device
Reset button
Return the device to default factory settings.
Set the device in pairing mode to pair with your device.
Release catch
Push and turn in the direction of the arrow to remove from the
back plate. This will allow battery fitment and replacement.
Release Catch
4
3. Get started
To get started, you will need:
A SEG-X3 Smart Gateway
A SLC601 power relay or another switchable device
A SLC602 Dimmer Switch (with 2 x AAA battery)
The mobile app
Then follow the steps below:
Step 1: Install the battery
Remove the device from its back plates as described previously, fit
the batteries and re-assemble.
Step 2: Check the switch status
Press the ON/OFF button and check if the LED indicator of the reset
button is flashing red.
Tip: if not, please return it to factory settings by using a pin key tool
to press and hold the reset button for ten seconds until the LED
indicator flashes twice.
Step 3: Select “Add new devices” in the menu of the app
5
Tip: for this step, you could also press the “Z” button of the gateway
for two seconds until the LED indicator turns solid blue.
Step 4: Use a pin key tool to press the reset button. Then the SLC602
will try to join the gateway. The LED indicator will flash three times.
Step 5: Check if the wireless switch has paired with the gateway by
pressing the ON/OFF button and checking if the LED indicator does
not light.
Tip: After pairing, if the LED still flashes when you press the ON/OFF
button then you need to repeat step 2.
Step 6: Bind with the SLC601 power relay
6
Ensure the SLC601 Power Relay is already setup and can be
controlled by the mobile app.
(1) Make sure the SLC601 is powered on.
(2) Go to the “Automation” section, tap “Edit” (Android phone) or
swipe from left to right (iPhone), tap the “identity” icon.
Tip: for this step, you could also use a pin key tool to press and hold
the reset button of the SLC601 Power Relay for three seconds.
(3) Press the reset button of the SLC602 Wireless Switch once until
the green LED flashes three times.
7
(4) When pairing is successful, the LED indicator of the SLC602
Wireless Switch will flash for three times and the LED indicator of
the SLC601 Power Relay will stop flashing.
You are now able to use the SLC602 Wireless Switch to control the
on/off status of the SLC601 power relay.
8
4. FAQ
Q1. How can I return this device to default factory settings?
A1: Use a pin key tool to press and hold the reset button for ten
seconds until the LED indicator flashes twice.
Q2. What devices can be controlled by the SLC602 Wireless Switch?
A2: ZigBee devices including power relays, LED bulbs, smart plugs,
etc.
9
5. Technical Specifications
Wireless Connectivity
ZigBee 2.4GHz IEEE 802.15.4
RF Characteristics
Operating frequency: 2.4GHz
Range outdoor/indoor: 100m/30m
Internal PCB antenna
ZigBee Profile
Home Automation Profile
Battery
Type: 2 x AAA batteries
Voltage: 3V
Battery Life: 1 year
Dimensions
Diameter: 80mm
Thickness: 18mm
Weight
52g
10
6. Safety Notice
WARNING: Failure to follow these safety notices could
result in fire, electric shock, other injuries, or damage to
the device or other property. Read all the safety notices
below before using the device.
Avoid high humidity or extreme temperatures.
Avoid long exposure to direct sunlight or strong ultraviolet light.
Do not drop or expose the unit to intense vibration.
Do not disassemble or try to repair the unit yourself.
Do not expose the unit or its accessories to flammable liquids,
gases or other explosives.
