Ozito ELM-300 Manuale utente

Motor: 1000W

Input: 220-240V ~ 50Hz

No load speed: 3600/min

Cutting Diameter: 300mm

Cutting Heights: 20mm, 40mm, 60mm

Capacity of catcher: 28 Litre

Weight (tool only): 7.0kg

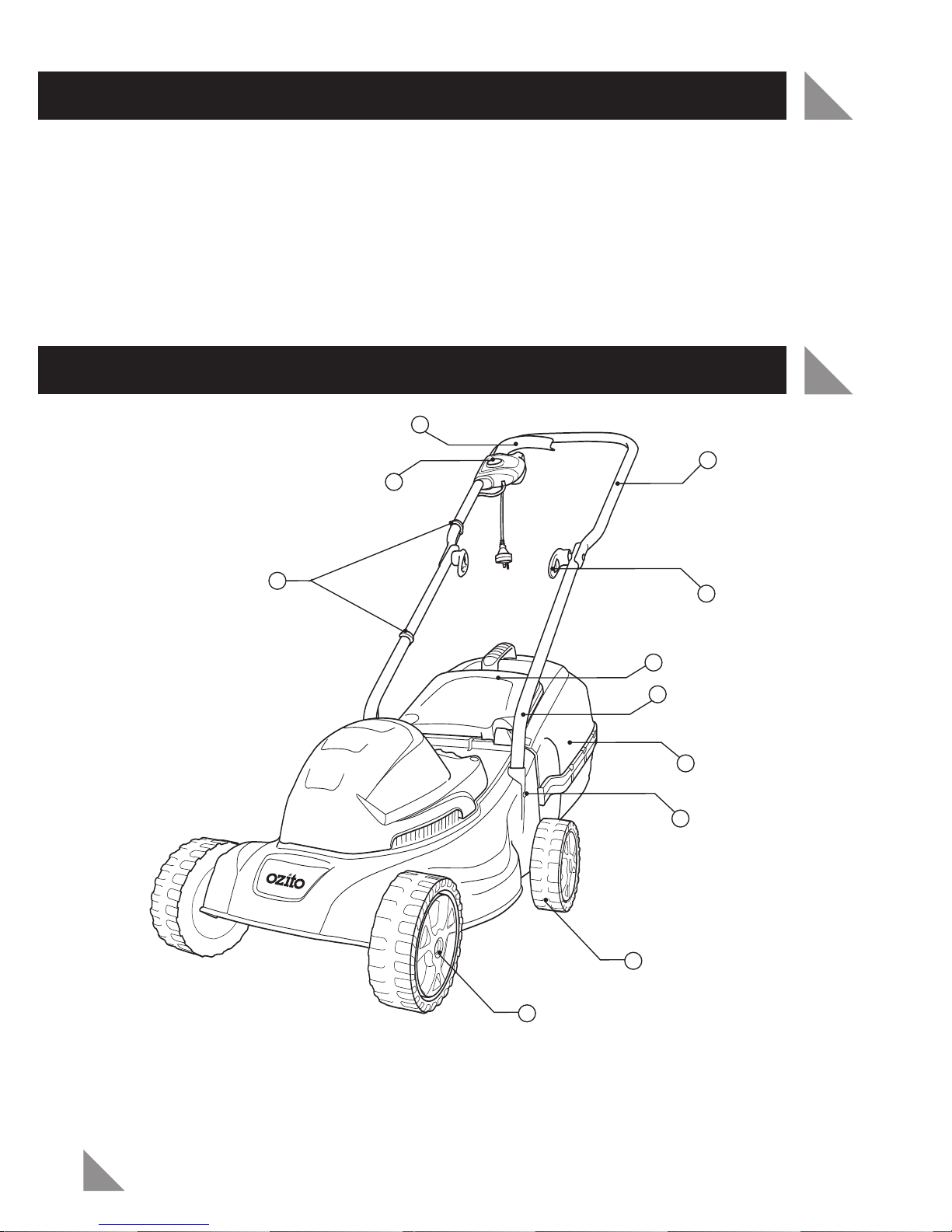

1. Start/stop lever

2. Upper handle

3. Handle securing set

4. Catcher flap

5. Lower handle

6. Wheels

7. Wheel hub

8. Lower handle securing point

9. Grass catcher

10. Cord clips

11. Lock-off button

SPECIFICATIONS - MODEL NO. ELM-300

KNOW YOUR PRODUCT

TABLE OF CONTENTS

SPECIFICATIONS ………………………………………..

INTRODUCTION…………………………………………

ELECTRICAL SAFETY…………….………………………

GENERAL SAFETY WARNINGS…………………………

ADDITIONAL SAFETY RULES FOR LAWN MOWERS….

ASSEMBLY………………………………………………..

OPERATION………………………………………………

MAINTENANCE…………….……………………………

SPARE PARTS …………….……………………………...

DESCRIPTION OF SYMBOLS ………………………….

PACK CONTENTS ………………………………………

WARRANTY………………………………………………

Page 2

Page 4

Page 5

Page 7

Page 9

Page 12

Page 14

Page 15

Page 16

Page 18

INTRODUCTION

Congratulations on purchasing an Ozito Electric Mower.

We aim to provide quality tools at an affordable price.

We hope you will enjoy using this tool for many years.

Your Electric Mower ELM-300 has been designed for

small to medium size lawns and is intended for DIY

use only.

SAFETY INSTRUCTIONS

WARNING! When using mains-powered tools, basic safety precautions

including the following should always be followed to reduce risk of fire,

electric shock, personal injury and material damage.

Read the whole manual carefully and make sure you know how to switch the tool

off, in an emergency, before operating the tool.

Save these instructions and other documents supplied with this machine for

future reference.

Read the whole manual carefully and make sure you know how to switch the tool

off, in an emergency, before operating the tool.

Save these instructions and other documents supplied with this machine for

future reference.

The electric motor has been designed for one voltage only. Always check that the

power supply corresponds to the voltage on the rating plate.

This tool is double insulated in accordance with AS/NZS 60335-1; therefore

no earth wire is required. If the supply cord is damaged, it must be replaced

by an electrician or a power tool repairer in order to avoid a hazard.

1. Before use, examine cord for damage; replace it if there are signs of damage

or ageing.

2. Do not use the lawn mower if the electric cables are damaged or worn.

3. Immediately disconnect from the mains electricity supply if the cord is cut, or

the insulation is damaged. Do not touch the electric cord until the electricity

supply has been disconnected. Do not repair a cut or damaged cord; replace

it with a new one.

4. Your extension lead must be unwound, coiled leads can overheat and reduce

the efficiency of your mower.

ELECTRICAL SAFETY

1. This appliance is not intended for use by young children or infirmed persons

unless they have been adequately supervised by a responsible person to ensure

that they can use the appliance safely.

2. Only use the lawn mower in the manner and for the functions described in

these instructions.

3. Never operate the lawn mower when you are tired, ill or under the influence of

drugs, alcohol or medicine.

4. The operator or user is responsible for accidents or hazards occurring to other

people or their property.

5. Use the lawn mower only in daylight or good artificial light.

6. Avoid operating your lawn mower in wet grass, where feasible.

7. Take care in wet grass, you may loose your footing.

8. On slopes be extra careful of your footing and wear non-slip footwear.

9. Mow across the face of slopes, never up and down.

10. Exercise extreme caution when changing direction on slopes. Walk never run.

11. Mowing on banks and slopes can be dangerous. Do not mow on banks or

steep slopes.

12. Do not walk backwards when mowing, you could trip.

13. Never cut grass by pulling the mower towards you.

14. Switch off before pushing the mower over surfaces other than grass.

15. Never operate the lawn mower with damaged guards or without guards in place.

ELECTRICAL SAFETY (cont.)

5. Keep lead away from lawn mower; always work away from the power point

mowing up and down never in circles.

6. Do not pull lead around sharp objects.

7. Always switch off at the mains before disconnecting any plug, cord or extension lead.

8. Never carry the product by the cord.

9. Never pull on the cord to disconnect any of the plugs.

10. Use only AC mains supply voltage shown on the product rating label.

11. It is recommended that the appliance should by supplied via a residual current

device (RCD) with a tripping current of not more than 30 mA.

12. Use at least a 10 Amp rated 1.0 mm2 extension cord with a maximum of 25

meters and the cord shall be not lighter than:

- If rubber insulated, ordinary tough rubber sheathed flexible cord (code

designation 60245 IEC 53);

- If polyvinyl chloride insulated, ordinary polyvinyl chloride sheathed flexible cord

(code designation 60227 IEC 53).

GENERAL

GENERAL (cont.)

16. Keep hands and feet away from the blade at all times and especially when

switching on the motor.

17. Young children should be supervised to ensure that they do not play with

the appliance.

18. No one is to operate this appliance without reading and understanding these

operating instructions.

19. Do not tilt the lawn mower when the motor is running, except when starting or

stopping. In this case, do not tilt more than absolutely necessary and lift only

the part which is away from the operator. Always ensure that both hands are in

the operating position before returning the appliance to the ground.

20. Do not put hands near the grass discharge chute.

21. Never pick up or carry a mower when it is operating or still connected to the

mains supply.

22. Remove the plug from the mains:

- before leaving the mower unattended for any period

- before clearing a blockage

- before checking, cleaning or working on the appliance

- if you hit an object. Do not use your lawn mower until you are sure that

the entire lawn mower is in a safe operating condition

- if the lawn mower starts to vibrate abnormally. Check immediately.

Excessive vibration can cause injury.

ADDITIONAL SAFETY RULES FOR LAWN MOWERS

!WARNING! If not used properly this lawn mower can be dangerous! This

lawn mower can cause serious injury to the operator and others, the warnings

and safety instructions must be followed to ensure reasonable safety and

efficiency in using this lawn mower. The operator is responsible for following

the warning and safety and instructions in this manual and on the lawn mower.

Never use the mower unless the catcher or guards provided by the

manufacturer are in the correct position.

1) Training

• Read the instructions carefully. Be familiar with the controls and the proper use of

the appliance.

• Never allow children or people unfamiliar with these instructions to use the

appliance. Local regulations may restrict the age of the operator.

• Never mow while people, especially children, or pets are nearby.

• The operator or user is responsible for accidents or hazards occurring to other

people or their property.

2) Preparation

• While mowing, always wear substantial footwear and long trousers.

• Do not operate the appliance when barefoot or wearing open sandals.

• Thoroughly inspect the area where the appliance is to be used and remove all

stones, sticks, wires, bones, and other foreign objects.

•Before using, always visually inspect to see that the blades, blade bolts and cutter

assembly are not worn or damaged. Replace worn or damaged blades and bolts in

sets to preserve balance.

• On multi-bladed appliances, take care as rotating one blade can cause other

blades to rotate.

3) Operation

• Mow only in daylight or in good artificial light.

• Avoid operating the appliance in wet grass, where feasible.

• Always be sure of your footing on slopes.

• Walk, never run.

• For wheeled rotary mowers, mow across the face of slopes, never up and down.

• Exercise extreme caution when changing direction on slopes.

• Do not mow excessively steep slopes.

• Use extreme caution when reversing or pulling the appliance towards you.

• Stop the blade(s) if the appliance has to be tilted for transportation when crossing

surfaces other than grass, and when transporting the appliance to and from the

area to be mowed.

• Never operate the appliance with defective guards or shields, or without safety

devices, for example deflectors and/or grass catchers, in place.

ADDITIONAL SAFETY RULES FOR LAWN MOWERS (cont.)

• Switch on the motor according to instructions and with feet well away from

the blade(s).

• Do not tilt the appliance when switching on the motor, except if the

appliance has to be tilted for starting. In this case, do not tilt it more than

absolutely necessary and lift only the part which is away from the operator.

Always ensure that both hands are in the operating position before returning

the appliance to the ground.

• Do not put hands or feet near or under rotating parts. For rotary mowers,

keep clear of the discharge opening at all times.

• Never pick up or carry an appliance while the motor is running.

• Pull the plug from the socket:

- whenever you leave the machine;

- before clearing a blockage;

- before checking, cleaning or working on the appliance;

- after striking a foreign object. Inspect the appliance for damage and make

repairs as necessary;

- if the appliance starts to vibrate abnormally (check immediately).

4) Maintenance and storage

• Keep all nuts, bolts, and screws tight to be sure the appliance is in safe

working condition.

• Check the grass catcher frequently for wear or deterioration.

• Replace worn or damaged parts for safety.

•For cylinder mowers, be careful during adjustment of the appliance to

prevent entrapment of the fingers between moving blades and fixed parts of

the appliance.

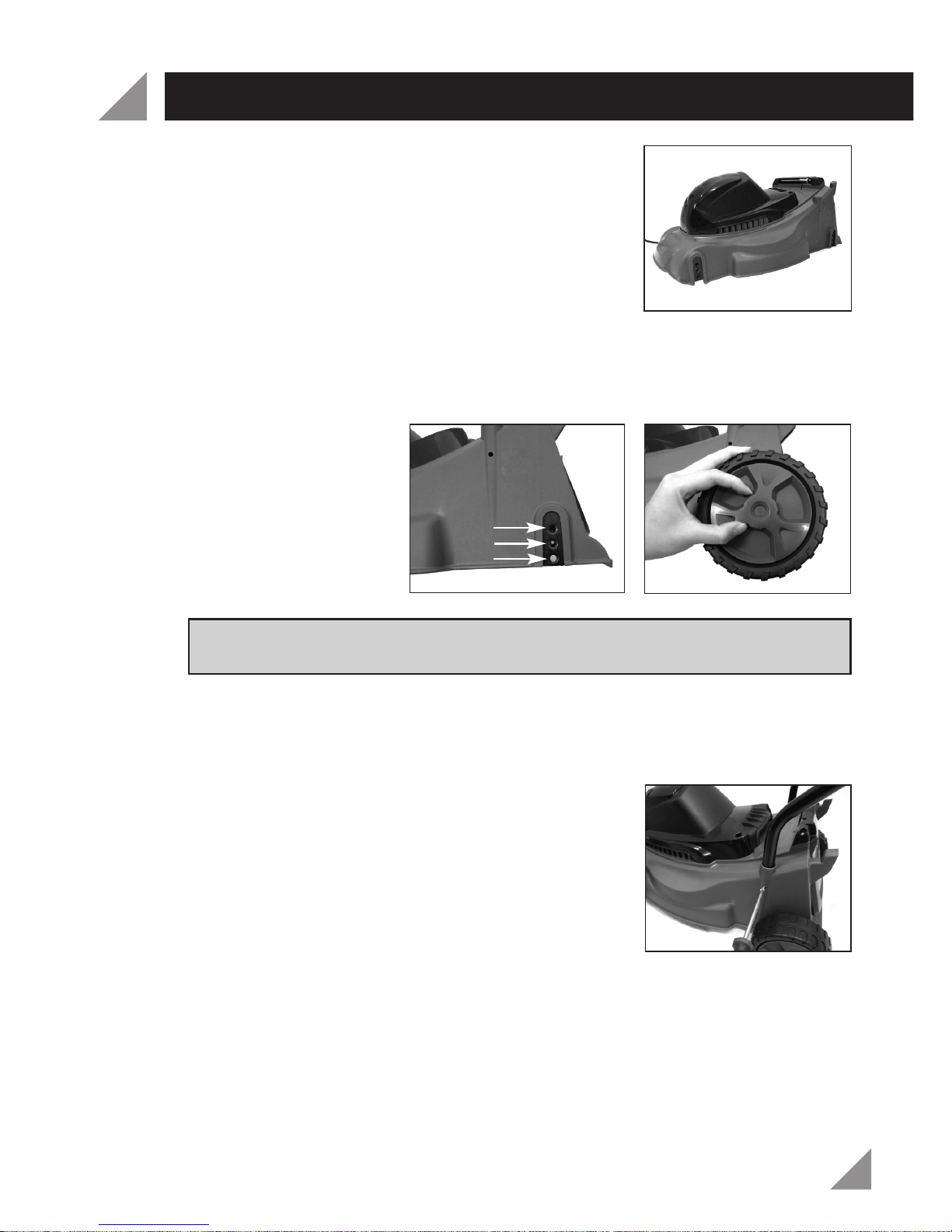

Fitting the Wheels

1. Remove the body of the lawn mower from the

packaging and place on a flat surface (Fig. 1).

The cutting height of the mower is determined by screwing the wheels in at the

required height (Fig. 2).

2. To fit both back and front wheels to the mower rotate the black hubs within the

wheel clockwise into the mower housing at the required height position (1, 2 or 3)

(Fig. 2 & 3). All wheels

must be assembled at

the same height and

ensure all wheels are

tightly secured.

Note: Fit all four wheels at the same height so that the cutting blade runs parallel

to the lawn.

Fitting the Lower Handles to the Mover Body

1. Insert the lower handle (5) into the two holes in the lower handle securing point (8)

of the mower body. The screw holes in the lower handle (5) should face outwards.

2. Fit the screws (supplied) through the hole above the

rear wheel, align with the hole in the lower handle (5)

and secure into place using a Phillips head

screwdriver (Fig. 4). Repeat for the hole on the

opposite side of the mower.

ASSEMBLY

Fig. 1

Fig. 2 Fig. 3

Fig. 4

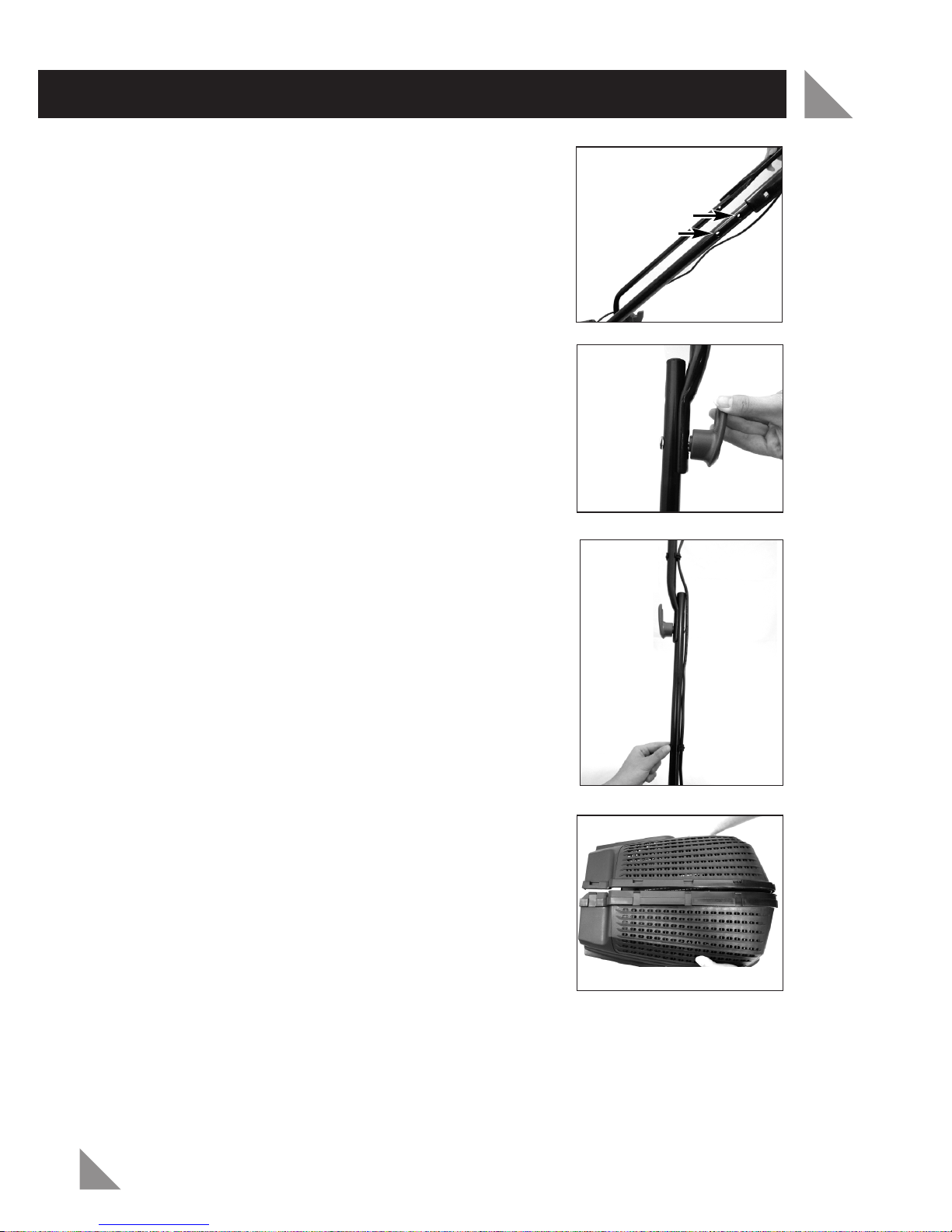

Fitting the Upper Handle to the Lower Handles

1. When you fit the upper handle (2) onto the lower

handle you can decide the height of the handle

by selecting the appropriate fastening hole on the

lower handle (5). Align the upper handle (2) using

either the lower position or higher position (Fig. 5).

2. Place the upper handle (2) over the upper ends

of the lower handles. Fit the bolts through the

inner side of the lower handle (5) and then

through the holes in the upper handle (2). Secure

in place by screwing the handle securing knobs

over the protruding ends of the bolts (Fig. 6).

Securing the Power Cord to the Handle (Fig. 7)

1. Secure the power cord running from the switch

housing to the body of the mower by using the

two cord clips (10) (supplied). Fit one closer to the

mower body end of the handle, ensure a little

slack is left between the clip and where the cord

enters the mower housing. Fit the other cord clip

(10) to the lower end of the upper handle (2).

Assembling the Grass Catcher

1. Assemble the two halves of the grass catcher (9)

together. The two halves are identical. Align the

two halves and push each individual plastic lug

into its opposite location. Ensure that all the

plastic lugs engage correctly together around the

entire middle section (Fig. 8).

2. Assemble the grass catcher handle onto the opening on the top of the grass

catcher (9). The handle will click into position when aligned and fitted correctly.

ASSEMBLY (cont.)

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Higher position

Lower position

Indice

Altri manuali Ozito Taglia erba

Ozito

Ozito PXSPSDMS-0182 Manuale utente

Ozito

Ozito PXC PXBSPMS-0182 Manuale utente

Ozito

Ozito PXCLMK-218 Manuale utente

Ozito

Ozito PLM-125 Manuale utente

Ozito

Ozito PowerXChange PXCBLTLMC-218 Manuale utente

Ozito

Ozito ELM-1800 Manuale utente

Ozito

Ozito ECOMOW ELM-1030 Manuale utente

Ozito

Ozito ECOMOW Manuale utente

Ozito

Ozito PowerXchange PXLMTS-0182 Manuale utente

Ozito

Ozito LML-036 Manuale utente

Ozito

Ozito Power X Change PXCLMK-218E Manuale utente

Ozito

Ozito LMP-301 Manuale utente

Ozito

Ozito Power X Change PXCPM-018 Manuale utente

Ozito

Ozito ELM-1545 Manuale utente

Ozito

Ozito PXCLMS-018 Manuale utente

Ozito

Ozito PXCLMLTC-418U Manuale utente

Ozito

Ozito PXBMS-3647SP Manuale utente

Ozito

Ozito Lawn Raptor PLM-480S Manuale utente

Ozito

Ozito XU1 XLMS-018 Manuale utente

Ozito

Ozito ELM-1030U Manuale utente

Ozito

Ozito PXCSDMS-018 Manuale utente

Ozito

Ozito PXCLMK-218EU Manuale utente

Ozito

Ozito PXLMS-335 Manuale utente

Ozito

Ozito PXBMS-3647 Manuale utente

Manuali Taglia erba popolari di altre marche

RHINO

RHINO 1958 Manuale utente

Wolf Garten

Wolf Garten Compact plus 40 B Manuale utente

Cub Cadet

Cub Cadet LTX 1045 Manuale utente

Craftsman

Craftsman 917.378461 Manuale utente

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuale utente

Challenge

Challenge CH18V2 Istruzioni operative

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuale utente

DEWEZE

DEWEZE ATM-725 Manuale operativo

Weed Eater

Weed Eater 180083 Manuale utente

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuale utente

Better Outdoor Products

Better Outdoor Products Quick Series Manuale utente

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuale operativo

MTD

MTD 795, 792, 791, 790 Manuale utente

Toro

Toro Groundsmaster 3505-D Manuale utente

Dennis

Dennis FT 610 Manuale utente

AIRFORCE

AIRFORCE F-15 Gen 3 Manuale utente

MTD

MTD 126-220-000 Manuale utente

Toro

Toro 74806 Manuale utente
