INTRODUCTION
Congratulations and thank you for choosing PaceMaster – your partner in achieving your fitness goals and
mastering your well-being. PaceMaster’s advanced digital technology allows your equipment to process
information instantly, anticipating and adjusting to meet your needs. Think of it as your own personal trainer.
PaceMaster’s superior components and US design ensure we produce equipment of the highest quality while
also offering excellent value for your dollar. PaceMaster products have consistently received praise from a
wide range of nationally recognized publications.
To get the most from your PaceMaster, please read this owner’s manual carefully before starting to use this
piece of exercise equipment. The manual contains important information about the assembly, operation and
maintenance of the machine.
Please ensure you read and fully understand all safety information. DANGER, CAUTION, or
WARNING indicates important safety warnings throughout the manual. Failure to read and understand
these warnings may result in personal injury or damage to your Exercise Bike.
Tip indicates a useful suggestion when installing, assembling or using your Exercise Bike.
Please take the time to familiarize yourself with the range of functions available. This will help you work with
your PaceMaster Exercise Bike for maximum efficiency to achieve your fitness goals and master your
well-being.
We wish you an enjoyable and rewarding partnership with your PaceMaster Exercise Bike.
The PaceMaster Gold XRC Bike is designed for home use only.
3
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions before using your Exercise Bike
CAUTION: Before starting any exercise program, contact your personal physician and have a complete physical. This is
highly recommended if you have not been on a regular exercise program within the last year, or are over 35 years of age, or are
overweight.
CAUTION: If at any time during your exercise program you find the exercise abnormally difficult or you encounter dizziness,
feel faint, experience chest pains, feel as if your heart may be skipping beats, you experience forced heavy breathing after minimal
exercise or severe pain in your legs, ankles, knees, etc. STOP EXERCISING and consult your physician.
WARNING: To reduce the risk of burns, fire, electrical shock or injury:
•Your PaceMaster Exercise Bike is not designed for use by children under the age of 18 without strict parental supervision.
•Close supervision is necessary when the Exercise Bike is used by or near children, disabled persons or pets.
•Use your PaceMaster Exercise Bike only for its intended use as described in this manual. Do not use accessories or
attachments not recommended byAerobics, Inc.
•Never operate your PaceMaster Exercise Bike if it has a damaged cord or plug, if it is not operating properly, if it has been
dropped or damaged or if it has been immersed in water. Should any of these occur, contact your authorized PaceMaster
retailer or service center for examination or repair.
•Keep the cord away from heated surfaces.
•Never drop or insert any object into any opening on the Exercise Bike.
•Do not use outdoors.
•Always unplug your PaceMaster Exercise Bike during an electrical storm or during extended periods of non-use.
•Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
•Position the Exercise Bike with a minimum of 2 feet of clearance on all sides between the bike and any wall or obstruction.
•Do not allow anyone to reach under or be too near your PaceMaster while it is in use.
•Never allow more than one person on your PaceMaster Exercise Bike at any time.
•Never move the while it is plugged into the electrical outlet.
•Wear appropriate shoes and attire while exercising
4
ASSEMBLY INSTRUCTIONS
Installation Requirements
Your PaceMaster should be installed indoors on a flat, level surface near a 120Volt/ Grounded outlet. You must have a minimum
of 2 feet of clearance on all sides between the bike and any wall or obstruction.
TIP: If you are installing your PaceMaster on a carpeted surface, use a equipment mat or a scrap piece of carpet underneath the
Exercise Bike to avoid soiling of the carpet. Deep pile carpet is not recommended.
Unpacking Your Exercise Bike
On the next page is a listing of all the parts included in the box. Open the box and confirm that you have received all of the parts
indicated on page 6. If you are missing parts please contact yourAuthorized PaceMaster Dealer where you purchased your piece
of equipment.
Tools Required for Assembly (included)
•Phillips head screwdriver
•13 mm Wrench
•15 mm Wrench
•4 mmAllen Wrench
•6 mmAllen Wrench
5

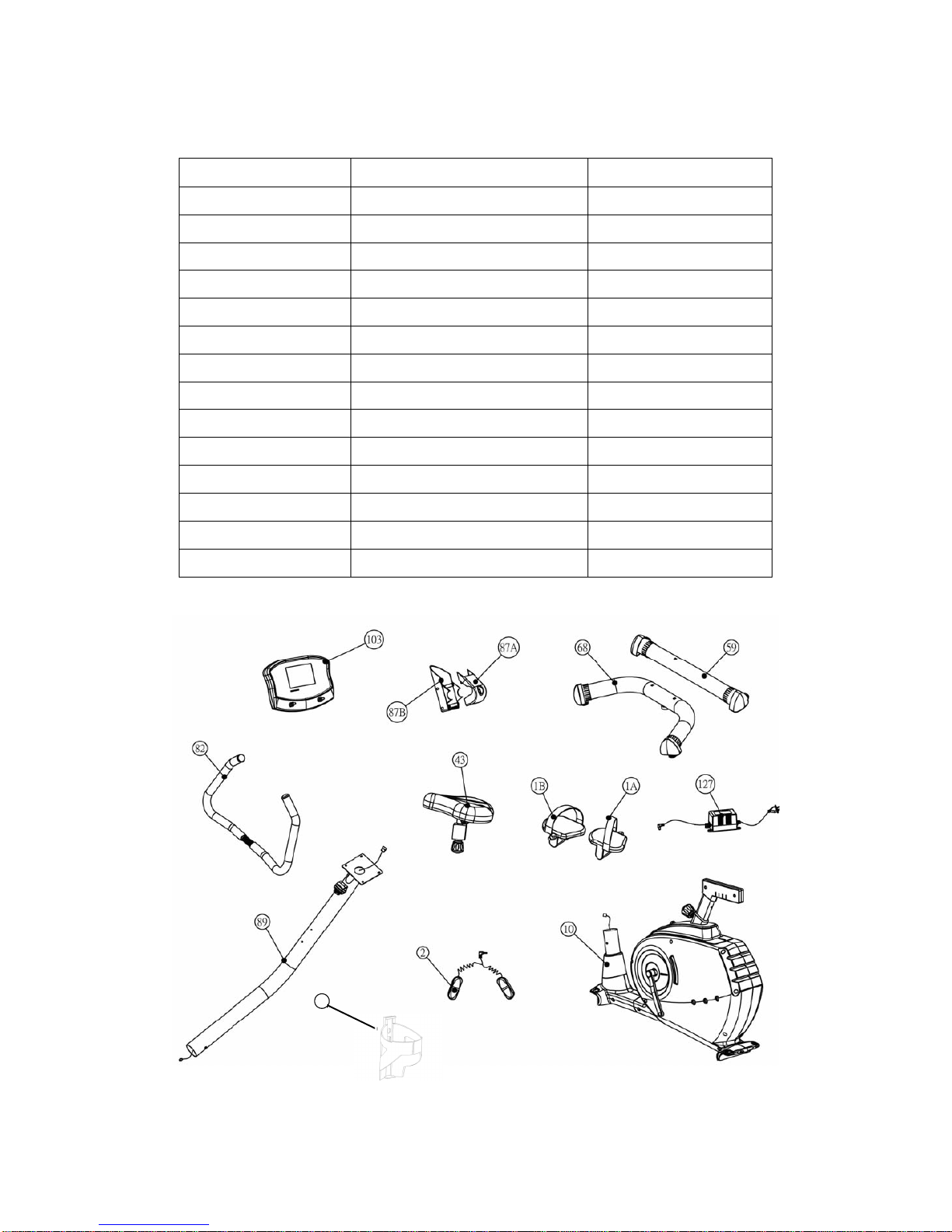

Box Contents
ITEM# DESCRIPTION QTY
1A. Left Pedal 1
1B. Right Pedal 1
2. Contact Heart Rate sensor 1
10. Main Frame 1
43. Seat 1
59. Front base stabilizer 1
68. Rear base stabilizer 1
82. Handle bar 1
87A. Upper mast cover Front 1
87B. Upper mast cover Rear 1
88. Water Bottle Cage
89. Upper mast 1
103. Computer 1
130. Power Adapter 1
88
6

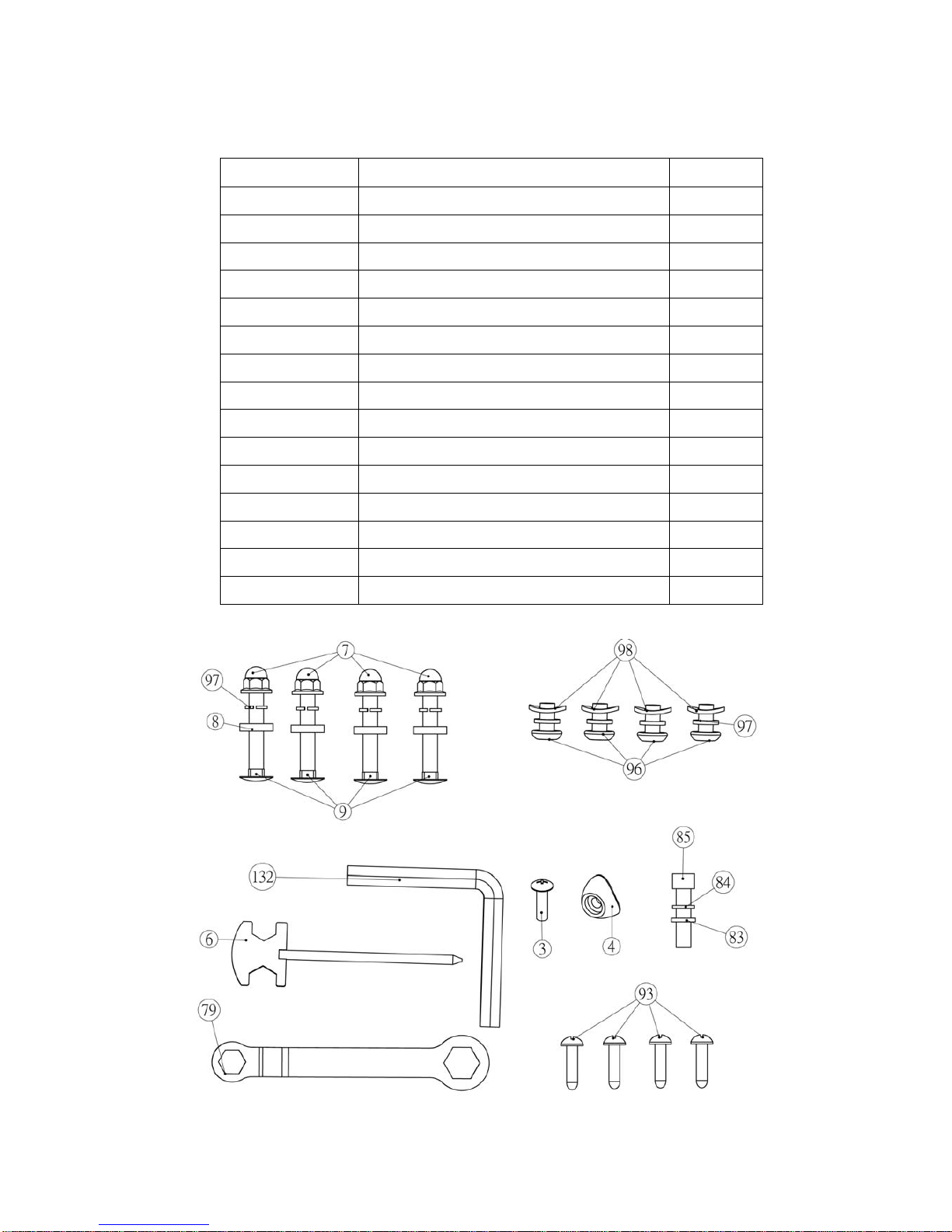

Hardware Package Contents
ITEM# DESCRIPTION QTY
3. Screw M6x20 1
4. Rubber Bumper 1
6. Open Spanner & Screwdriver 1
7. M8Acorn Nut 4
8. Washer 18x9x2.0t 4
9. Bolt M8x72 4
79. Lug Wrench 1
83. Washer 13x8.5x2.0t 1
84. Spring washer M8x2.0t 1
85. Bolt M8x45 1
93. Self tapping screw ST3.0X15 4
96. Bolt 4
97. Spring washer M8x2.0t 8
98. Curve washer 20x9x2.0t 4
132. Allen wrench 80x80 1
7
1. ToAttach the Front & Rear Stabilizers
Spring Washer M8х2.0t—4 PCS (97)
Washer 20х9х2.0t—4 PCS (8)
M8Acorn Nut—4 PCS (7)
Bolt M8х56
—
4 PCS
(
9
)
STEP 1A: As shown to the right, attach the
Front Stabilizer (59) to the Frame with bolt
(9), washer (8), lock washer(97), and acorn
nut (7) then tighten the nut with the included
wrench (79) or a 13mm wrench or socket.
Note: The front Stabilizer (59) has the
wheels on it,AND the wheels must be
towards the front.
STEP 1B: As shown to the right, attach the
Rear Stabilizer (68) to the Frame with bolt
(9), washer (8), lock washer (97), and acorn
nut (7) then tighten the nut with the included
wrench (79) or a 13mm wrench or socket.
8
2. Install the Right & Left Pedals
Step 2A:
The pedals are stamped on the threaded end of the
axle with the letter “R” and “L” for Right and Left
respectively. Right and Left sides are determined
as you would use the recumbent bike. Install the
Right pedal (1B) on the Right crank arm using the
included wrench (79) or a 15 mm wrench. Install
the Left pedal on the Left crank arm using the
included wrench (79) or a 15 mm wrench. NOTE:
The Left pedal is reverse thread (you must turn
it counte
r
-clockwise to ti
g
hten it
)
.
3. Install the Seat
Step 3A:
As shown to the right, attach the rubber bumper
(4) to the back of the seat post, using screw (3).
Step 3B:
Pull the seat adjustment pin (46) downward while
sliding the Seat (54) on to the seat post. Pull the
seat adjustment pin (46) downward to slide the
seat forward or Backward, the tighten adjustment
pin (46) to secure seat into position.
9

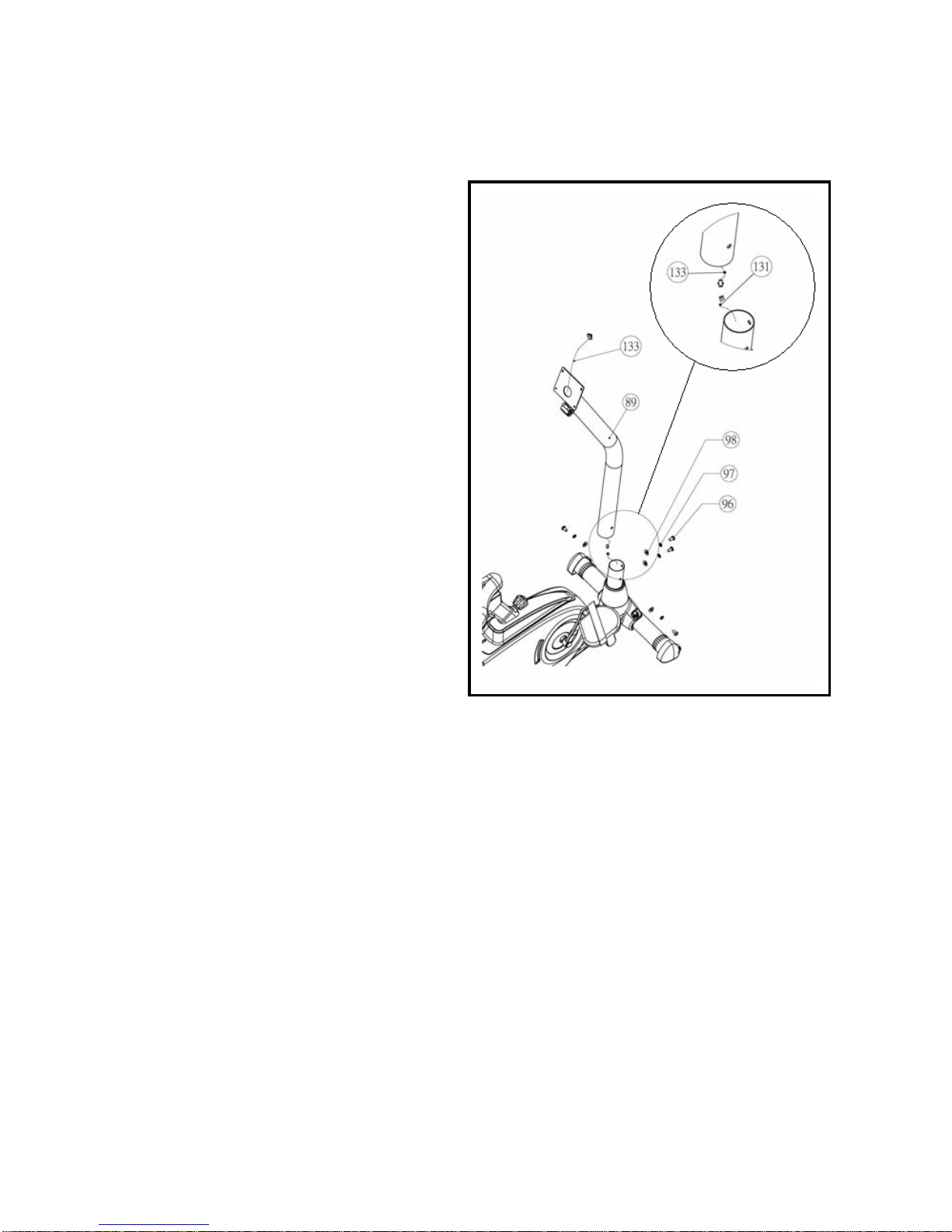

4. Install the Computer Mast
Step 4A:
As shown to the right (inset 4A), connect wire
131 to wire 133.
4 4A
Step 4B:
As shown to the Right (fig 4), insert the mast (89)
on to the base frame. CAUTION: Do NOT
pinch wire (133) while performingthis step.
Secure the mast (89) to the base using screws
(96), lock washers (97), and curved washers
(98). Tighten all 4 screws (96) securely.
10
