Pakedge Device & Software Wap-c3n Guida utente

WAP-C3N

Enterprise-Class, Ultra High Throughput In-Ceiling

Wireless-N Access Point and Client Bridge

QUICK START

Installation Quick Guide – Version 1.0

A. WAP-C3N Default Settings

1. Wireless Access Point mode

2. IP Address for Access Point Mode-192.168.1.250

3. Username/Password- pakedge/pakedgea

4. SSID- Pakedge1

5. Power Output- High

6. Security- Disabled

B. Hardware Installation

(NOTE: The installation steps listed below are highly

abridged. For a complete, detailed list of instructions, please

refer to the WAP-C3G User Manual.)

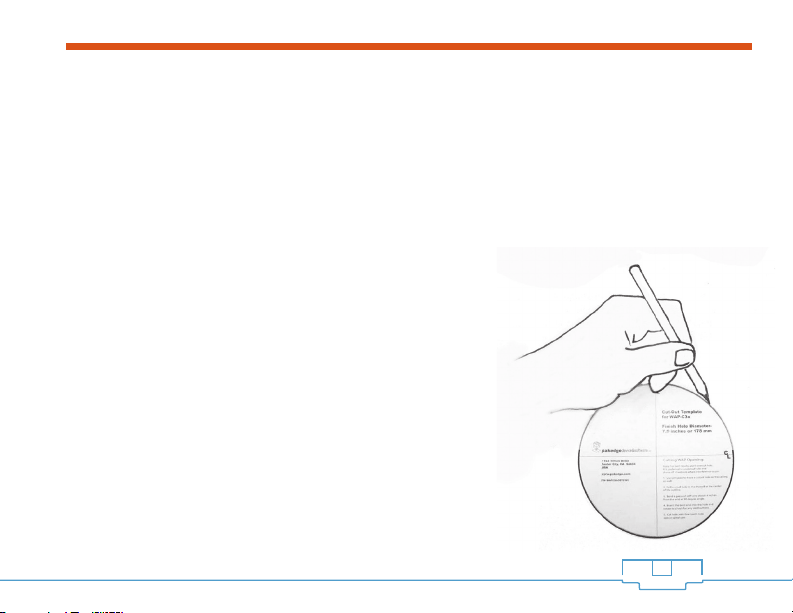

1. Find an appropriate in-ceiling/wall location in which

to mount the unit. Use the cutout template to trace a

cutout line. Cut along the line to create the mounting hole

and place the unit in the ceiling/wall.

WAP-C3N INSTALLATION QUICK GUIDE

2. To open cover, ﬁrst slide the latch outward to disengage the

tab and second, push in the cover on the red dot (outer edge

of cover, directly opposite of the latch).

3. Use a Phillips screw

driver to engage the mounting-ears as shown in a

clockwise rotation until the screws are difﬁcult to rotate.

NOTE: Do not over-tighten the mounting-ears as excessive

torque will strip the mounting-ears and render them non-

functional.

4. Connect the cat5e/6 cable to the Power-

over-Ethernet port (PWR+LAN IN) of the

WAP-C3G and route the cable as shown.

NOTE: If the cable is not routed in this

fashion, the cable could be damaged and the

unit may not function properly.

Push

Here

WAP-C3N INSTALLATION QUICK GUIDE

5. Plug the other end of the Ethernet cable into a PoE injector or PoE Switch (see PoE injector

manual for completing the wiring at the PoE injector location). NOTE: Do not use a DC

power supply as the housing was not designed to accommodate POE. The diagram below

depicts the conﬁguration using a PoE Injector.

The Wireless Access Point should now be up and running with its default out-of-the-box

setting. It does not need any particular conﬁguration to be functional. The Wireless Access

Point can be conﬁgured through its website. To access the WAP-C3N website, you will need

an Ethernet adapter and a web browser such as Internet Explorer.

Access Point Mode Laptop

CAT 5e/6 Cable

(Data+Power)

AC Power

Cable

SW24-GB

Gigabit Switch

CAT 5e/6 Cable

(Data Only)

AC Power Cable

POE

Injector Computer

WAP-C3N

WAP-C3N INSTALLATION QUICK GUIDE

C. IP Address Conﬁguration

The default IP address of the Wireless

Access Point is 192.168.1.250. In

order to log into this WAP, you must ﬁrst

conﬁgure the TCP/IP settings of your PC/

Notebook.

For Windows 7:

1. In the control panel, double click

Network Connections and then double

click on the connection of your Network

Interface Card (NIC).

You will then see the this screen:

2. Select Internet Protocol Version

4 (TCP/IPv4) and then click on the

Properties button.This will allow you to

conﬁgure the TCP/IP settings of your PC/

Notebook.

WAP-C3N INSTALLATION QUICK GUIDE

3. Select Use the following IP Address radio button and then enter the IP address and

subnet mask. Ensure that the IP address and subnet mask are on the same subnet as the

device.

For example: Wireless Access Point

IP address: 192.168.1.250 PC IP

address: 192.168.1.10 PC subnet mask:

255.255.255.0

4. Click on the OK button to close this

window, and once again to close LAN

properties window.

D. Login/Conﬁgure the Hardware

1. To access the Wireless Access

Point’s conﬁguration screen, enter

http://192.168.1.250 into your web browser.

2. The website of the Wireless Access Point

should appear as shown here.

E. Client Bridge, Repeater

and WDS Modes

To access the other modes, click on

Properties, under the System tab then select

the mode desired.

For further information and details beyond the

Quick Start Guide, please refer to the

User Manual on our website-

http://www.pakedge.com/usermanual.php

WAP-C3N INSTALLATION QUICK GUIDE

1163 Triton Dr.

Foster City, CA 94404

USA

Visit Us At:

www.pakedge.com

F. Technical Support

Please visit our website for

up-to-date support information:

Website: www.pakedge.com

Email: support@pakedge.com
