Palsonic MODEL 6840PFST Manuale utente

PALSONIC CORPORATION PTY LTD

1 JOYNTON AVENUE

WATERLOO NSW 2017 AUSTRALIA

TEL: (02) 9313 7111

FAX: (02) 9313 7555

www.palsonic.com.au

PALSONIC CUSTOMER SERVICE

TELEPHONE

AUSTRALIA: 1300 657 888

68CM CORDLESS REMOTE COLOUR TELEVISION

MODEL: 6840PFST

OWNER'S MANUAL

Type Tested

Electrical

Safety

AS/NZS 3250 Lic 4166

Standards Australia

APP No: N15900

PURE FLAT HI-VISION STEREO TELEVISION

PAL/NTSC/SECAM Multi-System Hyperband

Hyperband

English/Chinese on-screen menu display

Surround sound and wide - field dynamic sound system

NICAM Digital Stereo/bilingual broadcasts receivable

German Stereo (IGR)/bilingual broadcasts receivable

Three groups of S-VIDEO/VIDEO/AUDIO input terminals and one group of

MONITOR output terminals

Auto/manual search

OFF timer and ON timer, Auto-Power-Off & blue background display

Advanced 6D picture improvement circuit

1. Digital Colour Transient Improver (CTI)

Enhance the tint and make the original picture brighter and fresher.

2. 3H digital comb filter

To attain the complete separation of brightness and colour signals. To reduce colour

interface, blurry and dotted interruptions. To make the picture clearer.

3. Digital Luminance Transient Improver (LTI)

Adopts the digital delay line and achieves the outline correction. To make the picture

clearer and better definition.

4. Black level stretch circuit

To extend the dynamic scope of the picture.

5. Scan Velocity Modulation & white peak suppressed circuit

To enhance lines and borders-between bright and dark images. To improve the focus of the

picture white peak and white characteristics, to make the picture and letters brighter and

clearer.

6. Dynamic Focus

To optimise the focus of electron beams in the CRT. To improve the picture sharpness

especially in the comers of the screen and achieve the perfectness of picture finally.

Main features

Congratulations on your purchase of this colour PURE FLAT Hi-Vision

Palsonic television receiver.

We recommend that you thoroughly read this manual before use to fully enjoy the

many functions and excellent effects of this receiver.

Retain is manual in an easily accessible location for future reference.

Contents

Main features ................................................................................................

Notes for operation ......................................................................................

Installation and appearance ........................................................................

Antenna connection .....................................................................................................................

Battery installation ........................................................................................................................

Appearance ....................................................................................................................................

The remote controller ...................................................................................................................

Operation ......................................................................................................

Switching on/off ...........................................................................................................................

Presetting channels ......................................................................................................................

Channel selection ........................................................................................................................

Sound mode selection .................................................................................................................

Picture and sound adjustment .....................................................................................................

Other functions ............................................................................................................................

External equipment connections ................................................................

Trouble shooting ..........................................................................................

Specifications ...............................................................................................

NOTES FOR OPERATION

* Do not let the TV set be in standby condition for a long period of time. When it is not in use,

please turn off the power supply and remove the power plug. When it is to be left for a

prolonged period of time, it is recommended to disconnect the connection to the outdoor

aerial, to avoid thunder strike.

* Please follow cautions for safety in the TV set instructions, and all warnings and descriptions

denoted on the TV set.

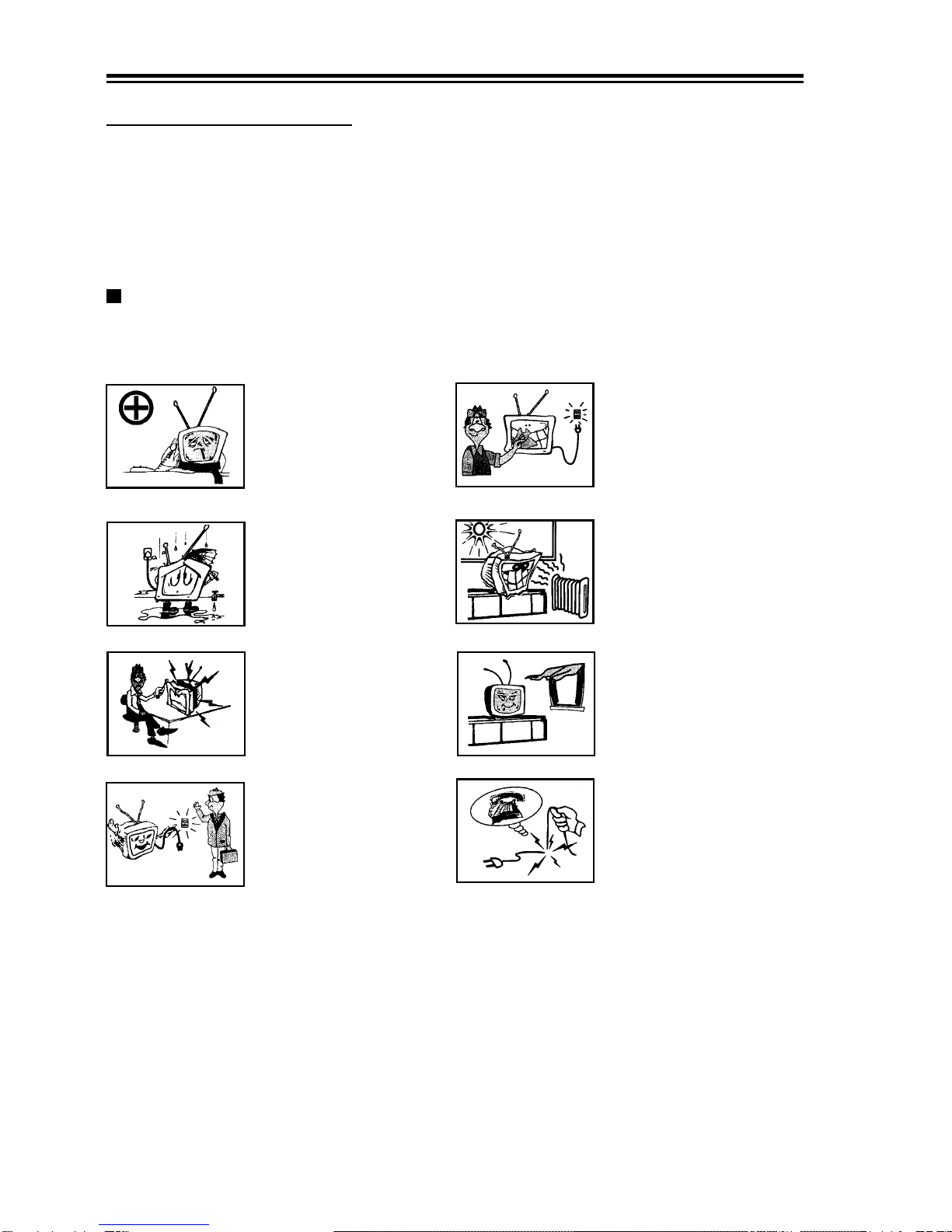

Cautions For Safety

Note: This TV set can be operated on an AC power of 240V, 50Hz. You should not use power

supply of the other type.

When an unusual situation

occurs, turn off the power

switch at once and remove the

plug from the wall outlet.

Contact a qualified service

department in your local area.

Do not expose the TV set to

rain or excessive moisture, to

prevent tire disaster or

electric shock. Avoid using

the set in very warm or damp

places. Never use it in a

bathroom.

There exists High Voltage in

this TV set. Do not remove

the cover to avoid danger.

The TV set should be placed

on an adequate place without

exposing it to direct sunlight

and other sources of heat to

prevent the deformation of the

cabinet or damage to

components.

When the TV set is to be left

unattended, please turn off the

power switch and remove the

plug from the wall outlet.

In order to wipe dust off the

picture tube or off the cabinet,

you should remove the power

plug from the wall outlet first.

You can wipe lightly with a

piece of dry, clean, soft cloth.

Do not cover the Ventilating

holes in the cabinet. Keep a

space of more than 5cm from

the walls to the TV set, to

guarantee the good ventilation.

When the power cord or the

plug is damaged, please

contact a qualified service

department to get service.

Installation and appearance

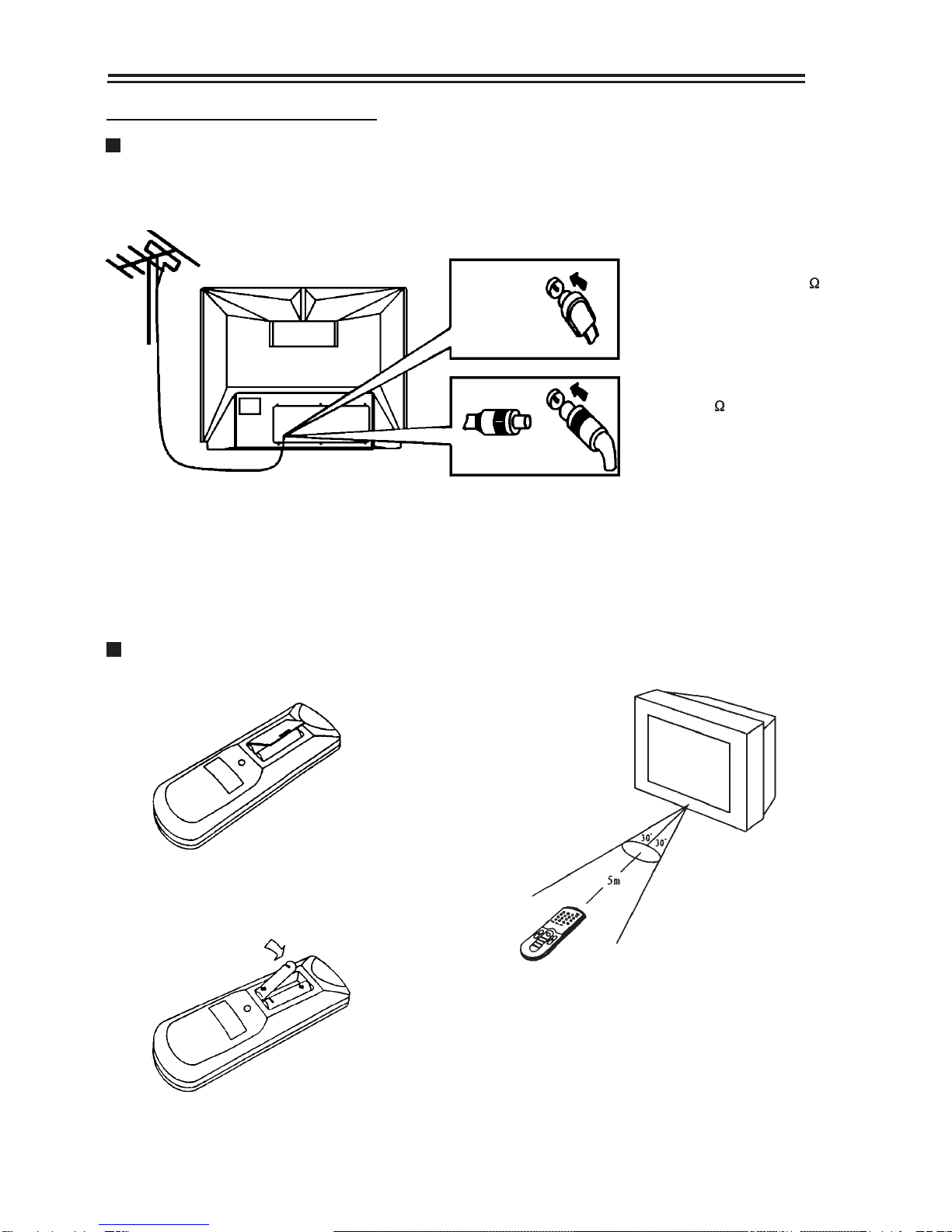

Antenna connection

To ensure a bright-coloured and clear picture, you should use an outdoor aerial or CATV

cable. If the signals are strong enough, you may use an indoor aerial.

Note:

When you connect the outdoor aerial cable to the aerial terminal on the TV set, please turn off

the power switch on the TV while connecting the antenna lead.

In thunder and lightning, weather, please disconnect the connection to the outdoor aerial to avoid

thunder/lightning strike.

Battery Installation:

1) Remove the back battery cover.

2) Insert two size AAA batteries according to

the polarity indication inside the remote

controller.

Effective range of the remote control

operation

1. When the remote controller is not used for

an extended period of time or the batteries

are worn out, please remove the batteries in

time to avoid battery leakage.

2. Avoid moisture and mechanical shock to the

remote controller.

Note: In case of using the

Twin-lead aerial feeder (300 )

for UHF/VHF aerial, use a 300-

75 ohm adaptor (not supplied)

When using the coaxial cable (not

supplied) (75 ) for UHF/VHF

aerial, connect the plug into the

75 ohm aerial socket directly.

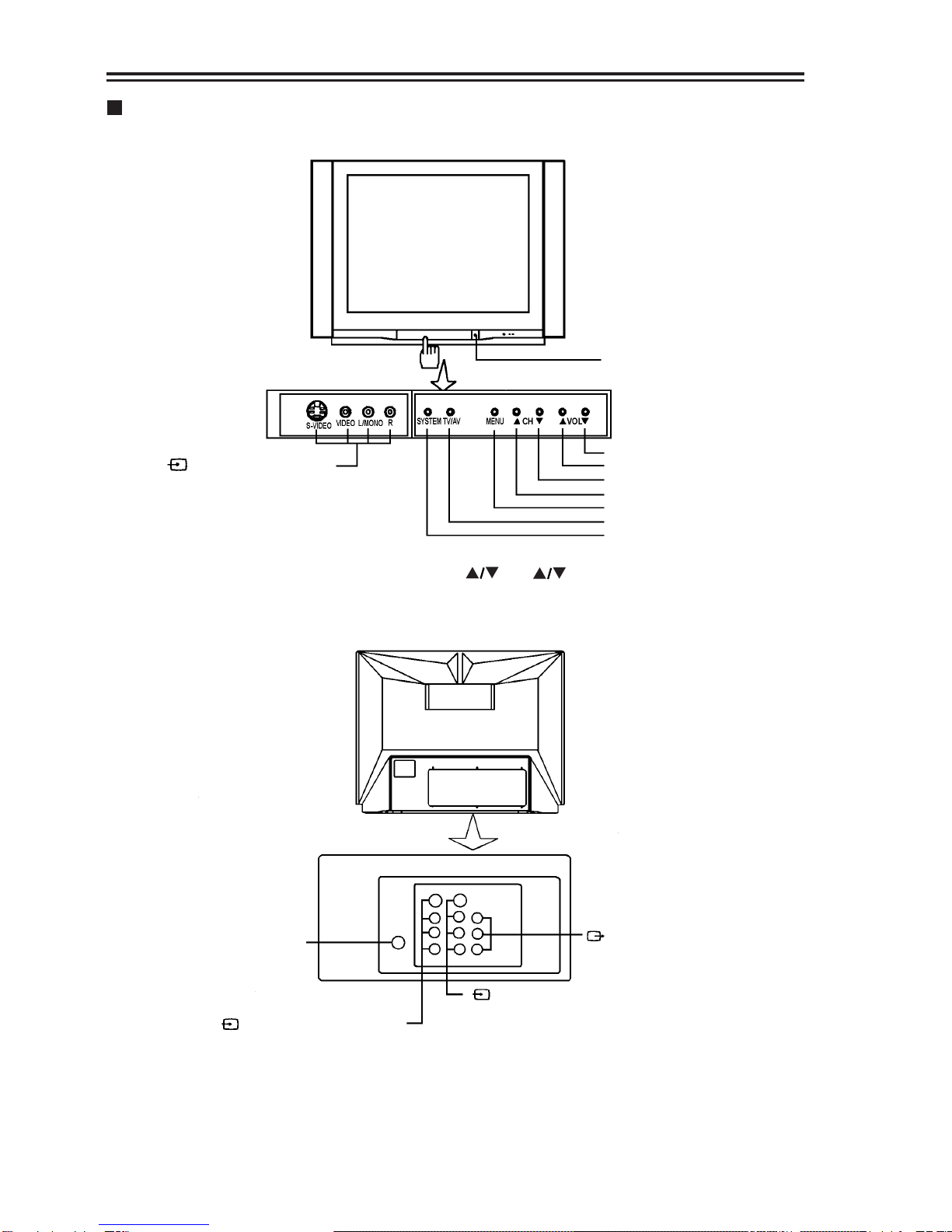

Appearance

Front view

Back view

Note: Functions of MENU, TV/AV, SYSTEM, VOL , CH are also provided

to the remote controller.

Antenna input MONITOR output terminals

{VIDEO, AUDIO L/MONO, R}

(1) Video 1 input terminals

{S-VIDEO, VIDEO, AUDIO L/MONO, R}

(2) Video 2 input terminals

{S-VIDEO, VIDEO, AUDIO L/MONO, R}

POWER SWITCH

(3) Video 3 input terminals

{S-VIDEO, VIDEO,

AUDIO L/MONO, R}

VOLUME DOWN

VOLUME UP

CHANNEL DOWN

CHANNEL UP

TV/AV

SYSTEM SELECT

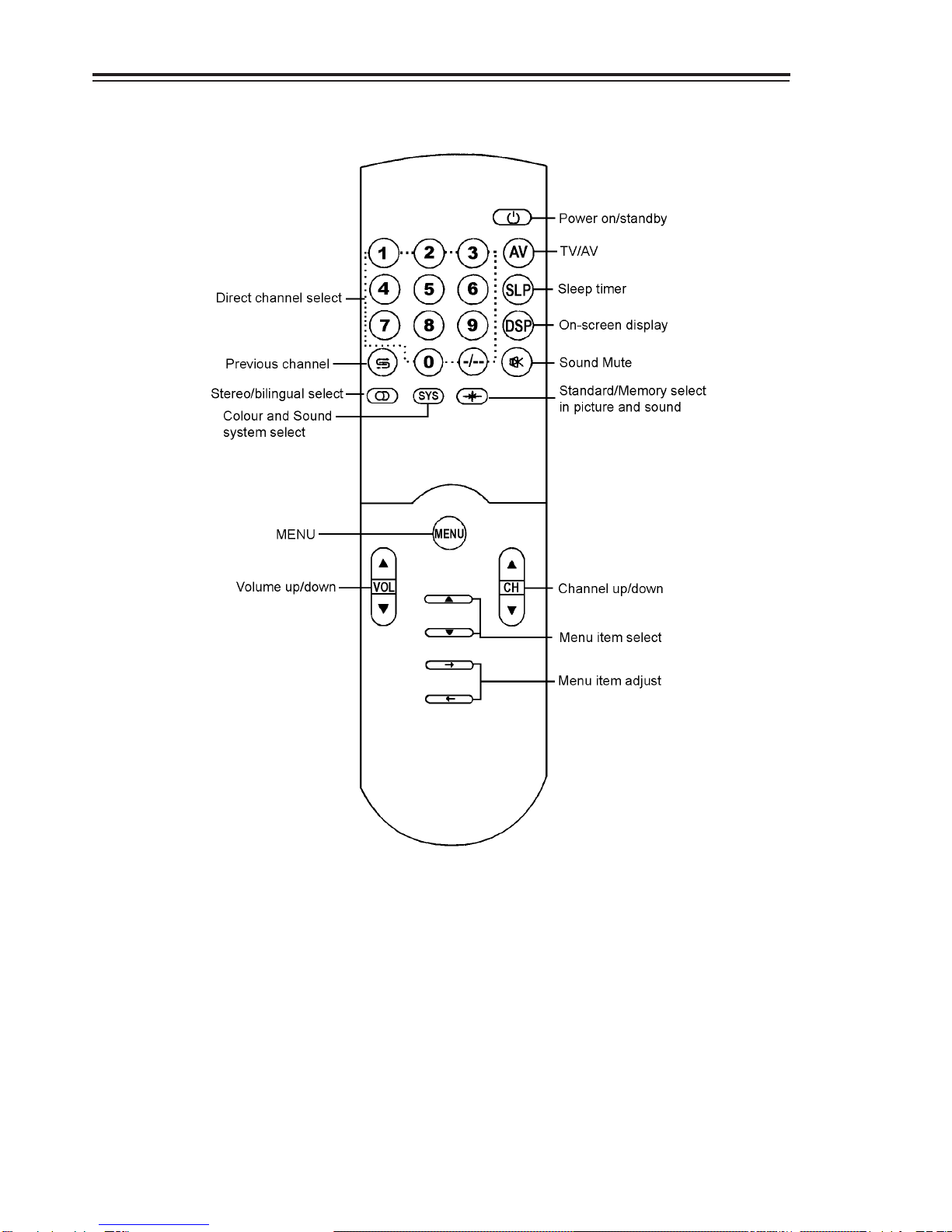

The Remote Controller

Operation

Switching on/off

Push the main power switch on, if the set is in Standby mode, the power indicator is red;

If there are pictures appearing on the screen, the indicator is yellow.

If no picture appears on the screen, push the power button on the remote controller to

turn the set on, the indicator turns to yellow.

Without using the remote controller, you can push any of the VOL , CH

or VIDEO button to turn on the TV.

Note: If there are no input signals to the TV when the TV is on, a blue background will

appear on the screen. After 15 minutes if there are still no signals to the TV, it will

enter into standby mode automatically.

Push the main power switch to turn off the set.

If you want to turn off the TV temporarily, push the button on the remote controller to

switch the set to standby mode, the indicator turns to red.

Special indication:

Last-Mode-Memory: after turning off the power, the last TV mode picture and sound

setting mode and preset channels all are memorised. Therefore, the next time you turn on

the TV, the TV will work in the previous setting mode.

If you directly pressed the main power switch on the TV to turn it off, you must press the

main power switch to turn on the TV.

If you pressed the main power switch to turn off the TV when in standby mode, press the

main power switch and then operate from the remote controller to turn the TV on.

Auto-Power-off function: there are two kinds of Auto-Power-Off function:

If a vacant channel is tuned or TV broadcast for a day is finished, the TV will automatically

turn off after about 15 minutes.

OFF - timer function. However, if the OFF - timer is operating, it takes precedence, that

is, the function of Auto-Power-Off, if no signals received will be ineffective.

1.3 Press the or button to enter into the sub-menu of

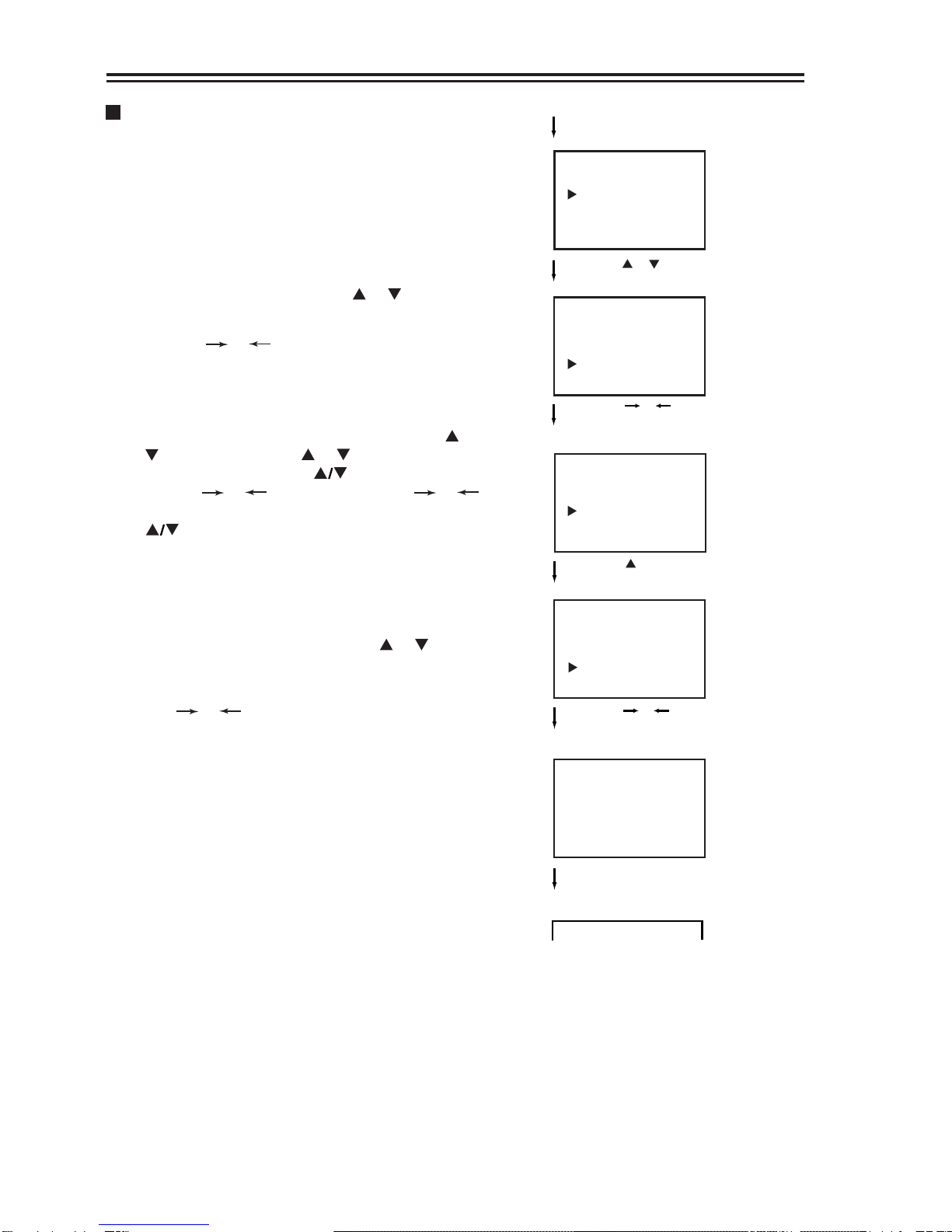

Presetting the channels

There are two ways to preset channels: to preset

channels automatically and to preset channels manually.

Below we will describe how to preset the channels

by making use of the menu.

1. To enter into menu

1.1 Press the MENU button to enter into the main

menu.

1.2 Press menu item select button or to select

The MENU button refers to the MENU button on

the remote controller or on the TV set, the or

button refers to the or button on the

remote controller or CH on the TV

set, the or button refers to the or

button on the remote controller or the VOL

button on the TV set.

Press the menu item select button or to select

AUTO SEARCH (the caption on the screen

is red).

Press or button, the TV begins to search TV

channels automatically. All active channels will be

preset and stored into the memoriser automatically.

After presetting, the TV will return to the first

channel program.

Before auto - search begins, you had better press

"SYS" button to set the current sound system to

B/G and the colour system to "AUTO".

Press the MENU button to

display the main menu

AUTO SEARCH

12 VHFH

After presetting is finished

it returns to the first

channel

Press the or button

to select SEARCH

Press the or button

to display the sub-menu

of SEARCH

MANUAL SEARCH

AUTO SEARCH

Press the button to

select AUTO SEARCH

Press the or button

it begins searching

automatically

2. AUTO SEARCH

SEARCH.

Note:

2.1

2.2

Note:

lllllllllllll

llllllllllllllllllllll

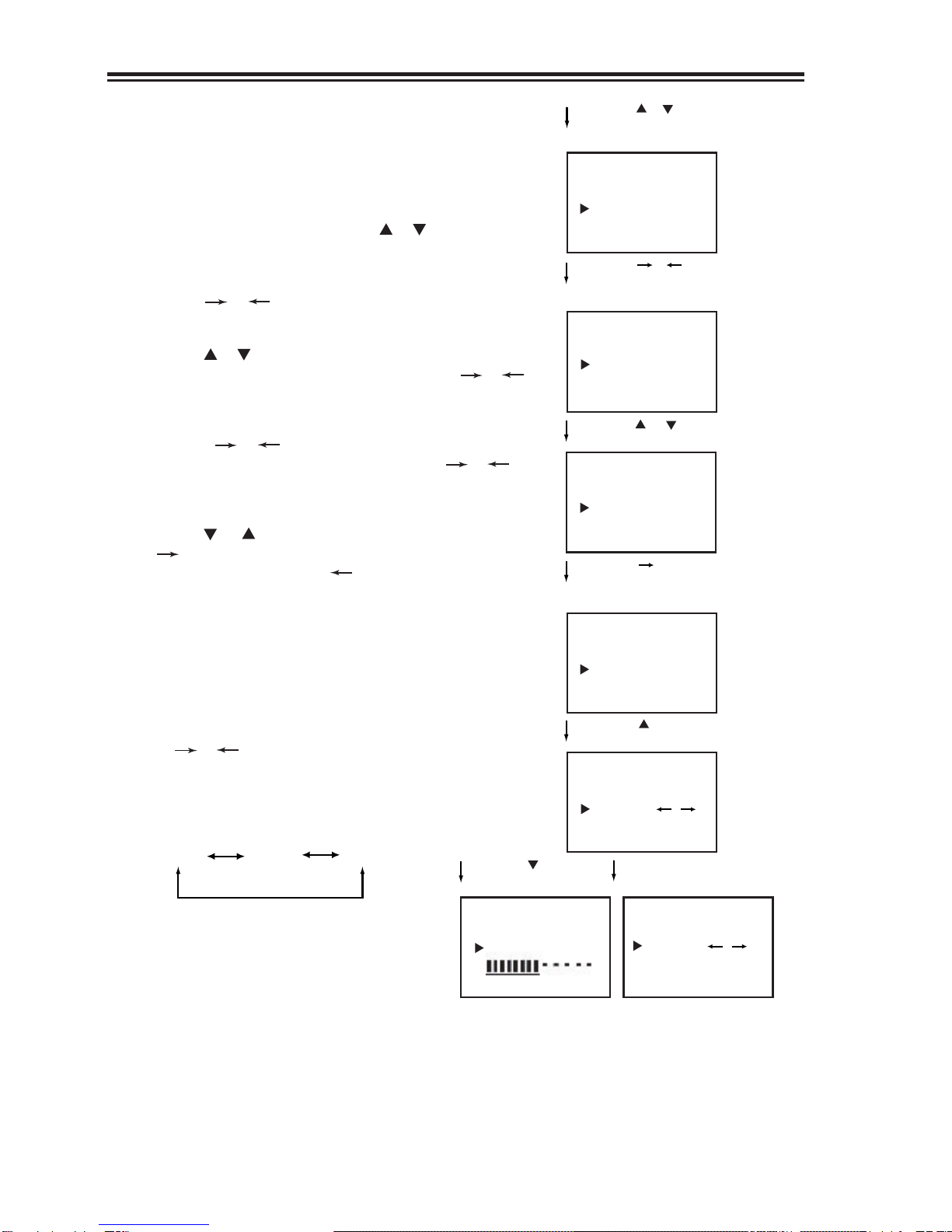

3. MANUAL SEARCH

If AUTO-SEARCH cannot preset the desired channels,

or you want to preset the desired channels one by

one with the preferred channel numbers - please make

use of MANUAL SEARCH.

Press the menu item select button or to select

MANUAL SEARCH (the caption on the screen are

red).

Press the or button to enter into the sub-menu

of MANUAL SEARCH.

Press the or button to choose POSITION.

(the caption on the screen are red), press the or

button to select the needed program number (from

00 ~ 99.

Push the or button to select a channel number

within 0.7 of a second. Push and hold the or

button for more than 0.7 of a second to select a

decimal number.

Press the or button to select SEARCH, push

the button to search channels from current channel

to higher channel. Push the button to search

channels from current channel to lower channel.

When a channel is located, the searching stops, this

channel is then memorised with a present channel

number.

You can also make use of band selection to quicken

the searching process in your desired band. Pressing

the or button moves the band to the next step

in the sequence below.

MANUAL SEARCH

AUTO SEARCH

Press the or button

to display the menu of

MANUAL SEARCH

POSITION 10

Press the button to

select the wanted channel

number

When a station is searched

the searching stops

Press the button

it begins searching

Press the or button

to select SEARCH

POSITION 22

Press the button

select SEARCH

POSITION 22

VHFL UHF

VHFH

Press the or button

to select MANUAL

3.1

3.2

3.3

Note:

3.4

Note:

Indice

Altri manuali Palsonic TV

Palsonic

Palsonic MODEL 7600WS 1 Manuale utente

Palsonic

Palsonic 3430G Manuale utente

Palsonic

Palsonic MODEL 5139 Manuale utente

Palsonic

Palsonic MODEL 5169 Manuale utente

Palsonic

Palsonic 6840TS Manuale utente

Palsonic

Palsonic MODEL 6810PF Manuale utente

Palsonic

Palsonic MODEL 5120PF Manuale utente

Palsonic

Palsonic MODEL 5130GM Manuale utente

Palsonic

Palsonic MODEL 6738 Manuale utente

Palsonic

Palsonic 8110 Manuale utente

Palsonic

Palsonic MODEL 5110PF Manuale utente

Palsonic

Palsonic MODEL 7128G Manuale utente

Palsonic

Palsonic 6835TK Manuale utente

Palsonic

Palsonic 8040PFST Manuale utente

Palsonic

Palsonic 8020PF Manuale utente

Palsonic

Palsonic 6850TKPF Manuale utente

Palsonic

Palsonic MODEL 5910PF Manuale utente

Palsonic

Palsonic 7118 Manuale utente

Palsonic

Palsonic 8010PF Manuale utente

Palsonic

Palsonic 6850PF Manuale utente

Palsonic

Palsonic TFTV8170LED Manuale utente

Palsonic

Palsonic 7128 Manuale utente

Palsonic

Palsonic TFTV5580M Manuale utente

Palsonic

Palsonic PDP4225HD Manuale utente

Manuali TV popolari di altre marche

Philips

Philips Colour Television Manuale utente

Toshiba

Toshiba 27A10 Manuale utente

Philips

Philips 42PF9630A/37 Manuale utente

Hitachi

Hitachi 32FX48B Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuale utente

Changhong Electric

Changhong Electric uhd55b6000is Manuale utente

Philips

Philips Matchline 21CE7551 Manuale utente

Panasonic

Panasonic Genus TX-G10 Manuale utente

Toshiba

Toshiba 19A20 Manuale utente

Philips

Philips 25PT4523-16 Manuale utente

Sony

Sony XBR-100Z9D Manuale utente

Philips

Philips PR0930X3 Manuale utente

Philips

Philips Brilliance 231P4QPY Manuale utente

Samsung

Samsung 55S9 B Series Manuale utente

Philips

Philips 32HF9385D Guida alla risoluzione dei problemi

Sharp

Sharp LC-40FI5012E Manuale utente

Loewe

Loewe Table Stand Reference 55 Manuale utente

Philips

Philips 32PFH5300 Manuale utente
