Installation Guide

Home Network System

Window/Door Sensor

Model No. KX-HNS101C

Thank you for purchasing a Panasonic product.

This document explains how to install the window/door sensor

properly.

For details about how to use the system, refer to the User’s Guide

(page 16).

Please read this document before using the unit and save it for future

reference.

For assistance, please visit our support page on:

www.panasonic.ca/english/support

Printed in China

HNS101C_(en_en)_0117_ver.201.pdf 1 2017/01/19 20:21:04

Introduction
Accessory information ...............3
Important Information
About this system ......................4
For your safety ...........................4
Important safety instructions ......5
For best performance ................5
Other information .......................6
Setup
Part names and functions ..........7
LED indicator .............................7
Setup overview ..........................7
Inserting the battery ...................8
Registering the window/door
sensor ........................................8
Changing the sensor type ..........9
Wireless communication
range .........................................9
Temporary placement ..............10
Installation ...............................13
Appendix
Testing the window/door
sensor ......................................16
Features available when using the
[Home Network] app ................16
Accessing the User’s Guide ....16
Specifications ..........................17
Other notices and information (for
Canada) ...................................17
Warranty ..................................18
2
Table of Contents
HNS101C_(en_en)_0117_ver.201.pdf 2 2017/01/19 20:21:04

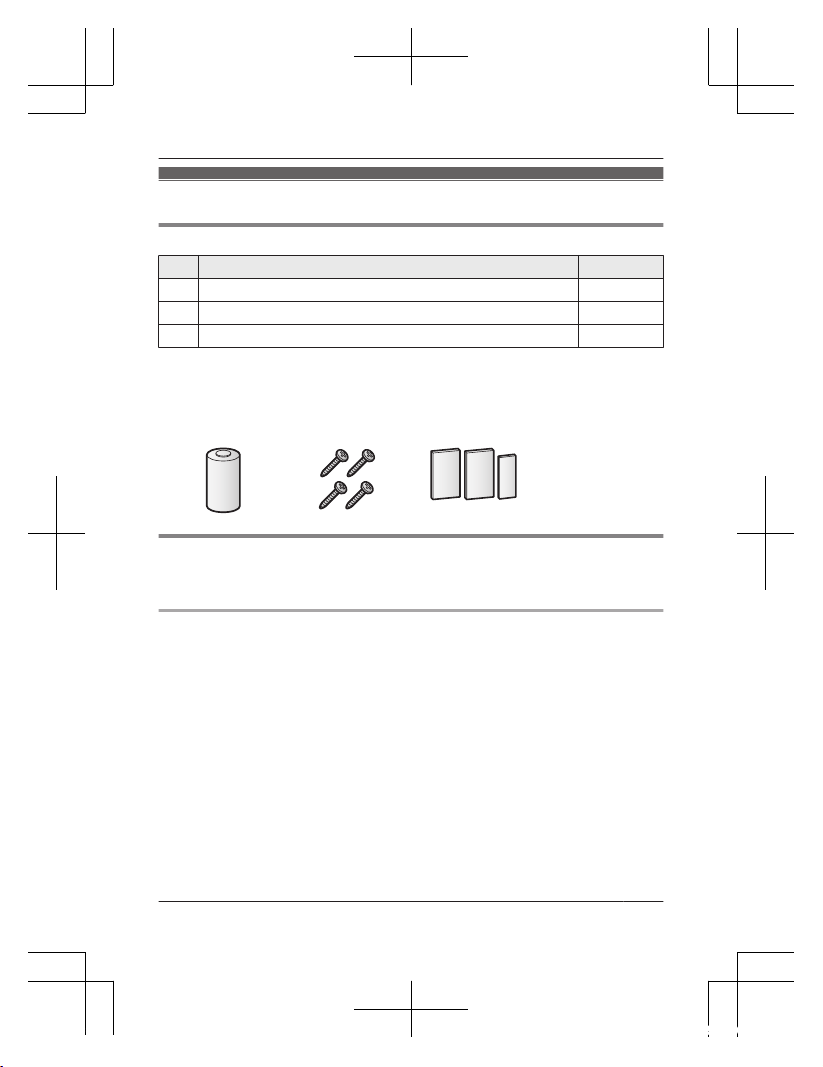

Accessory information

Supplied accessories

No. Accessory item/Part number Quantity

ABattery*11

BMounting screws (20 mm (25/32 inches))*24

CMounting double-sided tapes*33

*1 When replacing the battery, see “Power source” of “Specifications”, page 17

for battery information.

*2 2 screws for the sensor unit and 2 screws for the magnet unit

*3 2 pieces of tape for the sensor unit

1 piece of tape for the magnet unit

AB C

Other information

RDesign and specifications are subject to change without notice.

RThe illustrations in these instructions may vary slightly from the actual product.

Trademarks

RiPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other

countries.

RAndroid is a trademark of Google Inc.

RMicrosoft, Windows, and Internet Explorer are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries.

RAll other trademarks identified herein are the property of their respective owners.

For assistance, visit www.panasonic.ca/english/support 3

Introduction

HNS101C_(en_en)_0117_ver.201.pdf 3 2017/01/19 20:21:04

About this system

RThis system is an auxiliary system; it

is not designed to provide complete

protection from property loss.

Panasonic will not be held

responsible in the event that

property loss occurs while this

system is in operation.

RThe system’s wireless features are

subject to interference, therefore

functionality in all situations cannot

be guaranteed. Panasonic will not

be held responsible for injury or

damage to property that occurs in

the event of wireless communication

error or failure.

For your safety

To prevent severe injury and loss of life/

property, read this section carefully

before using the product to ensure

proper and safe operation of your

product.

WARNING

Power connection

RUse only the power source marked

on the product.

RDo not connect non-specified

devices.

Installation

RTo prevent the risk of fire or

electrical shock, do not expose the

product to rain or any type of

moisture.

RDo not place or use this product

near automatically controlled

devices such as automatic doors

and fire alarms. Radio waves

emitted from this product may cause

such devices to malfunction

resulting in an accident.

RKeep small parts (magnet unit,

magnet unit cover, screws, etc.) out

of the reach of children. There is a

risk of swallowing. In the event they

are swallowed, seek medical advice

immediately.

Operating safeguards

RDo not disassemble the product.

Medical

RConsult the manufacturer of any

personal medical devices, such as

pacemakers or hearing aids, to

determine if they are adequately

shielded from external RF (radio

frequency) energy. DECT features

operate between 1.92 GHz and

1.93 GHz with a peak transmission

power of 115 mW.

RDo not use the product in health

care facilities if any regulations

posted in the area instruct you not to

do so. Hospitals or health care

facilities may be using equipment

that could be sensitive to external

RF energy.

CR Lithium battery

RDo not recharge, disassemble,

remodel, heat or throw it into fire.

RDo not touch the terminals and

with metal objects.

RRisk of explosion if battery is

replaced by an incorrect type.

Dispose of used battery according to

local regulations.

4For assistance, visit www.panasonic.ca/english/support

Important Information

HNS101C_(en_en)_0117_ver.201.pdf 4 2017/01/19 20:21:04

RIf any electrolyte should come into

contact with your hands or clothes,

wash it off thoroughly with water.

RIf any electrolyte should come into

contact with your eyes, never rub

your eyes. Rinse your eyes

thoroughly with water, and then

consult a doctor.

CAUTION

General information

RDo not place magnetic cards or

similar objects near the sensor unit

and magnet unit. Magnetic data on

the cards, etc. may be deleted.

CR Lithium battery

RUse only the battery noted on

page 3.

RInsert the battery correctly.

RDo not leave the battery in an

automobile exposed to direct

sunlight for a long period of time with

the doors and windows closed.

RRemove the battery if you do not

use the product for a long period of

time. Keep it in a cool, dark area.

RDo not replace a battery with wet

hands.

RKeep out of the reach of small

children. There is a risk of

swallowing. If the battery is

swallowed, seek medical attention

immediately.

RRemove the battery if it becomes

unusable. There is a risk of leakage,

overheating, and rupture. Do not

attempt to use a battery if it is

leaking.

RExercise care when handling the

batteries. Do not allow conductive

materials such as rings, bracelets, or

keys to touch the batteries,

otherwise a short circuit may cause

the batteries and/or the conductive

material to overheat and cause

burns.

Important safety

instructions

When using your product, basic safety

precautions should always be followed

to reduce the risk of fire, electric shock,

and injury to persons, including the

following:

1. Do not use this product near water

for example, near a bathtub,

washbowl, kitchen sink, or laundry

tub, in a wet basement or near a

swimming pool.

2. Use only the batteries indicated in

this document. Do not dispose of

batteries in a fire. They may

explode. Check with local codes for

possible special disposal

instructions.

SAVE THESE INSTRUCTIONS

For best performance

Hub location/avoiding noise

The hub and other compatible

Panasonic devices use radio waves to

communicate with each other.

RFor maximum coverage and

noise-free communications, place

your hub:

– at a convenient, high, and central

location with no obstructions

between the product and hub in

an indoor environment.

For assistance, visit www.panasonic.ca/english/support 5

Important Information

HNS101C_(en_en)_0117_ver.201.pdf 5 2017/01/19 20:21:04

– away from electronic appliances

such as TVs, radios, personal

computers, wireless devices, or

other phones.

– facing away from radio frequency

transmitters, such as external

antennas of mobile phone cell

stations. (Avoid putting the hub

on a bay window or near a

window.)

RIf the reception for a hub location is

not satisfactory, move the hub to

another location for better reception.

Environment

RKeep the product away from

electrical noise generating devices,

such as fluorescent lamps and

motors.

RThe product should be kept free

from excessive smoke, dust, high

temperature, and vibration.

RThe product should not be exposed

to direct sunlight.

RDo not place heavy objects on top of

the product.

RThe product should be kept away

from heat sources such as heaters,

kitchen stoves, etc. It should not be

placed in rooms where the

temperature is less than -10 °C

(14 °F) or greater than 40 °C

(104 °F). Damp basements should

also be avoided.

ROperating the product near electrical

appliances may cause interference.

Move away from the electrical

appliances.

Other information

CAUTION: Risk of explosion if battery

is replaced by an incorrect type.

Dispose of used batteries according to

the instructions.

Routine care

RWipe the outer surface of the

product with a soft moist cloth.

RDo not use benzine, thinner, or any

abrasive powder.

Information on Disposal in other

Countries outside the European

Union

These symbols are only valid in the

European Union. If you wish to discard

these items, please contact your local

authorities or dealer and ask for the

correct method of disposal.

Note for the battery removal

procedure

Refer to “Inserting the battery” on

page 8.

6For assistance, visit www.panasonic.ca/english/support

Important Information

HNS101C_(en_en)_0117_ver.201.pdf 6 2017/01/19 20:21:04

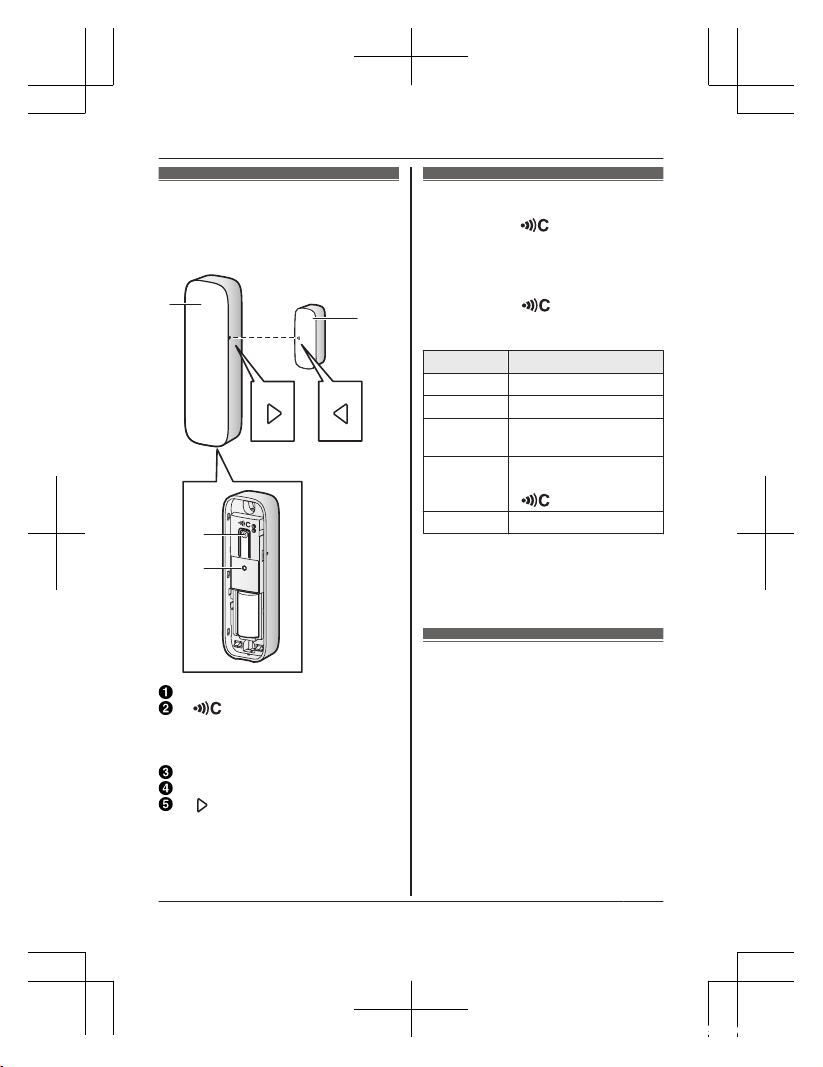

Part names and

functions

n Sensor unit n Magnet unit

Sensor unit cover

M N

Used to confirm the status of the

sensor or register the sensor to

the hub.

LED indicator

Magnet unit cover

“ ” marks

Used to align the sensor and the

magnet unit when installing them

(page 10).

LED indicator

You can press M N and check the

LED indicator to confirm the sensor’s

status.

After confirming the sensor’s status, we

recommend turning the LED indicator

off by pressing MN again as soon

as possible, otherwise battery life may

be reduced.

Indicator Status

Green, lit Window/door is closed

Red, lit Window/door is open

Red,

blinking

Sensor is out of range

of the hub

Green,

blinking

slowly

Registration mode

(You pressed and held

MN)

Off No battery power

Note:

RThe LED indicator does not indicate

sensor status if the sensor has not

been registered (page 8).

Setup overview

1Initial setup

Make sure you can access the

system using your mobile device.

For details, refer to the System

Setup Guide included with your

hub.

2Insert the battery

The window/door sensor is battery

powered.

For assistance, visit www.panasonic.ca/english/support 7

Setup

HNS101C_(en_en)_0117_ver.201.pdf 7 2017/01/19 20:21:04

3Registration

Required only if the window/door

sensor was purchased separately

(i.e., not as part of a bundle).

4Confirm the installation area

Read the information in this

document to confirm that the

desired installation area is suitable

to proper operation.

5Temporary placement

Temporarily place the window/

door sensor in the desired location

and confirm that it operates

properly (page 10).

6Installation

Install the window/door sensor on

the same position where proper

operation was confirmed

(page 13).

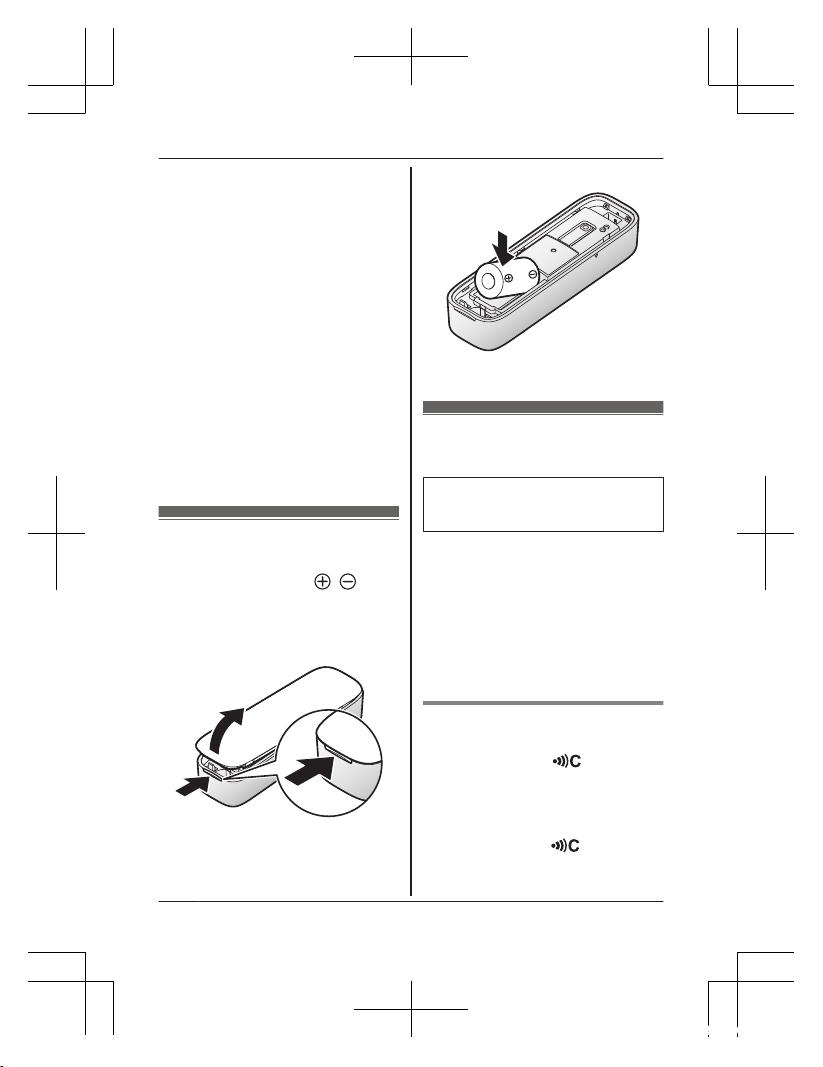

Inserting the battery

RUSE ONLY a CR2 Lithium battery.

RConfirm the polarities ( , ).

1Remove the sensor unit cover.

RLift from the indented area (A)

and open the sensor unit cover

(B).

2Insert the battery.

3Attach the sensor unit cover.

Registering the

window/door sensor

This procedure is not required for

devices that were included as part of

a bundle.

Before you can use the window/door

sensor, it must be registered to the hub.

If you purchased devices separately

(i.e., not as part of a bundle), you must

You can register each device by using

the registration buttons or the [Home

Network] app.

Using registration buttons

1Hub:

Press and hold M OTHER

DEVICEN until the LED indicator

blinks slowly in green.

2Window/door sensor:

Remove the sensor unit cover and

press and hold MN until the

LED indicator blinks slowly in

green (page 7).

8For assistance, visit www.panasonic.ca/english/support

Setup

HNS101C_(en_en)_0117_ver.201.pdf 8 2017/01/19 20:21:04

RWhen registration is complete,

the hub sounds one long beep.

Note:

RTo cancel without registering the

sensor, press MN on the hub and

on the sensor again.

RIf registration fails, the hub sounds

several short beeps.

Using the app

When you register the window/door

sensor by using the [Home Network]

app, you can assign a name to your

devices and group them by location.

For more information, refer to the

User’s Guide (page 16).

Changing the sensor

type

You can select whether a window/door

sensor functions as a window sensor or

as a door sensor. For more

information, refer to the User’s Guide

(page 16).

Wireless

communication

range

The wireless communication range of

each device in the system from the hub

is approximately 50 m (160 feet)

indoors and approximately 300 m

(1,000 feet) outdoors. Wireless

communication may be unreliable

when the following obstacles are

located between the hub and other

devices.

RMetal doors or screens

RWalls containing aluminum-sheet

insulation

RWalls made of concrete or

corrugated iron

RDouble-pane glass windows

RMultiple walls

RWhen using each device on

separate floors or in different

buildings

Note:

RYou can check the window/door

sensor’s communication status by

pressing M N. If the LED indicator

is lit in green or red, the sensor is

communicating properly with the

hub. If the LED indicator blinks in

red, it is out of range of the hub.

For assistance, visit www.panasonic.ca/english/support 9

Setup

HNS101C_(en_en)_0117_ver.201.pdf 9 2017/01/19 20:21:04

Temporary placement

Before installing the window/door sensor, temporarily place it in the desired

location and confirm that it operates properly by pressing M N.

Important:

RAttach the sensor unit to the window frame or door frame, and attach the

magnet unit to the window or door.

RThe window/door sensor will not operate properly if the “ ” marks are too far

apart or are not pointing toward each other.

RAttach both units so that the “ ” marks point toward each other and are within

25.4 mm (1 inch) of each other.

Confirming proper operation

After temporarily placing the window/door sensor in the desired location, press

MN while the window or door is closed. The window/door sensor’s LED indicator

lights as follows.

Indicator Status

Green, lit The installation position is correct.

Red, lit The “ ” marks on the sensor unit and the magnet unit

are too far from each other. Re-attach the sensor unit

and the magnet unit so that they point directly at each

other and are no more than 25.4 mm (1 inch) apart.

Red, blinking The sensor unit is out of range of the hub. Refer to the

information on page 9.

Note:

RDepending on the condition and material of the surface where the sensor unit

and magnet unit are installed, the LED indicator may light in red even if the “ ”

marks point directly at each other and are no more than 25.4 mm (1 inch) apart.

10 For assistance, visit www.panasonic.ca/english/support

Setup

HNS101C_(en_en)_0117_ver.201.pdf 10 2017/01/19 20:21:04

Indice

Lingue:

Altri manuali Panasonic Accessori

Panasonic

Panasonic MA3D749 Manuale utente

Panasonic

Panasonic FX-301-F Manuale utente

Panasonic

Panasonic Switching Diodes MA4X174 (MA174) Manuale utente

Panasonic

Panasonic HG-S1010-AC Manuale utente

Panasonic

Panasonic MQ-W EM Series Manuale utente

Panasonic

Panasonic MA3X748 (MA748) Manuale utente

Panasonic

Panasonic AY-PB2003 Manuale utente

Panasonic

Panasonic ER-VS02 Manuale utente

Panasonic

Panasonic D-IMager EKL3104 Manuale utente

Panasonic

Panasonic GP-A5S Manuale utente

Panasonic

Panasonic HG-C1000L Series Manuale utente

Panasonic

Panasonic MA6X125 (MA125) Manuale utente

Panasonic

Panasonic EX-L200 Series Manuale utente

Panasonic

Panasonic MA2S1010G Manuale utente

Panasonic

Panasonic MA24D51 Manuale utente

Panasonic

Panasonic MALHxxxYG Series Manuale utente

Panasonic

Panasonic MA6X124 (MA124) Manuale utente

Panasonic

Panasonic KX-HNA101 Manuale utente

Panasonic

Panasonic HL-C201A-SP3 Manuale utente

Panasonic

Panasonic KX-HNS104 Manuale utente

Panasonic

Panasonic Fast Recovery Diodes MA3DF40 Manuale utente

Panasonic

Panasonic MA3X791 (MA791) Manuale utente

Panasonic

Panasonic EX Series Manuale utente

Panasonic

Panasonic Light Emitting Diodes LNG692CF6 Manuale utente

Manuali Accessori popolari di altre marche

Hillco

Hillco 2810 Manuale utente

Siemens

Siemens QSA2700D Manuale dell'operatore

Contours

Contours ZY024 Manuale utente

Saivod

Saivod VS621 Manuale utente

Virtuox

Virtuox VirtuCLEAN 2.0 Manuale utente

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuale utente

Z-Wave

Z-Wave HSD-200Z Manuale utente

turck

turck FMX-IM-2UPLI63FX Manuale utente

Decagon Devices

Decagon Devices 10HS Manuale utente

UPPAbaby

UPPAbaby Cup Holder Manuale utente

Elko

Elko SmartSensor Leakage Wireless Manuale utente

Grizzly

Grizzly H8371 Manuale utente

IFM Electronic

IFM Electronic Efector 250 Series Guida di riferimento

DigiDesign

DigiDesign 888/24 I/O Manuale utente

PROZIS

PROZIS QUAY Manuale utente

patagonia

patagonia PSI Vest Manuale utente

SFC Energy

SFC Energy EFOY GO! Manuale utente

Axminster

Axminster Tooling Stylus Tip Ballpoint Pen Kit Manuale utente
