Installation Instructions

Trim kit

24”cabinet

(596 mm)

TK712SSQP

TK712SWQP

IP4319_F0313BE90QP_27_120827.indd 1IP4319_F0313BE90QP_27_120827.indd 1 2012-8-27 13:17:132012-8-27 13:17:13

1. This trim kit can be installed into a cabinet.The cabinet opening must have the following internal

dimensions as shown in ﬁg 1, p 4.

A vent is required at the rear of the cabinet. It should travel the full height of the cabinet and the

cabinet should not be obstructed. Minimum dimension of vent: 45 mm x 600 mm (ﬁg 1, p 4).

MINIMUM INSTALLATION HEIGHT 850 MM.

2. Electrical Connections The appliance is supplied with a mains plug attached and should only

be connected into an earthed socket that has been installed according to the relevant safety

regulations.

If the plug is no longer accessible after the appliance has been built into the cabinet, a dual pole

isolator must be installed to conform to the relevant safety standards.

3. Appliance shall be provided with means for disconnection from the supply mains having a contact

separation in all poles that provide full disconnection under overvoltage Ⅲ conditions, such means

must be incorporated in the ﬁxed wiring in accordance with the wiring rules and accessible.

4. It is essential that the cabinet is ﬁxed to the wall for stability. The shelf must be able to support a

weight of 30 kg.

5. If the microwave oven is to be removed from the kitchen cabinet and used free standing, the built

in parts must be removed, and the oven returned to its original condition. Keep these installation

instructions for future reference so the installation process can be reversed.

TAKE CARE NOT TO KINK OR TRAP THE MICROWAVE ELECTRICAL CABLE.

The diagram may vary from the actual unit and is only for your reference.

Contents

Attention .............................................................................................................................................P1

Step 1. Unpacking list.........................................................................................................................P2

Step 2. Feature diagram.....................................................................................................................P3

Step 3. Cabinet Preparation ...............................................................................................................P4

Step 4. Microwave Oven Installation ..................................................................................................P5

Step 5. Cabinet Installation............................................................................................................. P6-7

Step 6. Finishing Installation......................................................................................................... P8-10

IP4319_F0313BE90QP_27_120827.indd Sec1:1IP4319_F0313BE90QP_27_120827.indd Sec1:1 2012-8-27 13:17:142012-8-27 13:17:14

Step 1. Unpacking list

Tools Needed

• Measuring tape

• Pencil

• Driver

• Ø2 drill

Parts Supplied

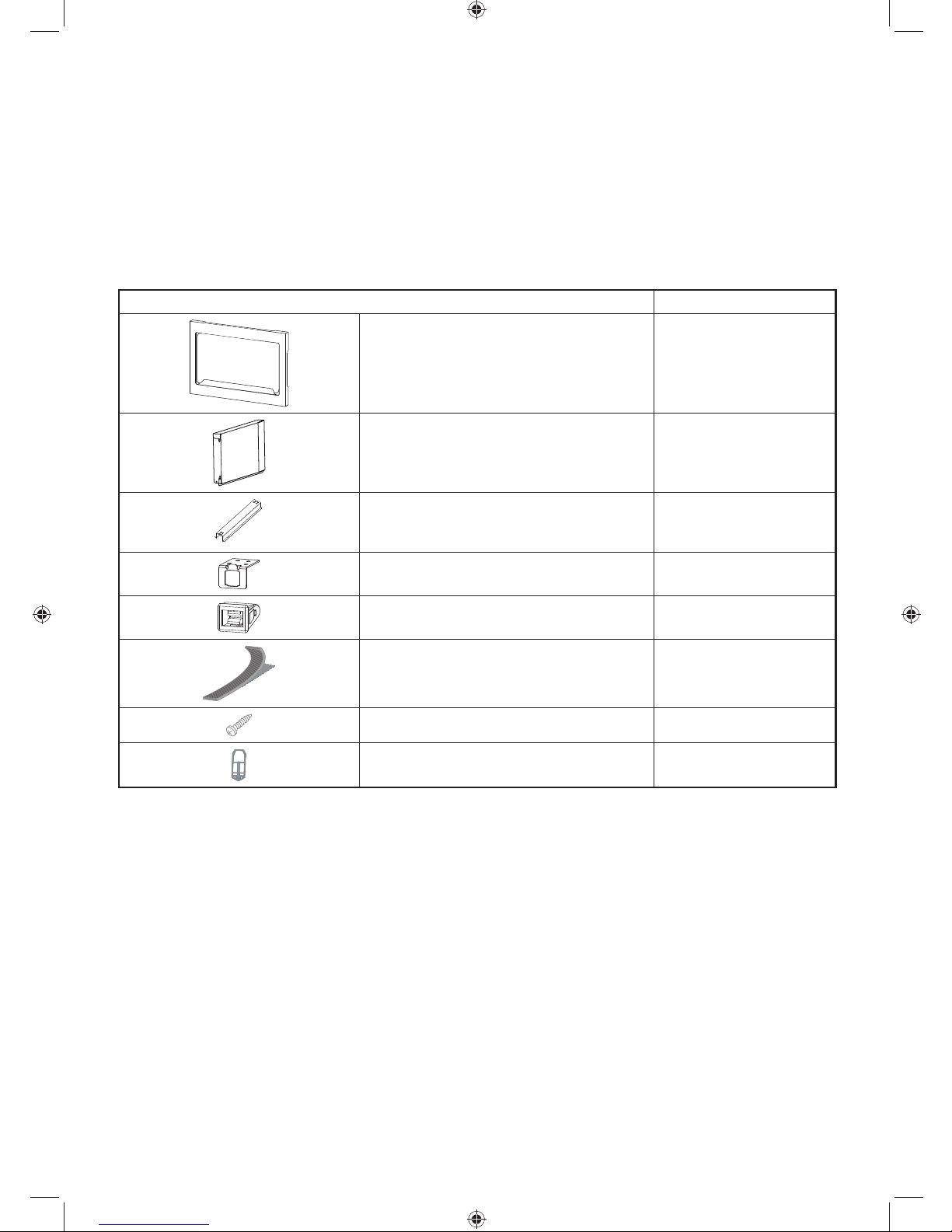

PART QUANTITY

Trim Frame 1

Left Duct 1

Rail 2

Bracket 4

Catch 4

Tape 2

Screw 12

Strike 4

IP4319_F0313BE90QP_27_120827.indd Sec1:2IP4319_F0313BE90QP_27_120827.indd Sec1:2 2012-8-27 13:17:142012-8-27 13:17:14

Step 2. Feature diagram

Installed Image

Trim kit Dimensions

Width 596 mm

Height 410 mm

Depth 20 mm (Thickness)

IP4319_F0313BE90QP_27_120827.indd Sec1:3IP4319_F0313BE90QP_27_120827.indd Sec1:3 2012-8-27 13:17:142012-8-27 13:17:14

min 45 m

min 850 mm

min 533 mm

22 mm

600 mm

395

-4

0 mm

min 45 mm

fig 1.

fig 2.

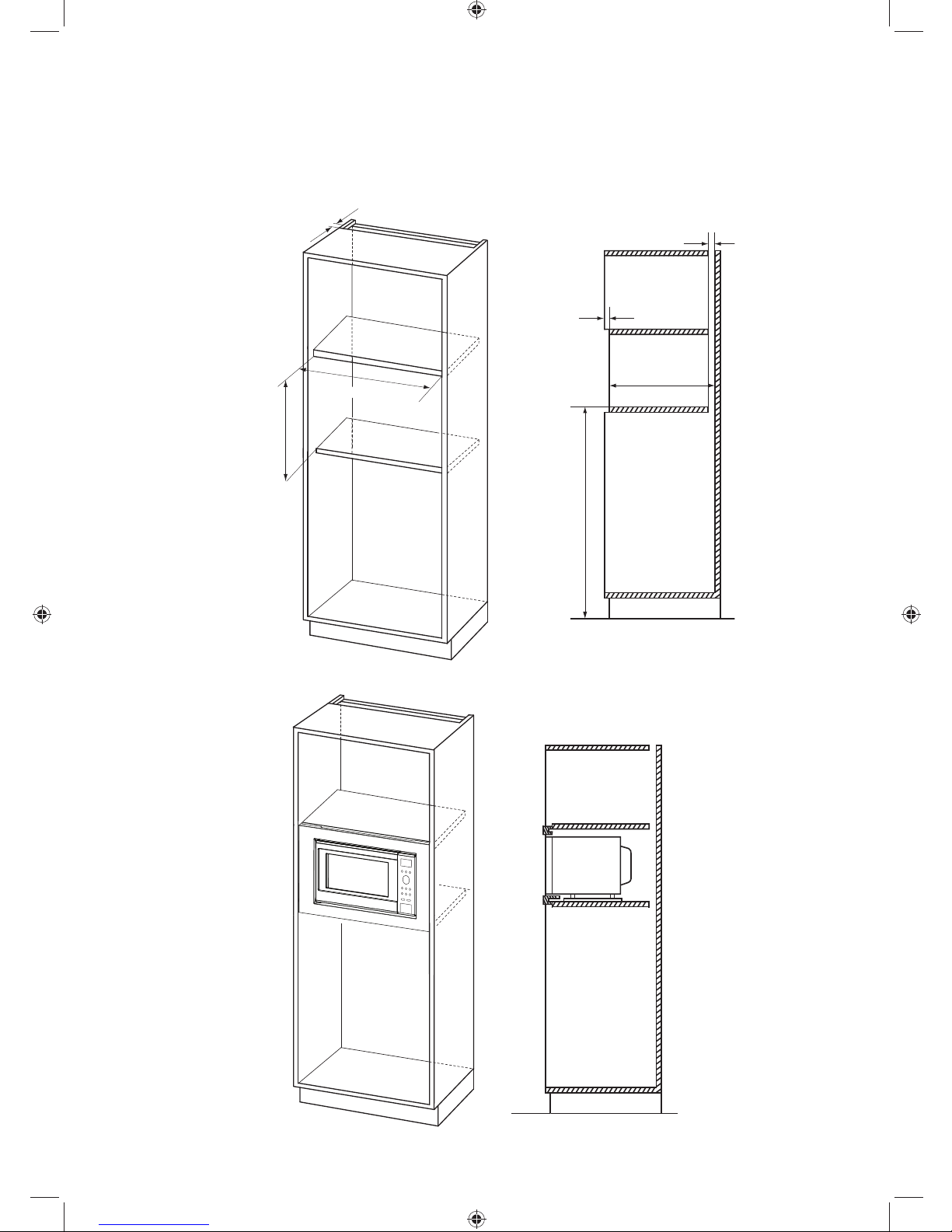

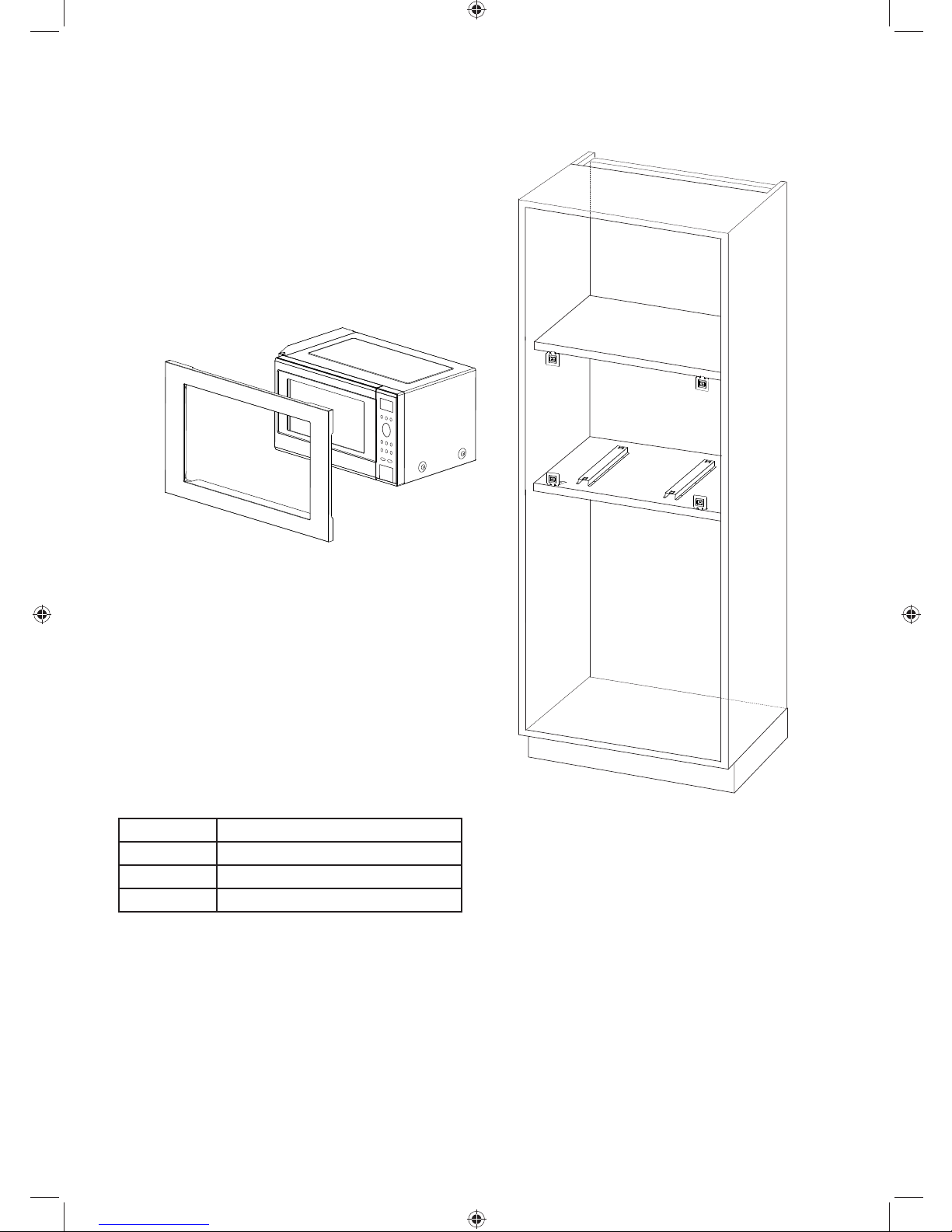

Step 3. Cabinet Preparation

IP4319_F0313BE90QP_27_120827.indd Sec1:4IP4319_F0313BE90QP_27_120827.indd Sec1:4 2012-8-27 13:17:142012-8-27 13:17:14

Step 4. Microwave Oven Installation

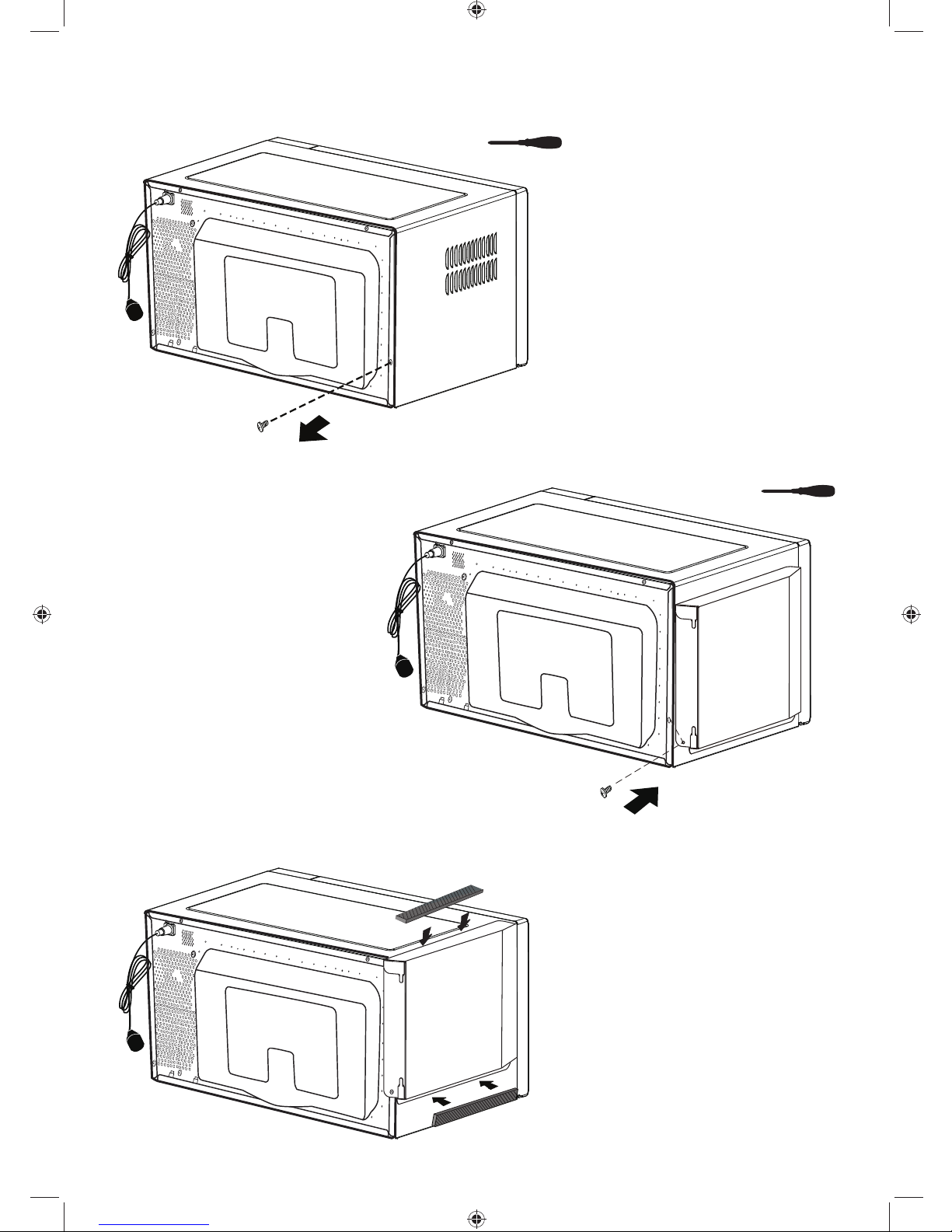

Put a piece of the tape on top of

oven and left duct and put a piece

of the tape on side of oven and left

duct.

IP4319_F0313BE90QP_27_120827.indd Sec1:5IP4319_F0313BE90QP_27_120827.indd Sec1:5 2012-8-27 13:17:142012-8-27 13:17:14

196 mm 196 mm

24 mm

45 mm

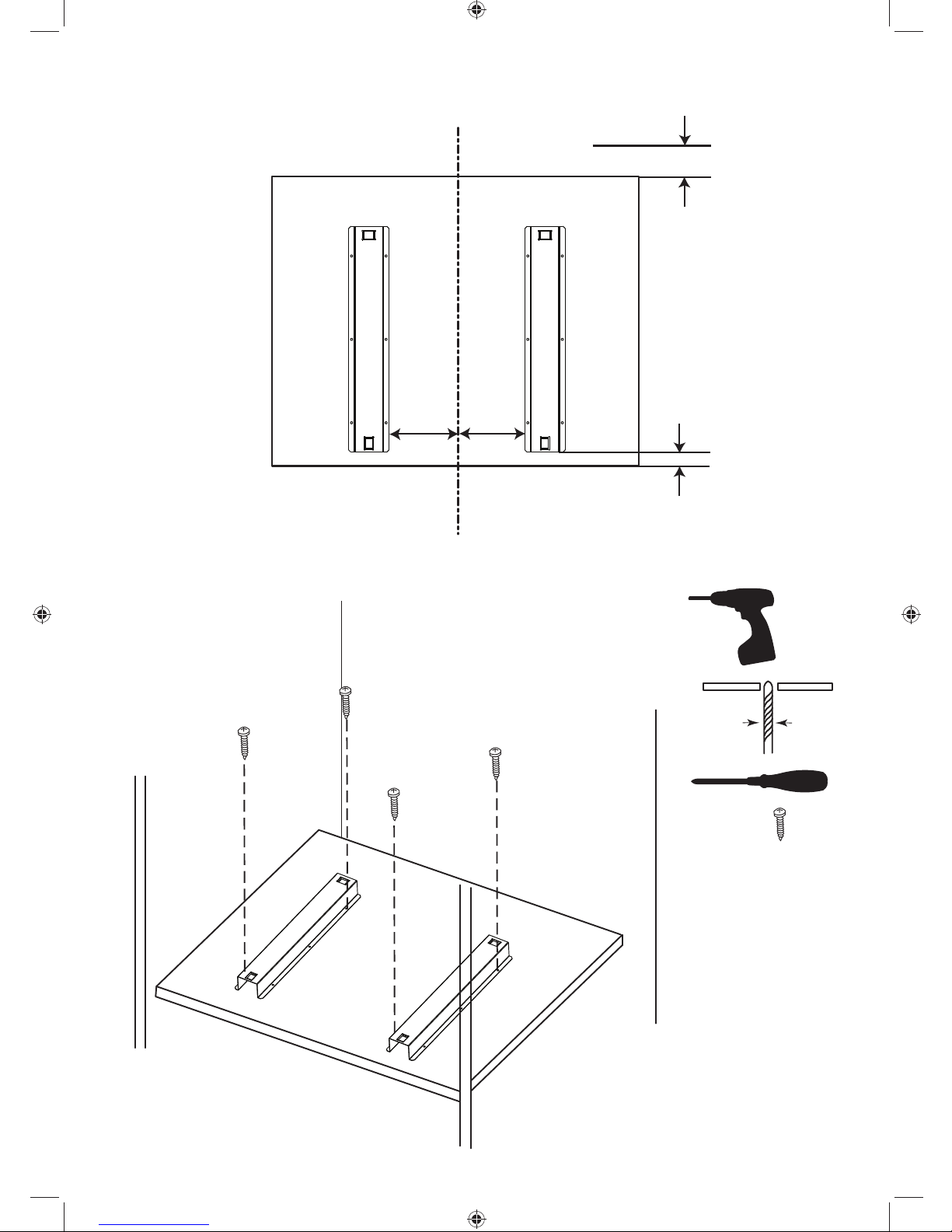

1. Aligning the rails

2. Attaching the rails

Center Line of Cabinet

Step 5. Cabinet Installation

ø2

Drill bit

IP4319_F0313BE90QP_27_120827.indd Sec1:6IP4319_F0313BE90QP_27_120827.indd Sec1:6 2012-8-27 13:17:142012-8-27 13:17:14

ø2

251 mm 251 mm

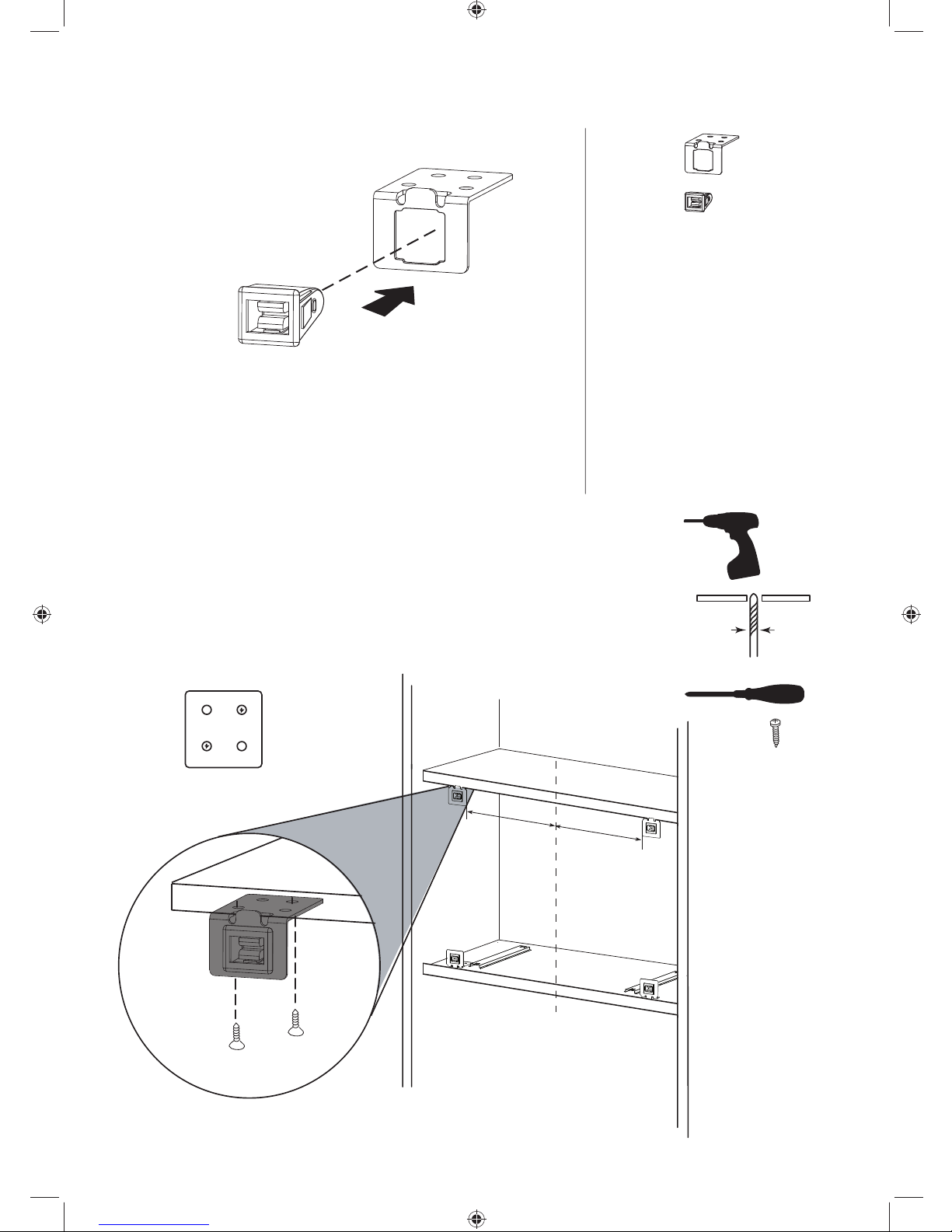

4. Attaching the bracket

3. Bracket assembly

Step 5. Cabinet Installation

Drill bit

2 screws on each bracket

IP4319_F0313BE90QP_27_120827.indd Sec1:7IP4319_F0313BE90QP_27_120827.indd Sec1:7 2012-8-27 13:17:142012-8-27 13:17:14

Step 6. Finishing Installation

Trim Frame

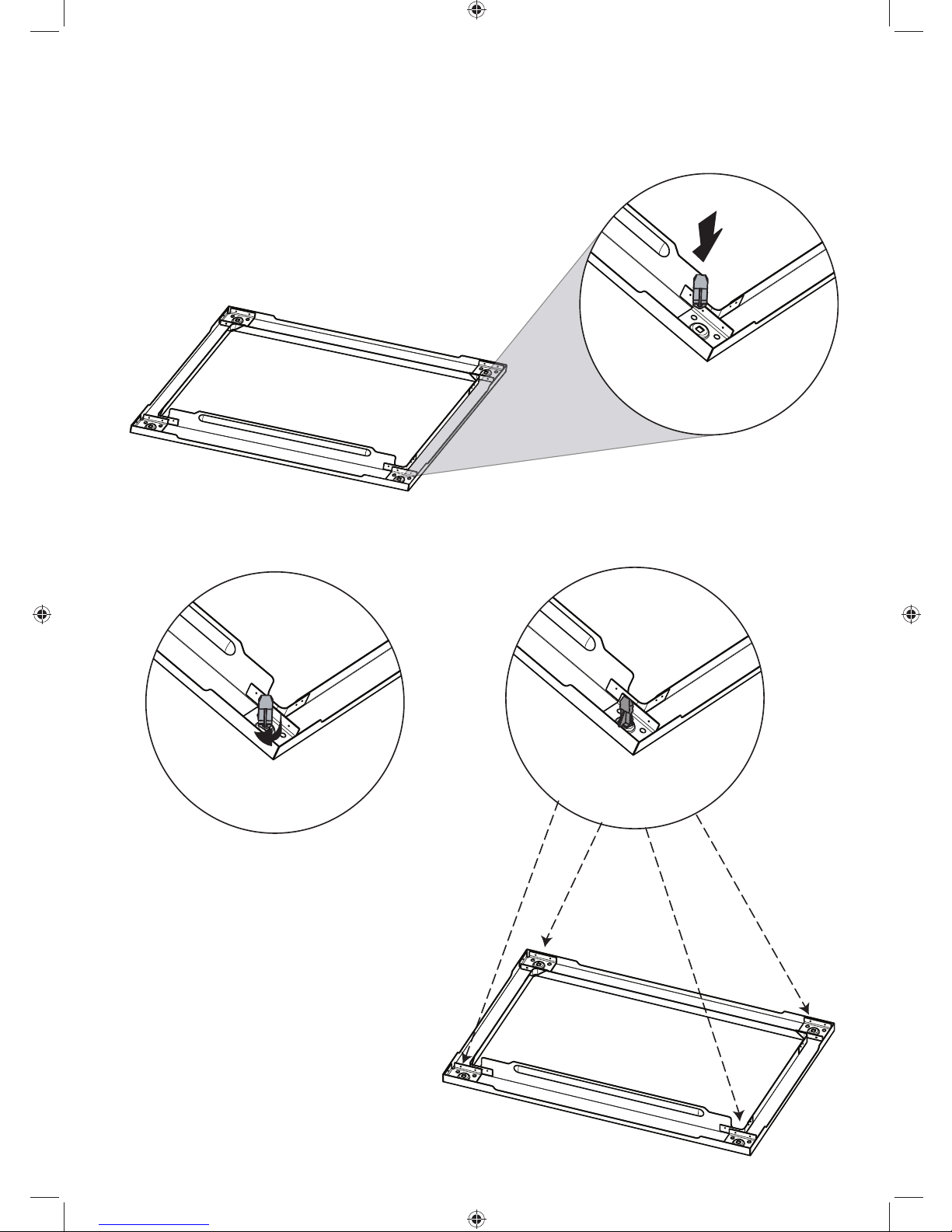

1. Inserting strikes 1-1

1-2

IP4319_F0313BE90QP_27_120827.indd Sec1:8IP4319_F0313BE90QP_27_120827.indd Sec1:8 2012-8-27 13:17:142012-8-27 13:17:14

Step 6. Finishing Installation

Complete the assembly

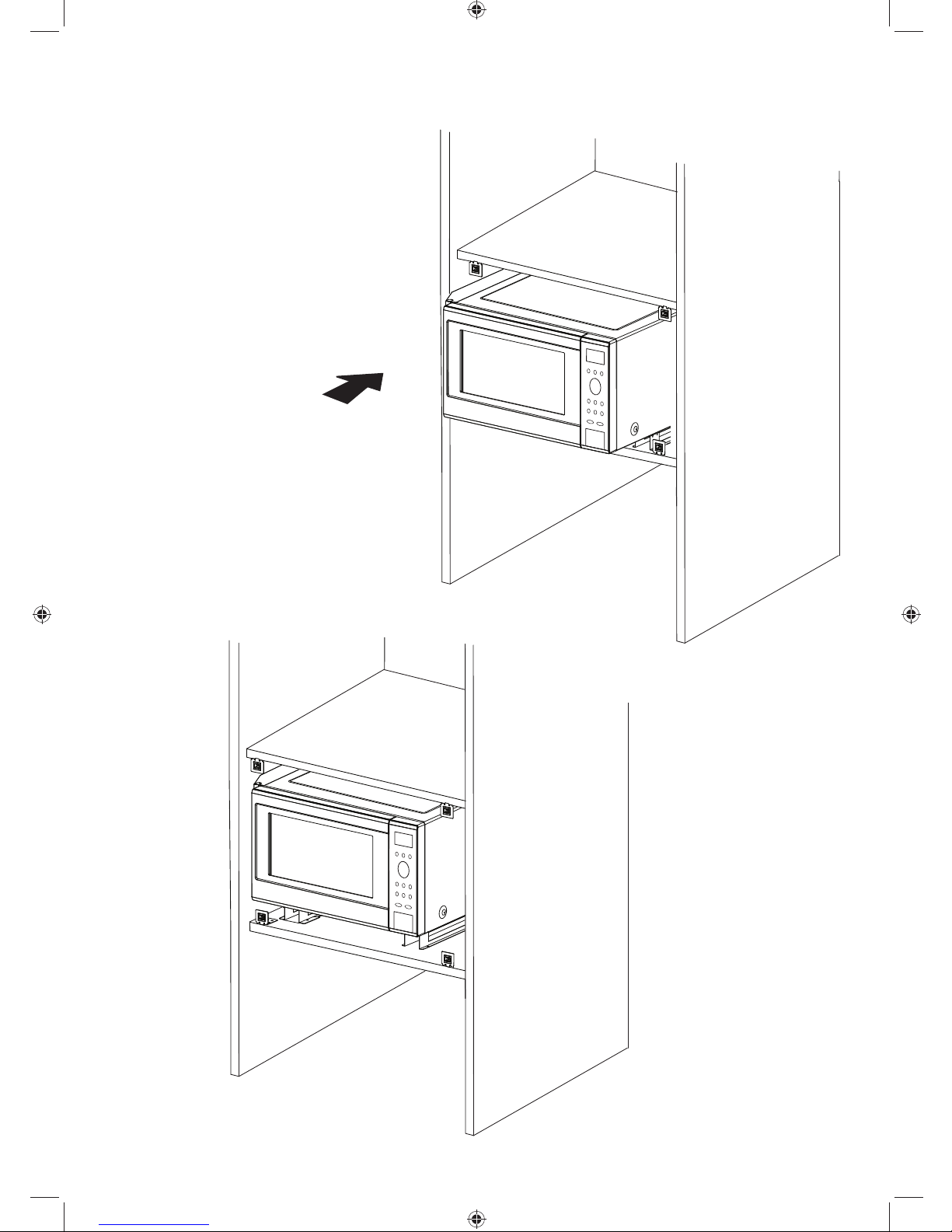

2. Oven placement

IP4319_F0313BE90QP_27_120827.indd Sec1:9IP4319_F0313BE90QP_27_120827.indd Sec1:9 2012-8-27 13:17:142012-8-27 13:17:14
