AC Adapter

AW-PS505

Before attempting to connect or operate this product,

please read these instructions completely.



Warning:

This equipment generates and uses radio frequency ener-

gy and if not installed and used properly, i.e., in strict

accordance with the instruction manual, may cause harmful

interference to radio communications. It has been tested

and found to comply with the limits for a Class A computing

device pursuant to Subpart J of Part 15 of FCC Rules,

which are designed to provide reasonable protection

against such interference when operated in a commercial

environment.

This digital apparatus does not exceed the Class A limits for

radio noise emissions from digital apparatus set out in the

Radio Interference Regulations of the Canadian Department

of Communications.

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOIS

TURE.

The lightning flash with arrowhead sym-

bol, within an equilateral triangle, is

intended to alert the user to the pres-

ence of uninsulated "dangerous voltage"

within the product's enclosure that may

be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilat-

eral triangle is intended to alert the user

to the presence of important operating

and maintenance (servicing) instructions

in the literature accompanying the appli-

ance.

The serial number of this product may be found on the bot-

tom of the unit.

You should note the serial number of this unit in the space

provided and retain this book as a permanent record of your

purchase to aid identification in the event of theft.

Model No.

Serial No.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER SER-

VICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PER-

SONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

SA 1965

SA 1966

For U.S.A

For CANADA

CONTENTS

FEATURES ................................................................................................................................................................................... 1

PRECAUTIONS ............................................................................................................................................................................ 2

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ...................................................................................................... 3

CONNECTION .............................................................................................................................................................................. 5

SPECIFICATIONS ......................................................................................................................................................................... 6

ACCESORIES ................................................................................................................................................................................ 6

-1-

FEATURES

This is the AC adapter for the Multiport Hub AW-HB505.

-2-

• Handle the control panel with care.

Dropping the control panel or subjecting it to a strong

shock can cause a failure or an accident.

• Operating temperature range –10°C to +45°C

Avoid using it in a cold place below –10°C or a hot

place above +45°C because low or high temperature

will adversely affect the parts inside.

• Switch power off before power cable connection or

disconnection.

Be sure to switch power off before connecting or dis-

connecting the power cable.

• Avoid outdoor use.

• Install the control panel more than 1 meter away

from the monitors.

• Care

Pull out the power cable plug, and wipe the control

panel clean with a dry cloth. If it is extremely dirty, dip

a cloth into a diluted solution of kitchen detergent,

squeeze it hard, and wipe the product surfaces care-

fully.

PRECAUTIONS

• Do not use benzine, paint thinner, or other volatile

liquids.

• When using a chemical duster, carefully read the

caution notes on its use.

Note

-3-

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

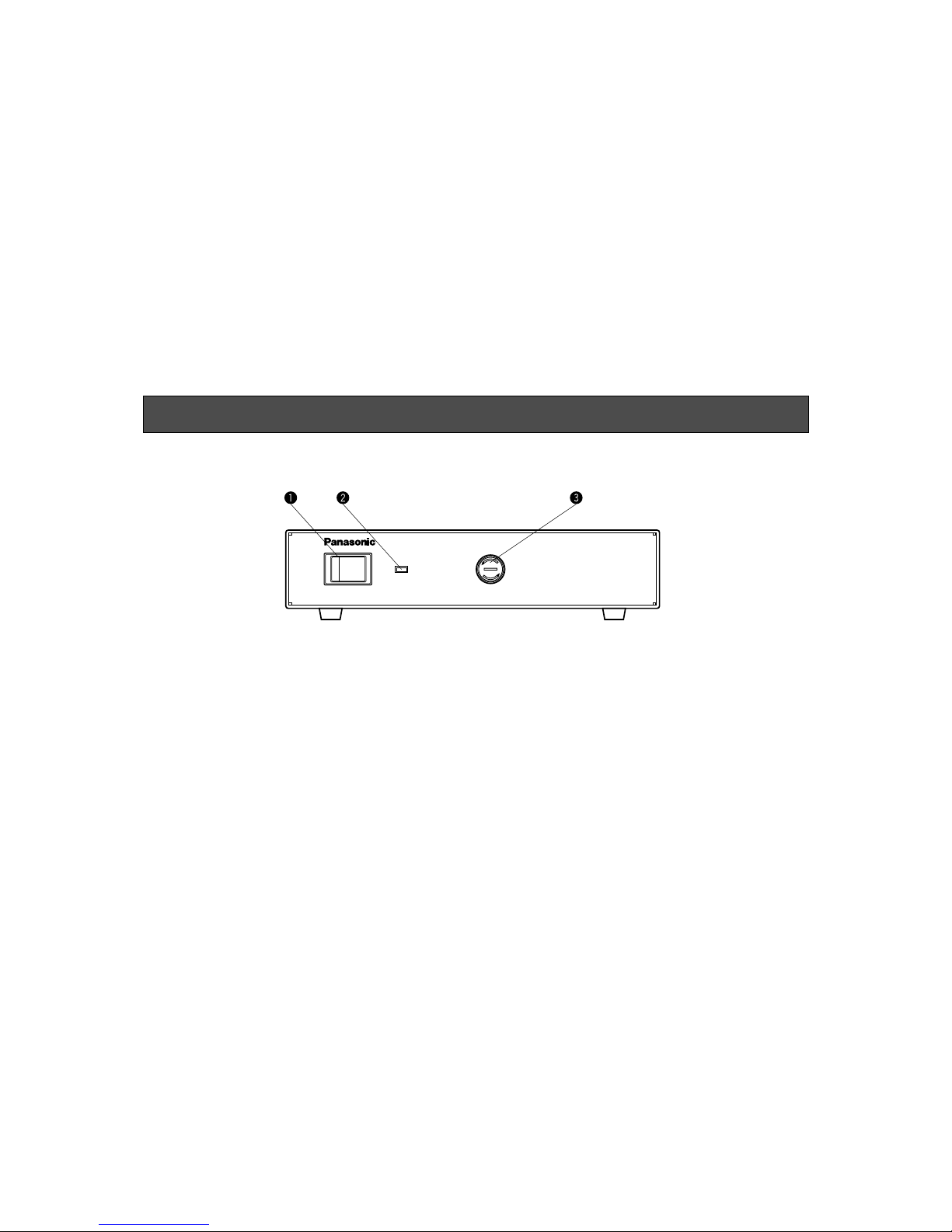

■FRONT PANEL

POWER

OFF

POWER

O I

FUSE(POWER)

125V 3.15A

FUSE

AC Adaptor

AW-

PS505

qPower Switch [POWER ON/OFF]

Power is switched on to supply power to the Multiport

Hub when this switch is pressed to the ON position

(POWER Indicator lights), and is switched off when the

switch is pressed to the OFF position.

wPower Indicator [POWER]

Lights red when POWER ON/OFF Switch qis pressed

to the ON position, and goes out when POWER

ON/OFF Switch qis pressed back to the OFF position.

eFuse [FUSE (POWER)]

Power fuse. Use a 125 V, 3.15 A fuse to replace it.

-4-

rAC 120V Input Connector [AC IN] (AC 3P Inlet)

Connect the supplied AC cable to it.

tDC +12V Output Connector [DC 12V OUT]

(4P Cannon Connector)

Connect it to the DC 12V IN Connector on the Multiport

Hub with the supplied DC cable.

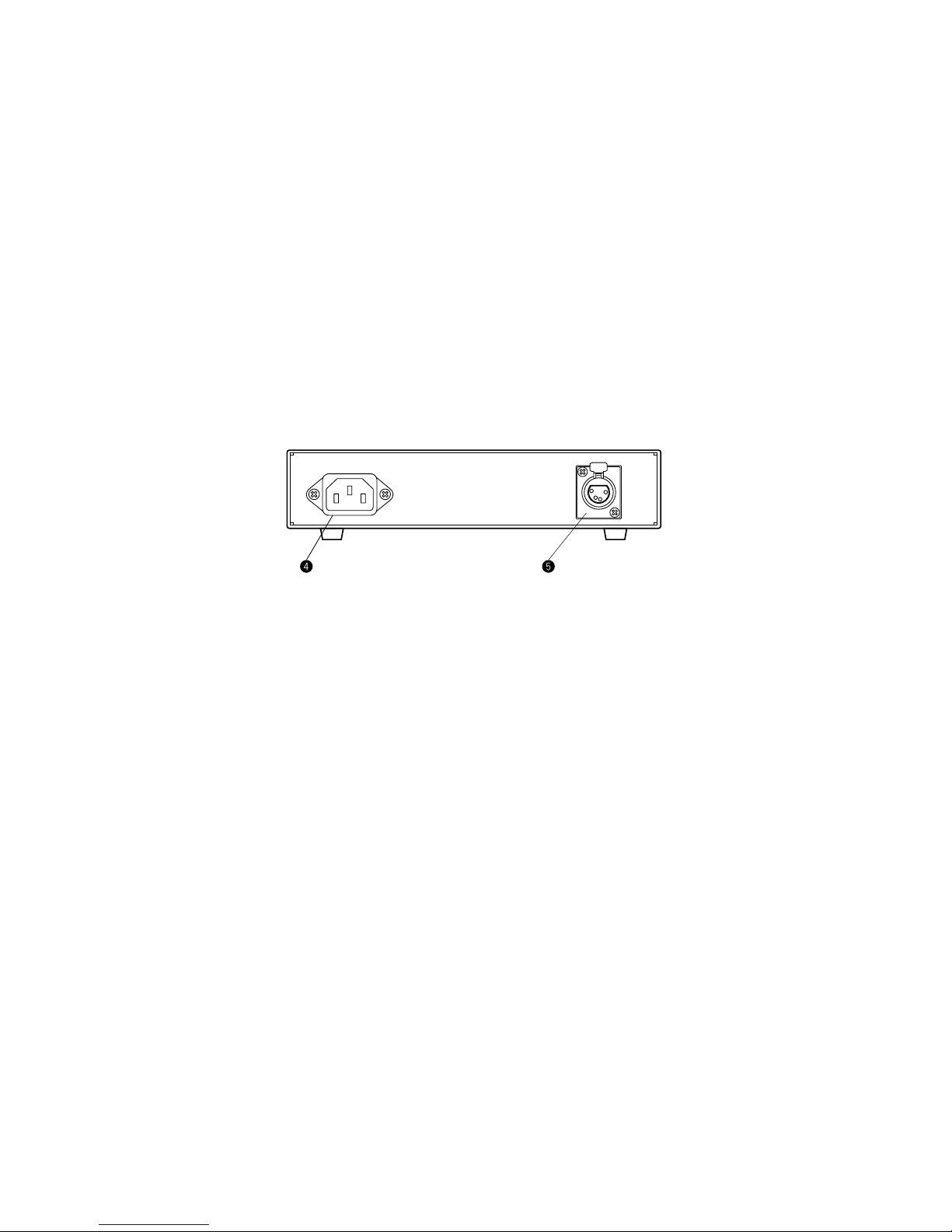

■REAR PANEL

AC IN

DC 12V OUT

-5-

CONNECTION

• Switch off all the devices before making any connection.

• Connect DC 12V OUT Connector tof this adapter to the DC +12V Input Connector on the Multiport Hub AW-HB505 with

the supplied DC cable.

• Connect the supplied AC cable to the AC 120V Inlet. Plug the AC cable to an AC outlet, and press POWER ON/OFF

Switch qof this adapter to the ON position.

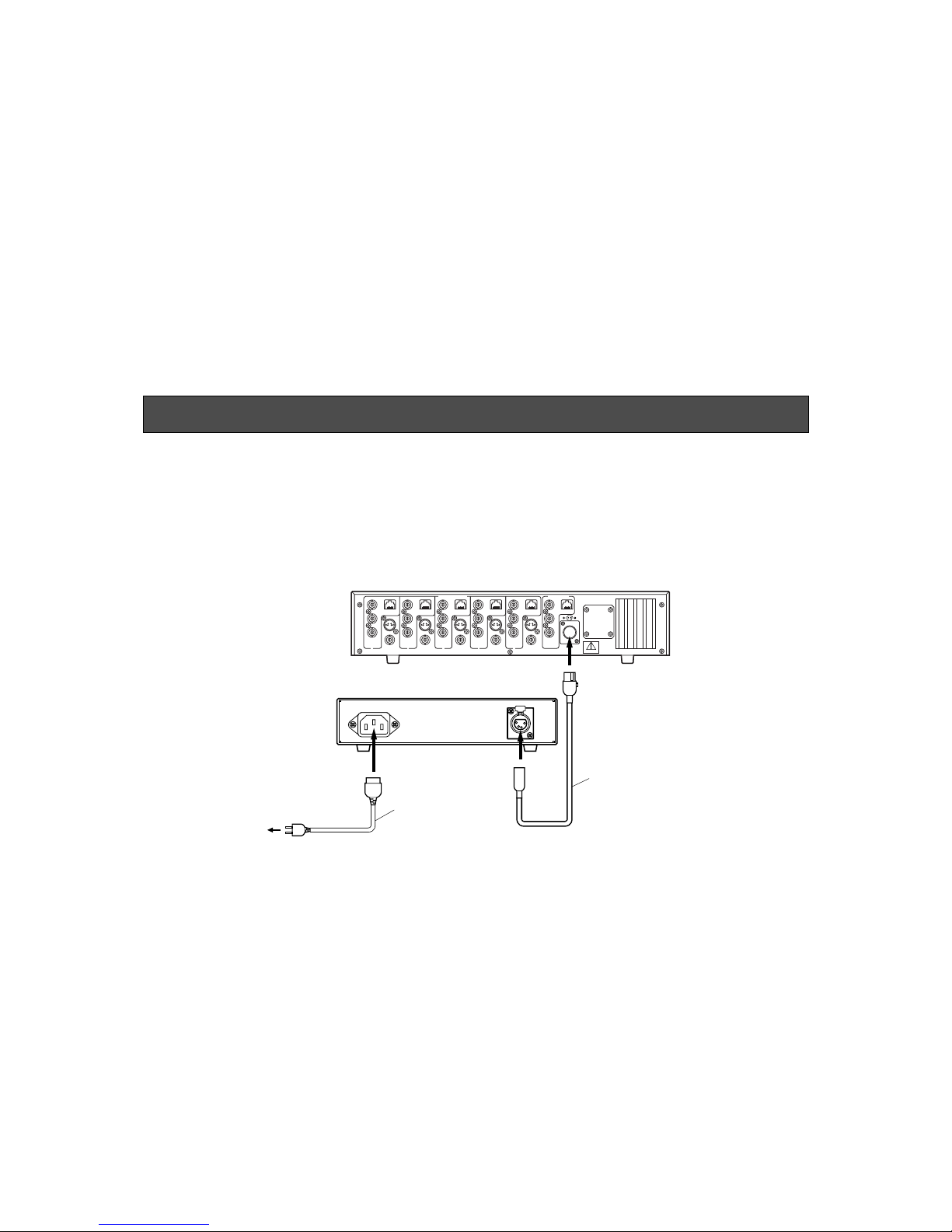

Connecting the Adapter AW-PS505 to the Multiport Hub AW-HB505.

AC IN

DC 12V OUT

AC Cable

(supplied)

AC 120V

60 Hz

DC Cable

(supplied)

Multiport Hub (AW-HB505)

CAMERA

CONTROL OUT CAMERA

CONTROL IN

VIDEO OUT

PAM/TILT

CONTROL OUT PAM/TILT

CONTROL IN

S-VIDEO OUT

VIDEO

G/L

OUT G/L

CAMERA

CONTROL OUT

VIDEO OUT

PAM/TILT

CONTROL OUT

S-VIDEO OUT

VIDEO

G/L

OUT

CAMERA

CONTROL OUT

VIDEO OUT

PAM/TILT

CONTROL OUT

S-VIDEO OUT

VIDEO

G/L

OUT

CAMERA

CONTROL OUT

VIDEO OUT

PAM/TILT

CONTROL OUT

S-VIDEO OUT

VIDEO

G/L

OUT

CAMERA

CONTROL OUT

VIDEO OUT

PAM/TILT

CONTROL OUT

S-VIDEO OUT

VIDEO

G/L

OUT

4 3 2 15 DC12V IN

TO CAMERA PAM/TILT HEAD TO CONTROL PANEL

PREVIEW OUT

SEE MANUAL

-6-

SPECIFICATIONS

Power: 120 V AC 60 Hz 0.44A

IPower Output: DC12V 2.5A, with over-current protect circuit

Operating temperature: –10°C to +45°C (14°F to 113°F)

Dimensions: 210(W) x 51(H) x 250(D) mm

8-1/4”(W) x 2”(H) x 9-7/8”(D)

Weight: 2.5 kg (5.5 lbs.)

Finish: AV Ivory baking

Weight and dimensions indicated are approximate.

Specifications are subject to change without notice.

AC Cable ................................................................. Ppc.

DC Cable ................................................................ Ppc.

ACCESORIES

N1197-0 7J1A111A Printed in Japan

Broadcast & Television Systems Company

Division of Matsushita Electric Corporation of America

Executive Office: One Panasonic Way 2E-6, Secaucus, NJ 07094

Regional Offices:

EASTERN ZONE: 43 Hartz Way, Secaucus, NJ 07094 (201) 348-7620

CENTRAL ZONE: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5200

SOUTHERN ZONE:

Atlanta Region: 1225 Northbrook Parkway, Suite 1-160, Suwanee, GA 30174

Panazip 11 (770) 338-6841, fax (770) 338-6741

Law Enforcement Video Products: 1225 Northbrook Parkway, Suite 1-160, Suwanee, GA

30174, Panazip 11 (770) 338-6844, fax (770) 338-6721

WESTERN ZONE:

Los Angeles Region: 6550 Katella Ave. 17A-1, Cypress, CA 90630 (714) 373-7271

Government Marketing Department: 52 West Gude Drive, Rockville, MD 20850 (301) 738-3840

PANASONIC CANADA INC.

5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905) 624-5010

PANASONIC SALES COMPANY

DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC.

San Gabriel Industrial Park, 65th Infantry Ave. KM. 9.5 Carolina, Puerto Rico 00630 (809) 750-4300
