Panasonic CS-DE25TKE Manuale utente

Order No: PAPAMY1705036SE

Subject: Correction of Outdoor Space Necessary for Installation Dimensions

Please file and use this supplement manual together with the service manual for Model No. CS-DE25/35/50TKE

Order No PAPAMY1703033CE, CS-PZ25/35/50TKE Order No PAPAMY1703048CE, CS-KE25/35/50TKE Order No

PAPAMY1703086CE, CS-TZ60/71TKEW Order No PAPAMY1704060CE, CS-TE50/60TKEW Order No

PAPAMY1704061CE, CS-PZ9/12/18TKE Order No PAPAMY1602031CE

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service

or repair the products dealt with in this service information by anyone else could result in serious injury or death.

Indoor Unit

Outdoor Unit

CS-DE25TKE

CS-DE35TKE

CS-DE50TKE

CS-PZ25TKE

CS-PZ35TKE

CS-PZ50TKE

CS-KE25TKE

CS-KE35TKE

CS-KE50TKE

CS-TZ60TKEW

CS-TZ71TKEW

CS-TE50TKEW

CS-TE60TKEW

CS-PZ9SKE

CS-PZ12SKE

CS-PZ18SKE

CU-DE25TKE

CU-DE35TKE

CU-DE50TKE

CU-PZ25TKE

CU-PZ35TKE

CU-PZ50TKE

CU-KE25TKE

CU-KE35TKE

CU-KE50TKE

CU-TZ60TKE

CU-TZ71TKE

CU-TE50TKE

CU-TE60TKE

CU-PZ9SKE

CU-PZ12SKE

CU-PZ18SKE

Supplement

WARNING

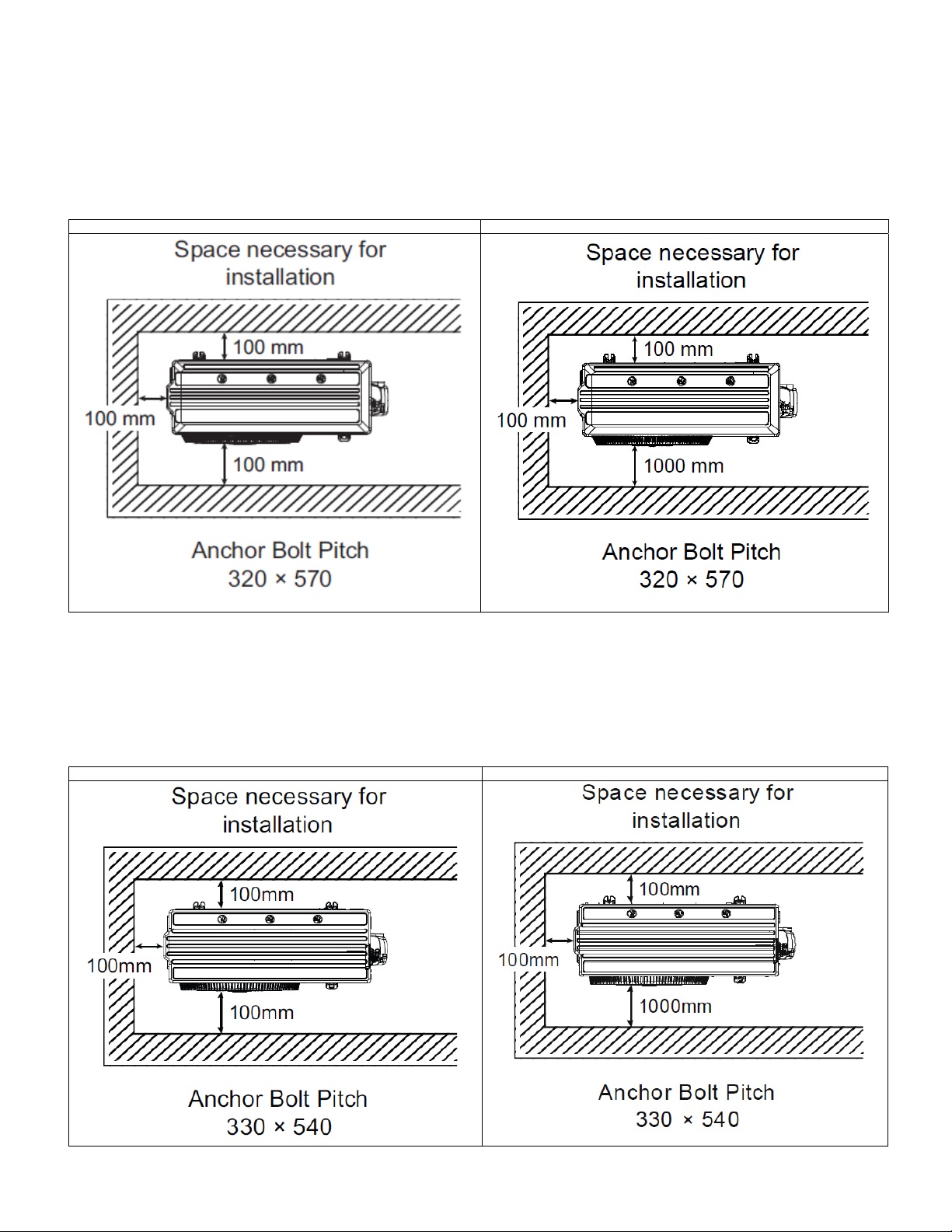

1. Dimensions

1.1 CU-DE25TKE CU-DE35TKE CU-PZ25TKE CU-PZ35TKE

CU-KE25TKE CU-KE35TKE CU-PZ9SKE CU-PZ12SKE

OLD NEW

1.2 CU-DE50TKE CU-PZ50TKE CU-KE50TKE CU-TE50TKE

CU-PZ18SKE

OLD NEW

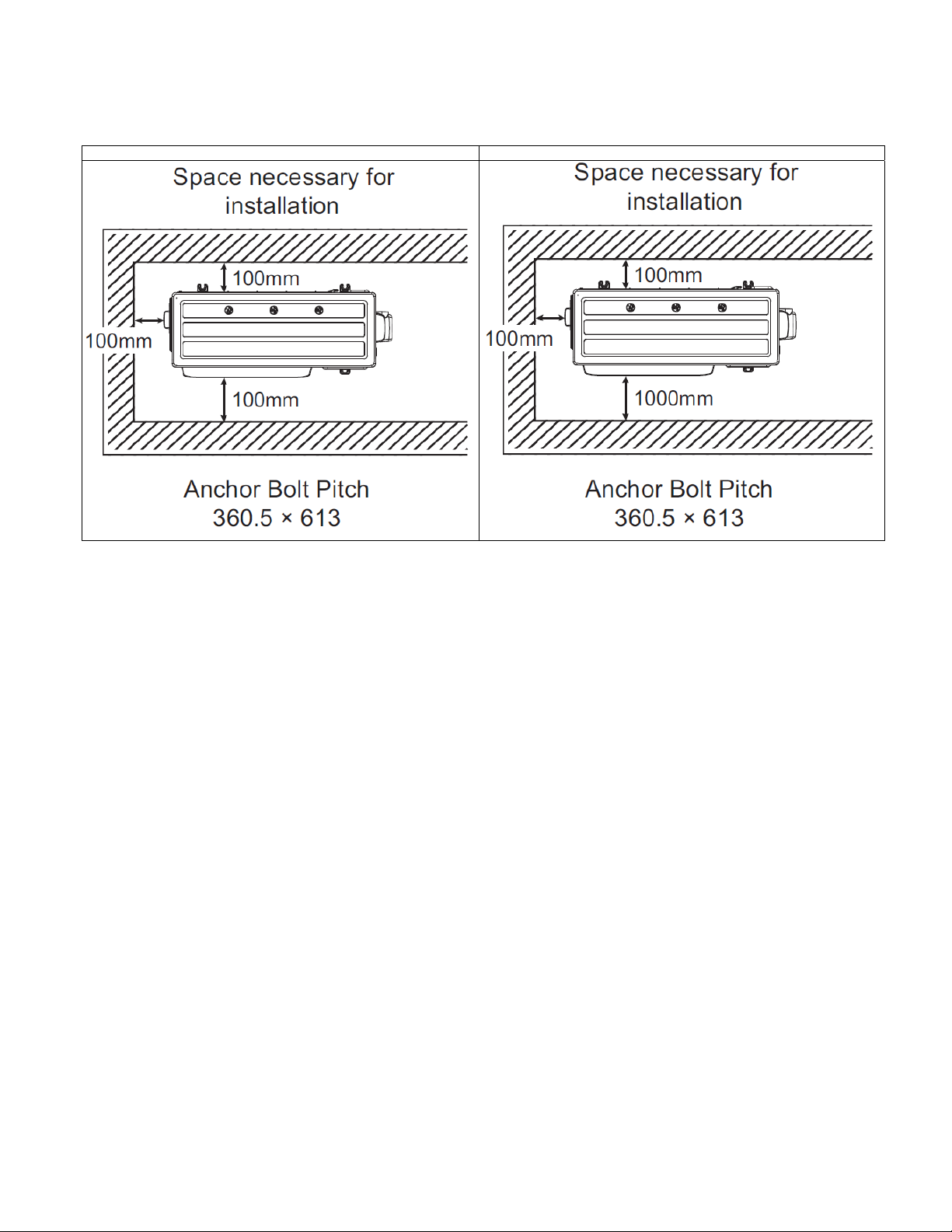

1.3 CU-TZ60TKEW CU-TE60TKEW CU-TZ71TKEW

OLD NEW
