Chapter 1 Basic Menu Features

Chapter 1

Basic Menu Features

Basic Operation Procedure

The machine automatically detects original(s) and decides on the Copy Size and Color mode to use. If

the detection fails, manually set the settings.

Place original(s).

zRefer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

Press the Copy key if the machine is

set to other function mode.

Select the required settings if

necessary.

zThe original size is detected and a

corresponding Copy Size is automatically

selected.

zIf the orientation of original does not match

the orientation of copy paper, the image of

original is rotated automatically and copied.

zWhen copying 8.5" x 11" size originals,

selecting 8.5" x 11" for the Copy Size

accelerates the continuous copying speed.

If the orientation is not the same for both

settings, the copied image is automatically

rotated by 90 degrees.

zFor more details of the Basic Menu screen,

refer to Basic Menu Features (see pages 8

to 38).

zWhen setting other features, refer to More

Menus Features (see pages 40 to 88).

Ex: 2-Sided Copy, Sort / Finish, Zoom/

Effects, etc.

Face up. Up to 100 sheets (20 lb/

Letter)

Face down. Align with top left

corner. Close ADF.

Chapter 1 Basic Menu Features

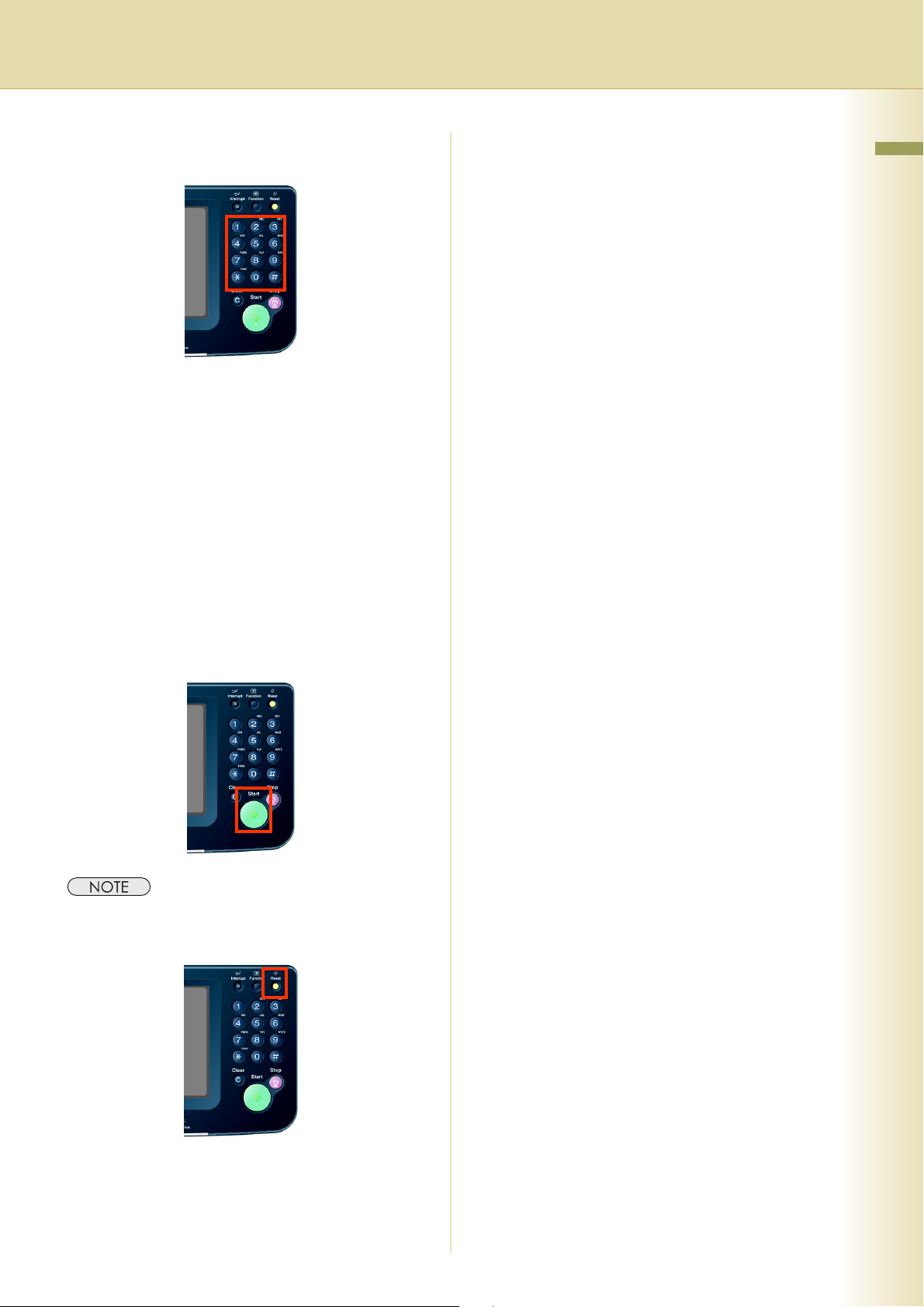

Enter the desired number of copies.

(Up to 999)

zWhen inputting a number (4 to 8 digits) with

the optional Fax Communication Board

installed, the machine automatically

interprets it as a telephone number,

switches to the Fax mode, and displays the

Number Pad screen.

zThe number of digits interpreted as a fax

number can be set from 4 to 8 digits in the

Function Parameter “118 Fax Function

Detect” (Fax/Email Settings > Fax

Parameters). For more details, refer to Fax/

Email Settings in the Operating Instructions

(For Function Parameters) of provided CD-

ROM.

Press the Start key.

zAfter finishing copying, press the Reset key to

return to the initial screen of the currently active

mode.

Chapter 1 Basic Menu Features

Selecting the Color Mode

You can copy in the Color mode selected by the machine, or select the Color mode manually.

zThe default Color mode settings can be changed. Refer to Copier Settings (Key Operator Mode) in the

Operating Instructions (For Function Parameters) of provided CD-ROM.

zThe manually selected Color mode settings will return to the default settings under the following conditions.

- If the Reset key is pressed.

- If Auto Reset Time interval has lapsed (default = 1 min).

- If the power is turned OFF.

Place original(s).

zRefer to Placing Originals (Copy) in the

Operating Instructions (For Basic

Operations) of provided booklet.

Press the Copy key if the machine is

set to other function mode.

Select “Quality Adj.”.

Select the desired Color mode, and

then select “OK”.

Enter the desired number of copies.

Press the Start key.

zAfter finishing copying, press the Reset key to

return to the initial screen of the currently active

mode.

Full color Monochrome

Full Color

Monochrome

2 Color

1 Color

Monochrome

1 Color

Ex: Full Color

•Auto:

The color original is copied in Full

Color and the monochrome

original is copied in black and

white by automatically detecting

the original’s color.

•Black (Monochrome) (see page 9)

•Full Color (see page 9)

•2 Color (see page 10)

•1 Color (see page 12)

Chapter 1 Basic Menu Features

Full Color Mode

Color original can be copied in Full Color.

Select “Full Color”, and then select

“OK”.

zTo display this screen, refer to steps 1 to 3 of

Selecting the Color Mode (see page 8).

zFor the following procedure, refer to steps 5

to 6 of Selecting the Color Mode (see page

8).

Black Mode

Color and monochrome originals can be copied

in black and white.

Select “Black”, and then select “OK”.

zTo display this screen, refer to steps 1 to 3 of

Selecting the Color Mode (see page 8).

zFor the following procedure, refer to steps 5

to 6 of Selecting the Color Mode (see page

8).

Full Color Full Color Full Color

Black & White

Chapter 1 Basic Menu Features

2 Color Mode

Color original can be copied in 2 colors, which can be achieved by using black and another specified

color.

The specified color can be selected from the basic colors (red, green, blue, yellow, magenta, and cyan)

and the registered colors.

zWhen the 2 Color mode is selected, the Original Type setting selection is not available.

Select “2 Color”.

zTo display this screen, refer to steps 1 to 3 of

Selecting the Color Mode (see page 8).

Select “Change Color”.

zThe color and the specified name are

displayed.

Select a color from the basic colors or

custom colors, and then select “OK”.



When selecting a color from the basic colors



When selecting a color from the custom colors

zWhen registering a custom color, refer to

New Color Registration (see page 14).

Ex: When copying a full color original in cyan

and black.

Altri manuali per Workio DP-C405

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Stampante tutto in uno

Panasonic

Panasonic Workio DP-C405 Manuale utente

Panasonic

Panasonic Workio DP-C262 Manuale utente

Panasonic

Panasonic Workio DP-1820E Manuale utente

Panasonic

Panasonic KX-FLM651 - Laser Fax, PC-Printer Manuale utente

Panasonic

Panasonic KX-MB1500E Manuale operativo

Panasonic

Panasonic KX-MB2061 Manuale utente

Panasonic

Panasonic KX-MB262CX Manuale utente

Panasonic

Panasonic DP-180 Manuale utente

Panasonic

Panasonic KX-PS8000 Manuale utente

Panasonic

Panasonic Workio DP-C305 Manuale utente

Panasonic

Panasonic KX-MB2010BL Manuale operativo

Panasonic

Panasonic KXFLB881 - Network Multifunction Laser... Manuale utente

Panasonic

Panasonic Workio DP-6010 Manuale utente

Panasonic

Panasonic KX-MB2090CXW Manuale utente

Panasonic

Panasonic WORKIO DP-150 Manuale utente

Panasonic

Panasonic KX-FLB882CX Manuale utente

Panasonic

Panasonic KX-FLB811 - FLAT BED FAX Manuale utente

Panasonic

Panasonic KXFLB881 - Network Multifunction Laser... Manuale utente

Panasonic

Panasonic WORKiO DP-8020P Manuale utente

Panasonic

Panasonic KX-PS8000 Guida utente

Panasonic

Panasonic DP-C406 Manuale utente

Panasonic

Panasonic Workio DP-3510 Manuale utente

Panasonic

Panasonic FP-D350 Manuale utente

Panasonic

Panasonic DP-C262 C322 Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente
