Panasonic AG-HPX300P Guida all'applicazione

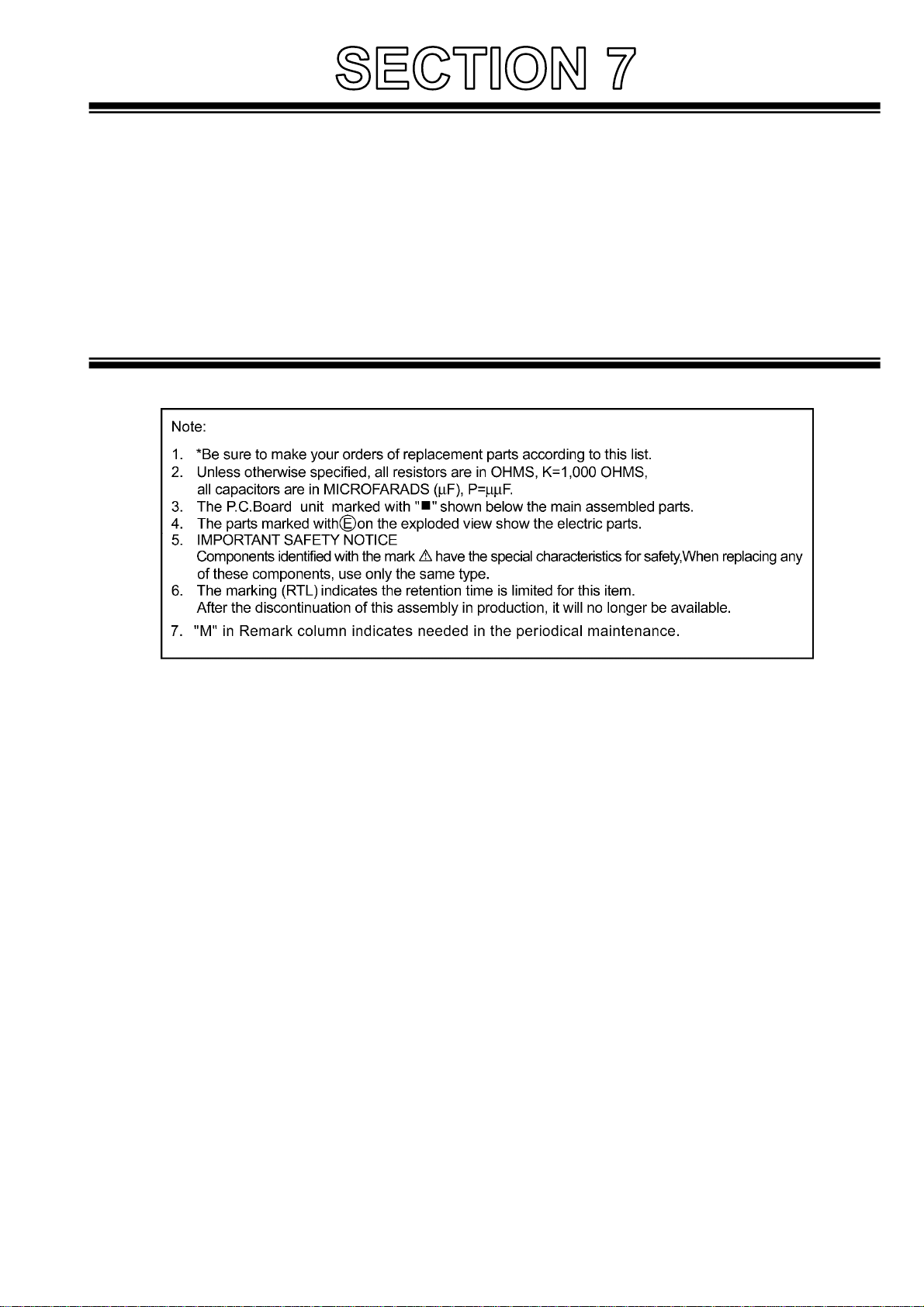

EXPLODED VIEWS &

REPLACEMENT PARTS LIST

Model No. : AG-HPX300P, AG-HPX301E, AG-HPX302EN

CONTENTS

FRONT CASE PARTS ASSEMBLY................................................................................................ MPL-1

MAIN FRAME PARTS ASSEMBLY.............................................................................................. MPL-3

SIDE CASE L PARTS ASSEMBLY................................................................................................. MPL-5

LCD PARTS ASSEMBLY................................................................................................................ MPL-7

SIDE CASE R PARTS ASSEMBLY................................................................................................ MPL-9

REAR JACK & HANDLE PARTS ASSEMBLY................................................................................ MPL-11

EVF PARTS ASSEMBLY................................................................................................................ MPL-13

PACKING PARTS ASSEMBLY....................................................................................................... MPL-15

ELECTRICAL REPLACEMENT PARTS LIST ................................................................................ EPL-1

AG-HPX303MC, AG-HPX304ER

105

107

104

107

106

108

108 102

102

108

101

103

105

E19

106

E14

E20

MPL-1

FRONT CASE PARTS ASSEMBLY Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & DescriptionPcs Remarks Ref.No. Part No. Part Name & DescriptionPcs Remarks

1 VGM2293 FRONT CASE 1

2 VXU1620 RUBBER BUTTON ASS'Y 1

3 VGU8346 RUBBER BUTTON 1

4 VMX3299 RUBBER BUTTON SPACER 1

5 VJF1256 CABLE CLAMPER 2

6 VMC1210 FRONT DOOR SPRING 1

7 VMP4850 FRONT DOOR ANGLE 1

8 VMS4088 FRONT DOOR ANGLE PIN 1

9 VKF2485 FRONT DOOR 1

10 VMG0832 SHIELD TUBE 1

11 VMG1877 SHIELD GASKET 1

12 VMX1312 POLY WASHER 2

13 VMG1140 RAIN COVER SPONGE 2

14 VMT1432 WATERPROOF CUSHION 2

15 VGU0D98 ND FILTER DIAL 1

16 VHD1950 MOUNT ANGLE 4

17 VSC6153 SHADING COVER A 1

18 VEE1F65 LVDS MOS CABLE 3

19 VEE1F30 FRONT CABLE 1

20 VSC6125 SHIELD CASE 1

21 VYQ4879 HEAD OPTICAL U 1

22 VDW1737 LENS MOUNT RING 1

23 VMD6009 LENS GUIDE 1

24 VDS0168 COVER DISK 1

25 VKF2726 MOUNT CAP 1

26 VEQ4560 CAMERA U 1

27 VYK3F17FRONT CASE U 1

101 XYN2+J4FJ SCREW 1

102 XSB2+6FJK SCREW 2

103 XYN2+J6FJ SCREW 4

104 XYN2+J5FJ SCREW 8

105 XQN2+B6FJK SCREW 3

106 XQN2+A4FJK SCREW 3

107 XYN2+J5FJ SCREW 6

108 XSB3+8FJK SCREW 4

E14 VEP001Y5A FRONT SW P.C.BOARD 1

E19 VEP80D27A POS SENSOR P.C.BOARD 1

E20 VEP001Y6A REC BUTTON P.C.BOARD 1

FRONT CASE PARTS ASSEMBLY

MPL-2

106

104

103

104

106

104

102

105

106

110

106

102

107

110

102

112

109

112

112 101

102 102

108

109

111

106

31 29 32

10 36

20 25

E21

MPL-3

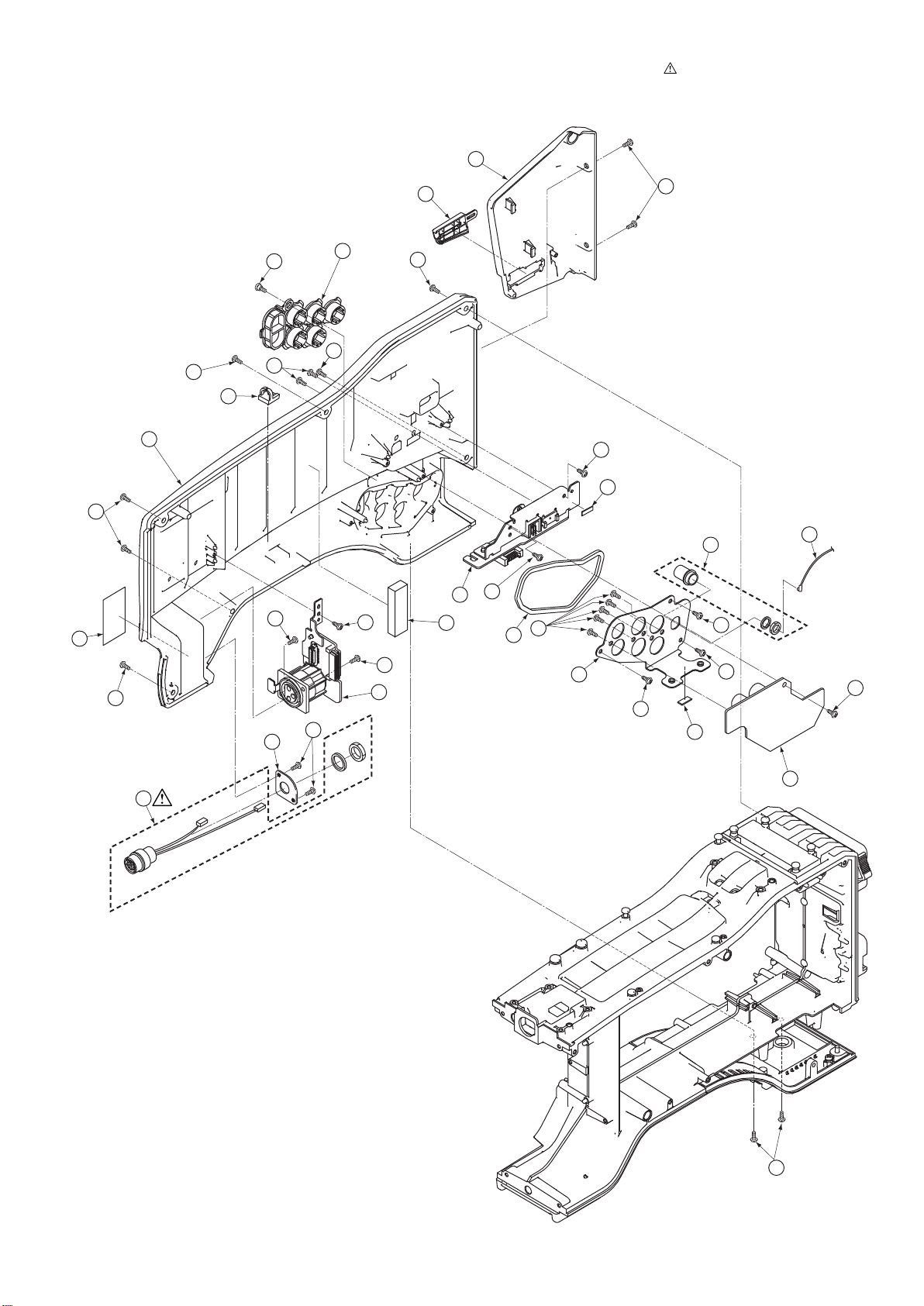

MAIN FRAME PARTS ASSEMBLY Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VGM2292 MAIN FRAME 1

2 VMP9221 DIGITAL PB PLATE 1

3 VKF4419 BATT IF COVER 1

4 VKF4420 TOP COVER 1

5 VKA0400 FRONT LEG BASE 1

6 VGM1826 FRONT V EDGE 1

7 VJF1531 CABLE CLAMPER 3

8 VJF1347S ANTON BRACKET 1

9 VEE1F33 ANTON BOX U1 CABLE 1

10 VEE1G02 ANTON BOX U4 CABLE 1

11 J0KG00000001 FERRITE CORE 1

12 VJF1559 CLAMPER 1

13 VMP9222 RECEIVER BOX 1

14 VHD2105 STEP SCREW 2

15 VEE1E62 UNISLOT CABLE 1

16 VMT1265 CUSHION 1

17 VSC5660 WL EARTH ANGLE 1

18 VYK2E72 BOTTOM COVER U 1

19 VMP8676 BACK LOCK ANGLE 1

20 VGQ0B77 P2 CARD GUIDE 1

21 VSC6115 CARD EARTH 1 1

22 VSC6116 CARD EARTH 2 1

23 VMP9227 P2 EARTH ANGLE 1

24 VGL1179 P2 CARD PANEL LIGHT 1

25 VGL1245 LED LENS 1

26 VJF1581 GROUNDING CLAMP 1

27 VMT1977 SHOLDER PAD 1

28 VJF1535 COATING CLIP 2

29 VEE1F55 LVDS LCD CABLE 1

30 VWJ24G7035L0 FLEXIBLE CABLE 1

31 VWJ30G6240L0 FLEXIBLE CABLE 1

32 VWJ30G7125L0 FLEXIBLE CABLE 1

33 K1TZB9A00030 SDI COAXIAL CABLE 1

34 VMZ3735 POWER SUB COVER 1 1

35 VYF3042 RECIEVER COVER U 1

36 VMT1869 SOFT HIGH SHIELD GASKET 1

101 XSB4+12FJK SCREW 3

102 XSB3+8FJK SCREW 12

103 XTB3+8GFJK SCREW 1

104 XSB26+6FJK SCREW 4

105 XSB4+8FJK SCREW 2

106 XYN26+J8FJ SCREW 25

107 XSB3+6FJK SCREW 2

108 XYN2+J6FJ SCREW 3

109 XQN2+BJ4FJK SCREW 5

110 XYN3+F8FJ SCREW 3

111 XYN2+J6FJK SCREW 1

112 XSB26+8FJK SCREW 4

E1 VEB0871A DIGITAL MAIN P.C.BOARD 1 FOR AG-HPX300P/302EN/303MC/304ER

E1 VEP03H68A DIGITAL MAIN P.C.BOARD 1 FOR AG-HPX301E

E2 VEP04944A AUDIO P.C.BOARD 1

E3 VEP01A18A POWER MAIN P.C.BOARD 1

E4 VEP01A19A POWER SUB P.C.BOARD 1

E5 VEP03H69A P2 CARD P.C.BOARD 1

E6 VEP001Y3A SD CARD P.C.BOARD 1

E8 VEP001Z5A BATT IF P.C.BOARD 1

E21 VEP001Y8A RELAY P.C.BOARD 1

MAIN FRAME PARTS ASSEMBLY

MPL-4

104

102

E18

E27

E12

102

101

103

101

104

101

MPL-5

SIDE CASE L PARTS ASSEMBLY Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VYP9273 SIDE CASE L 1U 1

2 VMG1853 BNC CAP 1

3 VWB0123 CLAMPER 1

4 VMT1941 SIDE JACK CUSHION 1

5 VEE1F41 LENS CABLE 1

6 K1TZB9A00040 SDI COAXIAL CABLE 1

7 VMP4853 LENS CONNECTOR PLATE 1

8 VMT1889 GASKET 1

9 VMT1638 P.C.B. SUPPORT BLOCK 1

10 VMT1976 CABLE CUSHION 1

11 VHD2058 SCREW 2

12 VHD1774 SCREW 1

13 VMP9230 SIDE JACK ANGLE 1

14 K1SYYYYA0002 BNC CONNECTOR 1

15 VQL1Y88 FCC/DOC LABEL 1 FOR AG-HPX300P

16 VGP6267 GUARD PAD 1

17 VMG1852 USB CAP 1

101 XYN2+J6FJ SCREW 7

102 XYN26+A6FJK SCREW 4

103 XTB3+8GFJK SCREW 5

104 XSB3+8FJK SCREW 10

E12 VEP001Z3A L SIDE JACK P.C.BOARD 1

E18 VEP04946A F MIC P.C.BOARD 1

E27 VEP001Z0A USB CN P.C.BOARD 1

SIDE CASE L PARTS ASSEMBLY

MPL-6

10 12

E13

102

101

103

101

103 102

101

102

MPL-7

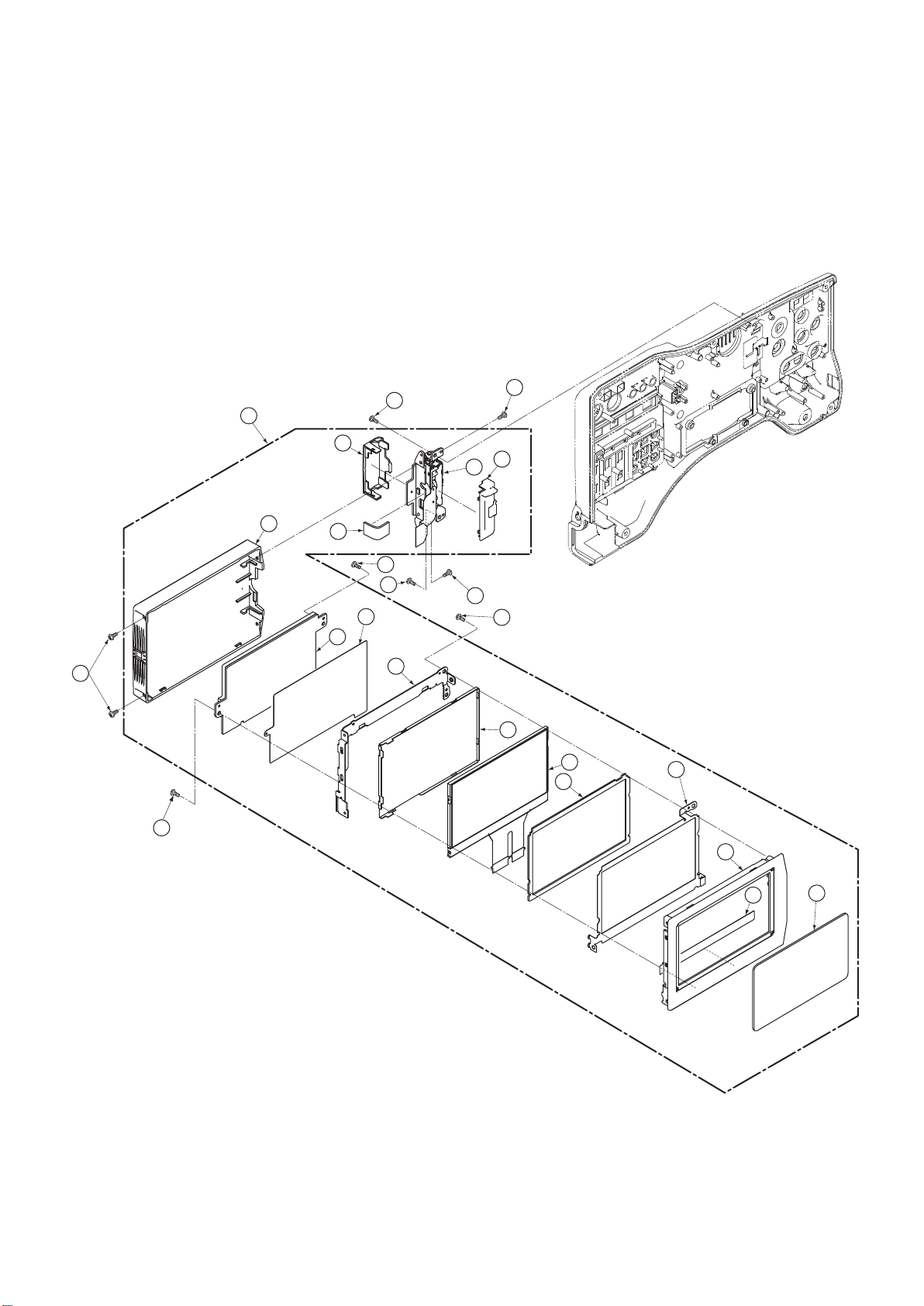

LCD PARTS ASSEMBLY Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VYK3F15 LCD U 1

2 VGQ9474 HINGE COVER (LOWER) 1

3 VGQ8775 HINGE COVER (TOP) 1

4 VXD0510 HINGE 1

5 VMT1895 FPC PROTECTION SHEET C 1

6 L5BDDYY00015 LCD PANEL 1

7 A4LYYY000019 BACK LIGHT U 1

8 VGP6265 LCD CASE TOP 1

9 VMP9225 LCD HOLD FRAME 1

10 VMT1939 LCD PAD 1

11 VKW3406 LCD WINDOW 1

12 VSC6113 LCD EARTH FRAME 1

13 VMZ3795 LCD PB INSULATION SHEET 1

14 VGP6266 LCD CASE BOTTOM 1

15 VMT1971 GASKET 1

101 XQN2+BJ6FJK SCREW 3

102 XQN16+B4FJK SCREW 4

103 XYN2+J6FJ SCREW 2

E13 VEP08357A LCD IF P.C.BOARD 1

LCD PARTS ASSEMBLY

MPL-8

103 103

104 101

104

102

101

103

105

104

105

104

101

105

101

E10

E22

E15

E17

E23

E11

MPL-9

SIDE CASE R PARTS ASSEMBLY Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.
