Panasonic AVCCAM AG-HSC1UE Manuale utente

Panasonic Broadcast

Mechanical Parts List

Model No. : AG-HSC1UP/E/MC

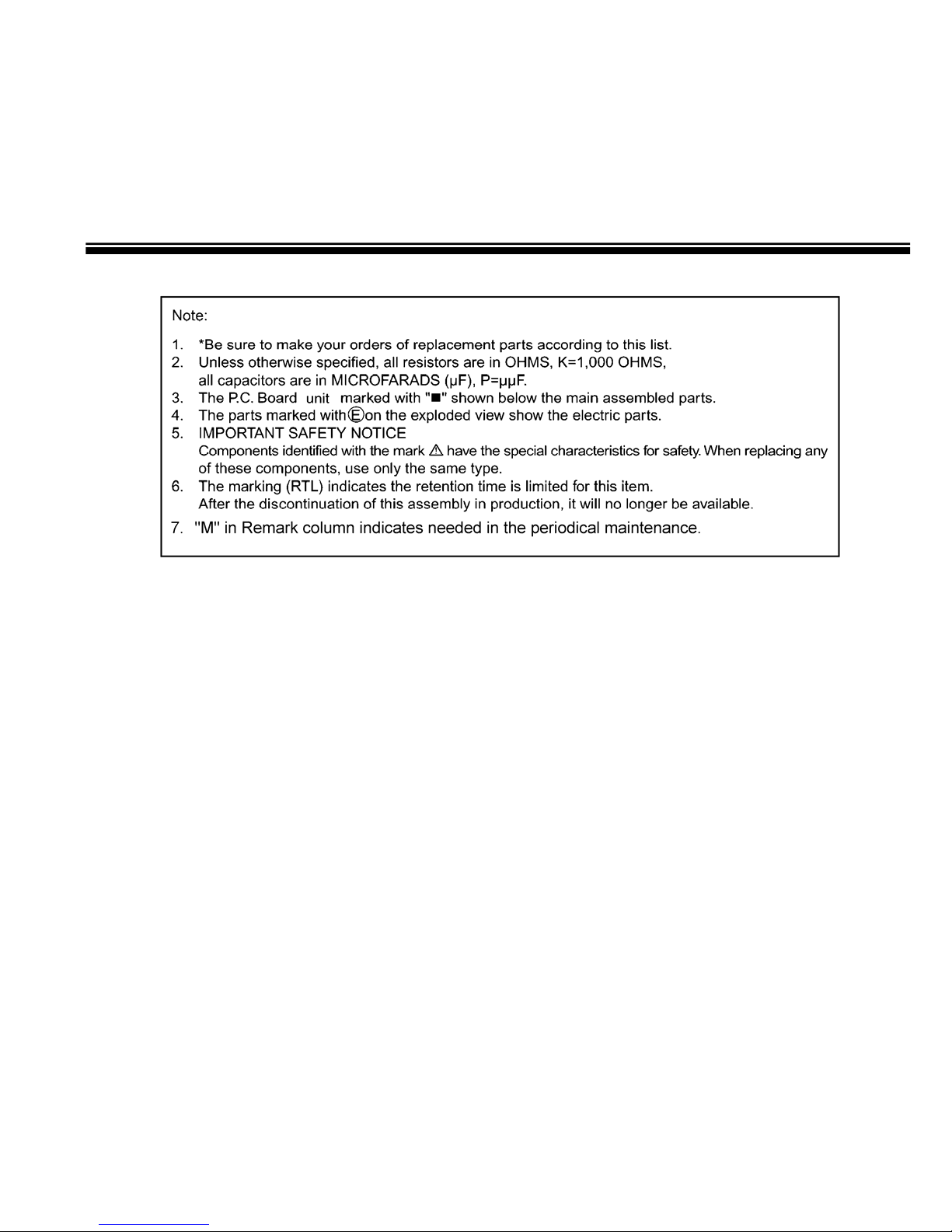

CONTENTS

CASING PARTS ASSEMBLY (1).....................................................................................................MPL-1

CASING PARTS ASSEMBLY (2).....................................................................................................MPL-2

LCD PARTS ASSEMBLY.................................................................................................................MPL-5

LENS ASSEMBLY............................................................................................................................MPL-7

PACKING PART ASSEMBLY ..........................................................................................................MPL-9

79 78

B30

B31

B69

B29

B23

B22

B21

B24

B52

B25

B27

B26

B42

B68

B64

B59

B60

B47

B66

B58

B19

B20

B67

B18

B43

B44

B45

B57

B50

B56

B70

B62

B65

B46

B61

B28

MPL-1

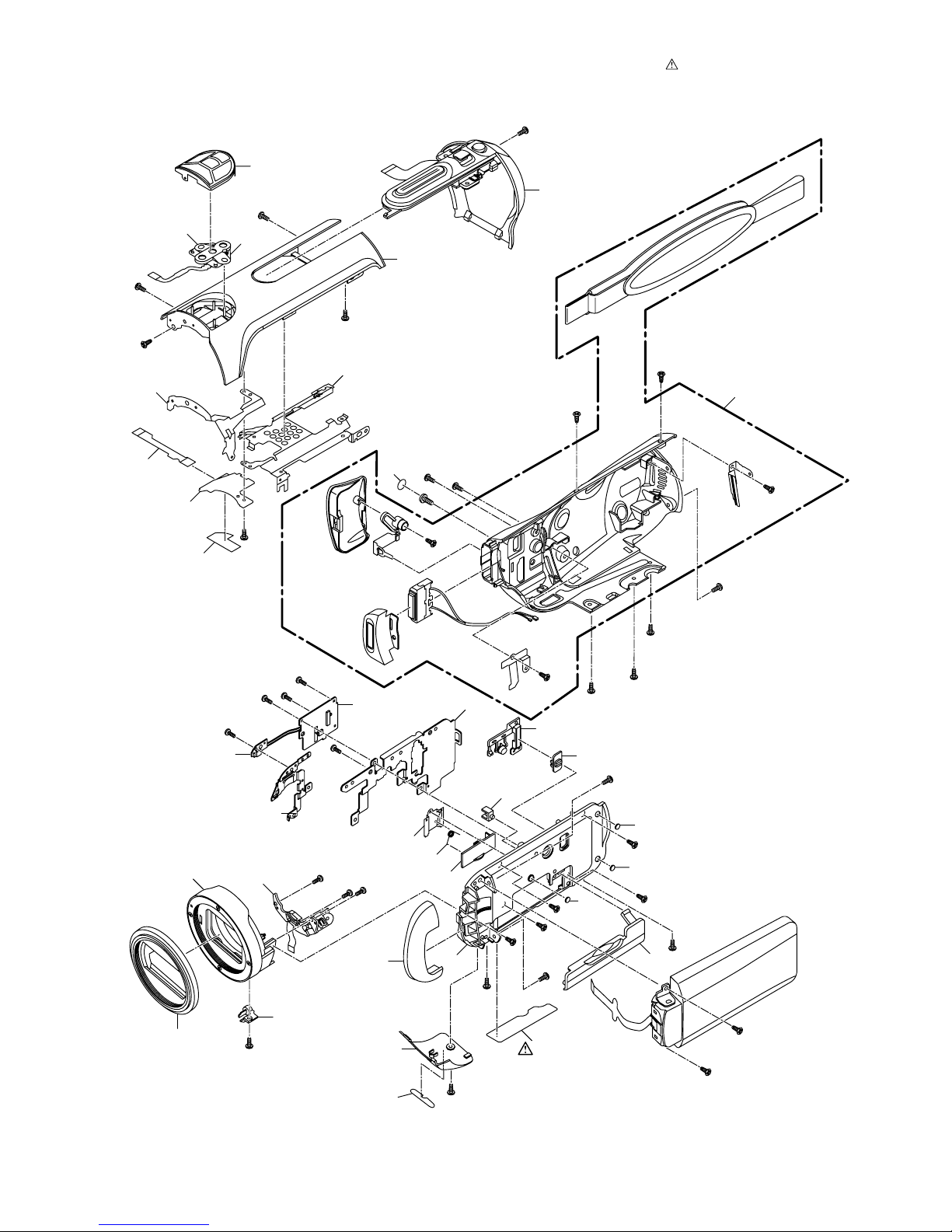

CASING PARTS ASSEMBLY (1) Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

B54

B55

B53

B11

B12

B36

B37

B40

B39

B34

B35

B63

B41

B38

B49

B33

B32

B71

B51

B10

B48

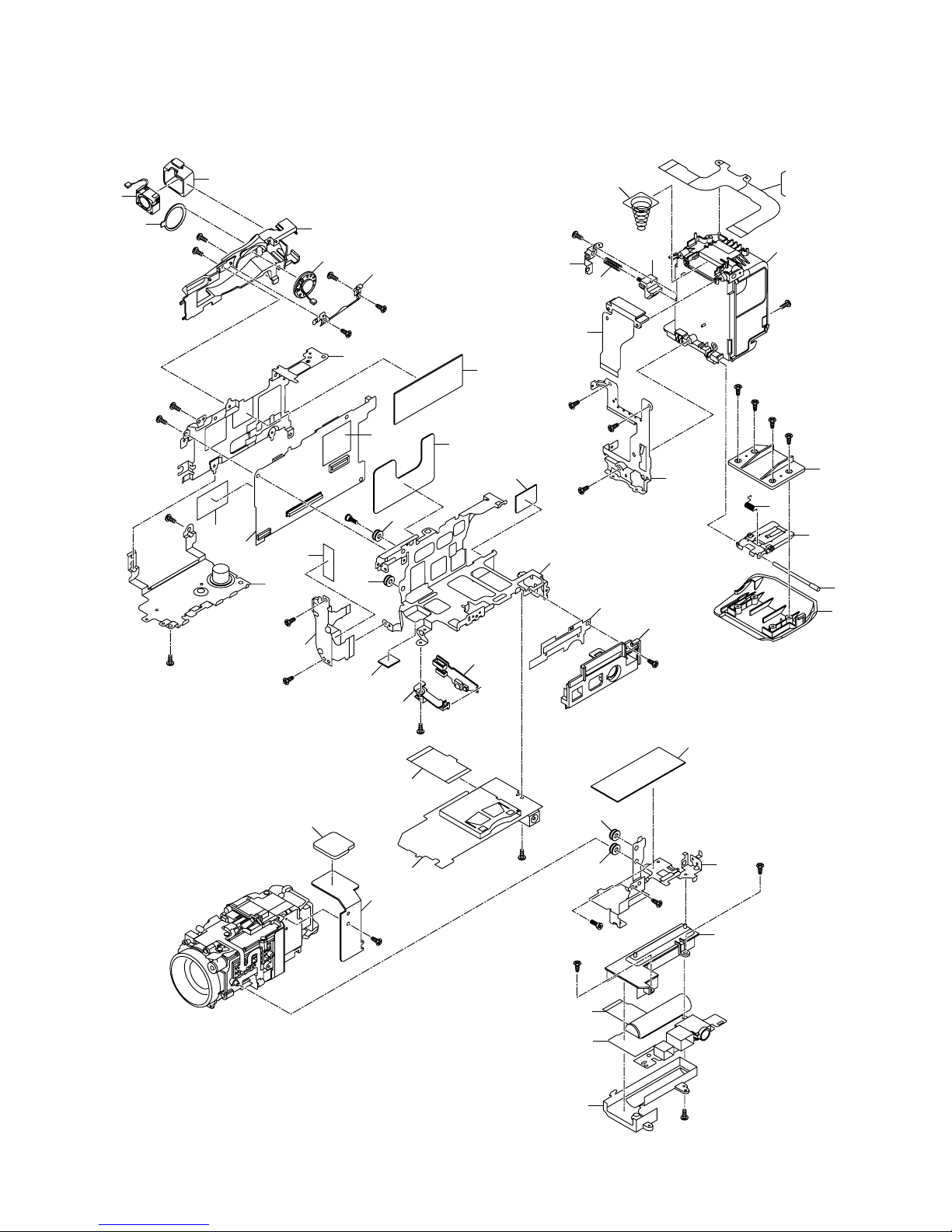

CASING PARTS ASSEMBLY (2)

MPL-2

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VQL1N50 CAUTION LABEL A 1 FOR AG-HSC1UP

1 VQL1N51 CAUTION LABEL A 1 FOR AG-HSC1UE

1 VQL1N52 CAUTION LABEL A 1 FOR AG-HSC1UMC

2 VSC5917 SHIELD PLATE 1

3 VSC5906 HEAT SINK FRAME A 2

4 VMG1772 DUMPER RUBBER 4

5 VKF4154 JACK BOARD 1

6 VGQ9175 HEAT SINK SHEET A1 1

7 VGQ9176 HEAT SINK SHEET A2 1

8 VGQ9177 HEAT SINK SHEET A3 1

9 VGQ9180 CCD HEAT SINK SHEET 1

10 VSC5902 CCD HEAT SINK PLATE 1

11 VSC5909 LENS FRAME 1

14 VGQ9179 HEAT SINK SHEET 1

15 VEP03H10G MAIN P.C.BOARD 1

16 VGQ9337 DPR SHEET 1

17 VGQ9346 ECM DPR SHEET 1 1

18 VEP01986A SUB P.C.BOARD 1

19 VWJ1925 MAIN SUB FPC 1

20 VEP20B98B JACK P.C.BOARD 1

21 VGQ9145 CAPACITOR COVER 1 1

22 VGQ9146 CAPACITOR COVER 2 1

23 VWJ1926 JACK FPC 1

24 VEP20C00A FRONT P.C.BOARD 1

25 VGQ9147 SENSOR HOLDER 1

26 VEP23667A HDMI P.C.BOARD 1

27 VGQ9183 HDMI SPACER 1

28 VKM7160 BATTERY CASE 1

29 VMB4087 BATTERY HOLD SPRING 1

30 VMB4085 BATTERY COVER SPRING 1

31 VXA8376 BATTERY COVER HINGE (1) 1

32 VMS7798 SHAFT 1

33 VKM7179 BATTERY COVER 1

34 VGQ9459 BATTERY COVER BRIND 1

35 VEP21294A BATTERY CATCHER P.C.BOARD 1

36 VSC5911 REAR FRAME 1

37 VGU0A50 BATTERY LOCK KNOB 1

38 VMB4086 BATTERY LOCK SPRING 1

39 VMP8735 BATTERY LOCK FRAME 1

40 VSC5907 HEAT SINK FRAME B 1

41 VGQ9178 HEAT SINK SHEET B 1

42 VGQ9182 SPEAKER COVER 1

43 VGQ9263 CUSHION 1

44 L0AA02A00075 SPEAKER 1

45 VMC2023 SPEAKER SPRING 1

46 L6FAG99D0018 DC FAN MOTOR 1

47 VMG1762 DUMPER RUBBER 1

48 VYK1Z83 HEAT SINK FRAME CU 1

49 VWJ1928 SIDE R FPC 1

50 VGQ9353 ECM DPR SHEET 2 1

CASING PARTS ASSEMBLY (1),(2)

EPL-3

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

61 VKM7152 SIDE CASE R 1

62 VMG1724 LCD CUSHION 3

63 VKF4197 JACK COVER (A/V) 1

64 VKF4141 SD SLOT COVER 1

65 VMB4088 SD SLOT COVER SPRING 1

66 VMP8715 SD SLOT PLATE 1

67 VSC5913 HEAT SINK PLATE 1

68 VGU0A49 KNOB 1

69 VGQ9133 KNOB HOLDER 1

70 VMP8716 HINGE PLATE 1

71 VGL1218 ACCESS PANEL LIGHT 1

72 VEP20B99A SIDE R P.C.BOARD 1

73 VEP20C01A LCD DET P.C.BOARD 1

74 VGQ9412 BELT PAD 1

75 VYK2D35 FRONT CASE 1U 1

76 N9ZZ00000346 BARRIER MOTOR (1) 1

77 VKM7156 TOP CASE 1

78 VEP24186A ECM P.C.BOARD 1

79 VMT1784 MIC DUMPER 1

80 VYQ4060 MIC NET 1U 1

81 VSC5910 TOP FRAME 1

82 VSC5912 MIC FRAME 1

83 VEP24185A MIC P.C.BOARD 1

84 VWJ1929 MIC FPC 1

85 N9ZZ00000376 REAR COVER 1 WITH OPERATION DIAL

86 VYK2D20 SIDE CASE LU 1

87 VGQ9377 NON SLIP SHEET 1

88 VKM7157 COVER 1

89 VGL1219 PANEL LIGHT 1

90 VKW3329 SENSOR COVER 1

91 VGQ9181 EVR COVER 1

92 VYQ4059 LENS HOOD 1

93 VGQ9251 SHEET 1

94 VGQ9323 THERMAL INSULATION SHEET 1

B1-12 XQN16+BJ4FN SCREW 12

B18 XQN16+BJ4FN SCREW 1

B19,20 VHD1411 SCREW 2

B21-23 XQN16+BJ4FN SCREW 3

B24 VHD1267 SCREW 1

B25-27 XQN16+BJ4FN SCREW 3

B28 XQN16+B3FN SCREW 1

B29 XQN16+BJ4FN SCREW 1

B30 XQS16+A3FN SCREW 1

B31-41 XQN16+B3FN SCREW 11

B42-46 XQN16+B3FJK SCREW 5

B47 XQN16+B3FN SCREW 1

B48,49 VHD1667 SCREW 2

B50 XQN16+B3FJK SCREW 1

B51,52 XQN16+B4FN SCREW 2

B53-55 XQN16+B5FN SCREW 3

B56-61 XQN16+B5FJK SCREW 6

B62 VHD1904 SCREW 1

B63,64 XQN16+B6FN SCREW 2

B65-68 XQN16+BJ5FJK SCREW 4

B69 XQN16+BJ8FN SCREW 1

B70 VHD1902 SCREW 1

B71 XQN16+BJ5FN SCREW 1

EPL-4

151

168

167

160

159

163

165

164

161

158

154

155

153

157

156

152

162

B 161

B 162

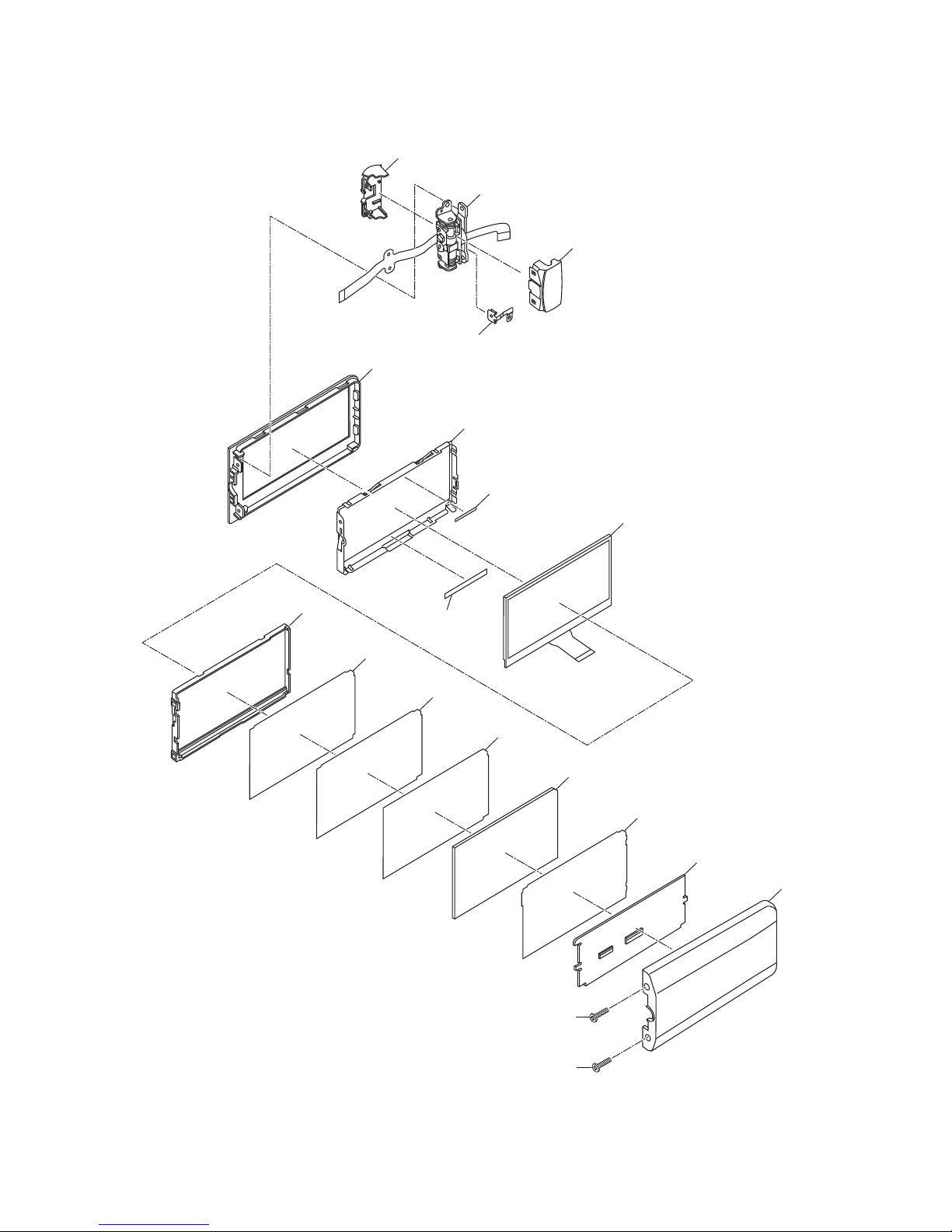

LCD PARTS ASSEMBLY

MPL-5

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

151 L5BDDXM00008 LCD 1

152 VEP26293A MONITOR P.C.BOARD 1

153 VGL1208 DIFFUSION SHEET 1

154 VGL1209 PRISM SHEET A 1

155 VGL1210 PRISM SHEET B 1

156 VGL1211 REFLECTION SHEET 1

157 VKW3321 LEAD LIGHT PLATE 1

158 VGQ9095 LEAD LIGHT PLATE HOLDER 1

159 VKM7153 LCD CASE (LOWER) 1

160 VSC5894 LCD SHIELD CASE 1

161 VSC5895 LCD EARTH PLATE 1

162 VKM7154 LCD CASE (UPPER) 1

163 VKM7158 HINGE COVER 1 1

164 VGQ9448 HINGE COVER 2 1

165 VXD0493 HINGE 1U 1

167 VMZ3660 BONDING TAPE A 1

168 VMZ3661 BONDING TAPE B 1

B161,62 VHD1828 SCREW 2

LCD PARTS ASSEMBLY

MPL-6

B205

203

B201 B202 B203

B204 213

205

206

210

206

214

212 208 202

201-1 201

B215

B214

216

B209

B210

B208

B213

B212

B211

215

204 211

207

217

B206

B207

209

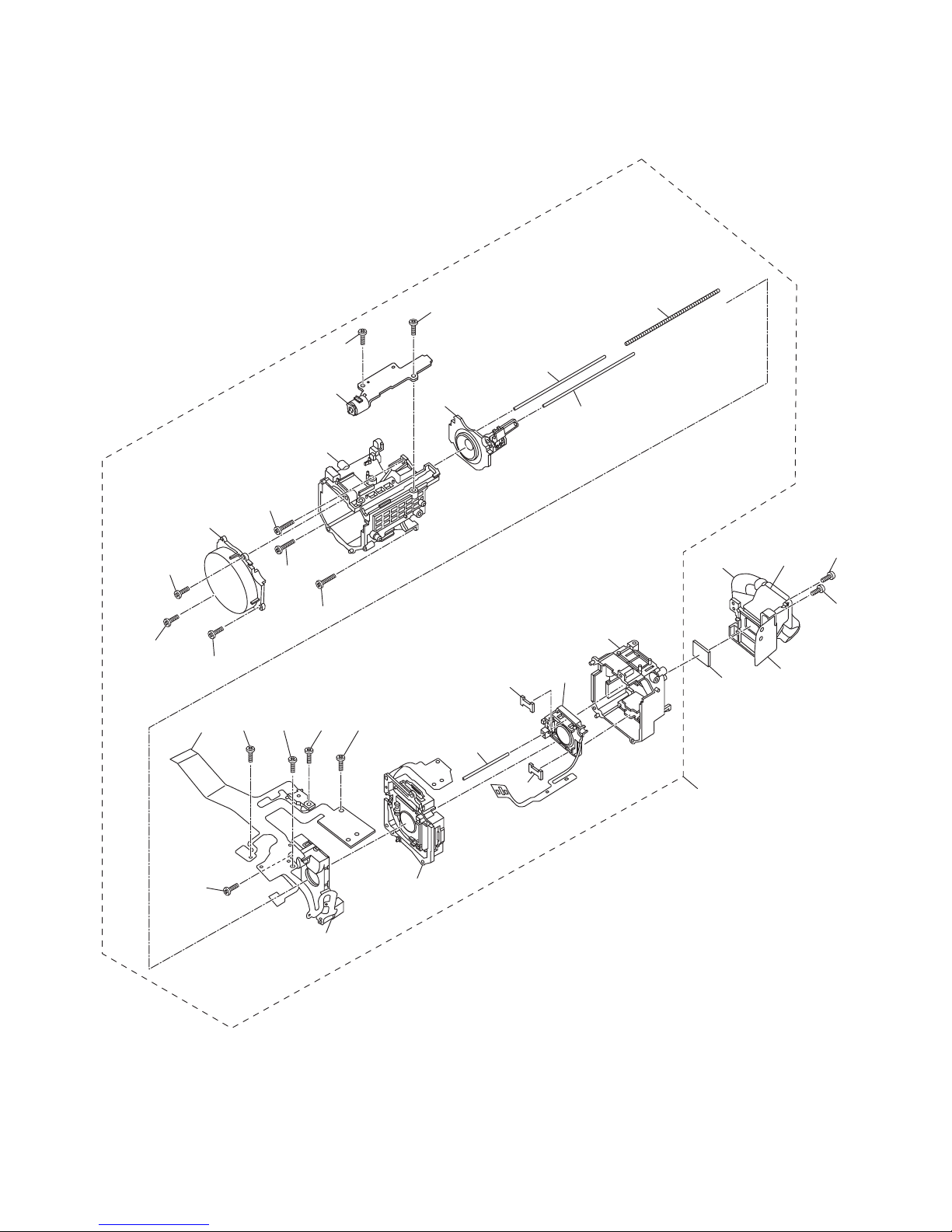

LENS ASSEMBLY

MPL-7

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

201 VXQ1463 PRISM U 1

201-1 VEP22375A CCD FPC P.C.BOARD 1

202 VGQ9068 CCD HEAT SINK SHEET 1

203 VXW0826 LENS 1U 1

204 L6HA66NC0010 ZOOM MOTOR 1

205 VXP2687 IRIS U 1

206 VMA0S74 SIDE YOKE 2

207 VMS7778 GUIDE POLE 2

208 VDL1900 CRYSTAL OPTICAL FILTER 1

209 VEK0K40 LENS FPC 1

210 VMS7779 F GUIDE POLE 1

211 VXP2667 2ND LENS FRAME MOVE U 1

212 VXP2670 4TH LENS FRAME MOVE U 1

213 VXQ1455 OIS U 1

214 VXQ1456 MASTER FLANGE U 1

215 VDW1342 MAIN FRAME 1

216 VXQ1452 1ST LENS FRAME MOVE U 1

217 VMB4079 2ND LENS SPRING 1

B201-10 XQN16+CJ4FJR SCREW 10

B211-13 XQN16+CJ7FJ SCREW 3

B214,15 XQN16+CJ5FJ SCREW 2

LENS ASSEMBLY

MPL-8

310

302

312

313

314

304

305

306

317

316

307

308

303

309

301

311

E only

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

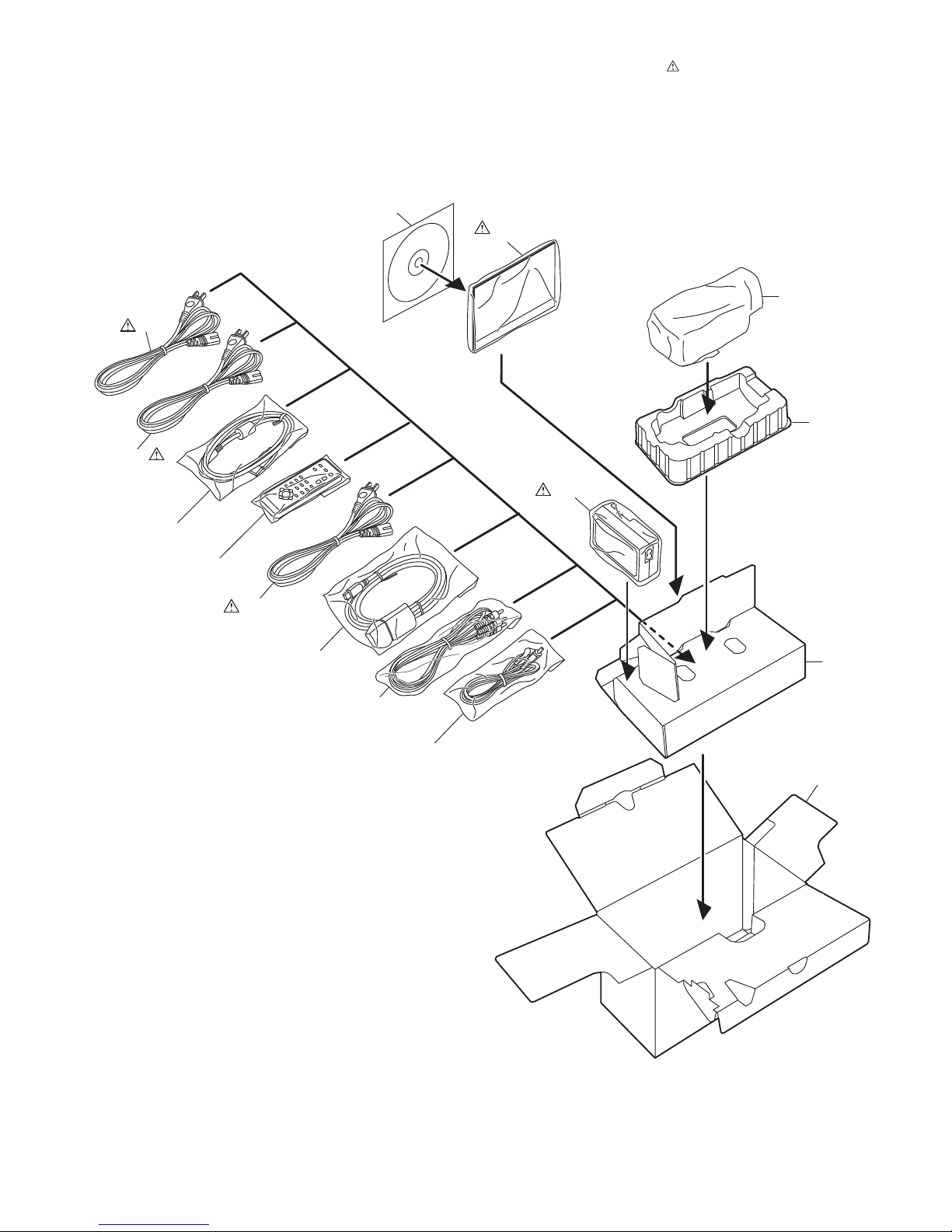

PACKING PART ASSEMBLY

MPL-9
