Panasonic NVRZ1EG Manuale utente

ORDERNO. VMD0001001C8

VHS-CMovie

NV-RZ1EG / NV-RZ1B / NV-RZ1E / NV-RZ1EN / NV-RZ1ENC /

NV-RZ1A / NV-RZ2EG / NV-RZ2B / NV-RZ2EN

CZ-MECHANISM

SPECIFICATIONS

Unauthorized copying and distribution isaviolation of law.

1. INTRODUCTION

1.1. INTRODUCTION1

This service manual contains technical information whichwill allowservice personnel's to

understand and service this model.

Please place orders using the parts list and not the drawing reference numbers.

If the circuit is changedormodified, this information will be followedbysupplement service

manual tobe filedwithoriginal service manual.

Note 1:

Adjustment procedure forMechanism-Chassis is separate volume.

Please refertofollowing manual fordetail of adjustment procedure forMechanism-Chassis.

Ordernumberforadjustment procedure of Mechanism-Chassis : VMD9912044C8

Note 2:

These movie cameras are using the different AC adaptoras follows.

VSK0541: ForNV-RZ1B, NV-RZ2B.

VSK0564: ForNV-RZ1EG/E/EN/ENC/A, NV-RZ2EG/EN.

The Service manuals forabove AC adaptors are separatelyis usedas follows.

OrdernumberforAC Adaptor-----VSK0541/545 (VW-AS7) : VMD9812066C8

OrdernumberforAC Adaptor-----VSK0564 :VMD9907028C3

1.2. INTRODUCTION2

Note 1:

NV-RZ1EN, NV-RZ2EN series has toversions depends on countries.

Detail as follows.

Model No. (Version) NV-RZ1EN NV-RZ1ENC NV-RZ2EN

PACKING CASE VPG0C68 VPG0C70 VPG0C77

AC CORD VJA0664 VJA0664 VJA0664

1.3. FEATURECOMPARISONCHART

RZ1EG/E RZ1B RZ1A RZ1EN/

ENC RZ2EG RZ2B

CCD Image Sensor 1/5” 1/5” 1/5” 1/5” 1/5” 1/5”

CCD Capacity(Pixels) 450k 450k 450k 450k 450k 450k

B/W EVFLCD Monitor 0.24” 0.24” 0.24” 0.24” 0.24” 0.24”

EVFLCD Capacity(Pixels) 76,800 76,800 76,800 76,800 76,800 76,800

Recording/Playback mode SP SP/LP SP/LP SP/LP SP SP/LP

Optical ZoomRatio x20 x20 x20 x20 x20 x20

Digital Zoom(x40/x100/x220) / / / /

/ /

/ / / /

/ /

Shortest Image Distance

(From1st Lens) 1.8m 1.8m 1.8m 1.8m 1.8m 1.8m

Remote Controller × × × ×

2. SERVICE CAUTION

2.1. EEPROMDATAFORSPAREPARTS OFTHECAMERA/MAIN

C.B.A.

Whenthe Camera/MainC.B.A. is replaced, the fixedand average data must be re-writtenby

Tatsujinkit according tothe Movie Camera’s suffix.

Then, confirm and/oradjust the VTR and Camera adjustment one byone.

2.2. SERVICEEXTENSIONCABLES.

This model is requiredthe following extension cables forall connections.

And formore convenient service, prepare the RearCase U. (VEK8865) through a spare parts

route.

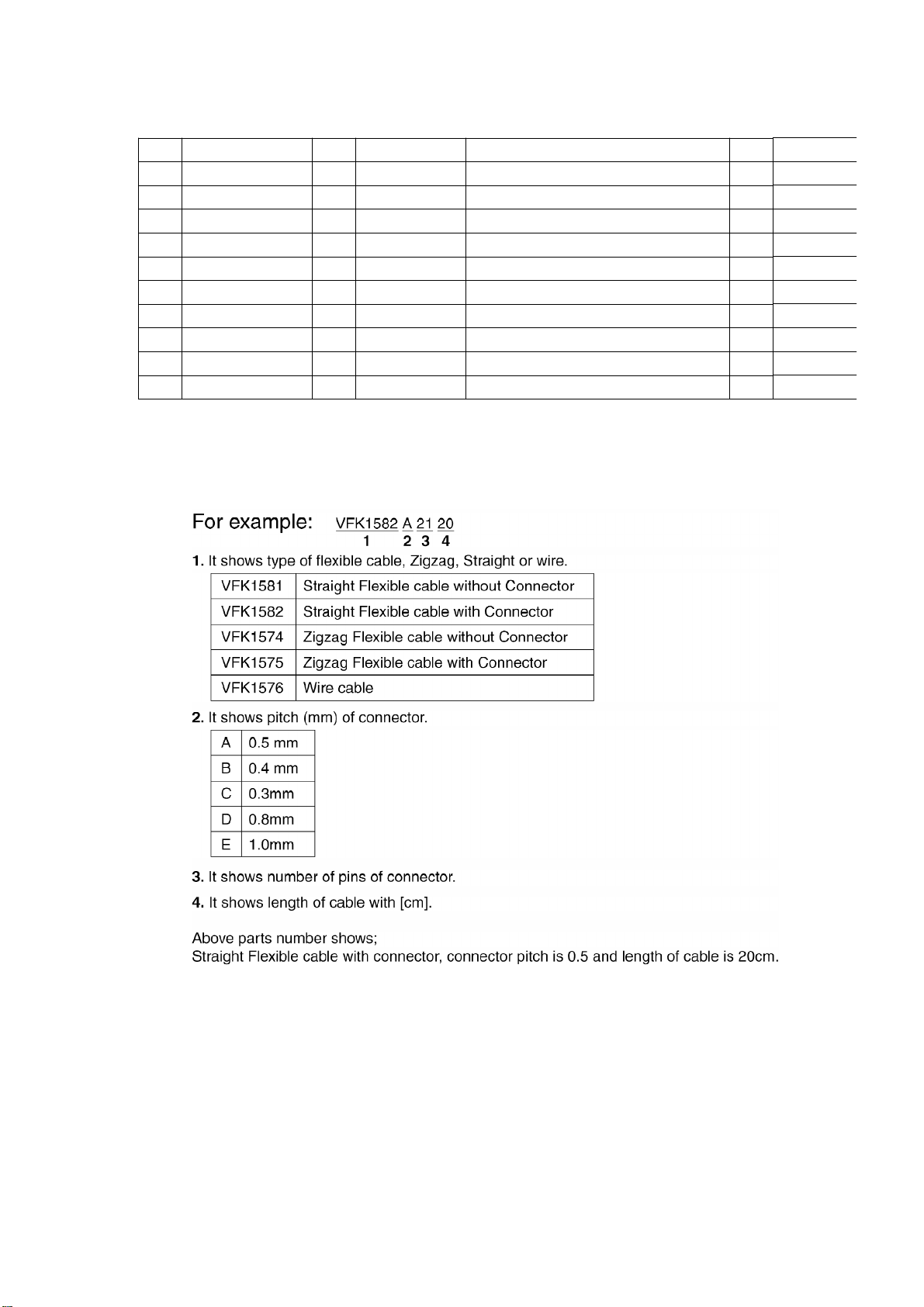

Ref. Parts No. Pin Part name Connection Q’ty

Remarks

(a) VFK1582A2120 21 Flat Cable FP701-Lens Unit 1

(b) VFK1582D1225 12 Flat Cable PP301-Lens Unit 1

(d) VFK1582A1325 13 Flat Cable FP6002-CAM. OP. 1

(e) VFK1582A1625 16 Flat Cable FP6004-S/S ZOOM VTR OP. 1

(f) VFK1582A0920 9 Flat Cable FP4001-A/C Head 1

(g) VFK1582A1025 10 Flat Cable FP1001-EVF 1

(i) VFK1582A1925 19 Flat Cable FP2001-Capstan 1

(j) VFK1582A2125 21 Flat Cable FP6001-Mecha. FPC. 1

(l) VFK1582A1620 16 Flat Cable FP4002-Front 1

NOTE:

New Parts numbers consist 4blocks. And theyhas meaning as

follows.

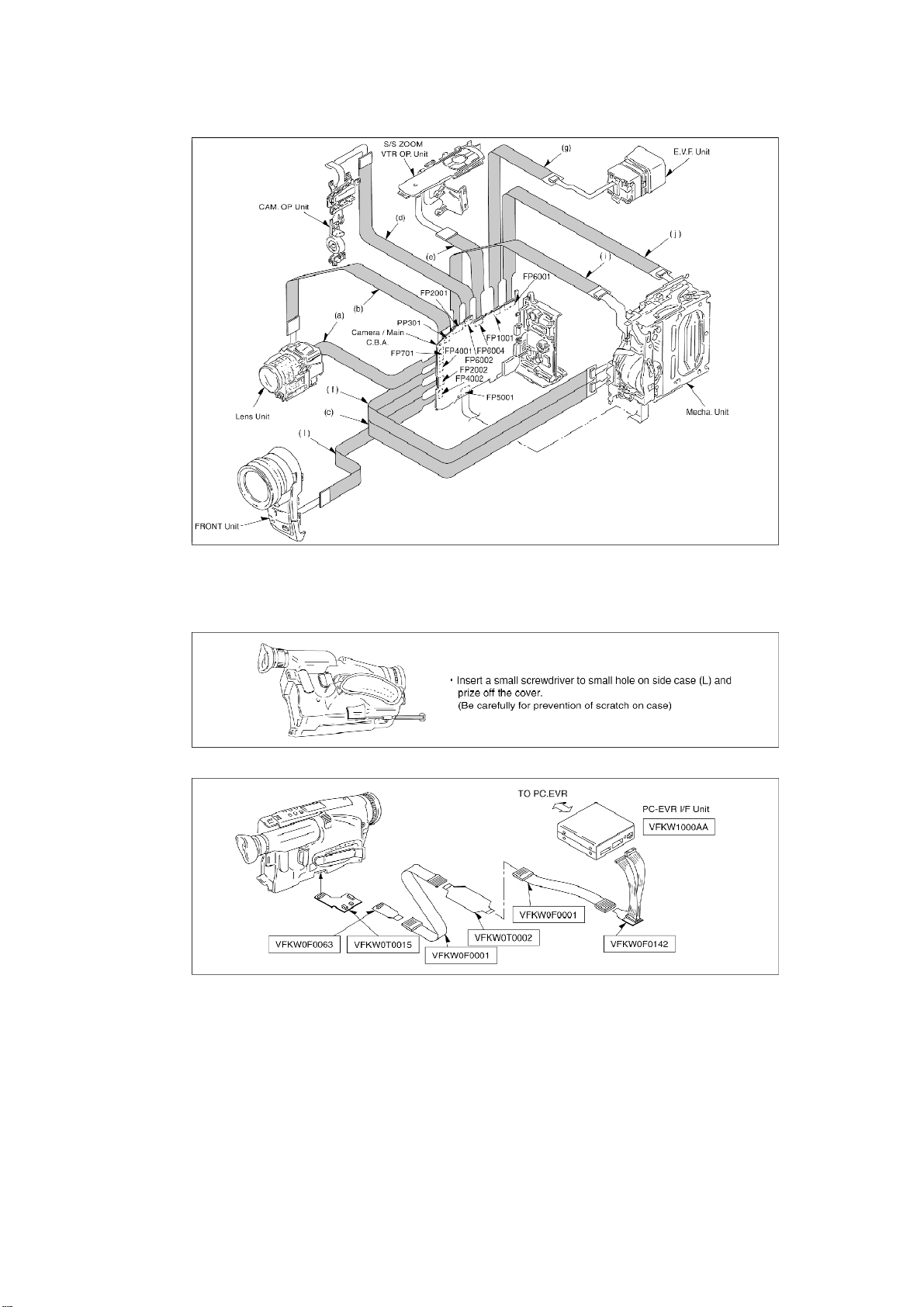

Howtouse extension cables.

2.3. SET-UPFORADJUSTMENTOFTATSUJIN.

Foradjustments withTatsujin, it is not necessarytoopenthe side case.

Just openthe small coveron the side case (L) bya small screwdriver.

And insert the Extension boardand connect Tatsujincable as follows.

3. SERVICE INFORMATION

3.1. SERVICEINFORMATIONDISPLAY(GENERALDESCRIPTION)

-ThisMovieCamera has SERVICEINFORMATIONDISPLAYfunction

which enables quick trouble-shooting.

-The Service Information Displayisavailablewith the following

prcedures.

-The Service Information isdisplayed on the EVF and LCD monitor.

(There are 4kinds of SERVICEMODES as shownbelow.)Inthe

OSDLine Output Mode, the service Information can be also

displayed on the TV.

MODE NAME FUNCTION Howtouse. (Pushthe following keys

simultaneously

more than2 sec.)

OSD Line Output

MODE -Checking theEVF information on

theTVmonitor. FOCUS/SET

<SIDE CASE(R)> STOP

DATE

SIDE

TOP>

MODE NAME FUNCTION Howtouse. (Pushfollowing keys

simultaneously

than2 sec.)

SERVICE MODE 1 -Remaining BatteryA/D Value.

-SafetyDevice.

-Capstan/Cylinder injuctions.

COLOUR

<SIDE CASE(R)> STOP

DATE

SIDE

TOP>

MODE NAME FUNCTION Howtouse. (Afterchosing SERVICE MODE 1,

Push

[DATE/TITLE] key.

SERVICE MODE 2 -Reference VoltageA/D Value.

-Mechanism positio.n

-Serial keycode.

DATE/TITLE

MODE NAME FUNCTION Howtouse. (Afterchosing SERVICE MODE 2,

Push

[DATA/TITLE] key.

SERVICE MODE 3 -ERROR CODEDisplay. DATE/TITLE

MODE NAME FUNCTION Howtouse. (Afterchosing SERVICE MODE 3,

Push

[DATE/TITLE] key.

SERVICE MODE 4 -PG SHIFTER ADJUSTMENT. DATE/TITLE

3.2. ERRORCODEDISPLAY

-When an undesirablecondition occurs, the power will be turned

off. (Except zoom &focus motor lock condition. Since thismodel,

“ERRORCODE” isnot automaticallydisplayed on the EVF and

LCD monitor, also the CAMERA LEDisnot flashed.)

-Byturning on Service Mode 3, itispossibleto check what kind of

undesiralecondition has occurred, even after the ERRORCODE

has disappeared. (The ERRORCODEisstored with EEPROM-IC.)

NOTE1:

The content of all Service Modes (Service Mode 1-Service Mode 4) is the privious models.

So, please refertothe following Technical Information forthe details.

OrderNumberforTechnical Information : VMD9512M138

NOTE2:

Since Service Mode 3 (ERROR CODE display) is important forthe service, the outline is shown

below.

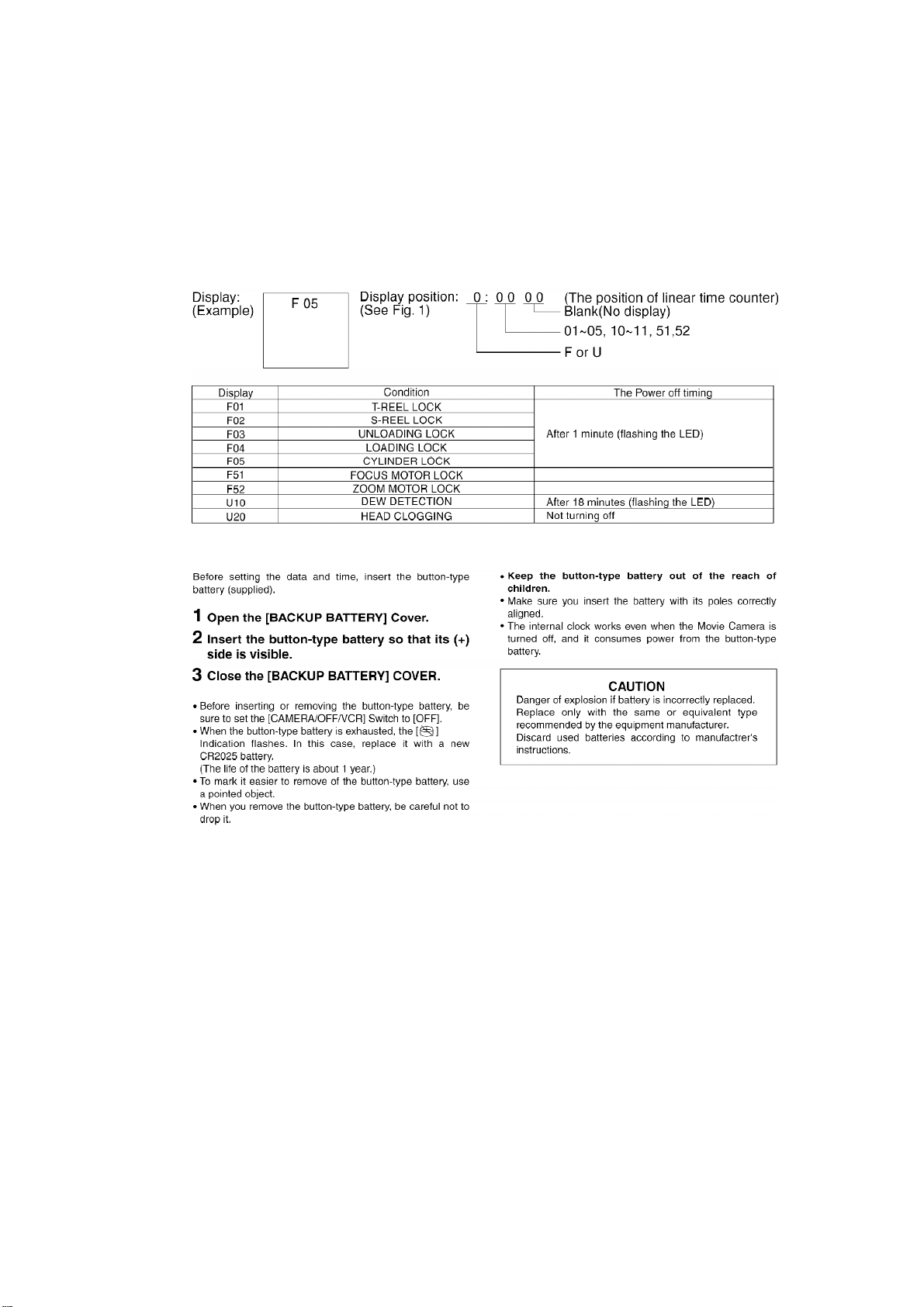

3.3. SERVICEMODE3

-After undesirableconditions occured, you can see what kind of

error occured byturning on the Service Mode 3.

3.4. INSERTING THEBUTTON-TYPE BATTERY

Note:

The lithium batteryisacritical component (Type No.:CR2025

Manufactured byPanasonic.)

Itmust never be subjected to excessive heat or discharge.

Itmust therefore onlybe fitted inequipment designed specifically

for its use.

Replacement batteries must be of the same type and manufacture.

Theymust be fitted inthe same manner and location as the original

battery, with the correct polaritycontacts observed.

Donot attempt to re-charge the oldbatteryor re-use itfor anyother

purpose.

Itshouldbe disposed of inwaste products destined for burial

rather than incineration.

4. GENERAL DESCRIPTIONS

5. ADJUSTMENT PROCEDURES

5.1. DISASSEMBLY PROCEDURES

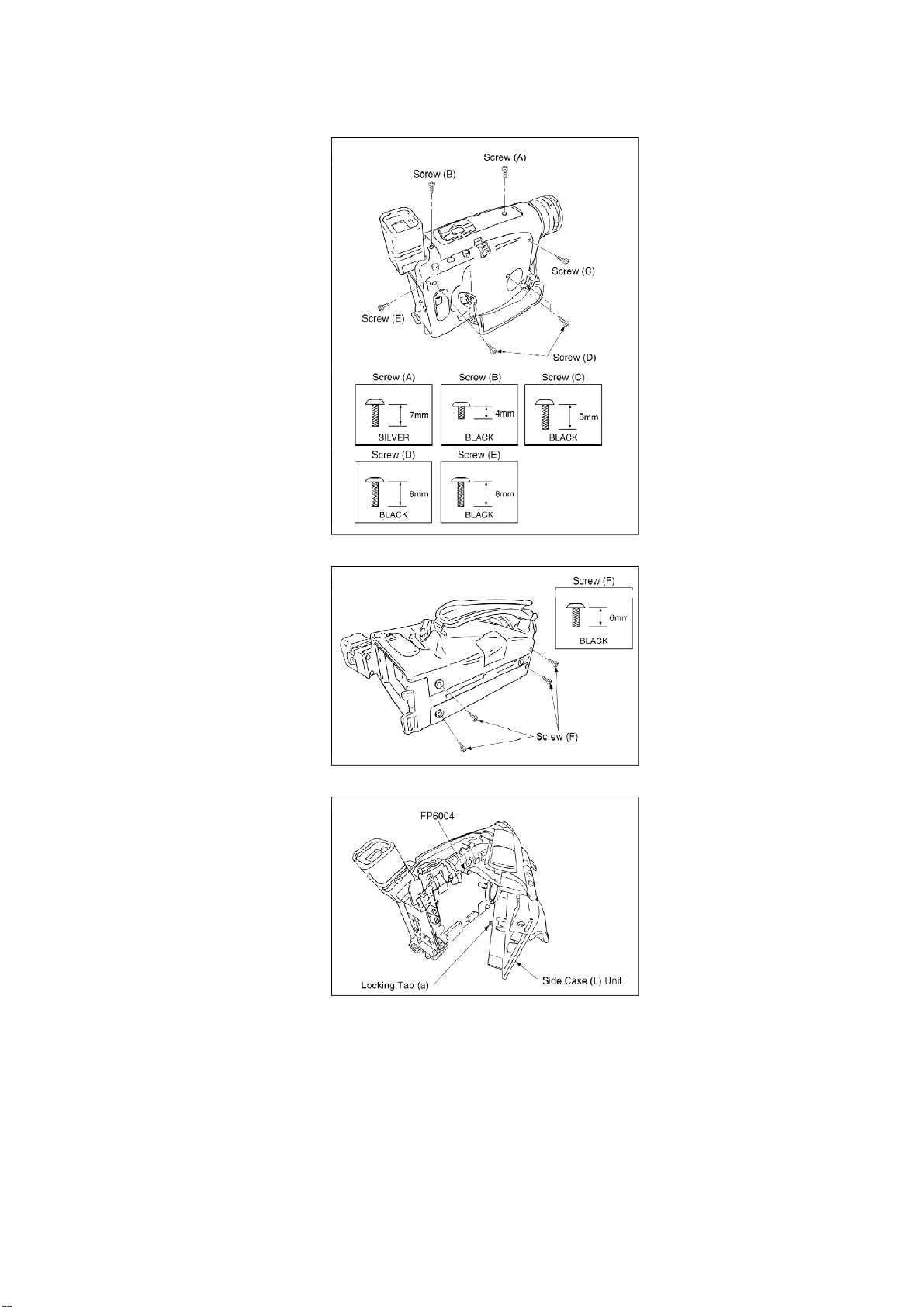

Flow-Chart forDisassemblyProcedure

No. Item/Part Fig. Removal (Screw)

1Side Case (L)

Unit Fig.

11-Screw(A)

1-Screw(B)

1-Screw(C)

3-Screws (D)

1-Screw(E)

Fig.

24-Screws (F)

Fig.

3Locking Tab(a)

Slightlyopenthe

Side Case (L) Unit.

Disconnect FP6004.

2Front Case Unit Fig.

44-Locking Tabs (b)

Disconnect FP4002.

3 Camera/Main

C.B.A. Fig.

51-Screw(G)

Remove the Shild

Case.

Disconnect the

following connectors.

FP6002, FP2001,

PP301, FP701,

FP4001, FP2002,

FP5001, FP6001,

FP1001, PS3509,

PS1003

4 Cassette Cover

Unit Fig.

61-Screw(H)

5 RearCase Unit Fig.

71-Screw(K)

2-Locking Tabs (c)

6 EVFUnit Fig.

82-Screws (L)

7MechanismUnit Fig.

93-Screws (M)

8Lens Unit Fig.

10 1-Screw(N)

9 MainFrame Unit Fig.

61-Screw(I)

2-Screws (J)

Fig.

11 1-Screw(O)

7-Locking Tabs (d)

Fig. 1

Fig. 2

Fig. 3

Fig. 4
