CONTENTS

SERVICING FIXTURES & TOOLS

CASING & FRAME ASSEMBLY .....................................................................................................................PRT-1

OVERALL SECTION .................................................................................................................................PRT-1

[ A ] CASSETTE COVER ASSEMBLY ...............................................................................................PRT-4

[ B ] SIDE CASE (L) ASSEMBLY........................................................................................................PRT-4

[ C ] L SIDE SECTION ........................................................................................................................PRT-5

[ D ] SIDE CASE (R) SECTION ..........................................................................................................PRT-5

[ E ] SIDE CASE (R) 1 ASSEMBLY ....................................................................................................PRT-7

[ F ] FRONT CASE SECTION ............................................................................................................PRT-8

[ G ] FRONT CASE 1 ASSEMBLY ......................................................................................................PRT-8

[ H ] CAMERA ASSEMBLY.................................................................................................................PRT-9

[ J ] BOTTOM CASE SECTION .........................................................................................................PRT-11

[ K ] SHOULDER PAD ASSEMBLY....................................................................................................PRT-12

[ L ] TOP CASE SECTION .................................................................................................................PRT-12

[ M ] HANDLE SECTION.....................................................................................................................PRT-13

[ N ] HANDLE COVER SECTION .......................................................................................................PRT-14

[ P ] TOP OPERATION SECTION ......................................................................................................PRT-14

[ Q ] RECEIVER COVER ASSEMBLY ................................................................................................PRT-14

[ R ] BACK CASE SECTION ...............................................................................................................PRT-15

[ S ] JACK PANEL SECTION..............................................................................................................PRT-16

[ T ] BOTTOM COVER ASSEMBLY ...................................................................................................PRT-16

[ U ] SIDE JACK ASSEMBLY..............................................................................................................PRT-16

MECHANICAL CHASSIS ASSEMBLY (1) ......................................................................................................PRT-17

MECHANICAL CHASSIS ASSEMBLY (2) ......................................................................................................PRT-19

MECHANICAL CHASSIS ASSEMBLY (3) ......................................................................................................PRT-21

PACKING PARTS ASSEMBLY.......................................................................................................................PRT-23

Panasonic Broadcast

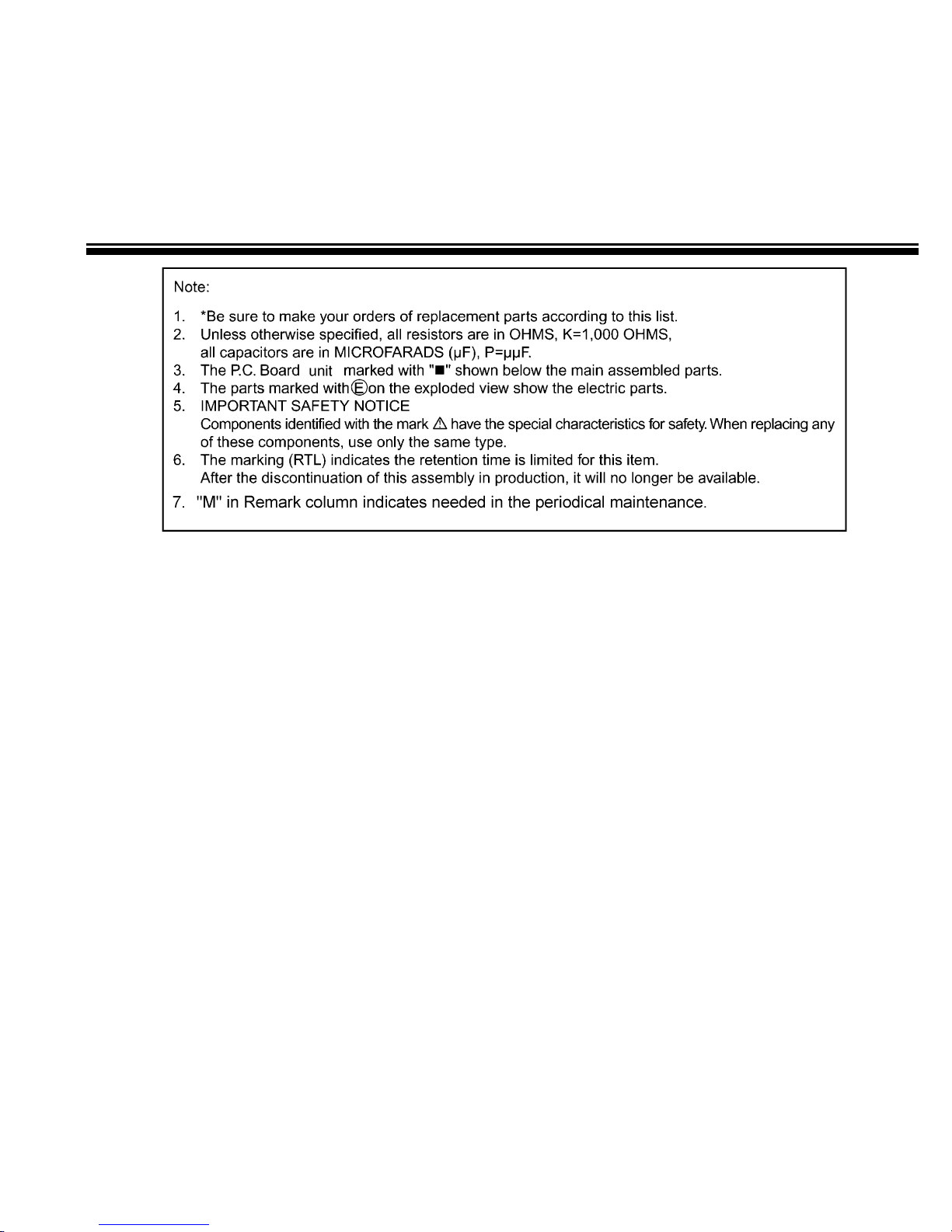

Mechanical Parts List

MODEL: AJ-SDC615P/E, D615MC

Ref.No. Part No. Part Name & Description Pc

Remarks Ref.No. Part No. Part Name & Description Pc

Remarks

1 VFK1145A BACK TENSION METER (T2-M30-P) 1

2 VFK1149B POST DRIVER (2.5mm) 1

3 VFK71A DIAL TORQUE GAUGE (1.5cN-m) 1150g

4 VFK1191A DIAL TORQUE GAUGE (0.45cN-m) 145g

5 VFK1152 DIAL TORQUE GAUGE ADAPTER 1

6 VFK0357 ECCENTRIC DRIVER (1.5mm) 1

7 VFK1154 ECCENTRIC DRIVER (1.5mm) 1

8 VFK1153 MECH. NEUTRAL PLATE (M) 1

9 VFK1155 REV POSITION TOOL (Silver) 1For Post Height

10 VFK1156 PLAY POSITION TOOL (Black) 1

11 VFK1208 NEUTRAL POSITION TOOL (Black with Hole) 1

12 VFK1150A NUT DRIVER (5.5mm) 1

13 VFK1151A Nut Driver (2.5mm) 1

14 VFK1188A DIAL TENSION GAUGE (30mN) 130g

15 VFK0948A CHECK LIGHT 1

16 VFK0749 FROIRAL GREASE 1For Plastic

17 MOR265 MORLYTONE GREASE 1For Metallic

18 VFK1146A PHILLIPS DRIVER (Fine) (00-75) 1

19 VFK1147A PHILLIPS DRIVER (Fine) (0-100) 1

20 VFK1148A HEX. DRIVER (1.5mm) 1

21 VFK1178A HEX. DRIVER (0.89mm) 1

22 VFK1179A HEX. DRIVER (0.71mm) 1

23 VFK1190 HEX. WRENCH 1

24 VFK1209A TORQUE DRIVER (4-30cN-m) 10.4-3kg

25 VFK1375 HEX. BIT (1.5mm) 1

26 VFK1300 AD BOARD (DAQ-12 Quatech) 1

27 VFM3580KM ALIGNMENT TAPE (No.1) (NTSC) 1Color bar Master (M-Cassette)

27 VFM3680KM ALIGNMENT TAPE (No.1) (PAL) 1Color bar Master (M-Cassette)

28 VFM3581KM ALIGNMENT TAPE (No.2) (NTSC) 1LISTA (M-Cassette)

28 VFM3681KM ALIGNMENT TAPE (No.2) (PAL) 1LISTA (M-Cassette)

29 VFM3582KM ALIGNMENT TAPE (No.3) (NTSC) 1X Value (M-Cassette)

29 VFM3682KM ALIGNMENT TAPE (No.3) (PAL) 1X Value (M-Cassette)

30 AJ-CL12MP CLEANING TAPE 1Sales Route

32 VFK1186 LISTA CABLE 1

33 VFK0369 TWEEZER 1

34 VFK0371 LONG NOSE PLIER 1

35 VFK0372 CUTTING PLIER 1

36 VFK0337 PHILLIPS SCREWDRIVER 1

37 VFK0338 ALIGNMENT SVREWDRIVER 1

38 VFK1423 TAPE SENSOR ADJUSTMENT CASSETTE 1

39 VFK0906 LUBRICATION OIL 1

40 VFK0645 GRAYSCALE CHART 1

41 VFK1304A FLASH MEMORY VERSION UP TOOL 1

43 VFK1881 CC FILTER 1LBB-12 (fuji D-type filter)

SERVICING FIXTURES & TOOLS

OVERALL SECTION (1)

CASING & FRAME ASSEMBLY

PRT-1

Ref.No. Part No. Part Name & Description Pc

Remarks Ref.No. Part No. Part Name & Description Pc

Remarks

OVERALL SECTION (1)

1 VYF2881 CASSETTE COVER ASS'Y 1

2 VYP9022 SIDE CASE (L) ASS'Y 1

7 VMP7620 CONNECTOR SUPPORT ANGLE 1

8 VMT1435 CONNECTOR CUSHION 1

12 VWJ40E5145L0 FLEX. CABLE 2

13 VWJ1687 FLEX. CABLE 1

15 VEE0W34 L SIDE CABLE 1

16 VEE0W42 P.PRO OUT CABLE 1

101 XYN2+F6FJ SCREW 1

103 XSB3+6FJK SCREW 2

105 XYN3+J6FJ SCREW 3

107 XYN26+F6FJ SCREW 4

109 XSB3+16FJK SCREW 1

111 VHD1774 SCREW 1

SIDE CASE (R)

SECTION

(Page PRT-5, 6)

1CASSETTE COVER

ASS'Y

SIDE CASE (L)

ASS'Y

(Page PRT-4)

L SIDE SECTION

(Page PRT-5)

105

BACK CASE

SECTION

(Page PRT-15)

(Refer to "R- ")

SIDE JACK

ASS'Y

(Page PRT-16)

109

103

107

101

107

107 107

103

111

OVERALL SECTION (2)

PRT-2

Ref.No. Part No. Part Name & Description Pc

Remarks Ref.No. Part No. Part Name & Description Pc

Remarks

OVERALL SECTION (2) E11 VEP26288B VTR MAIN P.C.BOARD 1 FOR AJ-SDC615E/D615MC

3 VWJ50E5032L0 FLEX. CABLE 2 E12 VEP84388A CUE P.C.BOARD 1

14 VEE0W15 RF POWER CABLE 1 E13 VEP85220A RF EQ P.C.BOARD 1

17 VXY1858 MECHANISM ASS'Y 1 (M) E16 VEP21280B CAMERA POWER P.C.BOARD 1

19 VSC5657 RF EQ SHIELD 1 E17 VEP21291A VTR POWER P.C.BOARD 1

20 VMX3201 SPACER(A) 3

21 VHD1323 SCREW 3

100 XYN26+J4FJ SCREW 4

101 XYN2+F6FJ SCREW 3

102 XYN26+J6FJ SCREW 6

105 XYN3+J6FJ SCREW 6

E9 VEP23609B CAM DSP P.C.BOARD 1 FOR AJ-SDC615P

E9 VEP23609C CAM DSP P.C.BOARD 1 FOR AJ-SDC615E/D615MC

E10 VEP83636E 1394 MODULE P.C.BOARD 1

E11 VEP26288C VTR MAIN P.C.BOARD 1 FOR AJ-SDC615P

E16 102

102

E11

102

101

102

105

100 E9

105

102

E17

E12

Back side View of CAM DSP

P. C. Board.

BOTTOM CASE

SECTION

(Page PRT-11)

Video Out Terminal

(Refer to "J- ")

E10

E13

OVERALL SECTION (3)

PRT-3

Ref.No. Part No. Part Name & Description Pc

Remarks Ref.No. Part No. Part Name & Description Pc

Remarks

OVERALL SECTION (3)

4 VYK0P58 BOTTOM COVER ASS'Y 1

6 VMP7603 SHIELD PLATE 1

10 VWJ16SW100L0 FLEX. CABLE 1

11 VWJ24E5035L0 FLEX. CABLE 1

18 VEQ4498 CAMERA ASS'Y 1 FOR AJ-SDC615P

18 VEQ4494 CAMERA ASS'Y 1 FOR AJ-SDC615E/D615MC

103 XSB3+6FJK SCREW 4

104 XSN3+12FJK SCREW 2

105 XYN3+J6FJ SCREW 5

106 XYN26+C6FJ SCREW 2

110 XSB3+8FJK SCREW 8

BOTTOM CASE SECTION

TOP CASE SECTION

CAMERA

ASS'Y

JACK PANEL

SECTION

(Page PRT-16)

(Page PRT-15)

(Page PRT-11)

(Page PRT-9)

(Page PRT-12, 13)

BACK CASE

SECTION

106

110

104

110

105

110

105

103

4BOTTOM COVER

ASS'Y

(Page PRT-16)

P4521

P4529

P4256

P4252

P4201

P4255

105

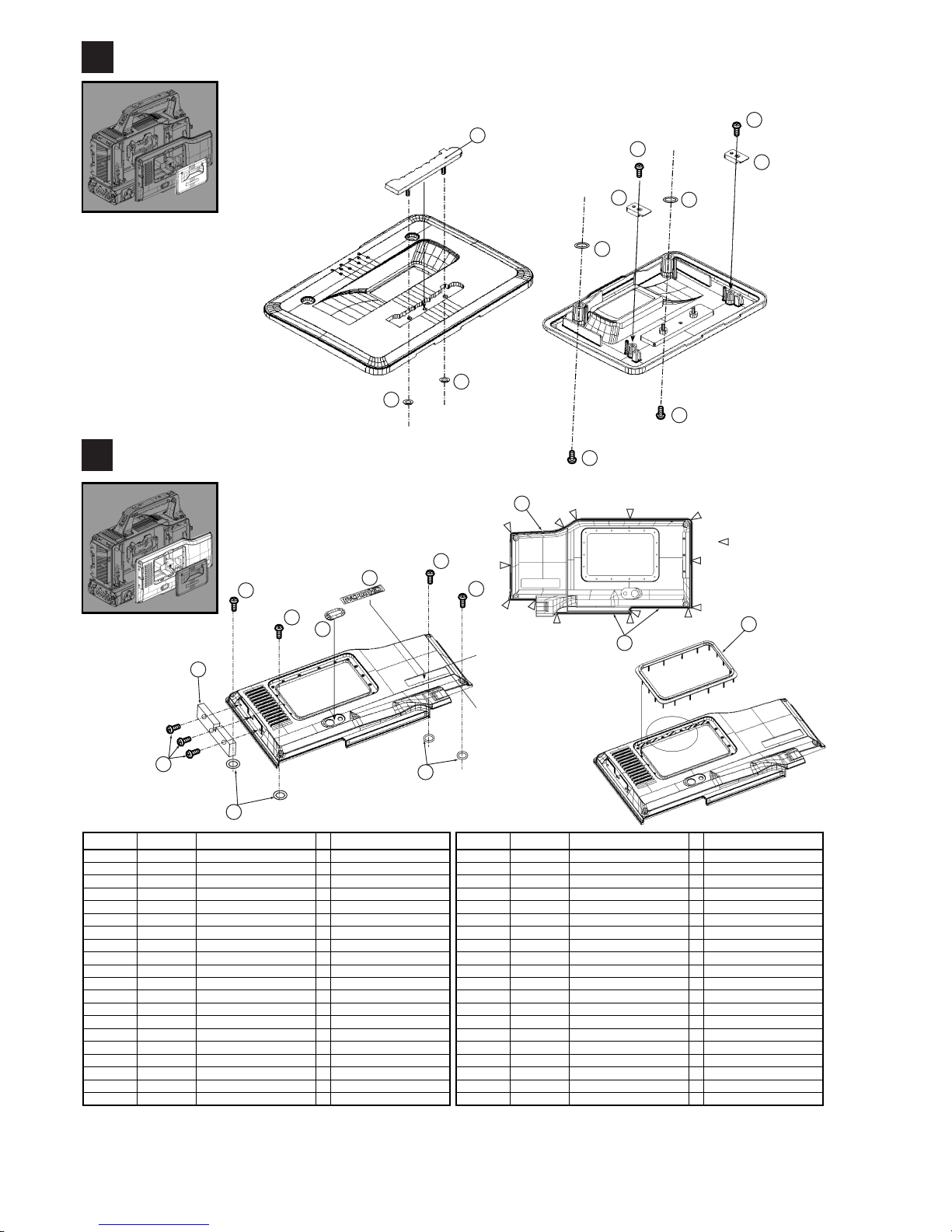

CASSETTE COVER ASSEMBLY

SIDE CASE (L) ASSEMBLY

PRT-4

Ref.No. Part No. Part Name & Description Pc

Remarks Ref.No. Part No. Part Name & Description Pc

Remarks

CASSETTE COVER ASS'Y (VYF2881) SIDE CASE (L) ASS'Y (VYP8686)

A-1 VGB0276 PANASONIC BADGE 1 B-1 VMG1270 E.E CAP 1

A-2 VGQ7133 CASSETTE COVER CLAW 2 B-2 VMG1512 GUARD 1

B-3 VGB0628 DVCPRO50 BADGE 1

A-50 XNKV0001 NUT 2 B-4 VMG1504 CASSETTE WATERPROOF RUBBER 1

A-51 VMX2605 WASHER 2 B-5 VMG0832 TUBE 1 (1m)

A-52 XSB26+14FJK SCREW 2

A-53 XSB26+4FJK SCREW 2 B-50 VMX3348 WASHER 4

B-51 XSB3+16FJK SCREW 1

B-52 XSB3+12FJK SCREW 3

B-53 XSB3+6FJK SCREW 3

50 50

251

: Lock tight

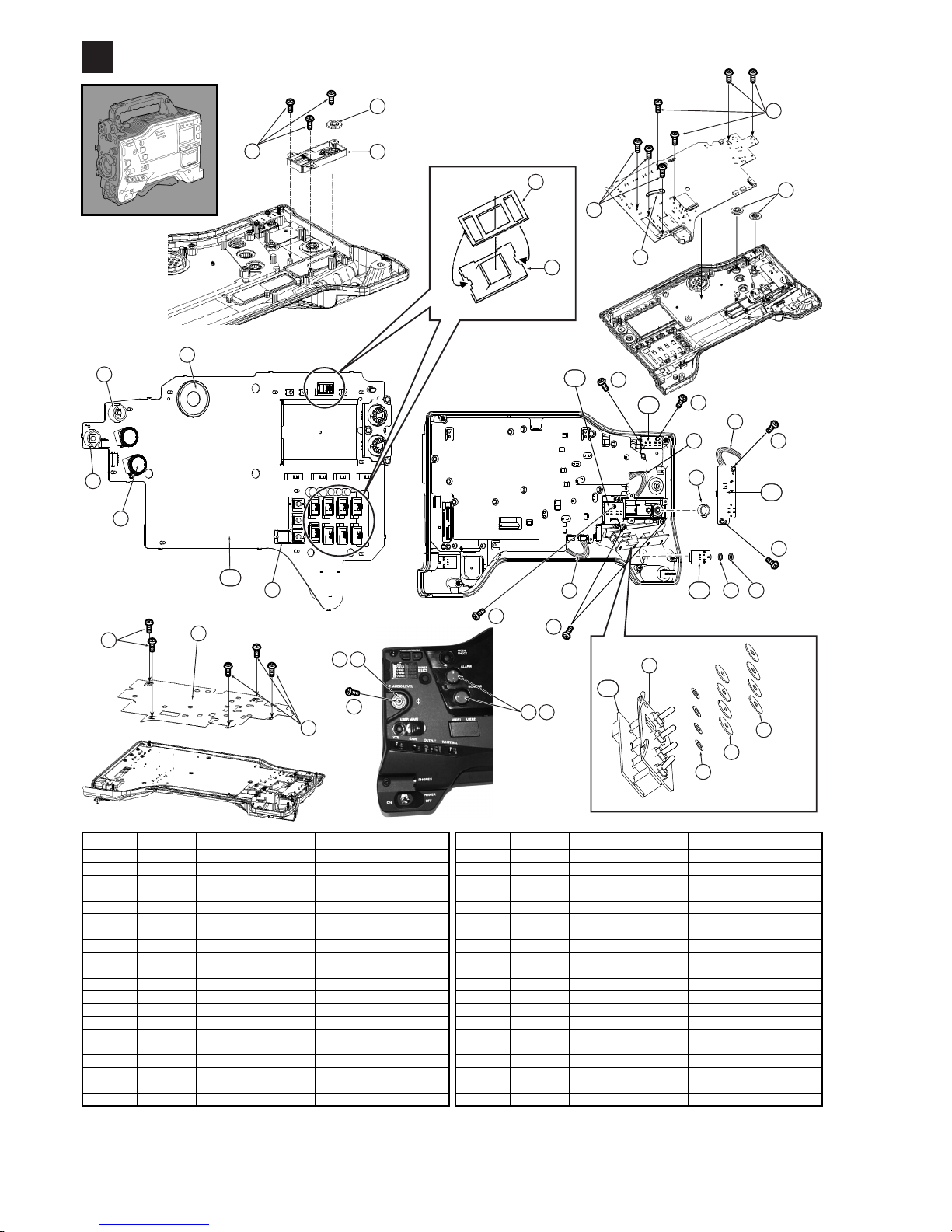

L SIDE SECTION

PRT-5

SIDE CASE (R) SECTION (1)

Ref.No. Part No. Part Name & Description Pc

Remarks Ref.No. Part No. Part Name & Description Pc

Remarks

L SIDE SECTION D-20 VMB3767 COIL SPRING 2

C-E21 VEP80D25A L SIDE P.C.BOARD 1 D-23 VEE0W26 YEARPHONE CABLE 1

D-25 VEE0W22 TOGGLE SW CABLE 1

D-32 WZTU1014B-1M TUBE 1 (1m)

D-41 VHN0194 NUT 1

SIDE CASE (R) SECTION (1)

D-1 VST0076 TOGGLE SWITHC 1 K0E112G00013 D-50 XYN2+J6FJK SCREW 6

D-2 VYP9037 SIDE CASE (R) 1 ASS'Y 1

D-6 VGU9302 VR KNOB REAR 2 D-E29 VEP80C64A HP P.C.BOARD 1

D-9 VGU8585 OPERATION BUTTON 1

D-11 VGQ7244 PHONE JACK COVER 1

D-12 VMG1505 VG WATERPROOF RUBBER SHEET 2

D-13 VMX3283 VR KNOB COLOUR 2

D-14 VMP7602 REAR VR HOLDER ANGLE 1

D-15 VMS7304 REAR VR POST 3

D-17 VMT1433 WATERPROOF CUSHION 1

D-18 VGH3361 VR NEME PLATE 2

D-19 VMS7629 SPACER 2

E21

2013

50 11

23 2

E29

20mm

SIDE CASE (R) 1

ASS'Y

(Page PRT-7)

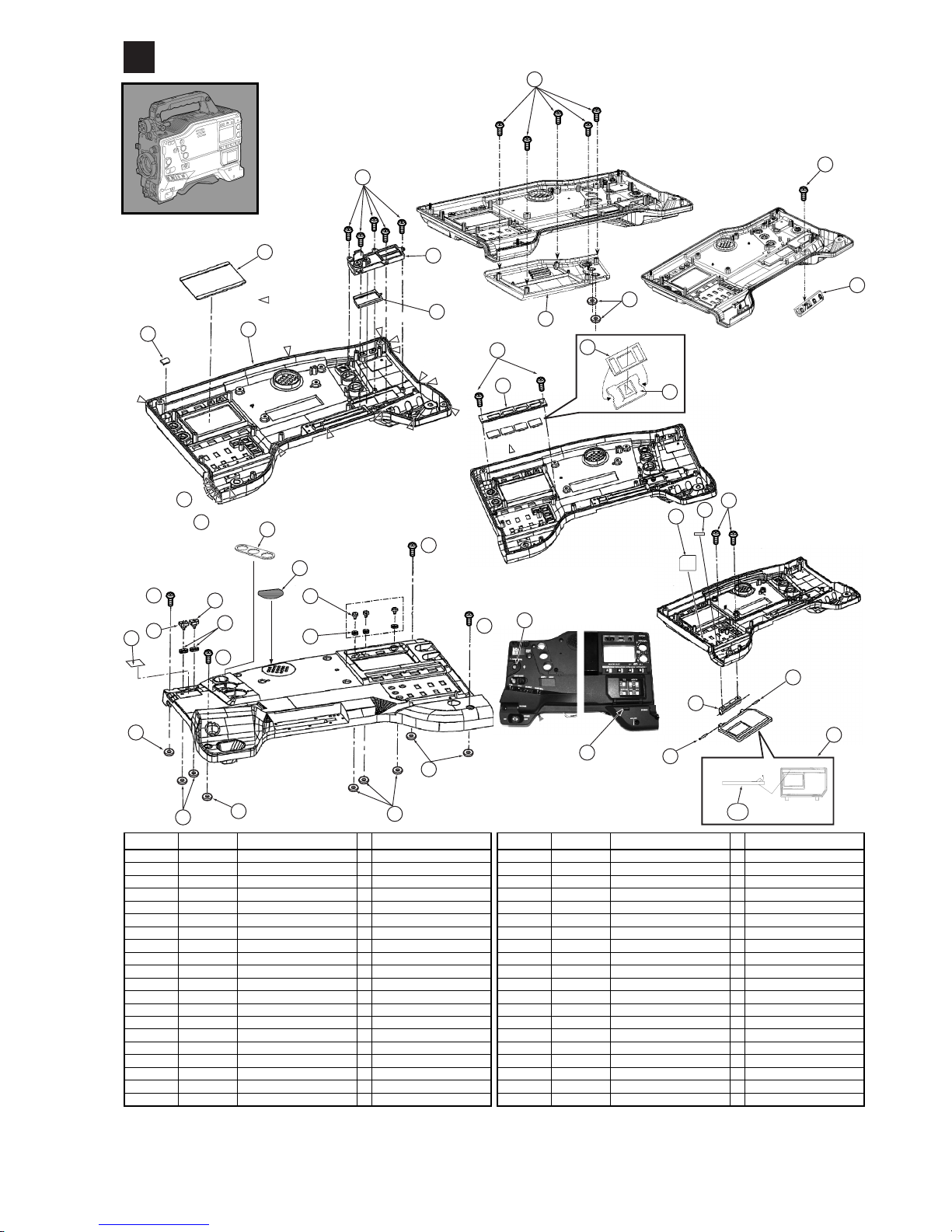

SIDE CASE (R) SECTION (2)

PRT-6

Ref.No. Part No. Part Name & Description Pc

Remarks Ref.No. Part No. Part Name & Description Pc

Remarks

D-35 VMX1312 WASHER 4

SIDE CASE (R) SECTION (2) D-36 VMX3355 SPACER 1

D-3 VYF2895 OPERATION PANEL (B) ASS'Y 1 D-37 VGQ3417 PUSH BUTTON HOLDER A 2

D-4 VMZ3410 LCD BARRIER 1 D-38 VGQ3418 PUSH BUTTON HOLDER B 1

D-5 VGU9301 VR KNOB FRONT 1 D-39 VGQ4723 RUBBER HOLDER COVER 1

D-7 VGU9303 VR KNOB 2 D-40 VMX0531 CLUCH SPACER 1

D-8 VMG0646 WATERPROOF SHEET 4 D-41 VHN0194 NUT 1

D-10 VEK8349 SPEAKER ASS'Y 1

D-16 VGU8993 OPERATION BUTTON 2 D-51 XTN26+6GFJ SCREW 1

D-21 VMG1085 SLIDE SW WATERPROOF RUBBER 8 D-52 XQN2+A2FJK SCREW 1

D-22 VGU7688 SLIDE SW COVER (B) 8 D-53 XYN26+J6FJ SCREW 2

D-24 VMP7599 TOGGLE SW HOLDER ANGLE 1 D-54 XYN2+F6FJ SCREW 17

D-26 VEE0W25 FRONT HP CABLE 1 D-55 XYN2+C5FJ SCREW 2

D-27 VEE0W21 FRONT VR CABLE 1

D-28 VEE0W24 USER SW CABLE 1 D-E8 VEP84385E AUDIO LCD P.C.BOARD 1

D-29 VGH4653 VR NAME PLATE 1 D-E25 VEP80C59A SYNCHRO P.C.BOARD 1

D-30 VGH4680 VR NAME PLATE 2 D-E26 VEP80C60A FR VR P.C.BOARD 1

D-31 VGU9304 OPERATIN RUBBER BUTTON 1 D-E27 VEP80C61A USER P.C.BOARD 1

D-33 VJF1527 CLAMPER 1 D-E28 VEP80C62A TOGGLE P.C.BOARD 1

D-34 VMT1494 WATERPROOF CUSHION 4 D-E29 VEP80C64A HP P.C.BOARD 1

7 30

29 5

54 4

E28

E27

26 40 41

E29

E26

E25

SIDE CASE (R) 1 ASSEMBLY

PRT-7

Ref.No. Part No. Part Name & Description Pc

Remarks Ref.No. Part No. Part Name & Description Pc

Remarks

SIDE CASE (R)1 ASS'Y(1)(VYP9037) E-16 VGU8130 SLIDE SW COBER (A) 4

E-1 VYP8684 OPERATION PANEL ASSEMBLY 1 E-17 VKF2818 SLIDE DOOR 1

E-2 VMG1418 WATERPROOF RUBBER (B) 3 E-18 VKN0149 SPEAKER NET 1

E-3 VYF2880 OPERATION DOOR ASS'Y 1 E-19 VMG1092 WATERPROOF RUBBER 2

E-3-1 VSQ1050 RUBBER MAGNET 1 E-20 VMG1096 VR WATERPROOF RUBBER 3

E-4 VMT1426 FACE PAD 1 E-21 VMG1195 SLIDE SW RUIBBER (A) 4

E-5 VMT1427 WATERPROOF SHEET 1 E-22 VMS5505 PIN 2

E-6 VMG1506 DOOR CUSHION 1 E-23 VMP5578 LSLIDE SW HOLDER ANGLE 1

E-7 VMG0832 TUBE 1 (1m) E-24 VGH4295 FILTER NAME PLATE 1

E-8 VDB1717 DOOR HINGE (B) 1 E-25 VMT0809 CUSHION (C) 1

E-9 VKW2683 DISPLAY WIINDOW 1

E-10 VGL1039 LED BACK LIGHT 1 E-50 VMX3348 WASHER 4

E-11 VGL0512 LED BACK LIGHT 1 E-51 XYN3+C6FJ SCREW 2

E-12 VGU7696 SHUTTER BUTTON (+) 1 E-52 XTN3+6GFJ SCREW 6

E-13 VGU7697 SHUTTER BUTTON (-) 1 E-53 XSB26+5FJ SCREW 5

E-14 VGU7698 OPERATION BUTTON 3 E-54 VMX3284 WASHER 5

E-15 VGK2886 TOGGLE SW PLATE 1 E-55 XSB3+10VJK SCREW 4

E-56 XYN26+J6FJ SCREW 2

: Lock tight

420 15

3-1

FRONT CASE SECTION

FRONT CASE 1 ASSEMBLY

PRT-8

Ref.No. Part No. Part Name & Description Pc

Remarks Ref.No. Part No. Part Name & Description Pc

Remarks

FRONT CASE SECTION FRONT CASE ASS'Y (VYK1R08)

F-1 VYK1R08 FRONT CASE 1 ASS'Y 1 G-1 VMG0832 TUBE 1 (1m)

F-2 VGU9299 MENU BUTTON 1 G-2 VJF1256 CABLE CLAMPER 2

F-3 VGQ7131 BUTTON HOLDER PLATE 1 G-3 VMG0948 EVF RUBBER SHIELD 1

F-4 VMT1432 WATERPROOF CUSHION 2 G-4 VMC1210 FRONT DOOR PLATE SPRING 1

F-5 VGU9861 MENU KNOB 1 G-5 VMP4850 FRONT DOOR ANGLE 1

F-6 VMG1317 MENU WATERPROOF RUBBER 1 G-6 VMS4088 FRONT DOOR ANGLE PIN 1

F-7 VEE0W38 FRONT JOG CABLE 1 G-7 VKF2485 FRONT DOOR 1

F-8 VMG1140 RAIN COVER SPONGE 2 G-8 VXU1620 RUBBER BUTTON ASS'Y 1

F-9 VMX3298 POST (2.6SQ-13) 1

G-50 XYN2+C4FJ SCREW 1

F-50 XXEV2W4FP SCREW 2 G-51 XSB2+4FJK SCREW 2

F-51 XYN3+C6FJ SCREW 2

F-52 XYN26+J6FJ SCREW 2

F-53 VMX1312 WASHER 2

F-E23 VEP80C57A FRONT SW P.C.BOARD 1

F-E24 VEP80C58A MENU SW P.C.BOARD 1

FRONT CASE 1 ASS'Y

E24

51 3

(Page PRT-8)

E23

: Lock tight

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Videocamera

Panasonic

Panasonic HC-X2 Manuale utente

Panasonic

Panasonic HDC-HS60P Manuale utente

Panasonic

Panasonic AG-HPX600PF Manuale utente

Panasonic

Panasonic HX-WA2A Manuale utente

Panasonic

Panasonic Palmcorder PV-GS320 Manuale utente

Panasonic

Panasonic HC-V800 Specifiche tecniche

Panasonic

Panasonic NV-GS75GN Manuale utente

Panasonic

Panasonic NV-GS120 Manuale utente

Panasonic

Panasonic Palmcorder Palmsight PV-DV710 Manuale utente

Panasonic

Panasonic Palmcorder PV-L50 Manuale utente

Panasonic

Panasonic VariCam AJ-HPX3700G Manuale utente

Panasonic

Panasonic HDC-TM700K Manuale utente

Panasonic

Panasonic Palmcorder IQ PV-IQ404 Manuale utente

Panasonic

Panasonic AW-F575E Manuale utente

Panasonic

Panasonic AWF575 - COLOR CAMERA Manuale utente

Panasonic

Panasonic SV-AV50 Manuale utente

Panasonic

Panasonic HM-TA20D Manuale utente

Panasonic

Panasonic Palmcorder PV-DC152 Manuale utente

Panasonic

Panasonic HX-WA30 Specifiche tecniche

Panasonic

Panasonic SDR-S9 Manuale utente

Panasonic

Panasonic HPX3000 Manuale utente

Panasonic

Panasonic Palmcorder PV-D507 Manuale utente

Panasonic

Panasonic HDC-TM41PC Manuale utente

Panasonic

Panasonic AJ-UPX360ED Manuale utente

Manuali Videocamera popolari di altre marche

Toshiba

Toshiba CAMILEO Z100 Manuale utente

Canon

Canon RC 260 Manuale utente

Sony

Sony Handycam DCR-DVD7E Manuale utente

Brinno

Brinno TimeLapse TLC200 Manuale utente

JVC

JVC GR-SXM68AC Guida rapida

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuale utente

MYDLINK

MYDLINK DCS-6100LH Manuale utente

Sony

Sony video Hi8 Handycam CCD-TR555 Manuale utente

SECURECOM

SECURECOM V-5014B Manuale utente

Sharper Image

Sharper Image U-VIDEO Manuale utente

JVC

JVC AA-V15EG Manuale utente

Canon

Canon LEGRIA HV40 Manuale utente

Sony

Sony Handycam DCR-VX2000 Manuale utente

RCA

RCA CC616 Manuale utente

ATIK Cameras

ATIK Cameras Horizon Manuale utente

Sony

Sony Handycam HDR-CX580V Manuale utente

Sharp

Sharp ViewcamZ VL-Z8H Manuale utente

Philips

Philips M620/21 Manuale utente
