Panasonic VDR-D300GC Manuale utente

Order No. VM0606501SE

DVD Video Camcorder

VDR-D300GC / VDR-D300GCS / VDR-D300SG / VDR-D300GN /

VDR-D300EE / VDR-D308GK / VDR-D250GC / VDR-D250GCS /

VDR-D250SG / VDR-D250GN / VDR-D250EE / VDR-D258GK

SUB P.C.B. REPLACEMENT NOTE

Please use this service manual together with the service manual for /

Order No. VM0603011CE, Model No.VDR-D300GC/GCS/GN/EE/308GK. /

Order No. VM0603009CE, Model No.VDR-D250GC/GCS/GN/EE/258GK.

Unauthorized copying and distribution is a violation of law.

1. INTRODUCTION

Please write the “Write Menu data” to EEPROM before performing the TATSUJIN sdjustments when the

Sub P.C.B. is replaced.

The procedure for “Write Menu data” writing to EEPROM is as follows.

2. PROCEDURES OF WRITING THE DATA TO EEPROM

*Installation of USB-SERIAL driver

- Execute the “Setup.exe” file in "ComMass” folder by double clicking to

install the USB-SERIAL driver.

**Set-Up

- If a Disc or SD Card is inserted, remove before operation.

- Use AC Adaptor

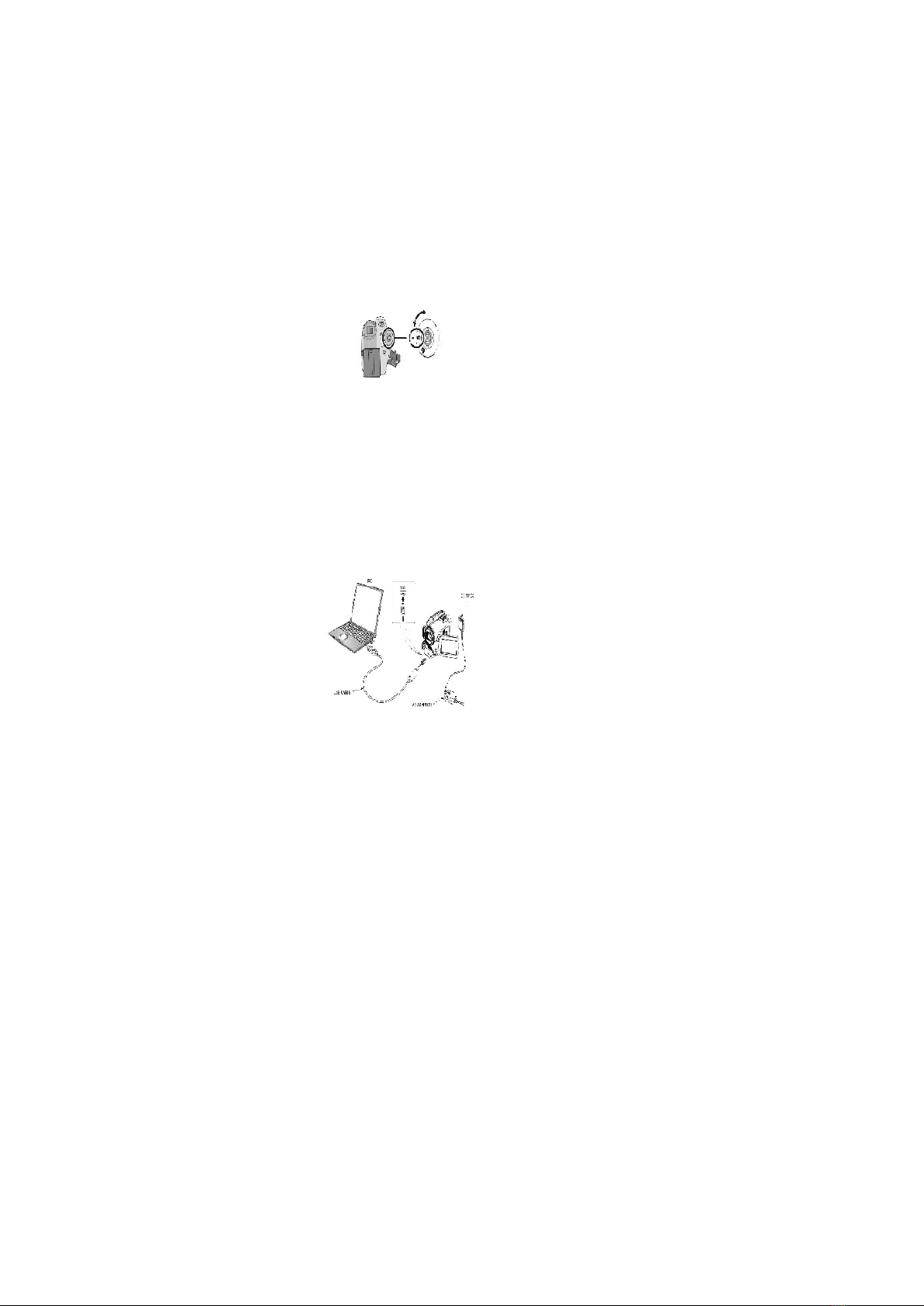

- Select [CARD RECORDING] mode.(Fig1)

- Don’t connect DVD-CAM to PC using USB cable.

[Fig.1]

- Set the DVD-Camcorder to “COM” mode for service adjustment mode by

pushing [DELETE] and [RECORDING START/STOP]

buttons simultaneously while pushing [JOYSTICK CONTROL] upward

for more than 3 seconds.

Then, “COM” is displayed on LCD.

- Connect the PC and DVD-Camcorder as shown in Fig.2.

[Fig.2]

procedure

1. Turn the power of PC “ON”.

2. Download the “TATSUJIN software” of the DVD-Camcorder from TSN-

web and install it into your PC.

Note: “****.exe”

(D300.exe : VDR-D250/258/300/308 series)

3. Execute the downloaded latest “****.exe” file by double clicking to start

up TATSUJIN adjustment software.

4. Then the main menu will be displayed as shown in Fig.3.

5. Select the desired model.(1)(Fig.3)

6. Then, click “Start”.(2)(Fig.3)

[Fig.3]

7. Then, there is no problem though warning is displayed.(3)(Fig.4)

[Fig4]

8. Now, the PC and DVD Camcorder is service adjust mode, and the

dialog will appear.

A. case of D300.exe (VDR-D250/258/300/308 series)

Then, click “Next” (4).(Fig.5)

[Fig5]

9. Then, select the File in menu.(6)(Fig.6)

[Fig.6]

10. Select the “Write Menu data”.(7)(Fig.7)

[Fig.7]

11. Select the file including [0000] characters.(8)(Fig.8)

[Fig.8]

12. Now,writing the data to EEPROM and the dialog will appear.(Fig.9)

Then,click “OK”.(9)

[Fig.9]

13. Please restart “DVD-Camcorder” so that the “Write Menu data” will be

completely installed in the DVD camcorder.

14. Then, now each adjustments can be performed.

15. To release the PC connection (COM) mode, push the [DELETE]

button, [RECORDING START/STOP] button and

[JOYSTICK CONTROL UP] simultaneously for 3 seconds without

connection of the USB Cable.
