2˝ Electronic HD View Finder

AJ-

Operating Instructions

E– 1

Caution:

OThe interior of this product contains high-voltage components. Do not

disassemble the product.

OBe careful not to point the eyepiece directly at the sun.

WARNING:

TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT

EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

FCC Note:

This device complies with Part 15 of the FCC Rules. To assure continued

compliance follow the attached installation instructions and do not make any

unauthorized modifications.

This equipment has been tested and found to comply with the limits for a class A

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his

own expense.

Operating precaution

Operation near any appliance which generates strong magnetic fields may

give rise to noise in the video and audio signals. If this should be the case,

deal with the situation by, for instance, moving the source of the magnetic

fields away from the unit before operation.

indicates safety information.

E– 2

ENGLISH

Contents

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E– 3

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E– 3

Parts and Their Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E– 4

Adjusting the Viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E– 7

Adjusting the Mounting Height of the Viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . E– 7

Mounting the Viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E– 8

Detaching the Viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E– 8

Position Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E– 9

Diopter Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E– 10

Screen Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E– 10

Detaching the Eyepiece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E– 11

Mounting the Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E– 12

E– 3

Features

OThe high-resolution CRT delivers superb picture sharpness, making focusing easier.

OThe low-flare CRT makes the screen clear and easy on the eyes.

OThe large eyepiece aperture makes it possible to see the screen even when holding the

viewfinder at some distance from your eye.

OThe eyepiece is easily detachable.

OEasy, one-touch left-right and forward-backward position adjustment.

Power supply: DC 12 V (supplied by camera)

Power consumption: 3.3 W

Specifications

Picture tube:

2-inch high-resolution monochrome picture tube

Image system:

1080 lines, 59.94 Hz

External adjustment controls:

Controls (BRIGHT, CONTRAST, PEAKING)

Switches (TALLY HIGH/OFF/LOW, ZEBRA ON/OFF)

Allowable temperature range:

32°F to 104°F (0°C to 40°C)

Allowable humidity range:

85% or less (no condensation)

External dimensions (WaHaD):

9 1/2˝a3 3/16˝a8 1/8˝ (240a80a206 mm)

Weight:

2.112 lb (960 g)

E– 4

ENGLISH

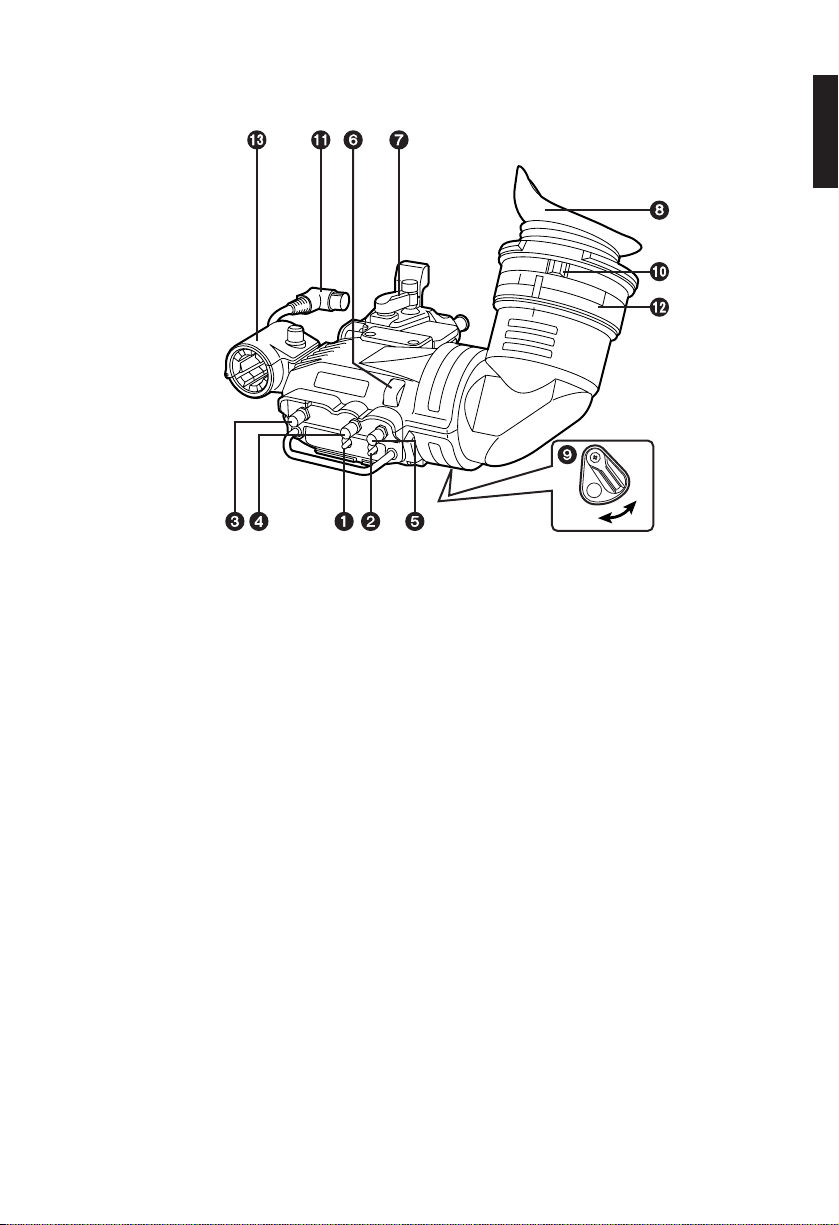

Parts and Their Functions

Displays a zebra pattern inside the viewfinder.

ON: Displays a zebra pattern.

OFF: No zebra pattern displayed.

The details of the display, such as the type of zebra pattern, will differ depending

on the camera used with the viewfinder. Refer to the instruction manual of the

camera for details.

ZEBRA (Zebra Pattern) Switch

Controls the front tally lamp.

HIGH: Makes the front tally lamp brighter.

OFF: Turns the front tally lamp off.

LOW: Makes the front tally lamp dimmer.

TALLY Switch

Adjusts the outlines of the images in the viewfinder to make focusing easier. The setting

of this control has no effect on the output signal of the camera.

PEAKING Knob

Adjusts the contrast of the screen inside the viewfinder. The setting of this control has

no effect on the output signal of the camera.

CONTRAST Knob

OFF

E– 5

Lights when the VTR is recording and the TALLY switch is set to HIGH or LOW. Also,

flashes on and off as a warning indication, in the same manner as the REC lamp, inside

the viewfinder.

The brightness of the front tally lamp is controlled by the setting of the TALLY switch

(HIGH or LOW).

Front Tally Lamp

Loosen this lever to adjust the viewfinder position in the forward, backward, right or left

direction.

Viewfinder Forward-Backward/Left-Right Position Clamp Lever

Lights when the VCR is recording. Also, flashes on and off as a warning indication, in

the same manner as the REC lamp inside the viewfinder.

The back tally lamp is hidden when the lever is in the OFF position.

Back Tally Lamp

Adjust this control to match the vision of the person using the camera so that the image

on the screen in the viewfinder is as clear as possible.

Diopter Adjustment Ring

Connection Plug

;

Lock Ring

Microphone Holder

Eyepiece

Parts and Their Functions

Adjusts the brightness of the screen inside the viewfinder. The setting of this control has

no effect on the output signal of the camera.

BRIGHT (Brightness) Knob

E– 6

ENGLISH

Parts and Their Functions

The lamp and picture tube indications will differ depending on the camera used with the

viewfinder.

Refer to the instruction manual of the camera for details.

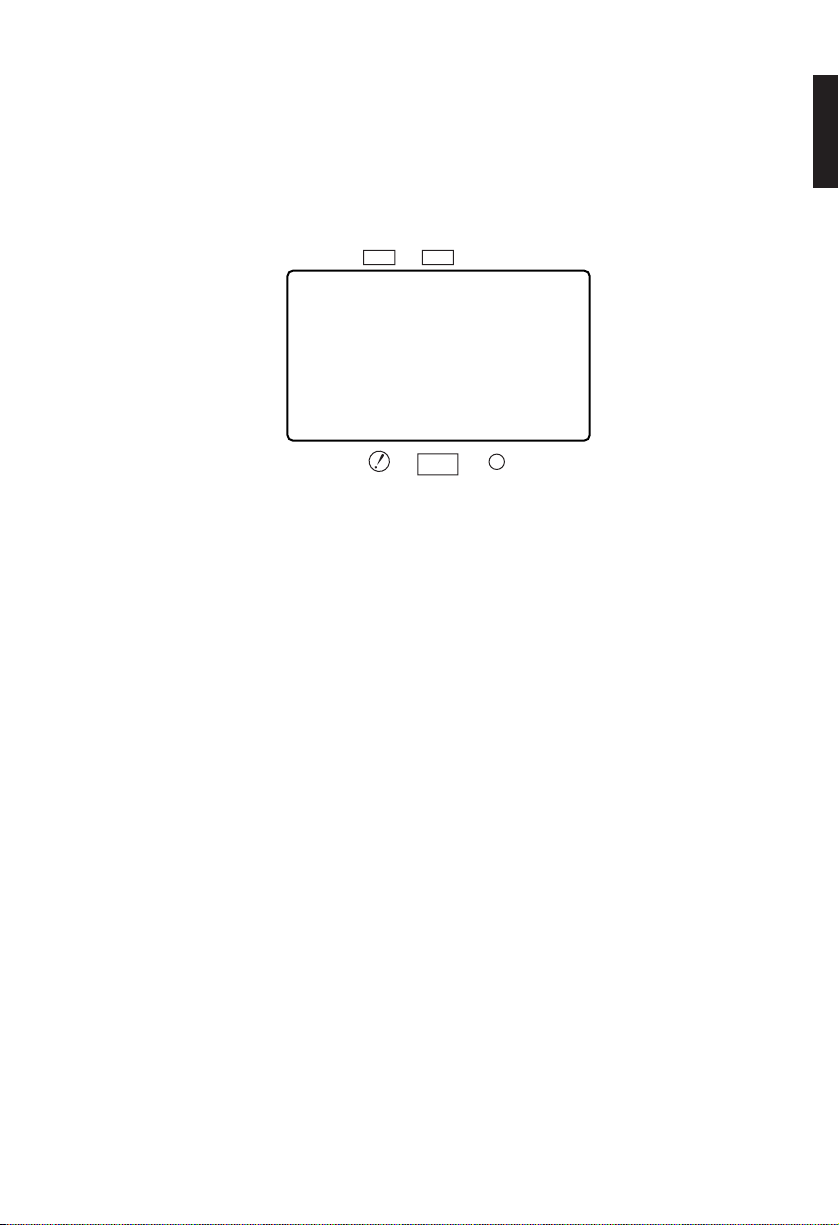

Internal LEDs

TALLY / REC

BATT

VTR

SAVE

E– 7

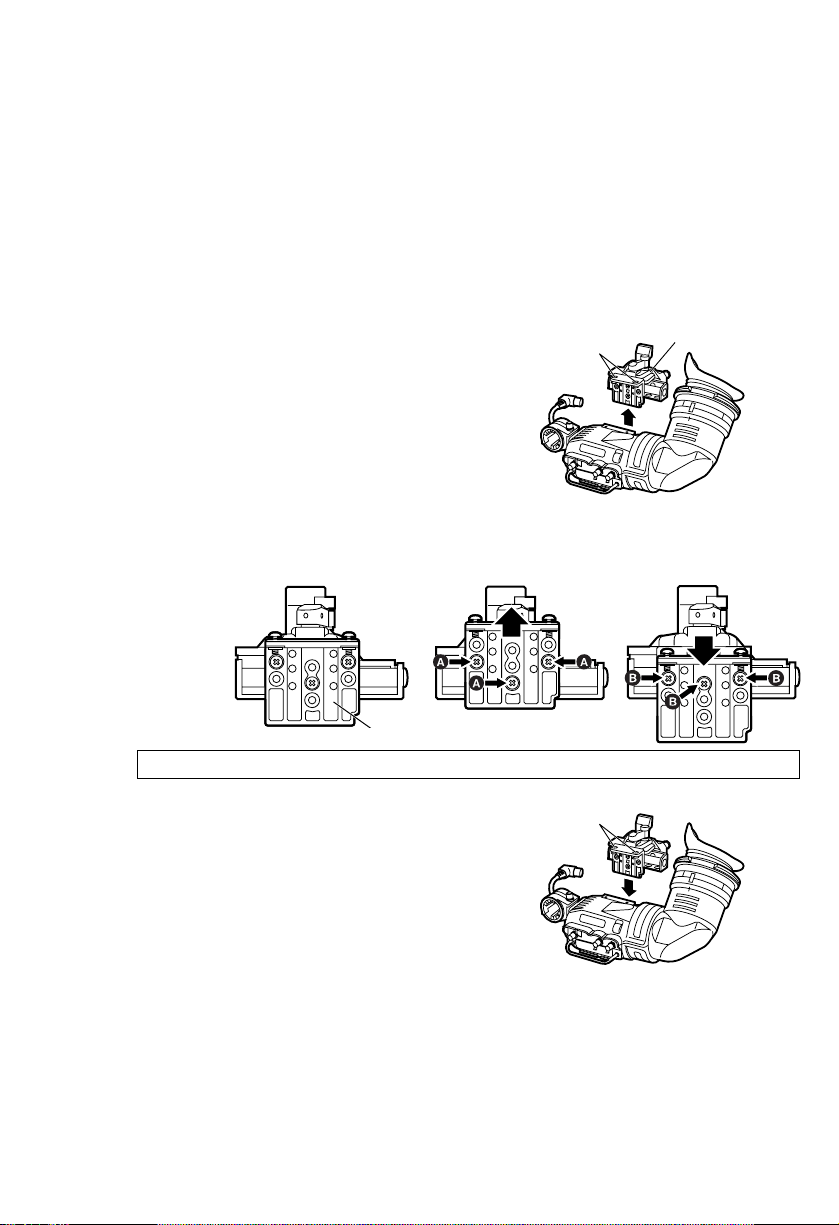

OAdjusting the height of the mounting unit

Mounting unit

Screws

1. Detach the two screws, the detach the

mounting unit.

Screws

3. Secure the mounting unit in place with the two

screws.

2. Replace the three screws in the positions indicated as Aor Bfrom the present

positions and change the position of the metal fitting.

Adjusting the Viewfinder

Adjusting the Mounting Height of the Viewfinder

Metal fitting

Re-fix the metal fitting by fastening the screws together with the spring washer.

The mounting height of the viewfinder can be adjusted using the method described

below.

Adjust the height of the mounting unit as required.

OAt the time of shipping, the mounting height is set for use with the AJ-HDC10A and

AJ-HDC20A models.

E– 8

ENGLISH

Adjusting the Viewfinder

Mounting the Viewfinder

Stopper screw

Detaching the Viewfinder

Stopper screw

3. Push the viewfinder down into place.

4. Tighten the stopper screw firmly.

2. Insert the plug into the connection jack of the viewfinder.

<Note>

Be sure to insert the plug all the way into the connection jack.

1. Confirm that the POWER switch of the camera is “OFF”.

3. Disconnect the connection jack from the viewfinder cable connector.

2. Loosen the stopper screw and detach the viewfinder by pulling it straight up.

<Note>

Use both hands to detach the viewfinder. The viewfinder may not detach smoothly

with one hand, resulting in damage to the viewfinder.

1. Confirm that the POWER switch of the camera is “OFF”.

E– 9

Adjusting the Viewfinder

Position Adjustment

Lever

Viewfinder

1. Lift up the viewfinder forward-backward/left-right position clamp lever to disengage

the lock.

3. Adjust the position of the viewfinder by moving it forward, backward, left or right.

2. Loosen the viewfinder forward-backward/left-right position clamp lever.

4. Return the viewfinder forward-backward/left-right position clamp lever to the locked

position.
