Panasonic HX025 Manuale utente

Operating Instructions

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

Model No. H-X025

Before connecting, operating or adjusting this

product, please read the instructions completely.

For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo

For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or

send e-mail to: [email protected]

VQT3N27

until

2011/7/12

VQT3N27_ENG_Cover.fm 1 ページ２０１１年５月２７日　金曜日　午後２時８分

VQT3N27

Contents

Information for Your Safety.....................................2

Precautions...........................................................5

Supplied Accessories .............................................6

Attaching/Detaching the Lens.................................6

Names and Functions of Components ...................8

Cautions for Use.....................................................9

Troubleshooting..................................................10

Specifications........................................................11

Limited Warranty...................................................12

-If you see this symbol-

THE FOLLOWING APPLIES ONLY IN CANADA.

Information for Your Safety

Keep the unit as far away as possible from

electromagnetic equipment (such as microwave

ovens, TVs, video games, radio transmitters,

high-voltage lines etc.).

≥Do not use the camera near cell phones because

doing so may result in noise adversely affecting

the pictures and sound.

≥If the camera is adversely affected by

electromagnetic equipment and stops functioning

properly, turn the camera off and remove the

battery and/or the connected AC adaptor. Then

reinsert the battery and/or reconnect the AC

adaptor and turn the camera on.

Information on Disposal in other Countries

outside the European Union

This symbol is only valid in the

European Union.

If you wish to discard this

product, please contact your

local authorities or dealer and

ask for the correct method of

disposal.

This Class B digital apparatus complies with

Canadian ICES-003.

VQT3N27_ENG_SPA.book 2 ページ２０１１年５月２７日　金曜日　午後１時３１分

VQT3N27

The lens can be used with a digital camera

compatible with the lens mount standard for the

“Micro Four ThirdsTM System”.

≥It cannot be mounted on the Four ThirdsTM mount

specification camera.

≥The digital camera illustrations in these operating

instructions show DMC-G3 as an example.

≥The appearance and specifications of products

described in this manual may differ from the actual

products you have purchased due to later

enhancements.

≥Micro Four ThirdsTM and Micro Four Thirds Logo

marks are trademarks or registered trademarks of

Olympus Imaging Corporation, in Japan, the

United States, the European Union and other

countries.

≥Four ThirdsTM and Four Thirds Logo marks are

trademarks or registered trademarks of Olympus

Imaging Corporation, in Japan, the United States,

the European Union and other countries.

≥G MICRO SYSTEM is a lens exchange type

digital camera system of LUMIX based on a Micro

Four Thirds System standard.

≥LEICA is a registered trademark of Leica

Microsystems IR GmbH.

SUMMILUX

is a

registered trademark of Leica Camera AG. The

LEICA DG lenses are manufactured using

measurement instruments and quality assurance

systems that have been certified by Leica Camera

AG based on the company’s quality standards.

≥Other names of systems and products mentioned

in these instructions are usually the registered

trademarks or trademarks of the manufacturers

who developed the system or product concerned.

ENGLISH

VQT3N27_ENG_SPA.book 3 ページ２０１１年５月２７日　金曜日　午後１時３１分

VQT3N27

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

●Reorient or relocate the receiving antenna.

●Increase the separation between the equipment and receiver.

●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

●Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Responsible Party:

Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Support Contact:

Panasonic Consumer Electronics Company

Telephone No.: 1-800-211-PANA (7262)

VQT3N27_ENG_SPA.book 4 ページ２０１１年５月２７日　金曜日　午後１時３１分

VQT3N27

∫Lens Care

≥Sand and dust can damage the lens. Make

sure that no sand or dust gets inside the lens

or the terminals when using the lens on a

beach, etc.

≥This lens is not waterproof. If drops of water

get onto the lens, wipe the lens with a dry

cloth.

≥Do not press the lens with excessive force.

≥When there is dirt (water, oil, and fingerprints, etc.)

on the surface of the lens, the picture may be

affected. Lightly wipe the surface of the lens with a

soft, dry cloth before and after taking pictures.

≥Do not place the lens mount facing downwards.

Do not allow the lens contact points 1to become

dirty.

∫About Condensation (Fogging of the

Lens)

≥Condensation occurs when there are differences

in temperature and humidity as described below.

Condensation can cause the lens to become dirty

and lead to mold and malfunctioning, so exercise

caution in the following situations:

–When the camera is brought indoors from outside

during cold weather

–When the camera is brought into an air-

conditioned car

–When cold air from an air conditioner is directly

blown onto the lens

–In humid places

≥Put the camera into a plastic bag to allow it to

acclimatize to the surrounding temperature in

order to prevent condensation. If condensation

occurs, turn the power off and leave it for about

two hours. Once the camera acclimatizes to the

surrounding temperature the condensation will go

away naturally.

Precautions

VQT3N27_ENG_SPA.book 5 ページ２０１１年６月１３日　月曜日　午後４時５３分

VQT3N27

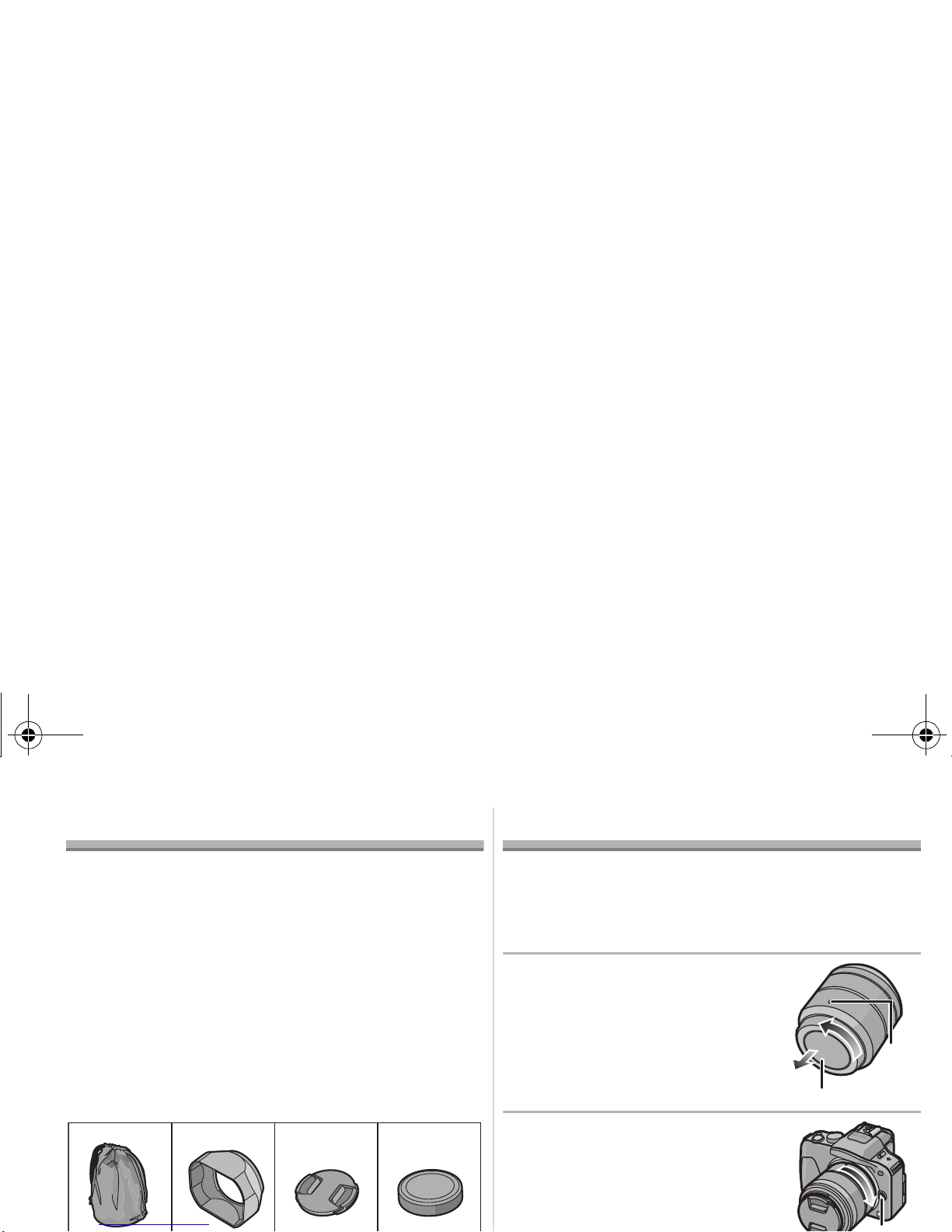

Supplied Accessories

[Inspection to be performed when you unpack

the unit]

When removing the unit from its packing box, check

that the main unit and the supplied accessories are

there and also check their external appearance and

functions to verify that they have not sustained any

damage during distribution and transportation.

If you discover any trouble, contact your vendor

before using the product.

Product numbers correct as of July 2011. These

may be subject to change.

1Lens Storage Bag

2Lens Hood

3Lens Cap

4Lens Rear Cap

(The lens rear cap and lens cap are attached to

the interchangeable lens at the time of purchase.)

Attaching/Detaching the Lens

≥Refer also to the camera’s operating instructions

for attaching and detaching the lens.

∫Attaching the Lens

≥Check that the camera is turned off.

1 Turn the lens rear

cap to detach it.

A: Lens Rear Cap

2 Align the lens fitting

marks B(red marks) on

the camera body and the

lens and then rotate the

lens in the direction of

the arrow until it clicks.

•Do not press the lens release

button C when you attach a lens.

•Do not try to attach the lens when holding it at an

angle to the camera body as the lens mount may

get scratched.

•Check that the lens is attached correctly.

VFC4456 VYC1063 VYF3284

123

VFC4605













VQT3N27_ENG_SPA.book 6 ページ２０１１年５月２７日　金曜日　午後１時３１分

VQT3N27

∫Detaching the Lens

≥Check that the camera is turned off.

While pressing on the

lens release button D,

rotate the lens toward the

arrow until it stops and

then remove.

•Attach the lens rear cap so

that the lens contact point

does not get scratched.

•Attach the body cap to the camera so no dirt or

dust will get inside the main unit.

∫Attaching and Detaching the Lens Cap

Pinch the lens cap as shown in the figure

to attach or detach.

• Be careful not to lose

the lens cap.

∫Attaching the Lens Hood

(Supplied Accessory)

Insert the lens hood into the lens with the

short sides at the top and bottom, and

turn in the direction of the arrow until it

stops.

E: Fit to the mark

•When taking pictures with the flash with the lens

hood attached, the lower portion of the screen

may turn dark (vignetting effect) and the control

of the flash may be disabled because the photo

flash may be obscured by the lens hood. We

recommend detaching the lens hood.

•When using the AF assist lamp in the dark,

detach the lens hood.





VQT3N27_ENG_Body.fm 7 ページ２０１１年６月２８日　火曜日　午後２時３２分

VQT3N27

∫Attaching Filters

≥Vignetting may occur if using 2 or more

MC protectors (optional: DMW-LMC46),

PL filters (optional: DMW-LPL46) or ND filters

(optional: DMW-LND46), or if using thick

protectors and/or filters.

≥The filter may become impossible to remove if

excessively tightened, so please refrain from

tightening it too strongly.

≥It is possible to attach the lens cap with the filter

already attached.

≥You cannot attach a conversion lens or adaptor to

this lens. A filter may be used, but attaching any

other element may cause damage to the lens.

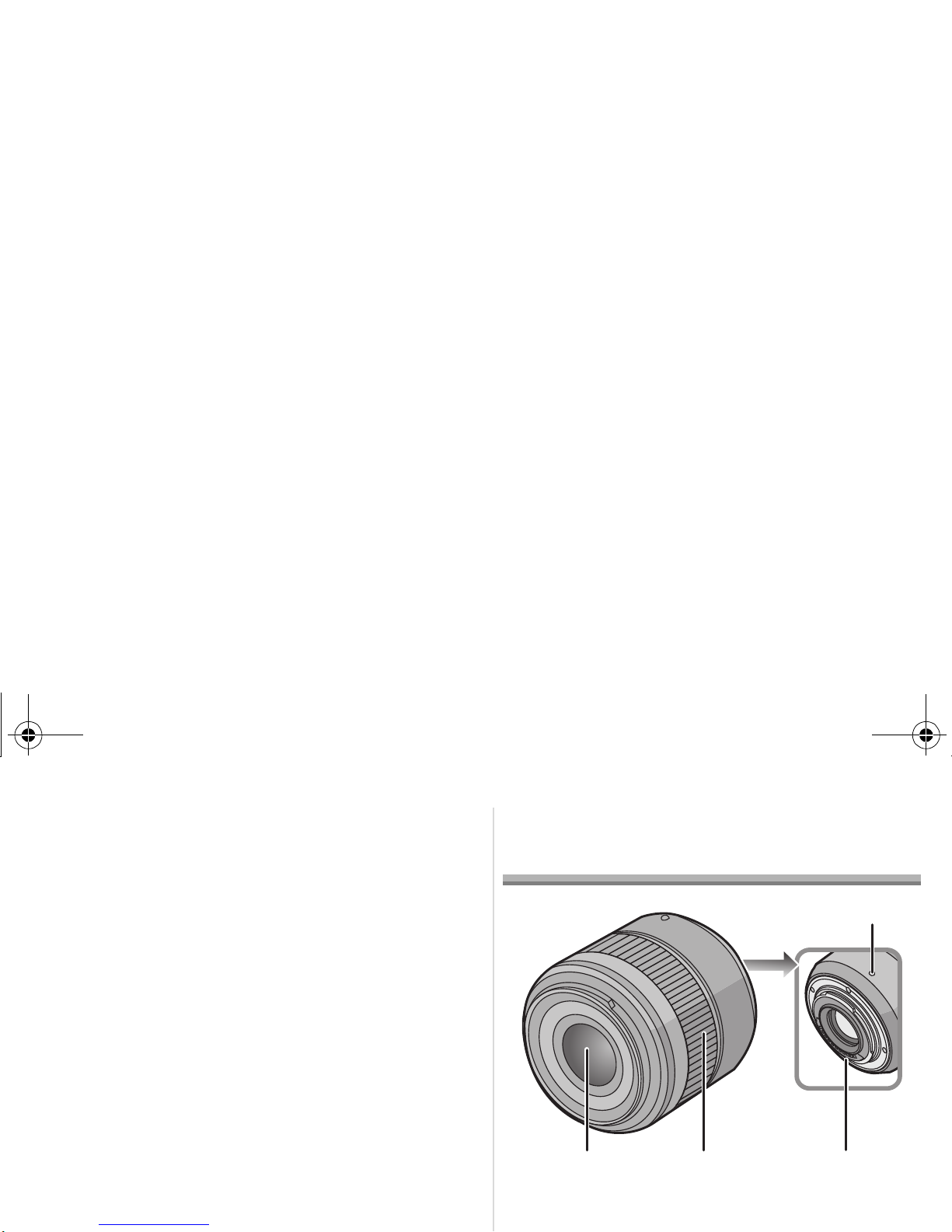

Names and Functions of

Components

1Lens surface

2Focus ring

Rotate to focus when taking pictures with

manual focus.

3Contact points

4Lens fitting mark

21 3

VQT3N27_ENG_SPA.book 8 ページ２０１１年６月１３日　月曜日　午後４時５３分

VQT3N27

Note

≥Change in the image by the focus operation may

be more visible depending on the recording

condition when the AF operates during the motion

picture recording. It is recommended to fix the

focus by setting the camera to manual focus (MF),

etc., when the change of image is disturbing you.

Cautions for Use

Take care not to drop or knock the lens. Also

take care not to put a lot of pressure on the lens.

≥Take care not to drop the bag that you inserted the

lens in as it may damage the lens. The camera

may stop operating normally and pictures may no

longer be recorded.

When using pesticides and other volatile

substances around the camera make sure that

they do not get onto the lens.

≥

If such substances get onto the lens they can

damage the exterior case or cause the paint to peel.

Do not carry the unit when it is still attached to

the camera body.

≥Under no circumstances should the unit be stored

in any of the following locations since doing so

may cause problems in operation or

malfunctioning.

–In direct sunlight or on a beach in summer

–In locations with high temperatures and humidity

levels or where the changes in temperature and

humidity are acute

VQT3N27_ENG_SPA.book 9 ページ２０１１年５月２７日　金曜日　午後１時３１分

VQT3N27

–In locations with high concentrations of sand,

dust or dirt

–Where there is fire

–Near heaters, air conditioners or humidifiers

–Where water may make the unit wet

–Where there is vibration

–Inside a vehicle

≥Refer also to the operating instructions of the

digital camera.

≥When the unit is not going to be used for a

prolonged period, we recommend storing with a

desiccant (silica gel). Failure to do so may result in

performance failure caused by mold, etc. It is

recommended that you check the unit’s operation

prior to use.

≥Do not leave the lens in contact with rubber or

plastic products for extended periods of time.

≥Do not touch the lens contact point. Doing so can

cause failure of the unit.

≥Do not disassemble or alter the unit.

Do not use benzine, thinner, alcohol or other

similar cleaning agents to clean the lens glass or

exterior cabinet.

≥Using solvents can damage the lens or cause the

paint to peel.

≥Wipe off any dust or fingerprints with a soft, dry

cloth.

≥Use a dry dust cloth to remove dirt and dust on the

focus ring.

≥Do not use a household detergent or a chemically

treated cloth.

A sound is heard when the camera is turned on

or off.

A sound is heard from the lens when taking a

picture of a bright subject such as when

outdoors.

≥This is the sound of lens or aperture movement

and is not a malfunction.

Troubleshooting

VQT3N27_ENG_SPA.book 10 ページ２０１１年５月２７日　金曜日　午後１時３１分

Altri manuali per HX025

Indice

Lingue:

Altri manuali Panasonic Obiettivo della fotocamera

Panasonic

Panasonic ET-DLE170 Manuale utente

Panasonic

Panasonic Lumix H-H020A Manuale utente

Panasonic

Panasonic Lumix H-FSA14140 Manuale utente

Panasonic

Panasonic Lumix H-XA025 Manuale utente

Panasonic

Panasonic Lumix H-ES045 Manuale utente

Panasonic

Panasonic Lumix H-VS014140 Manuale utente

Panasonic

Panasonic H-FS12060 Manuale utente

Panasonic

Panasonic H-X012 Manuale utente

Panasonic

Panasonic WV-LZ14 Manuale utente

Panasonic

Panasonic Lumix H-HS35100 Manuale utente

Panasonic

Panasonic Lumix S-E2470 Guida all'installazione

Panasonic

Panasonic DC-GH5M Series Manuale utente

Panasonic

Panasonic LUMIX DMW-STC20 Manuale utente

Panasonic

Panasonic WV-LXY18C4 Manuale utente

Panasonic

Panasonic Lumix S Pro S-R1635 Manuale utente

Panasonic

Panasonic H-HS030 Manuale utente

Panasonic

Panasonic H-FS35100 Manuale utente

Panasonic

Panasonic LUMIX H-HSA12035 Manuale utente

Panasonic

Panasonic Lumix DMC-G1KPP Manuale utente

Panasonic

Panasonic Lumix S-R24105 Manuale utente

Panasonic

Panasonic WV-LA1208 Manuale utente

Panasonic

Panasonic LUMIX S PRO 70-200 mm F4 O.I.S. Manuale utente

Panasonic

Panasonic H-FS045200E Manuale utente

Panasonic

Panasonic L-X025 - Leica D Summilux Lens Manuale utente

Manuali Obiettivo della fotocamera popolari di altre marche

THORLABS

THORLABS ELL15 Manuale utente

FUJICA

FUJICA ZC1000 Manuale utente

Tamron

Tamron A09 Manuale

Sony

Sony SEL-55210 Manuale utente

Sony

Sony VCL-HG2037 Manuale utente

Honeywell

Honeywell HLM25V6F12 Manuale utente

Sony

Sony VCL-ST30 Manuale utente

Canon

Canon FD 35 - 70 mm Manuale utente

Sony

Sony SAL-85F14Z - 85mm f1.4 Carl Zeiss Planar T Coated Telephoto... Manuale utente

ARRI

ARRI Lenses Manuale utente

Nikon

Nikon AF-S VR 24-120 f/3.5-5.6G IF-ED Manuale utente

Rokinon

Rokinon DS50M-C Manuale utente

Olympus

Olympus M.Zuiko Digital ES 300mm f4.0 IS PRO Manuale utente

Sony

Sony VCL-DE07T Manuale utente

Canon

Canon FD Lens Manuale

Tamron

Tamron A036 Manuale utente

Samsung

Samsung 20-50mm F3.5-5.6 ED II Manuale utente

Tamron

Tamron 272E Manuale utente
