Operating Instructions

3D INTERCHANGEABLE LENS FOR DIGITAL CAMERA

Model No. H-FT012

Before connecting, operating or adjusting this

product, please read the instructions completely.

For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo

For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or

send e-mail to: [email protected]

VQT3B92

until

2010/10/22

VQT3B92_ENG_SPA.book 1 ページ２０１０年１０月１日　金曜日　午後２時５３分

VQT3B92

Contents

Information for Your Safety.....................................2

Precautions...........................................................5

Supplied Accessories .............................................6

Attaching/Detaching the Lens.................................6

Names and Functions of Components ...................8

Cautions for Use.....................................................9

Specifications........................................................11

Limited Warranty...................................................12

-If you see this symbol-

THE FOLLOWING APPLIES ONLY IN CANADA.

Information for Your Safety

Keep the unit as far away as possible from

electromagnetic equipment (such as microwave

ovens, TVs, video games, radio transmitters,

high-voltage lines etc.).

≥Do not use the camera near cell phones because

doing so may result in noise adversely affecting

the pictures and sound.

≥If the camera is adversely affected by

electromagnetic equipment and stops functioning

properly, turn the camera off and remove the

battery and/or the connected AC adaptor. Then

reinsert the battery and/or reconnect the AC

adaptor and turn the camera on.

Information on Disposal in other Countries

outside the European Union

This symbol is only valid in the

European Union.

If you wish to discard this

product, please contact your

local authorities or dealer and

ask for the correct method of

disposal.

This Class B digital apparatus complies with

Canadian ICES-003.

VQT3B92_ENG_SPA.book 2 ページ２０１０年１０月１日　金曜日　午後２時５３分

VQT3B92

≥This lens is compatible with the lens mount

standard for the Micro Four ThirdsTM System. You

can take impressive 3D pictures just by mounting

it on a digital camera that supports 3D picture

recording.

≥It cannot be mounted on the Four ThirdsTM mount

specification camera.

≥A TV compatible with 3D is required to play back

pictures recorded in 3D.

≥It does not support recording in vertical

orientation.

≥The digital camera illustrations in these operating

instructions show DMC-GH2 as an example.

≥The appearance and specifications of products

described in this manual may differ from the actual

products you have purchased due to later

enhancements.

≥Micro Four ThirdsTM and Micro Four Thirds Logo

marks are trademarks or registered trademarks of

Olympus Imaging Corporation, in Japan, the

United States, the European Union and other

countries.

≥Four ThirdsTM and Four Thirds Logo marks are

trademarks or registered trademarks of Olympus

Imaging Corporation, in Japan, the United States,

the European Union and other countries.

≥G MICRO SYSTEM is a lens exchange type

digital camera system of LUMIX based on a Micro

Four Thirds System standard.

≥Other names, company names, and product

names printed in these instructions are

trademarks or registered trademarks of the

companies concerned.

Refer to catalogues/Web pages for most current

information regarding compatible digital camera

bodies.

http://panasonic.jp/support/global/cs/dsc/

(This Site is English only.)

ENGLISH

VQT3B92_ENG_SPA.book 3 ページ２０１０年１０月１日　金曜日　午後２時５３分

VQT3B92

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

●Reorient or relocate the receiving antenna.

●Increase the separation between the equipment and receiver.

●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

●Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Responsible Party:

Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Support Contact:

Panasonic Consumer Electronics Company

Telephone No.: 1-800-211-PANA (7262)

VQT3B92_ENG_SPA.book 4 ページ２０１０年１０月１日　金曜日　午後２時５３分

VQT3B92

∫Lens Care

≥Sand and dust can damage the lens. Make

sure that no sand or dust gets inside the lens

or the terminals when using the lens on a

beach, etc.

≥

This lens is not waterproof. If drops of water get

onto the lens, wipe the lens with a dry cloth.

≥Do not press the protective glass with excessive

force.

≥When there is dirt (water, oil, and fingerprints, etc.)

on the surface of the protective glass, the picture

may be affected. Lightly wipe the surface of the

protective glass with a soft, dry cloth before and

after taking pictures.

≥Do not place the lens mount facing downwards.

Do not allow the lens contact points 1to become

dirty.

∫About Condensation (Fogging of the

Lens)

≥Condensation occurs when there are differences

in temperature and humidity as described below.

Condensation can cause the lens to become dirty

and lead to mold and malfunctioning, so exercise

caution in the following situations:

–When the camera is brought indoors from outside

during cold weather

–When the camera is brought into an air-

conditioned car

–When cold air from an air conditioner is directly

blown onto the lens

–In humid places

≥Put the camera into a plastic bag to allow it to

acclimatize to the surrounding temperature in

order to prevent condensation. If condensation

occurs, turn the power off and leave it for about

two hours. Once the camera acclimatizes to the

surrounding temperature the condensation will go

away naturally.

Precautions

VQT3B92_ENG_SPA.book 5 ページ２０１０年１０月１日　金曜日　午後２時５３分

VQT3B92

Supplied Accessories

[Inspection to be performed when you unpack

the unit]

When removing the unit from its packing box, check

that the main unit and the supplied accessories are

there and also check their external appearance and

functions to verify that they have not sustained any

damage during distribution and transportation.

If you discover any trouble, contact your vendor

before using the product.

Product numbers correct as of October 2010. These

may be subject to change.

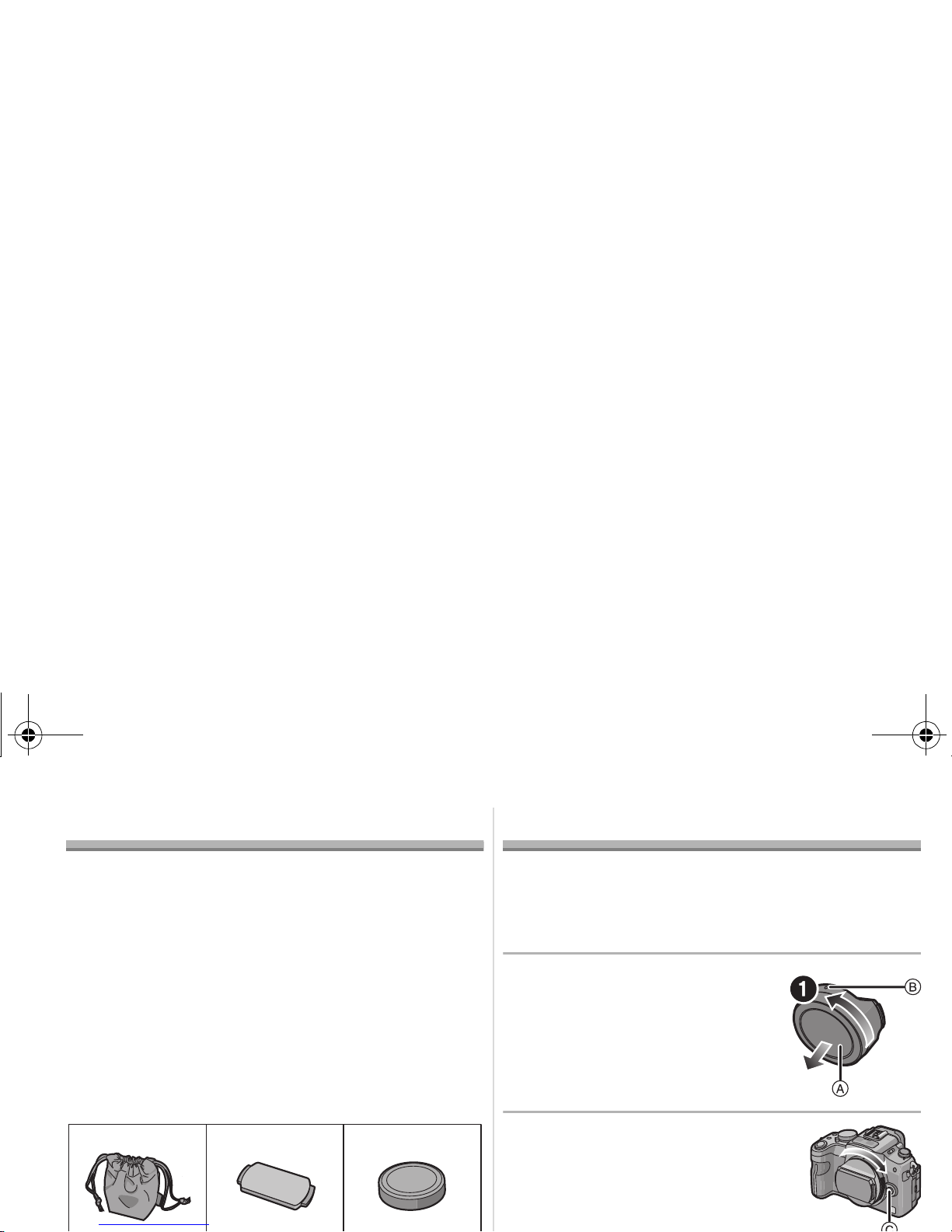

1Lens Storage Bag

2Lens Cap

3Lens Rear Cap

(The lens rear cap and lens cap are attached to

the interchangeable lens at the time of purchase.)

Attaching/Detaching the Lens

≥Refer also to the camera’s operating instructions

for attaching and detaching the lens.

∫Attaching the Lens

≥Check that the camera is turned off.

1 Turn the lens rear

cap to detach it.

A: Lens Rear Cap

2 Align the lens fitting

marks B(red marks) on

the camera body and the

lens and then rotate the

lens in the direction of

the arrow until it clicks.

•Do not press the lens release

button C when you attach a lens.

•Do not try to attach the lens when holding it at an

angle to the camera body as the lens mount may

get scratched.

•Check that the lens is attached correctly.

VFC4460 VYF3393 VFC4605

312



VQT3B92_ENG_SPA.book 6 ページ２０１０年１０月１日　金曜日　午後２時５３分

VQT3B92

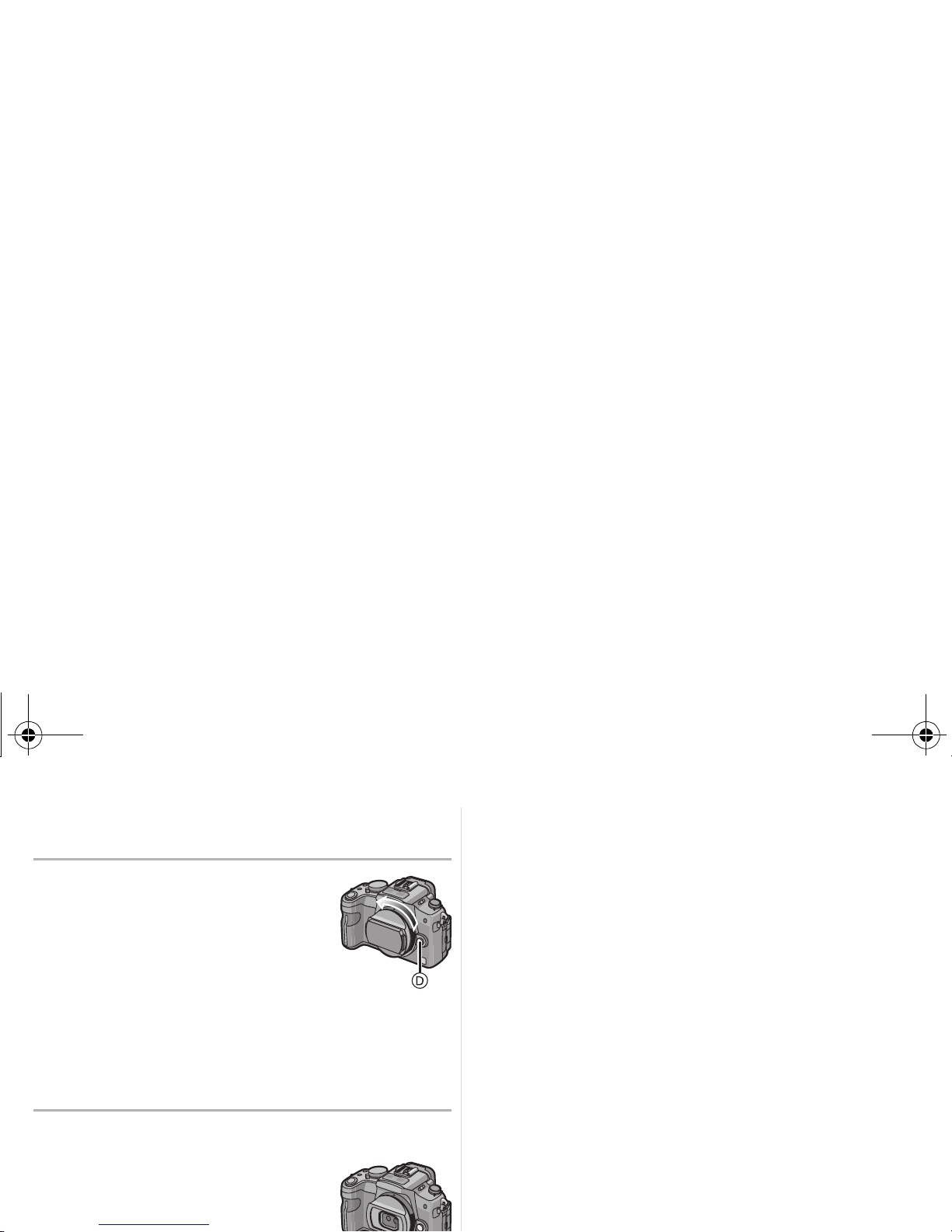

∫Detaching the Lens

≥Check that the camera is turned off.

Press the lens release

button Dwhile turning

the lens as far as

possible in the direction

of the arrow to detach it.

•Attach the lens rear cap so

that the lens contact point does not get

scratched.

•Attach the body cap to the camera so no dirt or

dust will get inside the main unit.

∫Attaching and Detaching the Lens Cap

≥Be careful not to lose

the lens cap.

VQT3B92_ENG_SPA.book 7 ページ２０１０年１０月１日　金曜日　午後２時５３分

VQT3B92

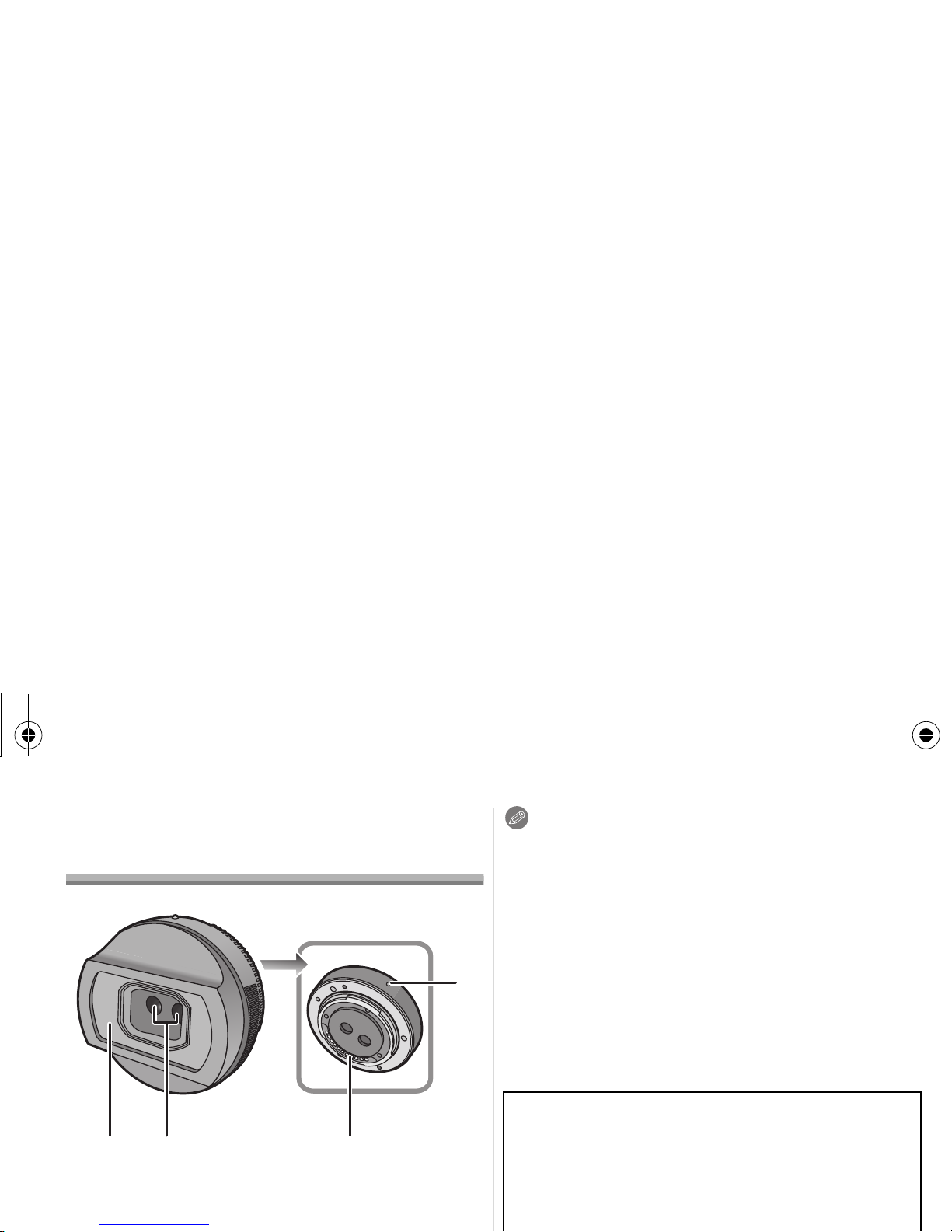

Names and Functions of

Components

1Protective glass

2Lens

3Contact points

4Lens fitting mark

Note

≥Zoom operation is not supported.

≥It is recommended to use a tripod or a flash to

record steady pictures.

≥When a distance to the subject is 0.6 m (1.97 feet)

to approximately 1 m (3.28 feet), horizontal

disparity becomes too great, and you may not see

the 3D effect at the edges of the image.

≥Functions that can be used depend on the digital

camera you are using. Please refer to the

operating instructions of the digital camera for

details.

To ensure that the 3D pictures can be safely

viewed, pay attention to the following points

when recording.

≥Where possible, record with the digital camera in

a horizontal state.

≥Do not get too close to the subject [record from a

distance of at least 0.6 m (1.97 feet)].

≥Be careful not to shake the camera while in a

vehicle or walking.

VQT3B92_ENG_SPA.book 8 ページ２０１０年１０月１日　金曜日　午後２時５３分

VQT3B92

Cautions for Use

Take care not to drop or knock the lens. Also

take care not to put a lot of pressure on the lens.

≥Take care not to drop the bag that you inserted the

lens in as it may damage the lens. The camera

may stop operating normally and pictures may no

longer be recorded.

When using pesticides and other volatile

substances around the camera make sure that

they do not get onto the lens.

≥

If such substances get onto the lens they can

damage the exterior case or cause the paint to peel.

Do not carry the unit when it is still attached to

the camera body.

≥Under no circumstances should the unit be stored

in any of the following locations since doing so

may cause problems in operation or

malfunctioning.

–In direct sunlight or on a beach in summer

–In locations with high temperatures and humidity

levels or where the changes in temperature and

humidity are acute

–In locations with high concentrations of sand,

dust or dirt

–Where there is fire

–Near heaters, air conditioners or humidifiers

–Where water may make the unit wet

–Where there is vibration

–Inside a vehicle

≥Refer also to the operating instructions of the

digital camera.

≥When the unit is not going to be used for a

prolonged period, we recommend storing with a

desiccant (silica gel). Failure to do so may result in

performance failure caused by mold, etc. It is

recommended that you check the unit’s operation

prior to use.

≥Do not leave the lens in contact with rubber or

plastic products for extended periods of time.

≥Do not touch the lens contact point. Doing so can

cause failure of the unit.

≥Do not disassemble or alter the unit.

Do not use benzine, thinner, alcohol or other

similar cleaning agents to clean the lens glass or

exterior cabinet.

≥Using solvents can damage the lens or cause the

paint to peel.

≥Wipe off any dust or fingerprints with a soft, dry

cloth.

≥Do not use a household detergent or a chemically

treated cloth.

VQT3B92_ENG_SPA.book 9 ページ２０１０年１０月１日　金曜日　午後２時５３分

VQT3B92

∫About 3D recording

With the 3D interchangeable lens attached, do

not record a subject at less than the minimum

focus distance.

≥The 3D effects may be more pronounced, and

therefore cause tiredness or discomfort.

≥The minimum focus distance is 0.6 m (1.97 feet).

When recording with the 3D interchangeable lens

attached, be careful not to shake the digital camera.

≥

Tiredness or discomfort may result if the shake is

pronounced, due to riding in a vehicle or walking etc.

≥We recommend using a tripod.

∫About 3D viewing

Anyone who is hyper sensitive to light, suffers

from heart disease or is otherwise unwell should

avoid viewing 3D pictures.

≥Doing may have an adverse affect on such

medical conditions.

If you feel tired, uncomfortable or otherwise

strange when viewing 3D pictures, stop viewing

at once.

≥Continuing to view may cause illness.

≥

Please rest appropriately after stopping the viewing.

When viewing 3D pictures, we recommend

taking a break every 30 to 60 minutes.

≥

Viewing for extended periods may cause eye-fatigue.

Short-sighted or long-sighted persons, those

with differences in the sight of their right and left

eyes, and those with astigmatism are advised to

correct their vision by wearing glasses etc.

Stop viewing if you can clearly see a double

image while viewing 3D pictures.

≥

There are differences in the way that different

people experience 3D pictures. Please correct your

sight appropriately before viewing 3D pictures.

≥You can change the 3D setting of your television

or 3D output setting of the digital camera to 2D.

When viewing 3D pictures on a 3D compatible

television, position yourself a distance away that

is least 3 times the effective height of the

television.

≥(Recommended distance):

For 42z; approx. 1.6 m (5.25 feet),

for 46z; approx. 1.7 m (5.58 feet),

for 50z; approx. 1.9 m (6.23 feet),

for 54z; approx. 2.0 m (6.56 feet).

≥Viewing from a distance closer than the

recommended distance may lead to eye-fatigue.

VQT3B92_ENG_SPA.book 10 ページ２０１０年１０月１日　金曜日　午後２時５３分

Altri manuali per Lumix H-FT012

Indice

Lingue:

Altri manuali Panasonic Obiettivo della fotocamera

Panasonic

Panasonic AWE800 - COLOR CAMERA Manuale utente

Panasonic

Panasonic WV-LZ12A Manuale utente

Panasonic

Panasonic Lumix S-R24105 Guida all'installazione

Panasonic

Panasonic Lumix H-F007014 Manuale utente

Panasonic

Panasonic WV-LA210C3 Manuale utente

Panasonic

Panasonic L-X025 - Leica D Summilux Lens Manuale utente

Panasonic

Panasonic ET-DLE170 Manuale utente

Panasonic

Panasonic AK-LZ20M85G Manuale utente

Panasonic

Panasonic H-FS045200 - Lumix Telephoto Zoom Lens Manuale utente

Panasonic

Panasonic Lumix DMC-GH2 Manuale utente

Panasonic

Panasonic Lumix H-HS35100 Manuale utente

Panasonic

Panasonic Lumix H-ES045 Manuale utente

Panasonic

Panasonic ET-D3LEW10C Manuale utente

Panasonic

Panasonic 33335 Manuale utente

Panasonic

Panasonic Lumix H-XA025 Manuale utente

Panasonic

Panasonic ET-ELW30 Manuale utente

Panasonic

Panasonic ET-DLE060 Manuale utente

Panasonic

Panasonic Lumix H-F008 Manuale utente

Panasonic

Panasonic 5025232847358 Manuale utente

Panasonic

Panasonic WV-LZ61 Manuale utente

Panasonic

Panasonic WV-LP6 Manuale utente

Panasonic

Panasonic LUMIX S PRO 70-200 mm F4 O.I.S. Manuale utente

Panasonic

Panasonic Lumix H-FSA14140 Manuale utente

Panasonic

Panasonic DMW-LA7 Manuale utente

Manuali Obiettivo della fotocamera popolari di altre marche

THORLABS

THORLABS ELL15 Manuale utente

FUJICA

FUJICA ZC1000 Manuale utente

Tamron

Tamron A09 Manuale

Sony

Sony SEL-55210 Manuale utente

Sony

Sony VCL-HG2037 Manuale utente

Honeywell

Honeywell HLM25V6F12 Manuale utente

Sony

Sony VCL-ST30 Manuale utente

Canon

Canon FD 35 - 70 mm Manuale utente

Sony

Sony SAL-85F14Z - 85mm f1.4 Carl Zeiss Planar T Coated Telephoto... Manuale utente

ARRI

ARRI Lenses Manuale utente

Nikon

Nikon AF-S VR 24-120 f/3.5-5.6G IF-ED Manuale utente

Rokinon

Rokinon DS50M-C Manuale utente

Olympus

Olympus M.Zuiko Digital ES 300mm f4.0 IS PRO Manuale utente

Sony

Sony VCL-DE07T Manuale utente

Canon

Canon FD Lens Manuale

Tamron

Tamron A036 Manuale utente

Samsung

Samsung 20-50mm F3.5-5.6 ED II Manuale utente

Tamron

Tamron 272E Manuale utente
