Panasonic Lumix S-R24105 Guida all'installazione

ⓒPanasonic Corporation 2021 Unauthorized copying and distribution is a violation of law.

F22

16 elements in 13 groups

Recording range 0.30 m (0.98 feet) to ∞(from the focus distance reference line)

Maximum image magnification 0.5×

Image stabiliser Yes

Minimum aperture value

Dust and splash resistant Yes

Maximum diameter Φ84 mm (3.3 inch)

Angle of view 84°(Wide) to 23°(Tele)

Specifications

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

“LUMIX S 24-105 mm F4 MACRO O.I.S.”

Focal length f=24 mm to 105 mm

Mount Leica Camera AG L-Mount

Filter diameter 77 mm

(2 aspherical ED lenses, 2 aspherical lenses, 1 UED lens, 2 ED lenses)

Lens construction

Aperture type 9 diaphragm blades/circular aperture diaphragm

Maximum aperture F4.0

Permissible relative humidity 10%RH to 80%RH

－10 ℃to 40 ℃(14 ℉to 104 ℉)

Overall length

Recommended operating

temperature

Mass (Weight) Approx. 680 ｇ(1.4991 lb)

Approx. 118 mm (4.6 inch)

(from the tip of the lens to the base side of the lens mount)

S-R24105

Component Repair

Service Training Manual Ver.1.1

Internal use only

TABLE OF CONTENTS

1.1. Introduction

1.2. Important Notice

1.2.1. Overview of Cleaning and Replacing parts

1.2.2. How to treat LENS P.C.B. UNIT

2 Exploded View

2.1. Exploded View of Lens Unit

2.1.1. Exploded View of 1st Lens Frame Unit (Ref. No. 410)

2.2. Precautions for Supply Part

3 Replacement Parts

4 Service Jigs & Tools

5 Maintenance

5.1. Dust / Dirt on the outer casing part(s)

5.2. Dust / Dirt on the Lens Glasses (Lens Cleaning)

5.2.2. Cleaning procedures of inside surface of the Lens

6 Disassembly and Assembly Procedures

6.1. Disassembly Procedures

6.1.1. Disassembly Flowchart

6.1.2. Disassembly Procedure

6.2. Assembly Procedure

6.2.1. Assembly Flowchart

6.2.2. Assembly Procedure

7 Inspection and Adjustmen

7.1. Matrix Table of Necessary Inspection and Adjustment

when Replacing Parts

7.2. Matrix Table of Necessary Inspection and Adjustment

when Cleaning

7.3. Flowchart of Inspection and Adjustment

7.3.1. Flowchart of Inspection

7.3.2. Flowchart of Adjusument

7.4. Procedure of Inspection and Adjustment

7.4.1. Equipment and Chart Setting

7.4.2. Checking Chart Image

7.4.3. Master Body(DC-S1R) Setting and Position

7.4.4. Lens Unit Setting

7.4.5. PC Software

7.4.6. Simple Resolution Inspection

7.4.7. Simple Resolution Real Time Adjustment

7.4.8. Electrical Adjustment

7.4.9. Procedure of Visual Checking

7.4.10. Gluing

8 Revision History

・　・　・　・　・　・　・　・　・　・ 2

・　・　・　・　・　・　・　・　・　・

5.2.1. Cleaning procedures of outside surface of the Lens

PAGE

1 Service Navigation 1

・　・　・　・　・　・　・　・　・　・

・　・　・　・　・　・　・　・　・　・ 24

・　・　・　・　・　・　・　・　・　・

・　・　・　・　・　・　・　・　・　・ 36

・　・　・　・　・　・　・　・　・　・

・　・　・　・　・　・　・　・　・　・ 21

・　・　・　・　・　・　・　・　・　・

・　・　・　・　・　・　・　・　・　・ 20

・　・　・　・　・　・　・　・　・　・ 2

1 Service Navigation

1.1. Introduction

This manual contains technical information, which allow service personnel's to understand and service this model.

Please place an order using the parts list and not the drawing reference numbers.

1.2. Important Notice

Perform lens cleaning and repair in the clean room (class 10,000) since lens is delicate product and it dislikes a dust.

1.2.1. Overview of

Cleaning

and

Replacing parts

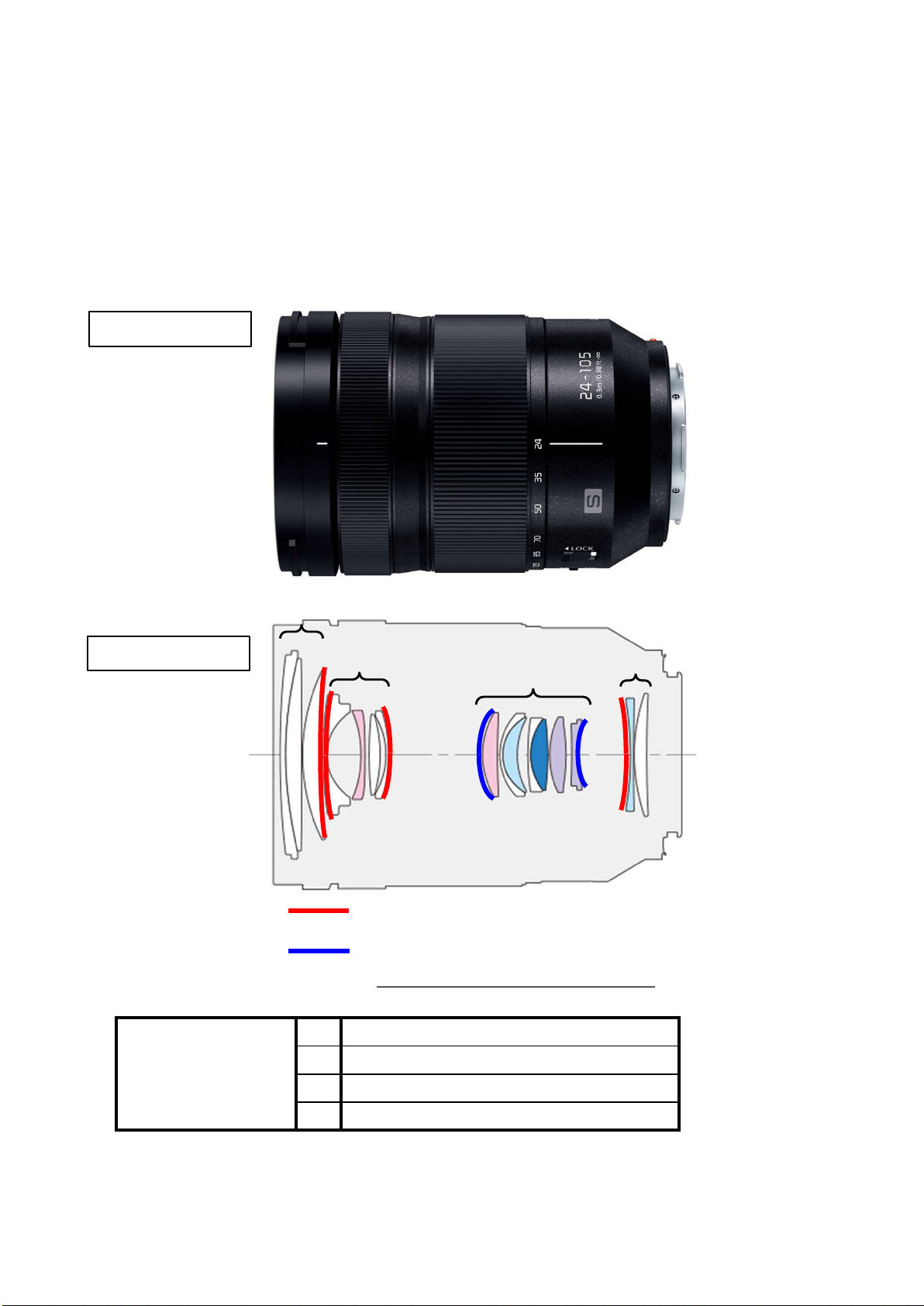

1.2.2. How to treat LENS P.C.B. UNIT

1. LENS P.C.B. UNIT is not eligible for service part, use LENS UNIT instead.

2. Reuse SHADING FRAME because it put serial number.

Replacement Part

①

④

1ST LENS FRAME UNIT

5TH LENS FRAME UNIT

②2ND LENS FRAME UNIT

③3RD LENS FRAME2 UNIT

External view

Cleanable area (Wipe with clean cloth)

①

②③④

Cleanable area (Clean with air blower)

※Don't allow to wipe with cloth

Sectional view

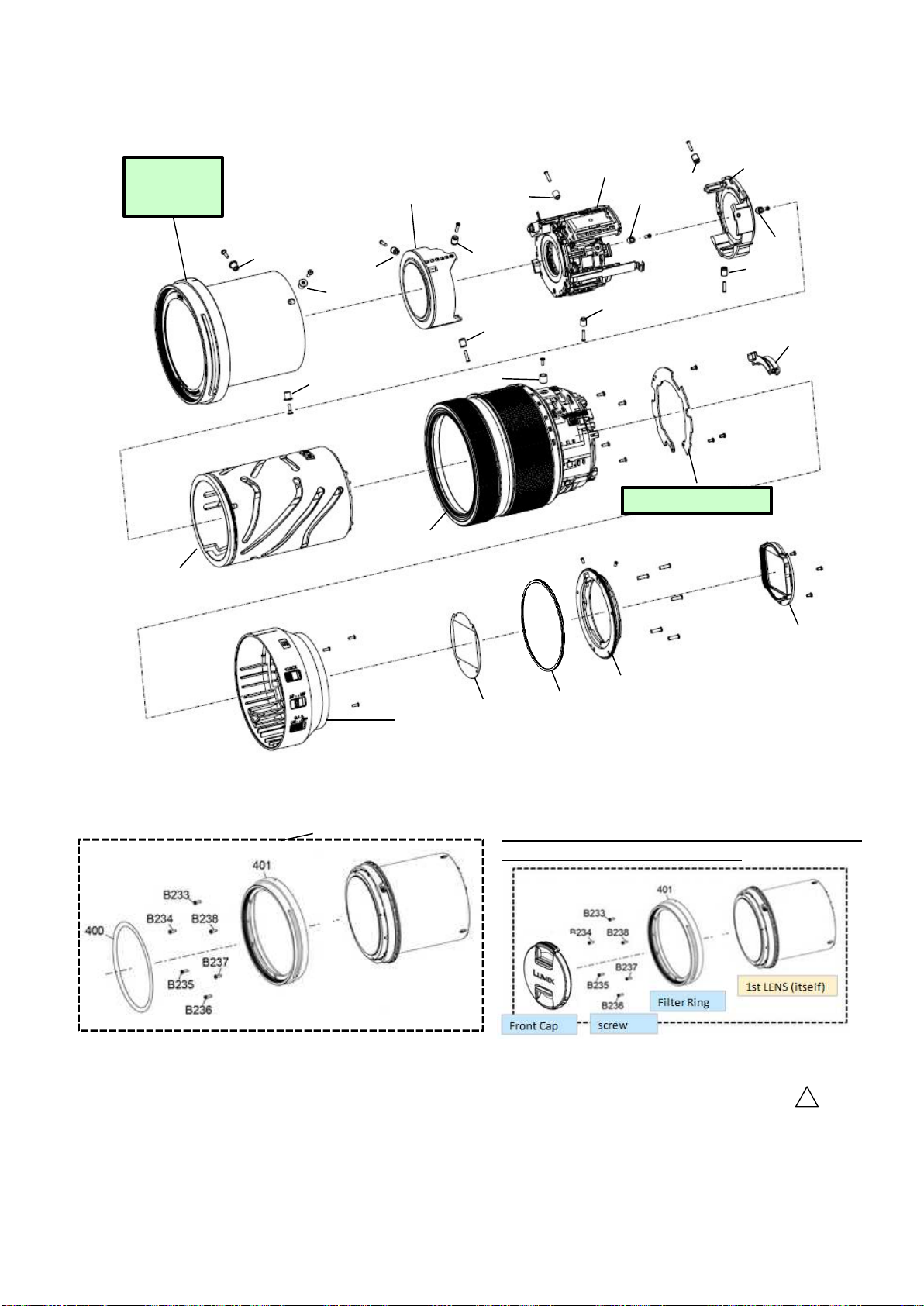

2 Exploded View

2.1. Exploded View of Lens Unit

2.1.1. Exploded View of 1st Lens Frame Unit (Ref. No. 410)

Part No.410(

1ST LENS FRAME UNIT

) is supplied

in the form as the figure below.

(Note) Front Cap is protection during transportation.

No.400 is not included in the Unit.

2.2. Precautions for Supply Part

To avoid transportation troubles, the following parts come with extra parts.

Please discard the extra part when the part is received.

Ref. No. 410

：

1ST LENS FRAME UNIT

(Front Cap)

Ref. No. 411

：

2ND LENS FRAME UNIT

Ref. No. 412

：

3RD LENS FRAME2 UNIT

Ref. No. 413

：

5TH LENS FRAME UNIT

B200

300 B201

B202

B203

B204

B205

B206

B207

B208

B209

B210

B211

B212 B213

B214

B215

B216

B217

B218

B219 B220

B221

B225

B222

B223

B224

B226

B227

B228

301

302

304

305

306

307 308

309

310

311

312

303

410

1st Lens

Frame Unit

Lens P.C.B. Unit

B229 B230

B231

B232

403

413

412

409

407

402

405

406

414

404

411

410

3 Replacement Parts

・Parts marked with [IMBU] in the remarks column are supplied from SLBD-IMBU.

・Others are supplied from PAVCX

B226 - B228 VHD2246 SCREW 3

B219, B220 VHD2298 SCREW 2

B221 - B225,

B229 - B232 DVME1315Z SCREW 9

B200 - B202 DVME1243Z SCREW 3

B216 - B218 SHD0021

SCREWSHD0069B212

B203 - B211 DVME1432Z SCREW 9

SCREW 3

B213 - B215

VHD2073 SCREW 3

409 3OU1Z276Z RING MOUNT BASE UNIT 1

412 6HR2SR24105Z 3RD LENS FRAME2 UNIT 1

410 4HR1SR24105Z 1ST LENS FRAME UNIT 1

411 5HR2SR24105Z 2ND LENS FRAME UNIT 1

414 8HR1SR24105Z CAM BARREL UNIT 1

413 9HR1SR24105Z 5TH LENS FRAME UNIT 1

407 6SE4SR24105Z MOUNT CONTACT UNIT 1

SHADING FRAME 1

403 DVMA1029Z L MOUNT 1

406 RDE6SR24105Z REAR FRAME UNIT 1

405 2OU1Z276Z SHADING SHEET 1

Remarks

400 1OU1Z276Z DECORING UNIT 1

Ref.No. Part No. PcsPart Name & Description

300 - 302 DVMH1197Z 1ST CAM PIN 3

303 DVMH1196Z ZOOM DRIVE PIN 1

304 - 312 DVOR1144Z 2-5 CAM PIN 9

FILTER RING

404 DVHG1093Z MOUNT RUBBER 1

402 DVOR1098Z

B233 - B238 VHD2277 SCREW 6

150 DVQL1138Z CE/WEEE LABEL 1 E

150 VQL1W22

200 LOU4SR24105CSFCZ LENS UNIT 1 [IMBU]

(3-7 CAM PIN)

TEN YEARS LABEL 1 GK

401 DVOR1095Z

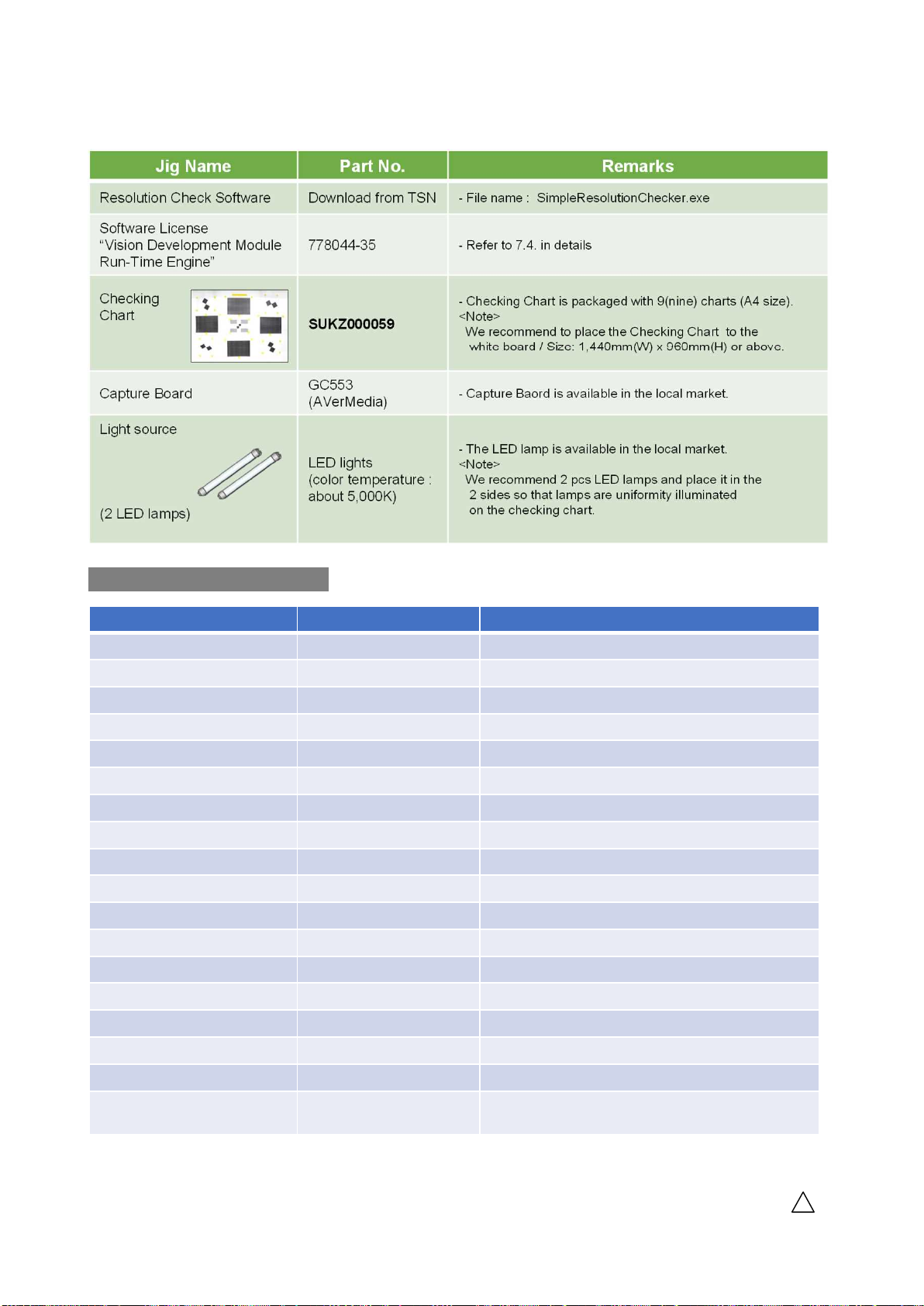

4 Service Jigs & Tools

The following Jigs and Tools are required for checking and servicing this Lens Unit.

Cnnventional

Jig Name Jig No. Remarks

Torque Driver RFKZ0542 or RFKZ0456

Torx Driver RFKZ0609 T3 type

Rp-Chart L-size SUKZ000034 600mm x 800mm

Rp-Chart M-size SUKZ000035 300mm x 400mm

Lens Cleaning Kit VFK1900BK

Collimeter RFKZ0422

Master Body Purchased locally DC-S1R (Panasonic)

Tweezers Purchased locally Plastic or bamboo (Do not use metal)

Nipper Purchased locally

Tripod Purchased locally

Locking glue Purchased locally Three Bond 1401B or 1401C

Illuminometer Purchased locally Set Illumination of chart to 1500±150 lx

Blower Purchased locally

Gloves Purchased locally

Cloth Purchased locally

HDMI cable Purchased locally Type A - Type A (Use Two)

USB cable Purchased locally Type A - Type C

Clean Box RFKZ0429 This item comes without air pump-filter, purchase

it locally. Model number is Omron ZN-A2502

*SUKZ000034 / SUKZ000035 are no longer available due to production discontinuation

and SUKZ000068 / SUKZ000069 are substitution for Rp-chart.

5 Maintenance

5.1. Dust / Dirt on the outer casing part(s)

1. Blow off the dust first, then sweep out the dust from narrower spaces with soft cleaning brush.

2. Wipe up the outer casing part with the dry fuzz-free cloth.

5.2. Dust / Dirt on the Lens Glasses (Lens Cleaning)

5.2.1. Cleaning procedures of outside surface of the Lens

1. Blow off the dust on the Lens glass surface with the Blower, gently. (Do not blow strongly.)

2. Wipe out the dirt on the Lens glass surface with Lens Cleaning Kit (VFK1900BK) if necessary.

(Consult the instruction sheet which is included in the Lens Cleaning Kit in details.)

5.2.2. Cleaning procedures of inside surface of the Lens

1. When removing the each above unit, it has to be proceed inside of satisfied clean level.

(Less than class 10,000 (Federal Standard 209D))

As for clean box, refer to the "4 Service Jigs & Tools", in details.

2. Blow off the dust on the Lens glass surface with the Blower, gently. (Do not blow strongly.)

3. Wipe out the dirt on the Lens glass surface with Lens Cleaning Kit (VFK1900BK) if necessary.

(Consult the instruction sheet which is included in the Lens Cleaning Kit in details.)

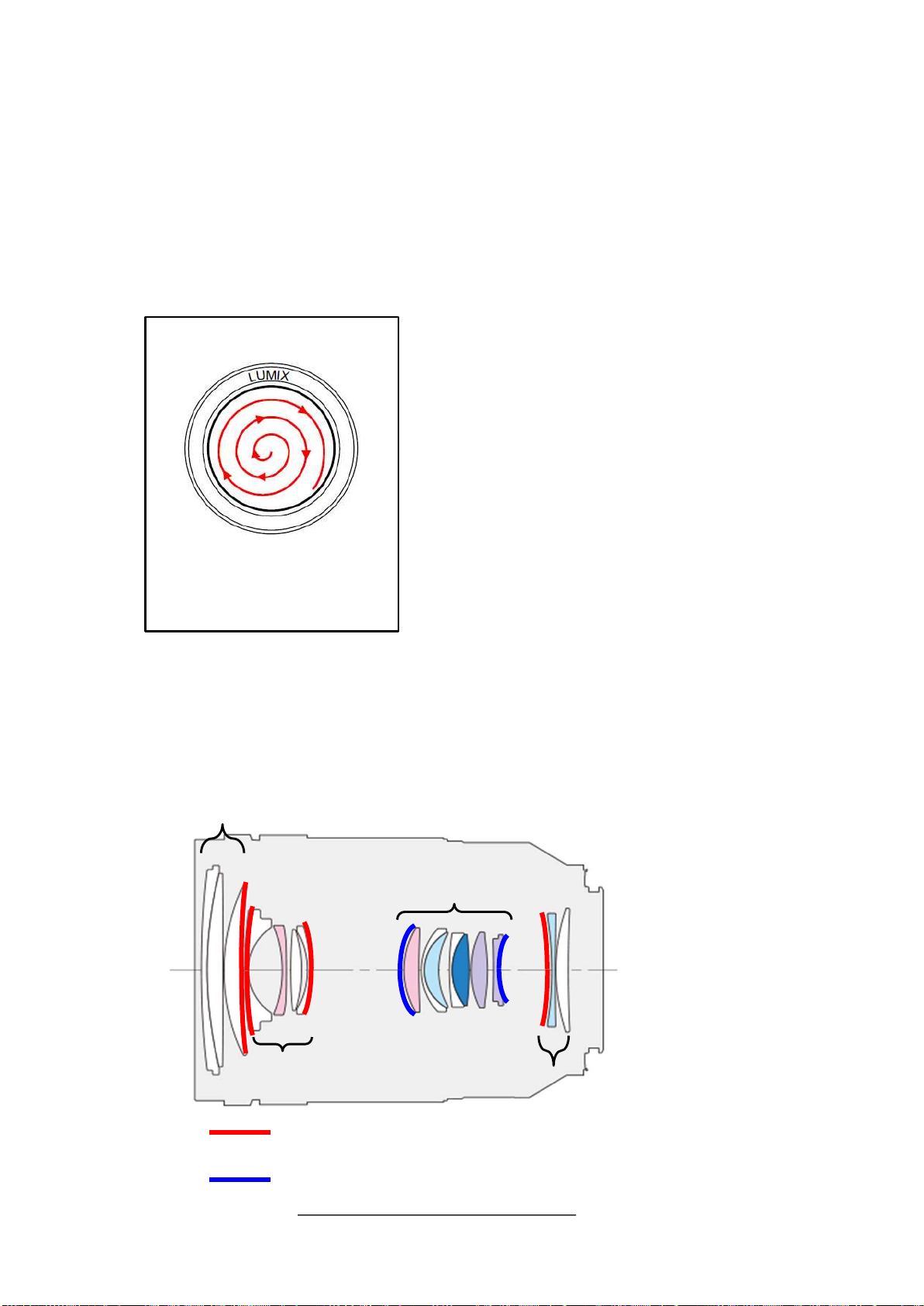

【Cleaning Instruction】

Wipe the Lens surface with

cleaning sheet starting

from centre towards to

outside in a circular motion.

1st Lens Frame Unit

Cleanable area (Wipe with clean cloth)

Cleanable area (Clean with air blower)

※Don't allow to wipe with cloth

2nd Lens Frame Unit

5th Lens Frame Unit

3rd Lens Frame2 Unit

6 Disassembly and Assembly Procedures

6.1. Disassembly Procedures

6.1.1 Disassembly Flowchart

8 2nd Lens Frame Unit

3rd Lens Frame2 Unit

5th Lens Frame Unit

Cam Barrel Unit

10 Decoring Unit

Lens Unit

4 Rear Frame Unit

1 Shading Frame

2L Mount

Mount Rubber

6 Ring Mount Base Unit

3 Shading Sheet

5Mount Contact Unit

Lens P.C.B. Unit

Filter Ring

7 1st Lens Frame Unit

Attention

For optical axis adjustment only,perform No.10 and No.11.

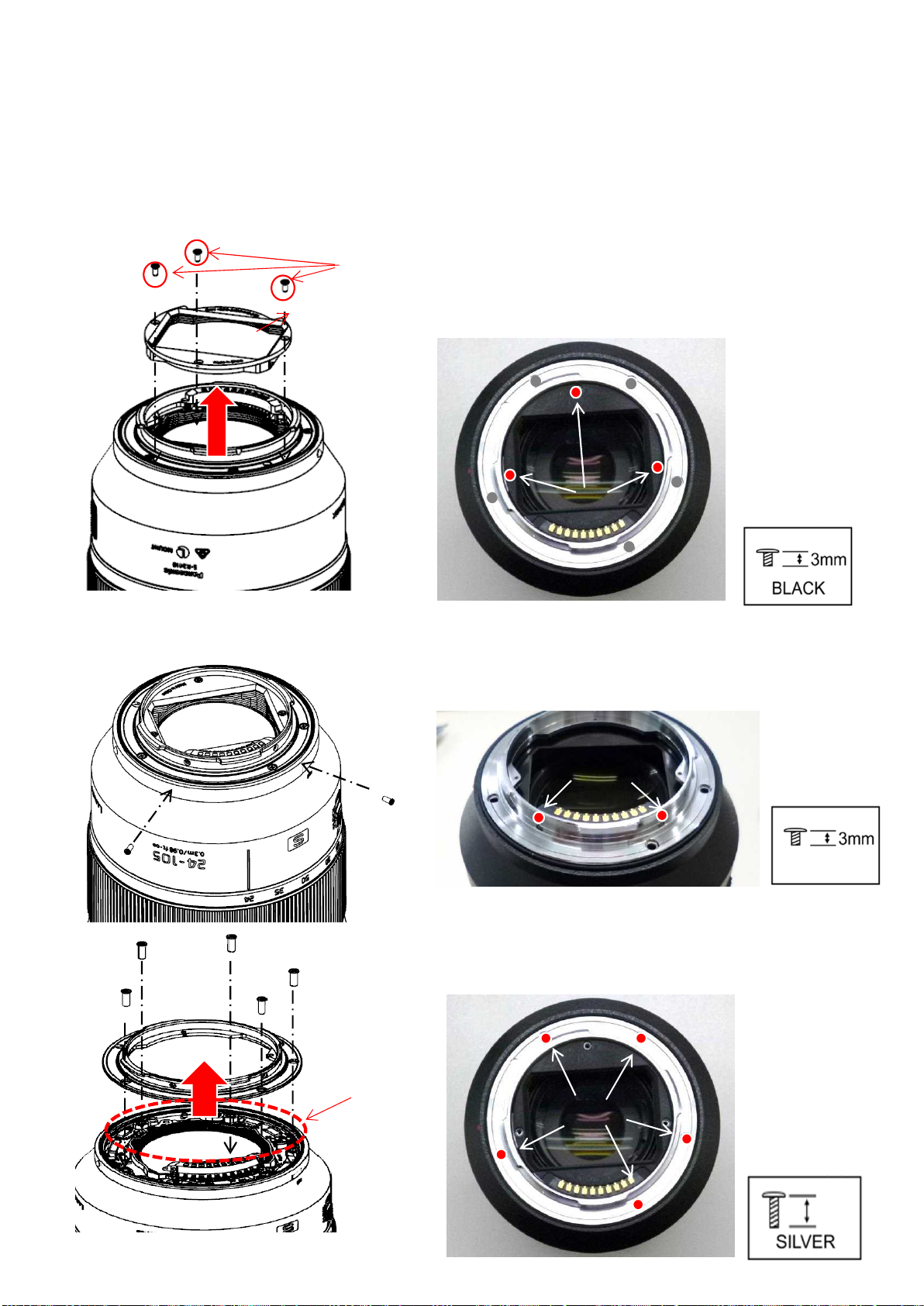

6.1.2.1. Removal of Shading Frame

6.1.2. Disassembly Procedure

Important Notice：

- Perform lens disassembly in the clean room (class 10,000 / Federal Standard 209D) since lens is delicate product

and it dislikes a dust.

1. Remove 3 Screws (A)

2. Remove the Shading Frame

6.1.2.2. Removal of L Mount and Mount Rubber

2. Remove 5 Screws (C)

3. Remove L Mount

4. Remove Mount Rubber

1. Remove 2 Screws (B)

Screw(A)

Screw(B)

Screw(C)

Mount Rubber

SILVER

7mm

Screw(A)

< Preparation >

- Set the zoom position to WIDE end (24mm).

- Put the Lens so that the line of zoom comes towards you.

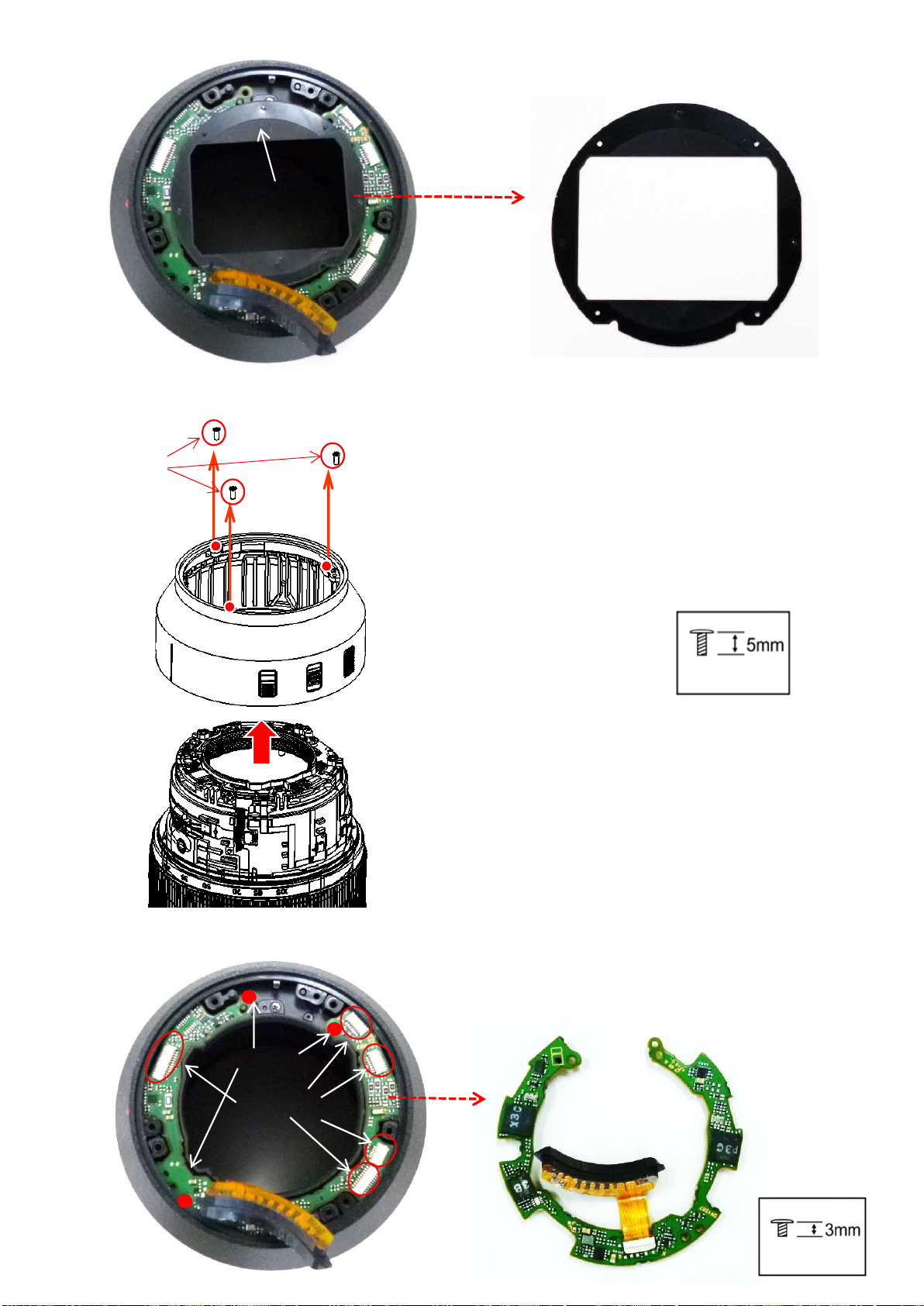

1. Remove Shading Sheet

6.1.2.5. Removal of Lens P.C.B. with Mount Contact Unit

6.1.2.3. Removal of Shading Sheet

1. Disconnect 5 connectors

2. Remove 3 Screws (E)

3. Remove Lens P.C.B. with Mount Contact Unit

Shading Sheet

Connectors

Screw(E)

6.1.2.4. Removal of Rear Frame Unit

1. Remove 3 Screws (D)

2. Remove Rear Frame Unit

Screw(D)

BLACK

SILVER

Altri manuali per Lumix S-R24105

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Obiettivo della fotocamera

Panasonic

Panasonic DMW-GTC1 Manuale utente

Panasonic

Panasonic S-E70200 Manuale utente

Panasonic

Panasonic WV-LA6B2 Manuale utente

Panasonic

Panasonic AG-LA7200G Manuale utente

Panasonic

Panasonic H-FS045200 - Lumix Telephoto Zoom Lens Manuale utente

Panasonic

Panasonic Lumix H-H020 Manuale utente

Panasonic

Panasonic ET-ELW30 Manuale utente

Panasonic

Panasonic H-HS043 Manuale utente

Panasonic

Panasonic LUMIX S PRO 70-200 mm F4 O.I.S. Manuale utente

Panasonic

Panasonic WV-LA6B2 Manuale utente

Panasonic

Panasonic H-HS030 Manuale utente

Panasonic

Panasonic WV-LZ12A Manuale utente

Panasonic

Panasonic LUMIX H-X015E Manuale utente

Panasonic

Panasonic HX025 Manuale utente

Panasonic

Panasonic Lumix H-ES12060 Manuale utente

Panasonic

Panasonic S-R2060 Manuale utente

Panasonic

Panasonic LUMIX S 85 mm F1.8 Manuale utente

Panasonic

Panasonic WV-LP6 Manuale utente

Panasonic

Panasonic ET-ELW22 Manuale utente

Panasonic

Panasonic DMWLWA52 Manuale utente

Panasonic

Panasonic LUMIX S Pro R70200 Manuale utente

Panasonic

Panasonic WV-LZ80 Guida utente

Panasonic

Panasonic Lumix H-FT012 Manuale utente

Panasonic

Panasonic Lumix H-FS14140 Guida all'installazione

Manuali Obiettivo della fotocamera popolari di altre marche

THORLABS

THORLABS ELL15 Manuale utente

FUJICA

FUJICA ZC1000 Manuale utente

Tamron

Tamron A09 Manuale

Sony

Sony SEL-55210 Manuale utente

Sony

Sony VCL-HG2037 Manuale utente

Honeywell

Honeywell HLM25V6F12 Manuale utente

Sony

Sony VCL-ST30 Manuale utente

Canon

Canon FD 35 - 70 mm Manuale utente

Sony

Sony SAL-85F14Z - 85mm f1.4 Carl Zeiss Planar T Coated Telephoto... Manuale utente

ARRI

ARRI Lenses Manuale utente

Nikon

Nikon AF-S VR 24-120 f/3.5-5.6G IF-ED Manuale utente

Rokinon

Rokinon DS50M-C Manuale utente

Olympus

Olympus M.Zuiko Digital ES 300mm f4.0 IS PRO Manuale utente

Sony

Sony VCL-DE07T Manuale utente

Canon

Canon FD Lens Manuale

Tamron

Tamron A036 Manuale utente

Samsung

Samsung 20-50mm F3.5-5.6 ED II Manuale utente

Tamron

Tamron 272E Manuale utente
