Setup Procedure

Model No.

DP-130/135/150 Series

Option

Model No.

DA-DS150

Table of Contents

Setup Procedure ............................. 2

Before setting up

Releasing Scanner

Removing Shipping Materials

InstallingTonerCartridge

Installing Paper

Connecting Printer Cable and

Telephone Line

Setup Procedure For Option.......... 8

2nd Paper Feed Module

Handset Unit

Expansion Flash Memory Card

Installing Printer Driver ................ 12

ForWindows 95/98

For Windows NT 4.0

ForWindows 2000

Installing Panasonic

Document Management System .. 24

Installing Panasonic Class 2 Fax

Modem........................................... 27 This setup guide includes the setup procedure

not only for the main unit but also for options.

Please keep this guide.

You will need it when you buy the options.

ForWindows 95/98

For Windows NT 4.0

ForWindows 2000

Digital Copier

Before setting up

Setup Procedure

ATTENTION

CUse only the setup units/parts designated by Panasonic.If the copier should

be damaged by using other setup units/parts, Panasonic will not bear any

responsibility.

CDrum unit already comes installed in copier.

Copier Operating Instructions

CFor Copier (1 piece)

CFor Facsimile (1 piece)

CCD-ROM (1 piece)

CSetup Guide (1 piece)

Toner Cartridge

(1 piece)

■■

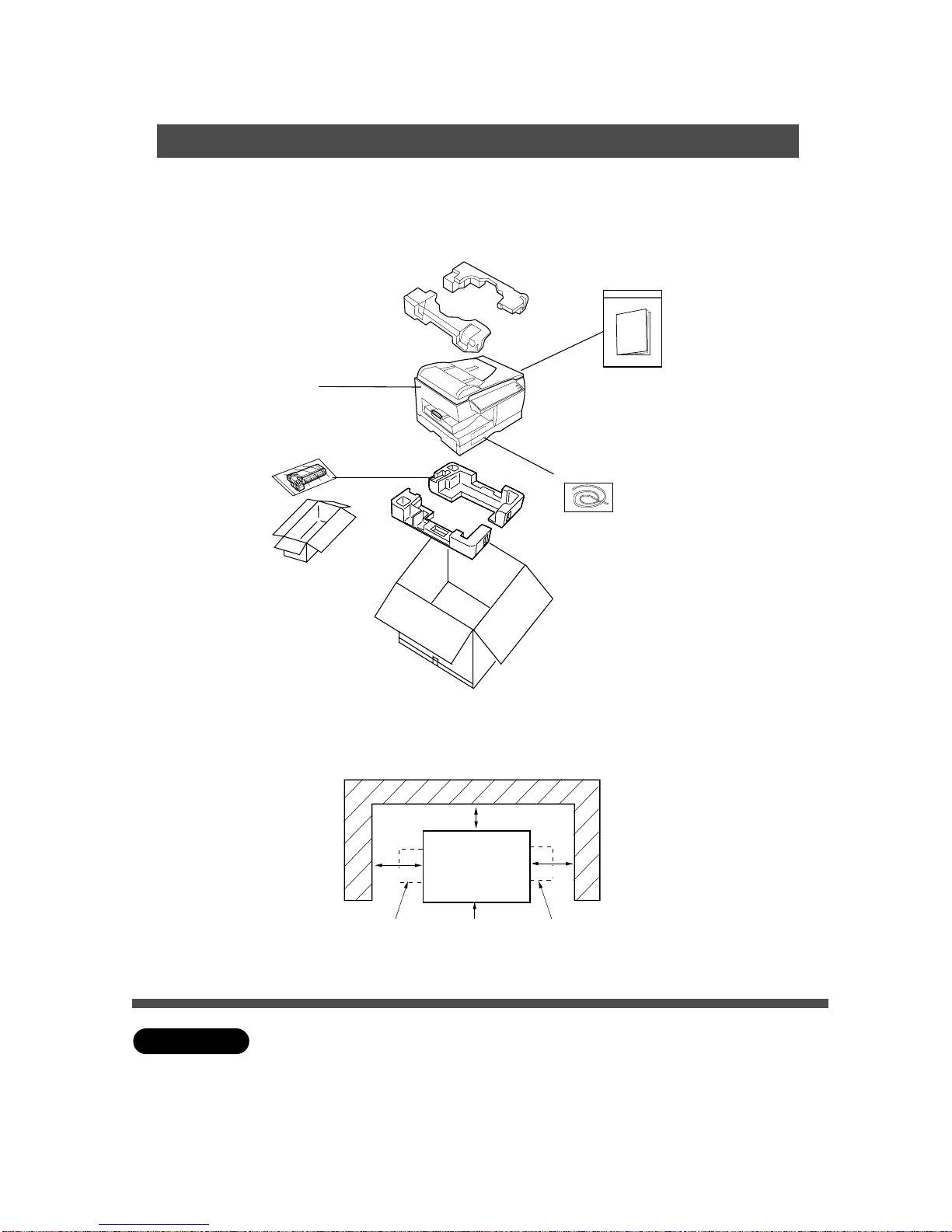

■Unpack and install on a stable flat surface.

Check that you have all the contents illustrated.

Note: Do not plug the copier until directed to do so.

■■

■Minimum Space Requirement

Copier Sheet BypassExitTray

300 mm 700 mm

100 mm

Cable

CPacked in the paper tray

CUse only the setup units/parts designated by Panasonic.If the copier should be

damaged by using other setup units/parts, Panasonic will not bear any

responsibility.

CUnplug the power code when setting up the main unit.

Setup Procedure

1Set up the main unit

Do not plug the main unit for these

operations.

Releasing the scanner

Installing the toner cartridge

Removing shipping materials

Installing paper

(See P.##)

■■

■Following procedure needs to power on.

2Printer

#Install the printer driver software

from the CD-ROM.(See P.##)

$Connect the printer to the PC

with a bi-directional parallel

interface cable (36 pins)

3Fax

#Connect the telephone line and

the handset cable.(See P.##)

$Set up the dialing method (See

P.##)

4Extended Functions

Install the extended function you need by

following the instructions of the CD-ROM

CScanner

CDevice Setting

CPhone Book

CStatus Monitor

CPanasonic Document Management

System

ATTENTION

Release Scanner/Remove shipping materials

Setup Procedure

ATTENTION

■■

■Do not plug the copier until directed to do so.

CDo not plug in copier until set-up is complete.

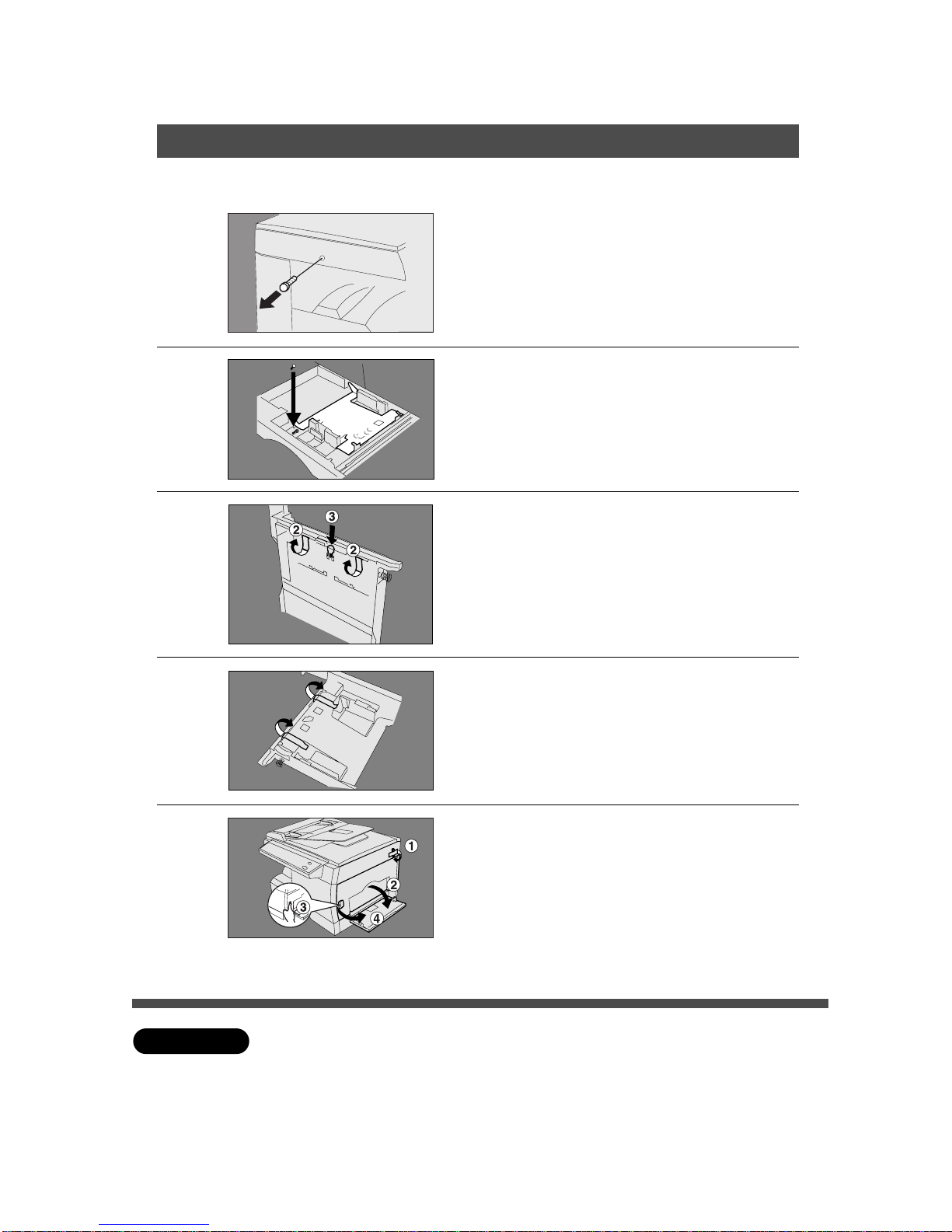

1Remove the fixing screw for the

optics unit.

2Pull paper tray out of copier and

secure the screw to the bottom of

the paper tray.

Note: When moving the copier reinstall

the fixing screw.

3#Completely remove the paper

tray from the copier.

$Release the shipping tapes

(2 pieces) from the bottom.

%Push the bottom plate lock

button.

Bottom view

4Remove the shipping tapes from

the bottom plate.(2 pieces)

5#Remove the shipping tape.

$Open the sheet bypass.

%Push the button.

&Open the right cover.

Remove shipping materials/Install Toner Cartridge

Setup Procedure

ATTENTION

CFor optimum copy quality use the recommended Panasonic toner cartridge.

Store toner cartridge in a cool dark place.Install toner cartridge immediately

after unsealing.

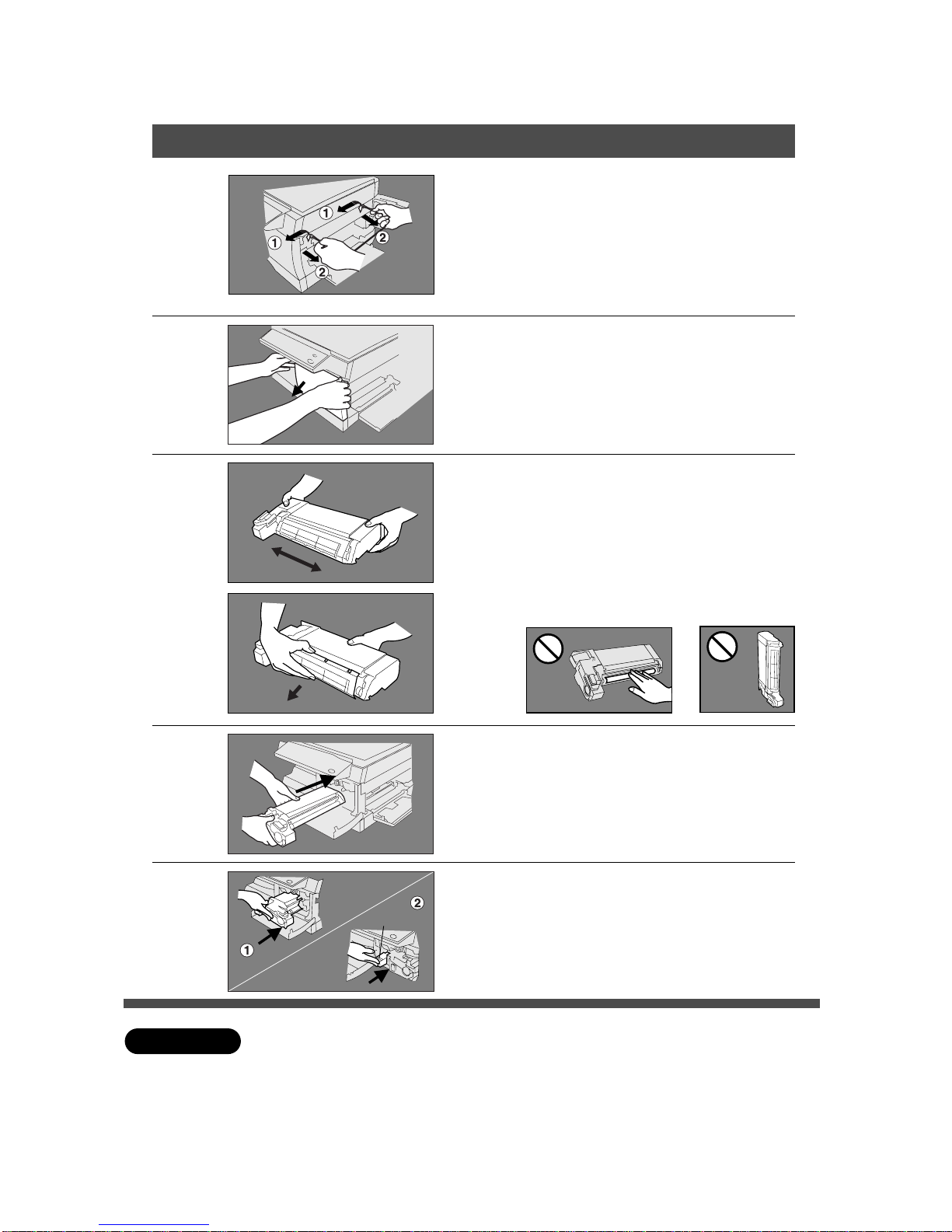

Remove the shipping material of

fuser unit.

#Remove the tapes.

(2 pieces)

Pullout the shippingmaterials (whitestring

with2blue stoppers)from thefuserunit.

7Open the front panel.

CDo not open the front panel first. It can

not be opened unless you open the

covers shown in procedure 5.

8#Shake the toner cartridge

several times.

$Take off the toner cartridge

cover (white plastic) and

discard.

Do not touch the magnetic roller!

Do not stand the toner cartridge on end!

Install the toner cartridge.

#Push the toner cartridge until it

stops.

Push the green handle until it locks.

%Close the front panel.

Close the right cover. (See page 7)

(Close the sheet bypass.

Handle

Install paper

Setup Procedure

ATTENTION

CWhen making 2-sided copies, use the sheet bypass.

CIf the paper tray is not closed completely, the Add Paper Indicator in the control

panel will light up.In that case, please close the paper tray completely.

CFor changing paper size, see page 19.

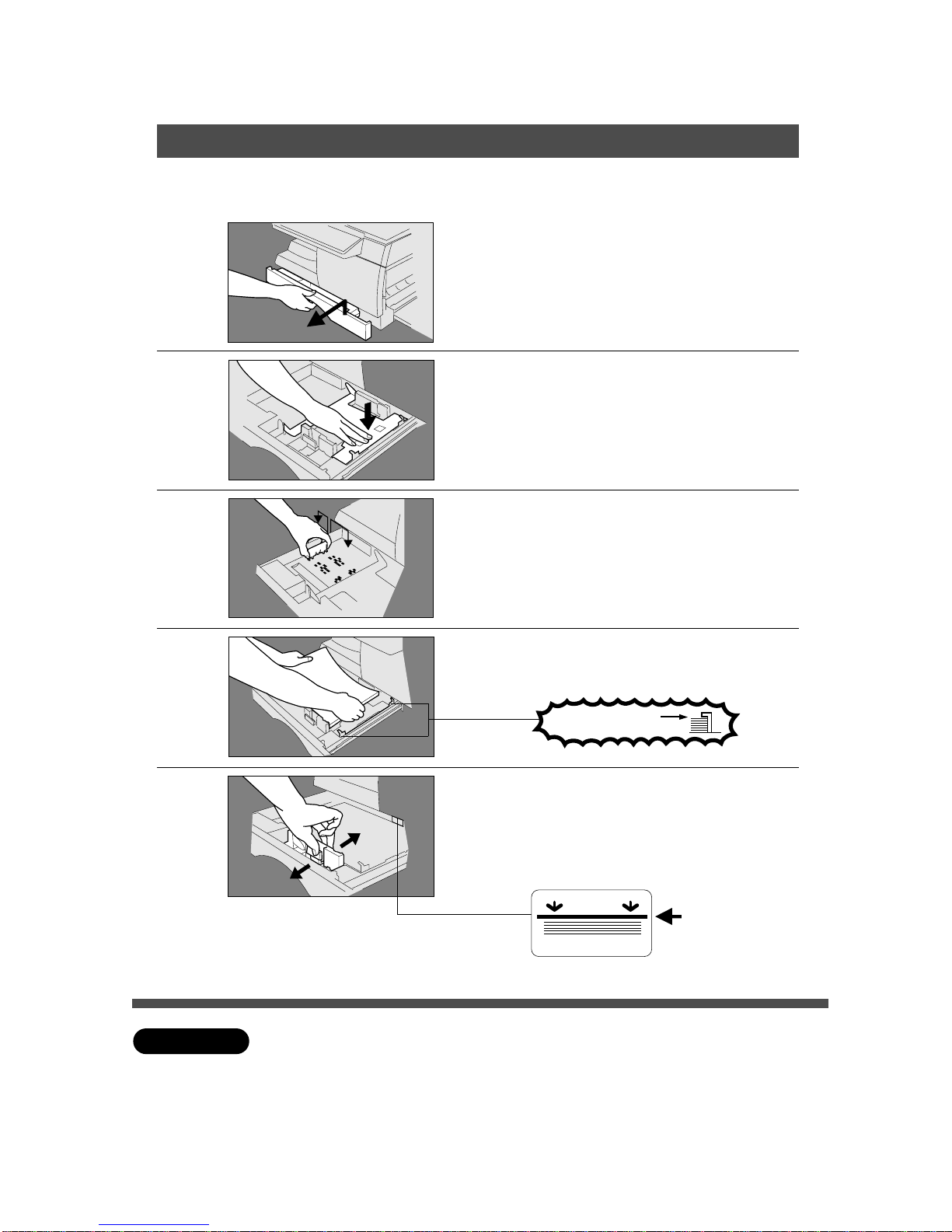

Lift slightly and pull paper tray out

of copier until it stops.

2Push the bottom plate down until it

locks.

3Install the paper guide into the

holes that correspond to the paper

size you plan to load.

4Place paper.

Up to 250 sheets.

Do not fill above

5#Slide the paper guide (front) to

the paper edge.

$Push the paper tray back into

copier.

Overfill Indicator

1-sided copy

Set-up is completed.Now ready to make a copy.

■■

■

Push the paper tray into copier. Plug in the unit and turn on the power.When

the Add Paper Indicator (JJ

J) lights, install paper using the following procedure.

Connecting Printer Cable and Telephone Line

Setup Procedure

■■

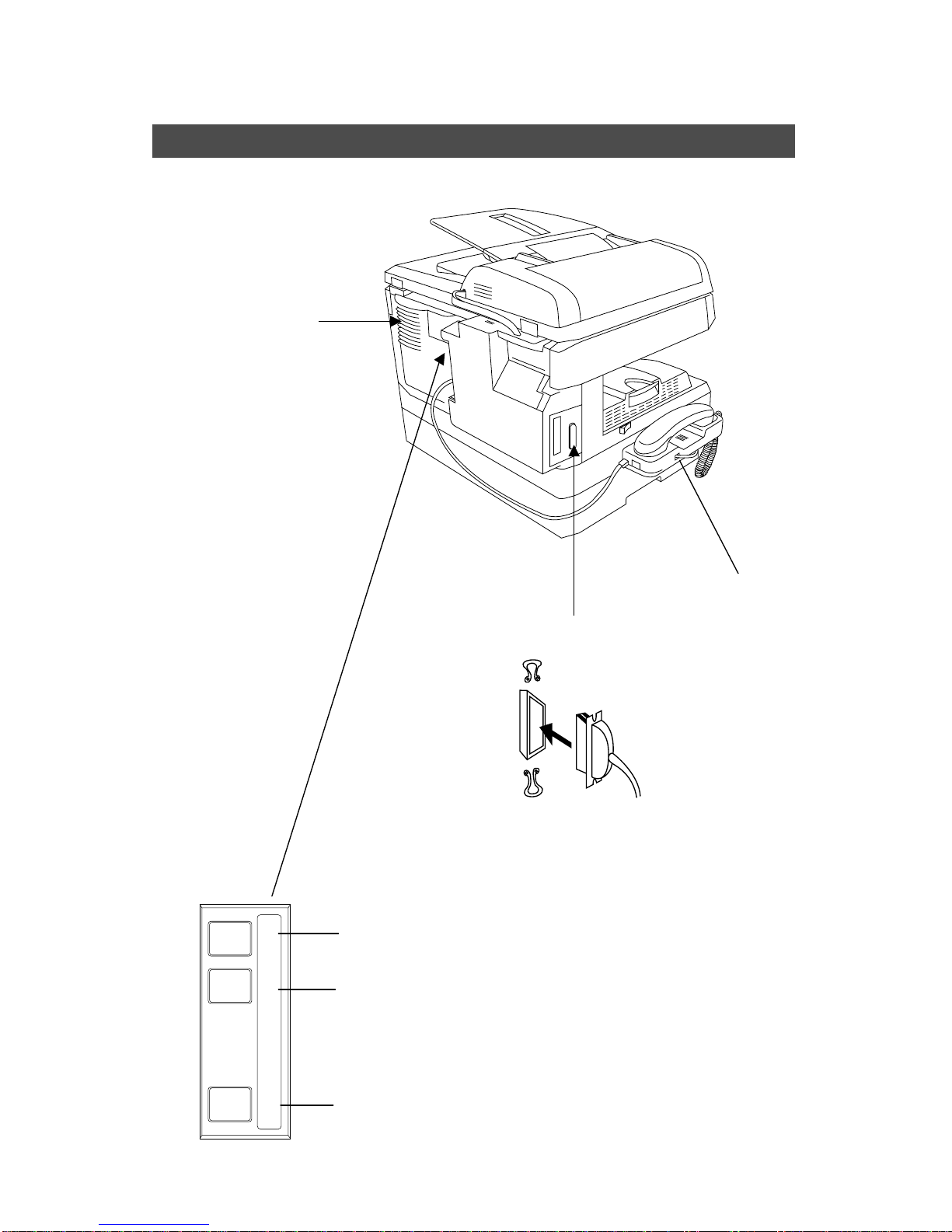

■Back & Left Side View

LINETEL

HANDSET

Ventilation Openings

CDo not block the ventilation

openings.

Handset (Option)

Parallel Interface Connector

CConnect to PC

Telephone Line Modular Jack (LINE)

CConnect to a leased line from telephone company.

TModular Jack for a Telephone Set independent from

DP-150 series

CTo be connected with the non-DP-150 use telephone.

Optional Modular Jack for an Optional Telephone

Handset.

Parallel Interface Cable

CObtain a cable conforming to a PC separately.

(A cable does not come with the unit.) Use a cable of

IEEE1284 specifications, with a maximum length of 6 ft.

2nd Cassette Module

Setup Procedure For Option

ATTENTION

■■

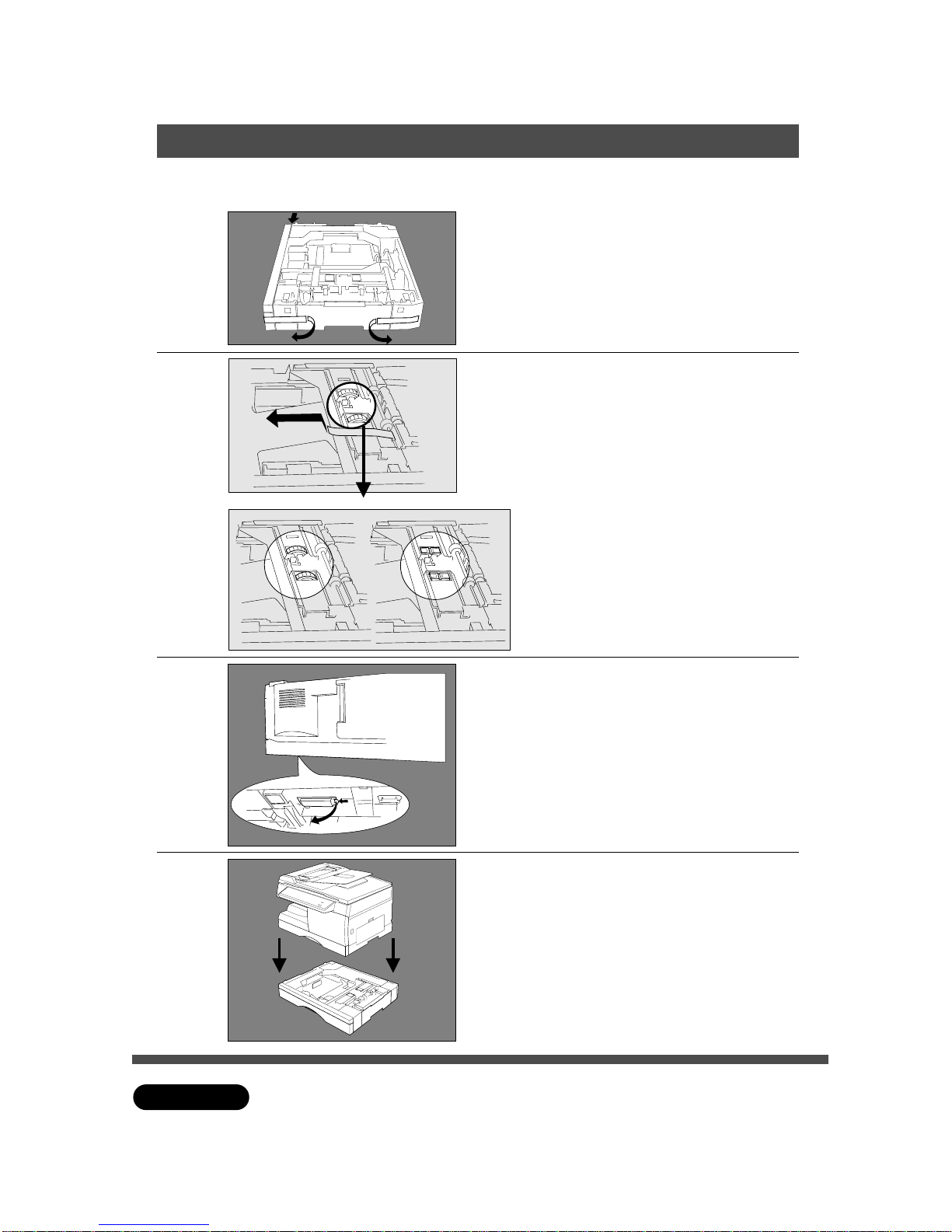

■Unplug the power code when installing the 2nd cassette module

CUnplug the power code when installing each unit.

1Remove the tapes. (3 pieces)

2Remove the tape as the arrow

shows.

Make sure that the roller is on the

right position as shown left.

(The jagged side is up.)

If the position is wrong, adjust the

rollers the right position.

3Press the button of the white rear

cover then remove the cover.

4Place the machine on the 2nd

cassette module.

Right Position Wrong Position

-1

-2

2nd Cassette Module

Setup Procedure For Option

ATTENTION

CUnplug the power code when installing each unit.

Do not touch the gear area of the 2nd cassette

module.

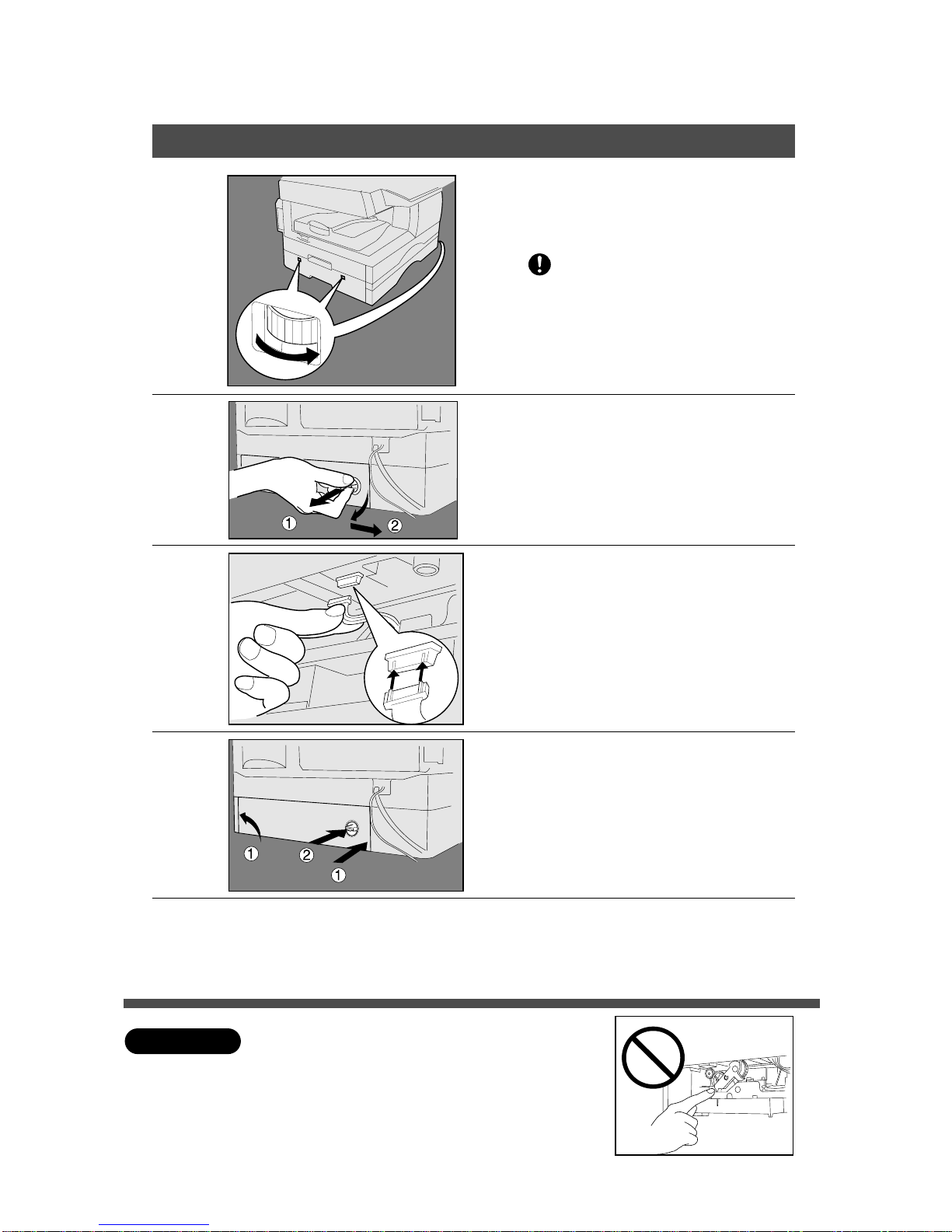

Reinstall the rear cover and insert the hook then

plug the power code.

Fix the 2nd cassette module under

the machine by turning the gears.

(Total 4 points)

If the 2nd cassette module is not

fixed securely, it may fall and hurt

you.

6Remove the rear cover of the 2nd

cassette module.

#Pull out the hook.

$Open the cover slightly, and

remove it.

7Plug the harness of the 2nd

cassette module into the machine

connector.

8#Reinstall the rear cover.

$Insert the hook untill it locks.

9Slide out the paper cassette and

remove the shipping materials.

(See steps 3, 4 on page 9)

Handset Unit

Setup Procedure For Option

ATTENTION

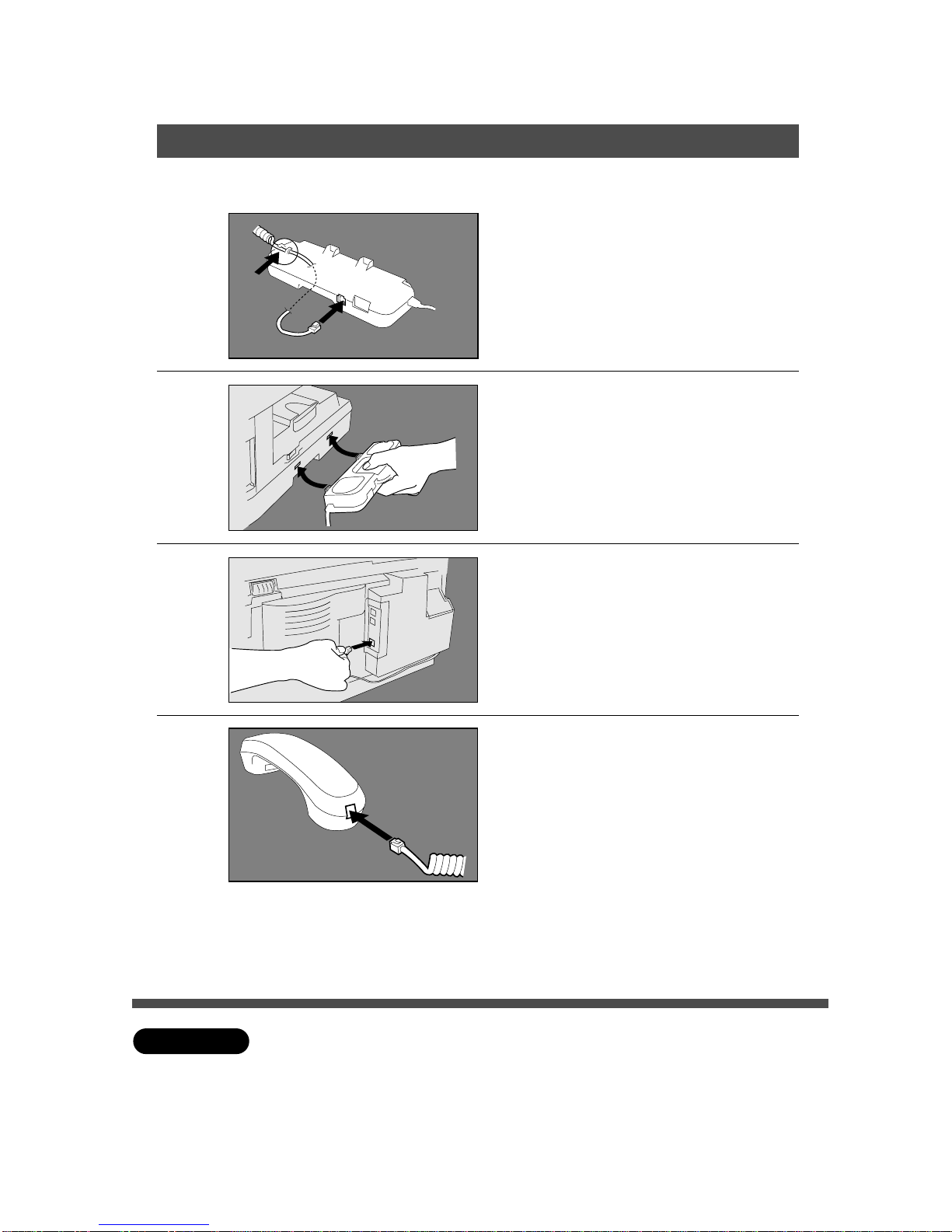

CUnplug the power code when installing the handset unit.

Take the handset unit out of the

carton.

Connect the handset code to the

handset cradle.

2Hook the projections into square

holes on the machine without

putting on the receiver.

3Connect the cable into the

handset jack on the machine.

4Connect the handset code into the

receiver.

Put the receiver on the cradle.

■■

■Unplug the power code when installing the handset-unit.
