This manual contains supplementary instructions regarding the use of the
computer. It explains the cases where the operation of the computer differs from
that in the Operating Instructions.
Your computer is equipped with the HSPA modem enabling you to communicate
using radio frequencies.
Contents
Precautions .................................................................. 2
Description of Parts..................................................... 3
Inserting/Removing a SIM Card.................................. 4
Installing the Software................................................. 6
Disabling/Enabling Wireless Communication........... 8
Troubleshooting........................................................... 9
Specifications............................................................... 9
Appendix..................................................................... 10
NOTE:Useful and helpful information.
CAUTION:Condition that may result in minor or moderate injury.
(Start) - [All Programs] :
Click (Start), and then click [All Programs].
[start] - [Run]: Click [start], and then click [Run].
You may need to double-click in some cases.
: Page in these Supplementary Instructions or in the
Reference Manual for the computer.
: Reference to the on-screen manuals.
Some of the illustrations in this manual may differ slightly in shape from the
actual items in order to make the explanation easier to understand.
About the abbreviations in this manual, refer to the table on page 10.
Terms and illustrations in this Manual
Supplementary Instructions
for HSPA Modem
Personal Computer
Model No. CF-H1 Series
2
Declaration of Conformity (DoC)
“Hereby, Panasonic Corporation declares that this Personal
Computer is in compliance with the essential requirements and
other relevant provisions of the Directive 1999/5/EC.”
Hint:
If you want to get a copy of the original DoC of our above mentioned products, please
contact our web address: http://www.doc.panasonic.de
Authorised Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Network connection of WWAN.
This device is intended for connection to the following public network;
- Wireless public network; HSPA/UMTS, EDGE/GPRS,
Precautions
3

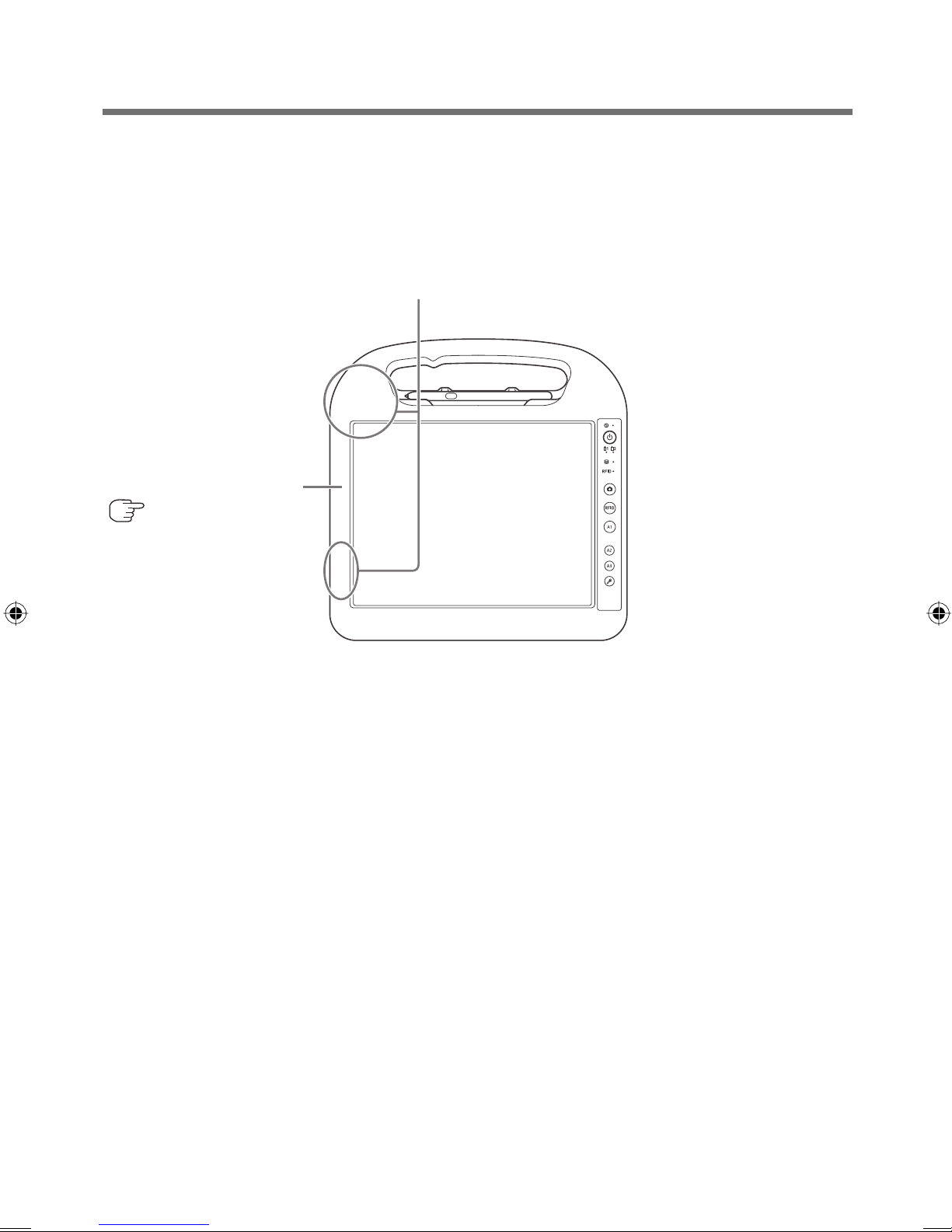

Description of Parts
Except the followings, refer to the Operating Instructions for the computer.
SIM Card Slot (in
the Battery 1 Case)
( page 4)
Antenna
4
Inserting/Removing a SIM Card
Before using the HSPA modem, set a SIM card to the SIM card slot.
CAUTION
Be sure to shut down the computer before inserting or removing the SIM
card.
1Turn off the computer.
2Open the Battery 1 cover and
remove the battery pack.
3Inserting a SIM card
AInsert the SIM card into the SIM
card slot with the contact side facing
upward and with the cut corner
oriented as shown in the illustration.
CAUTION
Do not insert the SIM card
upside down.
SIM card Contact
5
Removing a SIM card
A Push the card.
It will come out of the slot a little bit.
4Insert the battery pack and close
the Battery 1 cover.
B Pull the card all the way out and
remove the SIM card.
6
Installing the Software
Installing the Software
The steps below must be taken before using the HSPA modem.
1Turn off the computer and set the computer to the Cradle.
2Connect the CD/DVD drive and an external keyboard to
the Cradle.
3Turn on the computer, and run the Setup Utility by
pressing
F2
or
Del
while [Panasonic] boot screen is
displayed.
If [Enter Password] is displayed, input the Supervisor Password.
4Select the [Advanced] - [Wireless Configuration] menu,
and set [Wireless WAN] to [Enabled].
5Set [Wireless LAN] to [Enabled].
6Save the settings and exit the Setup Utility.
7Log on to Windows as an administrator.
If the [Found New Hardware Wizard] screen is displayed, click [Cancel] to
close the screen.
8Install the Wireless WAN software by following
procedures.
ASet the Wireless WAN (HSPA) Software CD-ROM into the CD/DVD
drive.
B<Model with Windows XP>
Click [start] - [Run], enter “x:*1\SETUP\SETUP. exe”, and click [OK].
<Model with Windows Vista>
Click (Start) and enter “x:*1\SETUP\SETUP. exe” in [Start Search],
and press
Enter
.
*1“x:” is the drive letter of the CD/DVD drive. Change this to match the drive
letter on your own computer.
CFollow the on-screen instructions, and install the software.
7
Uninstalling the software
<Model with Windows XP>
Click [start] - [Control Panel] - [Add or Remove Programs] - [Wireless WAN
Software Installer for Gobi(TM)], and then click [Remove] to uninstall the
software.
<Model with Windows Vista>
Click (Start) - [Control Panel] - [Uninstall a program] - [Wireless WAN
Software Installer for Gobi(TM)], and then click [Uninstall] to uninstall the
software.
8
Disabling/Enabling Wireless Communication
The Wireless Switch Utility icon appears in the notification area when the
computer is turned ON. It shows the status of wireless devices.
: Indicates that the wireless devices are enabled.
: Indicates that the wireless devices are off.
(gray indication): Indicates that the wireless devices have been disabled in
the Setup Utility.
( Reference Manual for the computer “Disabling/Enabling Wireless
Communication”)
To enable or disable particular wireless devices
1Click the Wireless Switch Utility icon to show the pop-
up menu.
2Select ON or OFF for the device you want to enable or
disable.
To check the wireless communication status
1Place the cursor over the Wireless Switch Utility icon
on the notification area.
A tool tip appears.
NOTE
zTo use wireless WAN, set [Wireless WAN] to [Enable] (default) in the [Advanced]
- [Wireless Configuration] menu of the Setup Utility.
9
Troubleshooting
Cannot
communicate.
•Confirm that [Wireless WAN] is set to [Enabled] in the
[Advanced] menu of the Setup Utility.
•Use the Wireless Switch Utility and confirm that the wireless
WAN is on.
•Confirm that the SIM card is inserted correctly.
Data Communication HSUPA Category 5, 2.0 Mbps
HSDPA Category 8, 7.2 Mbps
UMTS 3GPP Release 5
EDGE/
GPRS
MultiSlot Class 12
Other Features SMS Mobile Originated SMS (MO-SMS)
Mobile Terminated SMS (MT-SMS)
FAX No Support
Voice No Support
SIM 1.8/3V SIM Support
Specifications
10
Abbreviations
EDGE Enhanced Data rates for Global Evolution
GPRS General Packet Radio Service
HSDPA High Speed Downlink Packet Access
SIM Subscriber Identity Module
SMS Short Message Service
UMTS Universal Mobile Telecommunications System
HSPA High Speed Packet Access
HSUPA High Speed Uplink Packet Access
Appendix
