Panasonic NV-VZ17B Manuale utente

ORDERNO. VM0301002C8

VHS-CMovie

NV-VZ17B / NV-VZ17EG / NV-VZ17EGE/ NV-VZ17EGM/ NV-

VZ17EM / NV-VZ17EN

Z12-MECHANISM

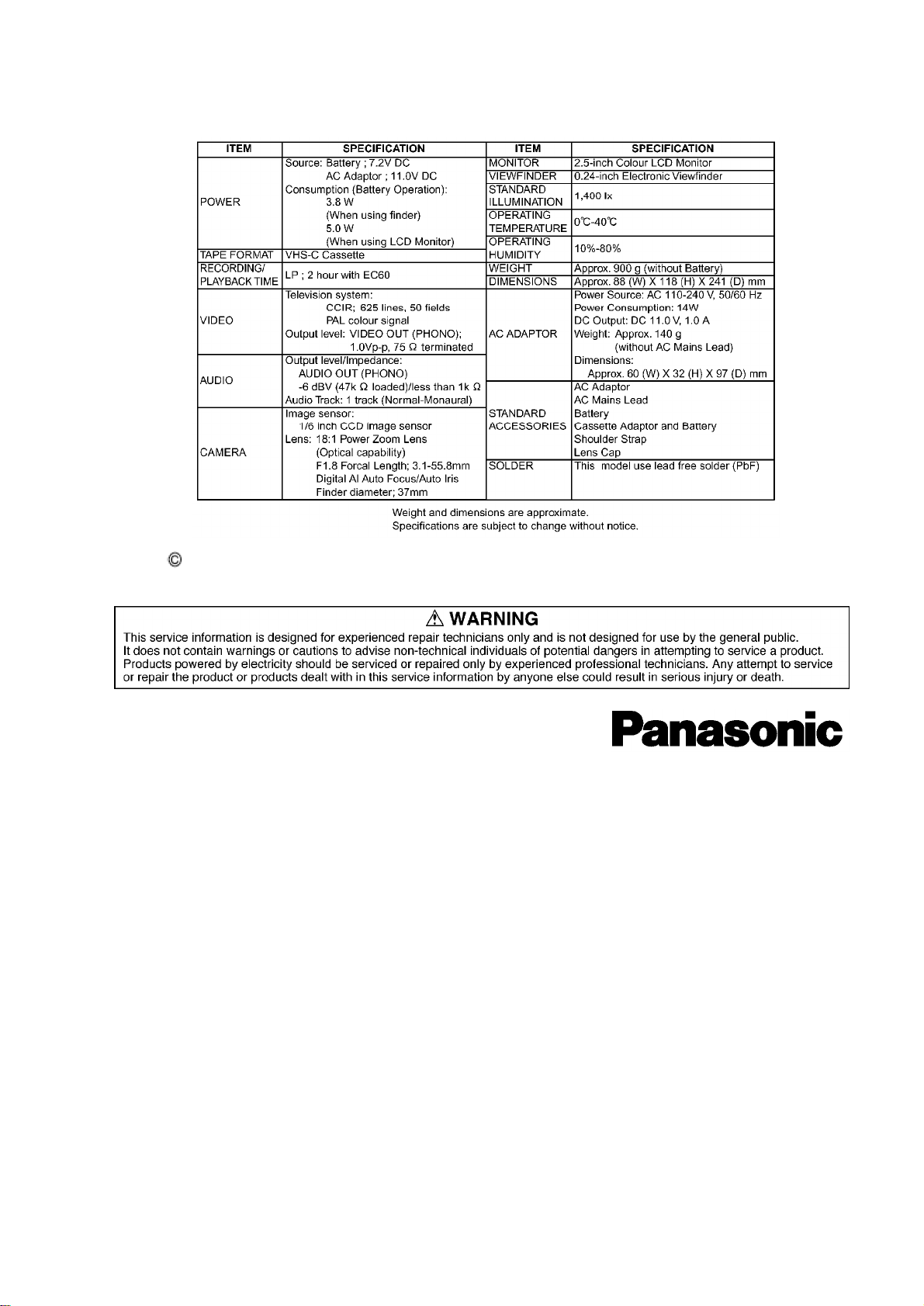

SPECIFICATIONS

Unauthorizedcopying and distribution isaviolation oflaw.

1. INTRODUCTION

1.1. INTRODUCTION

Thisservice manual containstechnical information whichwill beallowedservice personnel’sto

understand and service thismodel.

Please use partnumberon thepartslisttomake orderfor sparepartand do notuse reference

numberon thedrawing.

Ifthecircuitischangedor modified, thisinformation will befollowedbysupplementservice

manual.

Note1:

Theservice manual for Mechanism-Chassisisseparatedas anotherone.

Please refertothefollowing manual for detail ofadjustmentprocedurefor Mechanism-Chassis.

Ordernumberfor service manual ofMechanism-Chassis:VMD0201001C8

as for Replacementparts, refertothepartslistlistedon theservice manual.

1.2. ABOUTLEADFREE SOLDER(PbF)

Caution:

-Pbfree solderhas ahighermelting pointthanstandardsolder,

Typicallythemelting pointis50-70°F(30-40°C)higher.

Please use ahigh temperaturesoldering iron. Incase ofsoldering

iron withtemperaturecontrol, please set itto700±20°F(370±10°C)

-Pbfree solderwill tend tosplashwhenheatedtoo high (about

1100°F/600°C).

Whensoldering or unsoldering, please completelyremove all ofthesolderon thepinsor solder

area, and besuretoheatthesoldering pointswiththePbfree solderuntil itmeltsenough.

2. CAUTIONFORACCORD (VJA0940 TYPE)

2.1. INFORMATIONFORYOUR SAFETY

IMPORTANT

Your attention isdrawntothefactthatrecording ofpre-recordedtapes or discs or other

publishedor broadcastmaterial may infringecopyrightlaws.

WARNING

To reduce therisk offireorshock hazard, do notexpose this

equipmenttorainormoisture.

CAUTION

To reduce therisk offireorshock hazardand annoying

interference, use therecommendedaccessories only.

FORYOUR SAFETY

DONOTREMOVE THE OUTERCOVER

Topreventelectricshock, do notremove thecover. Nouserserviceablepartsinside. Refer

servicing toqualifiedservice personnel.

2.2. CAUTIONFORACMAINSLEAD

For your safety, please readthefollowing textcarefully.

Thisappliance issuppliedwithamouldedthree-pinmainsplug for your safetyand convenience.

A5-amperefuse isfittedinthisplug.

Shouldthefuse needtobereplacedplease ensurethatthereplacementfuse has arating of5

amperes and itisapprovedbyASTAor BSItoBS1362

Check for theASRAmarkor theBSImarkon thebodyofthefuse.

Iftheplug containsaremovablefuse coveryou mustensurethatitisrefittedwhenthefuse is

replaced.

Ifyou lose thefuse cover, theplug mustnotbeuseduntil areplacementcoverisobtained.

Areplacementfuse covercanbepurchasedfrom your local PanasonicDealer.

Ifthefittedmouldedplug isunsuitablefor thesocketoutletinyour homethenthefuse shouldbe

removedand theplug cutoff and disposedofsafety.

Thereisadangerofsevereelectrical shock ifthecutoff plug isinsertedintoany13-ampere

socket.

Ifanewplug istobefittedplease observe thewiring codeas shownbelow.

Ifinanydoubt, please consultaqualifiedelectrician.

2.2.1. Important

Thewires inthismainsleadarecolouredinaccordance withthefollowing code:

Blue Neutral

Brown Live

Asthecoloursofthewires inthemainsleadofthisappliance may notcorrespond withthe

colouredmarkingsidentifying theterminalsinyour plug, proceedas follows:

ThewirewhichiscolouredBLUE mustbeconnectedtotheterminal intheplug whichismarked

withtheletterNor colouredBLACK.

ThewirewhichiscolouredBROWNmustbeconnectedtotheterminal intheplug whichis

markedwiththeletterLor colouredRED.

Underno circumstances shouldeitherofthese wires beconnectedtotheearthterminal ofthe

three pinplug, markedwiththeletterE or theEarthSymbol.

2.2.2. Beforeuse

remove theConnector Coveras follows.

2.2.3. Howtoreplace theFuse

1. RemovetheFuse Coverwithascrewdriver.

2. Replace thefuse and attachtheFuse cover.

3. SERVICE CAUTION

3.1. SERVICEEXTENSIONCABLES

Thismodel isrequiredthefollowing extension cables for all connections.

No. PartsNo. Pin Partname Connection Q’ty

Remarks

/ 1 VFK1738A1025 /

VFK1737A10CB

/ 10 / FlatCable&

Extention Board / CN1-Drum Motor / 1 /

/ 2 VFK1738A1025 /

VFK1737A10CB

/ 10 / FlatCable&

Extention Board / CN9031-Front / 1 /

/ 3 VFK1738A1425 /

VFK1737A14CB

/ 14 / FlatCable&

Extention Board / CN2-Sensor / 1 /

/ 4 VFK1738A1425 /

VFK1737A14CB

/ 14 / FlatCable&

Extention Board / CN22-CCD / 1 /

/ 5 VFK1738A1825 /

VFK1737A18CB

/ 18 / FlatCable&

Extention Board / CN3-CapstanMotor / 1 /

6 VFK1739 2 WireCable CN4-Loading Motor 1

7VFK1739 2 WireCable CN8-Mic 1

8VFK1739 2 WireCable CN27-Speaker 1

/ 9 VFK1738A1125 /

VFK1737A11CB

/ 11 / FlatCable&

Extention Board / CN5-VideoHead / 1 /

/ 10 VFK1738A1125 /

VFK1737A11CB

/ 11 / FlatCable&

Extention Board / CN7-ACHead / 1 /

/ 11 VFK1738A2225 /

VFK1737A22CB

/ 22 / FlatCable&

Extention Board / CN15-Lens / 1 /

/ 12 VFK1738A2025 /

VFK1737A20CB

/ 20 / FlatCable&

Extention Board / CN9012-EVFB/W / 1 /

/ 13 VFK1738A1625 /

VFK1737A16CB

/ 16 / FlatCable&

Extention Board / CN9013-Top Operation atSide

case(L) / 1 /

/ 14 VFK1738A1325 /

VFK1737A13CB

/ 13 / FlatCable&

Extention Board / CN9018-SideOperation atSide

case(R) / 1 /

3.2. SET-UPFORADJUSTMENTOFTATSUJIN

For adjustmentof“TATSUJIN“, please openthesmall coverwhichislocatedatbottom ofside

case(L)using small screwdriveras follows.

And thenconnecttheJIGboard and TATSUJINcableas follows.

4. SERVICE INFORMATION

4.1. EMAGENCYDISPLAY

Wheneversomeabnomal signal isinputtothemechacon CPU, anerror number(E01, as an

example)isdisplayedintheelectronicviewfinder.

Ineveryerror status, suchthemessageas shownbelowalternatelyappearoverand over.

-Inanemagencymode, all operationsexceptturning on/off the

POWERswitchareineffectual.

Example(incase oftheerror numberE01):

E.VF Symptom Modewhenobserved Resulting

mode

E07 ShortcircuitofcapstanMDA PowerON Power

OFF

E06 CAPSTANFGinputabsent EDIT Power

OFF

E04 DRAMFF inputabsent DRAMrotation Power

OFF

E03 SUPPLYREELFGinputabsent REC, PLAY, SERCH, FF UNLOADING

OFF

E02 Modecontrol motor retates for more

than10 sec / withoutshift tonextmode UNLOADING Power

OFF

E01 Modecontrol motor retates for more

than10 sec / withoutshift tonextmode LOADING Power

OFF

E00 Overtimetheprogramming transaction REC, PLAY Power

OFF

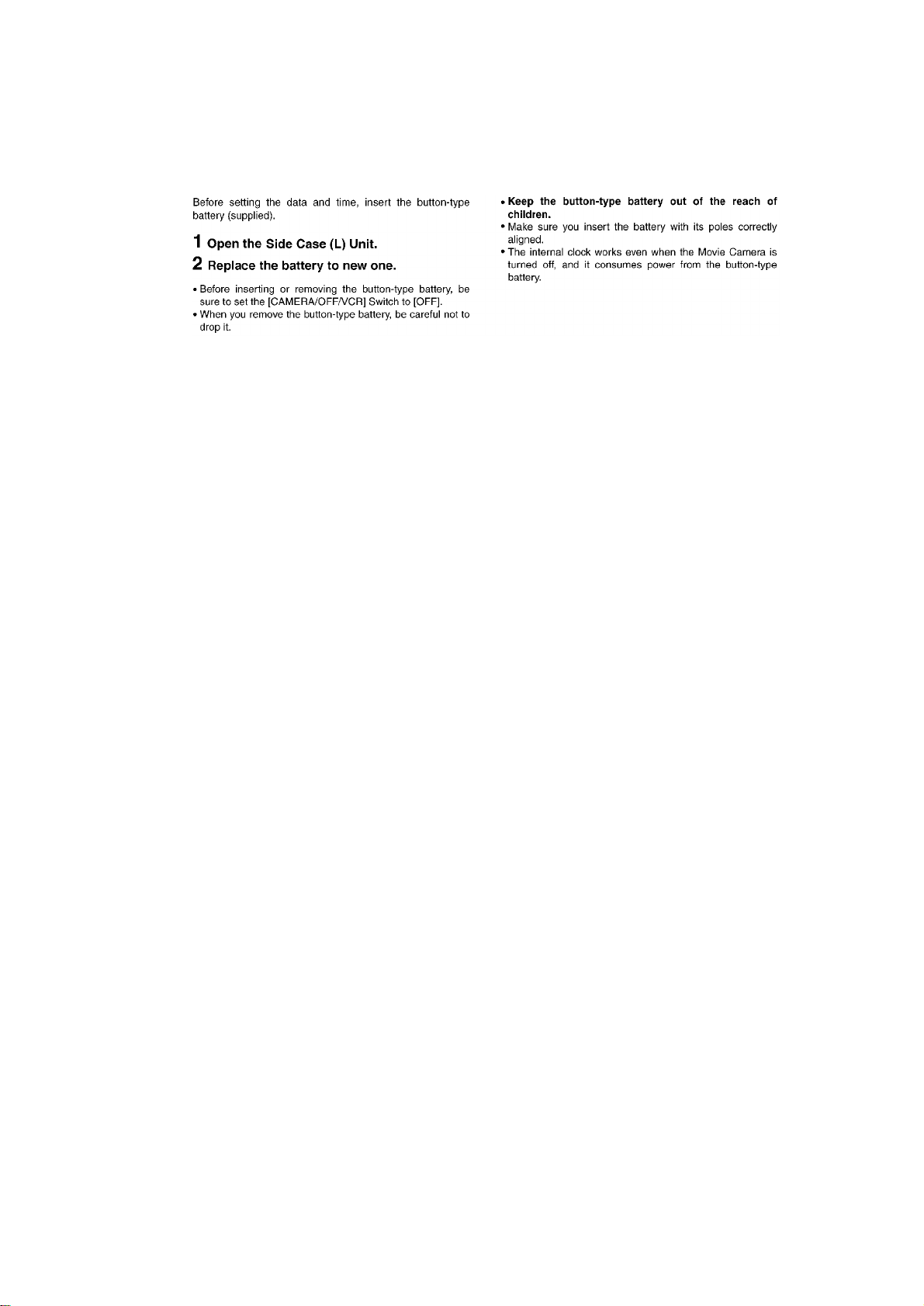

4.2. INSERTING THEBUTTON-TYPE BATTERY

Note:

Thelithiumbatteryisacritical component.

Itmust neverbesubjectedtoexcessiveheat ordischarge.

Itmust thereforeonlybefittedinequipmentdesignedspecifically

forits use.

Replacementbatteries must beofthesametypeand manufacture.

Theymust befittedinthesamemannerand location as theoriginal

battery, withthecorrect polaritycontacts observed.

Donotattempttore-chargetheoldbatteryorre-use itforanyother

purpose.

Itshouldbedisposedofinwaste products destinedforburial rather

thanincineration.

5. GENERALDESCRIPTION

6. ADJUSTMENTPROCEDURES

6.1. DISASSEMBLYPROCEDURES

Flow-Chartfor DisassemblyProcedure

No. Item/Part Fig. Removal (Screw)

1SideCase

(L)Unit Fig.1 3-Screws(A)

1-Screw(A’)

Fig.2 1-Screw(B)

1-Screw(C)

1-Screw(D)

1-Screw(E)

2-Screws(F)

Fig.3 Locking Tab(a)

SlightlyopentheSide

Case (L)Unit.

DisconnectCN27 and

CN9013.

2Front

Case Unit Fig.4 3-Locking Tabs(b)

DisconnectCN8and

CN9031.

3Main

C.B.A. Fig.5 2-Screw(G)

Disconnectthefollowing

connectors.

CN1, CN2, CN3, CN4, CN5,

CN7, / CV15, CN16, CN22,

CN9012, / CN9013, CN9018

4Cassette

CoverUnit Fig.6 / 1-Screw(H)

5 RearCase

Unit Fig.7 1-Screw(K)

2-Locking Tabs(c)

6EVFUnit Fig.8 2-Screws(L)

7LensUnit Fig.9 2-Screws(M)

8Mechanism

Unit Fig.10 2-Screws(N)

3-Screws(O)

Fig.11 2-Screws(P)

1-Screws(Q)

9Main

FrameUnit Fig.6 1-Screw(I)

2-Screws(J)

Fig.12

/ 7-Locking Tabs(d)

No. Item/Part Fig. Removal (Screw)

10 LCD Unit/

NV-VZ75

only

Fig.13 Remove theSheet.

3-Screws(R)

1-Screw(S)

1-Screw(T)

2-Screws(U)

Remove theMonitor Assy.

Fig.14 2-Screws(V)

1-Screw(W)

Remove theMonitor Cover.

1-Screw(X)

DisconnectCN7603.

Remove theMonitor

C.B.A., Sheet/ (Reflect),

LightScreen, Lamp, /

Diffusion Sheet, LCD

Frame, / LCDModuleand

ShieldCase.

Fig.14 1-Screw(Y)

Remove theLock Spring

and Lock Lever.

11 Back light

Unit Fig.15 Remove thePolarization

Sheet.

Remove theLCD Terminal

Rubberand Fluorescent

Lump.

Fig.1

Fig.2
