Panasonic FZ-VEBX111U Manuale utente

Operating Instructions

Thank you for purchasing a Panasonic product.

Please read this document carefully before using

the product and keep this document in a safe place

for future reference.

Bedienungsanleitung

Vielen Dank, dass Sie sich für den Kauf eines

Panasonic-Produkts entschieden haben.

Lesen Sie vor der Verwendung des Produkts dieses

Dokument sorgfältig und bewahren Sie es zum

späteren Nachschlagen an einem sicheren Ort auf.

Instructions d’utilisation

Vous venez d’acquérir un produit Panasonic et

nous vous en remercions.

Veuillez lire ce document attentivement avant

d’utiliser le produit et conservez-le dans un endroit

sûr pour pouvoir vous y reporter ultérieurement.

取扱説明書

保証書付き（日本国内向け）

FRANÇAIS 日本語DEUTSCHENGLISH

Cradle / Cradle

Station d’accueil /

クレードル

Model No. / Modell-Nr.

Numéro de modèle / 品番 FZ-VEBX111U

PGQX1572XEJ1 C0314-6128Printed in Japan

●取扱説明書をよくお読みのうえ、正しく安全にお使いください。

●ご使用前に「安全上のご注意」（33ページ）を必ずお読みください。

●保証書は「お買い上げ日・販売店名」などの記入を確かめ、

取扱説明書とともに大切に保管してください。

For U.S.A.

Federal Communications Commission Radio Frequency

Interference Statement

Note:

RThis equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

– Consult the Panasonic Service Center or an experienced radio/TV technician

for help.

Warning:

RTo assure continued FCC emission limit compliance, use only shielded interface

cables when connecting to computer or peripheral devices. Any changes or

modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that

may cause undesired operation.

Responsible party

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102, USA

Support contact: http://www.panasonic.com/contactinfo

For Europe

Declaration of Conformity (DoC)

"Hereby, Panasonic declares that this Cradle is in compliance

with the essential requirements and other relevant provisions of

EU Council Directives."

Authorised Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Disposal of Old Equipment

Only for European Union and countries with recycling

systems

This symbol on the products, packaging, and/or accompanying

documents means that used electrical and electronic products must

not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please

take them to applicable collection points in accordance with your

national legislation.

By disposing of them correctly, you will help to save valuable

resources and prevent any potential negative effects on human

health and the environment. For more information about collection

and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in

accordance with national legislation.

Interface Cable

RUse of an interface cable longer than 3 m is not recommended.

To ensure Compliance to the EMC Directive, shielded LAN cables shall be used.

Ecodesign information

Ecodesign information under EU Regulation (EC) No.1275/2008 amended by (EU)

Regulation No.801/2013. From 1 January 2015.

please visit here: www.ptc.panasonic.eu

click [Downloads] ® Energy related products information (Public)

Power consumption in networked standby and guidance are mentioned in the web

site above.

India Only

Declaration of Conformity with the requirements of the E-Waste (Management)

Rules

The Product is in conformity with the requirements of the reduction of hazardous

substances of the E-Waste Rules.

The content of hazardous substance with the exemption of the applications listed in

SCHEDULE II of the E-waste Rules:

1. Lead (Pb) – not over 0.1 % by weight;

2. Cadmium (Cd) – not over 0.01 % by weight;

3. Mercury (Hg) – not over 0.1 % by weight;

4. Hexavalent chromium (Cr6+) – not over 0.1 % by weight;

5. Polybrominated biphenyls (PBBs) – not over 0.1 % by weight;

6. Polybrominated diphenyl ethers (PBDEs) – not over 0.1 % by weight.

For the purpose of recycling to facilitate effective utilization of

resources, please return this product to a nearby authorized

collection center, registered dismantler or recycler, or Panasonic

service center when disposing of this product.

Please see the Panasonic website for further information on

collection centers, etc. , or call the toll-free number below.

Website:

http://www.panasonic.com/in/corporate/sustainability/

panasonic-india-i-recycle-program.html

Service helpline: 1800 103 1333 or 1800 108 1333

Contents

Introduction page 5

Safety precautions page 6

Handling cautions page 7

Description of parts page 8

Connections page 9

Docking and removing the unit page 9

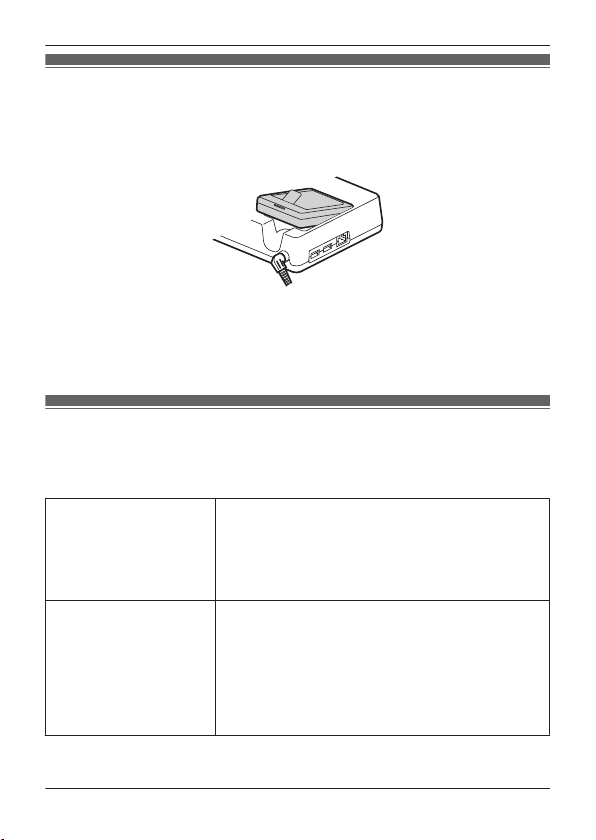

Charging a battery page 10

Troubleshooting page 10

Specifications page 11

Introduction

This product is designed for use with the Panasonic FZ-X1 and FZ-E1 series

(hereinafter referred to as "the unit").

Main features*1

– Charge the battery while it is installed in the unit

– Charge a battery by itself (useful when you have multiple batteries)

– Connect USB devices to the unit via the cradle’s USB ports

– Connect the unit to a network via the cradle’s LAN port

*1 Available features may vary depending on the unit model. For the latest

information, refer to the latest Operating Instructions on the following web site.

http://pc-dl.panasonic.co.jp/itn/manual/menu_en.html

Compatible batteries (included with the unit and available as an accessory)

RFZ-VZSUX100W

RFZ-VZSUX100J

Compatible AC adaptors (available as an accessory)

RCF-AA6373A

Included accessories

ROperating Instructions (this document)

Note:

RSome illustrations are simplified to help your understanding and may look

different from the actual product.

Safety precautions

RDo not disassemble or modify the cradle.

Short-circuit or overheating may result, which could lead to fire or electric shock.

RDo not insert foreign objects into the cradle.

This may cause the battery to short circuit or overheat, which may result in fire

or electric shock.

RUse only specified AC adaptors.

Use of unspecified AC adaptors may result in overheating, fire, or rupture.

RUse only specified batteries.

Use of unspecified batteries may result in electrolyte leakage, overheating, or

rupture.

RStop using the cradle if any of the following occurs.

– Cradle emits smoke, unusual sound, or unusual smell

– Water or foreign object enters the cradle

– Cradle is damaged

– Cradle becomes unusually hot

Failure to do so may result in fire or electric shock. Disconnect the cradle from

the power supply, remove the unit, and then contact your technical support

representative for support or repair.

RDo not touch the cradle or cables during lightning storms.

There is a remote chance of electric shock.

RDo not splash water on the cradle or allow it to become wet.

These may result in smoke or fire.

RDo not place the cradle on an unstable surface.

The cradle may drop, resulting in injury.

RDo not leave the cradle in extremely high temperature environments for an

extended period.

Leaving the cradle where it will be exposed to extremely high temperatures,

such as near fire or in direct sunlight, may deform the cradle or cause damage

or malfunction to its internal components. Using the cradle in these conditions

may cause short circuit, insulation defects, etc., which may in turn cause fire or

electric shock.

RDo not leave the cradle in areas with a high concentration of moisture,

steam, dust, oily vapors, etc.

Foreign material that enters the cradle may cause fire or electric shock.

RUse the LAN port for connecting to specified network equipment only.

Connecting to unspecified equipment could result in fire or electric shock.

Connect only 100BASE-TX or 10BASE-T equipment to the LAN port. Do not

attempt to connect phone cables or other types of cables.

Handling cautions

Obey the following to ensure proper use and operation of the cradle.

Operating environment

RIf the unit you are using with the cradle is wet, wipe off the moisture before

docking the unit in the cradle.

RThe charging times for units and batteries will vary depending on the operating

environment.

RUsing the cradle continuously in a hot environment will shorten the product life.

Avoid use in these types of environments.

RSome peripheral devices may not function properly in cold or hot environments.

Check the operational environment rating of any peripheral devices used with

the cradle.

RPlace the cradle on a flat, stable surface.

RDo not place the cradle on its sides or upside down.

RDo not block the cradle’s ventilation opening.

Drop impacts and damage

RThe cradle is a delicate apparatus. Be sure to handle it with care.

RDo not drop the cradle or subject it to impacts.

Cleaning

RAlways disconnect the AC adaptor before cleaning the cradle.

RClean the cradle with a soft, dry cloth.

RDo not use thinner, benzene, wax, petroleum-based liquids, soap, powdered

cleansers, hot water, chemical cleaning cloths, etc.

RIf dust or oil has accumulated on the battery charging terminals or bus connector

terminals, battery charging may not be possible. Clean it with a soft, dry cloth.

RBe careful not to bend the battery charging terminals or bus connector terminals.

Miscellaneous

RThe cradle is only compatible with the batteries listed on page 5. Do not insert

any other model or type of battery.

RDo not touch the battery charging terminals or bus connector terminals.

RDo not allow conductive metallic materials such as coins or paper clips to touch

the battery charging terminals or bus connector terminals.

RRefer to the operating instructions included with the AC adaptor for information

regarding safe and proper use of the AC adaptor and power cord.

Description of parts

AIndicator

Indicates the charging status of the battery inserted in the battery charging

slot.

Orange, lit: Battery is charging

Green, lit: Battery charging is complete

Off: No battery is inserted

BRelease button

Press this button to release the unit before removing it.

CBus connector terminals

Supply power to the unit, and link the unit to the USB ports and to the LAN

port.

DVentilation opening

Allows air to pass through the cradle.

EDC input jack

Allows you to connect an AC adaptor to the cradle.

FUSB port

Allows you to connect USB devices to the unit while it is docked.

GLAN port

Allows you to connect the unit to a network while it is docked.

HBattery charging slot

Allows you to charge a battery.

IBattery charging terminals

Supply power to the battery when it is charging.

Explanation of graphical symbol on nameplate

: Alternating current

: Direct current

Connections

Connect the AC adaptor (A), USB cables (B), and LAN cable (C) as shown

below.

Note:

RThe AC adaptor must be connected to the cradle in order to use the LAN port

and USB ports.

RConnectivity features may vary depending on the unit model. For the latest

information, refer to the latest Operating Instructions on the following web site.

http://pc-dl.panasonic.co.jp/itn/manual/menu_en.html

Docking and removing the unit

Dock the unit as shown below. Make sure the unit is inserted fully into the cradle.

When the unit is docked, you can confirm the charging status by observing the

unit’s indicator (A).

To remove the unit, press the release button firmly and then lift the unit up.

Note:

RThe AC adaptor must be connected to the cradle in order to charge the unit.

RDo not remove the unit while data is being transmitted by the USB or LAN ports.

Charging a battery

1Insert the terminal end of the battery into the battery charging slot.

RInsert the battery so that the battery label and the yellow tab are facing up,

and the terminals on the battery line up with the terminals inside the battery

charging slot.

2Lower the battery into the battery charging slot.

RYou can confirm the charging status by observing the cradle’s indicator.

Note:

RThe AC adaptor must be connected to the cradle in order to charge the battery.

Troubleshooting

If you experience any trouble while using the cradle, refer to the following

information for basic troubleshooting. If the trouble persists, contact your technical

support representative.

The unit does not

charge.

RThe unit is not properly docked. Make sure it is

inserted properly.

RThe AC adaptor is not connected to the power

outlet. Connect it.

RThe bus connector terminals are dirty. Clean the

terminals.

The cradle’s indicator

does not light.

RThe battery is not properly inserted. Make sure it

is inserted properly.

RThe AC adaptor is not connected to the power

outlet. Connect it.

RThe battery charging terminals are dirty. Clean

the terminals.

RThe battery may be worn out. Replace the battery

with a new one.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Panasonic Stazione di attracco

Panasonic

Panasonic CF-VEB481 Manuale utente

Panasonic

Panasonic CF-VEBP12U Manuale utente

Panasonic

Panasonic KX-PRL262 Manuale utente

Panasonic

Panasonic CF-VEBU12U Manuale utente

Panasonic

Panasonic CF-VEBP12U Manuale utente

Panasonic

Panasonic CF-VEB531U Manuale utente

Panasonic

Panasonic CF-WEB184 Series Istruzioni per l'installazione e il funzionamento

Panasonic

Panasonic VL-WD613EX Manuale utente

Panasonic

Panasonic CF-WEB Series Manuale utente

Panasonic

Panasonic CF-VEBD11 Series Istruzioni operative

Panasonic

Panasonic KX-PRL262C Manuale utente

Panasonic

Panasonic CF-VEB541 Series Manuale utente

Panasonic

Panasonic CF-WEB301 Series Manuale utente

Panasonic

Panasonic CF-WEB Series Manuale utente

Panasonic

Panasonic CF-VVK33 Series Manuale utente

Panasonic

Panasonic SH-PD10 - Digital Player Docking Station Manuale utente

Panasonic

Panasonic CF-VEB531 Series Manuale utente

Panasonic

Panasonic CF-VEB Manuale utente

Panasonic

Panasonic CF-VEB201 Series Manuale utente

Panasonic

Panasonic CF-VEBH21U Manuale utente

Panasonic

Panasonic CF-WEB Series Istruzioni per l'installazione e il funzionamento

Panasonic

Panasonic FZ-VEBG21 Series Manuale utente

Panasonic

Panasonic Toughbook CF-18 Series Manuale utente

Panasonic

Panasonic FZ-VEH1T1AA Manuale utente

Manuali Stazione di attracco popolari di altre marche

Sony

Sony Dream Machine XDR-DS12iP Manuale utente

Acer

Acer USB Type-C Dock II Manuale utente

ATEN

ATEN UC-2000 Manuale utente

Xcellon

Xcellon HDD-202 Manuale utente

Dok

Dok CR09 Manuale utente

Philips

Philips BTM630/12 Manuale utente

IOGear

IOGear Travel Pro GUD3C09 Manuale utente

RKI

RKI SDM-E2 Manuale utente

iHome

iHome iP15 Manuale utente

VITURE ONE

VITURE ONE MOBILE DOCK Manuale utente

Lindy

Lindy 42984 Manuale utente

CipherLab

CipherLab 8001 Manuale utente

Pyle

Pyle PIPDSP2 Manuale utente

Avol

Avol AS2350 Manuale utente

Datalogic

Datalogic JoyaTouch Manuale utente

Philips

Philips DC190/79 Manuale utente

Targus

Targus DOCK315EUZ Manuale utente

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Manuale utente
