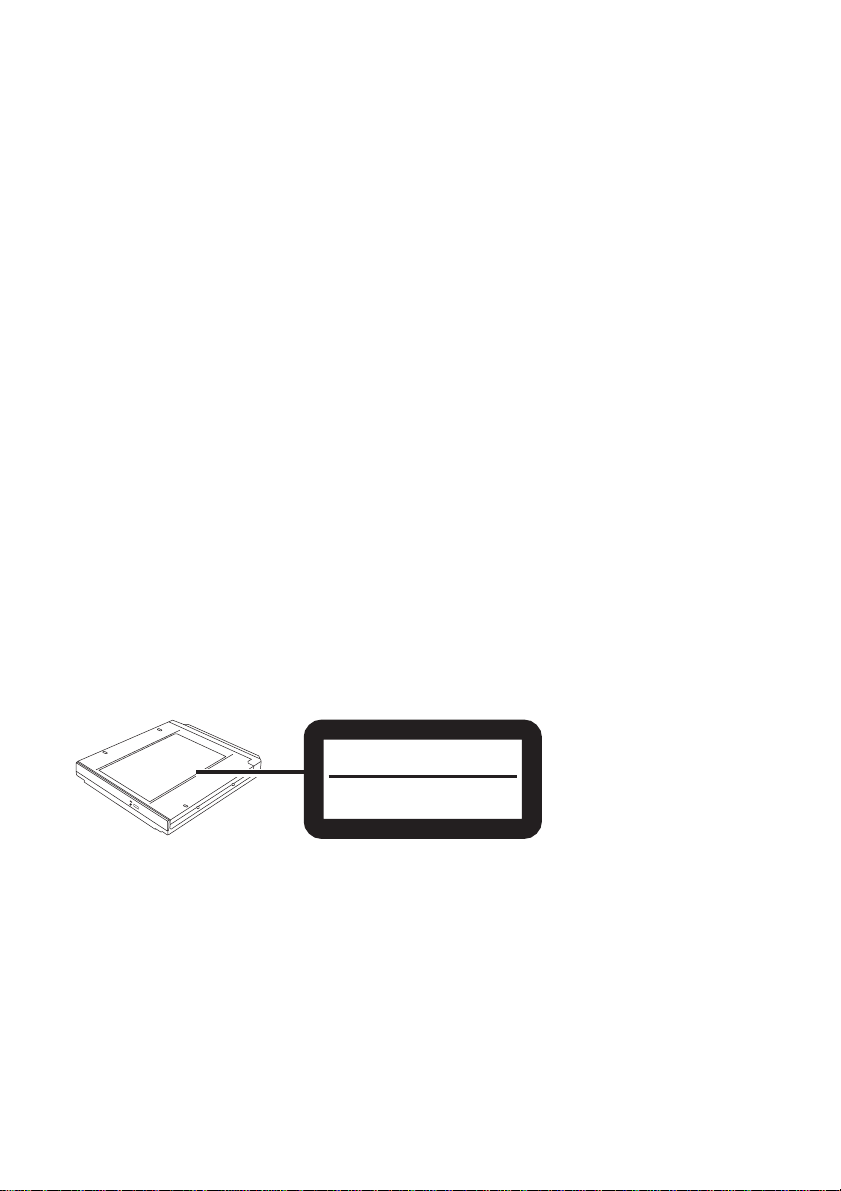

CLASS 1 LASER PRODUCT

LASER KLASSE1

For U.S.A.

Federal Communications Commission Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Consult the Panasonic Service Center or an experienced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface cables when connecting to a

computer or peripheral. Also, any changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause

undesired operation.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-8675)

For Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Thank you for purchasing the DVD MULTI Drive Pack for the Panasonic CF-29 notebook

computer series.

This drive connects to the computer through the multimedia pocket.

Store this manual in a safe place after reading it.

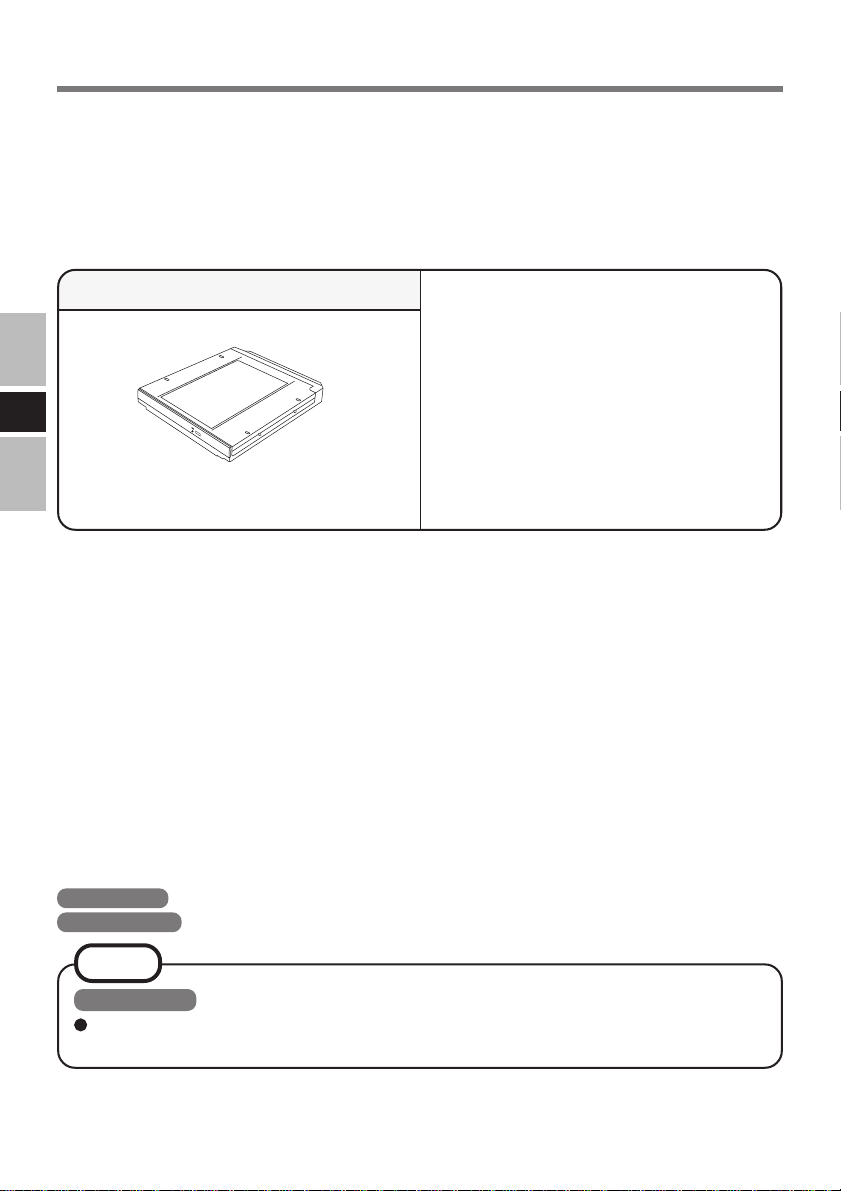

DVD MULTI Drive Pack*1........... 1

Operating Instructions ............ 1

DVD Drive Utility Disc*2.......... 1

Introduction

*1The DVD MULTI Drive Pack may also be referred to as the drive.

*2This contains the programs used to install “DVD-RAM Driver,” “WinDVD™5 (OEM Version)”

(hereafter, WinDVD), “B’s Recorder GOLD7 BASIC” (hereafter, B’s Recorder) and “B’s CLiP 6”

(hereafter, B’s CLiP).

Windows XP

This manual explains the procedure for default settings. The procedure may differ

according to the settings.

NOTE

Microsoft®and Windows®are registered trademarks of Microsoft Corporation in the United States

and/or other countries.

WinDVD™is a trademark of InterVideo, Inc.

[Illustration in this manual]

Windows XP indicates Microsoft®Windows®XP Professional Operating System.

Windows 2000 indicates Microsoft®Windows®2000 Professional Operating System.

Usage Precautions

Do not place items other than discs on the tray.

Do not leave the tray in the open position or touch the lens.

Under some conditions, dust may build up on the lens, or on a disc. This may result in a

read or write malfunction.

Do not apply excessive force to the tray in the open position, doing so could damage the tray.

Do not open the drive or move the computer while the drive is being accessed.

Doing so could cause it to malfunction.

In addition, after running an application involving access to a disc, do not open the drive

or remove the disc until the application has been closed.

After the tray closes or the computer resumes operation from the standby/hibernation

modes, do not access the drive until the multimedia pocket device status indicator goes

off. However, when conducting a background format on +RW using B’s CLiP, the media

can be removed by operating B’s CLiP even when the drive is being accessed. ( page

20)

Do not expose the drive to excessive smoke that may leave a residue, i.e. oil smoke, or

tobacco smoke. Doing so could shorten the life of the drive lens.

We recommend cleaning the drive lens with an air puffer used for camera lenses. (Do not

use any spray-type of lens cleaning products.)

Never insert foreign objects such as paper clips into the drive. Doing so could cause it to

malfunction.

Do not use any discs that have become deformed, warped, or are not completely round.

In the case of DVD-RAM, only non-cartridge discs or removable cartridge discs can be

used.

For AutoPlay CDs:

• If an AutoPlay CD does not start after the computer resumes from the standby or hiber-

nation modes, remove the disc from the drive, then reinsert the disc again after a 15

second wait.

• An AutoPlay CD may start during file access, depending on the status of the disc.

Handling Discs with Care:

Before using discs, carefully read through the Operating Instructions, the instructions for

handling the discs, and whatever is written on the disc packaging.

If the discs are not handled properly, they may become dirty or scratched, the writing speed

may be reduced or data may not be recorded or played back properly. Other damage may

result including drive failures.

Keep the following precautions.

Do not touch the data surface.

Keep the disc surfaces clean and free from dirt, dust and fingerprints, and do not allow

them to become scratched.

Do not write on the surface of the disc with a ballpoint pen or other writing instrument nor

paste any paper to it.

Do not drop, bend, or place heavy objects on top of discs.

Do not place or store discs in locations exposed to heat, direct sunlight, humidity or dust.

If the disc is brought from a cold into a warm environment, moisture may form on the

disc. Wipe this moisture off with a soft, dry, lint-free cloth before using the disc.

When discs are not actually being used, make sure to keep them inside their protective

cases or cartridges.

If the disc becomes dirty, clean it with the followings.

To remove dirt from a disc

Usage Precautions

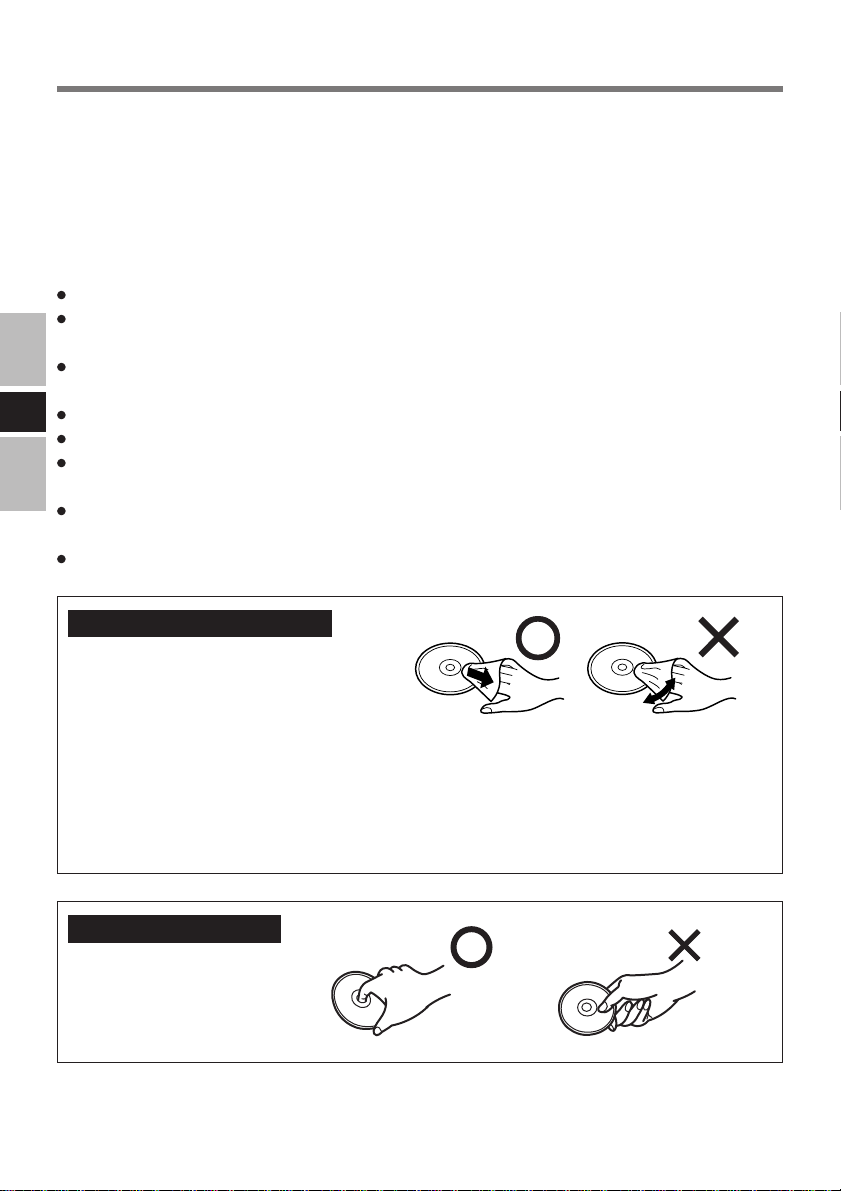

Wipe a disc with a dry, soft cloth from

the center toward the edges.

If the disc heavily gets dirty, wipe a disc

with a moist, soft cloth from the center toward the edges, and then wipe it again with a

dry cloth to take up remaining moisture.

Use the Panasonic disc cleaner to clean these discs.

Do not use a cloth, CD cleaners or any other such cleaners under any circumstances.

How to hold the disc

Using the Drive

Refer to “Multimedia Pocket” in the Reference Manual included with your computer for

details on how to install and remove the drive.

Installing/Removing a Device

Preparations

Windows XP

Confirm that [Transfer Mode] is set to [DMA if available] in [start] - [Control Panel] -

[Performance and Maintenance] - [System] - [Hardware] - [Device Manager] - [IDE ATA/

ATAPI controllers] - [Secondary IDE Channel] - [Advanced Settings] - [Device 0]. Per-

form this setting if it has not yet been made.

Windows 2000

Confirm that [Transfer Mode] is set to [DMA if available] in [Start] - [Settings] - [Control

Panel] - [System] - [Hardware] - [Device Manager] - [IDE ATA/ATAPI controllers] -

[Secondary IDE Channel] - [Advanced Settings] - [Device 0]. Perform this setting if it has

not yet been made.

Using the Drive

Center Holder

Eject Button

Label side up

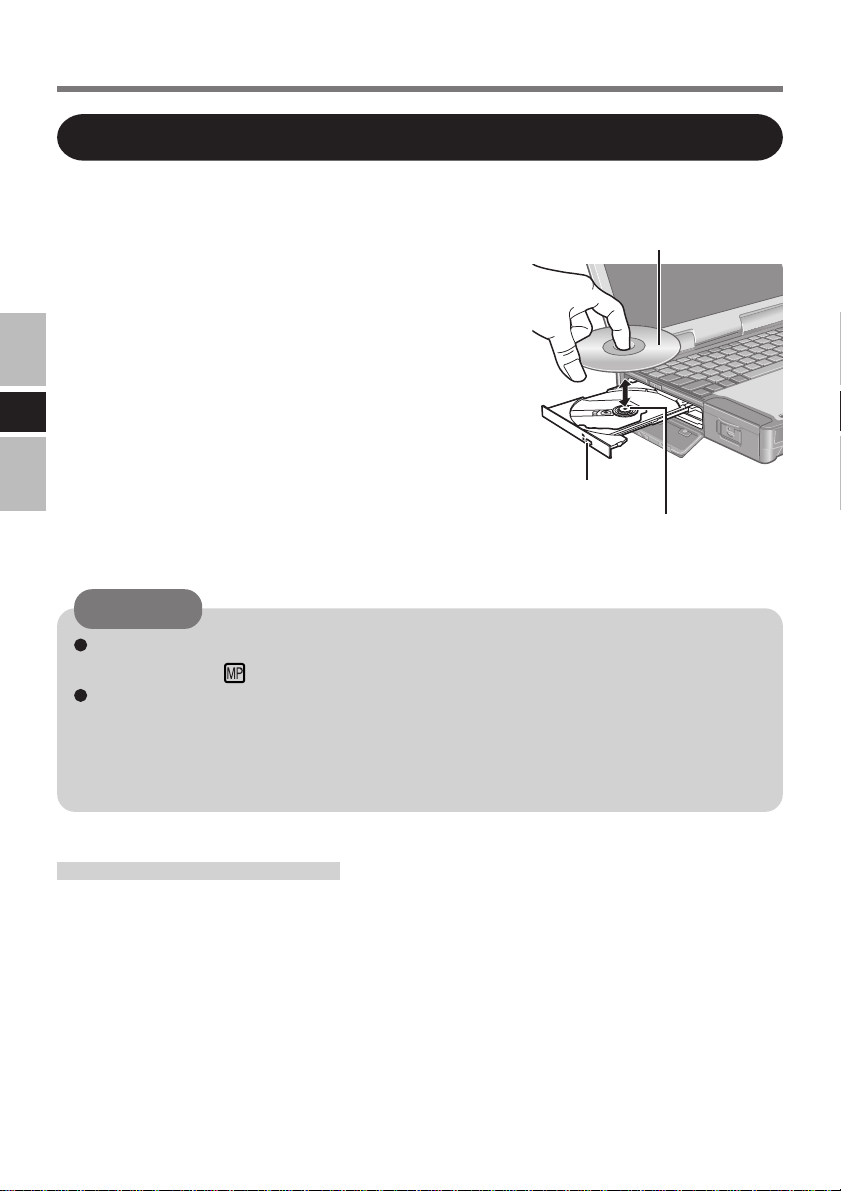

1Power on your computer.

2Open the disc tray.

Press the eject button and slowly pull out the tray.

3Place a disc.

①Place the disc with the label facing upward in

the drive.

②Push down until the center holder clicks.

Place a finger on the center holder and lift up on the

edge of the disc.

4Close the disc tray.

Close the tray without touching the eject button.

If the drive has not been accessed within 30 seconds, the drive motor will automatically shut

down to reduce the power consumption. When the drive is accessed once again, the power

of the drive motor is turned on. However, approximately 30 seconds are required until data

is actually read from the disc.

Power-saving Mode

Setting a Disc

After the tray closes, do not access the drive until the multimedia pocket device

status indicator goes off.

If the vibration of the drive is excessive, check to see if the disc is inserted correctly,

and check that the disc is in good condition. If the disc is good and inserted correctly,

set [CD/DVD Drive Speed] or [CD Drive Speed] to [Low] in the Setup Utility. (This

setting does not work for the DVD disc when using CF-29C****** and CF-

29D****** model.)

CAUTION

Information

To play DVD-Video or MPEG2 files, install the DVD playback software using DVD

Drive Utility Disc (included).

For information on how to install the software, refer to page 14.

If the PC Card does not work, there may be no interrupt request (IRQ) line available.

Deactivate unnecessary equipment using in the Setup Utility.

When playing back movies from a disc, note that smooth playback may not be possible in

some cases.

About Regions Setting

DVD-Videos usually have a region code that is fixed according to the region where they are

sold. In order to play a DVD-Video, the region code of the player software and of the drive

must match that of the DVD-Video.

For U.S.A. and Canada: “1”

For Europe: “2”

This drive’s region code is not set at the time of shipment from the factory. Therefore,

operations will differ depending on the first DVD-Video played.

In the case of a DVD-Video with a specific region code:

The drive and player software will automatically be set to the same region code as the

DVD-Video.

In the case of a DVD-Video with multiple region codes:

[Confirm Region] appears. Select region code of the drive and the player software, and

select [OK]. Play now begins.

([Confirm Region] may not appear for some DVD-Videos. To confirm the current region

code of the drive and the number of settings remaining, right-click on the WinDVD

screen and select [Setup] - [Region].)

NOTE

[Confirm Region] will also be displayed if a DVD-Video with one region code is

inserted into a drive for which another region code has already been set.

The region code of the drive can be set a total of five times, including the initial

setting. Proceed very carefully, because after the fourth change has been made, the

region code set last is fixed and no further changes can be made.

The user must take responsibility for any trouble that results from illegally changing

or altering the region code.

CAUTION

Using the Drive

When writing to discs

Read the instructions on the disc package carefully.

With DVD-RAM, you can write or rewrite as with the hard disk using Explorer, without

using the writing software. (DVD-RAM driver is required. Refer to page 12 on how to

install the software.)

Writing software is required to write data to a disc other than DVD-RAM.

Install “B’s Recorder” and “B’s CLiP” using “DVD Drive Utility Disc” (included).

(page 17)

Be sure to use discs conforming to the proper write speeds. ( page 24)

If the write operation is to involve a long period of time, be sure to connect the AC

adaptor. If the battery power runs low and the power of the computer is cut, the write

operation may end in failure.

Be sure to use discs that meet the following specifications.

DVD-R for General Ver.2.0 (4.7 GB)

DVD-R for General Ver.2.0/4X-SPEED DVD-R REVISION 1.0 (4.7 GB)

DVD-R for General Ver.2.0/8X-SPEED DVD-R REVISION 3.0 (4.7 GB)

DVD-RW Ver.1.1 (4.7 GB)

DVD-RW Ver.1.1/2X-SPEED DVD-RW REVISION 1.0 (4.7 GB)

DVD-RW Ver.1.2/4X-SPEED DVD-RW REVISION 2.0 (4.7 GB)

DVD-RAM Ver.2.0 or Ver.2.1 (4.7 GB/9.4 GB)

DVD-RAM Ver.2.1/3X-SPEED DVD-RAM REVISION 1.0 (4.7 GB/9.4 GB)

DVD-RAM Ver.2.2/5X-SPEED DVD-RAM REVISION 2.0 (4.7 GB/9.4 GB)

+R Ver.1.0, Ver.1.1 or Ver.1.2

+R DL Ver.1.0

+RW Ver.1.1 or Ver.1.2

Depending on the disc, the quality of the write operation may not be so good. We recom-

mend using any of the following discs.

Recommended Discs:

<CD-R>

HITACHI MAXELL, Ltd.

MITSUBISHIKAGAKUMEDIACO.,Ltd.

RICOH Co., Ltd.

TAIYO YUDEN Co., Ltd.

<CD-RW/High-Speed CD-RW>

MITSUBISHIKAGAKUMEDIACO.,Ltd.

RICOH Co., Ltd.

<Ultra-Speed CD-RW>

MITSUBISHIKAGAKUMEDIACO.,Ltd.

<DVD-R>

Matsushita Electric Industrial Co., Ltd.

MITSUBISHIKAGAKUMEDIACO.,Ltd.

TAIYO YUDEN Co., Ltd.

<DVD-RW>

MITSUBISHI KAGAKU MEDIA CO., Ltd.

Victor Company of Japan, Limited

<DVD-RAM>

Matsushita Electric Industrial Co., Ltd.

HITACHI MAXELL, Ltd.

<+R>

MITSUBISHI KAGAKU MEDIA CO., Ltd.

RICOH Co., Ltd.

<+R DL>

MITSUBISHI KAGAKU MEDIA CO., Ltd.

<+RW>

MITSUBISHI KAGAKU MEDIA CO., Ltd.

Indice

Lingue:

Altri manuali Panasonic Unità DVD

Panasonic

Panasonic SR-8588-B Manuale utente

Panasonic

Panasonic VWBN2 - PORTABLE DVD BURNER Manuale utente

Panasonic

Panasonic FZ-VDR551 Series Manuale utente

Panasonic

Panasonic CF-VDD712M Manuale utente

Panasonic

Panasonic SR-8588-B Manuale utente

Panasonic

Panasonic VW-BN1 - DVD-RW / DVD-RAM Drive Manuale utente

Panasonic

Panasonic CF-VDD371M Manuale utente

Panasonic

Panasonic SR-8587-B Manuale utente

Panasonic

Panasonic SR-8585-B Manuale utente

Panasonic

Panasonic VW-BN1 - DVD-RW / DVD-RAM Drive Manuale utente

Panasonic

Panasonic CF-VDD711W Manuale utente

Panasonic

Panasonic CF-VDM311U Manuale utente

Panasonic

Panasonic CF-VDM Series Manuale utente

Panasonic

Panasonic KXL-CB30AU Manuale utente

Panasonic

Panasonic LFD521U - DISK DRIVE Manuale utente

Panasonic

Panasonic CF-VDRRT3W Manuale utente

Panasonic

Panasonic CF-VDD283 Manuale utente

Panasonic

Panasonic CF-VDD285 Manuale utente

Panasonic

Panasonic CF-VDD272 Manuale utente

Panasonic

Panasonic CF-VDM Series Manuale utente

Panasonic

Panasonic CFVDM732U - DVD Manuale utente

Panasonic

Panasonic CF-VDD283 Manuale utente

Panasonic

Panasonic LF-D201U Manuale utente

Panasonic

Panasonic CF-VDR291U Manuale utente

Manuali Unità DVD popolari di altre marche

LG GSA-4160B Manuale utente

Sony

Sony DRU-500AX Manuale utente

LG GSA-2164D Manuale utente

Plextor

Plextor PX-755SA Manuale utente

Pioneer

Pioneer BDC-TD03RS Manuale del proprietario

Samsung

Samsung SM-332B Manuale utente

Freecom

Freecom MOBILE DVD RW II Manuale utente

Plextor

Plextor PX-712 Manuale utente

NEC

NEC ND-3550A Manuale utente

Emprex

Emprex Slim Writer DVD R/RW USB 2.0 External Drive Manuale utente

Philips

Philips PCA532K Manuale utente

Sony

Sony AD-7740H Manuale utente

Philips

Philips PCDV5016 Series Guida di riferimento

Pioneer

Pioneer LaserMemory DVD-115 Manuale utente

Samsung

Samsung SE-S224Q Manuale utente

IBM

IBM 71P7285 Manuale utente

Pioneer

Pioneer DVR-A04 Manuale utente

IBM

IBM 27L2579 Manuale utente
