Panasonic ER-2403 Manuale utente

© 2007 Matsushita Electric Industrial Co., Ltd. All

rights reserved. Unauthorized copying and distribu-

tion is a violation of law.

Order Number SD0708M43CE

Body Hair/Beard Trimmer

Model No. ER2403

ER2405

Middle East

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 4

5 Wiring Connection Diagram ---------------------------------- 9

6 Schematic Diagram ---------------------------------------------10

7 Exploded View and Replacement Parts List -----------11

2

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

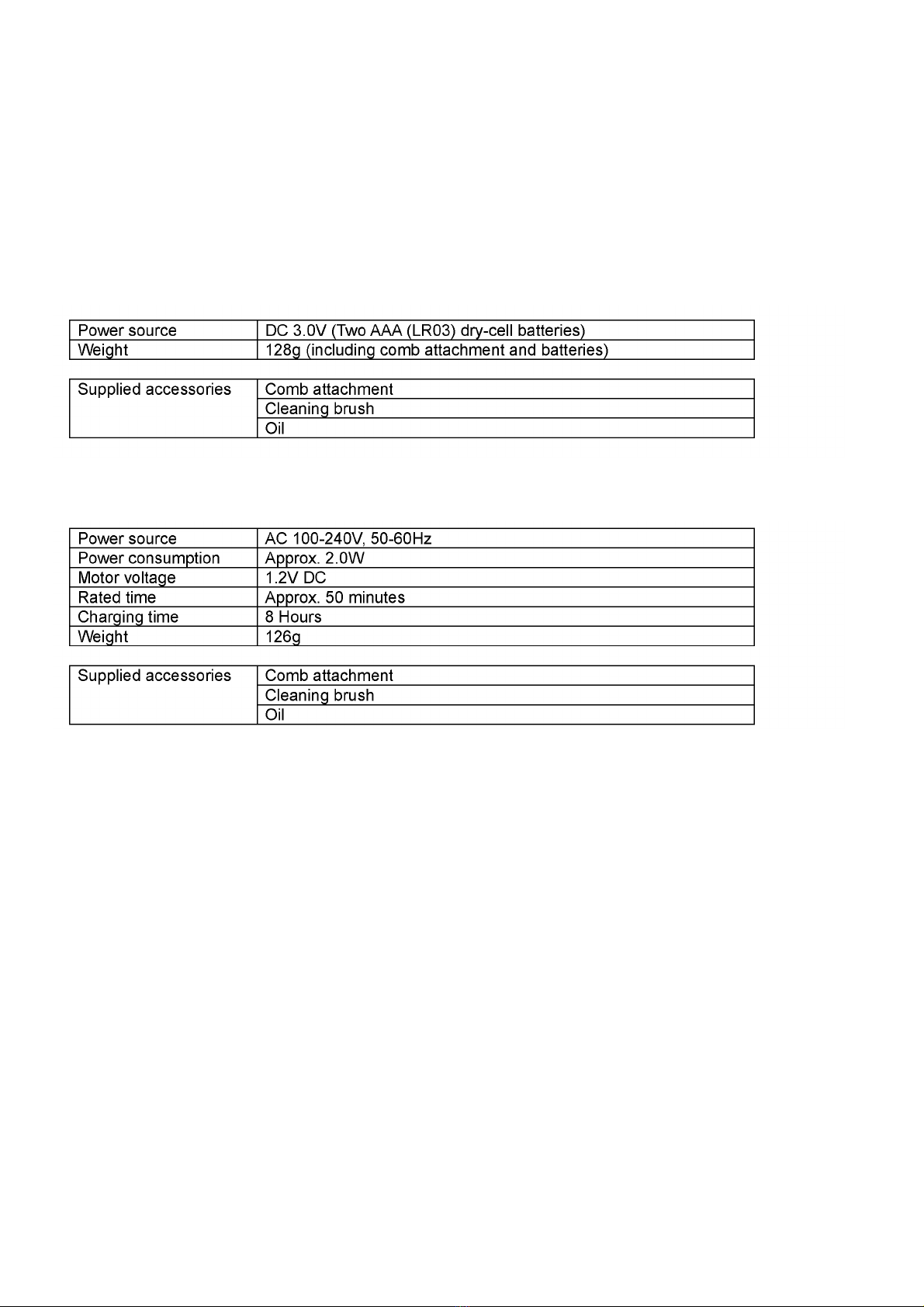

2 Specifications

2.1. ER2403

2.2. ER2405

3

3 Troubleshooting Guide

3.1. ER2403

3.2. ER2405

4

4 Disassembly and Assembly Instructions

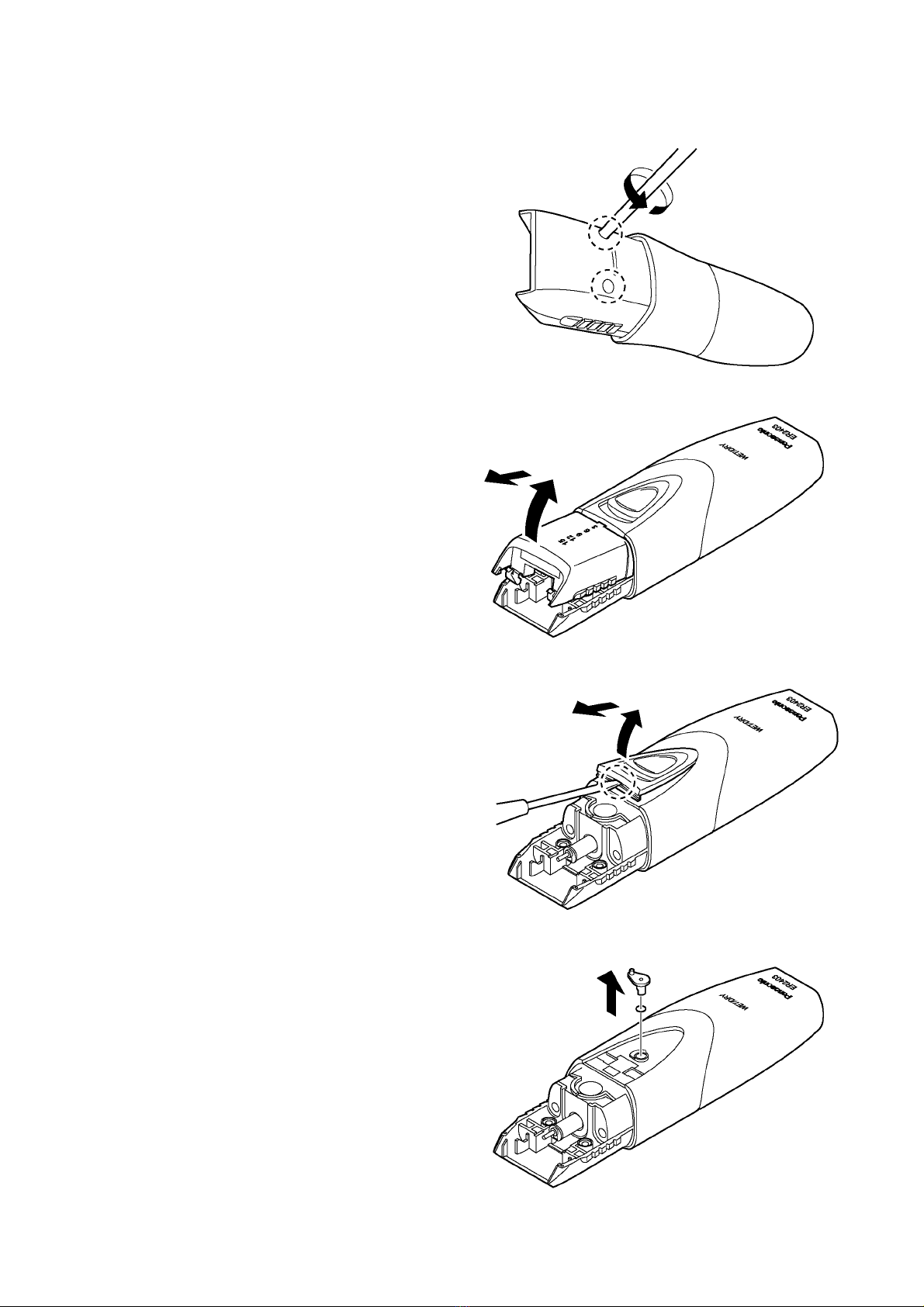

4.1. Disassembly Instructions for ER2403

1. Remove the attachment and the blade.

2. Loosen two housing screws.

3. Remove the housing C.

4. Insert the flat-head screwdriver into the hole of switch

handle and raise it up.

5. Take out the switch cam and the O-ring.

NOTE:

Make sure not to lose them.

5

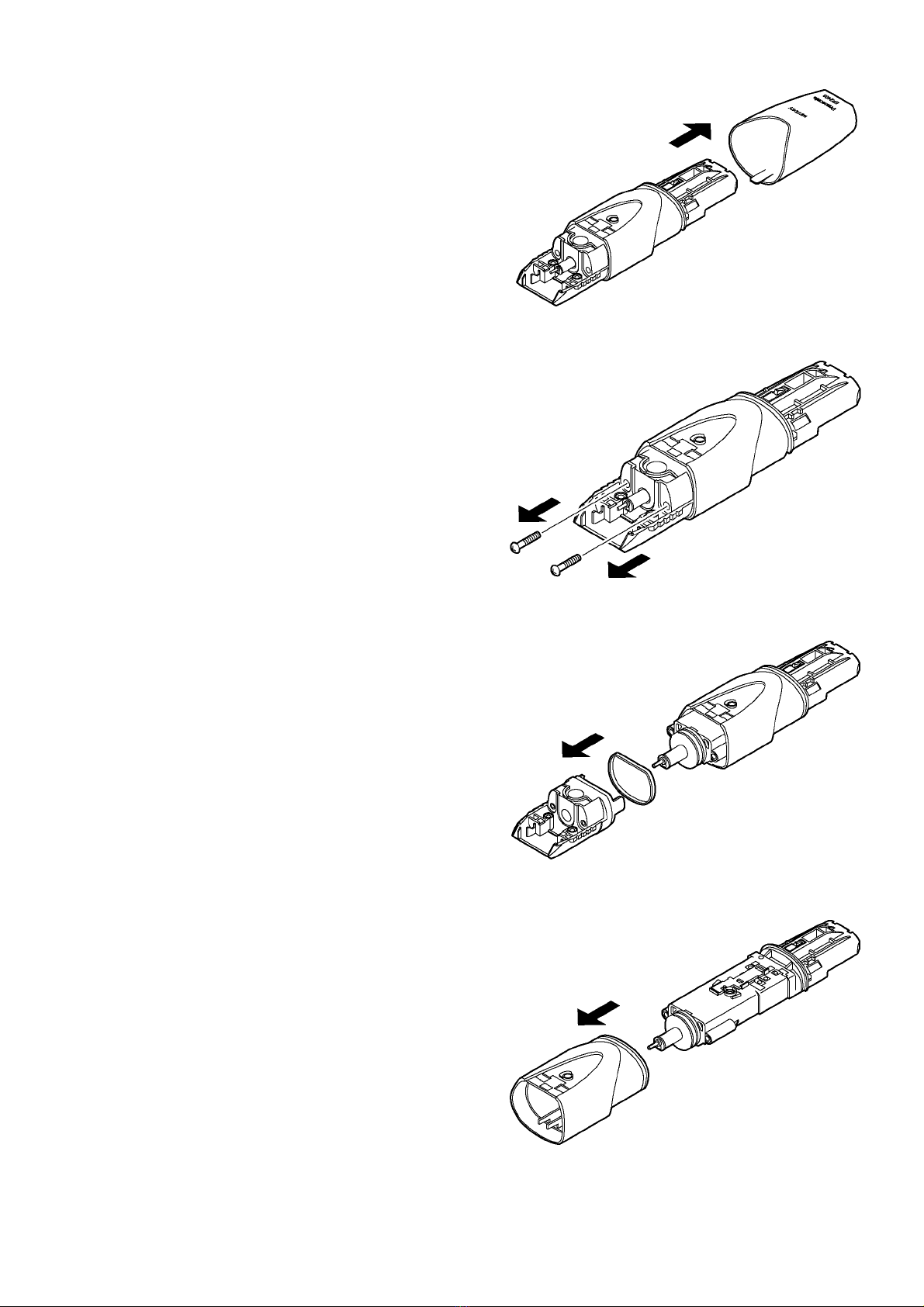

6. Remove the battery cover.

7. Loosen two screws on top.

8. Take out the housing B.

NOTE:

Make sure not to lose the O-ring.

9. Remove the housing A.

NOTE:

Make sure not to lose two screw O-rings.

6

4.2. Disassembly Instructions for ER2405

1. Remove the attachment and the blade.

2. Loosen two housing screws.

3. Remove the housing C.

4. Insert the flat-head screwdriver into the hole of switch

handle and raise it up.

5. Take out the switch cam and the O-ring.

NOTE:

Make sure not to lose them.

7

6. Loosen two screws on top.

7. Take out the housing B.

NOTE:

Make sure not to lose the O-ring.

8. Remove the housing A.

NOTE:

Make sure not to lose two screw O-rings.

9. Loosen two screws.

8

10. Take out the chassis assembly.

11. Take out the O-ring from the bottom of battery cover.

12. Unhook the terminal base to remove from the chassis.

9

5 Wiring Connection Diagram

5.1. ER2405

10

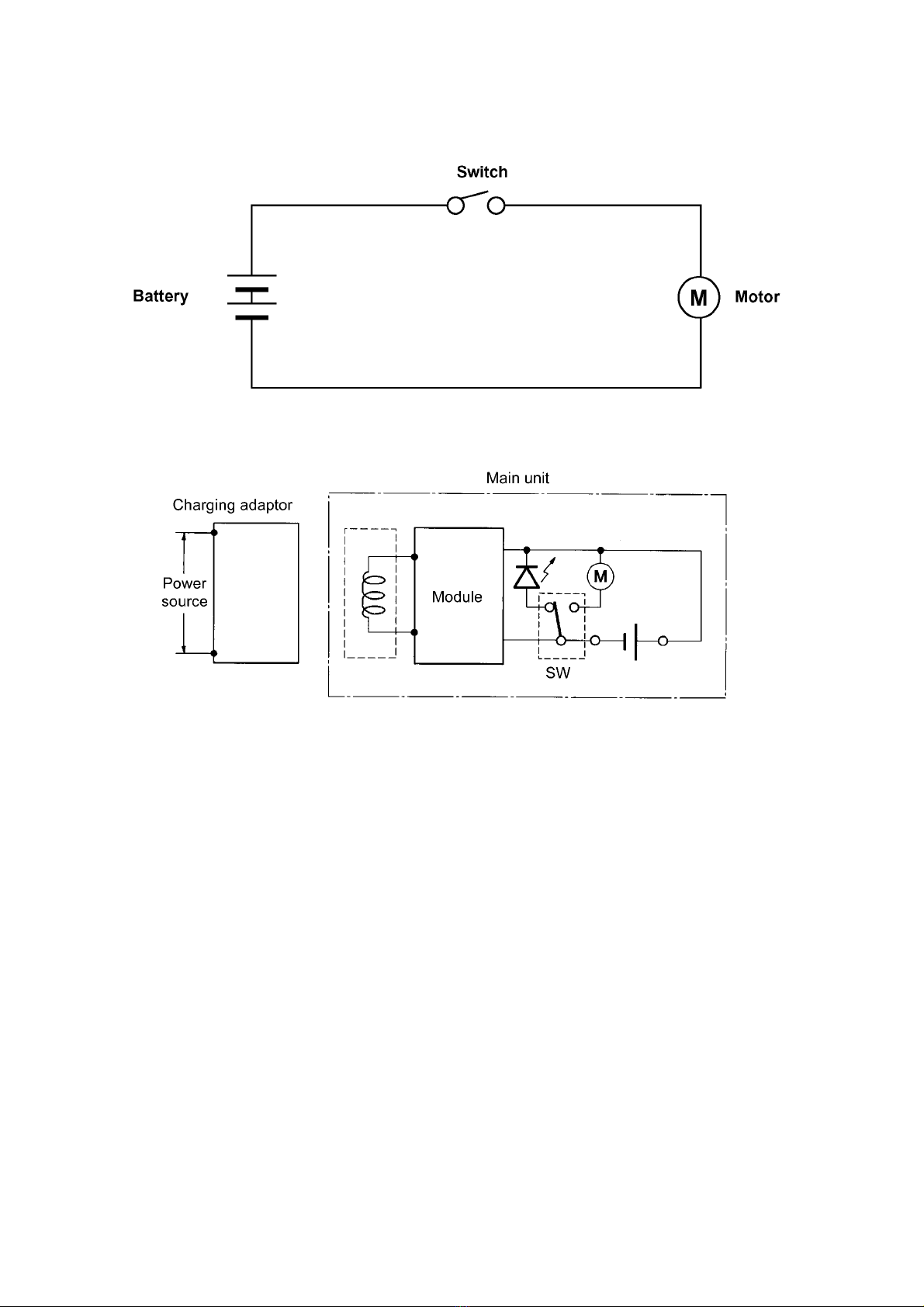

6 Schematic Diagram

6.1. ER2403

6.2. ER2405
