ing and distribution is a violation of law.

ORDER NO. SD1408A54CE

Rechargeable Beard Trimmer

Model No. ER-GB37

Asia

Middle East

TABLE OF CONTENTS

PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 4

5 Wiring Connection Diagram ---------------------------------- 6

6 Schematic Diagram ---------------------------------------------- 6

7 Exploded View and Replacement Parts List ------------ 7

ER-GB37

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70F (30 - 40) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20F (400 ± 10). In case of using high temperature soldering

iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100F / 600C).

2 Specifications

Power source Asia AC 220-240V, 50Hz

India AC 230V, 50Hz

Middle East AC 220-240V, 50-60Hz

Motor voltage 1.2V

Charging time Approx. 8-10 hours

Weight 150g (excluding comb attachment)

Supplied accessories Comb attachment

Cleaning brush

Oil

ER-GB37

3 Troubleshooting Guide

(Refer to WIRING CONNECTION DIAGRAM)

ER-GB37

4 Disassembly and Assembly Instructions

4.1. Disassembly Instuctions

Follow the procedure below to disassemble the main unit.

1. Remove the comb attachment and the blade.

2. Loosen two screws and remove the blade holder.

3. Loosen a screw from bottom cover.

4. Take out the front panel from the housing.

5. Take out the dial from the unit.

6. Loosen 8 screws.

ER-GB37

7. Separate the housing B from the housing A.

8. Loosen 2 screws.

9. Remove the battery from the chassis.

10. Remove the motor.

4.2. Cautions in Assembly

NOTE:

When reassembling, replace the new waterproof rubber.

Make sure whether there is NO foreign substance sticking

around a part covered with water seal.

NOTE:

Make sure to assemble the battery last in order to avoid

short-circuit.

4.2.1. Motor

Place the red mark on upper side. Fit the shape of motor bal-

ancer and the hole of housing A and insert into housing A.

4.2.2. Battery case

Align the projection of switch select button on housing A with

the groove of switch plate on battery case.

NOTE:

Make sure to assemble the washer and O-ring into the bat-

tery and lever.

ER-GB37

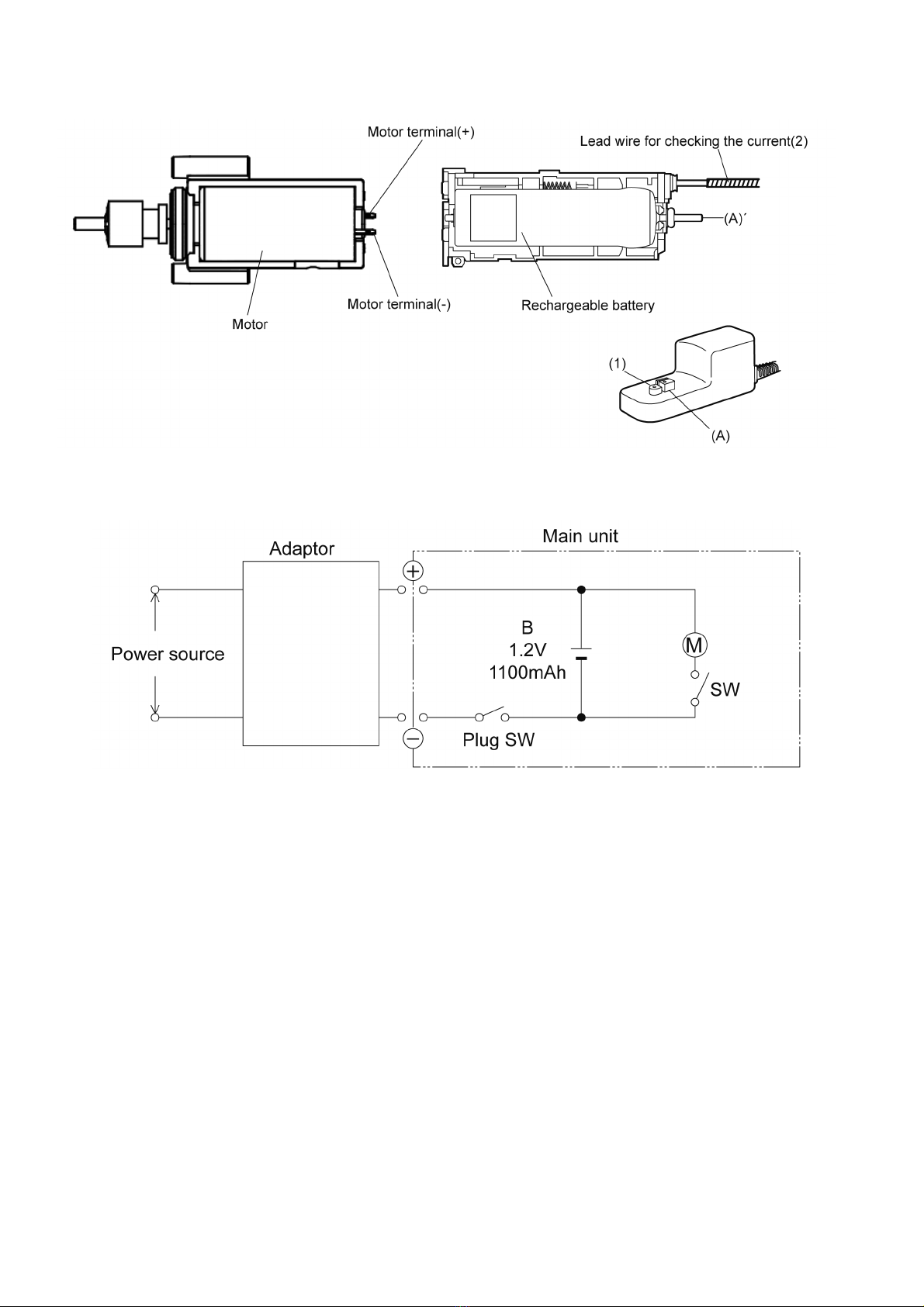

5 Wiring Connection Diagram

6 Schematic Diagram

ER-GB37

7 Exploded View and Replacement Parts List

7.1. Exploded View

ER-GB37

7.2. Replacement Parts List

Safety Ref.

No.

Part No. Part Name & Description Quan-

tity

Remarks

1 WER9605E BLADE BLOCK 1

2 WES7025L9707 SCREW 2

3 WER217L0967 O-RING B 2 (6PCS/PK)

4 WER504L0166 SPRING FOR CUTTER 2 (2PCS/PK)

5 WERGB37K1588 BLADE HOLDER 1

6 WERGB37K3288 ADJUSTING DIAL 1

7 WERGB37K3968 FRONT PANEL 1

8 WERGB37K3058 HOUSING A 1

9 WERGB37K3068 HOUSING B 1

9 WERGB37K3069 HOUSING B 1 only for India

10 WERGB37L0588 HOUSING O-RING 1

11 WERGB40L0458 CLICK BUTTON 1

12 WERGB40L0178 SPRING A 1

13 WERGB37L1008 MOTOR ASSEMBLY 1

14 WESRW35L2508 RECHARGEABLE BATTERY 1 Ni-MH Type, (2PCS/PK)

15 WESRW30L0977 WASHER & O-RING SET 1

16 WESRW30L0237 BATTERY HOLDER 1

17 WES8176L6056 TAPPING SCREW 11 K2-8

18 WERGB37K3038 BODY BLOCK 1

18 WERGB37K3031 BODY BLOCK 1 only for India

19 WERGB37K7398 COMB ATTACHMENT 1

20 WERGB37K7676 AC ADAPTOR 1 C-2 PLUG

20 WERGB37K7675 AC ADAPTOR 1 BF3 PLUG

20 WERGB37K7655 AC ADAPTOR 1 C-2 PLUG, only for India

21 WERGB30H7048 CLEANING BRUSH 1

22 WERGC20X7918 OIL 1

- WERGB37K8008 INDIVIDUAL BOX 1 only for BF3 Plug model

- WERGB37K8009 INDIVIDUAL BOX 1

- WERGB37K8000 INDIVIDUAL BOX 1 only for India

- WERGB37K8108 OPERATING INSTRUCTIONS 1

- WERGB37K8109 OPERATING INSTRUCTIONS 1 only for India
