Panasonic ES-3040 Manuale utente

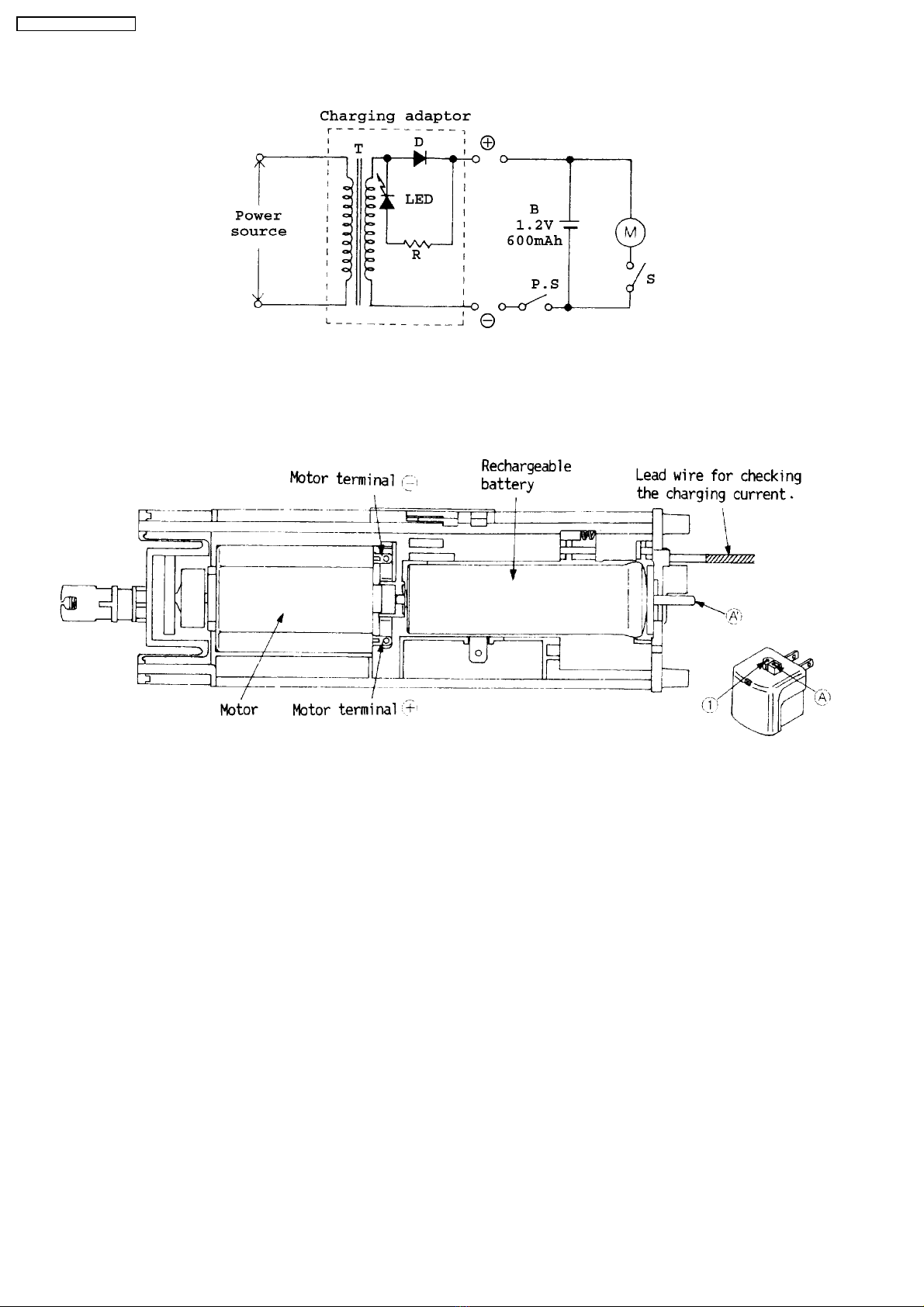

1 SCHEMATIC DIAGRAM 2

2 WIRING CONNECTION DIAGRAM 2

3 DISASSEMBLY METHOD 3

4 CAUTION IN ASSEMBLY 4

reserved. Unauthorized copyingand distribution is a

violation of law.

ES3040

ES3041

ES3042

5 TROUBLESHOOTING GUIDE 5

6 EXPLODED VIEW 6

7 REPLACEMENT PARTS LIST 6

Wet/Dry Rechargeable Shaver

SPECIFICATIONS

Power source

C100-120V, 50-60Hz

(Automatic voltage conversion)

Motor voltage 1.2V DC

Power consumption 6W

Charging time 8-hours

Weight 140g

Soft case

CONTENTS

Page Page

ORDER NO.SD0102U31C1

1 SCHEMATIC DIAGRAM

2 WIRING CONNECTION DIAGRAM

ES3040 / ES3041 / ES3042

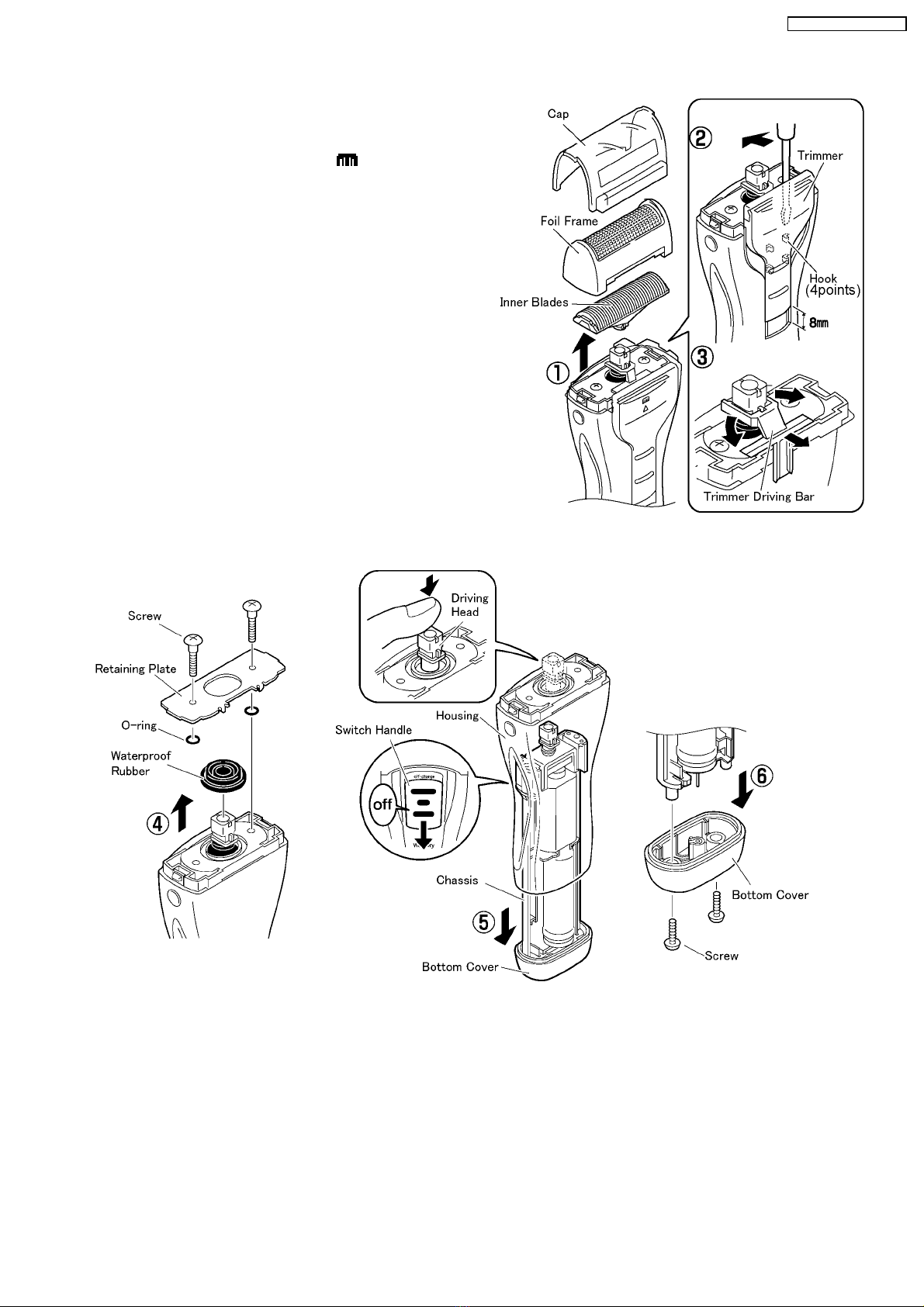

3 DISASSEMBLY METHOD

1. Remove cap, foil frame and inner blade.

2. Unhook right and left side of hooks at upside using a flat

screwdriver with a position 8mm sliding above. Then slightly

move trimmer until position marking 2 , and unhook

lower side of hooks.

3. To remove trimmer driving bar, press bar outward.

4. Loosen two screws and lift rubber retaining plate away.

Take out waterproof rubber and two O-rings.

5. Take out the chassis block from housing by pushing a head

of driving head down with switch OFF.

6. Loosen two screws and remove bottom cover.

NOTE : When reassembling, replace the new waterproof

rubber.

Follow the procedure below to disassemble the main block.

ES3040 / ES3041 / ES3042

To remove battery, fix the top of battery terminal with a flat

plate and lifting up the battery pin.

1. Bottom Cove

Make sure whether there is NO foreign substance sticking

around a part covered with water weal.

2. Chassis

Make sure of terminal plates whether there is No

deformation or their condition.

3. Driving Head

Insert a motor tip pin into the hole of driving head and install

driving head in chassis.

The driving head waterproof rubber must be fitted the right way

around.

Install as shown in figure by inserting firmly to the set position.

Set a position where marking 2 , and hook lower side of

two hooks.

With a position 8mm sliding down, hook right and left side of

hooks at upside.

3.1. BATTERY REPLACEMENT

4 CAUTION IN ASSEMBLY

4. Waterproof Rubber

5. Trimmer

ES3040 / ES3041 / ES3042

5 TROUBLESHOOTING GUIDE

< SYMPTOM > < CAUSE > < REMEDY >

Motor does not rotate. —<CHECK CHARGING ADAPTOR.> →Replace charging adaptor.

Does not charge Connect to rated voltage. OK if it is approximately

DC 1.5V-3.0V between - .

↓OK

<CHECK CONTACT CONDITIONS OF SWITCH.> →Repair contact of negative con

Check for proper contact between negative contactspring and tact spring.

terminal pin when terminal pin is depressed.

↓OK

<CHECK SWITCH.> →Repair contact or replace

Check contacts of switch. chassis.

↓OK

<CHECK MOTOR.> →Replace motor.

Okay if motor rotates when DC1.2V is applied to (+) and (-)

terminals.

↓OK

<CHECK RECHARGEABLE BATTERIES.> →Replace rechargeable battery.

Okay if voltage of rechargeable battery is more than

approximately 1.2V between (+) and (-) terminals.

*The rechargeable battery has a limited life. The battery

should be replaced if

OK - after being charged for the rated charging time,

battery voltage is less than DC 1.2V or an usabletime

is extremely short.

-the battery leaks. Check battery for leaks and

terminals for white powder or green corrosion.

Connect lead wire to charging adaptor and

measure charging current across and .

Okay if it is 160±20mA.

ES3040 / ES3041 / ES3042

6 EXPLODED VIEW

7 REPLACEMENT PARTS LIST

Ref. No. Part No. Part Name & Description Remarks Per Unit

1WES3040X7158 PROTECTIVE CAP (BG) 1

2WES3050S0047 OUTER FOIL FRAME ES3040/3042 (BG) 1

2WES3041K0048 OUTER FOIL FRAME ES3041 (BG) 1

3WES9941P OUTER FOIL 1

4WES9942P INNER BLADE 1

5WES762L9707 SCREW *C 2

6WES3050L0207 RETAINING PLATE (BG) 1

7WES366L0328 WATERPROOF RUBBER 1

8WES366L1248 DRIVING HEAD (BG) 1

9WES366K1088 TRIMMER DRIVING BAR (BG) 1

10 WES365L0057 TERMINAL PLATE (BG) 1

11 WES365L0777 CHASSIS (BG) 1

12 WES364L1007 MOTOR (BG) 1

13 WES365L2508 RECHARGEABLE BATTERY (BG) 1

14 WES365L0307 SPACER (BG) 1

15 WES4001H3267 RELEASE BUTTON *C (BG) 2

16 WES4001L0177 SPRING FOR RELEASE BUTTON *C (BG) 2

17 WES3050S3207 SWITCH HANDLE (BG) 1

18 WES3040S3968 SWITCH PANEL ES3040/3041 (BG) 1

18 WES3042A3968 SWITCH PANEL ES3042 (BG) 1

19 WES3050A0367 LOCK BUTTON (BG) 1

20 WES3050L1667 SWITCH CAM (BG) 1

21 WES663L0977 SWITCH O-RING 1

22 WES3040S3058 HOUSING ES3040 (BG) 1

22 WES3041K3058 HOUSING ES3041 (BG) 1

22 WES3042S3058 HOUSING ES3042 (BG) 1

23 WES4001K1507 TRIMMER ES3040/3042 (BG) 1

23 WES3041K1508 TRIMMER ES3041 (BG) 1

24 WES365L1577 PLUG LEVER (BG) 1

25 WES365L0187 LEVER SPRING (BG) 1

26 WES3040H3848 BOTTOM COVER ES3040/3042 (BG) 1

26 WES3041K3848 BOTTOM COVER ES3041 (BG) 1

27 WES762L6007 SCREW *C 2

28 WES3040S3038 BODY BLOCK ES3040 (BG) 1

28 WES3041K3038 BODY BLOCK ES3041 (BG) 1

28 WES3042S3038 BODY BLOCK ES3042 (BG) 1

29 WES365H7658 CHARGING ADAPTOR A-2PLUG (BG) 1

30 WES4001K7007 SOFT CASE (BG) 1

-WES3040S8108 OPERATING INSTRUCTIONS (BG) 1
