Panasonic ES4036-A3 Manuale utente

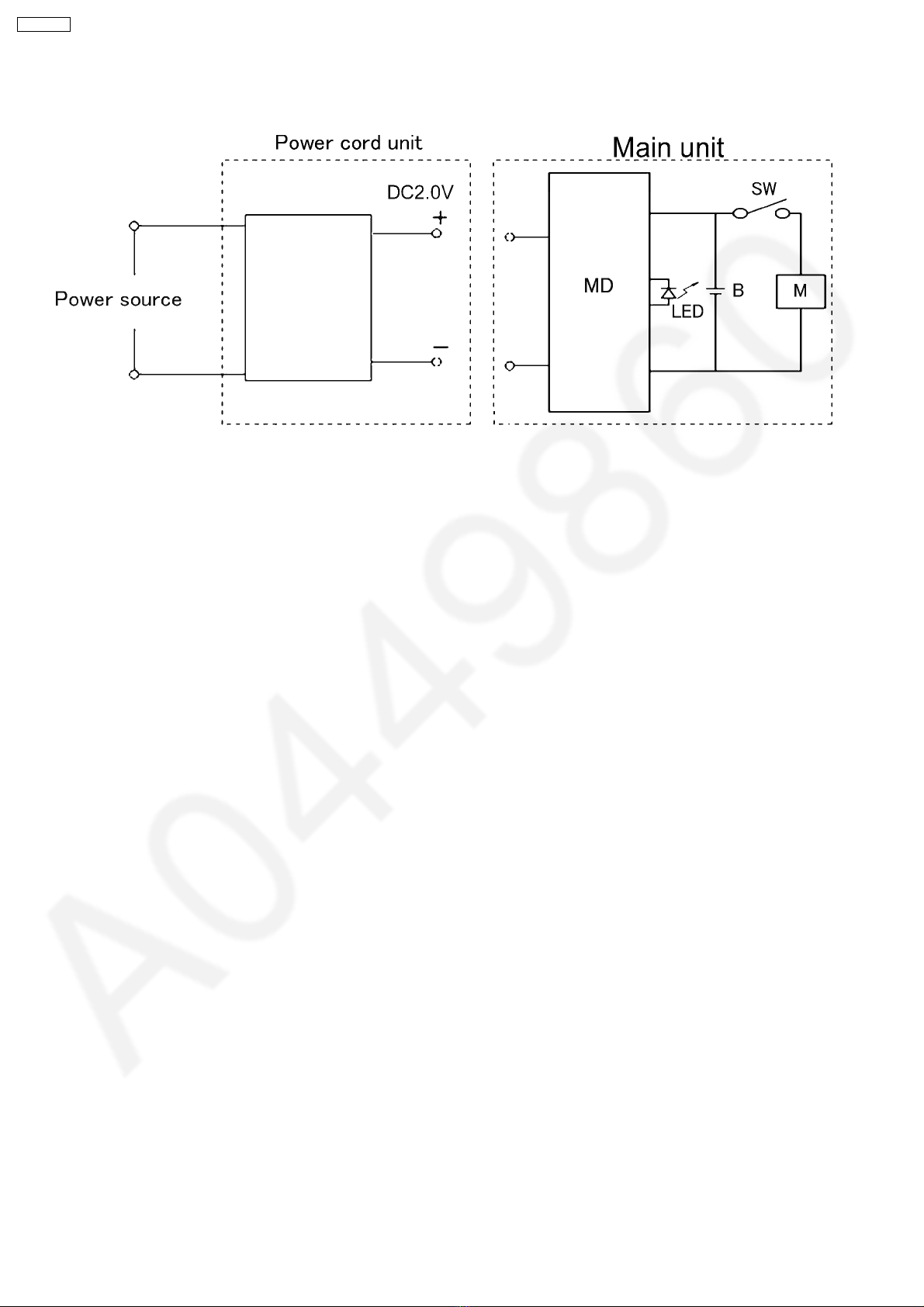

1 SCHEMATIC DIAGRAM 2

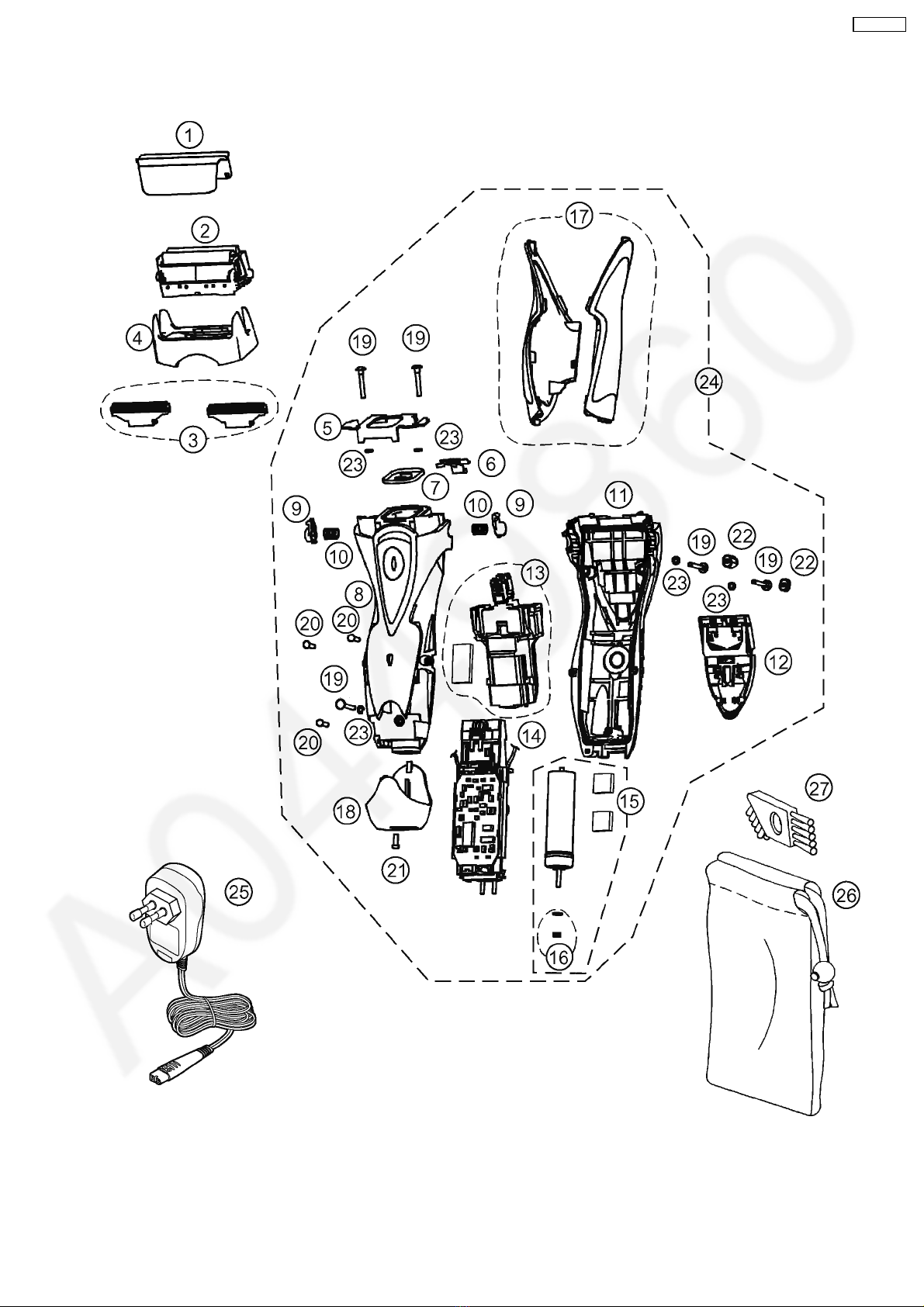

2 EXPLODED VIEW 3

reserved. Unauthorized copying and distribution is a

violation of law.

ES4036-A3

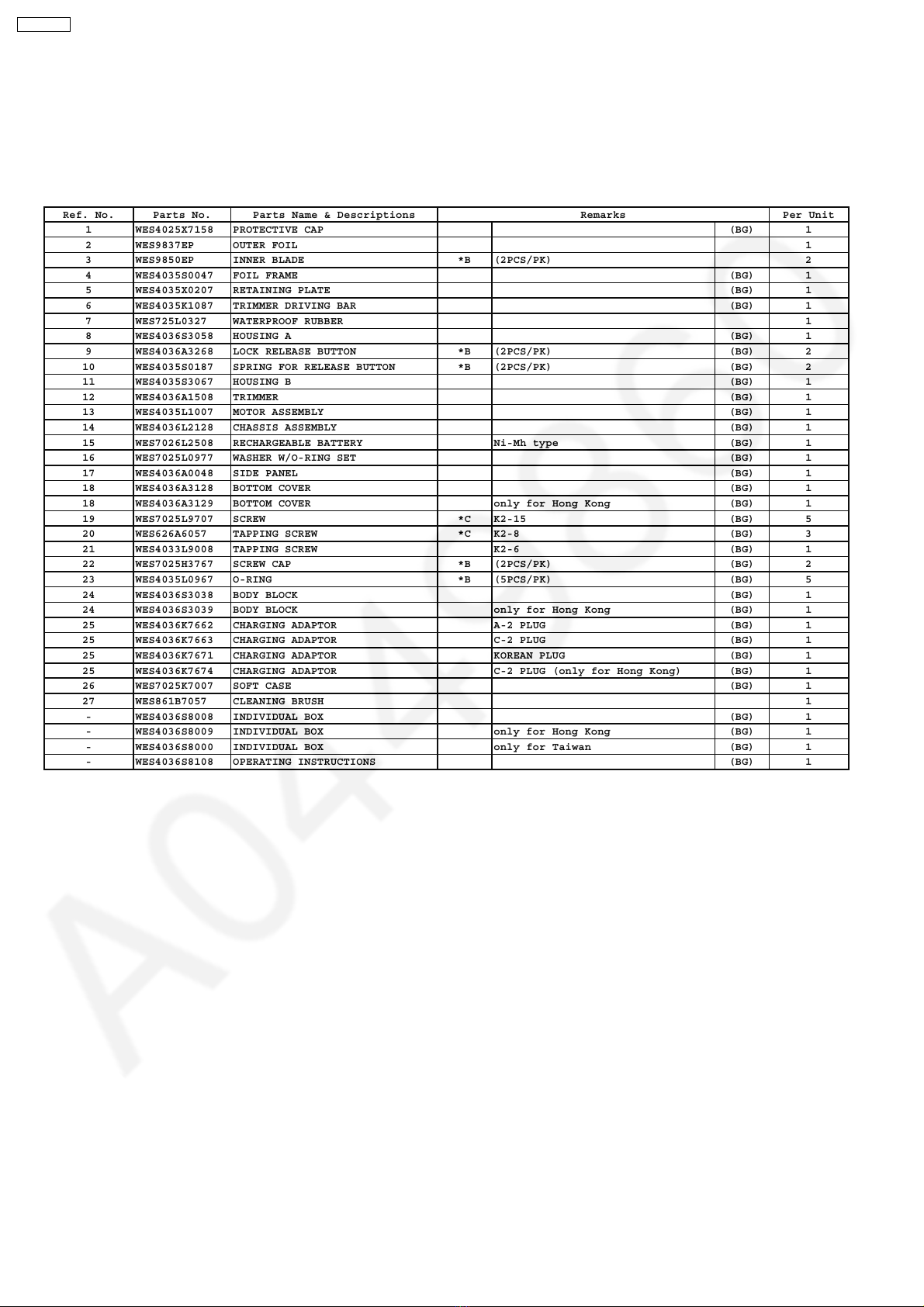

3 REPLACEMENT PARTS LIST 4

AC/Rechargeable Shaver

Please file and use this manual together with the service manual for Model No. ES4033/ES4035, Order No.

SD0406A47C3.

SPECIFICATIONS

Power source

C 100-240V, 50-60Hz (Automatic voltage conversion)

Motor voltage 1.2V DC

Charging time 1 hours

Shavers per charge 10 times (3 minutes shave)

Measurement (H)14.6 x (W)5.7 x (D)4.9 cm

Weight 155g

Supplied accessories Soft case

Cleaning brush

CONTENTS

Page Page

ORDER NO. SD0406A43A3

1 SCHEMATIC DIAGRAM

ES4036-A3

2 EXPLODED VIEW

ES4036-A3

3 REPLACEMENT PARTS LIST

NOTE:

*A=available as an optional accessory

*B=only available as set

*C=available individually

Ref. No. Parts No. Parts Name & Descriptions Remarks Per Unit

1WES4025X7158 PROTECTIVE CAP (BG) 1

2WES9837EP OUTER FOIL 1

3WES9850EP INNER BLADE *B (2PCS/PK) 2

4WES4035S0047 FOIL FRAME (BG) 1

5WES4035X0207 RETAINING PLATE (BG) 1

6WES4035K1087 TRIMMER DRIVING BAR (BG) 1

7WES725L0327 WATERPROOF RUBBER 1

8WES4036S3058 HOUSING A (BG) 1

9WES4036A3268 LOCK RELEASE BUTTON *B (2PCS/PK) (BG) 2

10 WES4035S0187 SPRING FOR RELEASE BUTTON *B (2PCS/PK) (BG) 2

11 WES4035S3067 HOUSING B (BG) 1

12 WES4036A1508 TRIMMER (BG) 1

13 WES4035L1007 MOTOR ASSEMBLY (BG) 1

14 WES4036L2128 CHASSIS ASSEMBLY (BG) 1

15 WES7026L2508 RECHARGEABLE BATTERY Ni-Mh type (BG) 1

16 WES7025L0977 WASHER W/O-RING SET (BG) 1

17 WES4036A0048 SIDE PANEL (BG) 1

18 WES4036A3128 BOTTOM COVER (BG) 1

18 WES4036A3129 BOTTOM COVER only for Hong Kong (BG) 1

19 WES7025L9707 SCREW *C K2-15 (BG) 5

20 WES626A6057 TAPPING SCREW *C K2-8 (BG) 3

21 WES4033L9008 TAPPING SCREW K2-6 (BG) 1

22 WES7025H3767 SCREW CAP *B (2PCS/PK) (BG) 2

23 WES4035L0967 O-RING *B (5PCS/PK) (BG) 5

24 WES4036S3038 BODY BLOCK (BG) 1

24 WES4036S3039 BODY BLOCK only for Hong Kong (BG) 1

25 WES4036K7662 CHARGING ADAPTOR A-2 PLUG (BG) 1

25 WES4036K7663 CHARGING ADAPTOR C-2 PLUG (BG) 1

25 WES4036K7671 CHARGING ADAPTOR KOREAN PLUG (BG) 1

25 WES4036K7674 CHARGING ADAPTOR C-2 PLUG (only for Hong Kong) (BG) 1

26 WES7025K7007 SOFT CASE (BG) 1

27 WES861B7057 CLEANING BRUSH 1

-WES4036S8008 INDIVIDUAL BOX (BG) 1

-WES4036S8009 INDIVIDUAL BOX only for Hong Kong (BG) 1

-WES4036S8000 INDIVIDUAL BOX only for Taiwan (BG) 1

-WES4036S8108 OPERATING INSTRUCTIONS (BG) 1
