Panasonic ES6510 Manuale utente

Operating Instructions

使用说明书

Rechargeable Shaver

充电式电动剃须刀

Model No.

型号 ES6510

Before operating this unit, please read these instructions completely and

save them.

操作本产品前请阅读全部说明并妥善保管。

English 2

中文 7

保修证 14

ES6510_CH.indb 1 2008/01/10 12:59:15

All manuals and user guides at all-guides.com

all-guides.com

English

Safety instructions

Be sure to remove the plug from the power outlet before maintenance.

Failure to do so may result in electric shock.

Never insert the plug into or remove it from the power outlet with wet

hands.

It could result in electric shock.

Never wet the appliance, splash water on it or wash it with water.

It could result in electric shock or shorting.

Never charge or use the appliance in the bath or shower room.

It could result in electric shock, ﬁre or shorting.

Always ensure the appliance is operated on an electric power source

matched to its rated voltage.

Failure to do so may result in ﬁre or electric shock.

Do not alter the appliance.Also, do not disassemble or repair it.

It could result in ﬁre, electric shock or injury. Contact the shop where

you purchased the appliance or your nearest service center for

repairs.

Before use, always make sure that the foil has not become damaged or

misshapen.

Failure to do so may cause damage to skin.

Do not apply excessive pressure to the foil.

It could break the foil, resulting in scratching of the skin.

Do not use the appliance for any purpose other than shaving.

It could break or deform the foil, resulting in scratching of the skin.

Be sure to remove the plug from the power outlet when not charging.

Failure to do so may result in electrical ﬁre due to insulation

deterioration.

WARNING - Keep the appliance dry.

SPECIFICATIONS

Model: ES6510

Rated input: a.c 220 V, 15 mA

Motor voltage: d.c 1.2 V

Charging time: 8 hours

This product is intended for household use only.

•-

•

•-

•

•-

•

•-

ES6510_CH.indb 2 2008/01/10 12:59:16

All manuals and user guides at all-guides.com

English

The unit is applied to the Chinese standard GB4706.1 appendix B and

GB4706.9.

Parts identiﬁcation

1Protective cap

2Tab

3Outer foil

4Inner blade

5Inner blade block

6Switch lock button

7Switch

8Plug

9Plug handle

:Cleaning brush





















Charging

1Slide the switch to

“0•CHARGE”.

The shaver is not charged when the

switch is set to “1”.

•

2Push out the plug.

Slide the plug forward and out while pressing

the plug handle.

•

ES6510_CH.indb 3 2008/01/10 12:59:16

All manuals and user guides at all-guides.com

English

3Plug in the appliance to the power

outlet.

Charge the shaver for 8 hours.

A full charge supplies enough power for

about 7 shaves of 3 minutes each.

•

4Disconnect the plug after

charging.

Charge the shaver for at least 16 hours

before using it for the ﬁrst time or when it

has not been in use for more than 6 months.

Charge the shaver where the temperature is

above 0 ˚C or below 40 ˚C.

•

5Slide the plug while pressing the

plug handle.

Using

1Remove the protective cap while

pressing the tabs.

2Check that the outer foil is not

deformed or damaged.

3Slide the switch to “1”while

pressing the switch lock button.

ES6510_CH.indb 4 2008/01/10 12:59:17

All manuals and user guides at all-guides.com

English

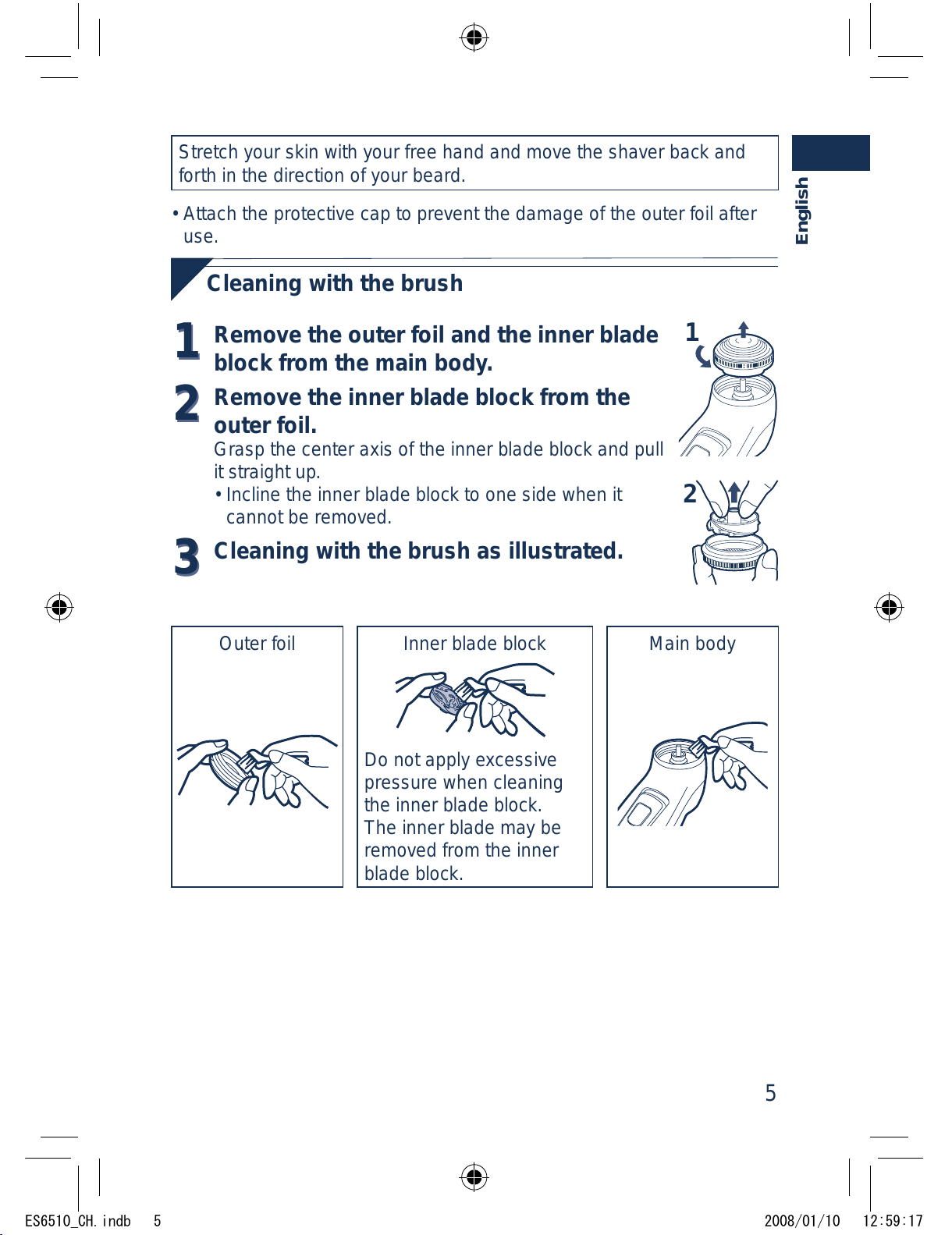

Stretch your skin with your free hand and move the shaver back and

forth in the direction of your beard.

Attach the protective cap to prevent the damage of the outer foil after

use.

Cleaning with the brush

1Remove the outer foil and the inner blade

block from the main body.

2Remove the inner blade block from the

outer foil.

Grasp the center axis of the inner blade block and pull

it straight up.

Incline the inner blade block to one side when it

cannot be removed.

3Cleaning with the brush as illustrated.

•

Outer foil Inner blade block Main body

Do not apply excessive

pressure when cleaning

the inner blade block.

The inner blade may be

removed from the inner

blade block.

•

ES6510_CH.indb 5 2008/01/10 12:59:17

All manuals and user guides at all-guides.com

English

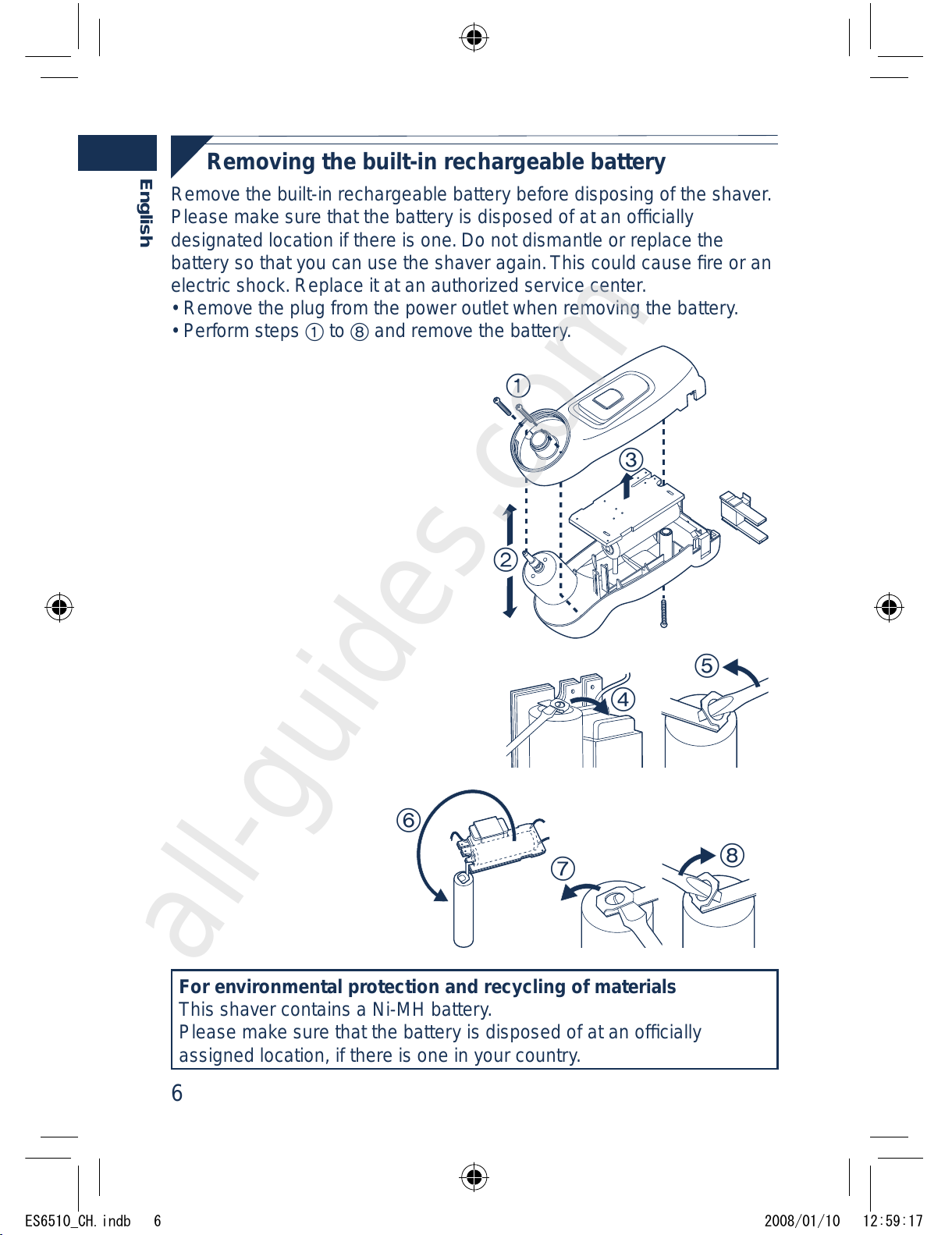

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing of the shaver.

Please make sure that the battery is disposed of at an ofﬁcially

designated location if there is one.Do not dismantle or replace the

battery so that you can use the shaver again.This could cause ﬁre or an

electric shock. Replace it at an authorized service center.

Remove the plug from the power outlet when removing the battery.

Perform steps 1to 8and remove the battery.

















For environmental protection and recycling of materials

This shaver contains a Ni-MH battery.

Please make sure that the battery is disposed of at an ofﬁcially

assigned location, if there is one in your country.

•

ES6510_CH.indb 6 2008/01/10 12:59:17

All manuals and user guides at all-guides.com

all-guides.com

中文

安全须知

请确保在保养前从电源插座上拔下插头。

否则，可能会导致触电。

切勿用湿手将插头插入到电源插座中或从电源插座上拔下插头。

否则，可能会导致触电。

切勿弄湿该电器、将水溅到该电器上或用水冲洗该电器。

否则，可能会导致触电或短路。

切勿在浴室或淋浴室给该电器充电或使用该电器。

否则，可能会导致触电、火灾或短路。

请始终确保该电器是在与其额定电压相匹配的电源上工作。

否则，可能会导致火灾或触电。

请勿改动该电器。此外，请勿对其进行拆卸或维修。

否则，可能会导致火灾、触电或伤害。请联系您购买该电器时的商店

或离您最近的服务中心进行维修。

使用之前，请始终确保刀网没有受损或变形。

否则，可能会造成皮肤伤害。

请勿对刀网施加过多的压力。

否则，可能会损坏刀网，从而导致皮肤刮伤。

请勿将该电器用于剃须以外的任何其他用途。

否则，可能会损坏刀网或使刀网变形，从而导致皮肤刮伤。

不充电时，请确保从电源插座上拔下插头。

否则，可能会由于绝缘劣化而导致电气火灾。

警告 - 请保持电器干燥。

规格

型号：ES6510

额定输入：交流220V，15mA

马达电压：直流1.2V

充电时间：8小时

本产品仅限家庭使用。

本产品符合中国标准GB4706.1附录B和GB4706.9。

•-

•

ES6510_CH.indb 7 2008/01/10 12:59:18

All manuals and user guides at all-guides.com

中文

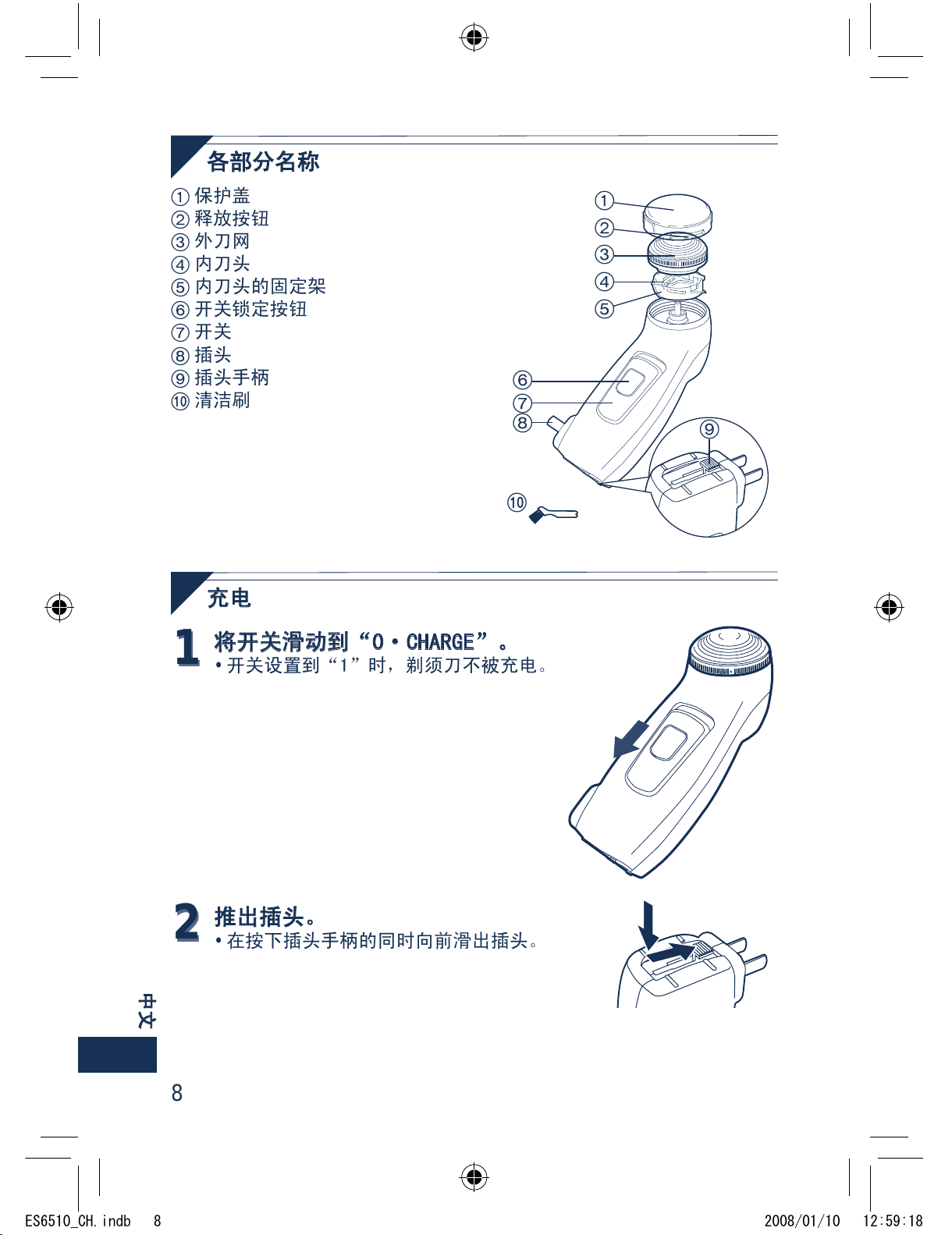

各部分名称

1 保护盖

2 释放按钮

3 外刀网

4 内刀头

5 内刀头的固定架

6 开关锁定按钮

7 开关

8 插头

9 插头手柄

: 清洁刷





















充电

1将开关滑动到“0·CHARGE”。

开关设置到“1”时，剃须刀不被充电。•

2推出插头。

在按下插头手柄的同时向前滑出插头。•

ES6510_CH.indb 8 2008/01/10 12:59:18

All manuals and user guides at all-guides.com

中文

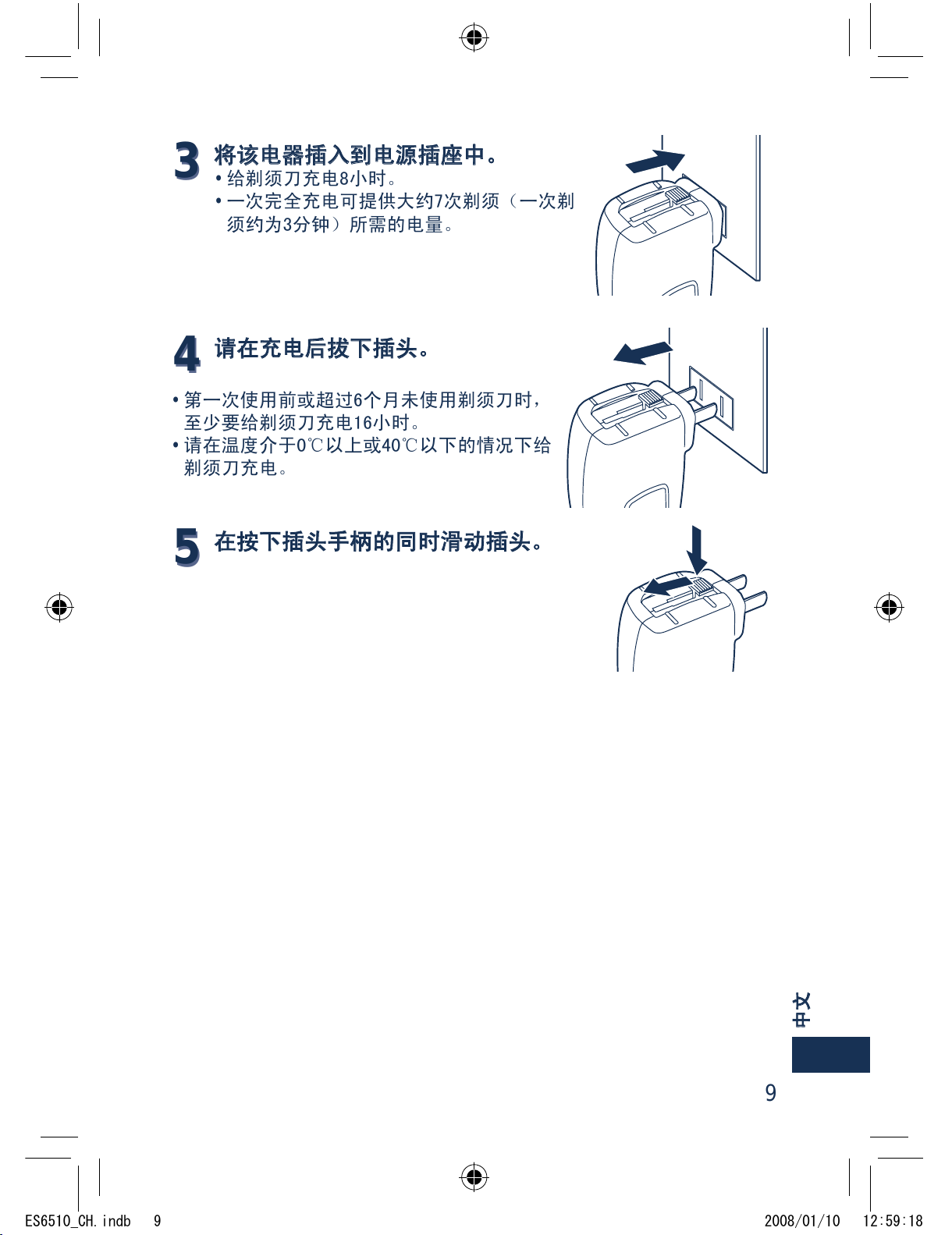

3将该电器插入到电源插座中。

给剃须刀充电8小时。

一次完全充电可提供大约7次剃须（一次剃

须约为3分钟）所需的电量。

•

4请在充电后拔下插头。

第一次使用前或超过6个月未使用剃须刀时，

至少要给剃须刀充电16小时。

请在温度介于0℃以上或40℃以下的情况下给

剃须刀充电。

•

5在按下插头手柄的同时滑动插头。

ES6510_CH.indb 9 2008/01/10 12:59:18

All manuals and user guides at all-guides.com

中文

使用剃须刀

1在按下释放按钮的同时取下保护盖。

2请确认外刀网没有变形或受损。

3在按下开关锁定按钮的同时将开关滑

动到“1”。

用另一只手绷紧脸上皮肤，逆着胡须生长方向前后移动剃须刀。

使用后，请装上保护盖，以防止损坏外刀网。•

ES6510_CH.indb 10 2008/01/10 12:59:18
