Panasonic ES?RT51 Manuale utente

bution is a violation of law.

Order Number SD1006U42AE

Rechargeable Shaver

Model No. ES-RT51

ES-RT31

North America

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Exploded View and Replacement Parts List ------------ 3

Please file and use this manual together with the service manual for Model No. ES7109, ES7102 and

ES7101, Order No. SD0709E54CE.

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

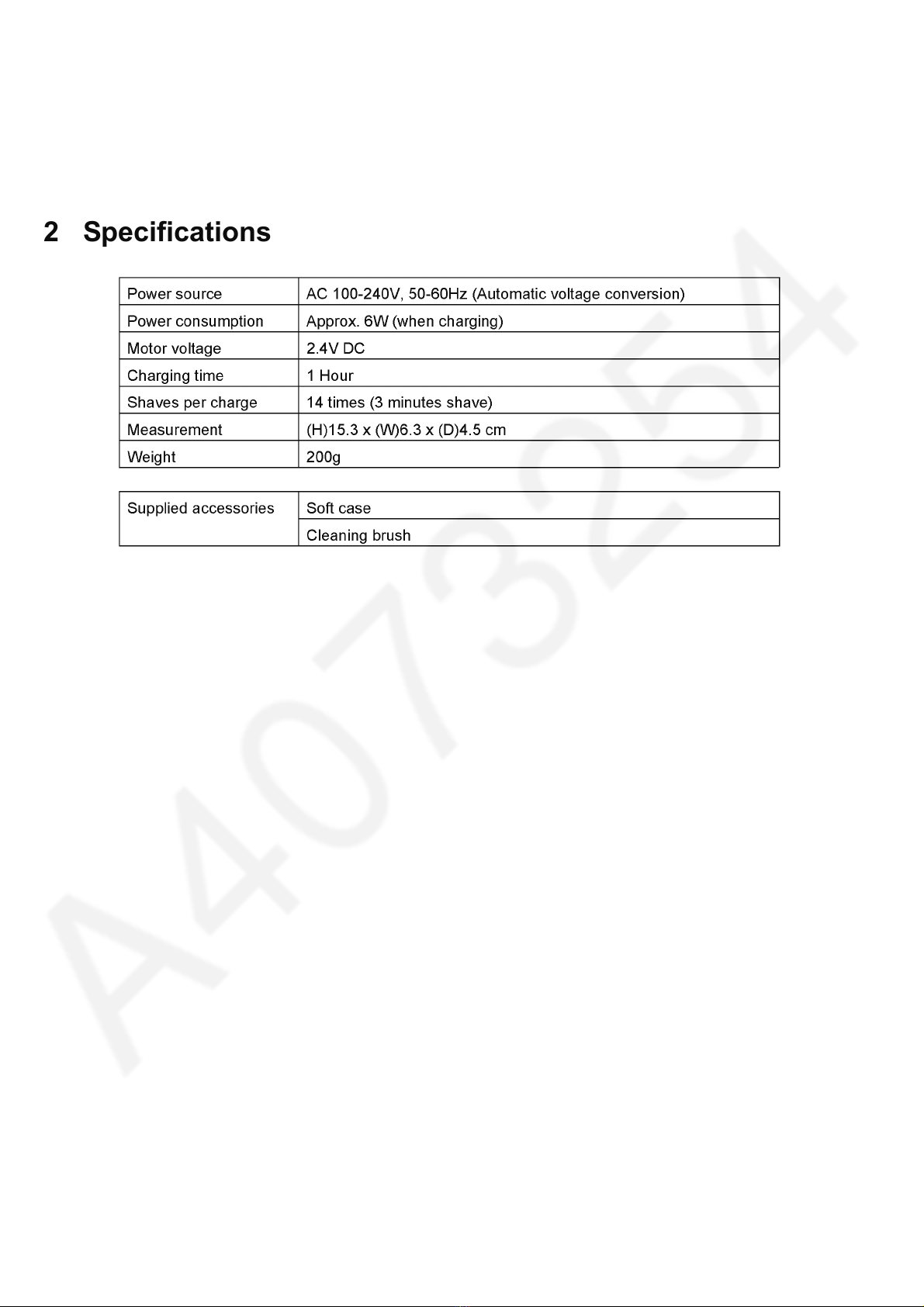

2 Specifications

Model No. : ES-RT51 Exploded View for ES-RT51

3 Exploded View and Replacement Parts List

Model No. : ES-RT51 Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

ES-RT51

1 WES8044X7158 PROTECTIVE CAP 1 [BG]

2 WES9085PC OUTER FOIL 1 (only for USA)

2 WES9085C OUTER FOIL 1 (only for CANADA)

3 WESRT60S0047 OUTER FOIL FRAME 1 [BG]

4 WES9064PC INNER BLADE 1ST (only for USA)

4 WES9064C INNER BLADE 1ST (only for CANADA)

5 WESRT60L1007 MOTOR ASSEMBLY 1 [BG]

6 WES7047H3268 FOIL RELEASE BUTTON 2 (2PCS/PK), [BG]

7 WES7046L1086 TRIMMER DRIVING BAR 1 [BG]

8 WES7046L1076 SLIT BLADE DRIVING BAR 1 [BG]

9 WES7046L0586 SPRING AND STOPPER 2 (2SETS/PK), [BG]

10 WES8080L0326 WATERPROOF RUBBER 1 [BG]

11 WES7046L0226 FLOAT SPRING 2 (2PCS/PK), [BG]

12 WES7046L0966 O-RING 1 [BG]

13 WES7046L0236 TUBE HOLDER 1 [BG]

14 WESRT51S3058 HOUSING A 1 [BG]

15 WESRT51S3778 FRONT PANEL 1 [BG]

16 WESRT51S3068 HOUSING B 1 [BG]

17 WESRT51L2128 MODULE 1 [BG]

18 WES7038L2508 RECHARGEABLE BATTERY 2 (Ni-Mh Type), (2PCS/PK), [BG]

19 WES7025L0976 WASHER & O-RING SET 2 [BG]

20 WESRT51H3368 SIDE PANEL 1 [BG]

21 WES8046H1506 TRIMMER 1 [BG]

22 WESRT51H3848 BOTTOM COVER 1 [BG]

23 WES7023L6058 TAPPING SCREW 9 (K2-8), [BG]

24 WESRT51S3038 BODY BLOCK 1 [BG]

25 WESRT51K7658 CHARGING ADAPTOR 1 (A-2 PLUG TYPE), [BG]

26 WES7115K7007 SOFT CASE 1 [BG]

- WESRT51S8008 INDIVIDUAL BOX 1 (only for USA), [BG]

- WESRT51S8009 INDIVIDUAL BOX 1 (only for CANADA), [BG]

- WESRT51S8108 OPERATING INSTRUCTIONS 1 (only for USA), [BG]

- WESRT51S8109 OPERATING INSTRUCTIONS 1 (only for CANADA), [BG]

Model No. : ES-RT31 Exploded View for ES-RT31

Model No. : ES-RT31 Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

ES-RT31

1 WES8044X7158 PROTECTIVE CAP 1 [BG]

2 WES9085PC OUTER FOIL 1

3 WESRT60S0047 OUTER FOIL FRAME 1 [BG]

4 WES9064PC INNER BLADE 1ST

5 WESRT60L1007 MOTOR ASSEMBLY 1 [BG]

6 WES7047H3268 FOIL RELEASE BUTTON 2 (2PCS/PK), [BG]

7 WES7046L1086 TRIMMER DRIVING BAR 1 [BG]

8 WES7046L1076 SLIT BLADE DRIVING BAR 1 [BG]

9 WES7046L0586 SPRING AND STOPPER 2 (2SETS/PK), [BG]

10 WES8080L0326 WATERPROOF RUBBER 1 [BG]

11 WES7046L0226 FLOAT SPRING 2 (2PCS/PK), [BG]

12 WES7046L0966 O-RING 1 [BG]

13 WES7046L0236 TUBE HOLDER 1 [BG]

14 WESRT30S3058 HOUSING A 1 [BG]

15 WESRT31S3778 FRONT PANEL 1 [BG]

16 WESRT51S3068 HOUSING B 1 [BG]

17 WESRT31L2128 MODULE 1 [BG]

18 WES7038L2508 RECHARGEABLE BATTERY 2 (Ni-Mh Type), (2PCS/PK), [BG]

19 WES7025L0976 WASHER & O-RING SET 2 [BG]

20 WESRT30K3367 SIDE PANEL 1 [BG]

21 WES8046H1506 TRIMMER 1 [BG]

22 WESRT31H3848 BOTTOM COVER 1 [BG]

23 WES7023L6058 TAPPING SCREW 9 (K2-8), [BG]

24 WESRT31S3038 BODY BLOCK 1 [BG]

25 WESRT51K7658 CHARGING ADAPTOR 1 (A-2 PLUG TYPE), [BG]

26 WES7115K7007 SOFT CASE 1 [BG]

- WESRT31S8008 INDIVIDUAL BOX 1 [BG]

- WESRT31S8108 OPERATING INSTRUCTIONS 1 [BG]
