Panasonic FV-0811RQ1 Manuale utente

Service Manual

PEG1805012CE

Version:1801

CONTENTS

2.Parts Identification

3.Wiring Diagram

4.Parts List

PAGE

10~11

Ventilating Fan

FV-0811RQ1

2~9

12~15

(North America Market)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

FV-1315RQ1

FV-0811RQL1

FV-1315RQL1

1.Specifications 1

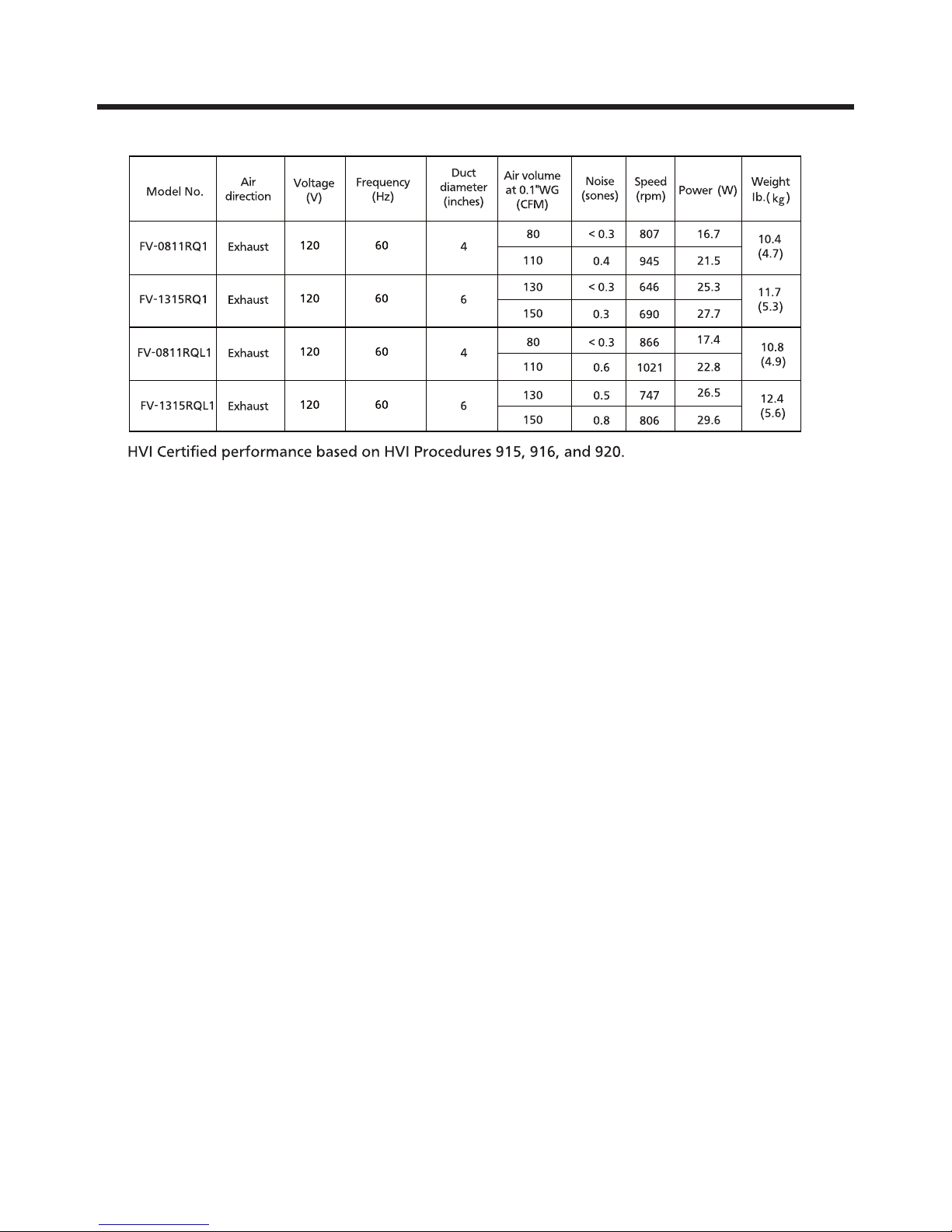

1. Specifications

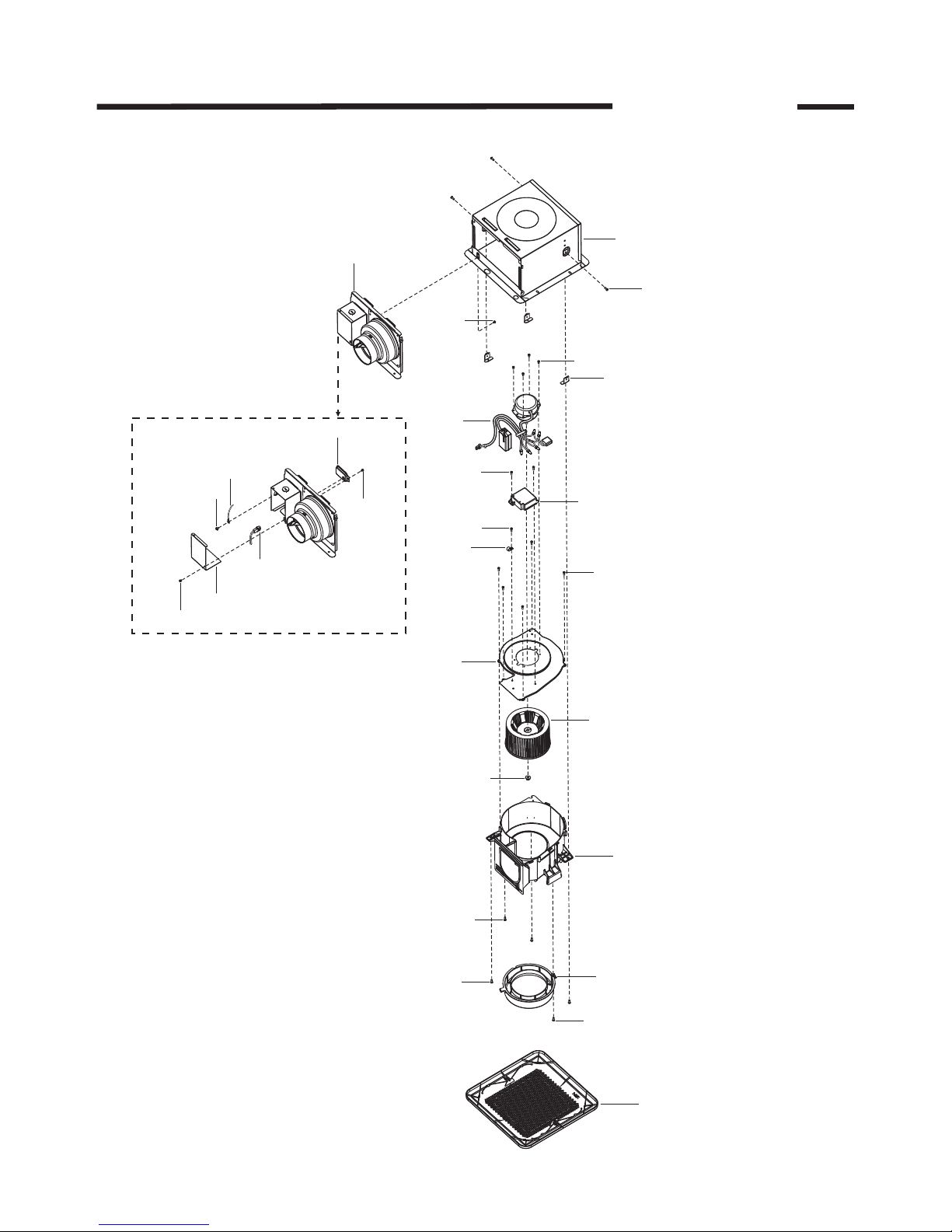

2. Parts Identification

FV-0811RQ1

Main Body Section

E(4pcs)

(2pcs)

(5pcs)

(3pcs)

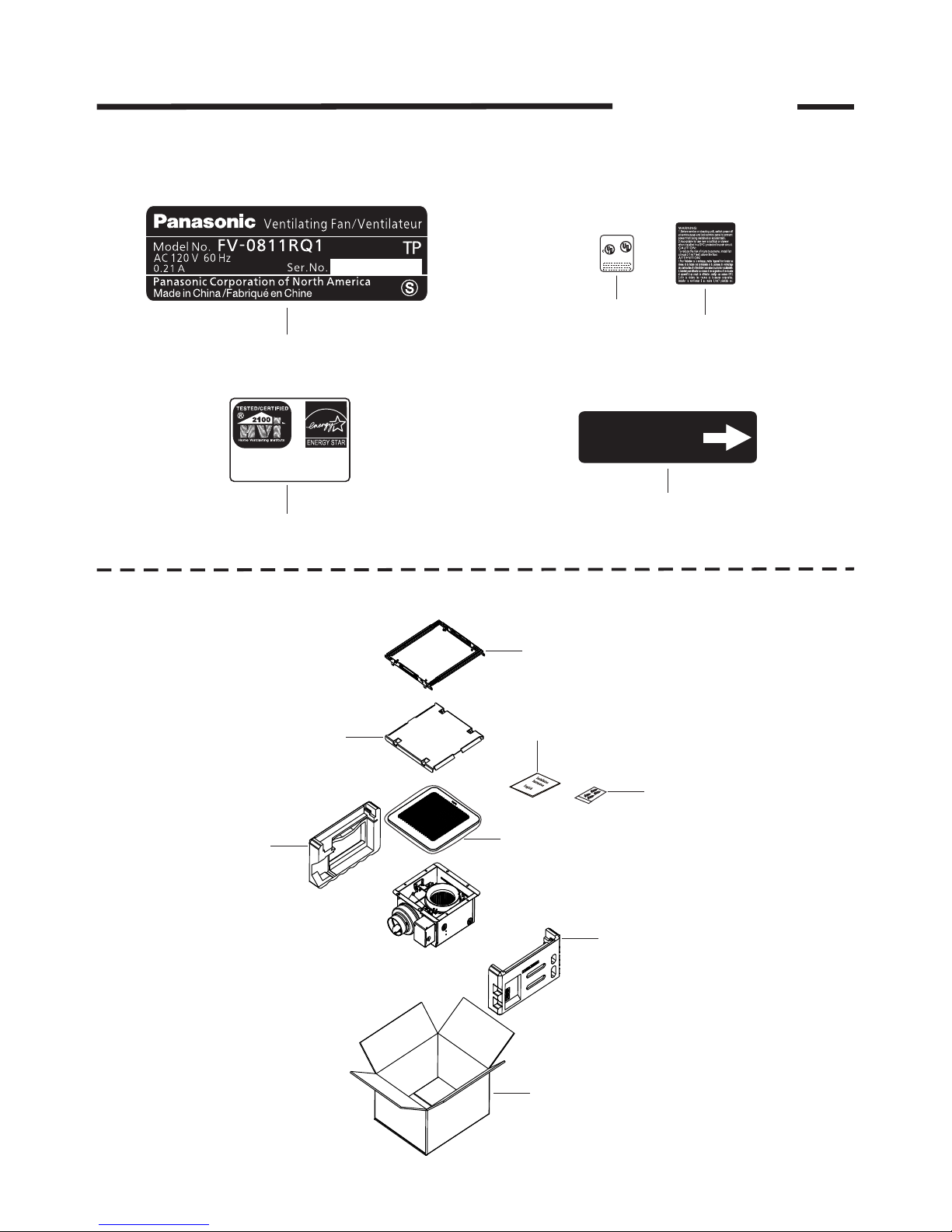

2. Parts Identification

Main Labels

Packing Section

FV-0811RQ1

FAN

LISTED

E78414

08VSL3082

Not for use in cooking area-See installation

/instructions. Non destiné à la zone de cuisson -Voir

/instructions d’installation. No usar en áreas donde

se cocine - Consulte las instrucciones de instalación.

27 24

Secure screw tightly

for ground continuity

Vissez fermement pour la

continuité de la mise à la terre

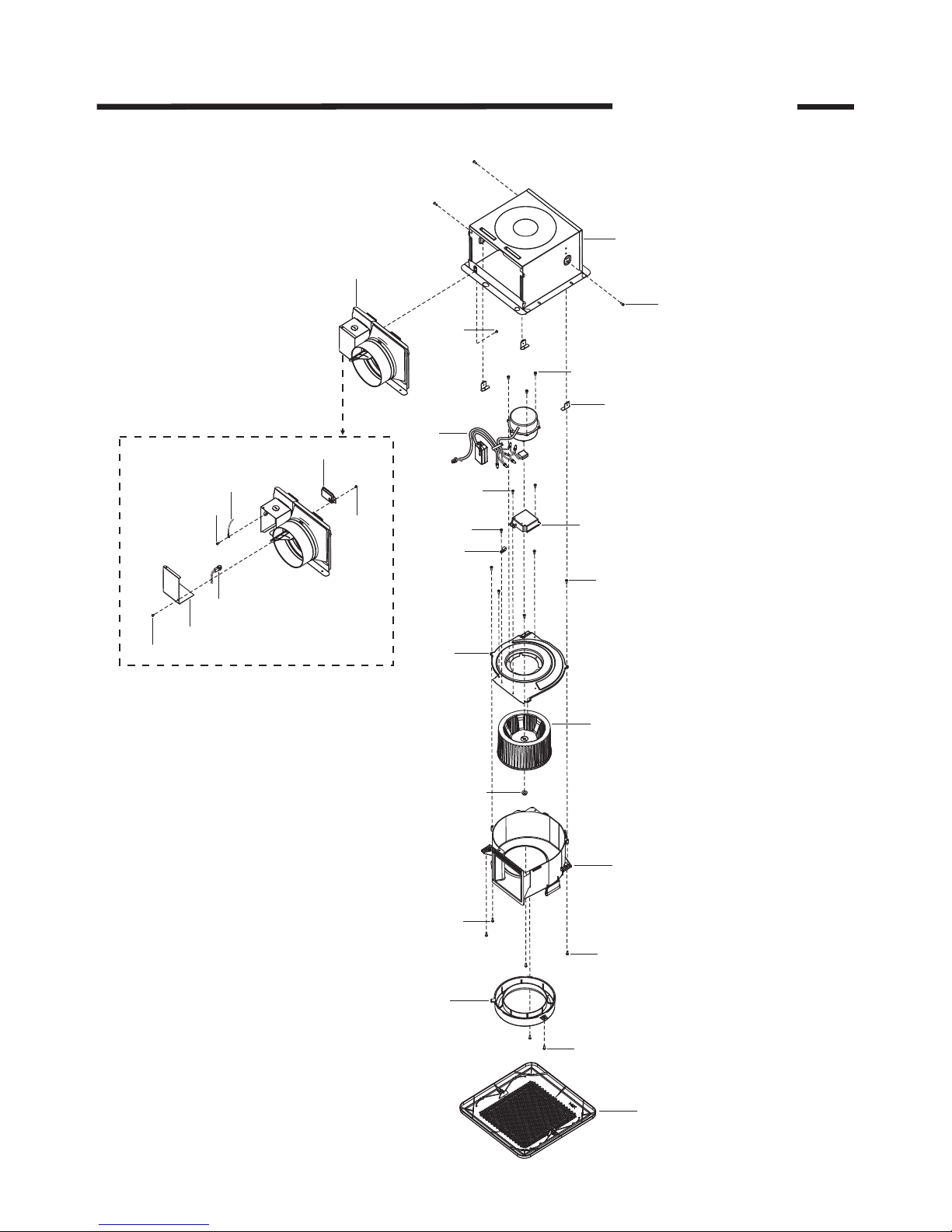

2. Parts Identification

FV-1315RQ1

Main Body Section

(3pcs)

E(3pcs)

(3pcs)

(2pcs)

(5pcs)

(3pcs)

(2pcs)

2. Parts Identification

FV-1315RQ1

Main Labels

Packing Section

FAN

LISTED

E78414

08VSL3082

Not for use in cooking area-See installation

/instructions. Non destiné à la zone de cuisson -Voir

/instructions d’installation. No usar en áreas donde

se cocine - Consulte las instrucciones de instalación.

27 24

Secure screw tightly

for ground continuity

Vissez fermement pour la

continuité de la mise à la terre

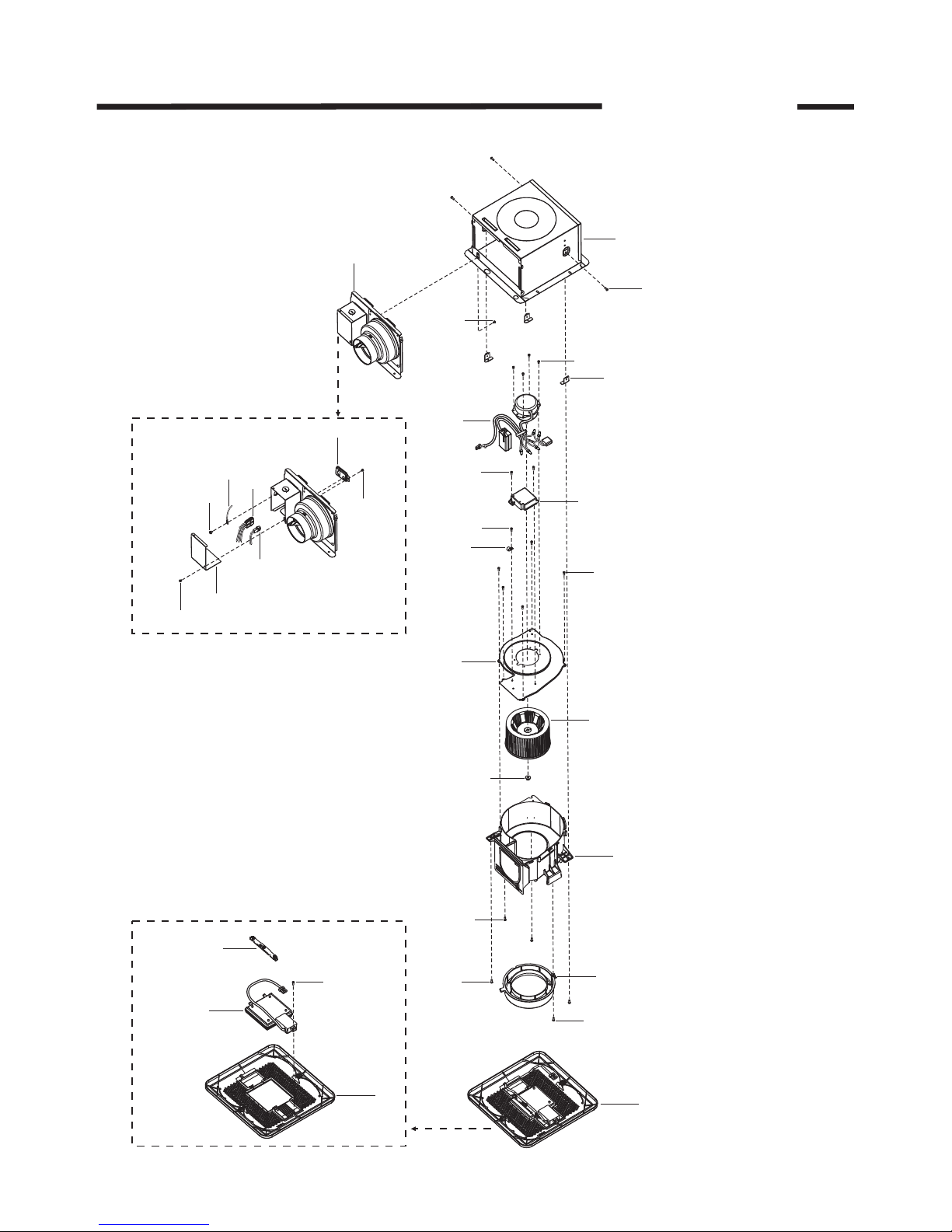

2. Parts Identification

FV-0811RQL1

Main Body Section

E(4pcs)

(2pcs)

(5pcs)

(3pcs)

2. Parts Identification

FV-0811RQL1

Main Labels

Packing Section

23 24 26

FAN

LISTED

E78414

08VSL3082

Not for use in cooking area-See installation

/instructions. Non destiné à la zone de cuisson -Voir

/instructions d’installation. No usar en áreas donde

se cocine - Consulte las instrucciones de instalación.

32 29

Secure screw tightly

for ground continuity

Vissez fermement pour la

continuité de la mise à la terre

Main Body Section

(3pcs)

E(3pcs)

(3pcs)

(2pcs)

(5pcs)

(3pcs)

(2pcs)

FV-1315RQL1

2. Parts Identification

Main Labels

Packing Section

32 29

FV-1315RQL1

23 24 26

FAN

LISTED

E78414

08VSL3082

Not for use in cooking area-See installation

/instructions. Non destiné à la zone de cuisson -Voir

/instructions d’installation. No usar en áreas donde

se cocine - Consulte las instrucciones de instalación.

Secure screw tightly

for ground continuity

Vissez fermement pour la

continuité de la mise à la terre
