Panasonic FV-1115VKL2 Manuale utente

Service Manual

PESMX1850006CE

Version:1903

CONTENTS

1.Specification

2.Parts Identification

3.Wiring Diagram

PAGE

2 ~ 5

Ventilating Fan

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without the manufacturer’s approval.

.Please have a static electricity depletion process in place before handling these components.

. Please use gloves when handling PCB parts during the repair process.

FV-1115VKL2

4.Parts List 7 ~ 8

(North AmericaMarket)

1. Specification

Speciﬁcation for base Model fans

Exhaust

Fan

Model No. Air

Direction

Voltage

(V)

Frequency

(Hz)

Duct

Diameter

(inches)

Air Volume

at 0.1 “WG

(CFM)

Noise

(sones)

Speed

(rpm)

Power (W)

Lighting

unit

Weight

Lb. (Kg)

10.7 (4.9)

Specifications for Multi Speed fans

Model No. Air

Direction

Exhaust

Voltage

(V)

Frequency

(Hz)

Duct

Diameter

(inches)

Air Volume

at 0.1 “WG

(CFM)

Noise

(sones)

Speed

(rpm)

Power (W)

Fan Lighting

unit

Weight

Lb. (Kg)

10.7 (4.9)

Reference performance based on HVI Procedures 915, 916, and 920. [ Standby wattage.]

FV-1115VKL2

(Plug in

FV-VS15VK1)

HVI Certified performance based on HVI Procedures 915, 916, and 920.

110

130

150

<0.3

0.5 722

682

648

14.9

10.4

7.5

120

110

100

<0.3

670

648

636

627

625

613

610

621

8.4

7.5

6.0

5.0

4.6

3.8

3.3

3.1

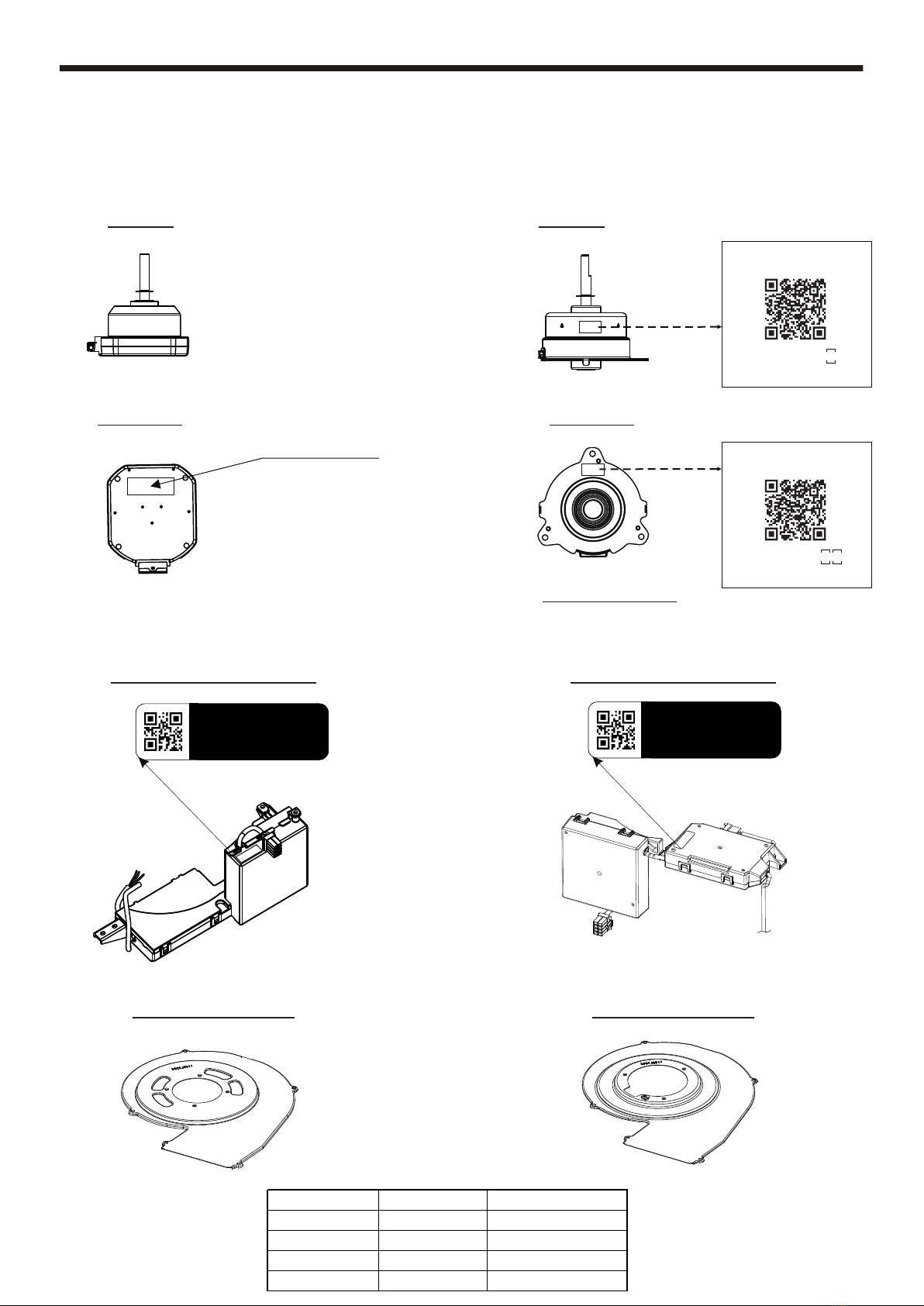

1. Specification

Parts for Version A Parts for Version B

Motor Motor

Main PCB Section

11KSL2M20

[Serial No]

Back Face information

QR code

Top Cover view

Side viewSide view

Main PCB Section

1115VKL2

[ Serial No ]

1115VKL2

[Serial No ] M

Remark: We divide this model into Version A & Version B, because of different

motor and Main PCB Section, please put attention with identification

of parts when you request a service parts.

11VK2M200 X

[ Serial No ]

11QCL1200 X

QR code

[ Serial No ]

Motor Support Motor Support

Motor Main PCB Judgment

Version A Version A ( OK ) Work

Version A Version B ( NG ) Do Not Work

Version B Version B ( OK ) Work

Version B Version A ( NG ) Do Not Work

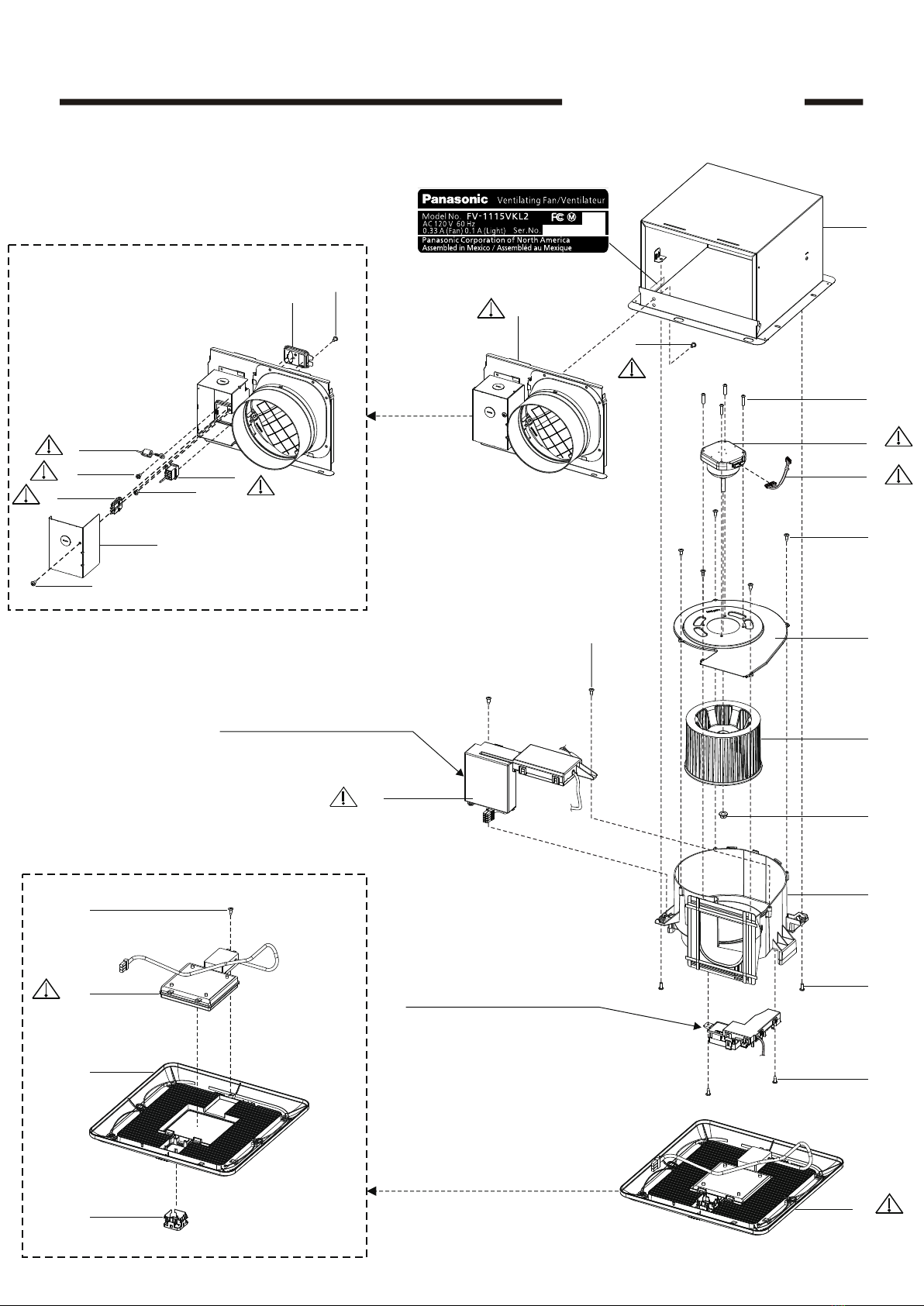

2. Parts Identification

Main Body Section

FV-1115VKL2

Main PCB Section

Base PCB Section

10A

(4 pcs)

(3 pcs)

(5 pcs)

(2 pcs)

Name Plate

80501

Parts for Version B

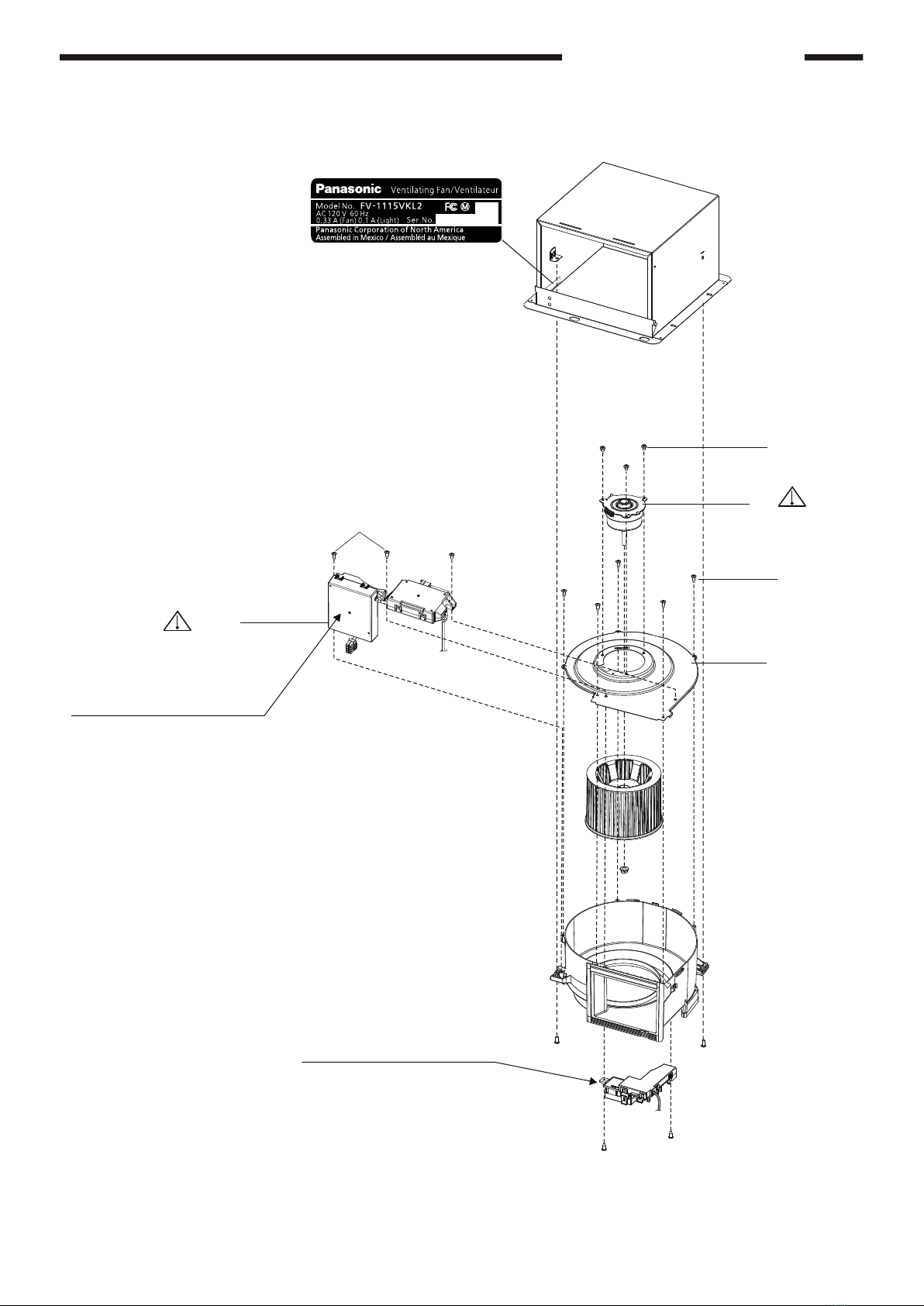

2. Parts Identification

Main Body Section FV-1115VKL2

Base PCB Section

10B

Main PCB Section

14B

(3 pcs)

(5 pcs)

(2 pcs)

Name Plate

80501M

Parts for Version B

FV-1115VKL2

2.Parts Identiﬁcation

Condensation Sensor Module

Motion Sensor Module

Main PCB Section

Base PCB Section

26A / 26B

(3 pcs)

Sensor Cover

1,Please note that above parts with (No. 22, 28, 30) are the optional parts base on

Diﬀerent customer’s request.

2,If install the motion sensor control, please remove the ornamental cover and

Replace the sensor Cover.

(4 pcs)

(3 pcs)

(2 pcs)

Multi-Speed Control Module

Parts for Version BParts for Version A

19A

19B

21A

21B

(4 pcs)

2. Parts Identification

FV-1115VKL2

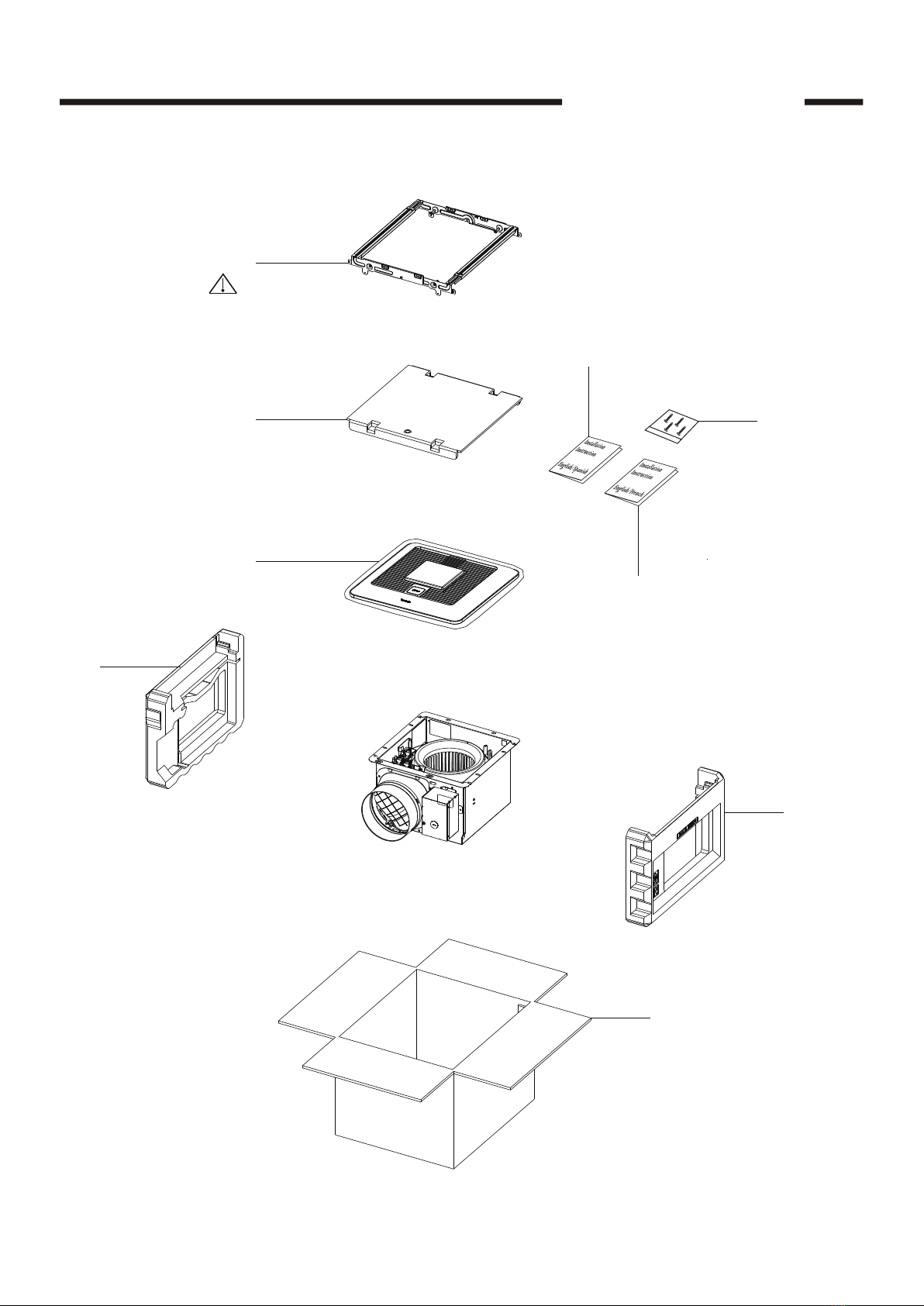

Packing Section

2. Parts Identification

FV-1115VKL2

Main Label

41A

8 Means Year: 2018

05 Means Month

01 Means Day

80501 41B

80501M

8 Means Year: 2018

05 Means Month

01 Means Day

M: In House MOTOR.

4. Parts List

FV-1115VKL2

Main Body Section

No. Part No. Part Name Q'ty Remark

1 FFV11QCL1900C Frame Assembly 1

2 FFV15VKL2910 Adapter Assembly 1

3 FFV11KSL2913 Connector Plate 1

4 FFV1340008S Ground Wire 1

5 FFV11KSL2301 Connector Assy 1

6 FFV11QCL1341A Connector Assy (L) 1

7 FFV11QCL1912A Junction Cover 1

8A FFV11KSL2M20 Motor 1

8B FFV11VK2M200 Motor 1

9 FFV4620109S Motor Lead Wire Assembly 1

10A FFV15VK20904 Motor Support 1

10B FFV15VK2M904 Motor Support 1

11 FFV0400115S Blade 1

12 FFV7020021S Nut 1

13 FFVM15VQ10906B Casing section 1

14A FFV1115VKL2PCB Main PCB Section 1 Include Base PCB Section

14B FFV1115VK2M Main PCB Section 1 Include Base PCB Section

15 FFV0511VKSL2 Grill Assembly 1

16 FFV3400148S Led Unit 1

17 FFV0511VQCL1S Grill Section 1

18 FFV2220074S Ornamental Cover 1

A FFVXTT4-8FFJ Screw (ST4-8) 4

B FFVXYM4DC8BN Screw w/washer(M4-8) 1

C FFV7000109S Stainless Steel Screw 4

D FFV7000089S Screw (ST4-12) 10

E FFV7000065S Bind Screw 2

Main PCB Section

No. Part No. Part Name Q'ty Remark

19 FFV3740027S Main PCB Box 1

19A FFV11KSL2996 Power PCB Box 1

19B FFV11KSL2997 Power PCB Cover 1

20 FFV11KSL2310 Power Lead Wire 1

21 FFV3740014S Main PCB Cover 1

21A FFV11KSL2991 Control PCB Box 1

21B FFV11KSL2992 Control PCB Cover 1

D FFV7000089S Screw (ST4-12) 1

F FFVXTN3-8GFJ Screw (M3-8) 7
