Panasonic FV-30BG3H Manuale utente

INSTALLATION AND

OPERATING INSTRUCTIONS

Thank you for purchasing this Panasonic product.

Please read these instructions carefully before attempting to install, operate or

service the Panasonic product. Please carefully read “INSTALLATION INSTRUCTIONS”

(P.2 4) of this instructions before installation. Failure to comply with instructions

could result in personal injury or property damage. Please explain to users how to

operate and maintain the product after installation, and this booklet should be

presented to users. Please carefully read “USE AND MAINTENANCE INSTRUCTIONS”

(P.23 24) of this instructions before operation.

Please retain this booklet for future reference.

感謝您選用Panasonic產品。

安裝、使用和保養Panasonic產品前，請仔細閱讀本安裝使用說明書。安裝前，請務必先閱讀

“安裝注意事項”(第2 4頁)。不遵照此說明書進行操作有可能導致人員受傷或財產損失。安裝

完成後，請向顧客說明如何使用和維護Panasonic產品，並將此說明書交給顧客保管。使用前，

請務必先閱讀“使用及維護注意事項”(第23 24頁)。

請妥善保管好此說明書以備日後參考。

Thermo Ventilator

安裝使用說明書

浴室換氣暖風機

型號：FV-30BG3H

安全指引

安裝注意事項

安裝要求

包裝附件清單

部件名稱和尺寸

安裝方法

2 4

~5 6

5 6

8 15

ANTIBACTERIAL FUNCTION

HOW TO USE TIMER FUNCTION

HOW TO USE AIR DIRECTION FUNCTION

HOW TO USE HEATING FUNCTION

HOW TO USE VENTILATION FUNCTION

HOW TO USE DRYING FUNCTION

MODE BUTTON PANEL ON MAIN BODY

TROUBLESHOOTING

WIRING DIAGRAM

SPECIFICATIONS

遙控器功能介紹

定時功能的使用方法

風向功能的使用方法

暖氣功能的使用方法

換氣功能的使用方法

乾燥功能的使用方法

機體模式按鈕面板

抗菌功能

常見故障的識別與處理

電氣原理圖

規格

FUNCTION OF REMOTE CONTROL

23 24

25 26

~25 26

16 17

17 17

試運轉

TEST RUN

CONTENTS

SAFETYINSTRUCTIONS

INSTALLATIONINSTRUCTIONS

INSTALLATIONREQUIREMENTS

SUPPLIED ACCESSORIES

PARTNAMESAND DIMENSIONS

HOW TO INSTALL

USE AND MAINTENANCE INSTRUCTIONS 使用及維護注意事項

維護方法

MAINTENANCE

安裝前事項 7 8

7 8

WORK BEFORE INSTALLATION

BACK COVER 末頁

為避免給您及其他人造成傷害，這裡我們列出了以下安全注意事項，請務必遵守，各種標誌的

含意請參見以下內容。

對無視表示內容，錯誤地使用時，會引起的危害或損傷的程度，用下列符號進行分類、說明。

警告

注意

本標誌所表示內容為“不遵守的話可能造成人員死亡或重傷”。

本標誌所表示內容為“不遵守的話可能造成人身輕傷或其他財產

損害”。

對希望遵守的內容和種類，用下列符號進行分類、說明。

此標誌表示為禁止事項

此標誌表示為強制事項

此標誌表示為提示注意事項

The degrees of injury or damage that can occur when the instructions are ignored

and if the product is not used properly have been classified and described by the

following indications.

The following instructions should be strictly observed in order to prevent injury to the

users and other people, or damage to property.

This indication means: Must be treated seriously that this may

result in death or serious injury.

WARNING

This indication means: Must be treated seriously that this may

result in injury or physical damage.

CAUTION

Types of instructions that should be observed have been classified and described by

the following pictorial symbols.

This symbol indicates the item is “PROHIBITED” to do.

This symbol indicates the “COMPULSORY” item that must be followed

without failure.

This symbol indicates the item is “CAUTION”.

The product must be grounded.

Otherwise, it may cause electric

shock when there is any trouble

or electric leakage.

必須接地。

否則當出現故障或漏電時，可能會觸電。

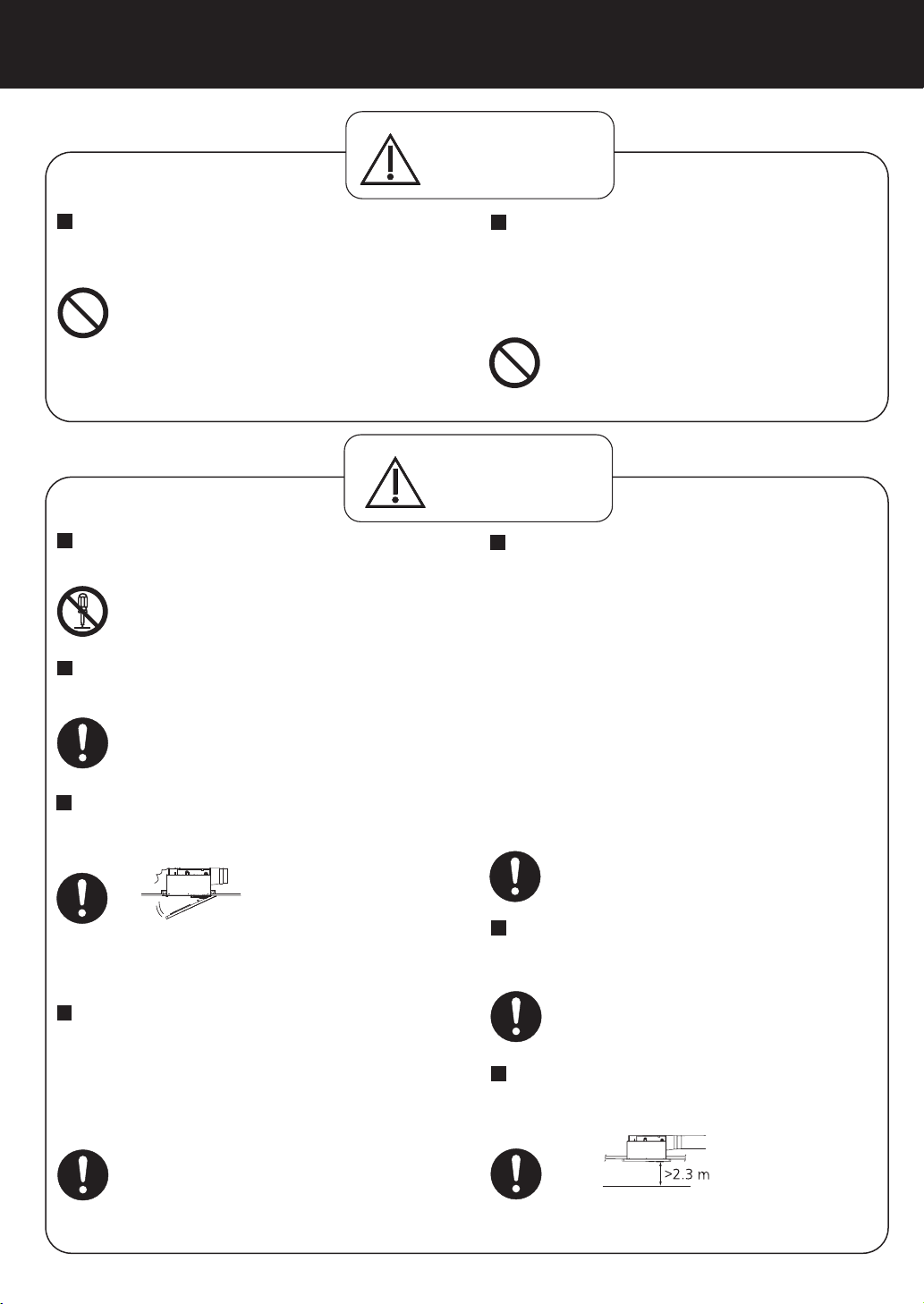

安裝注意事項

安全指引請務必遵守

SAFETYINSTRUCTIONS

INSTALLATION INSTRUCTIONS

Make sure the power cord is

installed firmly.

確保電源線安裝到位。

否則可能會導致火災。

Otherwise, a fire may be caused.

警告

WARNING

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that they do not play with the appliance.

本產品不適合有殘疾、智障或精神障礙的人士或缺乏經驗、常識者(包括兒童)維護使用，除非在負責他們

安全的人士的看護或指導下使用。在維護保養期間，兒童應該有人進行看護，以防將產品當做玩具。

Disconnect power supply before maintenance.

維護保養前先斷電。

警告

WARNING

否則可能會導致火災。

Otherwise, a fire may be caused.

Doavoidtheback-flowofgasinto

theroomfromtheopenflueof

flammablegasorother open-fire

appliances.

必須避免易燃氣體從敞開的氣道或其他

燃燒燃料的設備回流進室內。

Otherwise, unreliable installation

may be caused and thus the

product may fall off, resulting in

injuries.

Do not install the product as the

method which is not approved in

the instruction.

禁止使用本說明書指定以外的方法

進行安裝。

否則可能會安裝不牢固，導致產品

掉落受傷。

Otherwise, combustibles may be

inflamed.

禁止靠近窗簾和其他可燃材料安裝。

否則可能會引燃可燃物。

否則可能會導致火災。

Otherwise, a fire may be caused.

To avoid danger arising from wrong

resetting of the thermal circuit breaker,

the product can not be powered by

using an external switch. For example,

by a timer or connecting to a circuit

that is connected/disconnected

through timing of a universal part.

為避免由熱斷路器的誤復位產生危險，

產品禁止通過外部開關裝置供電。例如，

定時器或者連接到由通用部件定時進行

通、斷的電路。

安裝注意事項

Please select 60227 IEC 53 ordinary

polyvinyl chloride sheathed cord.

Nominal cross-sectional area of

conductors is ²

3x1.5 mm .

Otherwise, it may be on fire.

否則可能會導致起火。

電源線請選用60227 IEC 53型絞合軟

線，導線的截面積為3x1.5 mm 。

INSTALLATION INSTRUCTIONS

Installation and wiring should be

done by authorized person.(Wiring

is required to follow the local wiring

regulations.)

The product is installed so that

switches cannot be touched by a

person in the bath or shower.

Otherwise, anelectricshockmay

becaused.

否則可能會導致觸電。

否則可能會導致火災。

產品的安裝，應使得浴缸內或淋浴區的

人不能夠觸及到開關。

安裝及電源佈線必須由專業人員完成。

(產品安裝必須符合當地的安全法規。)

Otherwise, a fire may be caused.

Disconnectpowersourcebefore

workingontheproduct.

Otherwise, anelectricshockmay

becaused.

安裝、維修保養時必須斷開電源。

否則可能會導致觸電。

否則可能會導致短路，導致火災。

Otherwise, it may cause a short

circuit, thus resulting a fire.

Please install a suitable all-pole

switch which the contact separation

is more than 3mm. Please install the

all-pole switch out of the bathroom

where it is easily controlled.

安裝時，須在供電線路中安裝其觸點開

距不小於3 mm的合適的“電源全極開

關”，以用於接通或斷開主機電源，且

安裝在浴室外側方便操作的地方。

Do not install the product near

curtains and other flammable

materials.

禁止對本產品進行改造。

請兩人進行產品的安裝作業。

否則可能會導致產品損壞或受傷。

Otherwise, it may cause damage

to the product or personal injury.

Please ensure two persons perform

the installation of the product.

Do not reconstruct this product.

注意

CAUTION

部品安裝必須牢固。

否則可能會掉落，導致受傷。

Components must be installed

tightly.

否則可能會掉落，導致受傷。

Otherwise, it may falloffto cause

personal injury.

Do fix this product tightly.

Otherwise, it may fall off to

cause personal injury.

Otherwise, it may fall off to

cause personal injury.

機體安裝必須牢固。

否則可能會掉落，導致受傷。

有安裝五金件等專用零部件時，應使

用專用零部件。

The special-purpose or dedicated

parts, such as mounting fixtures,

must be used if such parts are

provided.

安裝注意事項

INSTALLATION INSTRUCTIONS

否則可能會掉落，導致受傷。

Otherwise, it may fall off to

cause personal injury.

The product should not be mounted

on a ceiling or with suspenders not

strong enough.If it cannot be

ensured to bear the weight of the

mounted product, that wall must be

reinforced.Suspenders and wooden

frame must be subjected to static

load more than five times the weight

of the product.

不得安裝在強度不夠的天花板上或使用

強度不夠的吊桿，如不能確保安裝強度，

請務必採取加固措施。用於支承及安裝

本產品的木框或吊桿，需可承受產品5倍

的重量。

否則可能會掉落，導致受傷。

Otherwise, it may falloffto cause

personal injury.

Install this product over 2.3 m above

the floor.

Avoiding any accidents

防止意外

產品安裝高度距地面必須大於2.3 m。

警告

WARNING

Do not operate the product other

than the rated voltage

(220 V 50 Hz).

禁止使用額定電壓(220 V 50 Hz)以

外的電壓。

否則可能會損壞本產品或導致火災。

Otherwise, it may cause damages

to the product or a fire.

否則可能會導致火災。

Otherwise, a fire may be caused.

The product can not be located just

below a power outlet socket.

禁止把本產品安放在電源插座下使用。

請勿安裝在傾斜的天花板上。

防止水倒流。

Do not install onto slanting ceiling.

Prevent the water condensed in the

duct pipe flow back into the body.

Pleasemakesuretheproductis installed

horizontallyandthedeviationangle

withintherangeasbelowfigure.

Do not install the product in the places

where the organic solvent is used.

Do not install the product in steam

sauna bathroom.

Do not install the product where it is

exposed to oil mist.

Do not install the product in the

places where the sprayer is used.

請勿安裝在桑拿蒸氣浴室中。

請勿安裝在使用噴霧器的場所。請勿安裝在油煙過多的場所。

請勿安裝在使用有機溶劑的場所。

安裝要求

Please set ventilation holes.

Ambient temperature

above 40 °C.

Within

50 cm

以內

Do not install the product in places

with high temperature.

請勿安裝在高溫的環境下。

請設置通風口。

周圍溫度 40 °C以上

INSTALLATION REQUIREMENTS

Do not install this product in a public bath room.

Do not install this product in a wardrobe.

請勿把本產品安裝在公共浴室。

請勿把本產品安裝在衣櫃內。

蒸汽

Steam

請確保整機水平安裝偏差角度在±2°之間。

When the ceiling is unable to dismantle,

please set a square inspection hole of at

least 45 cm (The inspection hole should

not be directly under the duct pipe).

吊裝且天花板無法拆下時，請設置一個邊長

45 cm以上的方形點檢口(點檢口不能在管道

正下方)。

方便安裝、維修

Convenience for

installation and

maintenance.

The pipe for hanging clothes should be installed at the position of 250 mm

apart from the product, please see P.21 for details.

掛衣用管的安裝應距離產品250 mm，詳細請參考第21頁。

Wave pipe

Adapter

Do not form the duct as shown below:

安裝管道應該避免以下情況：

管道

出風口接頭

包裝附件清單

SUPPLIED ACCESSORIES

Qty

No. Drawing Name and Purpose

Self-tapping screw ( 4x16, used to install the remote control base)

Self-tapping screw ( 4 x 13, used to install the main

body and the suspension bracket )

Adapter

Suspension bracket (placed in the packaging foam)

Self-tapping screw ( 4 x 10, used to install the adapter

for ceiling board has not been installed)

代號圖樣名稱及用途數量

Machinescrew(M4×8,usedtoinstallthelouver assembly)

機械螺絲(M4×8用於面板組合安裝)

Self-tappingscrew( 4×20,usedtoinstallthemain body

and adapter and prevent the main body from falling)

自攻螺絲( 4×16用於遙控器底座安裝)

自攻螺絲( 4×20用於機體及出風口接頭的安裝及機體防跌落)

自攻螺絲( 4×13用於機體與懸吊支架的安裝)

自攻螺絲( 4×10用於未裝天花板吊裝的出風口接頭的安裝)

Product warranty registration

產品保修登記

Installationandoperatinginstructions

安裝使用說明書

Louver assembly

面板組合

Remote control assembly

遙控器組合

出風口接頭

懸吊支架(放於包裝泡沫中)

R03(AAA) Manganese battery

R03(AAA)碳性電池

When you install plastic part, do not exert too much strength to fixing the screw,

otherwise, the product would be damaged.

安裝塑料部件時，為了不損壞產品，鎖螺絲時請注意不要用力過大。

安裝要求

INSTALLATION REQUIREMENTS

The product is not provided with power cord, all-pole switch and leakage

protection switch. Please purchase them in market.

本產品沒有提供電源線，電源全極開關和漏電保護開關，需用戶另購。

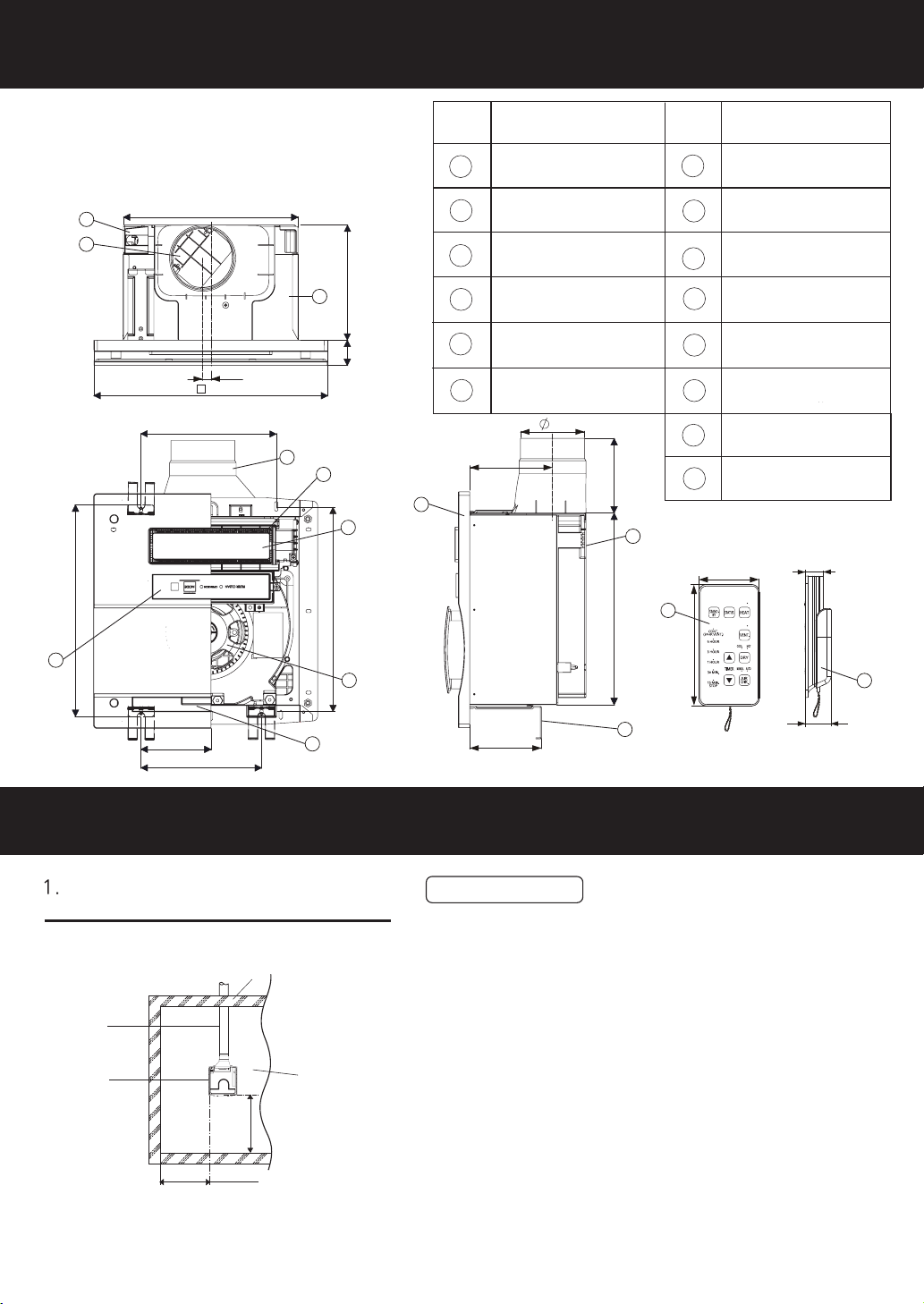

部件名稱和尺寸

Unit:mm 單位：mm

離窗簾和其他易燃材料距離200 mm以上。(安裝孔鄰近

窗簾和其他易燃材料時，需保證開口邊緣距牆壁的距離

在250 mm以上。)

1.Install this product over 200 mm apart from curtains

or other flammable materials.(When the mounting

hole is adjacent to curtains or other flammable

materials, ensure that more than 250 mm gap is

required between the hole edge and wall.

Comfirmation before installation

Wall

Product

Unit:mm

單位：mm

提示事項

Notice

安裝前事項

PART NAME AND DIMENSIONS

WORK BEFORE INSTALLATION

安裝前確認事項

牆

管道

產品浴室

250以上

Bathroom

Duct pipe

250以上

250 or more

250 or

2.The distance between ceiling board where the

product is mounted and ceiling shall be over 200 mm.

用於安裝本產品的天花板離房屋頂部的距離在200 mm

以上。

3.Install this product over 250 mm apart from walls.

安裝孔至牆壁的距離在250 mm以上。

120

Suspension bracket

Louver assembly

Remote control

Filter assembly

面板組合

遙控器

Controller holder

遙控器底座

過濾網組合

懸吊支架

Fan

Mode button panel

扇葉

模式按鈕面板

Shutter

Adapter

No . No .

Part name Part name

Main body

Heater assembly

Baffle plate

Cord cover

序號序號

部件名稱部件名稱

接線蓋板

機體

加熱器組合

導風板

高氣密性擋片

出風口接頭

電路板蓋板

PCB cover

270

360

12.5

121

290 114

200

333

321

108

185

4.Please reserve a sufficient length of the power cord

for easy installation.

電源線請預留足夠的長度，以便於安裝。

128

180

安裝方法

Preparation before installation

HOW TO INSTALL

安裝前準備

請於固定佈線與本產品主機間安裝觸點開距不小於3 mm的

“電源全極開關”(規格必須不低於250 V 13 A)及

漏電保護開關(洩漏電流在30 mA以下))。

Install an all-pole switch with the contact separation not less

than 3 mm and specifications not lower than 250 V 13 A

and a leakage protection switch (with the leakage current

lower than 30 mA) between the fixed wring and the main

body of this product.

1. Connecting power cord 電源線的連接

Strand the core wire together after stripping,

then insert them into about 8 mm deep position

of the terminal block, ensuring that the part is

under the spring slice, and no copper core cord is

exposed outside. Make sure that the copper core

cords are fixed by screws reliably (the .

recommended screw fixing torque is 0.49 N m)

(See Figure 2). Otherwise an electric shock may

be caused.

先將剝線後分散的銅芯線絞合在一起，然後伸入到端子

台約8 mm深，並確保其在彈簧片的下方，切勿出現銅

線外露現象。螺釘擰緊後，請確保銅線不易鬆脫(建議

螺釘鎖緊扭矩為0.49 N m)，否則可能會導致觸電。

(右圖2)

電源線的絕緣膠不能破損，否則可能會導致觸電或短路。

剝線長度，請按照剝線示意圖(右圖1)進行剝線，如剝線

過長，可能會導致產品短路。

電源線請選用60227 IEC 53型絞合軟線，導線的截面

積為3×1.5 mm 。

Please select 60227 IEC 53 ordinary polyvinyl

chloride sheathed cord. Nominal cross-sectional

area of conductors is 3×1.5 mm .

警告

WARNING

安裝和使用時禁止拆卸電路板蓋板，否則可能會導致觸

電或起火。

To avoid electric shock or fire, do not remove the

PCB cover.

Wiring sketch

Terminal cutaway view

Conductor

Insulation

Figure 2

Figure 1

Spring slice

Earth

Power cord

44±1

剝線示意圖

接線柱剝面圖

Unit:mm

單位：mm

電源線

接地引線

銅芯線

絕緣膠

彈簧片

圖2

圖1

安裝前事項

WORK BEFORE INSTALLATION

電源全極開關(另購)

固定佈線

All-pole switch

(Need to be purchased)

Leakage protection switch

(Need to be purchased)

Fixed wiring

Main body

of this

product

漏電保護開關(另購)

本產品主機

For the stripping length, please prepare

according to the wiring sketch (refer to figure 1).

If the stripping length is too long, it may cause

short circuit.

Do not damage the sheath of the power cord,

otherwise an electric shock or short circuit may

be caused .

安裝方法

HOW TO INSTALL

取下接線蓋板上的螺絲顆，打開接線蓋板。(2)

接線蓋板

螺絲

鬆脫的螺絲。固定線夾

鬆開接線柱上的螺絲，將接入室內的電源線(另購)

插入接線柱，再擰緊接線柱螺絲。用線夾將電源線

固定。(線夾必須壓住電源線絕緣護套)

螺絲

電源線

線夾

接線柱

絕緣護套

Remove the screws(2 pcs) on the cord cover,

then open the cord cover.

Cord cover

Screws

Loosenthescrewsofthecordclip.

Loosen the screws of the terminal, insert the

indoor power cord (not supplied) into the

terminal, then tighten the screws. Fix the power

cord with the cord clip. (The cord clip must pin

the insulation sheath of power cord.)

Screws

Power

cord

Cord clip

Insulation sheath

Terminal

2 Main body installation

Method 1 ordinary ceiling

1Make a wooden frame and install it onto the ceiling

joist.Ensure that the total thickness of the wooden

frame and ceiling should be 20 mm 30 mm.

Meanwhile, open a mounting hole in the ceiling

board with dimensions as shown in the table below:

(unit: mm) Ceiling

board

Wooden

frame

A B CD

300 300

2Install the adapter (make the fixing hole in the

middle). Use one 4 x 20 self-tapping screw to fix

the adapter to the ceiling.

Ceiling board

Wooden

frame

Adapter

Self-tapping

screw 4 x20

Duct pipe

築造木框以及將木框(注意：木框與天花板的厚度應在

20 mm 30 mm

~之間)安裝到天花板擱柵上，同時在天

花板上開安裝孔，具體尺寸如下表：(單位：mm)

木框

天花板

出風口接頭的安裝(請將固定孔居中安裝)用顆的1 4x20

自攻螺絲，將出風口接頭固定於天花板上。

管道

出風口接頭

木框

天花板

自攻螺絲 4x20

機體的安裝

方法一普通天花板

Fixing hole

固定孔

3 4 Fix the cord cover by the screws which

removed by step .

用步驟拆下的螺絲,將接線蓋板重新固定。

Screws

螺絲

Screws

螺絲

Ceiling joist

天花板擱柵

安裝方法

HOW TO INSTALL

After completion of the installation work, be

sure the condition between the main body and

the adapter is proper. It can be checked from

the inspection hole.

Use one 4 x 20 self-tapping screw to fix the

adapter. Be sure to fix this screw because it

can prevent the main body from falling off the

ceiling board.

Push the main body upward into the ceiling board

and wooden frame by closely leaning against the

adapter, clip the clipping position of the adapter

into the Locating slot of the main body (otherwise,

may have air leakage), and fix the main body with

four 4 x 20 self- tapping screws.

3Connecting the duct pipe Refer to Section

4.Duct Pipe Connection on P.14.

If adapter fails to cling to the main body, it

may cause air leakage.

提示事項

Notice

2 Main body installation

Method 2 Ordinary ceiling mounting

如機體與出風口接頭未貼緊，會導致漏風。

連接管道。參考第14頁 4.管道的連接

將機體緊靠出風口接頭往上推入天花板與木框，並使出風

口接頭卡位卡入機體固定槽(否則漏風)，用顆的4 4x20

自攻螺絲將機體牢固地固定。

用顆的自攻螺絲將機體牢固地固定1 4x20 ，

。此螺絲能起到防止機體脫落的作用，請務必安裝

安裝完成後，請務必從點檢口確認機體與出風口接頭

的安裝是否到位。

機體的安裝

方法二普通天花板吊裝

Open a 300 mm x300 mm mounting hole in the ceiling board.

在天花板上開一個300 mm x300 mm的安裝孔。Unit:mm

單位：mm

天花板

Ceiling board

300

提示事項

Notice

推入時請注意不要夾傷線。機體，

Please be careful not to pinch the cord, when push

upward the main body.

Self-tapping

screws 4 x20

Cross screwdriver

(not longer than 150 mm)

Self-tapping

screws

4 x 20 (4 pcs)

Clipping position

of the adapter Locating slot

of the main

body

卡到位未卡到位

No buckled

Buckled

機體固定槽

出風口接頭卡位

自攻螺絲

4x20(4)顆

十字螺絲刀

(長度不大於150 mm)

自攻螺絲 4x20

Indice

Altri manuali Panasonic Fan

Panasonic

Panasonic F-M14D9 Istruzioni per il montaggio

Panasonic

Panasonic FV-05-11VKSL1 Manuale utente

Panasonic

Panasonic F-60TAN Manuale utente

Panasonic

Panasonic F-M14C2 Manuale utente

Panasonic

Panasonic F-60WWK Manuale utente

Panasonic

Panasonic FV-10VEC1 Manuale utente

Panasonic

Panasonic WhisperCeiling FV-15VQ4 Manuale utente

Panasonic

Panasonic FV-07VB1 Manuale utente

Panasonic

Panasonic FV-01WS2 Manuale utente

Panasonic

Panasonic FV-10NLF1 Manuale utente

Panasonic

Panasonic FV-07VB1 Manuale utente

Panasonic

Panasonic F-M15EC Manuale utente

Panasonic

Panasonic WhisperGreen FV-08VKM3 Manuale utente

Panasonic

Panasonic FV-08VKME3 Manuale utente

Panasonic

Panasonic FY-250ZDY8 Manuale utente

Panasonic

Panasonic FV-10VE2H Manuale utente

Panasonic

Panasonic FV-0511VQ1 Manuale utente

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Panasonic

Panasonic FV-05VFL2 Manuale utente

Panasonic

Panasonic FV-11VFL2 Manuale utente

Panasonic

Panasonic FV-05VS1 Manuale utente

Panasonic

Panasonic FV-08VF2 Manuale utente

Panasonic

Panasonic FV-08/11/15VQL4 Manuale utente

Panasonic

Panasonic RG-C811A Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio

Litex Industries

Litex Industries E-CGL52CB5C1 Manuale utente

Lindab

Lindab LTDF Manuale utente
