Service Manual

PEG0510035CE

Version:1401

CONTENTS

1 Parts Identification

2 Wiring Diagram

3 Parts List

PAGE

Super Quiet Ventilating Fan

FV-05/08/11VF2

1~10

12~15

SPECIFICATIONS

WhisperFit

(North America Market)

Remark: Because of different structure, we divide this model into Version A & Version B.

In Version A, we also divide into Style A & Style B. The change points are mainly

refer to the installation method and the cord section. please pay attention when

you order these service parts.

Duct

diameter Noise Power

consumption Speed Air deliver Weight

(inches) (sones) (W) (rpm) (cfm) Ib. (kg)

3 0.5 15 740 50

4 0.4 15 635 50

3 0.8 24 845 70

4 0.8 24 755 80

3 1.5 33 1230 90

4 1.5 33 830 110

Sepcifications are based on HVI standard.

Air

direction

Exhaust 120

HzV

FV-05VF2

FV-08VF2

FV-11VF2

Model No.

10.6 (4.8)

11.0 (5.0)

11.2 (5.1)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

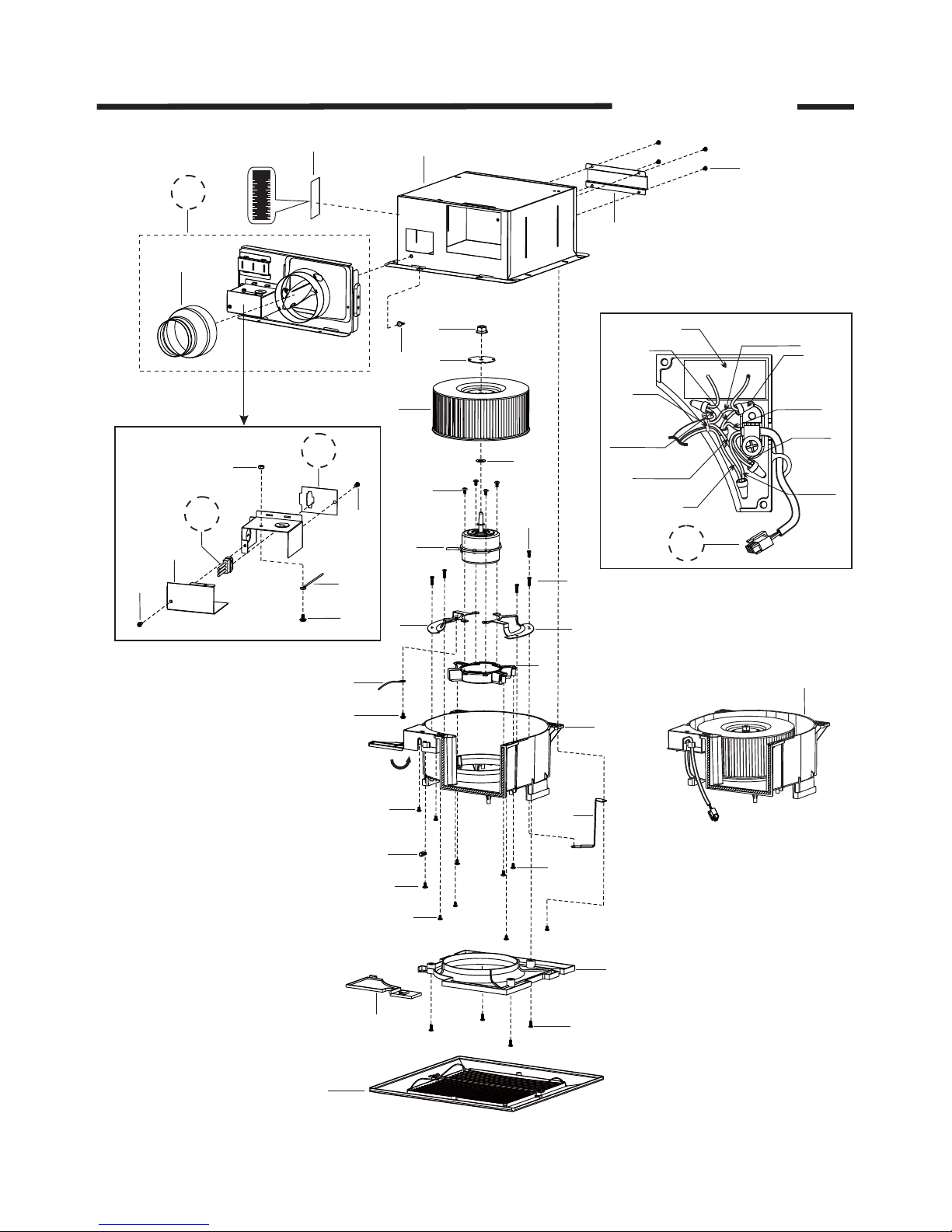

1 Parts Identification

FV-05VF2

(4pcs)

18(4pcs)

(4pcs)

(24)

(3pcs)

(4pcs)

Details of Junction Box

Motor Lead

(Black)

Motor Lead

(Red)

Motor Lead

(White)

Cord

(White)

Cord

(Black)

Cord

(Green)

Details of Wiring

36B

(5pcs)

15B

(29)

(22)

(31)

28B

27B

Remark: Please pay attention to the parts which circled with broken line , you can

for details.

refer

to the following 3 pages

Inch

60 2

(31)

(2pcs)

Fan Assy.

1 Parts Identification

FV-05VF2

Main Labels

(For Reference)

FAN

LISTED

E78414

Main Packing Materials

Fan body

55B

56B

1 Parts Identification

FV-05VF2

15AA

LR-03

LP-03

(36A)

Style A

(28A)

(27A)

VLR-03

VLP-03

(36B)

Style B

(28B)

(27B)

(29)

(22)

(31)

28B

27B

(29)

(22)

(31)

28A

27A

Details of Connector Cord Details of Connector Cord

Details of Junction Box Details of Junction Box

15AB

Parts For Version A

1 Parts Identification

FV-05VF2

Installation Attachment

VLR-03

VLP-03

(36B)

(28B)

(27B)

Details of Connector Cord

(29)

(22)

(31)

28B

27B

15B

Details of Junction Box

Parts For Version B

List For Parts Differentiation

Remark: For your convenience, we list the differentiation parts above, when you need to

order these parts, please judge which version or style is adapt to your machine

first. Especially, if you need to order the Adapter Assy.,please refer to the

following 1 page for details.

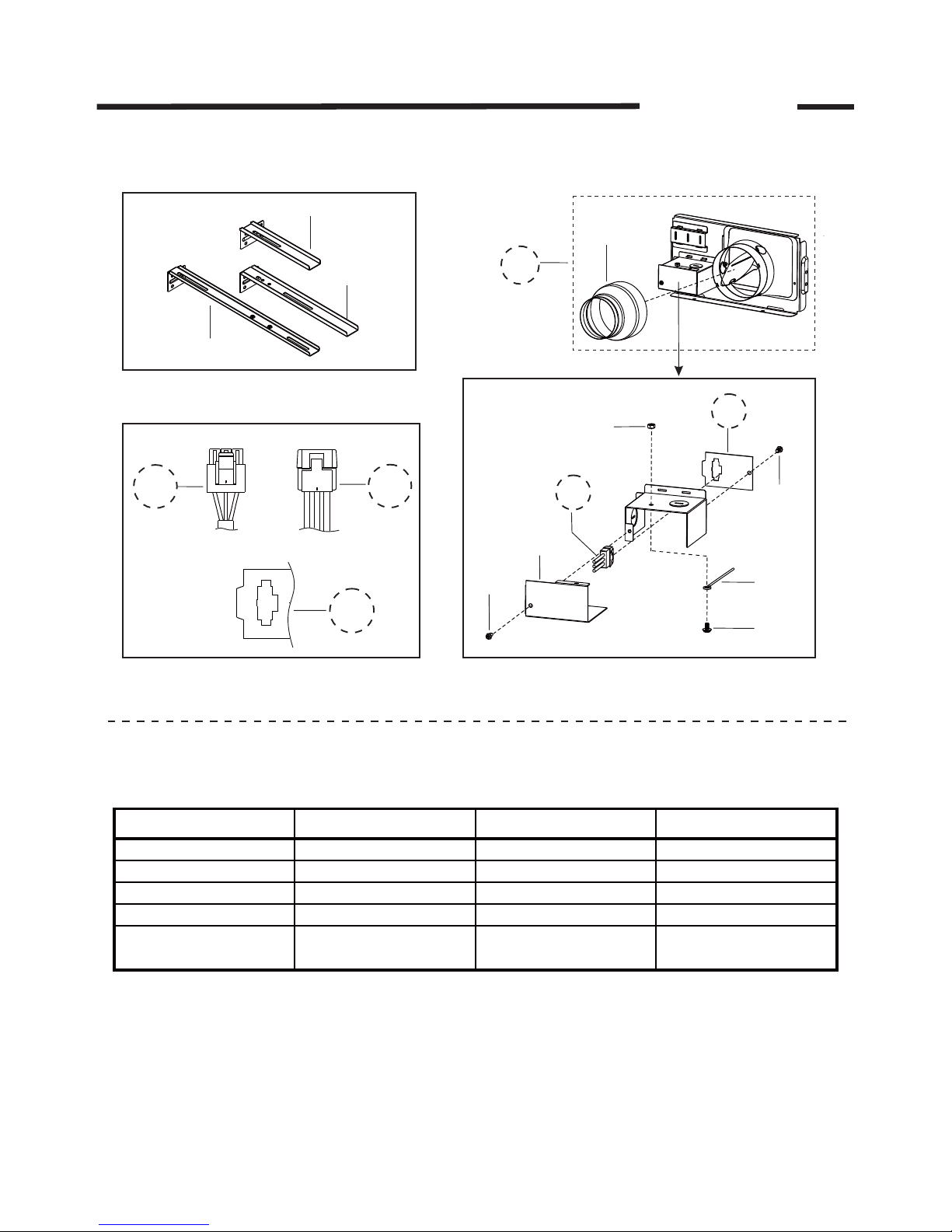

Part name Style A of Version A Style B of Version A Version B

Cord 36A 36B 36B

Adapter Assy. 15AA 15AB 15B

Connector Plate 28A 28B 28B

Connector Assy. 27A 27B 27B

Installation Instruction

(English) 55A 55A 55B

1 Parts Identification

FV-05VF2

Attention:

For Version A For Version B

15AA

Guide For Adapter Assy. Order

15AB

15B

Spring

Change to

Notice: 1.In order to adapt the market demand, the Adapter Assy. has been upgraded to

Version B ,therefore, the Version A part will be provided no longer.

2.If this part in your machine belongs to Version B ,you can order the item 15B

(Part No.:FFV0000052S) directly.

3.If machine belongs to Version A ,you can order the item 15AA

( FFV0000069S ),or item 15AB( FFV0000037S) as usual, then

we will not only the Version B part ,but also provide a set of installation

parts to you, those installation parts will be offered free. However, to finish this

conversion, you need to re-adjust the installation method.

this part in your

Part No.: Part No.:

provide

1 Parts Identification

FV-08/11VF2

17B

(4pcs)

20(4pcs)

(4pcs)

(26)

(3pcs)

(4pcs)

Details of Junction Box

(32)

(24)

(34)

31B

30B

Inch

60 2

Remark: Please pay attention to the parts which circled with broken line , you can

for details.

refer

to the following 3 pages

(2pcs)

Motor Lead

(Black)

Motor Lead

(Red)

(34)

Details of Wiring

39B

Motor Lead

(White)

Cord

(White)

(5pcs)

Cord

(Black)

Cord

(Green)

Fan Assy.

1 Parts Identification

FV-08/11VF2

Main Labels

(For Reference)

FAN

LISTED

E78414

Main Packing Materials

Fan body

58B

59B

1 Parts Identification

FV-08/11VF2

17AA

LR-03

LP-03

(39A)

Style A

(31A)

(30A)

VLR-03

VLP-03

(39B)

Style B

(31B)

(30B)

(32)

(24)

(34)

31B

30B

(32)

(24)

(34)

31A

30A

Details of Connector Cord Details of Connector Cord

Details of Junction Box Details of Junction Box

17AB

Parts For Version A

Installation Attachment

VLR-03

VLP-03

(39B)

(31B)

(30B)

Details of Connector Cord

(32)

(24)

(34)

31B

30B

17B

Details of Junction Box

Parts For Version B

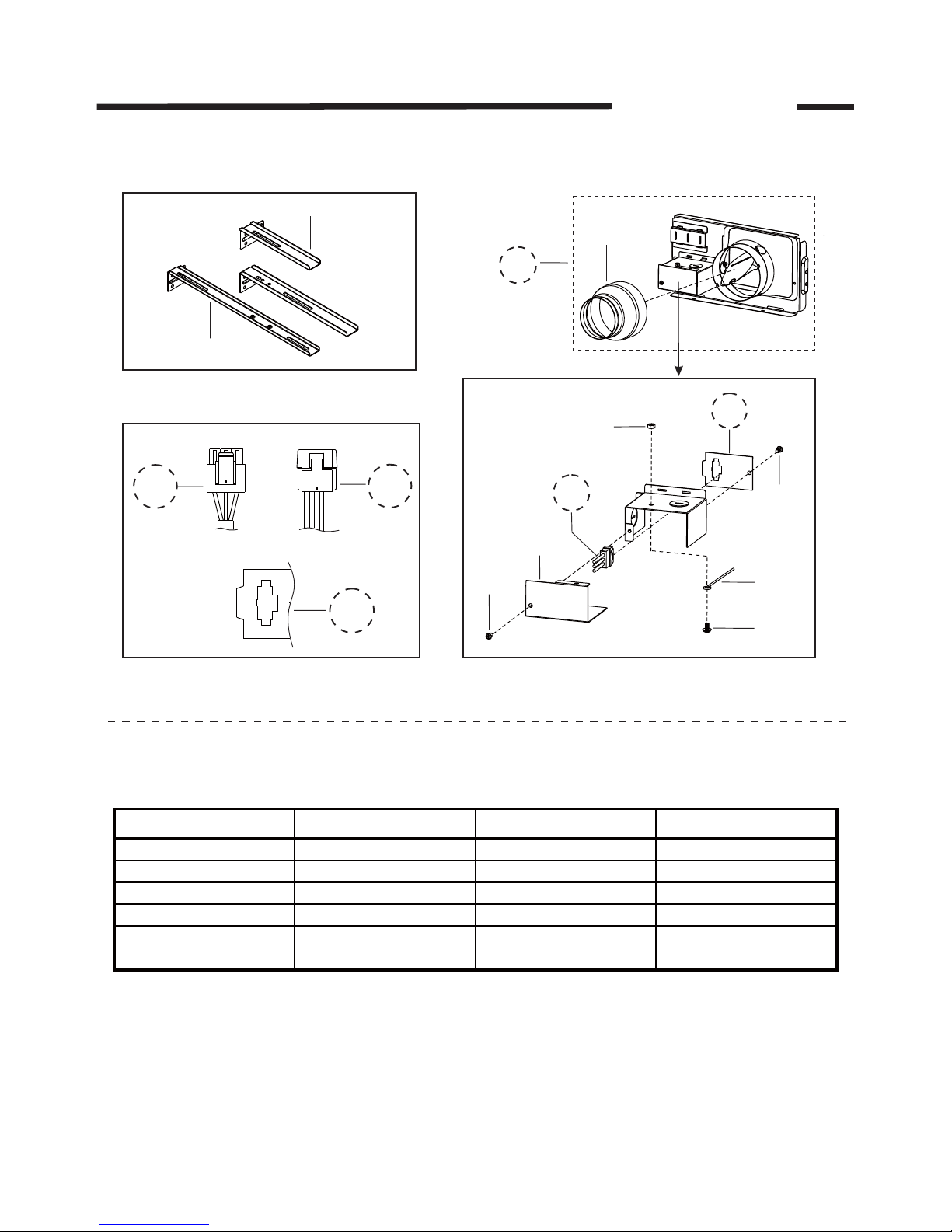

List For Parts Differentiation

1 Parts Identification

FV-08/11VF2

Remark: For your convenience, we list the differentiation parts above, when you need to

order these parts, please judge which version or style is adapt to your machine

first. Especially, if you need to order the Adapter Assy.,please refer to the

following 1 page for details.

Part name Style A of Version A Style B of Version A Version B

Cord 39A 39B 39B

Adapter Assy. 17AA 17AB 17B

Connector Plate 31A 31B 31B

Connector Assy. 30A 30B 30B

Installation Instruction

(English) 58A 58A 58B
