Panasonic KX-PW36CL Manuale utente

Facsimile with Cordless Phone

Quick Reference Guide

KX-PW36CL

KX-PW36CLW

Model No.

Table of Contents

Finding the controls ………………………………………………………2

Installations and connections …………………………………………4

Setting the date and time ………………………………………………6

Setting your facsimile telephone number …………………………6

Setting your logo …………………………………………………………7

Automatic dialing on the main unit …………………………………8

Automatic dialing on the portable handset ………………………9

Sending faxes ……………………………………………………………10

Receiving faxes …………………………………………………………11

Operating the built-in answering device …………………………13

Operating the hand scanner …………………………………………14

Individual e-mail services ……………………………………………16

Speciﬁcations…………………………………………………Back cover

Thank you for purchasing a Panasonic facsimile.

●This guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

●This product is designed for use in Japan only.

Use of this product in some other countries may violate local laws.

Panasonic does not provide service for this product if it is used in any foreign

country.

●Any details given in this guide are subject to change without notice.

KX-PW36CL has one portable handset.

KX-PW36CLW has two portable handsets.

Finding the controls

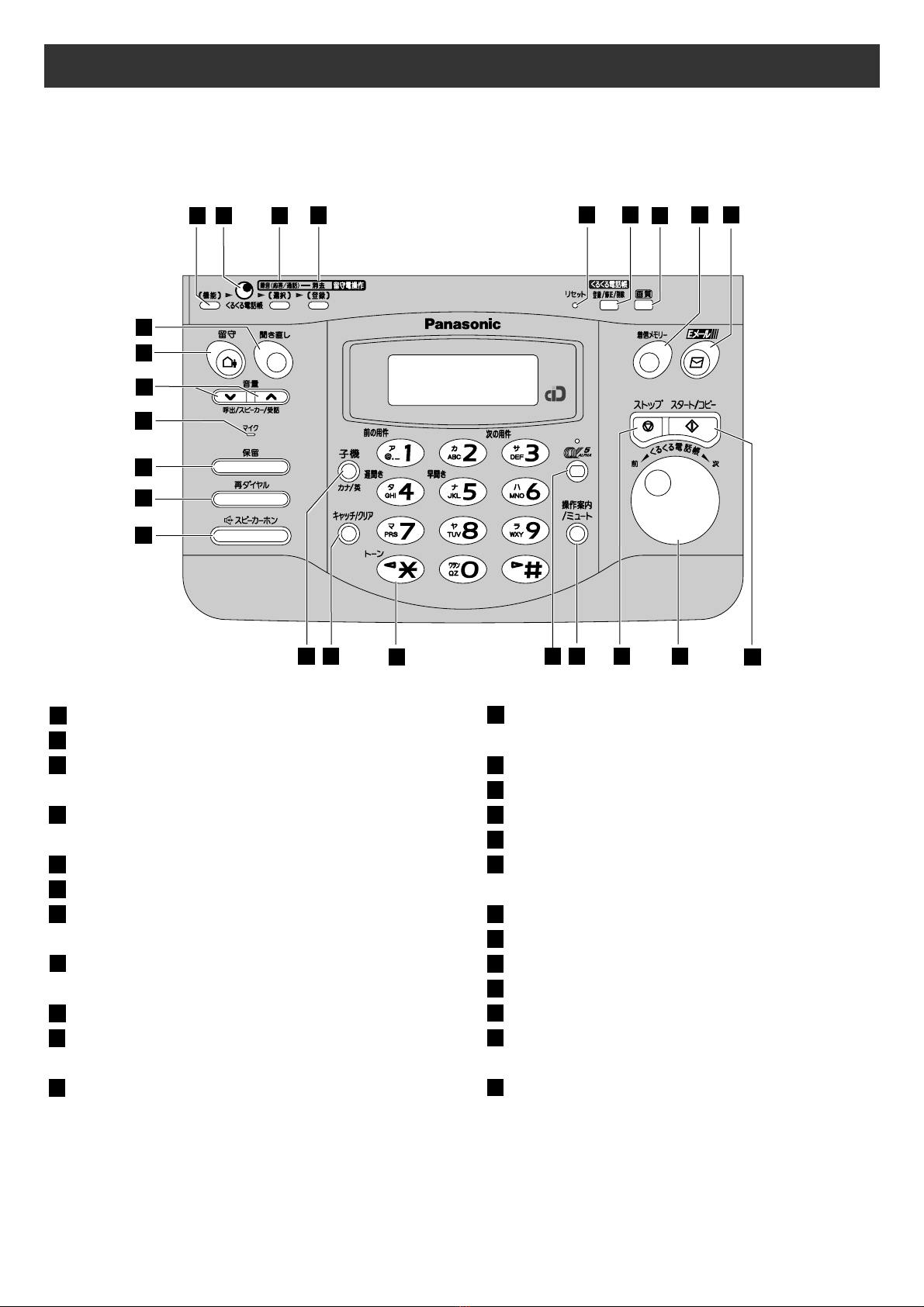

Main unit (control panel)

Function button initiates programming.

Indicates to rotate the search dial.

Select button selects feature settings.

Record button records greeting message.

Erase button erases a recorded message.

Reset key

Store/Edit/Delete button for search dial.

Resolution button selects the resolution

when faxing or copying.

Call memory button & indicator store the

caller ID of an incoming call.

E-mail button

Replay button listens to recorded

messages.

Auto answer button

—light on: answering device activated.

—light off: used as a telephone.

Volume buttons adjust ringer, speaker and

handset volume.

Microphone

Hold button

Redial/Pause button

Speakerphone button

Intercom button/Character input mode

button

Flash/Clear button

Tone button switches to tone dialing.

α-ALPHA5 button accesses α5 services.

Operation guide/Mute button

Stop button

Search dial searches in the directory or

displays programming features.

Start/Copy button starts faxing or copying.

1 2 3 47

2120

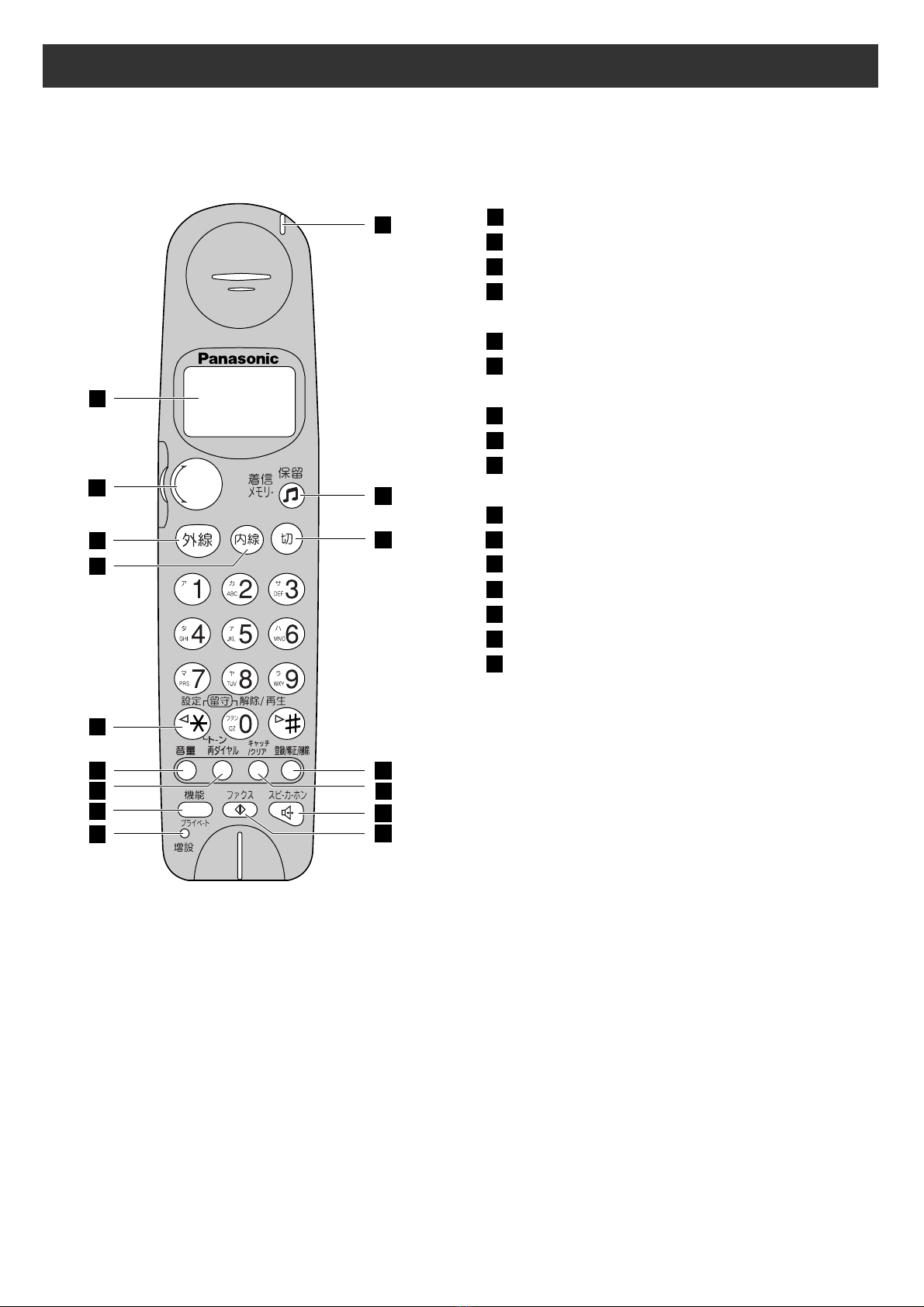

Portable handset

くるくる

電話帳

カナ/英

LC display with back light

Search dial searches in the directory.

Talk button

Intercom button/Character input mode

button

Tone button switches to tone dialing.

Volume button adjusts ringer, speaker and

portable handset volume.

Redial/Pause button

Function button initiates programming.

Additional portable handset installation

key

Call/Charge indicator

Hold button/Call memory indicator

Off button

Store/Edit/Delete button for search dial.

Flash/Clear button

Speakerphone button

Fax reception button

Finding the controls

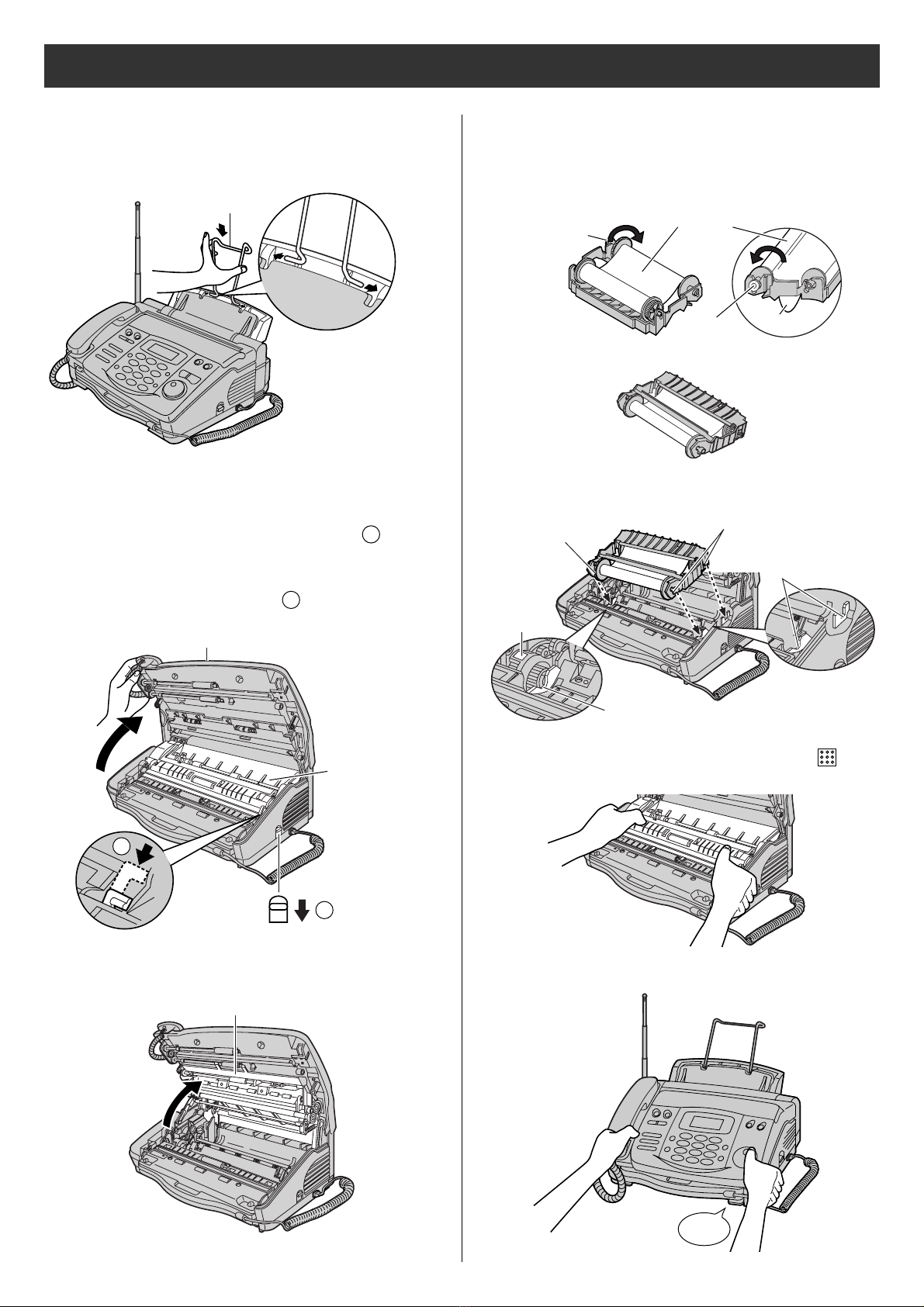

Installations and connections

2Open the inner cover.

Installing the recording paper

sub-tray

Recording paper

sub-tray

1Press down the control panel open lever ( ) and

pull up the control panel.

Press down the inner cover open lever (green) in the

direction shown by the arrow ( ).

Control panel

Inner cover

Installing the ﬁlm cassette 4Put the ﬁlm cassette into the main unit.

3Prepare the ﬁlm cassette.

●Remove the ﬁlm cassette from the protection bag.

●If there is any slack in the ink ﬁlm, tighten the ﬁlm

by rotating the gear.

Slack

Red gear

Ink film

Red label

Gear spindles

Red gear

Slots

Slot

●Turn over the ﬁlm cassette.

5Close the inner cover by pressing down the

parts ﬁrmly on both sides of the inner cover.

6Close the control panel by pressing down both sides.

Click

Connecting the main unit

1Extend the antenna and

raise it vertically.

3Charge the battery in the charger for 10 hours.

(電話回線へ)

回線

電話機



停電用

(電話回線へ)

回線

電話機

停電用

Click

Click Telephone

line jack

Power outlet

(AC 100 V)

Plug

Charger AC adaptor

Power outlet

(AC 100 V)

Black

Red Connector

Battery cover

Battery Click

Charge indicator

–lights red: while charging.

–lights green: charging completed.

Setting up the portable handset

●After your Panasonic

battery is fully

charged, it will last up

to about 7 hours of

conversation.

Installations and connections

2Fan the stack of paper and insert it into the recording

paper tray.

1Open the recording paper cover by pulling it toward

you.

Recording paper

cover

Printing side is

on the back.

Recording

paper tray

A4 size plain paper

(up to 30 sheets)

Installing plain paper

3Close the recording paper cover by leaning it back.

Recording

paper cover

Setting the date and time

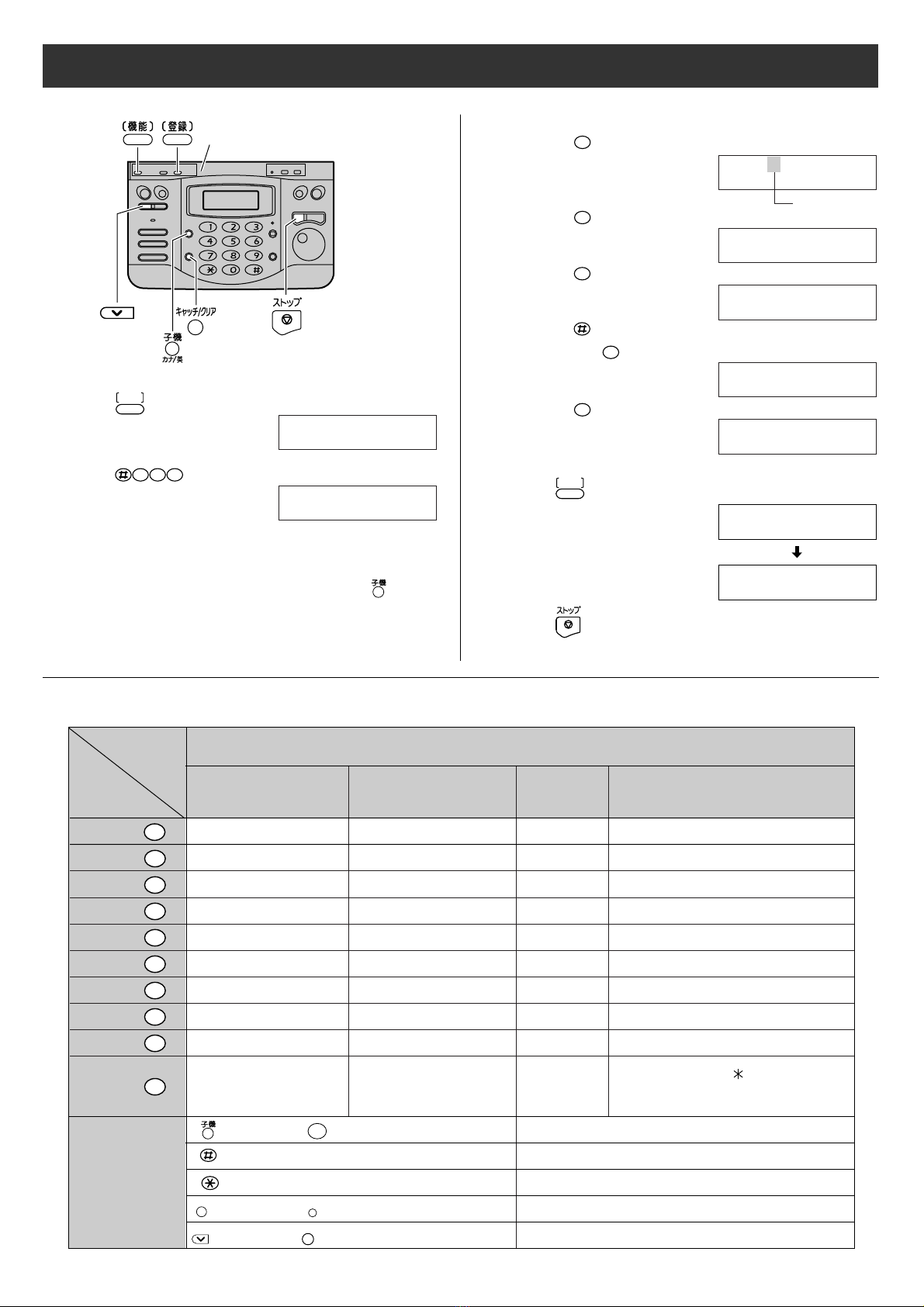

1Press (Function).

機能

1Press (Function).

機能

2Press .

001

3Enter the correct year/month/day.

Example: Sept. 10, 2000

Press

2 0 0 0 0 9 1 0

Under the document tray

ｷﾉｳﾄｳﾛｸ

モート゛

ｷﾉｳﾄｳﾛｸ

モート゛

Example :

Cursor

2000

年

月

日

[ﾄｳﾛｸ]

2Press .

004

Cursor

TEL

............

2000

年

月

日

[ﾄｳﾛｸ]

3Enter your facsimile telephone number, up to 20

digits.

Example: 098 765 4321

TEL

8 765 4321 .

4Press (Register).

登録

5Enter the correct hour/minute in a 24-hour clock

entry.

Example: 15:45 (3:45 PM)

Press

1 5 4 5

ｼﾞｺｸ

00：00

[ﾄｳﾛｸ]

4Press (Register).

登録

TEL

098 765 432

ﾄｳﾛｸｼﾏｼﾀ

ｼﾞｺｸ

15：45

[ﾄｳﾛｸ]

6Press (Register).

登録

7Press (Stop).

月

日

15：45

ﾖｳｹﾝﾛｸｵﾝ

ｹﾝ

5Press (Stop).

Setting your facsimile

telephone number

Under the document tray

The (Space) button

replaces the digit with a space.

2000

年

月

日

[ﾄｳﾛｸ]

ﾄｳﾛｸｼﾏｼﾀ

1Press (Function).

機能

2Press .

002

3Enter your logo, up to 30 characters, using the dial

keypad.

●To enter English characters easily, press

(Character input mode) repeatedly and select “英”

(English input mode).

●For details, see below.

ｷﾉｳﾄｳﾛｸ

モート゛

ﾅﾏｴ=

Under the document tray

Example: Micah

1. Press once.

2. Press six times.

3. Press six times.

4. Press to move the cursor to the next space

and press four times.

5. Press ﬁve times

Cursor

ﾅﾏｴ=

Mic

ﾅﾏｴ=

Mica

ﾅﾏｴ=

Micah

4Press (Register).

登録

ﾅﾏｴ=

Micah

ﾄｳﾛｸｼﾏｼﾀ

5Press (Stop).

Character input and command key table

QZq zワヲン゛°

Ò英ÓEnglishÒカナÓ Katakana

アイウエオァィゥェォ

DEFdef

GHI gh i

JKL j k l

MNOmn o

PRSp r s

TUVtuv

WX Y w x y

カキクケコ

サシスセソ

タチツテトッ

ナニヌネノ

ハヒフヘホ

マミムメモ

ヤユヨャュョ

ラリルレロ

Numbers

@. ｰ ＄%&=〜^

(),¥;:・#/［］

｛｝

｜?!〈〉「」

Symbols

ABCabc

Pressing the dial keys will select a character as shown below.

Setting your logo

Character

Dial key

(Main unit), (Portable handset)

内線

Used to change the character input mode.

(Both main unit and portable handset) Used to move the cursor to the right.

(Both main unit and portable handset) Used to move the cursor to the left.

(Main unit), (Portable handset)

キャッチ

/クリア

キャッチ/クリア

Used to delete a character.

(Main unit), (Portable handset)

音量

Used to insert a space.

Command keys

Automatic dialing on the main unit

1Press (Store).

●“XX” shows the remaining

station numbers you can

store.

●You can program up to 99

stations, including the pre-

programmed items.

1Rotate the (Search dial) until the desired name

is displayed.

くるくる電話帳

2Enter the name, up to 12 characters (see the table on

page 7 for instructions).

3Press (Store).

くるくる電話帳

2Lift the handset or press (Speakerphone).

4Enter the telephone number, up to 30 digits.

●To correct a mistake, press (Clear).

キャッチ/クリア

5Press (Store).

●To store a second or third number, repeat steps

4–5.

6Press (Store).

7If necessary, enter the group number (1–4).

くるくる電話帳

Storing names and telephone

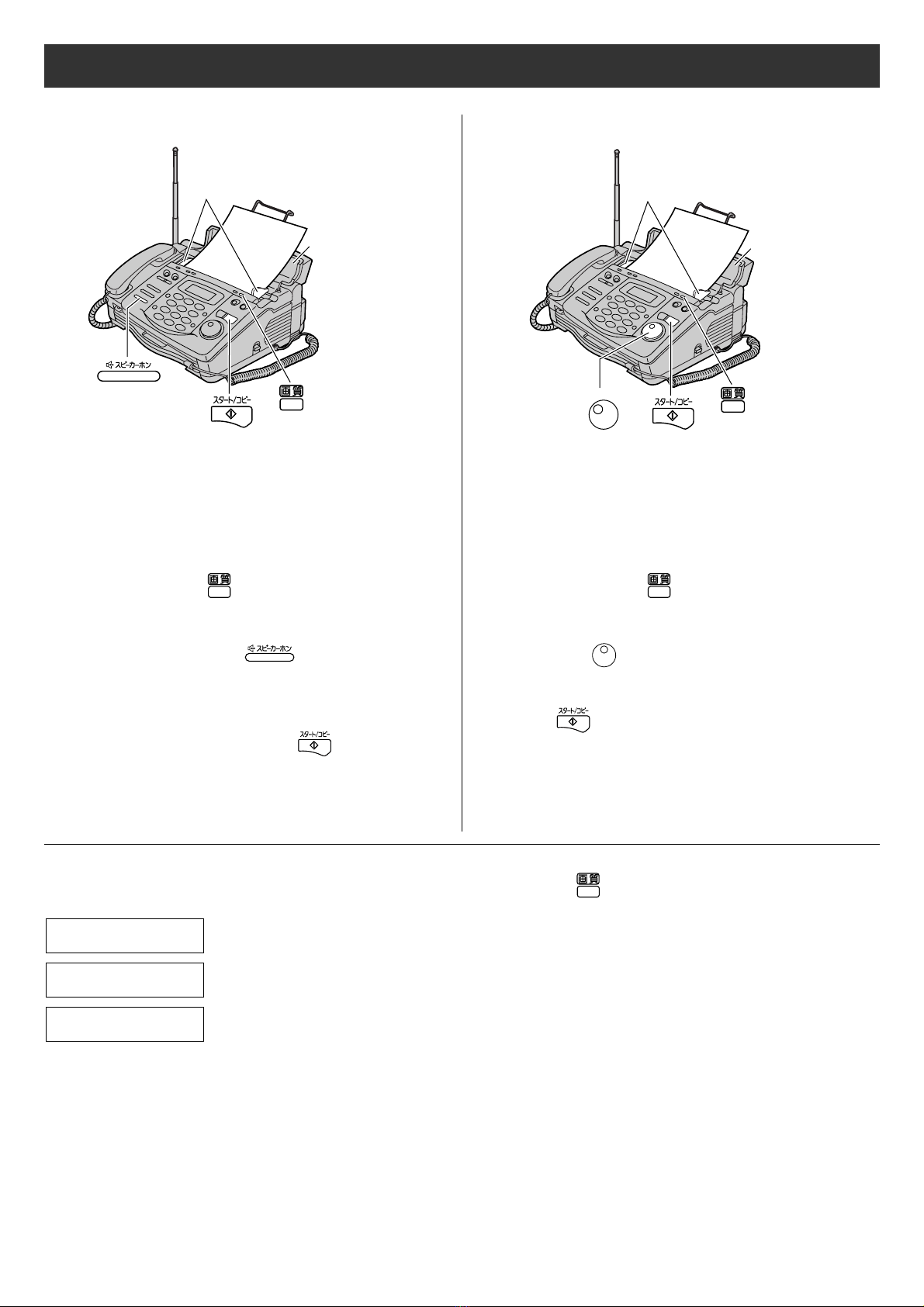

numbers in the search dial Making a voice call using the

search dial

ﾅﾏｴ=

ﾃﾞﾝﾜﾁｮｳｱｷ

ｹﾝ

8Press (Store).

●To program other items, repeat steps 2–8.

9Press (Stop) to exit the program.

Editing a stored name or number

1Rotate the (Search dial) until the desired name

is displayed.

くるくる電話帳

2Press (Edit).

3Press .

●If you do not need to edit the name, skip to step 5.

4Edit the name (see the table on page 7 for

instructions).

5Press (Store).

●If you do not need to edit the telephone number,

skip to step 7.

6Enter the correct telephone number.

7Press (Store).

●If you want to edit the second or third telephone

number, repeat steps 6–7.

8Press (Store) repeatedly until the following is

displayed.

●If you do not need to

change the group number,

skip to step 10.

Example :

ｸﾞﾙｰﾌﾟ=1

[

ｰ

､ﾄｳﾛｸ]

9If necessary, enter the correct group number.

10Press (Store).

Automatic dialing on the portable handset

1Press (Store).

●“XX” shows the remaining

station numbers you can store.

●You can program up to 99

stations, including the pre-

programmed items.

登録/修正/削除

1Rotate the (Search dial) until the desired name

is displayed.

くるくる

電話帳

2Enter the name, up to 12 characters (see the table on

page 7 for instructions).

3Press (Store).

登録/修正/削除

キャッチ

/クリア

登録/修正/削除

くるくる

電話帳

切

2Press (Talk) or press (Speakerphone).

スピーカーホン

外線

4Enter the telephone number, up to 30 digits.

●To correct a mistake, press (Clear).

キャッチ

/クリア

5Press (Store).

●To store a second or third number, repeat steps

4–5.

登録/修正/削除

6Press (Store).

登録/修正/削除

7If necessary, enter the group number (1–4).

外線

くるくる

電話帳

スピーカーホン

Storing names and telephone

numbers in the search dial Making a voice call using the

search dial

ﾃﾞﾝﾜﾁｮｳﾄｳﾛｸ

ｱｷ

××

ｹﾝ

ﾅﾏｴ

？

8Press (Store).

●To program other items, repeat steps 2–8.

登録/修正/削除

9Press (Off) to exit the program.

切

Editing a stored name or number

1Rotate the (Search dial) until the desired name

is displayed.

くるくる

電話帳

2Press (Edit).

登録/修正/削除

3Press .

●If you do not need to edit the name, skip to step 5.

4Edit the name (see the table on page 7 for

instructions).

5Press (Store).

●If you do not need to edit the telephone number,

skip to step 7.

登録/修正/削除

6Enter the correct telephone number.

8Press (Store) repeatedly until the following is

displayed.

●If you do not need to change

the group number, skip to

step 10.

登録/修正/削除

Example :

ｸﾞﾙｰﾌ

ﾟ=1

ｰ

ﾃﾞｾﾝﾀｸ

ﾄｳﾛｸﾃﾞｾｯﾃｲ

9If necessary, enter the correct group number.

10Press (Store).

登録/修正/削除

7Press (Store).

●If you want to edit the second or third telephone

number, repeat steps 6–7.

登録/修正/削除

Sending faxes

1Open the document tray, and adjust the width of the

document guides to the size of the document.

2Insert the document (up to 5 pages) FACE DOWN

until a single beep is heard.

3If necessary, press (Resolution) repeatedly to

select the desired setting (see below).

Document guides

FACE DOWN

Document tray

4Lift the handset or press (Speakerphone).

5Dial the fax number.

6When a fax tone is heard, press (Start).

7Replace the handset if you are using it.

●The unit will start fax transmission.

Document guides

FACE DOWN

Document tray

くるくる電話帳

Sending a fax manually Sending a fax using the search

dial

1Open the document tray, and adjust the width of the

document guides to the size of the document.

2Insert the document (up to 5 pages) FACE DOWN

until a single beep is heard.

3If necessary, press (Resolution) repeatedly to

select the desired setting (see below).

4Rotate the (Search dial) until the desired name

is displayed.

くるくる電話帳

5Press (Start).

●The unit will start fax transmission.

To select the resolution

Select the desired resolution according to the type of document, by pressing (Resolution).

(Standard) for printed or typewritten originals with normal-sized characters.

(Fine) for originals with minute printing.

(Photo) for originals containing photographs.

ｶﾞｼﾂ

ｼｬｼﾝ

ｶﾞｼﾂ

ﾁｲｻｲ

ｶﾞｼﾂ

ﾌﾂｳ

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Fax

Panasonic

Panasonic KX-PW603DL Manuale utente

Panasonic

Panasonic Panafax UF-160 Manuale utente

Panasonic

Panasonic KX-PW92CW Manuale utente

Panasonic

Panasonic Panafax DX-800 Istruzioni di installazione e manutenzione

Panasonic

Panasonic KX-PD582DLE9 Manuale utente

Panasonic

Panasonic KX-FL611AL Manuale utente

Panasonic

Panasonic KX-FPC141 Manuale utente

Panasonic

Panasonic DX 1000 - PanaFax B/W Laser Printer Manuale utente

Panasonic

Panasonic KX-PW12CL, KX-PW12CLW, KX-PW22 Manuale utente

Panasonic

Panasonic KX-FC225NZ Manuale utente

Panasonic

Panasonic KX-F590 Manuale utente

Panasonic

Panasonic KX-F5000 Manuale utente

Panasonic

Panasonic KX-F580BR Manuale utente

Panasonic

Panasonic KX-FLM653HK Manuale utente

Panasonic

Panasonic KX-PW55CL Manuale utente

Panasonic

Panasonic KX-PD301DL Manuale utente

Panasonic

Panasonic Panafax UF-150 Istruzioni operative

Panasonic

Panasonic KX-FG6550 Manuale utente

Panasonic

Panasonic KX-FLB851 - All-in-One Flatbed Laser Fax Manuale utente

Panasonic

Panasonic KX-F390 Manuale utente

Panasonic

Panasonic KX-FM131CX Manuale utente

Panasonic

Panasonic KX-FT33NZ Manuale utente

Panasonic

Panasonic KX-FP152 Manuale utente

Panasonic

Panasonic KX-PW601DL Manuale utente

Manuali Fax popolari di altre marche

Samsung

Samsung SF-515 Manuale utente

Radio Shack

Radio Shack TFX-1031 Manuale utente

imagistics

imagistics 2030 Manuale

Furuno

Furuno FAX-30 Manuale utente

Savin

Savin 3740 Manuale

Sharp

Sharp FO-51 Manuale utente

Muratec

Muratec MFX-C3035 Manuale utente

Canon

Canon FAX-L400 Manuale utente

Ricoh

Ricoh 1000L Guida rapida

Sharp

Sharp FO-3150 Manuale utente

Kyocera

Kyocera KM-F1060 Manuale utente

Sharp

Sharp FO-2970M Manuale utente

Canon

Canon JX510P Manuale utente

Mita

Mita LDC-870 Manuale

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Manuale utente

Samsung

Samsung FX100 Manuale

Sharp

Sharp MX-FXX1 Manuale utente

Develop

Develop ineo 25e Manuale utente
