Split System Submittal Data

Indoor: CS-E18NKU

Outdoor: CU-E18NKUA

Wall Mounted Heat Pump

Job Name: Approval:

Location: Date:

Engineer: Construction:

Submitted to: Unit #:

Submitted by: Drawing #:

Reference:

Power

/PH/Hz 230/208/1/60 Refrigerant

Circuit Ampacity (A) 20 Lbs. - R410a (outdoor unit)

Fuse Size, Max. (A) 20 Control

Connection

Compressor DC Rotary Inverter Line Length, Max (ft.)

No. used 1 Lift Difference, Max (ft.)

Output Power (W) Line Size (in. O.D. Discharge) 1/4"

Line Size (in. O.D. Suction) 1/2"

Outdoor Unit

Fan type Propeller Dimensions (in.) Height Width Depth

Motor Type DC Motor ( 8 poles ) Indoor Unit (Uncrated) 11-7/16" 42-5/32" 9-9/32"

Output Power (W) (Crated)

Airflow CFM Outdoor Unit (Uncrated) 31-5/16" 34-15/32" 12-5/8"

Coil Type Aluminum ( Blue Coated ) (Crated)

Fin Type - Pipe Type Corrugated Fin

Rows - F.P.I Weight Indoor Outdoor

Face Area (sq.ft) Net (lbs.) 26 115

Shipping (lbs.)

Indoor Unit

Fan type Cross Flow

No. Speeds 5 Cooling

RPM (High) Total Capacity (BTU/H)

Motor Output (W) SEER 18

CFM (Hi / Med / Lo) Dehumidification (Pints/H)

Indoor Sound Rating (Hi) (dB-A) Amps (A) Indoor / 5.95 Outdoor / 6.60

Coil Type Aluminum Fin & Copper Tube Power Inputs (W) 1300

Fin Type - Pipe Type Slit Plate - Inner Rifled Outdoor Sound Rating (dB-A)

Rows - F.P.I

Face Area (sq.ft) Heating

Drain Connection Size (in.) Total Capacity (BTU/H)

HSPF 8.5

Features Amps (A) Indoor / 7.20 Outdoor / 8.0

Wireless Remote Controller Standard Power Inputs (W) 1600

Wired Remote Controller ( CZ-RD516C ) Optional Outdoor Sound Rating (dB-A)

Controls Microprocessor

Remote Controller LCD Wireless Type, Temp, Sensor Built In Operating Range

Temperature Control IC Thermostat Indoor Air Intake Temp. Outdoor Air Intake Temp.

Air Louver (Horizontal) Manual Cooling Maximum 90F DB/74F WB 115F DB

(Vertical) Automatic Minimum 60F DB/52F WB 0F DB

Power Failure Automatic Restart Built-In Heating Maximum 86F DB/-F WB 75F DB/ 64F WB

Self-Diagnosis Built-In Minimum 60F DB/-F WB 5F DB/-F WB

Air Filter Washable, Anti-Mold

17100

Performance Data @ ARI Standard Conditions (230/208V)

100

R410A

Electronic Expansion Valve

Flare

20400

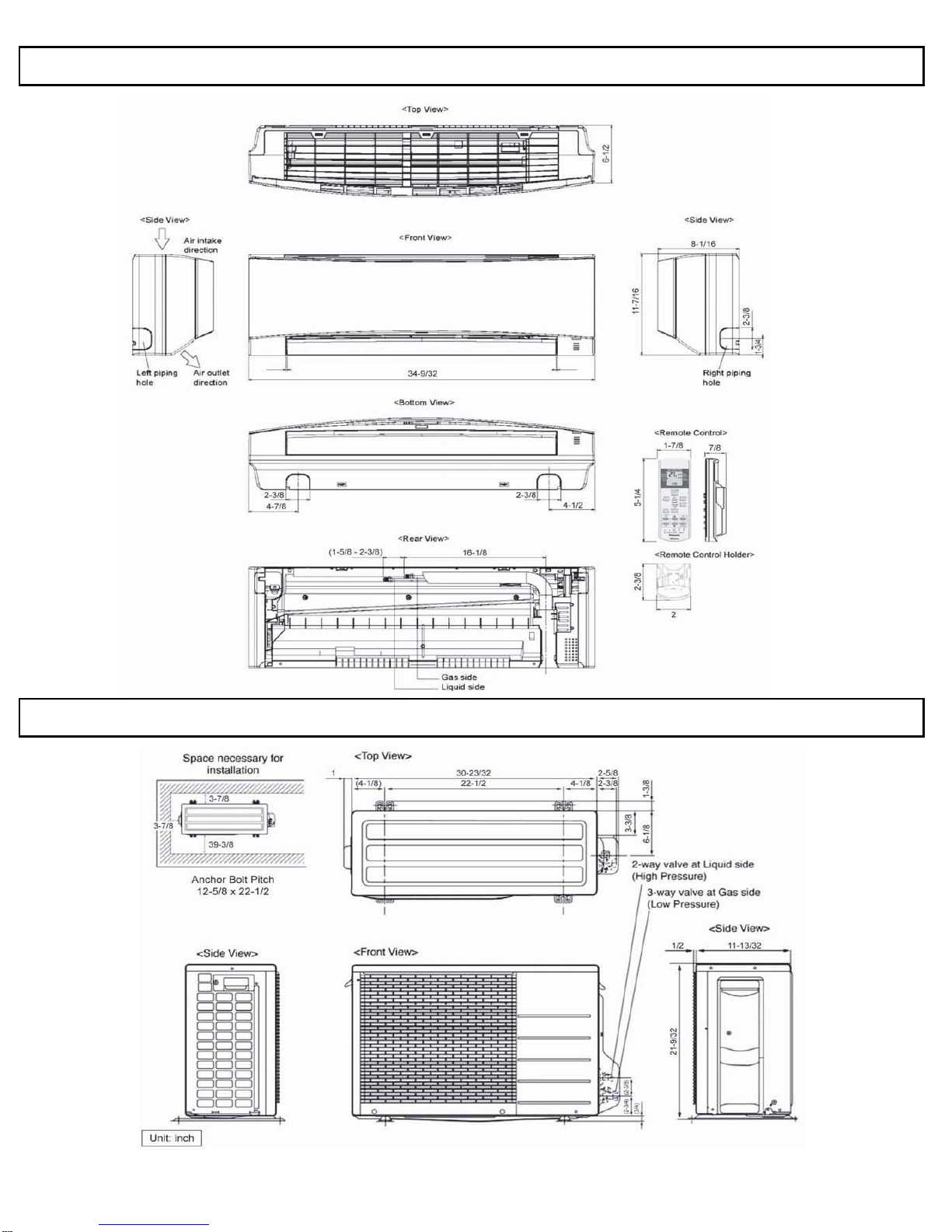

Outdoor Dimensions

Indoor Dimensions
